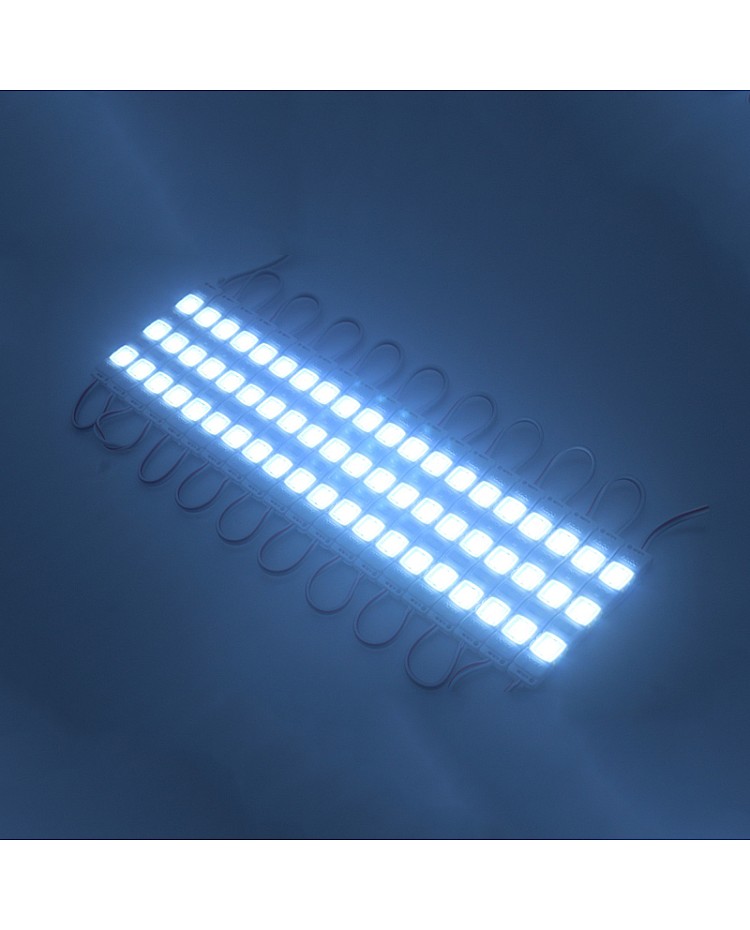

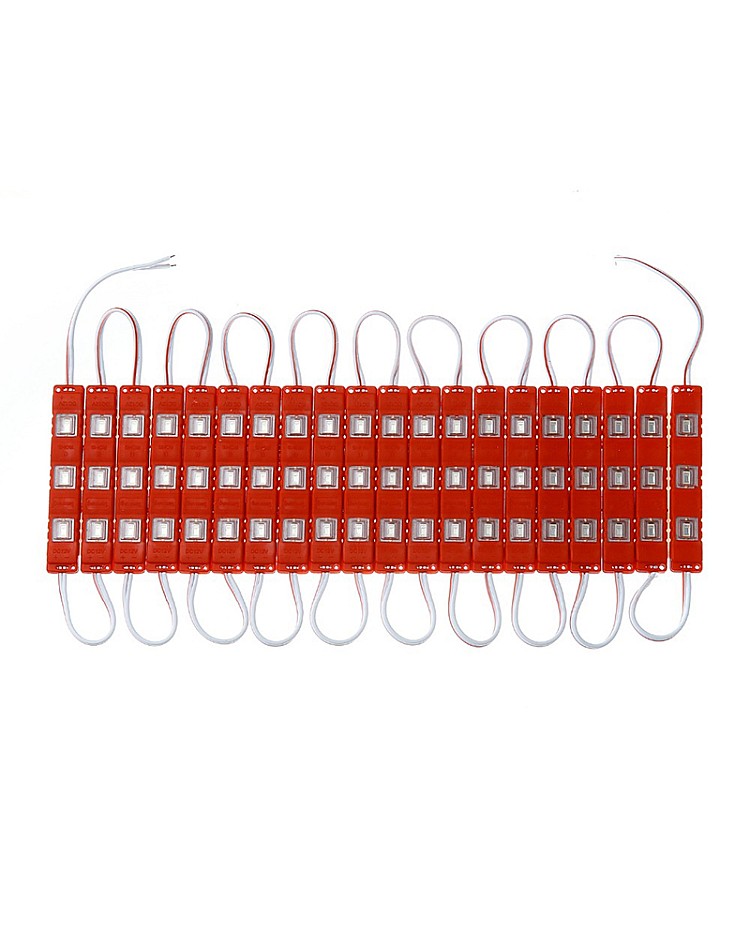

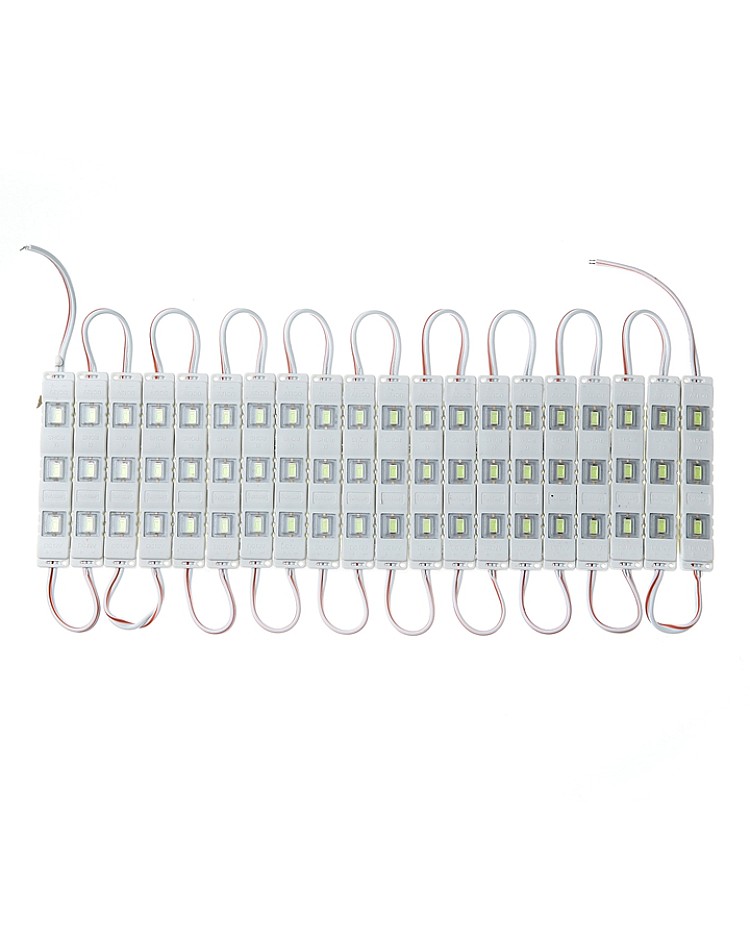

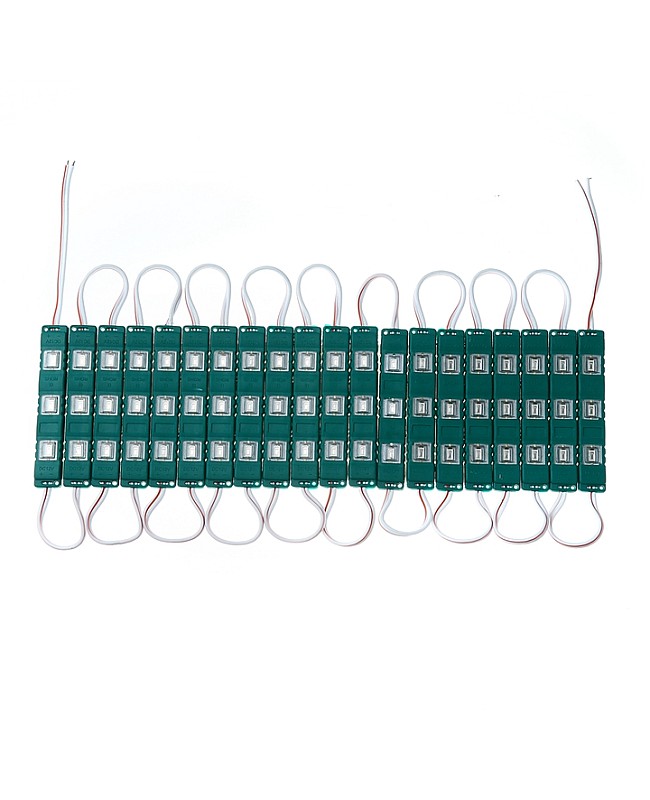

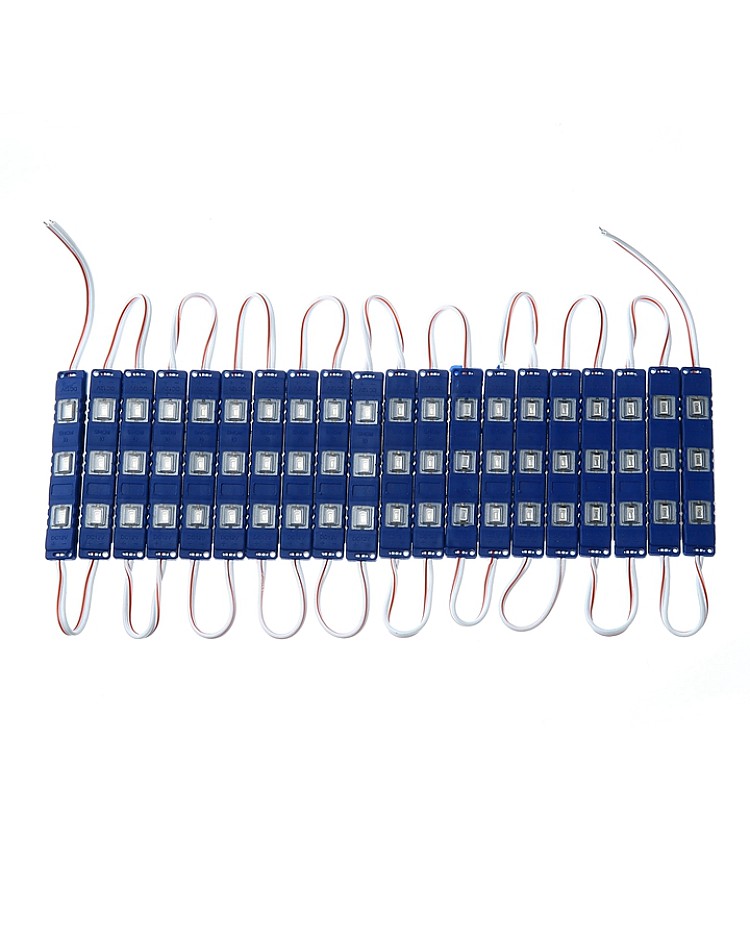

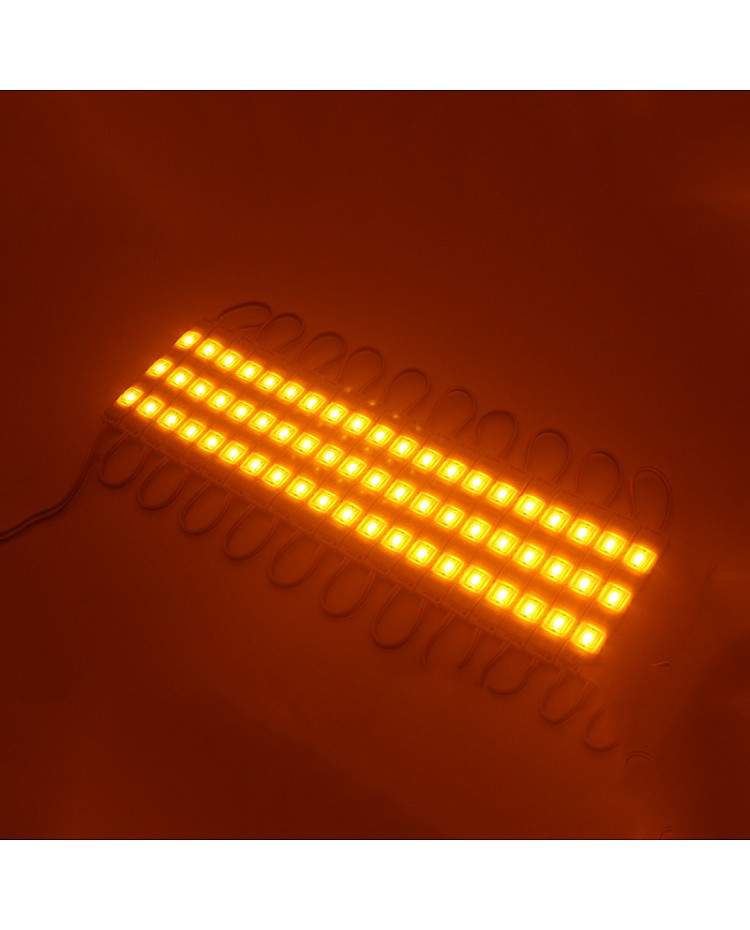

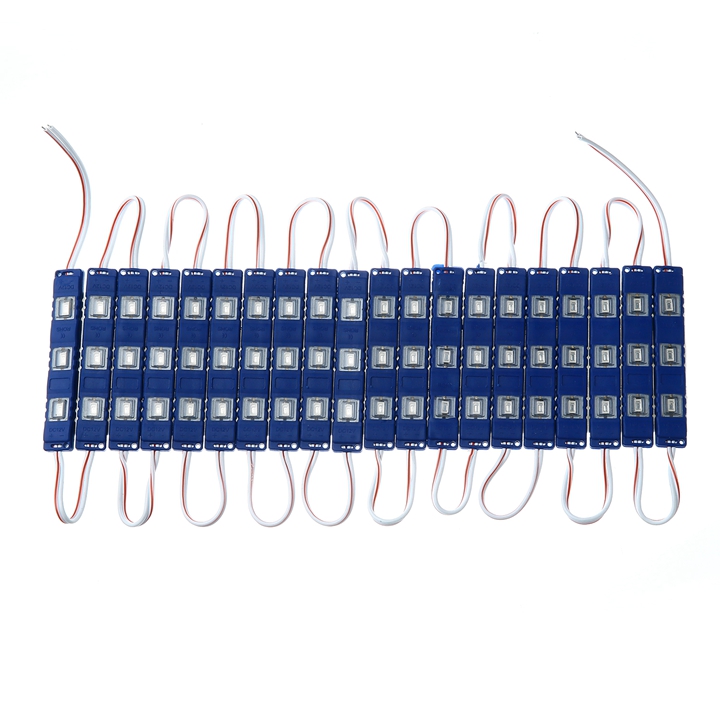

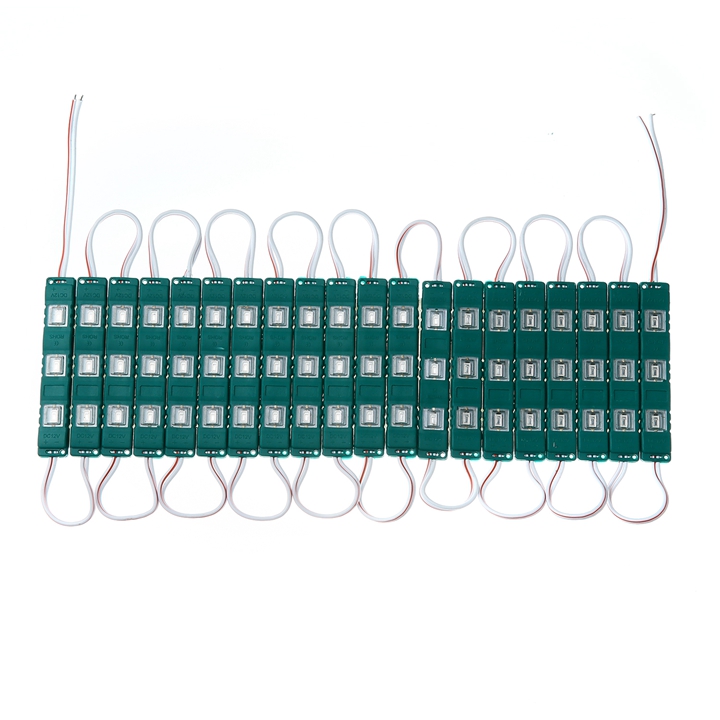

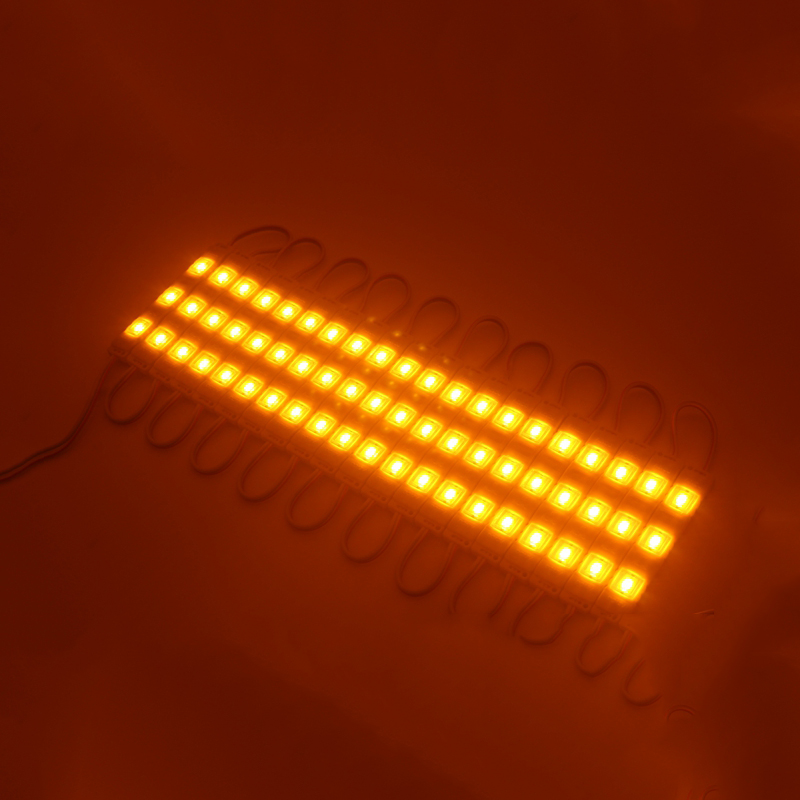

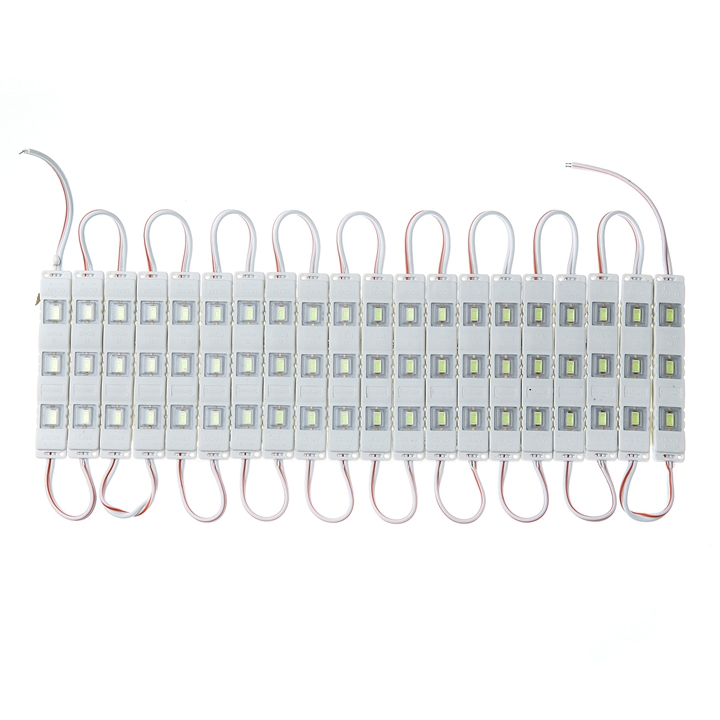

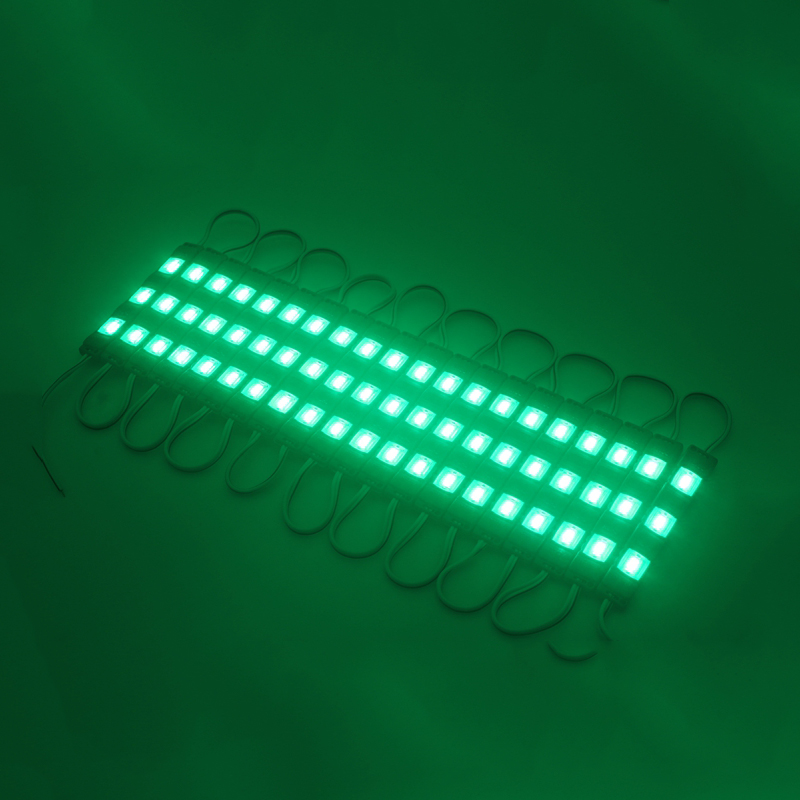

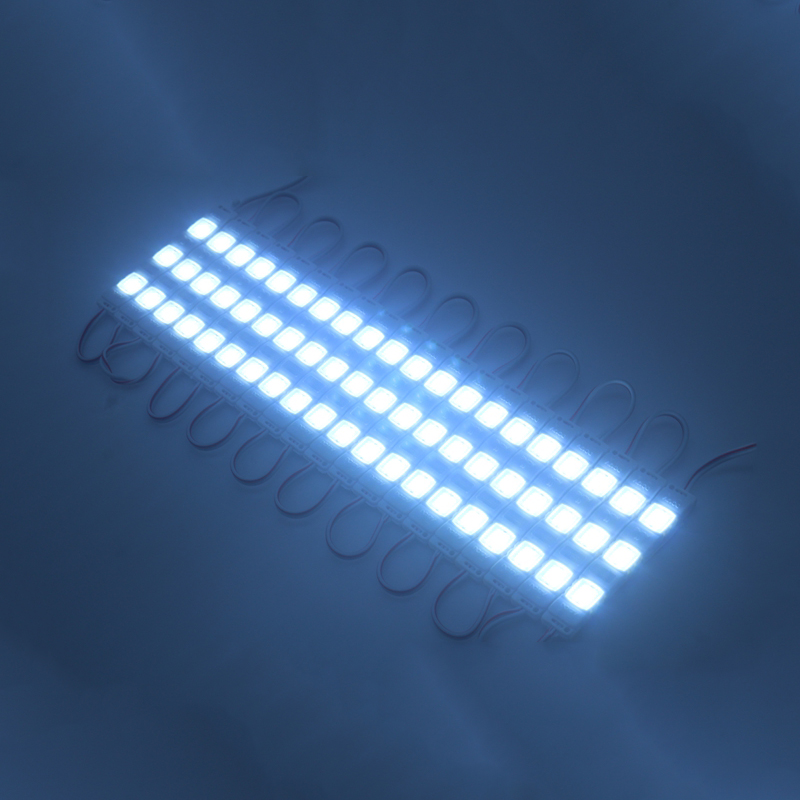

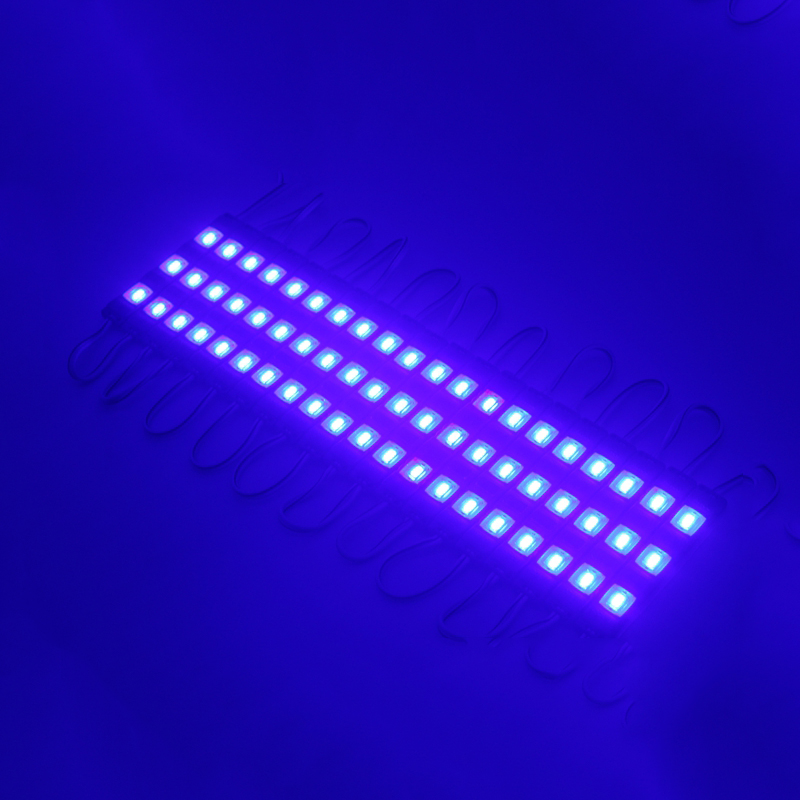

Check the 12V LED Modules, 20PCS per string, cuttable and reconnectable, and you can cut any quantity and reconnect them for your lighting projects. The 12VDC LED Modules use 3PCS high-quality and super bright 5730 SMD LEDs as the light source, and the LEDs are mounted on a high-quality aluminum board for better heat dissipation. The shell is made of ABS material, and with a molding injection process, the surface with optical lens for wide-angle lighting. The IP rating is IP65 and can be used for indoor and outdoor lighting projects. The back with double-sided adhesive tape; remove the protector on the tape, and you can stick it to the place you want. The Waterproof LED Modules working on 12VDC can connect to the DC Adapters to light up or connect to the LED Module Dimmer to adjust the brightness. You can use it as the backlight for advertisement signs, billboards, channel letters, holiday decorations, etc.
Features:
- Model: TY-5730-LM003
- Working Temperature: -40°-+60°
- Material: ABS Anti-Static
- Size: 75*12*5.7mm(L*W*H)
- LED: 5730 SMD LEDs
- LED QTY: 3PCS/PC
- Working voltage: DC12V
- Wattage: 0.72W/PC

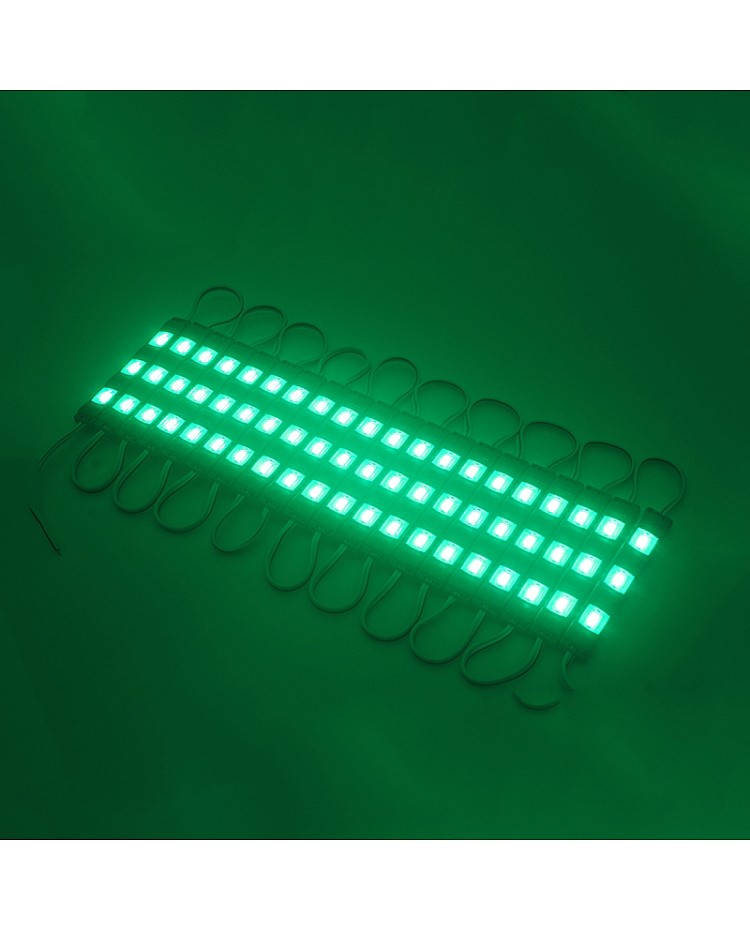

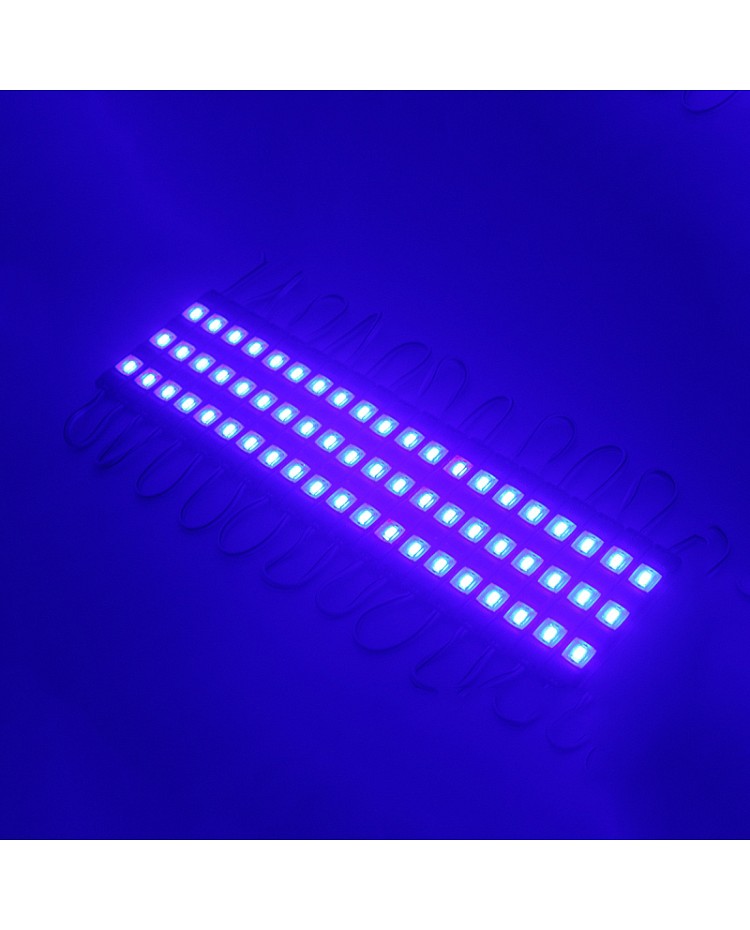

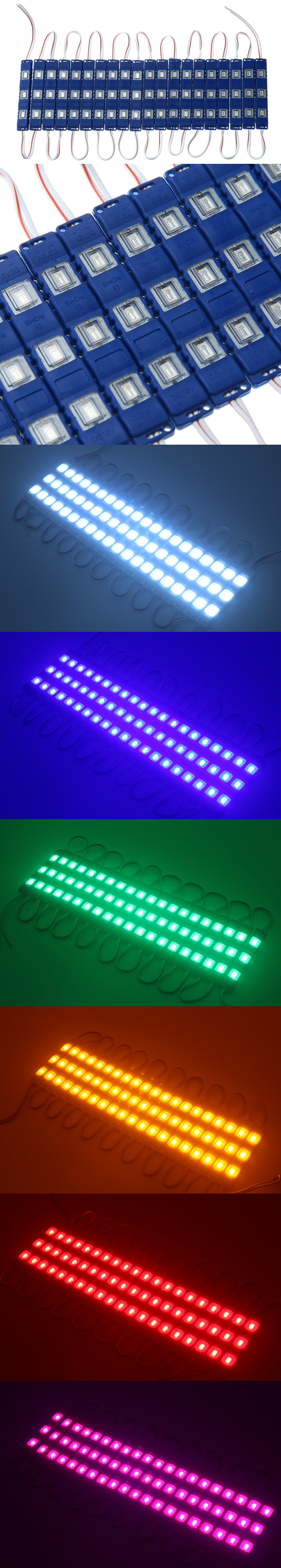

- Colors: Cool White, Warm White, Green, Blue, Red, Yellow, Pink
- IP Rating: IP65
- View angle: 120°
- Lumen: 240-400lm
- Color Rendering Index: 70Ra
- Optical Attenuation: 1%
- 20PCS Per String

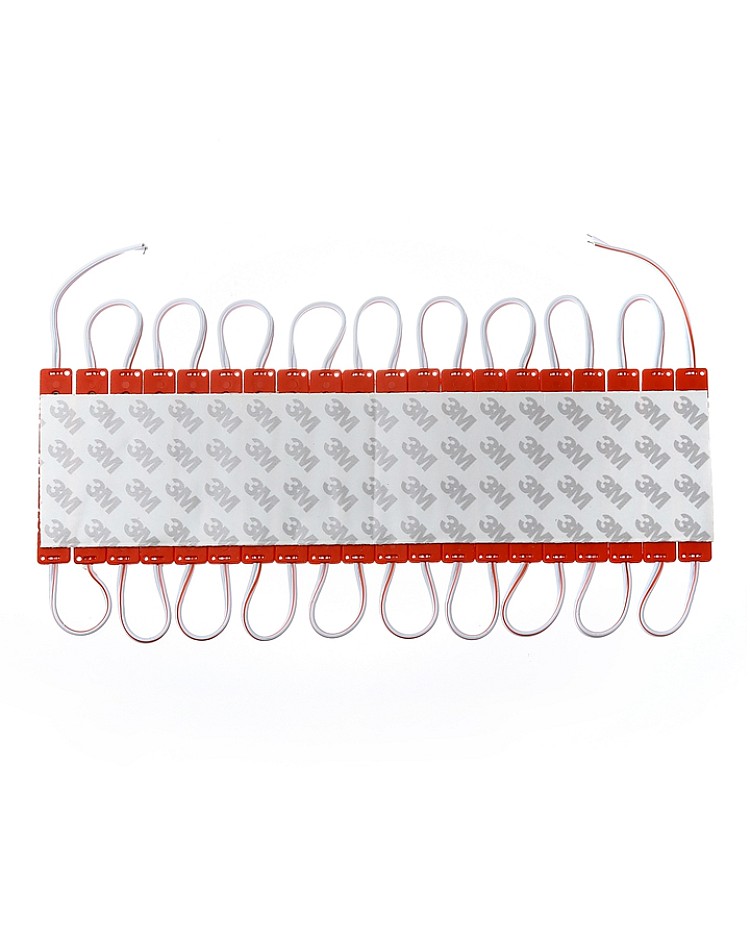

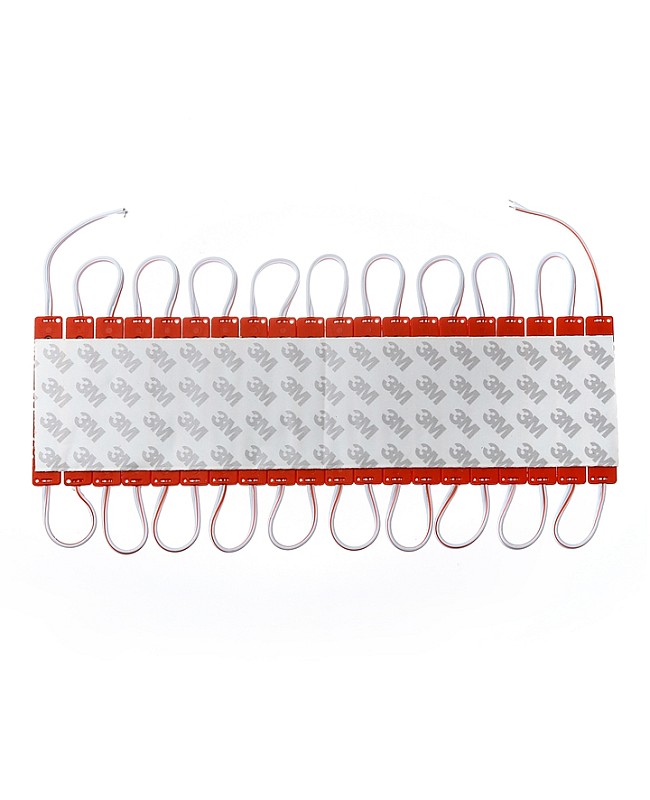

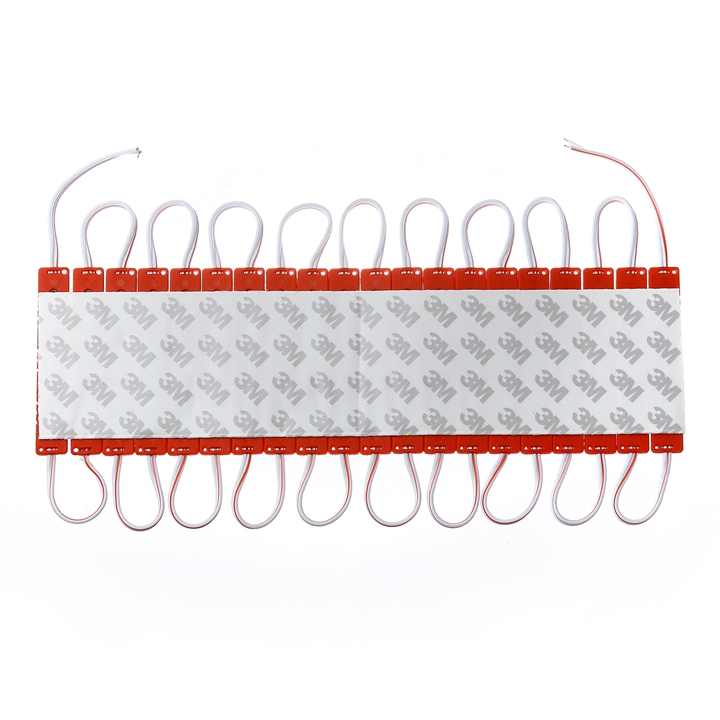

- Back With Double Sided Adhesive Tape
- Cuttable And Reconnectable
- Lifespan: >35,000 Hours
- 2 Years Warranty
Applications:
Outdoor/Indoor Use, Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holidays, events, shows, exhibitions
Package:
1*5730 12V LED Module(20PCS/String)
