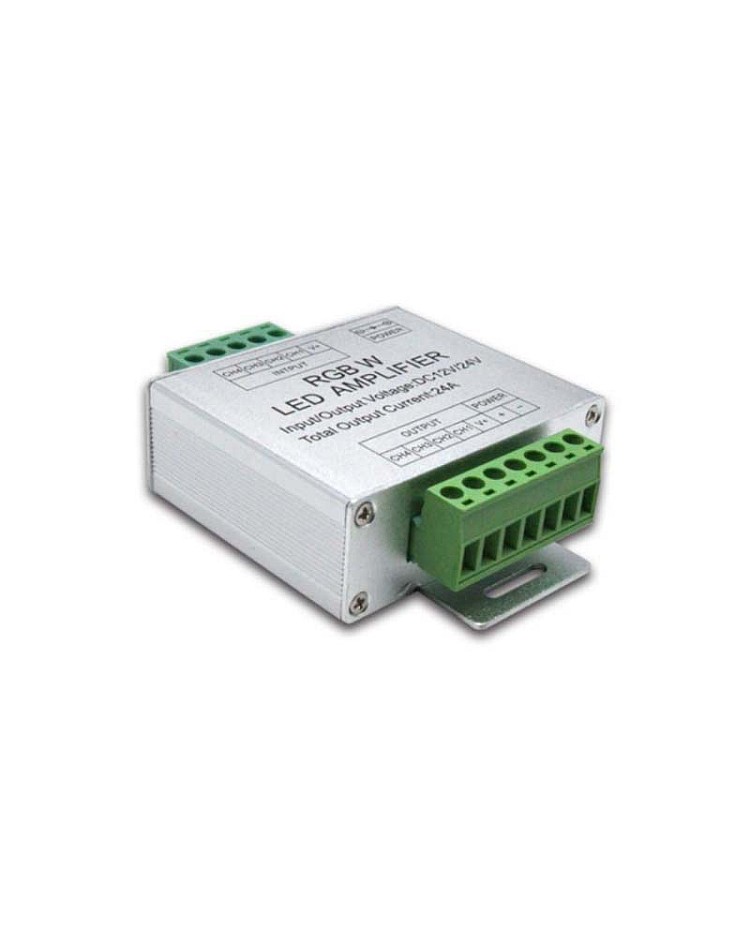

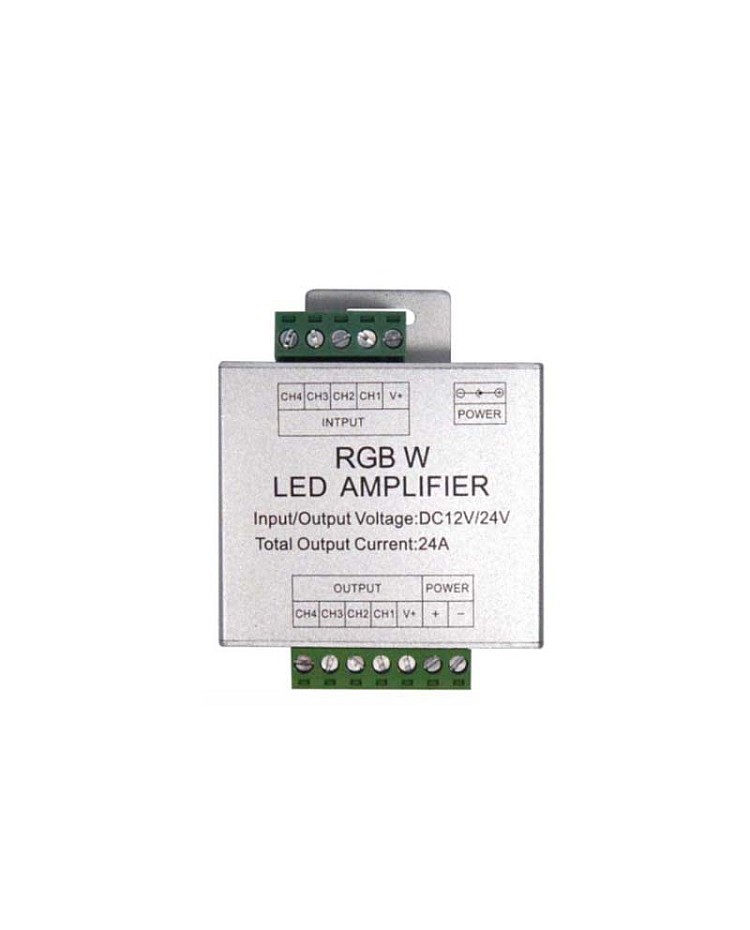

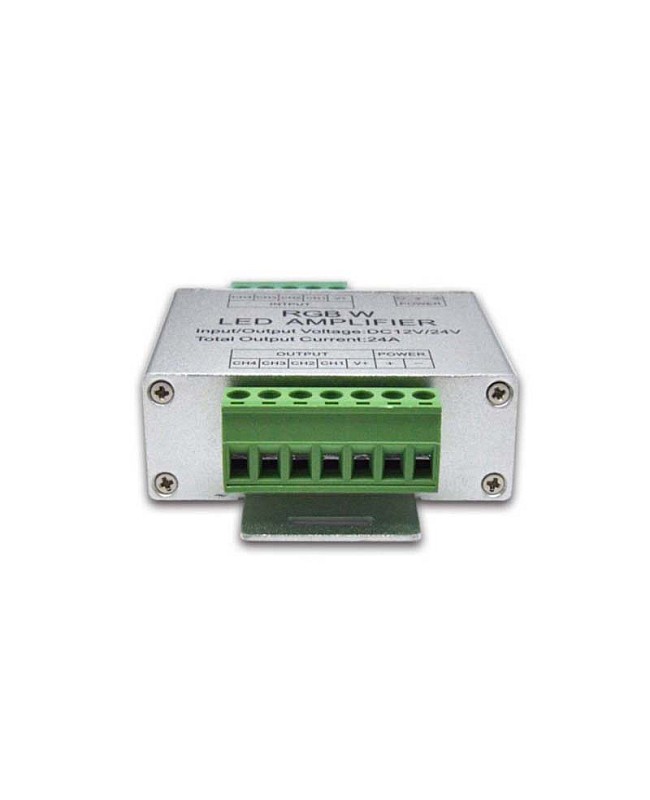

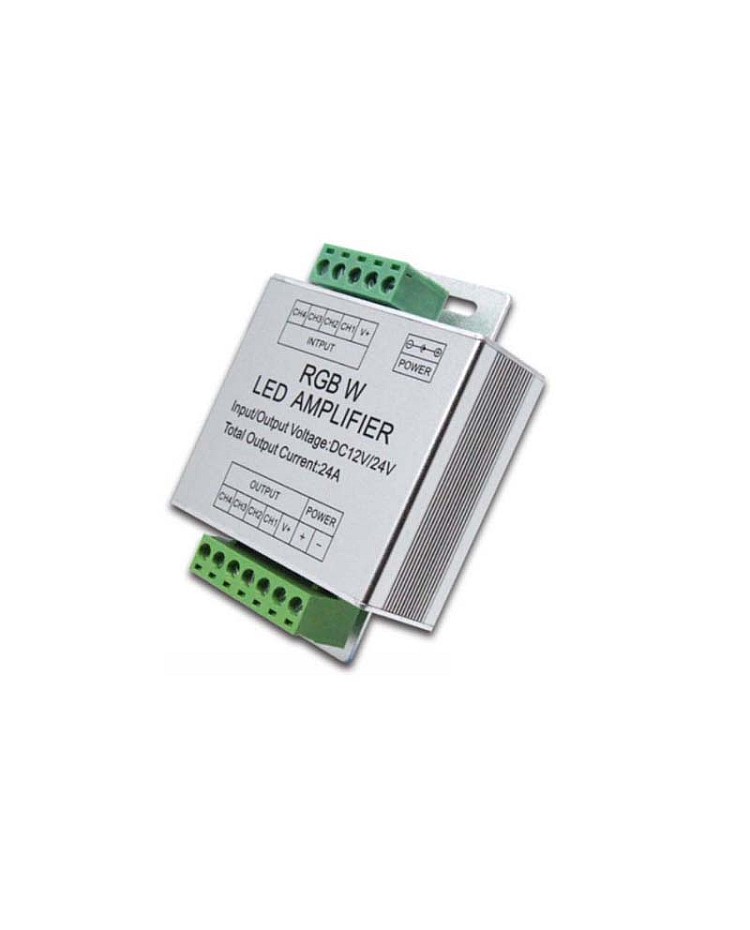

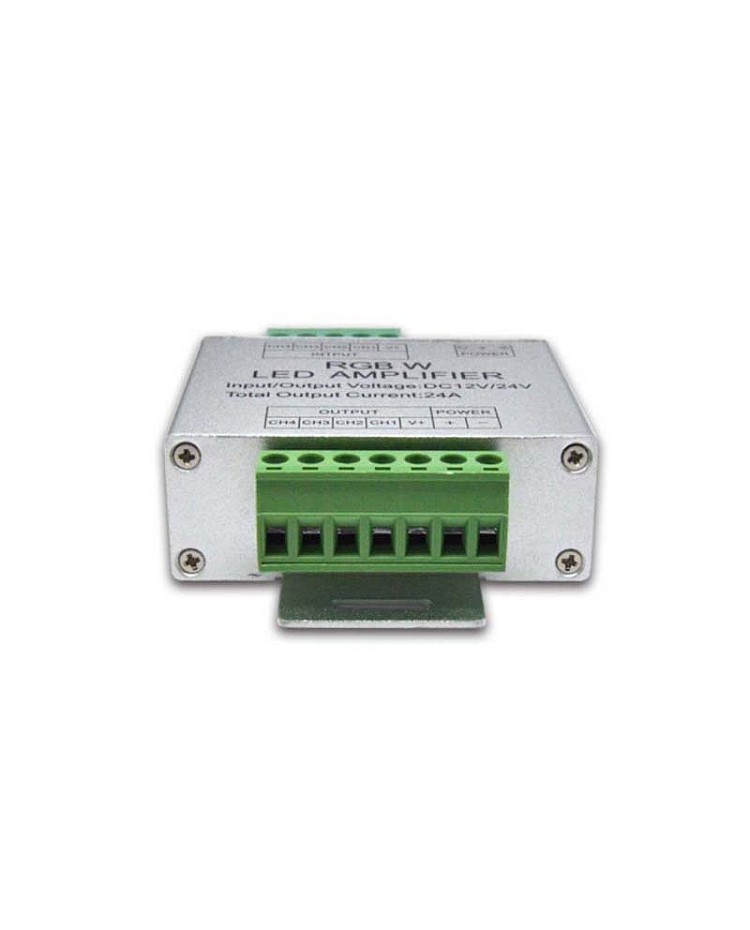

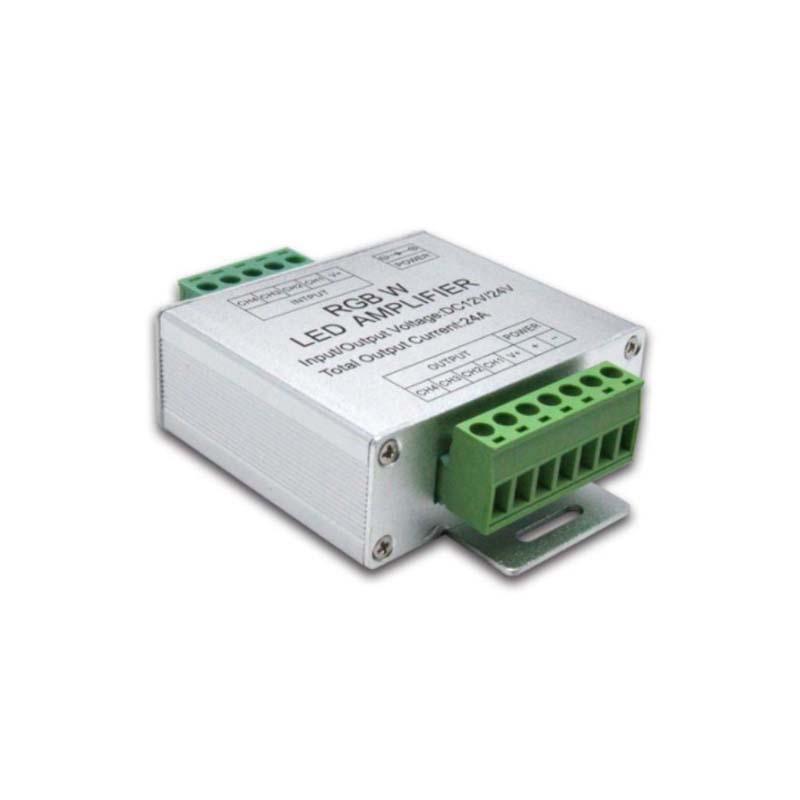

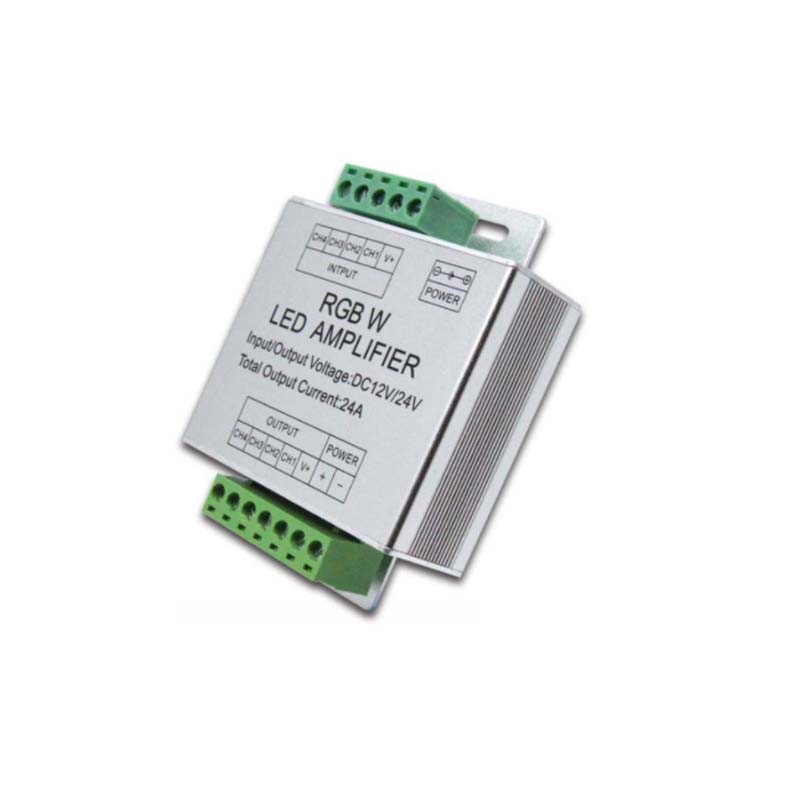

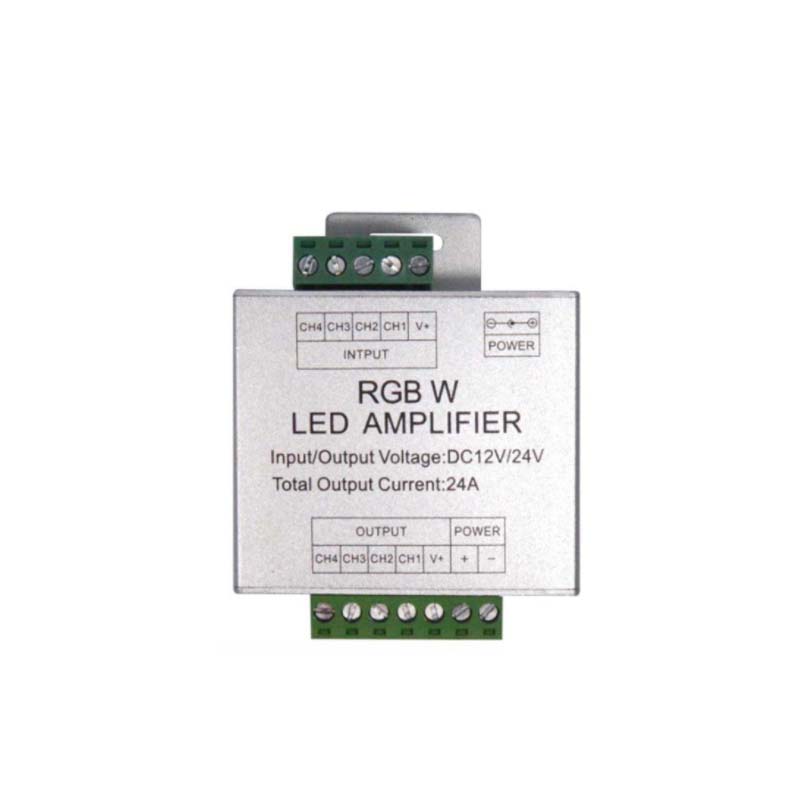

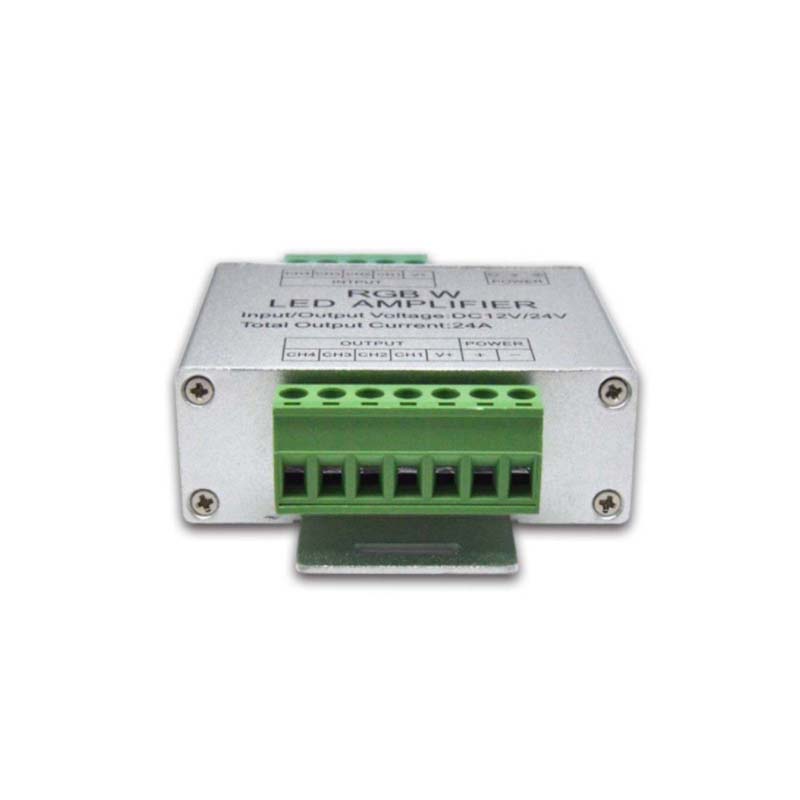

Check the LED RGBW Amplifier, with the aluminum shell design for better heat dissipation, with 4 output channels design, the max current of each channel is 6A, working in DC12V or DC24V, the max loading power up to 576W when working in 24V. the RGBW Repeater adopts a high-speed optical coupler, the conversion output rate reaches 10Mbps, the signal of the main controller can be synchronized output with delay. this style RGBW LED Amplifier compatible with all constant voltage PWM RGBW LED Controllers, will receive RGBW Signal from the Controller and enlarge the signal to other RGBW LED Lights, can make the same effect changing with the Controller. theoretically, the one Controller can work with numerous of RGBW amplifiers.

Features:

  • Item NO: TY-L-A-003
  • Manufacturer: Ledbe
  • Item Type: RGBW LED Amplifier
  • Working temperature: -20 ℃-60 ℃
  • Size: L85mm*W65mm*H24mm
  • Connecting Mode: Common Anode
  • Voltage: DC12V, DC24V
  • Output Channels: 4
  • Max Output Current: ≤6A Each Channel
  • Power: 288W(DC12V), 576W(DC24V)
  • Static Power Consumption: <1W
  • Weight: 100g


Package:

1*LED RGBW Amplifier

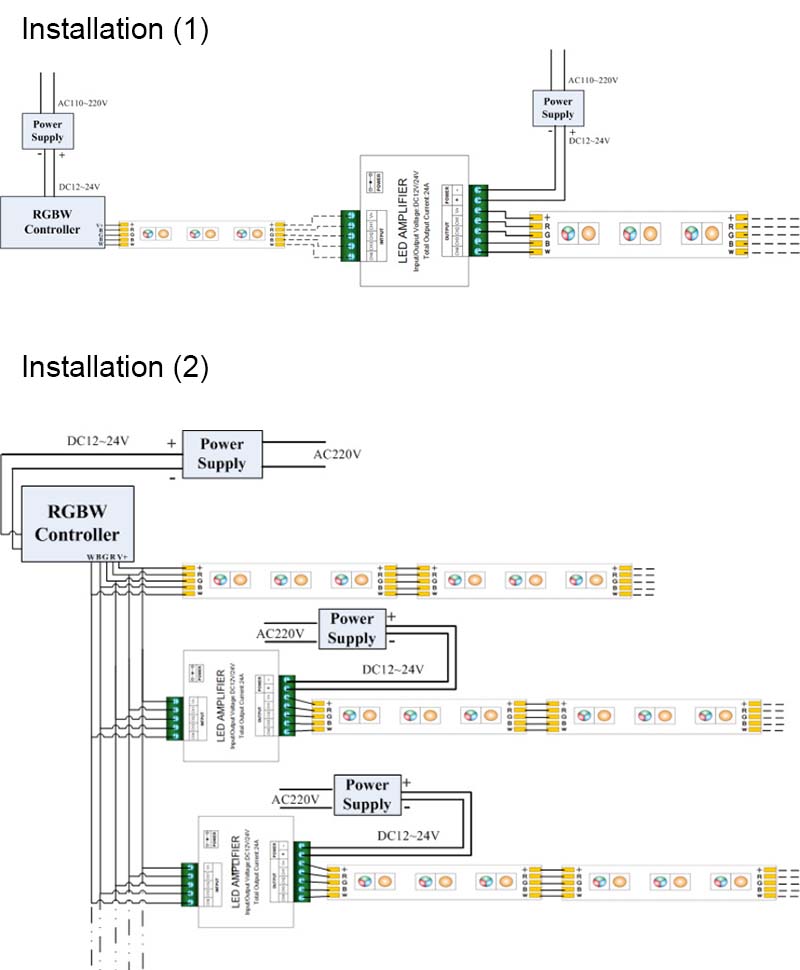

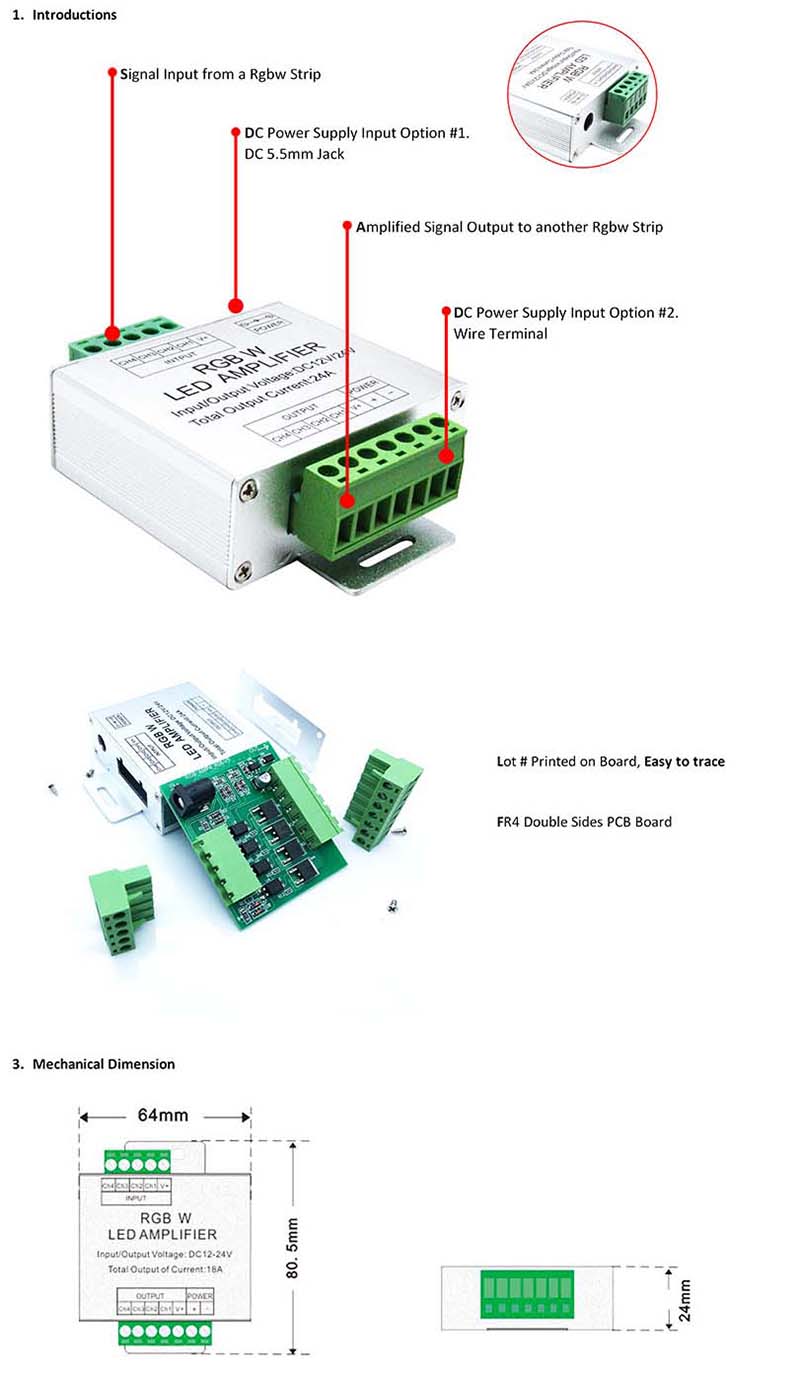

mini rgbw led amplifier rgbw high speed power amplifier
