The 45° Corner LED Profiles are designed to fit perfectly in the corners of your cabinets, providing a seamless and professional look. With their sleek and modern design, they will not only enhance the aesthetics of your kitchen but also provide efficient and bright lighting. It's an excellent choice for under cabinets, shelves, closets, kitchens, and many more that need angled lighting. The 45 degrees polarized lighting design allows for light to be directed away from the eyes. 6 different diffused covers are available: PMMA series and PC series. They are made of brand-stable material, anti-yellowing, perfect light distribution, and various light transmittance for your needs. The standard length is 1M and 2M, and the max length is 3M and can be cut to any length that fits your projects. The Angled LED Channels are made of 6063-T5 extruded aluminum with anodized surface treatment anti-oxidation resistance and have a longer lifespan. The inner width is 14.1mm and allows the max width of Strip Lights to be 14mm. Easy to install the SMD LED Strips, and COB LED Tapes as the light source, and the Cabinet Lighting Aluminum Channels can be worked as heat sinkers for better heat dissipation, which will extend the lifespan of LED Strips.



Features:

  • Model: ALP007-R
  • Material: Aluminium Alloy(6063-T5)
  • Surface Treatment: Anodized

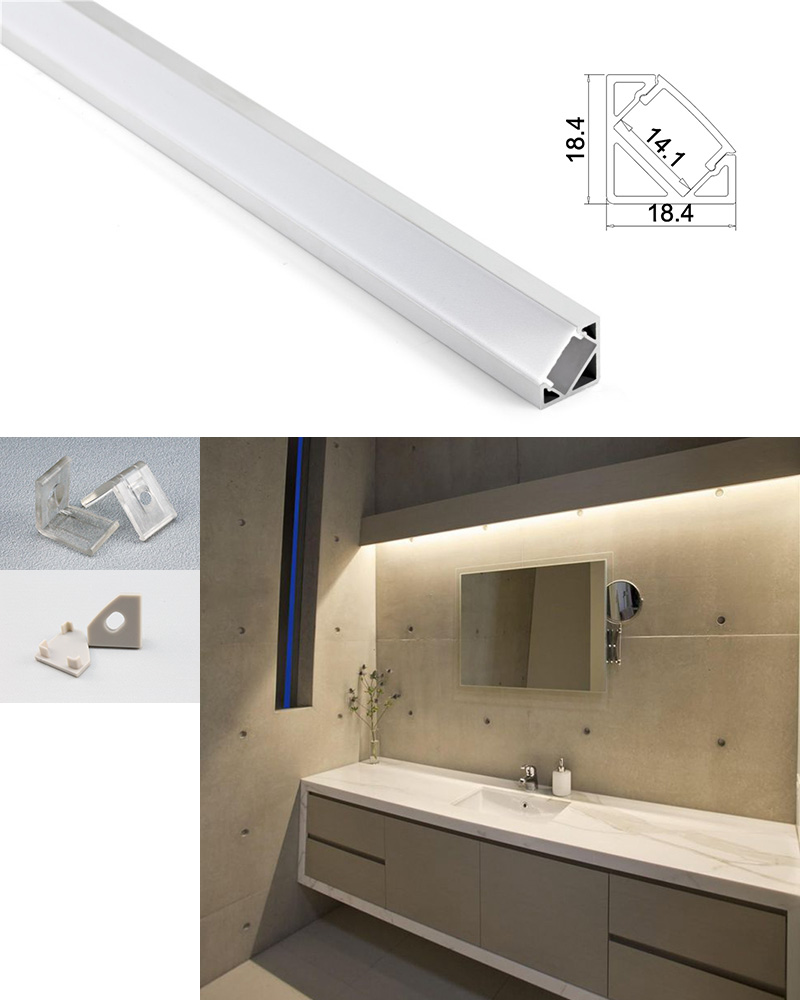

  • Size: 18.5mm(W)*18.4mm(H)
  • Colors: Silver(Default), White, Black
  • Inner Width: 14.1mm
  • Allows The Max Width Of Strip Lights To Be 14mm
  • Can Works With 2835, 3528, and 5050 LED Strips
  • Max Power: <15W/Meter
  • Covers: PMMA Opal Matte Cover / PMMA Semi-clear Cover / PMMA Clear Cover  / PC Opal Matte Cover / PC Semi-Clear Cover / PC Clear Cover / Black PC Cover
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom length Available: YES
  • End Caps With Wire Holes And Plastic Mounting Clips Included
  • LED Strips Are Sold Separately
  • Installation: Corner Mounted
  • Applications: Cabinets, Closets, Beblow cabinets, wardrobes, kitchens, walls, etc
  • 5 Years Warranty



Package:

1*45 Degree Corner LED Profile With Diffuser

End Caps(With Hole/Without Hole)

Mounting Clips


Applications:

For Under-Cabinet, Shelves, Library, Kitchen Cabinets, And Closet Lighting.

Backlight Or Supplementary Lights.

LED Lighting For Furniture.

LED Profile Alu For Corner Mounted Installation

45 Degrees Corner LED Profile How To Put LED Strip Lights On Wall Corners Corner Mounted LED Alu Profiles
