In Stock
This product has a minimum quantity of 10

This type LED alu profil suit for 3528 flexible LED strips, use better-anodized aluminum. four different covers available can select opal matte lens, semi-clear matte lens, PC diffused cover and clear lens. the default length is 1meter, can select 2meter or 2.5meter. this type of LED Alu Profile suit for flexible LED tape use, can be used in indoor, grooves, slim design, thin furniture, wall, surface and so on. the inner width of the LED profile is 12.2mm, so the width of LED strips can not over 12mm.



  • Model: ALP-003
  • Material: Anodized Aluminum
  • Size: 23.2mm(W)*15.3mm(H)
  • Covers: PMMA Opal Matte Cover/PMMA Semi-Clear Cover/PMMA Clear Cover/PC Diffused Cover
  • Custom Length: YES
  • Length Avaliable: 1meter, 2meter, 2.5meter
  • LED Alu Profil For Recessed

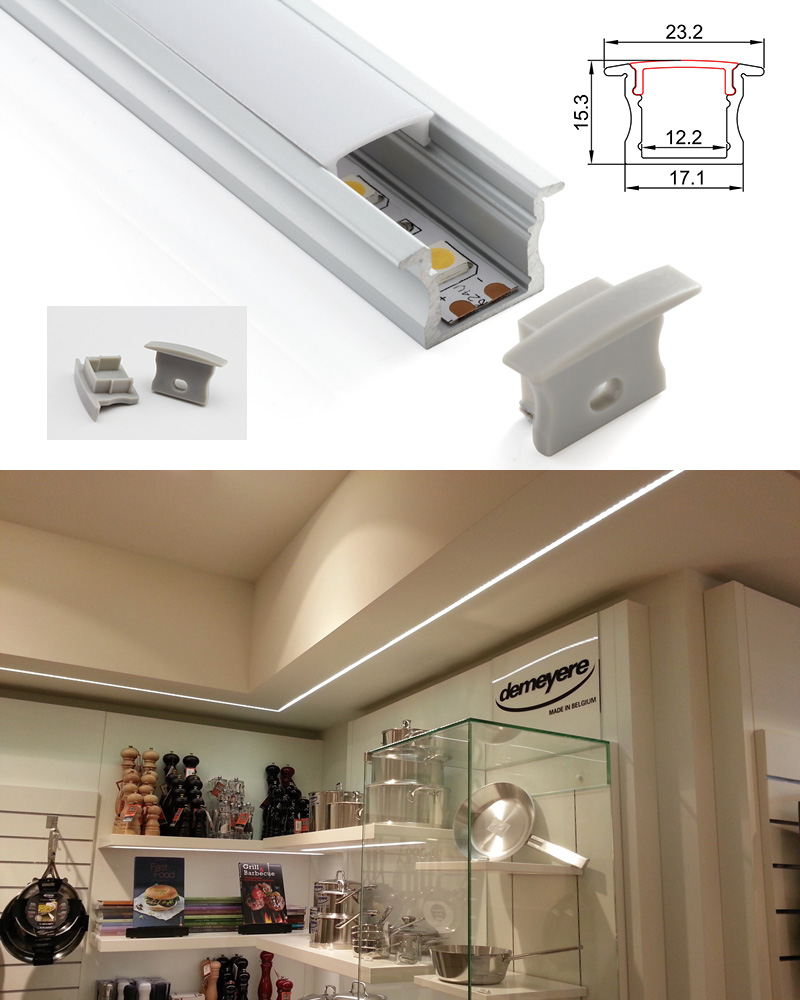

the default length of LED alu profil is 1 meter, the max length can be 2.5 meters, so if you need other lengthsplease contact us first. some LED profiles use the special fix method, if you are not sure, please contact us first. please check the dimension photo of LED strip profile, to see if fit your hand LED strips. the width of the PCB board cannot over the width of LED profiles.



1*100CM Recessed LED Alu Profil

End Caps(With Hole/Without Hole)
