As we know, it’s hard to mount the Aluminum Profiles on the drywall structure, you can not drill a hole or use double-sided adhesive tape. so how to create the Linear LED Light on, today let’s check it out.
the materials below you need:
LED Tape Light Channels
End Caps With Wire Holes/Without Holes
Screws
LED Drivers
LED Tapes
This Trimless Profiles for recessing into plastered walls and ceilings for an incredible seamless diffused light output, simply screw the profile into 10mm drywall and plaster over then add the diffuser, extruded aluminum paster in profile allows you to create a stunning trimless fix, that makes it simple to flush mount for the ultimate modern look and feel. suitable for the gypsum and plasterboard for indoor occasions.
How To Install the Drywall LED Channels?
Insert the end caps on the LED Channels, then mount the Aluminum Channels on the ceiling.
Apply a layer of plaster to the profile and ceiling, and then paint the surface to finish.
Mount the LED Strips, recommend the COB LED Tapes, NO visible light dots and dark area, insert the cover, lead out the power cable.
Run the cable to the Power Supply, connect the power.
The SP801E, which is the newest Pixel Controller by Shenzhen Sperll company, this company released the classic Controllers for the Addressable LED Strips like SP105E, SP110E, SP108E, SP501E, etc. if you check the photo of the SP801E below, you will think, it looks the same like the SP105E, so if we own one the old product, why we need to another similar one, Is it’s really worth it?
The SP801E LED Controller with 4 output ports, each port supports 1024PCS ICs, so the totally supported number of ICs up to 4096PCS, not only supports the main types of ICs on the market but also supports multiple Art-Net software, supports regular rectangle layout setting and importing DXF files. built-in multiple types of effect layers, text layer, music effect layer, etc. the effect layers support a variety of custom parameters: direction, width, color, length, shape, etc. with the real-time preview function, you will know how it looks like before run on the LED Lights. so it can work with LED Strips, LED Matrix, LED Panels, etc.
The Smart Pixel Controller supports AP mode and STA mode.
the working voltage from DC5V to DC24V, the working voltage depends on the LED Lights. you can control the LED Controller by smartphone APP via WiFi, it supports IOS and Android mobile systems, you can download the APP “BalanX” in the APP stores. the Controller supports AP mode and STA mode.
Button:
1. Click on the button: Switch AP/STA mode;
2. Press and hold the button: Enter the BluFi network configuration mode; LED Indicator:
1. Blue static: AP(Access Point) mode;
2. Green static: STA(Station) mode;
3. Green flashing: BluFi configuration mode;
Working Modes：
1. AP(Access Point) mode: Controller and Phone connect directly, controller works as an access point.
1> Go to your phone Settings page, connect the controller(SSID like SP801E_XXX, the default password is 12345678);
2> Open the BanlanX App, Click the “+” button to configure the new SP801E controller, then the controller will be shown on the device list; 2. STA(Station) mode: Controller and phone are in one same Wi-Fi network, in this network, users can operate the controller.
There are two ways to configure the controller into the local Wi-Fi network:
1> Connect your phone or tablet to a 2.4G Wi-Fi network. (Doesn’t support 5.0G Wi-Fi network)
2> Open the App and click the “+” button to scan devices, click Add manually and select SP801E controller in the device category;
3> Input your Wi-Fi network password;
4> BluFi config and AP config:
BluFi config: Press and hold the device’s “STA/AP” button until the green led indicator flashes, then the device enters the network configuration state, click next and select the device you want to add;
AP config: Switching the device to the AP mode, click next and connect your phone’s WIFI to the named like SP801E_XXX hotspot, the password is 12345678, and return to the APP;
5> Pressing next step to wait for the configure processing to finish;
6>After the configuration is finished, the LED indicator will turn into solid green, the controller will be shown on the device list.
If you found some sellers selling the WS2812B and WS2812B ECO LED Lights, you will not sure which one will fulfill your need, so today let’s check what’s the difference between them?
from the picture above, you will see the main difference: both of the WS2812B SMD LEDs have built-in WS2812B ICs, but the ECO version with 9PCS alloy wires, the normal version with 9PCS pure gold wires. which is cost-effective, the alloy wires are not expensive as gold wires, the selling price of the WS2812B ECO LED Strips cheaper than the WS2812B’s, great for small projects and beginners.
the WS2812B ECO Programmable LED Strips with individually addressable design, which use 5050 RGB SMD LEDs as light source, each LED built-in WS2812B IC, 30LEDs/60LEDs/100LEDs/144LEDs per meter available, you can choose the white or black FPCB boards, there are 3 types of waterproof products available, IP30 non-waterproof, IP65 coated waterproof and IP67 silicone tube waterproof. the WS2812 Digital RGB LED Strips work in DC5V, safe to kids and pets, can work with Pixel LED Controllers to achieve hundreds of lighting effects like chasing, rainbow, fire, meteor, rhythm, etc. 256 brightness and 24-bit color display, both ends with 3 pin JST-SM connectors, easy to install and light up, each LED can be cut off and will not damage the rest of the LED Strips, you can shorten, lengthen or bend it for your projects.
The WS2812B ECO LED Light Strips are compatible with most Pixel LED Controllers, Arduino, Raspberry Pi, Teensy, T1000S, K1000C, SP110E, SP105E, SP108E, SP110E, SP601E, SP511E, SP501E, and other Smart LED Controllers.
you can use them to make LED Screens, Advertising Boards, Signs, Holiday Decoration, etc in Hotels, KTV, Bars, Malls, etc.
COB is the abbreviation of Chips on Board, which is the newest technology of packaging LED Chips. the LED Chips will direct contact with a substrate to produce LED arrays, the COB technology allows high density LED Chips than SMD(Surface Mounted Device) LEDs and dual in-line package LEDs, which allows a much higher quantity of LEDs per meter, not 30PCS, 60PCS or 120PCS, the COB LED Strips have at least 300PCS LED Chips per meter. this results in higher intensity and uniform light emission. this new technology can greatly reduce the footprint and energy consumption of LED arrays and keep light output constant.
now more and more customers like these new Strip Lights, which with more LEDs per meter, high CRI, high density, high brightness, uniform light emission, no light dots and no dark area, high efficiency and longer lifespan. you can use them for high-end lighting projects with any diffusers. they are 5meters per reel on the market, you can follow the cutting marks and cut to any length you want for your project, on our website, to avoid fewer issues, we can provide the length from 1meter to 5meters per piece.
there are various waterproof level products available, you can choose the IP30, IP67 and IP68, you can use the IP30 non-waterproof COB LED Strips in a dry place for indoor applications. the IP67 silicone tube waterproof LED Strips and IP68 glue injection Strip Lights for outdoor applications, you can install them in a wet, damp or water location. there are various emitting color products available, warm white, natural white, daylight white, red, green, blue, RGB and dreamcolor.

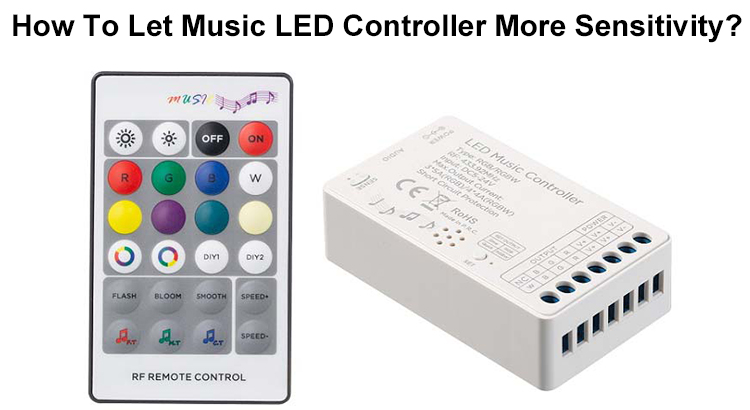

Recently some customers asked to us, they ordered the Music LED Controllers from other companies before, but works not good as expected. to check with us to see if we could provide a better LED Music Controller. OK, if we see music and controller characters, we will know that they want the emitting color of the RGB LED Strips will change automatically follow the beats of music, they need one Music LED Controller that will have better performance. so we will introduce one and check how to install.
This LED Music Controlled was produced by Hoion, which is a Chinese company and focused on producing high-quality LED Controllers, LED Dimmers, Amplifiers, DMX and Dimming Drivers. the model of the Music LED Controller is HX-DA01, which with small size and comes with 24 keys RF Remote Control. with 3 or 4 output channels design and supports RGB or RGBW LED Lights, there is a button on the LED Controller, if the LED indicator light flash slowly means working in RGB model or working in RGBW model, the max output current is 5A when in RGB mode, 4A in RGBW mode. the side with a voice sensitivity dial and audio input jack, you can press the dial to adjust the sensitivity, the audio input jack allows to connect to your phone, PC or other audio devices.
Why is the Music LED Light Controller not good as you expected?
If you use the audio input method to get the audio signal, you can avoid the signal reduction and noise signal mixed. so if you want the colors of the color-changing LED Strips change automatically follow the beats, choose the audio input Music LED Controllers.
below we will introduce what you need and how to connect the LED Music Controller to the Strip Light and LED Driver, and how to operate the LED Controller.
What do you need?
1*Music LED Controller With RF Remote Control
1*RGB LED Strips(60LEDs/Meter, IP20)
1*LED Driver(IP20 350W)
1*Audio Wire with 3.5mm Connector
How To Connect them together?
Connect the LED Strips and LED Driver to the LED Music Controller.
there are blue, green, red and white wires on the 24V RGB LED Strips, you can insert the blue wire into the “B” output port, green wire to “G” output port, red wire to “R” output port and white wire to the V+ output port.
2. Connect the LED Music Controller to A LED Driver
3. Power On The LED Controller.
there is a LED Indicator Light on the LED Controller, if it flashes slowly means working in RGB mode, if flashes quickly means working in RGBW mode. you can press the small round button to switch the working mode from RGB to RGBW.
4. Connect the LED Sound Controller to A PC
On the left side there is a sensitivity adjustable dial, you can rotate it to adjust the sensitivity to music.
How does It work?
With Audio Input
2. Without Audio Input
in the video, you can see that the LED Music Controller became more sensitive after being connected to the PC. so if you want to purchase a Music LED Controller, we will recommend the one with an audio input jack.
Now more and more people would use the LED Profiles to help design and build interior lighting projects, you can use them to design modern and luxurious LED designs in your home, office, supermarket, etc. today let’s introduce the 5 best drywall LED Profiles.
LED Light Channel Profile with long Flanges
This type of LED Channel made of 6063-T5 aluminum alloyand with surface treatment, anti-oxidation resistance and has a longer lifespan. the max length is 3meter per piece and cuttable, you can cut to any size for your project. the inner width is 20.7mm and compatible with double side rows Flexible LED Strips as the light source, there are 3 types of Diffusers available for the various lighting effect. you can choose the PC clear diffuser, PC semi-clear diffuser and PC opal diffuser. both sides with long flange, on the flange with the round holes, you can recess them into the plasterboard structure and fix with the screws, then paint the plaster and lacquer to finish the installation. it will look amazing.
2. 16mm Drywall LED Profiles With Single Flange For 5/8″ Plasterboard
This tyle Drywall LED Profiles made of aluminum alloy and with surface treatment too, max length 2.5meter per piece and cuttable, the inner width is 13.9mm and compatible with single row 3528, 2835 and 5050 LED Strips, there is only one type of diffuser available, the PC diffused cover, which made of brand stable material, anti-oxidation resistance and anti-yellowing, perfect light distribution. you can recess them into the 5/8″ 16mm drywall or floating ceiling for trimless installation. easy to install the LED Strips inside and can be used as decorative lighting or auxiliary lighting in the home, office, shopping mall, etc.
3. External Corner Trimless Plasterboard LED Profiles
this style of Plasterboard LED Profiles specially designed for the corner and for the external lighting. the max is 3meter per piece, but you can cut to any size for your project. the inner width is 10.5mm and compatible with one row 2835, 3528 or 5050 LED Strips, there is only one type of PC diffused cover available for the smooth lighting output, the end caps with wire holes included, easy to connect the LED Strips to LED Driver or LED Controller. easy to put them in the corner of the plasterboard and fix with screws, then paint the plaster and lacquer.
4. Gypsum LED Profile for Indirect Lighting
This tyle LED Profile is specially designed for indirect lighting, with white powder coated to reflect light, both sides with honeycomb structure, easy to install them on the gypsum, plasterboard or drywall. the max length is 3meter per piece and cuttable, the “L”, “-” shape connectors, you can use them to design various shapes. the inner width is 13.9mm and compatible with 13mm LED Strip Lights. there is only one type of diffuser available, the PC diffused cover available, which made of brand stable material, anti-oxidation resistance and anti-yellowing, perfect light distribution and smooth light output, better for indirect light design in your home, office, school, supermarket, etc.
5. 2 Inches Recessed LED Drywall Extrusion With Flange
This type LED Extrusion designed for the main lighting, the inner width is 47mm and compatible with multiple-rows LED Strips or other Rigid LED Modules as the light source, the max length is 3meter and cuttable, there is only one type of diffuser available, the PC diffused cover, which made of stable material and anti-yellowing, perfect light distribution and smooth light output. you can recess them into the 5/8 inch drywall for trimless installation and use them as the main lighting in your home, office, school, bar, hospital, etc for architectural lighting. the end caps with wire holes included, easy to connect the LED Light to LED Driver or LED Dimmer to light up or adjust the brightness.
It’s not easy to design and build LED Light on the drywall structure, but with the help of Aluminum LED Profiles, you can finish the project easily. recommend the COB LED Strips, when you want to add the LED Lights, the COB Strip Lights with more LEDs, no light dots and dark area, more bright and high CRI than the SMD LED Strips.
Hi, guys, today let me introduce one good quality RGBW LED Controller, but with the smallest size and sell at the cheapest price. the mini RGBW LED Controller with inline design and comes with 24keys IR remote, the LED Controller comes with a female 5pin connector and a female dc connector, super easy to connect to RGBW LED Strips and LED Power Supply. because of the smaller size design, you can hide it in a narrow place and control the light-changing via the IR Remote Control.
the Mini RGBW LED Controller with inline design, the left side with a Female DC Connector, you can connect to the LED Power Supply, the right side with one IR Receiver and one 5pin LED Connector, the IR receiver will receive the signal from the remote control and change the light-style, can connect to the RGBW LED Strips via the 5pin LED Connectors. the size of the LED Controller is 48*26*13mm(L*W*H), which is very thin and you can hide it in a small or narrow place in the building or furniture, you can use the double-sided adhesive tape to fix it on the place you want.
the RGBW Mini Controller with 4 output channels design and the max output current of each channel is 1.5A, the total output wattage is 144W when working in DC24V, adopts the PWM technology, the “W” channel can be turned on/off and adjust the brightness independently, there are 3 more brightness-adjustable buttons on the remote control, about the RGB part, there are 13 modes include 9 static colors and 4 dynamic modes, the brightness of static colors and speed of dynamic modes adjustable. the RGBW LED Light Controller with memory function too, each time power-on reserve the mode which stops in the last power off.
Now this Hoion RGBW LED Controller only $3.99 per set on Ledbe.com and get 3 years warranty. if you are searching for some small LED Controllers for the RGBW LED Strips, you can take them.
If you are searching the LED Strips on the internet, you will find some LED Lights named COB LED Strips, so what’s COB and why we say it’s the future of LED Strips.
What is COB?
COB is the abbreviation for chip on board, which means the LED Chips were packed on the PCB board directly, not like the SMD LEDs that the LED Chips were fixed on the brackets. the COB refers to the mounting of a bare LED Chip in direct contact with a substrate to produce LED arrays, which allows for a much higher packing density of the LED array, results in higher intensity and greater uniformity of light, no light dots and dark area. can greatly reduce the footprint and energy consumption while keeping light output constant.
2. How To Produce the COB LED Strips?
when the manufacturer begins to produce the COB LED Strips, they will put the COB LEDs side by side down the center of the LED Strips, so maybe there are 320, 540, 720 or 894PCS LEDs per meter, there is a phosphor layer over the LEDs like the photo shows above. which will balance out the color temperature while also acting like a protective layer for the tiny LED Chips.
No Light Dots: because there are more LED Chips on the LED Strips per meter and the LED Chips was put side by side closely, the strip illuminates a smooth, consistent light from start to finish. the uniform light has no dark area and much more attractive to the human’s eyes. bring the steady light even in a tight place.
More Bright: yes, because the COB LED Strips have more LEDs per meter, so it looks brighter than the SMD LED Strips, the bright light also emits at a wider angle and will spread at 180° off the Strips.
More Flexible: because on the COB LED Strips the LED Chips put in an array with smaller sizes, which makes it more flexible and bendable.
Working Voltage: DC12V/DC24V, you can choose two working voltage COB LED Strips, but if you want a longer run length, we will recommend the DC24V.
Colors: there are still many colors available, you can choose the various color temperatures warm white, neutral white, cool white, other single colors and RGB.
Compared to the SMD LED Strips, the LED Strips with COB brighter and flexible, the color rendering index can reach 90, perfect for various indoor and outdoor linear lighting projects, excellent efficiency and color consistency, incredibly bright and comfortable visual experience. so we believe the COB is the future for the Flex LED Strips.

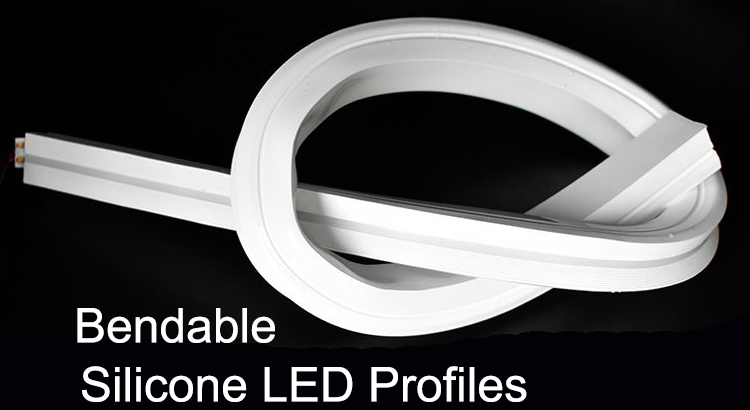

The Silicone LED Profiles, which made of 100% food-grade silicone material, flexible and bendable, waterproof and dustproof, many customers maybe not sure where can use them, today let’s check it.
The Silicone LED Profiles, which made of food-grade silicone material, tasteless and non-toxic, flexible and bendable, anti-yellowing and anti-oxidation, low and high-temperature resistance, you can use to design and build the linear LED light or modeling lighting project freely, always 5meters per reel and cuttable, you can cut to any size for your project freely, the end caps with wire holes included, easy to connect to the LED Power Supply to light up the LED Strips or connect to a LED Controller to change the color-changing style or adjust the brightness. some LED Profiles come with metal LED Clips and some come with Silicone LED Clips, you can use the Clips to fix the Bendable LED Profiles on the surface or recess into the lighting project.
How To Install The LED Strips?
so if the Flexible LED Profiles are 5 meters per piece, how can we install the LED Strips? don’t worry, before we produced them, we noticed it and bring you the perfect solution. there is a rope in the LED Profiles, you can tie a string around the side of the LED Strips and cross the total LED Profile to finish the installation of LED Strips, it’s easy for everyone. the end caps with wire holes, so you can let the wires on the LED Strips through the hole to connect to LED Power Supply or LED Controller. the LED Clips with screw holes, you can use the screws to fix them on the surface on the project.
Where You Can Use Them?
the IP rating(waterproof level) of the Waterproof LED Profile is IP67, what the IP67 mean?
” IP67 equipment is the most commonly found in the connectivity market. It is 100% protected against solid objects like dust and sand, and it has been tested to work for at least 30 minutes while under 15cm to 1m of water. ”
because of the waterproof and dustproof and poor heat dissipation features, if the working temperature always very high but not good heat dissipation, it will speed up the oxidation of the LED Strips, which means the body of the LED Strips will become to yellow and the light will darker, will shorter the lifespan of the LED Lights. we will strongly recommend using the Silicone LED Channels in a wet, damp or water location, because in there the temperature always lower than in other places. you can use them under the cabinet, in front of a fountain, bathroom or in a swimming pool, etc. be careful to the end caps with wire holes, please ensure use the glue to make it will good sealed.

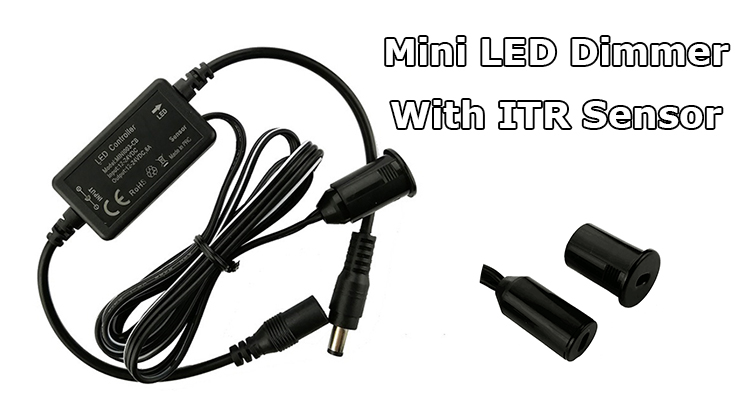

Today we added two new mini LED Dimmers with ITR sensor, the HX-MINI003-HS and HX-MINI003-CB, you could block the senor to turn off the LED Light or release the blocking to turn on the LED Light, both of them with the same black color and the same size, the slim size allows you to install it in a narrow or tiny place, cabinet, kitchen, furniture, mirror, etc.
the LED Mini Dimmer Controller with one output channel design, the max output current up to 6A, working in DC12V-24V, max loading power up to 144W when working in 24V DC. the Dimmers with the 1meter sensor cable and the sensor working range is 0-8cm. the difference of the dimmers is the working mode, the MINI003-CB only turns on or turns off the LED Light gradually, but the MINI003-HS with dimming function from 0.4% to 100%. so you could choose the one you want for your project.
the LED Dimmers come with one male and one female DC connectors, you could connect them to the LED Power Supply and the Single Color LED Strips to let the LED Dimmers work, easy to install and use. you can use them under the cabinet, on the furniture, etc.
