How To Create The Linear LED Light On The Drywall?

As we know, it’s hard to mount the Aluminum Profiles on the drywall structure, you can not drill a hole or use double-sided adhesive tape. so how to create the Linear LED Light on, today let’s check it out.

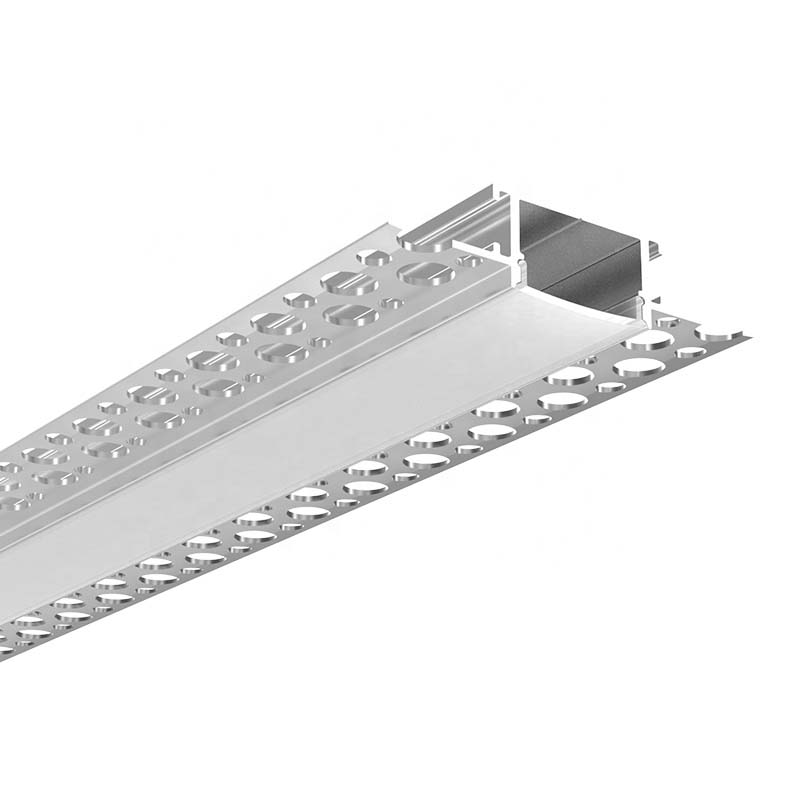

LED Tape Light Channels

the materials below you need:

  1. LED Tape Light Channels
  2. End Caps With Wire Holes/Without Holes
  3. Screws
  4. LED Drivers
  5. LED Tapes

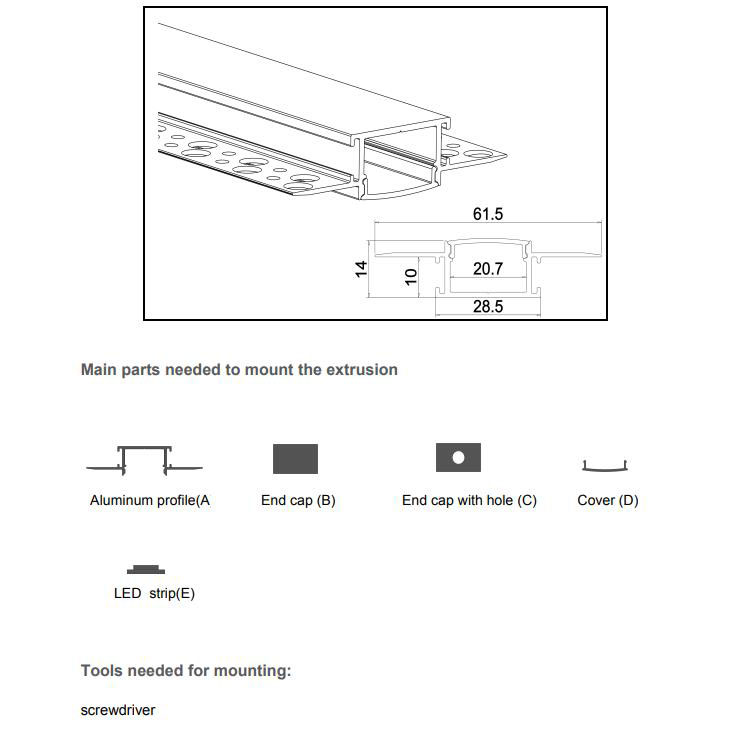

LED Channels For Dry Wall

This Trimless Profiles for recessing into plastered walls and ceilings for an incredible seamless diffused light output, simply screw the profile into 10mm drywall and plaster over then add the diffuser, extruded aluminum paster in profile allows you to create a stunning trimless fix, that makes it simple to flush mount for the ultimate modern look and feel. suitable for the gypsum and plasterboard for indoor occasions.

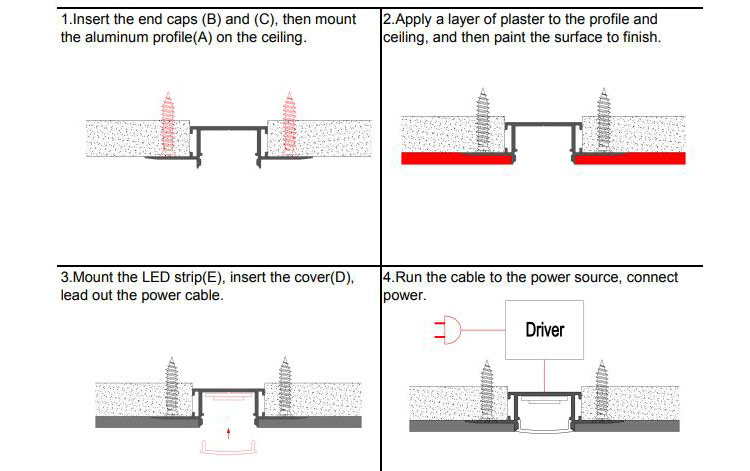

How To Install the Drywall LED Channels?

  1. Insert the end caps on the LED Channels, then mount the Aluminum Channels on the ceiling.
  2. Apply a layer of plaster to the profile and ceiling, and then paint the surface to finish.
  3. Mount the LED Strips, recommend the COB LED Tapes, NO visible light dots and dark area, insert the cover, lead out the power cable.
  4.  Run the cable to the Power Supply, connect the power.

How To Install LED Channels On Drywall

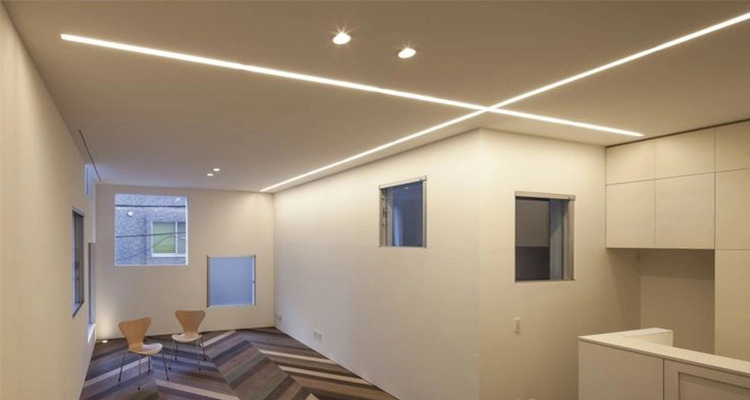

How does It look?

LED Strip Light Channels
