If you have found yourself squinting in a dim closet, and the traditional overhead lighting casts shadows right where you need light most-on your hanging clothes. The solution is integrating LED strips into your closet rod. Below is everything you need to know about why it’s worth doing, how to do it, and which product we recommend.
Benefits
- Eliminate harsh shadows: The main benefit of closet rod lighting is to brighten your closet. Standard ceiling lights cast shadows downward, leaving the clothes on your hanging rod in darkness and making it difficult to find what you need. By integrating light directly to the rod, you illuminate garments from the top, ensuring every piece is visible and easy to browse.
- Showcase your wardrobe: Your clothes look better after adding closet rod lighting. Soft, flattering light highlights colors, textures, and details without casting unappealing shadows. It transforms your closet from a storage space into a dressing experience.
- Professional look: The LED strips will be installed inside the aluminum LED channel. The aluminum channel with a diffuser will conceal the LED strips and spread light evenly, eliminate visible diodes, and protect the LED strips from dust and damage. Which result is a clean, professional appearance.
- Extend the LED’s lifespan: The aluminum profile acts as a heat sink, drawing heat away from the LED strips. This keeps the LED lights stable and extends their lifespan.
How To Install Closet Rod Lighting
- Materials
- Wardrobe LED light channel, model: ALP077
- DC24V 10MM 15W/M 3000K COB LED strips
- Mean Well LRS-75-24 LED driver
- 20AWG 2P black and red wires
- Tools
2. Installation steps
- The stock lengths of those aluminum channels are 2 m per piece, so before you install them, you will need to measure the width of your closet and cut the LED channel to a length that is 1 cm shorter. The same thing needs to be done to the plastic diffuser.
- Mount the LED strips into the wardrobe LED profile and clip in the diffusers. Peel the adhesive backing and press the light strips firmly into the aluminum channel, and leave about 1/4 inch of space at each end for end caps.
- Two types of mounting accessories are available for surface-mounted or suspended installations. Mount the end caps on the closet.
- Get the profile through the cover plate.
- Slide the cover plate.
- Fix the aluminum profile, then lead out the power cable of the LED strips.
- Run the cable to the LED driver, and connect the power. If you want to use a dimmer or controller, install it according to the user manual.
- Turn on the power and check the lighting. The 100° beam angle ensures broad, even coverage across your hanging clothes. Make the final adjustments to positioning or brightness.

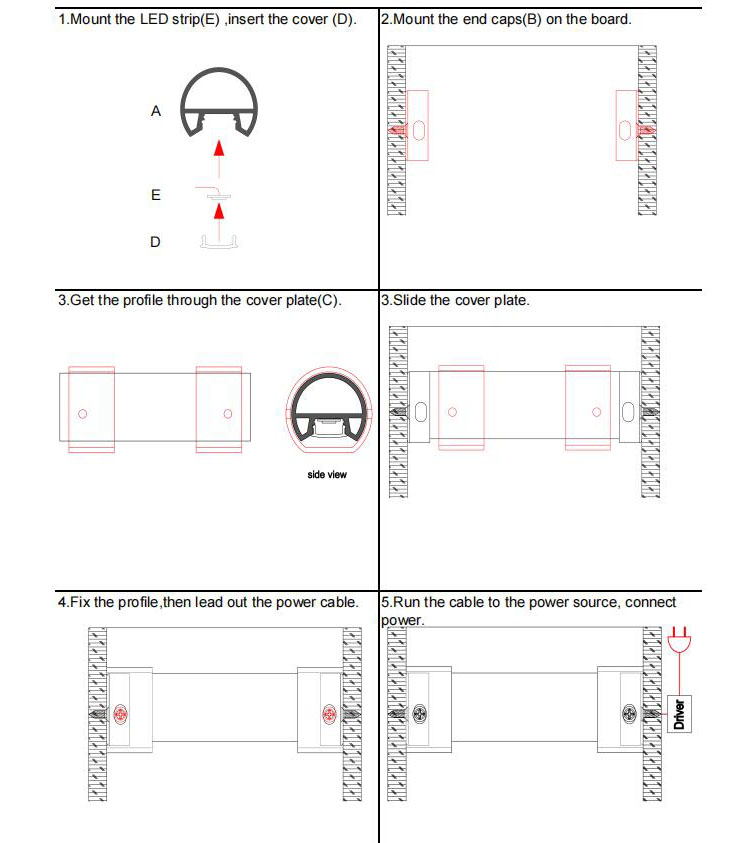

You can follow the installation step picture below to install yours.
Tips:
The LED strips have black and red wires attached. The red wire is the anode, and the black wire is the cathode.

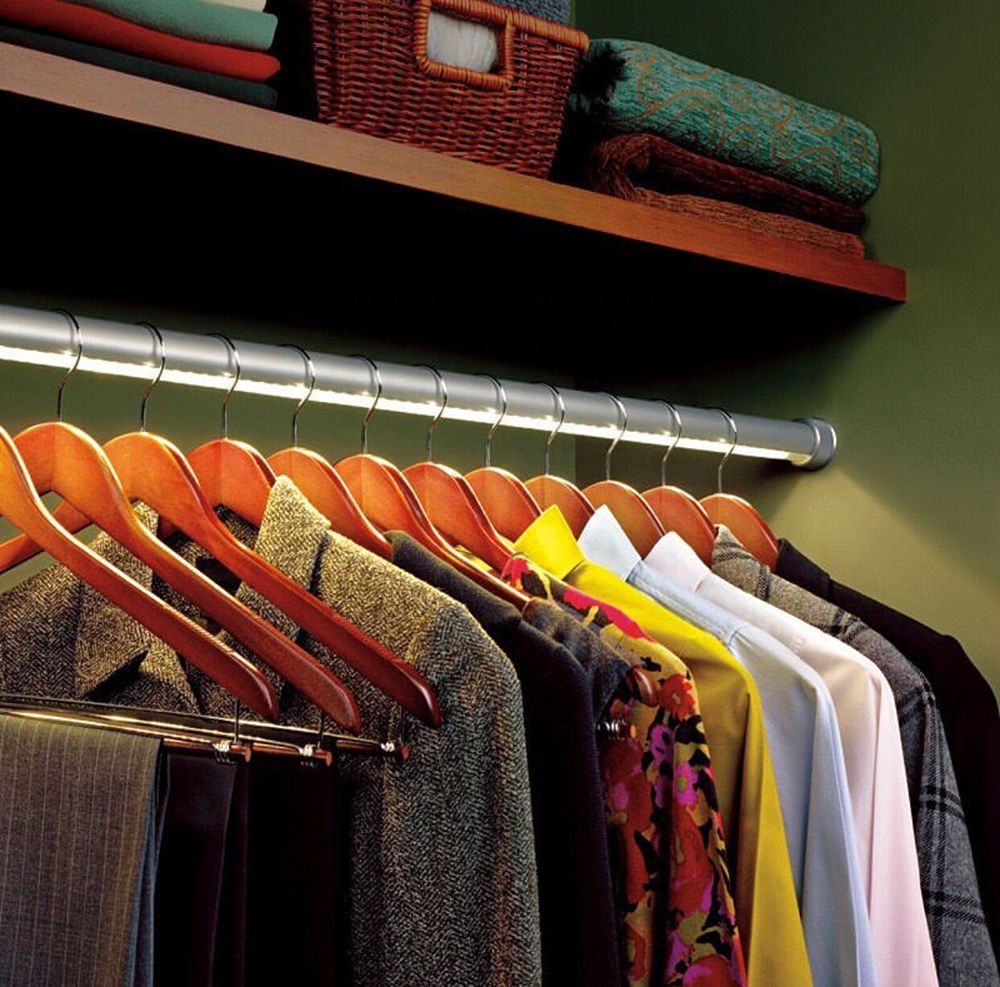

How it looks:

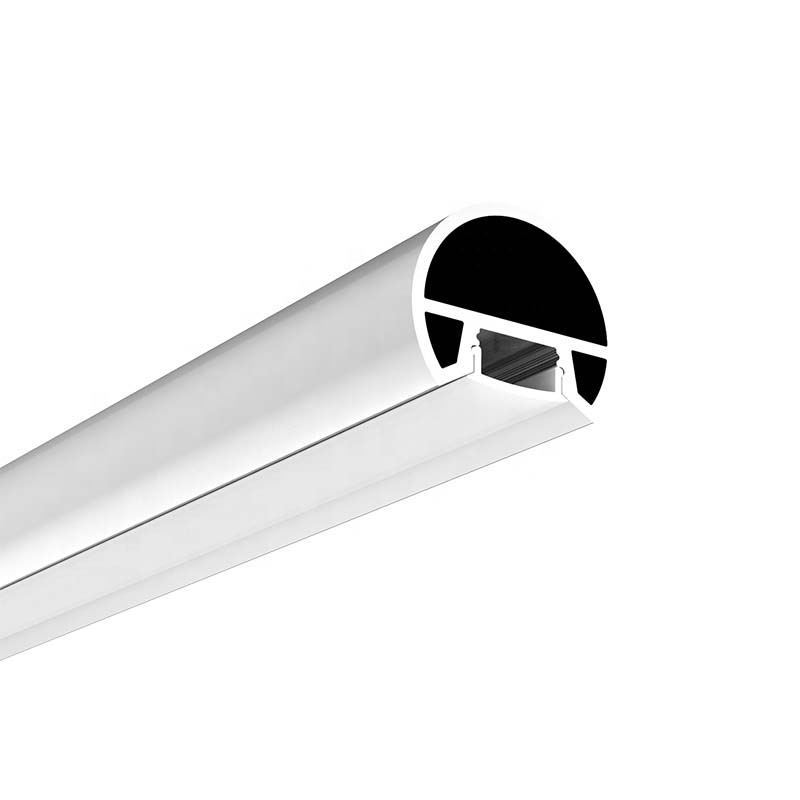

Why we recommend our ALP077?
- Dual installation options give you flexibility, whether you want a flush look or a floating design
- The round shape is specifically designed to mount on the top of a wardrobe as a rail, blending function with aesthetics
- High-quality aluminum with an anodized finish provides anti-oxidation properties and long-term durability
- Compatible with dotless COB LED strips for perfectly uniform illumination without visible hot spots
- CE and RoHS certified with a 5-year warranty
Final Thoughts:

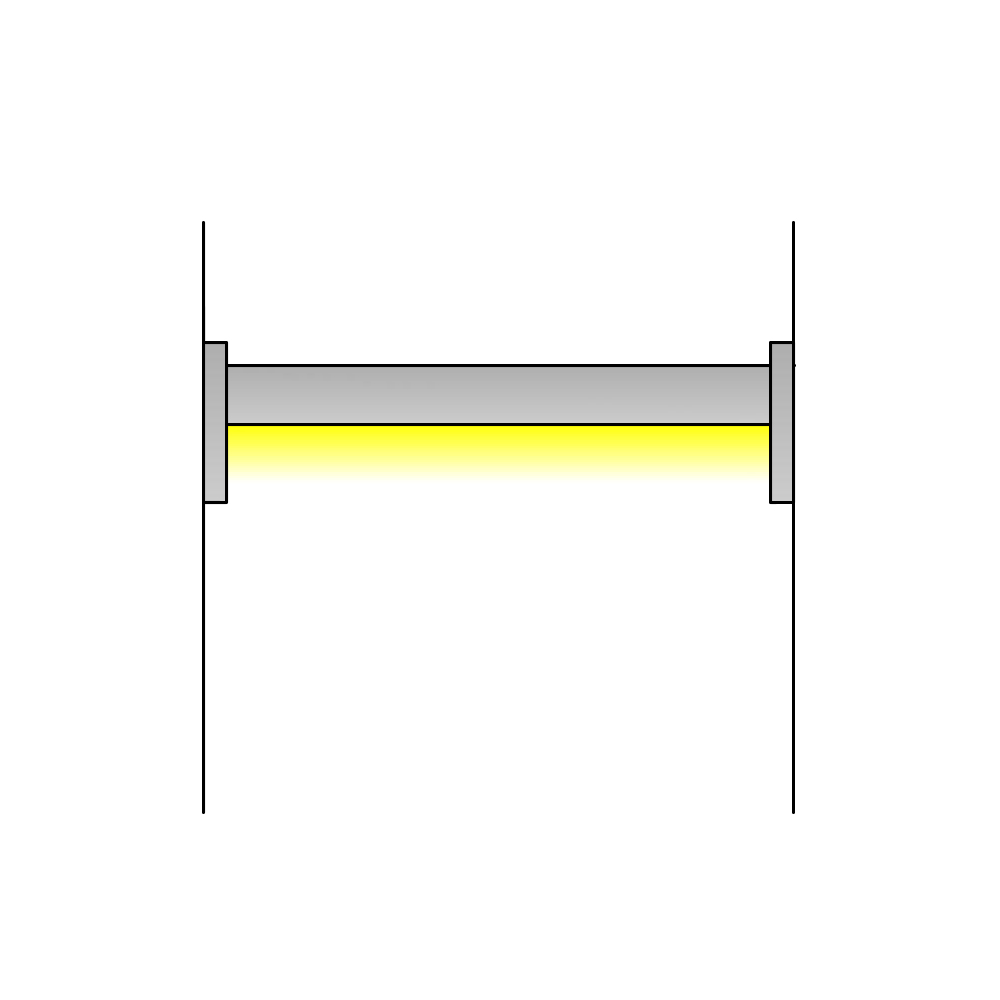

You can position the light toward the front edge of the shelf above your rod for maximum illumination of hanging clothes, or toward the back for a softer, more ambient effect.
Choose the correct color temperature: 3000K warm white or 4000K natural white for cozy illumination, or cool white 6500K for a crisp, retail-like display.
Check local electrical codes: In some areas, the LED strips in closets must meet the closet rating for safety requirements.
Adding LED channels to closet rod lighting will greatly improve the delivery of instant, daily satisfaction. No more rummaging in the dark; just beautiful, lit clothes.
