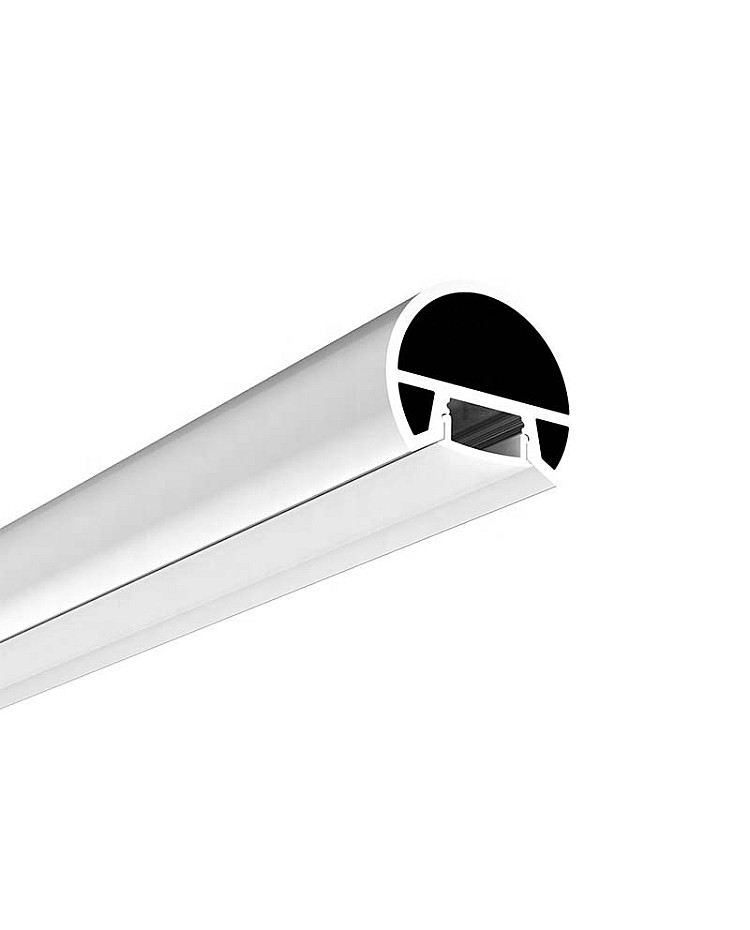

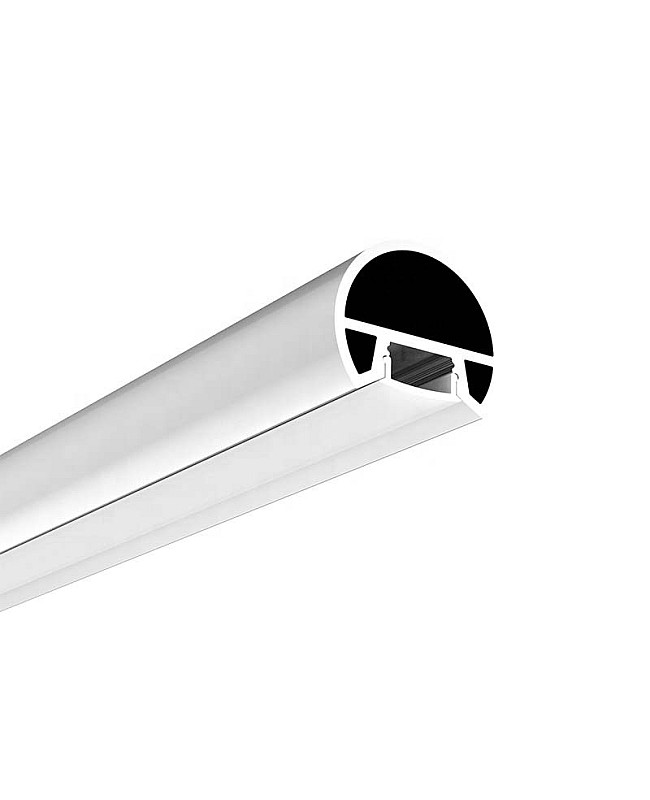

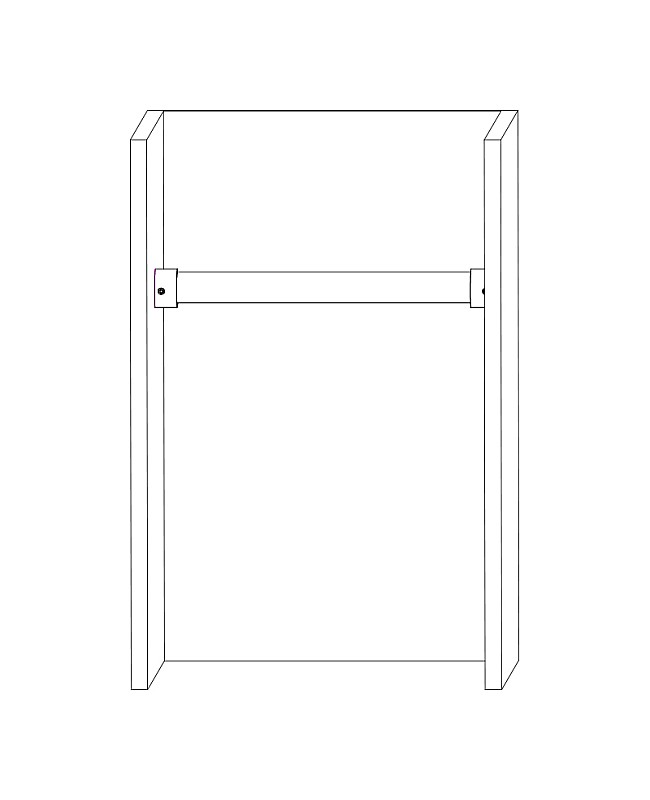

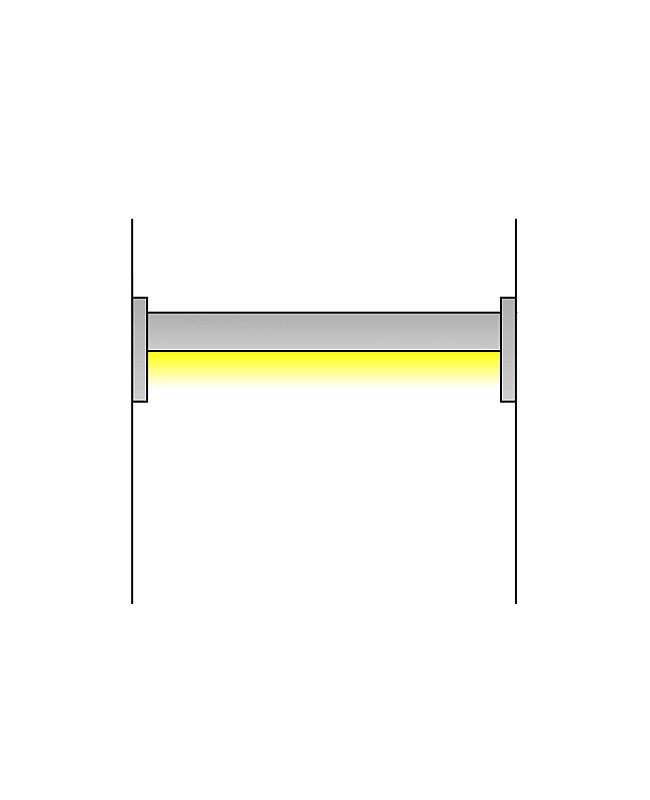

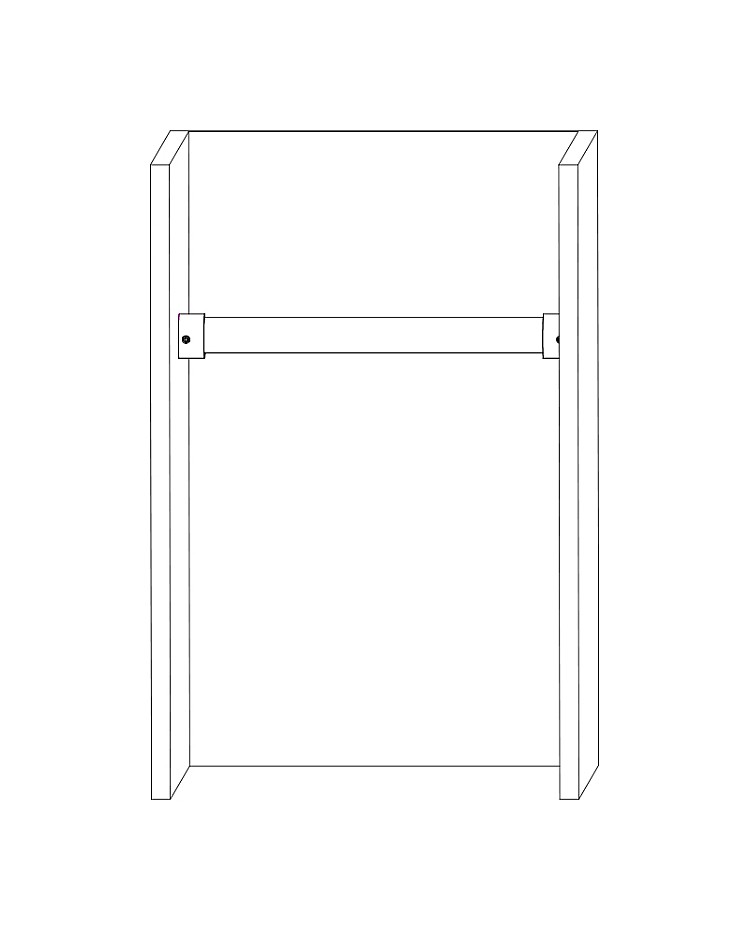

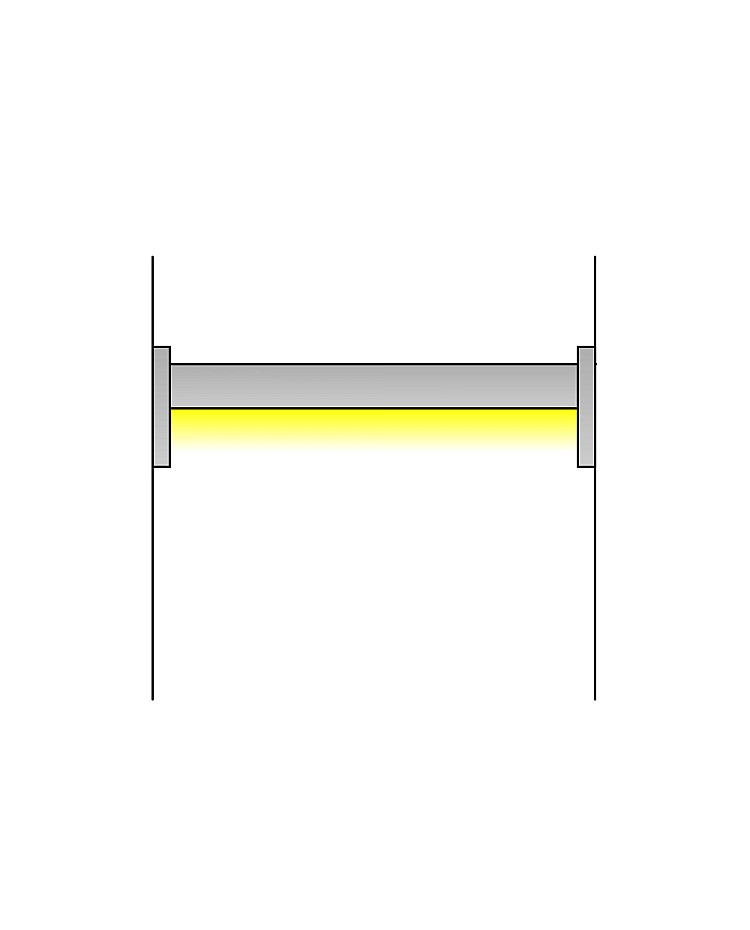

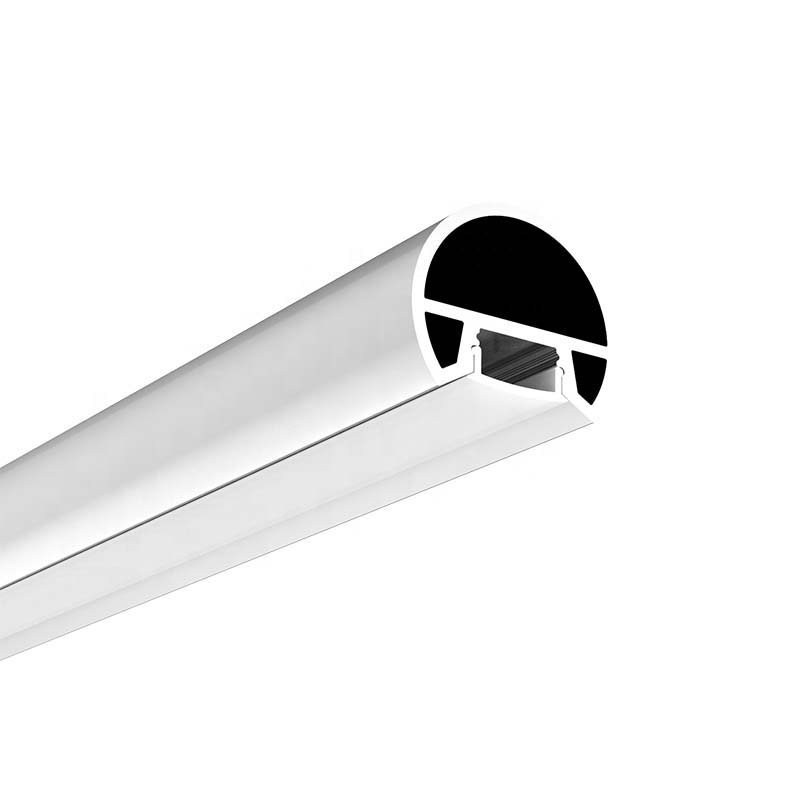

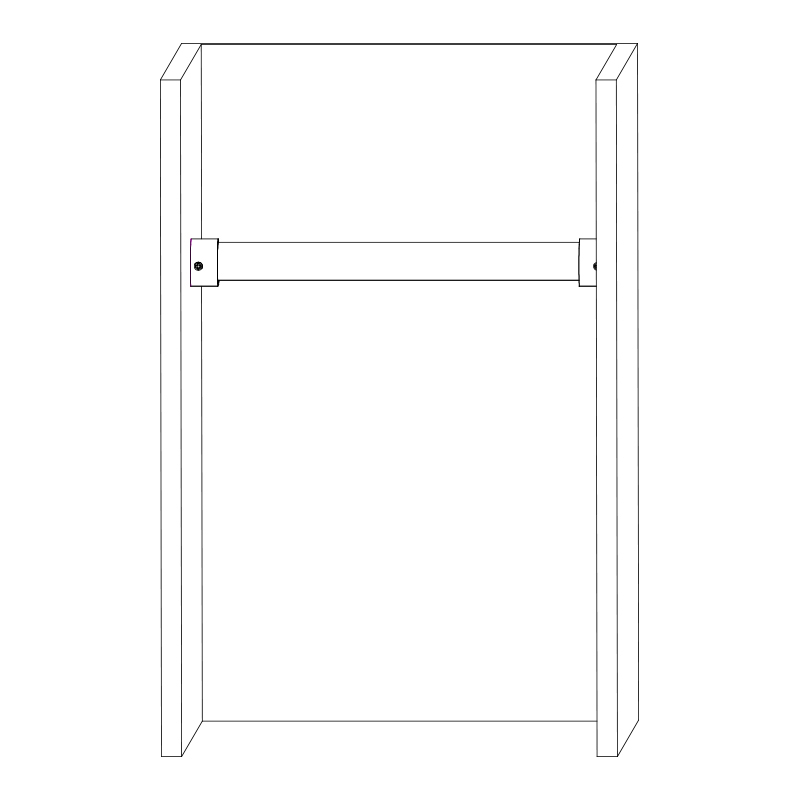

The round LED profile helps illuminate closets and is designed to be mounted on the top of the wardrobe as a rail, providing a soft and flattering light that illuminates your clothes without casting harsh shadows. The standard lengths are 1 m and 2 m, and can be cut to any size you require. They are made of 6063-T5 aluminum alloy and feature anodized surface treatment, which provides anti-oxidation properties and a longer lifespan. The inner width is 12.3 mm, allowing for a maximum width of 12 mm for the LED tapes. You can install our 10mm dotless COB LED strips for uniform illumination without hot spots. Only one type of diffuser is available: the PC diffused cover, made of high-quality material with stable properties, anti-yellowing features, and perfect light distribution, resulting in a soft light output. This round light profile is ideal for creating an illuminated wardrobe that looks great and provides ample light for clothes hangers. End caps or hanging clips are included for two installation methods are available: surface-mounted and suspended.
Specifications:
- Model: ALP077
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Color: Silver

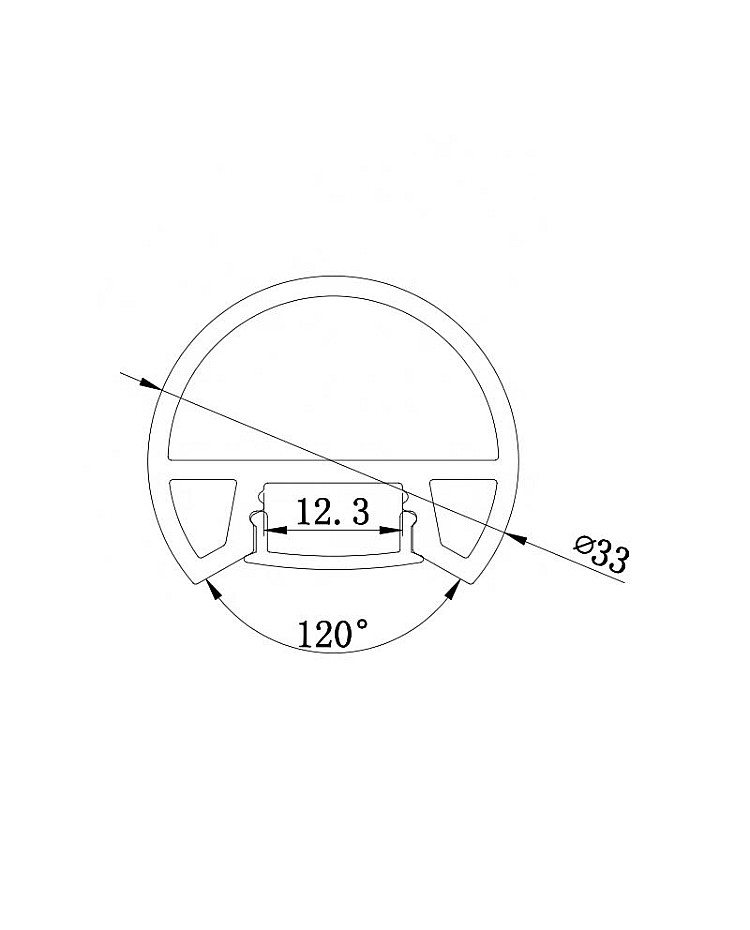

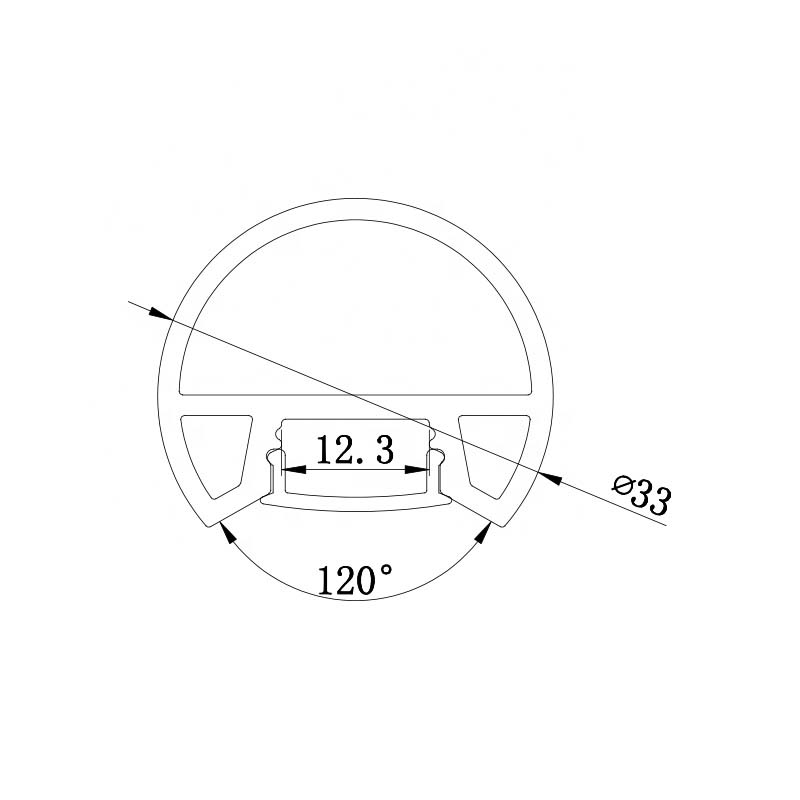

- Diameter: ⌀33 mm ( 1.3" ）
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 12.3 mm ( 0.48" )
- Max LED strip width: 12 mm ( 0.47" )
- Max power: 20W/m
- Diffuser: PC diffused cover, PMMA opal matte covers, PMMA semi-clear covers, PMMA clear covers
- Beam angle: 100°

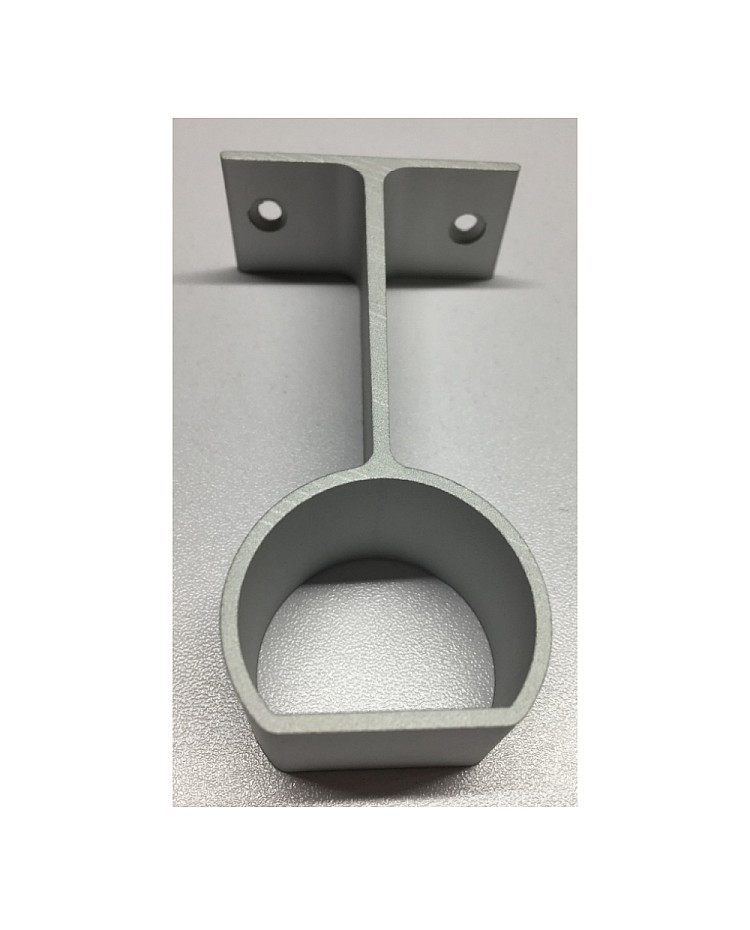

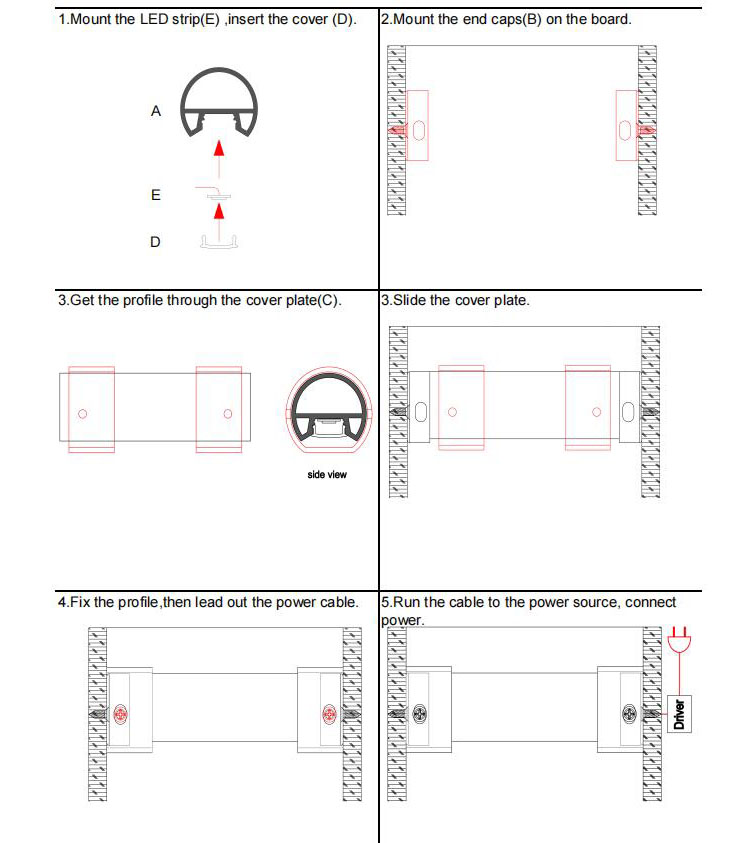

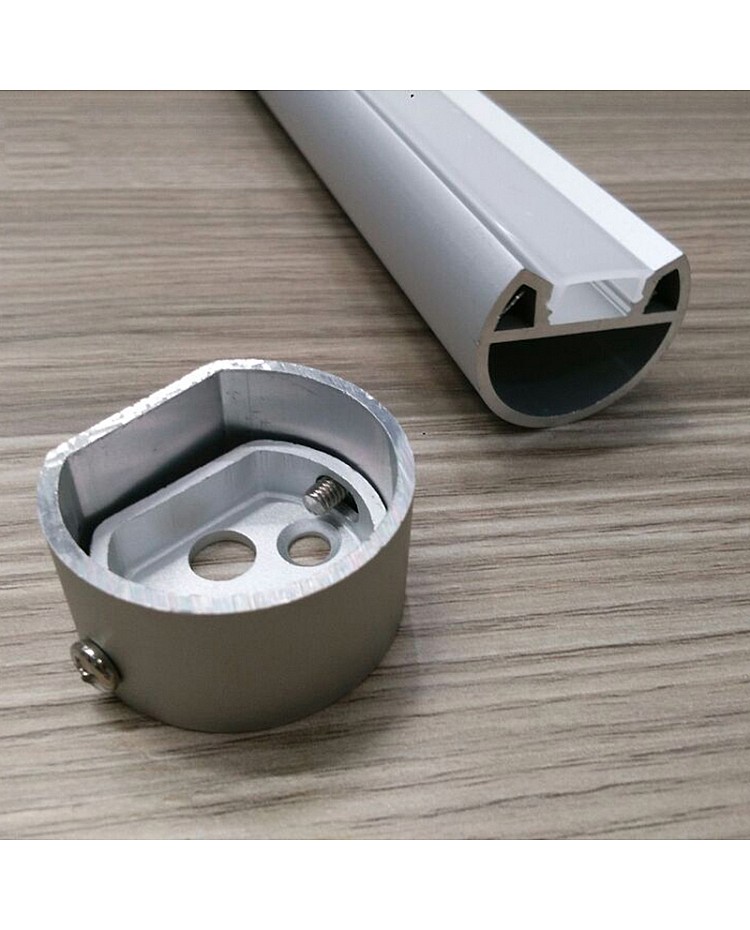

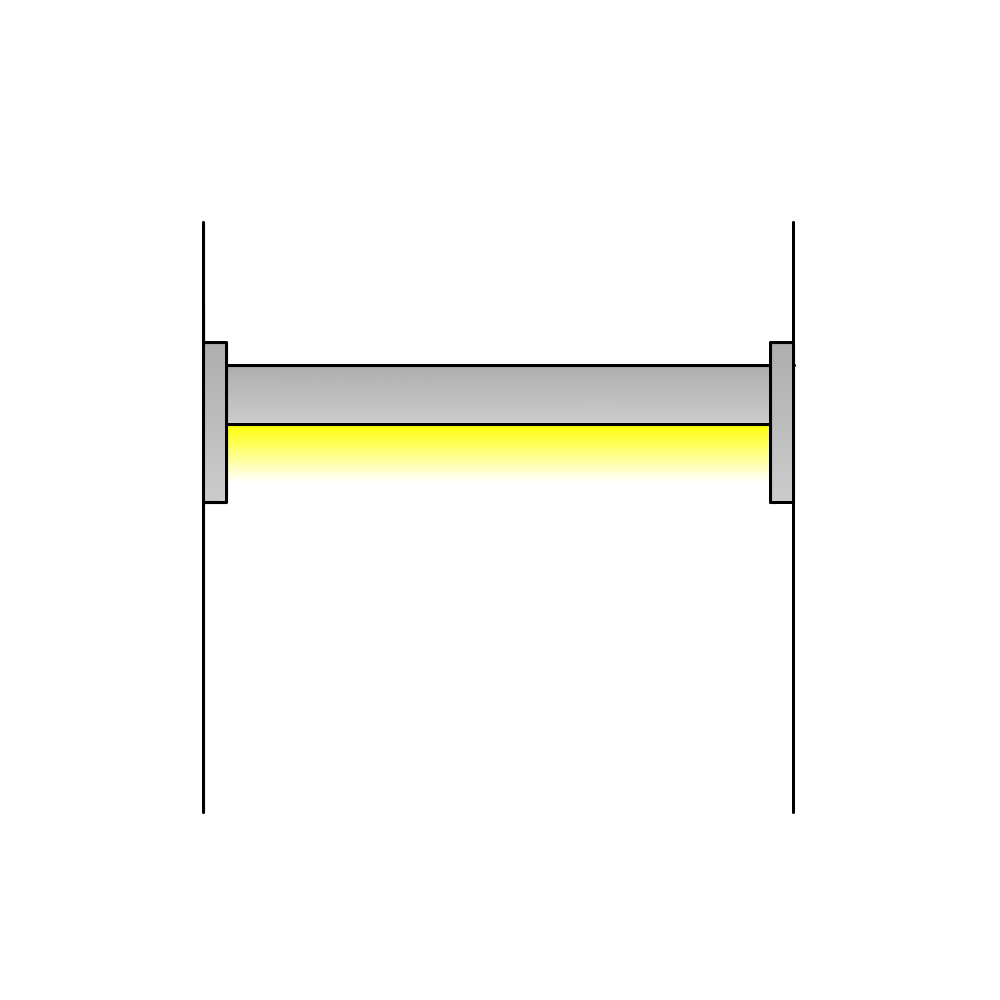

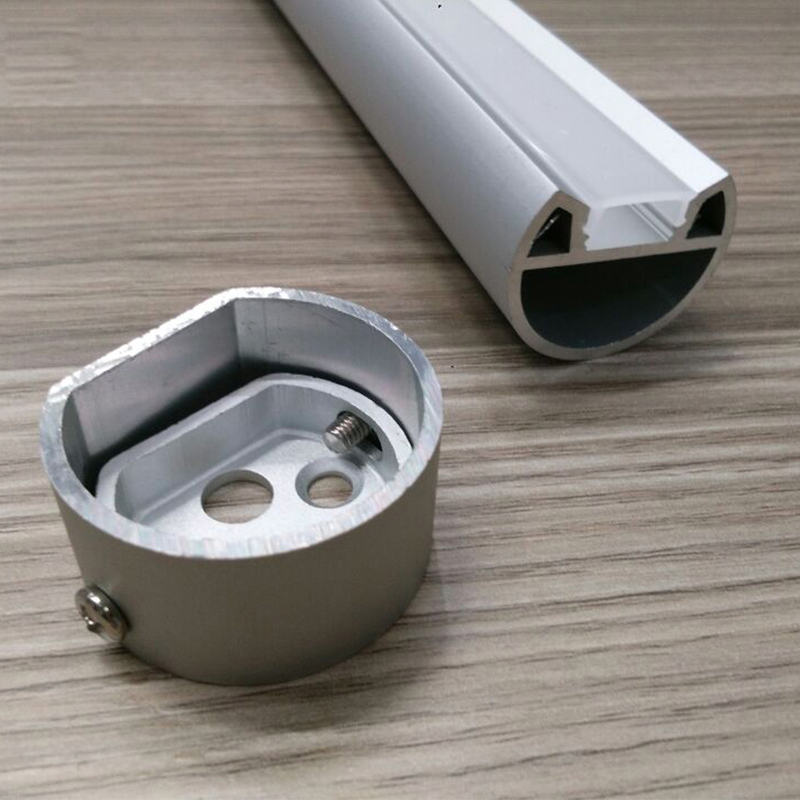

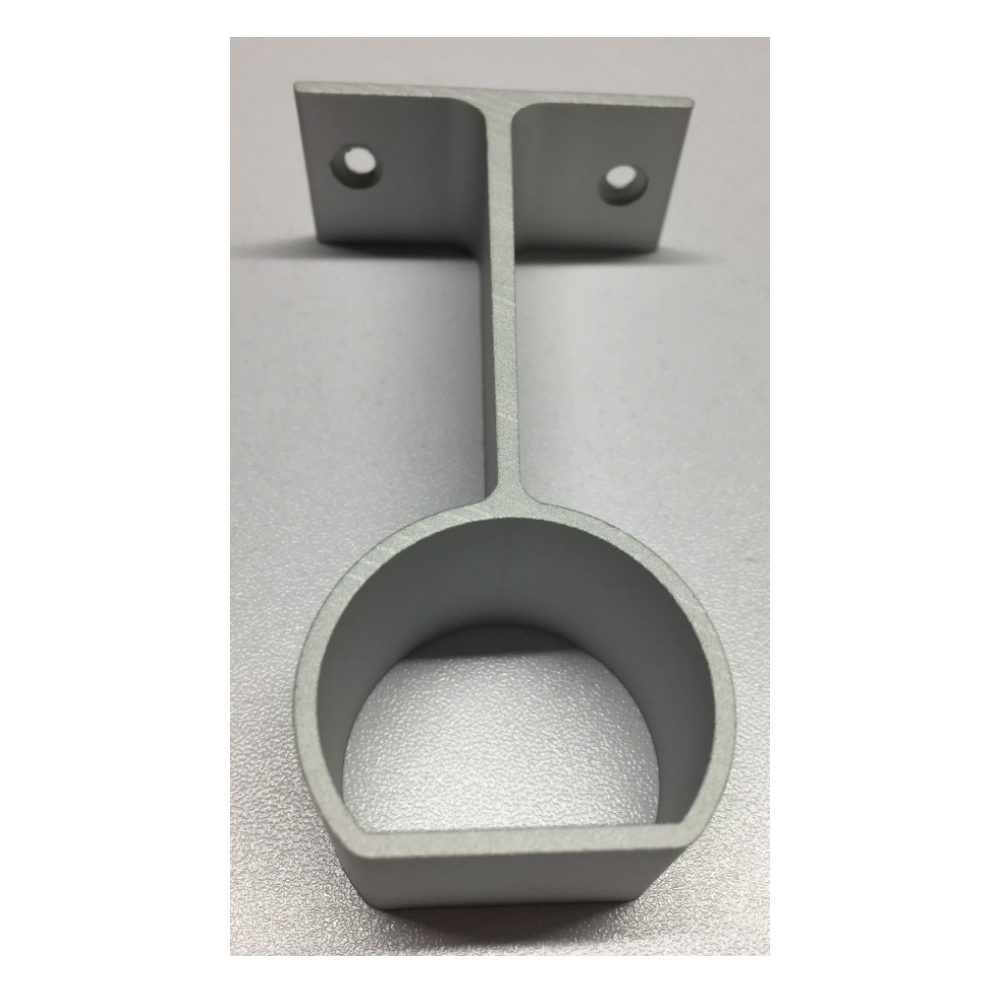

- End caps with wire holes for surface-mounted / Hanging clips for suspended installation
- LED tapes, dimmers, controllers, and transformers are sold separately

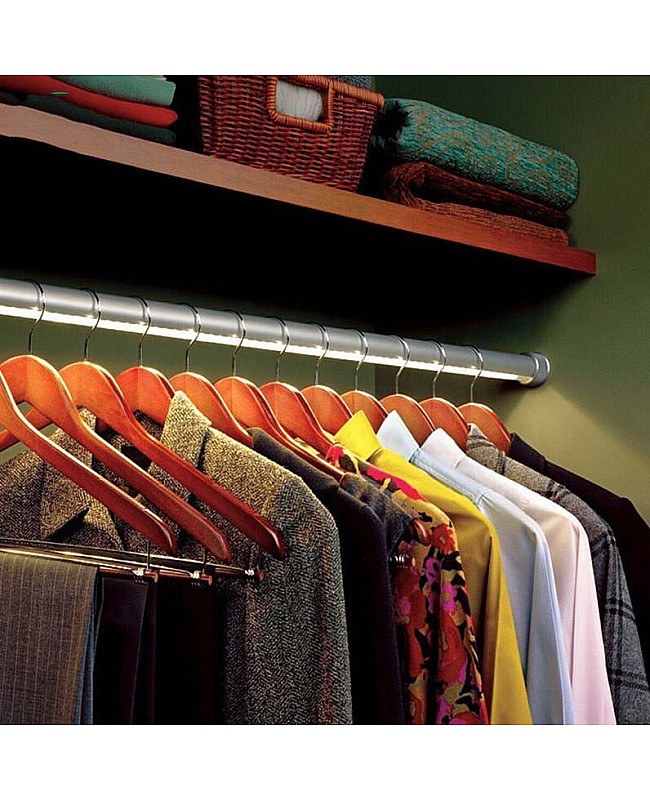

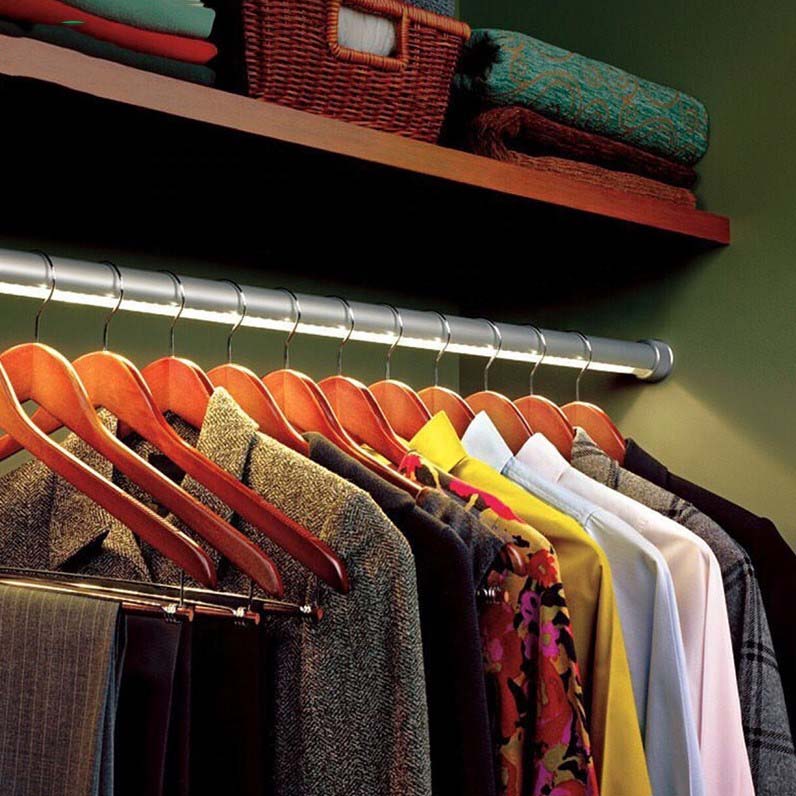

- Application: Wardrobe lighting
- Certifications: CE, ROHS
- Warranty: 5 years
Includes:
1 * LED closet rod with diffused cover

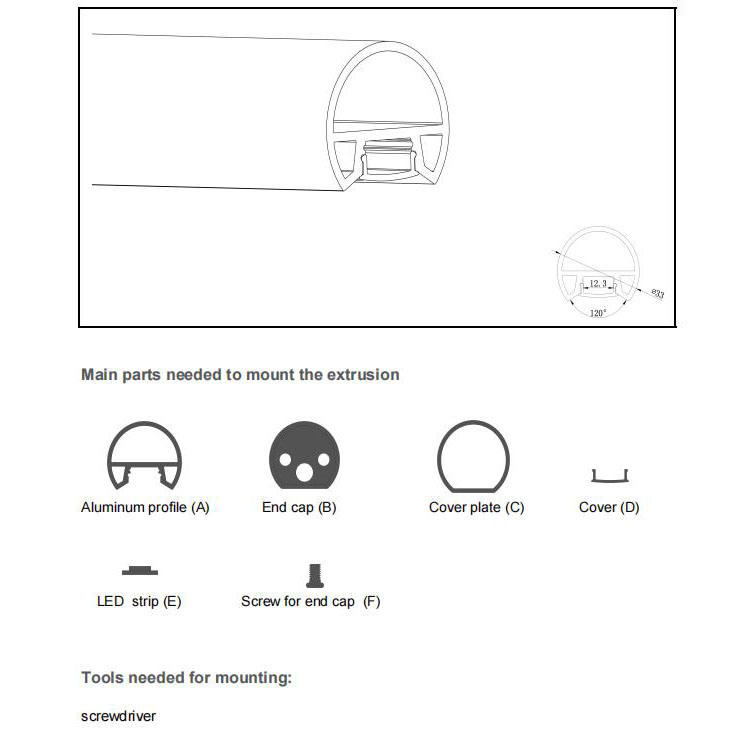

End caps or hanging clips
