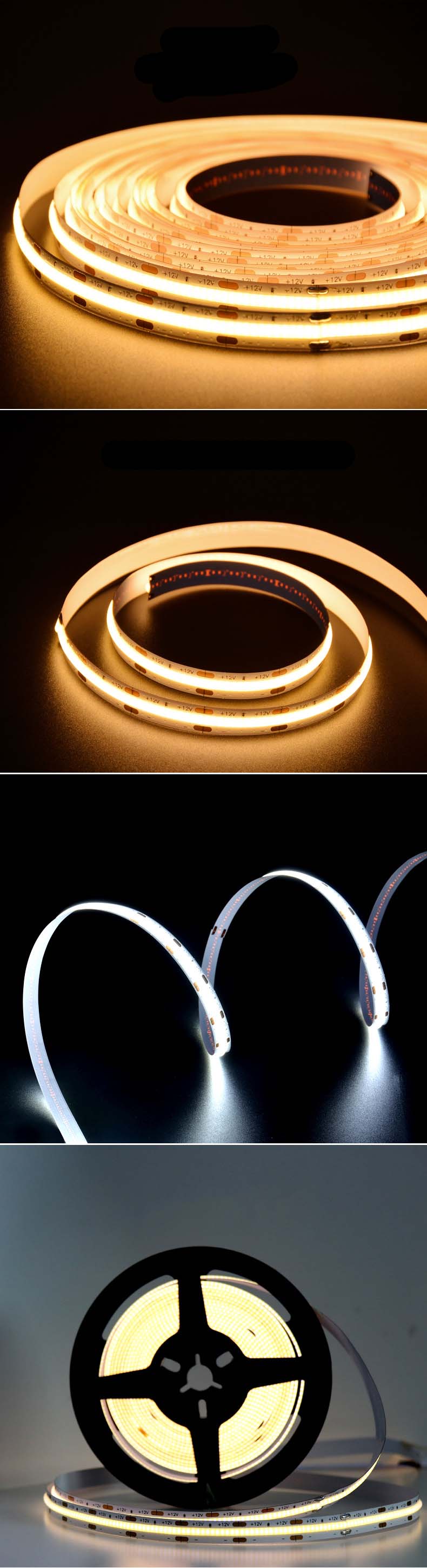

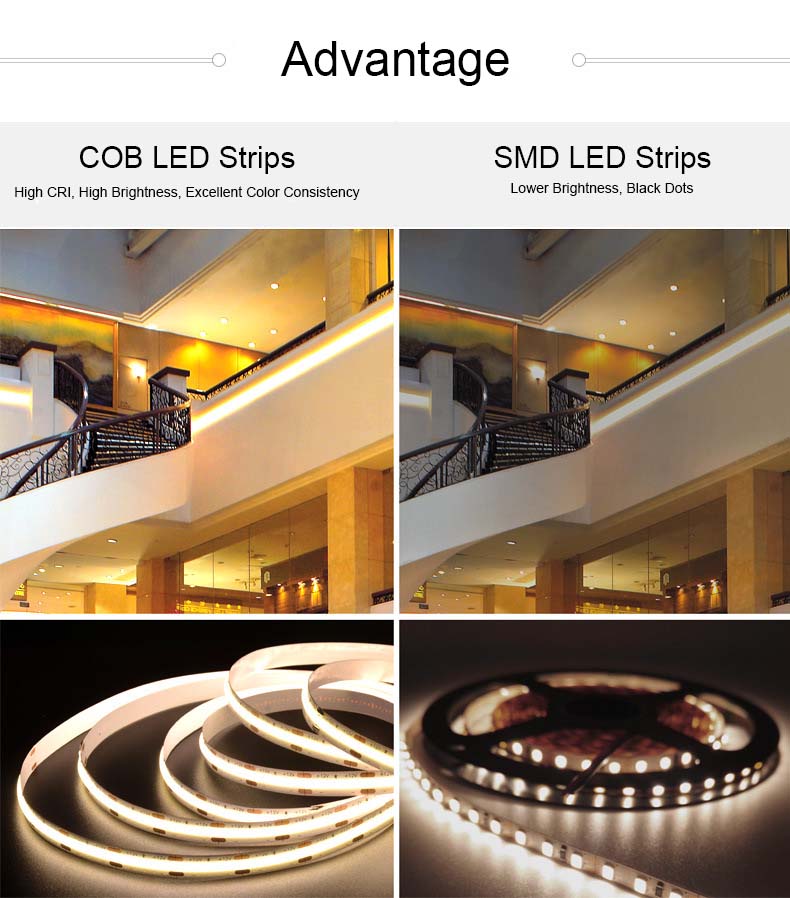

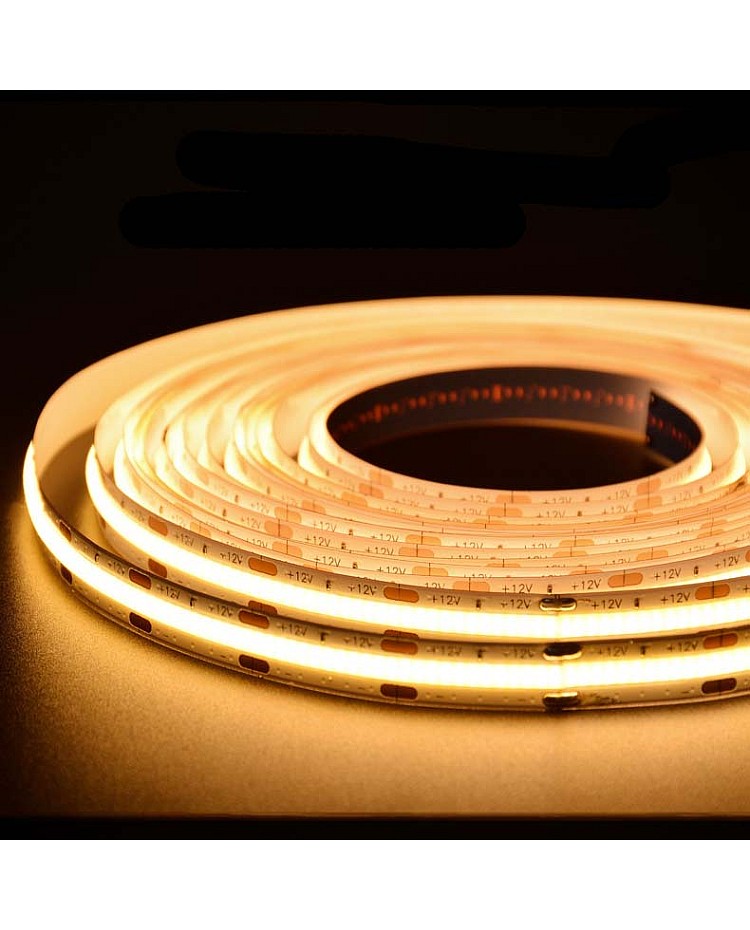

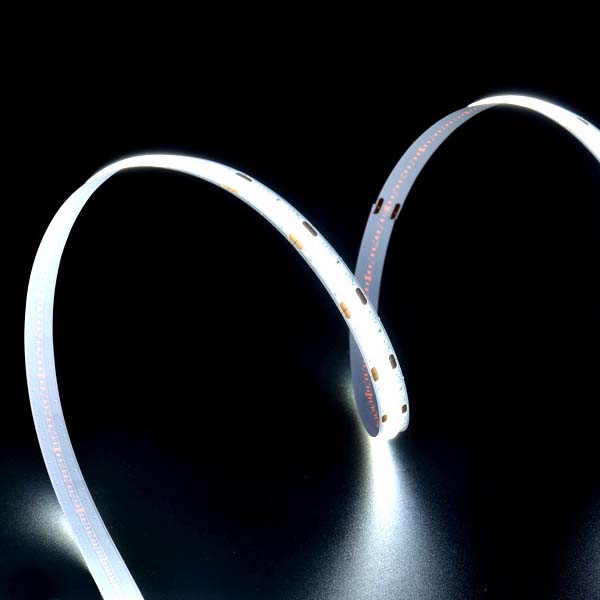

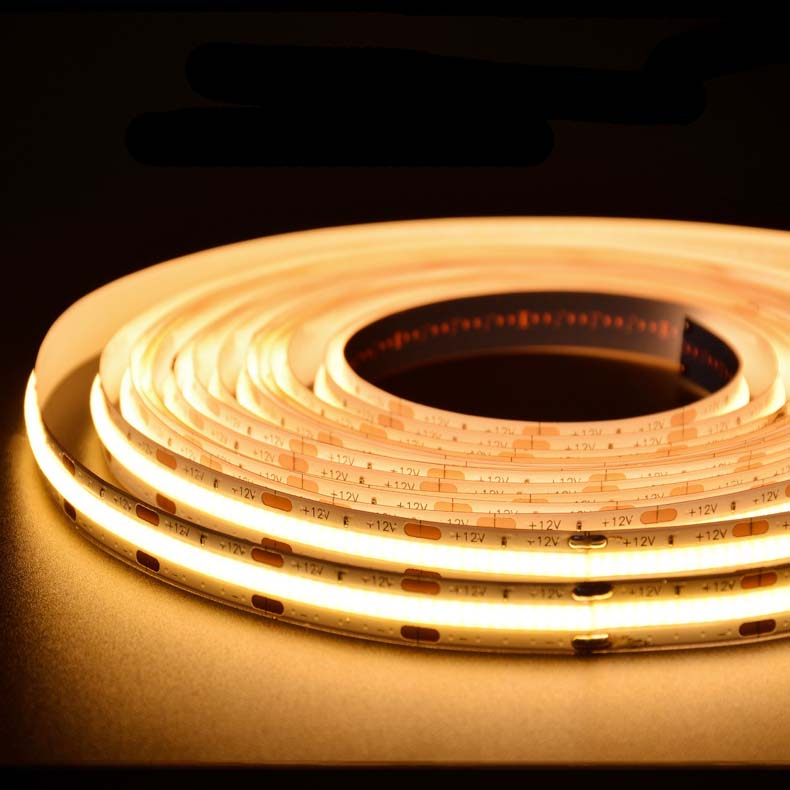

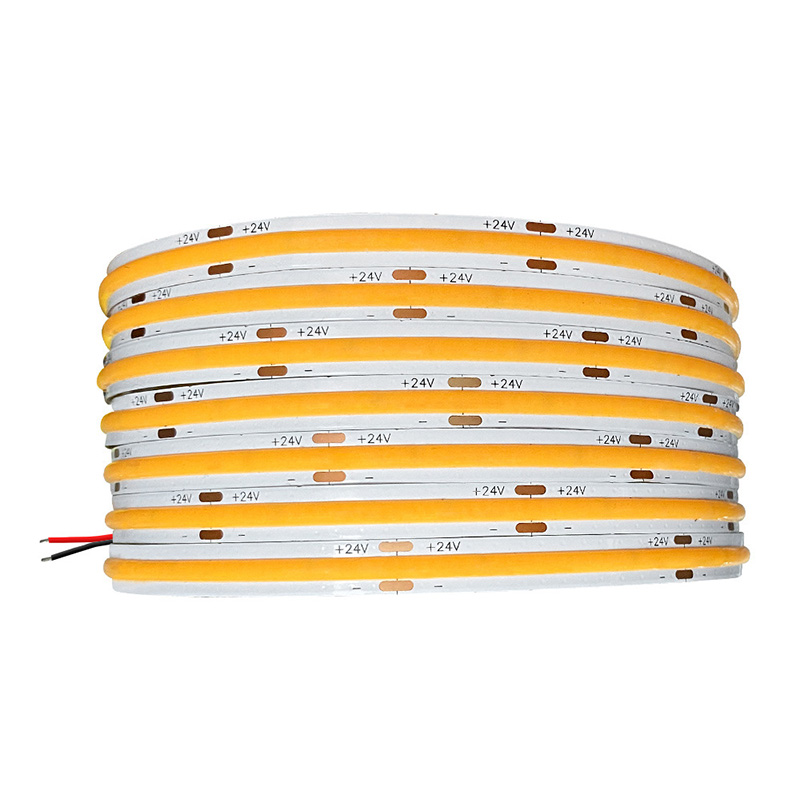

The COB LED strips utilize advanced chip-on-board (COB) technology, providing ultra-smooth, uniform illumination without visible light dots. They are ideal for applications requiring seamless, professional-grade lighting in residential and commercial settings. They use 1022 chips as the light source and 480 LEDs per meter for high-density, vibrant lighting.

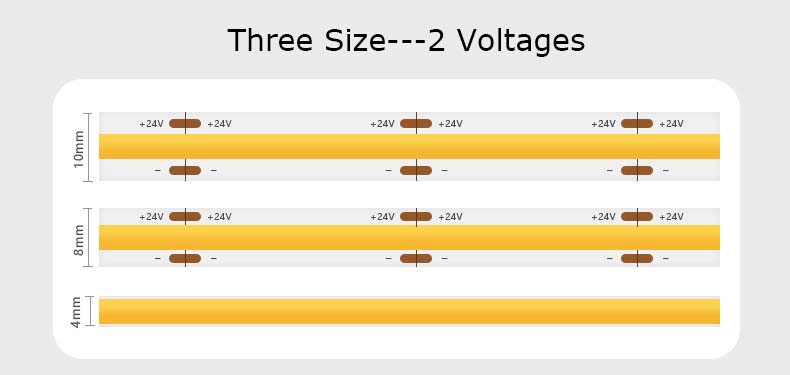

Various emitting-color products are available, including warm white, white, and cool white. 12V and 24V products are optional. We offer two width products: 8mm and 10mm. You can choose the width that best fits your needs. We offer two width products: 8mm and 10mm. You can choose one to fulfill your needs. Especially if you want to install them in aluminum LED profiles, please check the inner width and decide which width you need. They need to work with LED dimmers or controllers to adjust brightness. The dotless LED strip is cuttable; the minimum cutting length for the 12V version is 25mm, and for the 24V version, it's 50mm. The color rendering index can reach 90, making it ideal for various indoor and outdoor linear lighting projects, with excellent efficiency and color consistency, to provide an incredibly bright and comfortable visual experience.
There are two levels of waterproof products available: IP20 non-waterproof and IP67 silicone tube waterproof. The IP20 is not waterproof and should only be used in dry environments. The IP67 waterproof COB strip lights are suitable for wet environments and outdoor use. The IP20 LED strip lights with adhesive backing for quick mounting. The IP67 silicone tube LED COB strips can be mounted with silicone clips. You can connect the Mean Well dimmable power supply to light up and adjust the brightness conveniently.
Specifications:
- Working Voltage: DC12V or DC24V

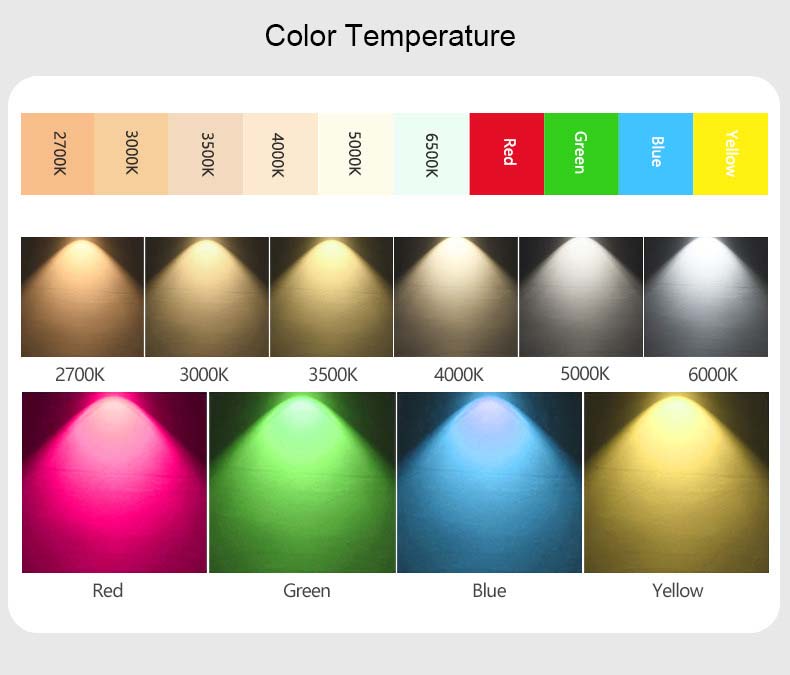

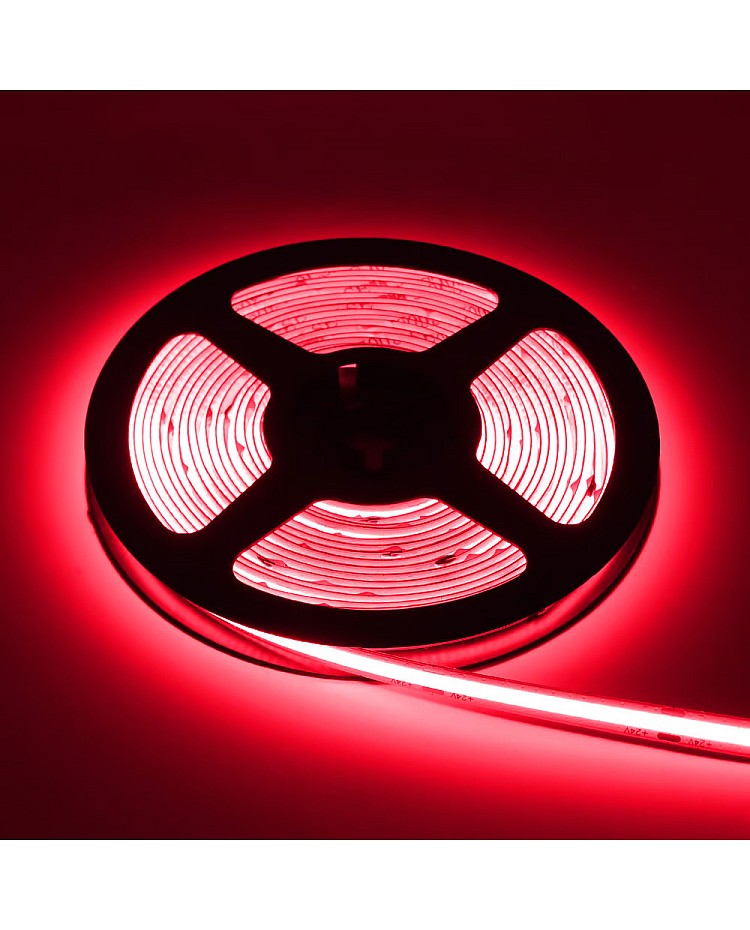

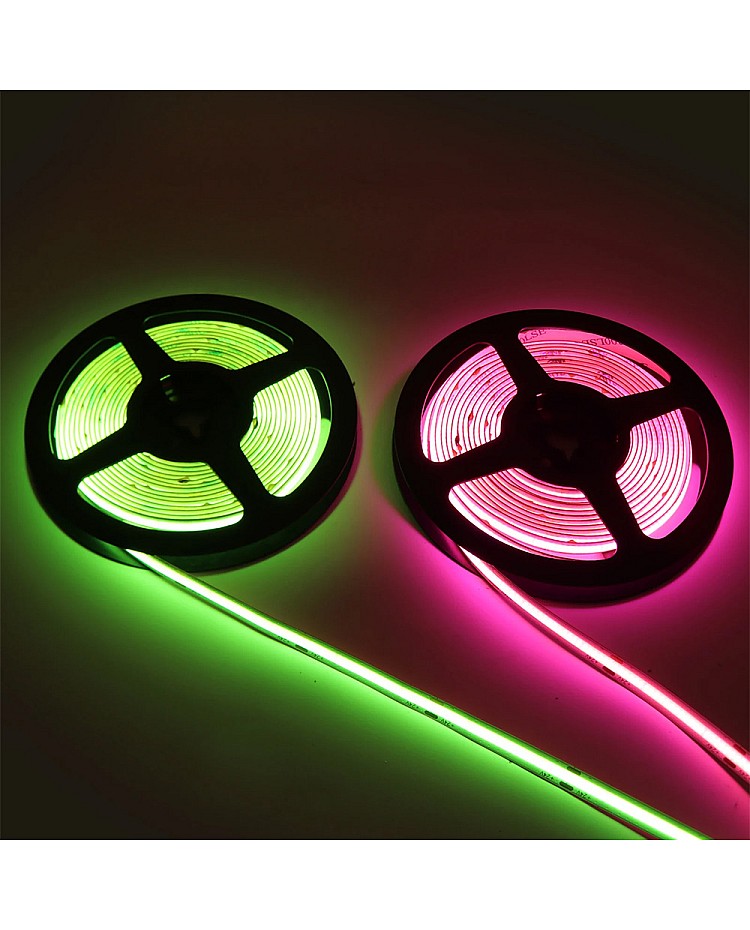

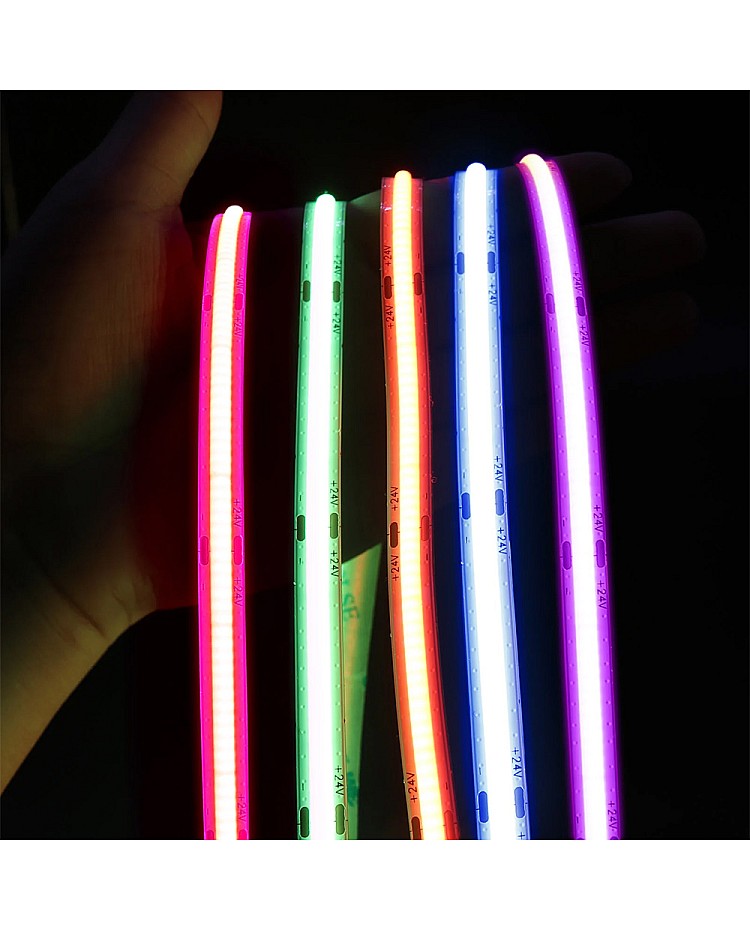

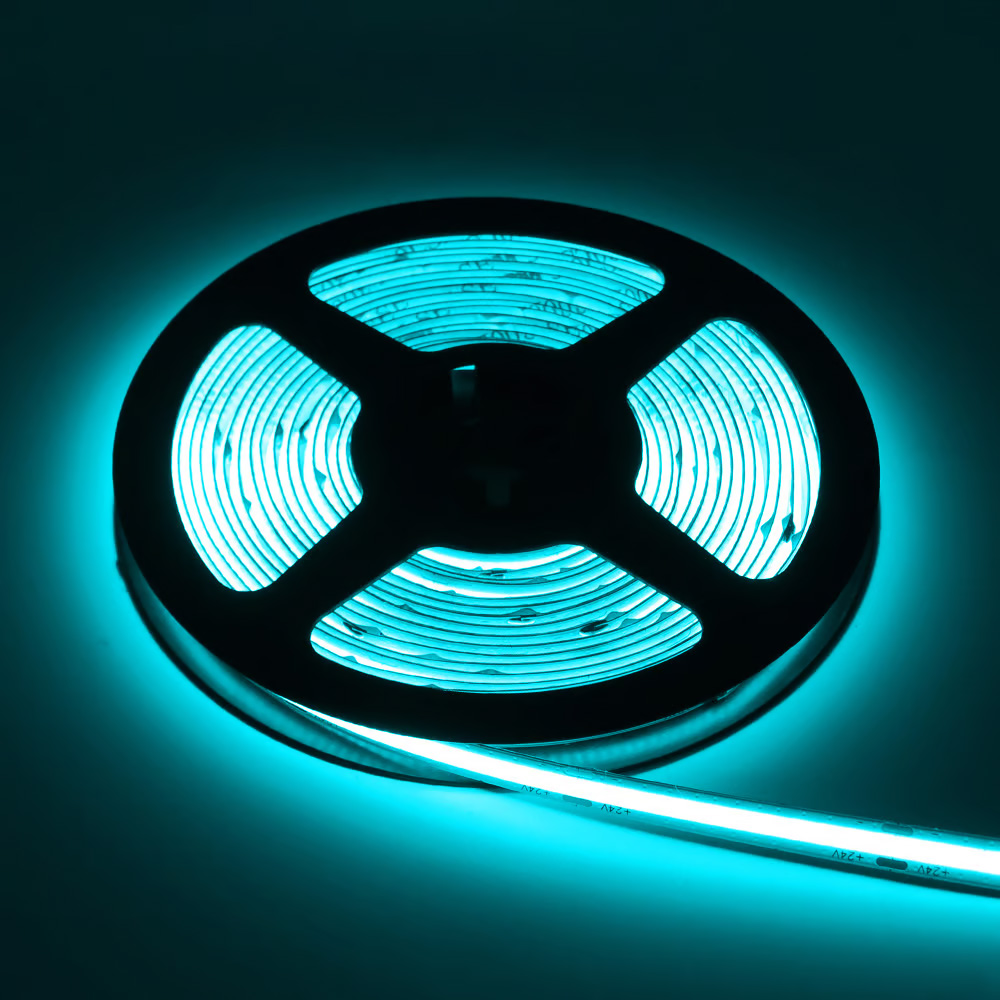

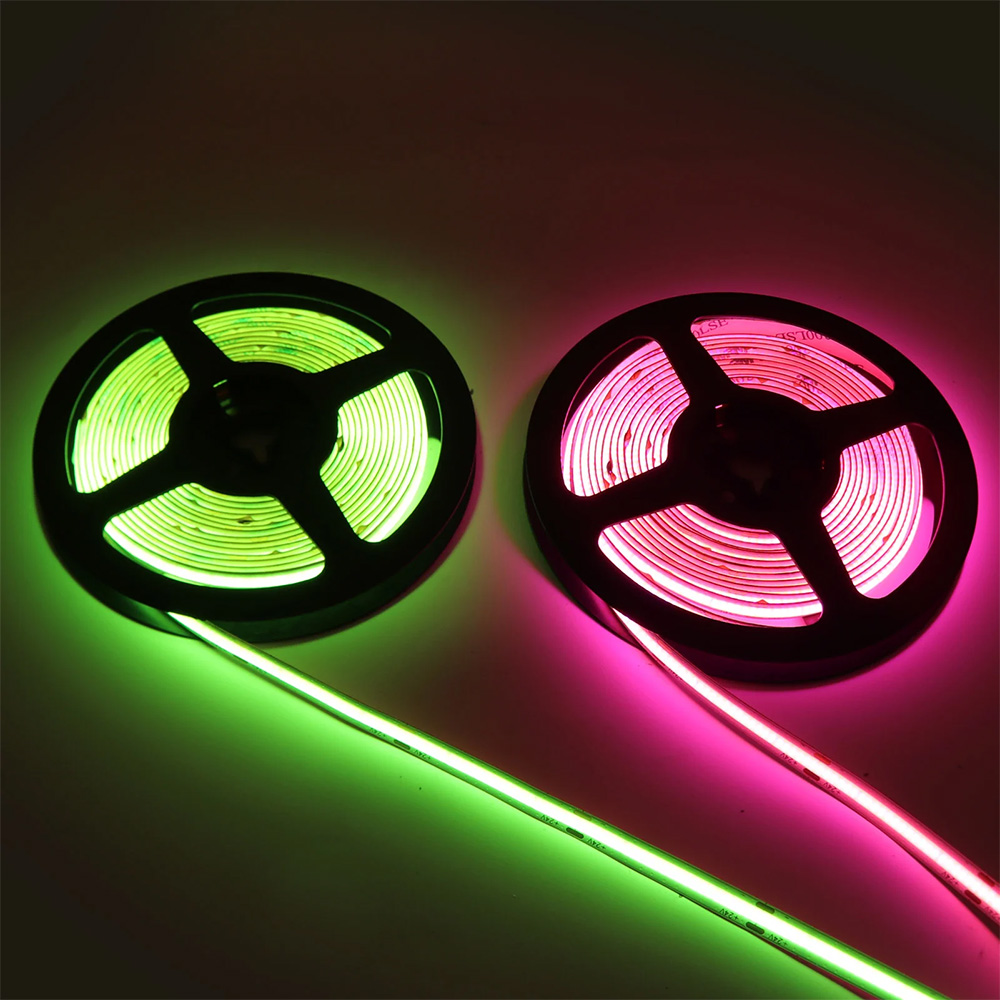

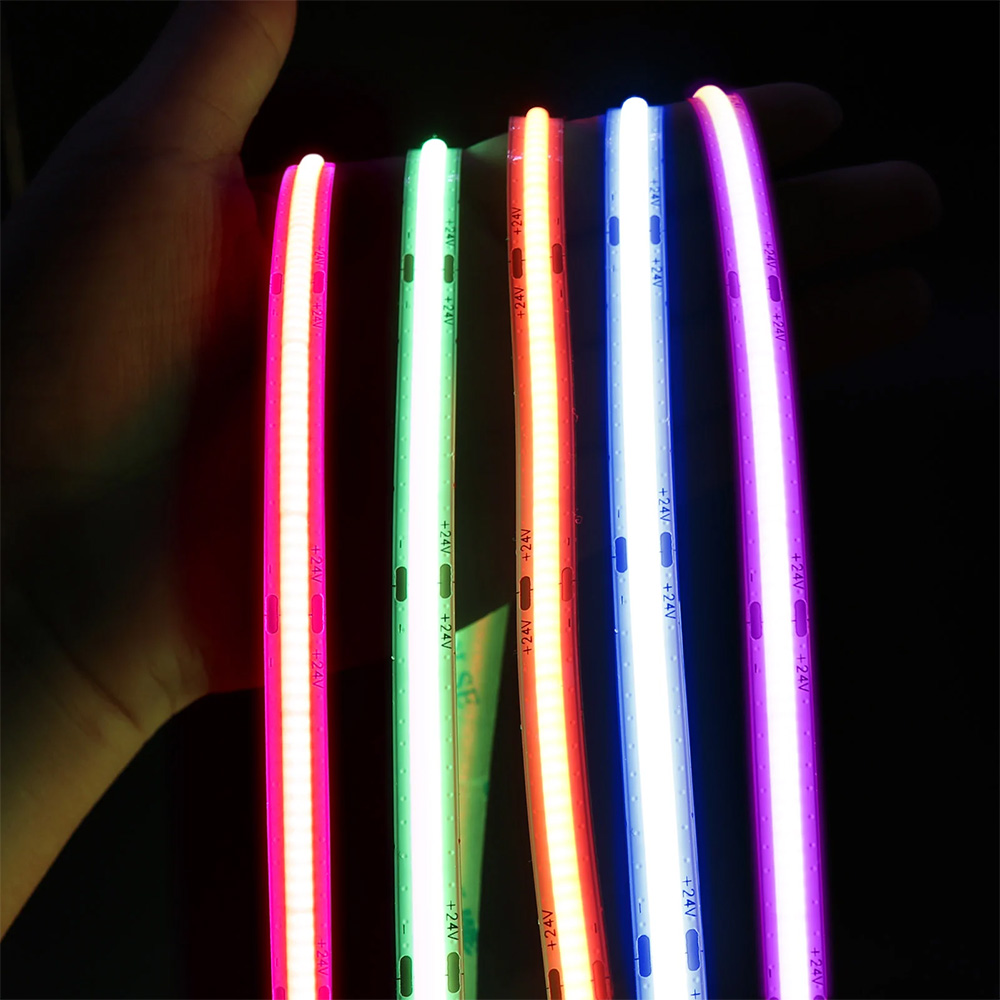

- Colors: 2700K ( warm white ) / 3000K ( warm white ) / 4000K ( natural white ) / 6500K ( cool white ), blue, red, green, pink, yellow, purple
- PCB Width: 8 mm ( 0.31" ); 10 mm ( 0.39" )

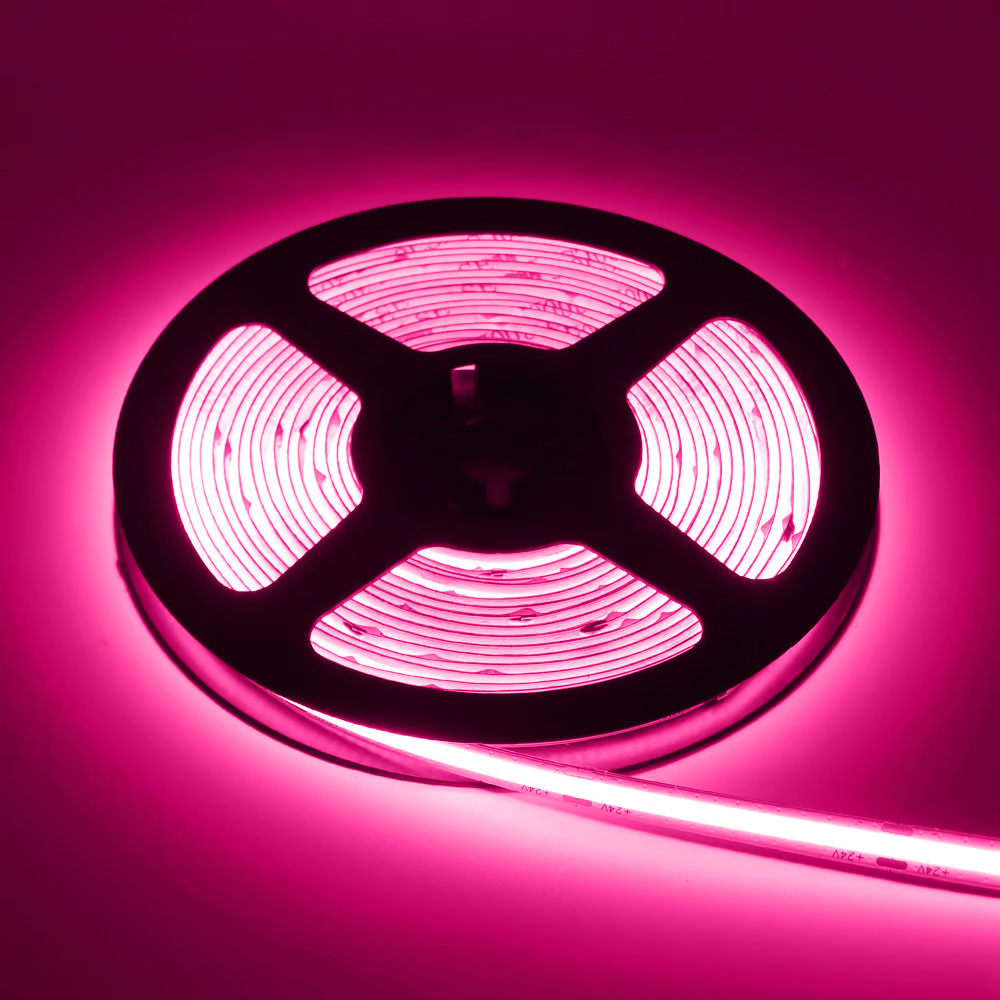

- Length: 5 meters ( 16.4ft ) per roll
- LEDs: 1022
- LED Quantity: 480 pieces per meter
- LED Chip: San An
- Angle View: 180°
- Waterproof Level: IP20 non-waterproof / IP67 waterproof
- Power: 10W/15W per meter
- LM/M: 1400 - 2800LM

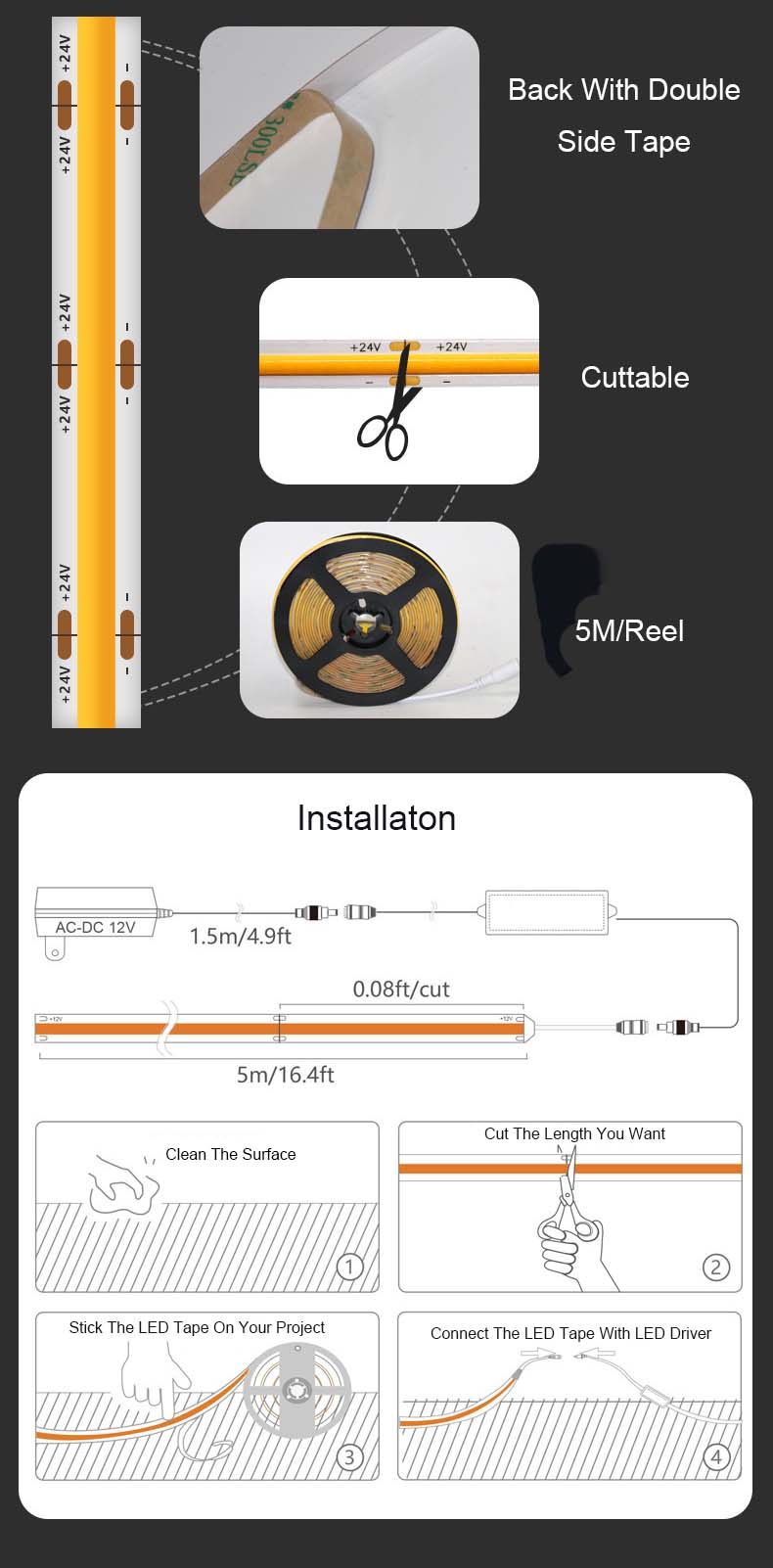

- Minimum Cut Length: 25 mm ( 12V ) / 50 mm ( 24V )
- CRI: >90Ra
- View Angle: 180°
- Dimmable: YES
- The back has double-sided tape
- Working Temperature: -20℃-+45℃
- Storage Temperature: -20℃-+60℃
- Lifespan: 50,000 Hours
- UL listed
- Warranty: 3 years

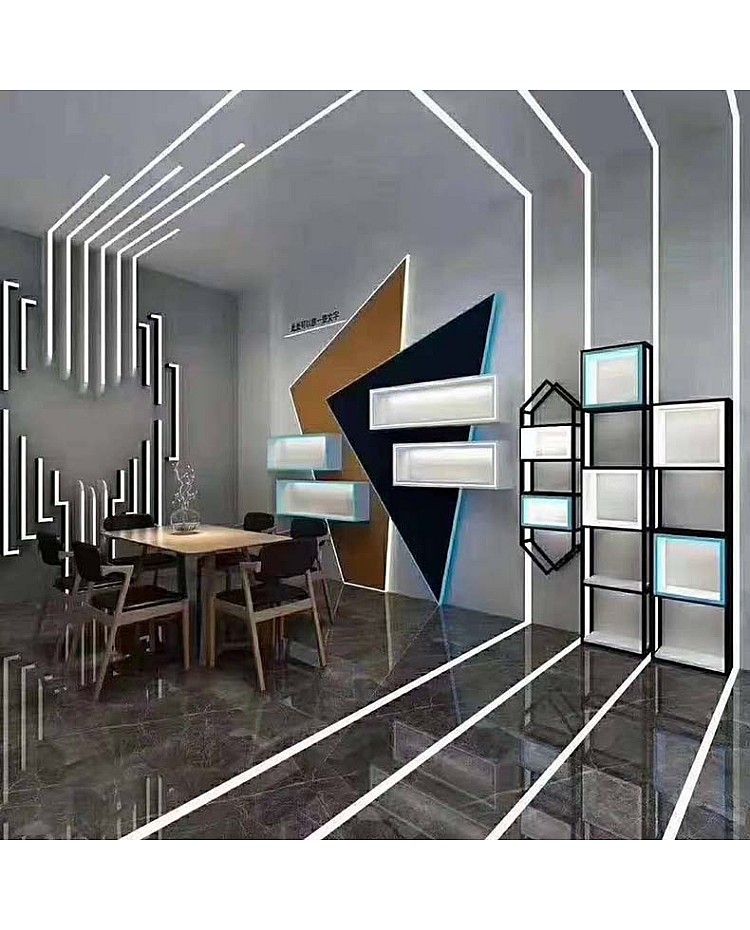

Applications:

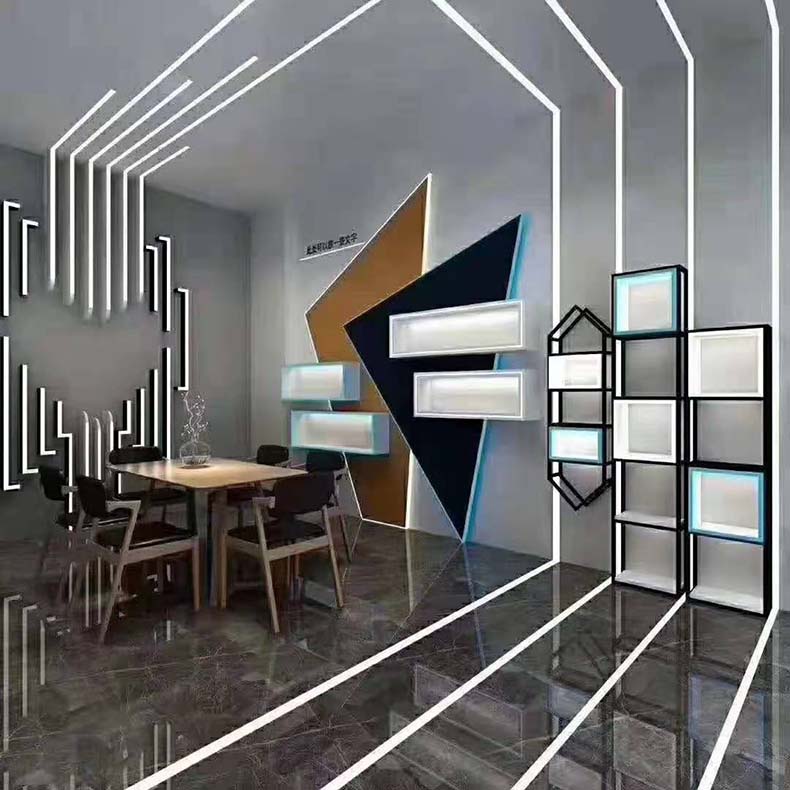

- Accent lighting(under cabinets, coves, stairs)
- Retail displays & signage
- Automotive/boat interiors
- DIY projects & decorative lighting
