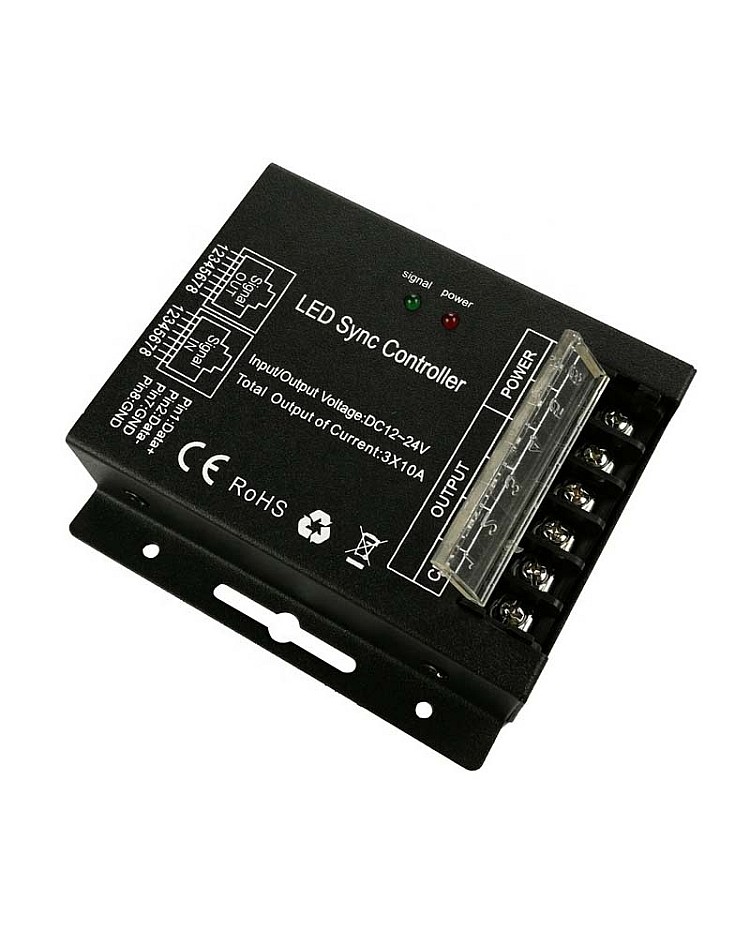

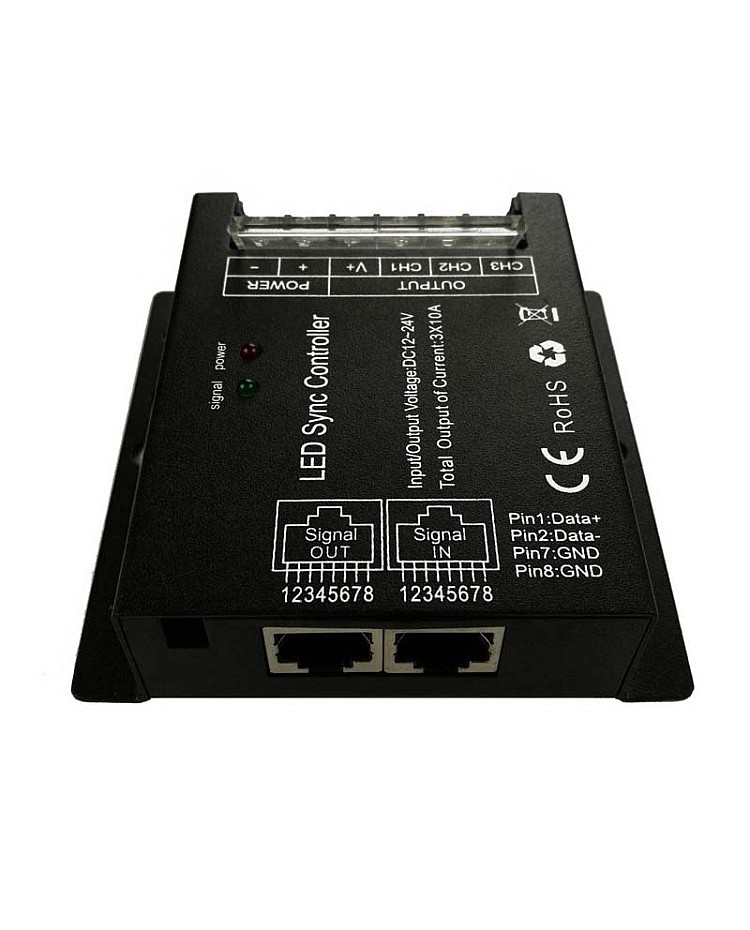

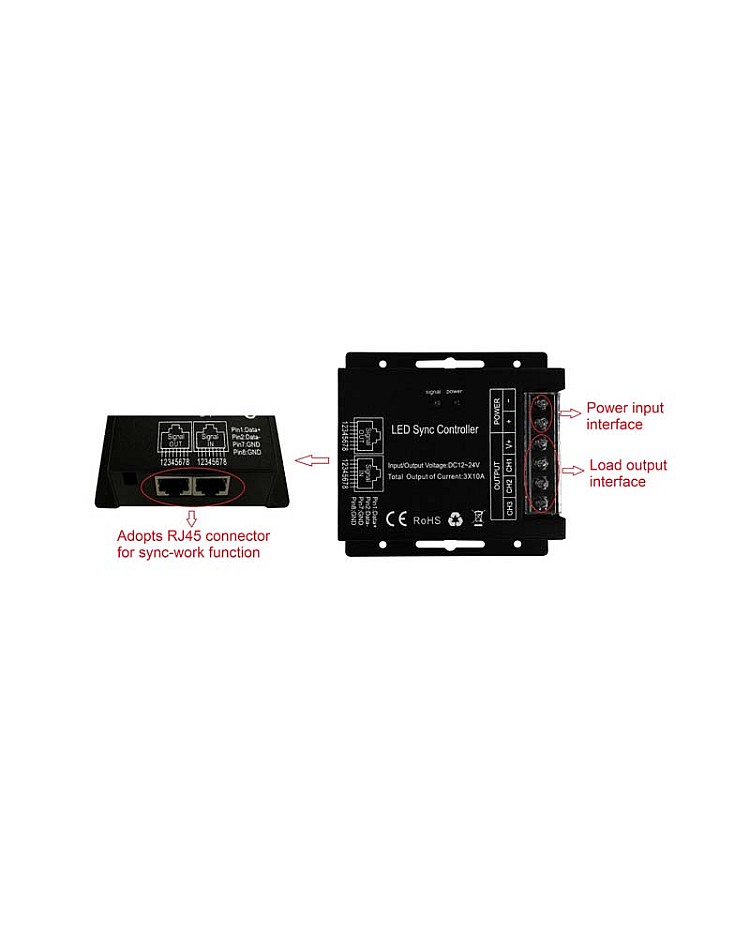

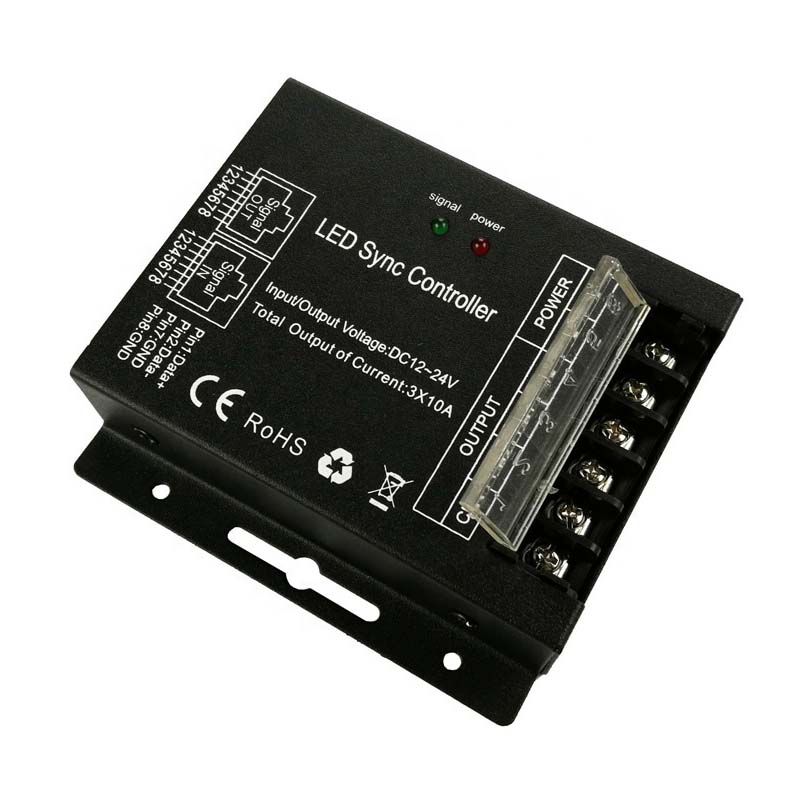

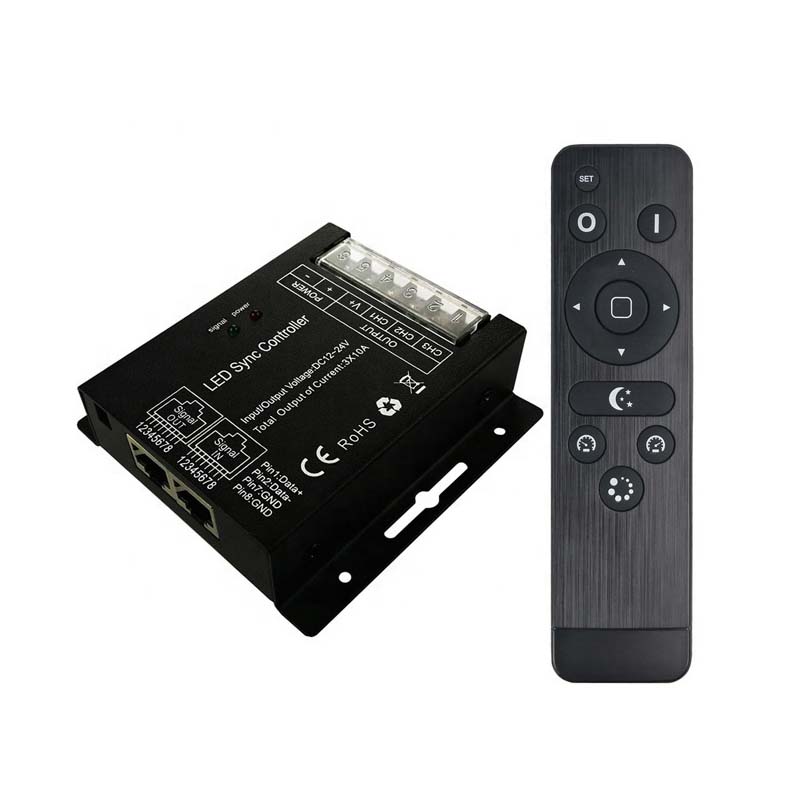

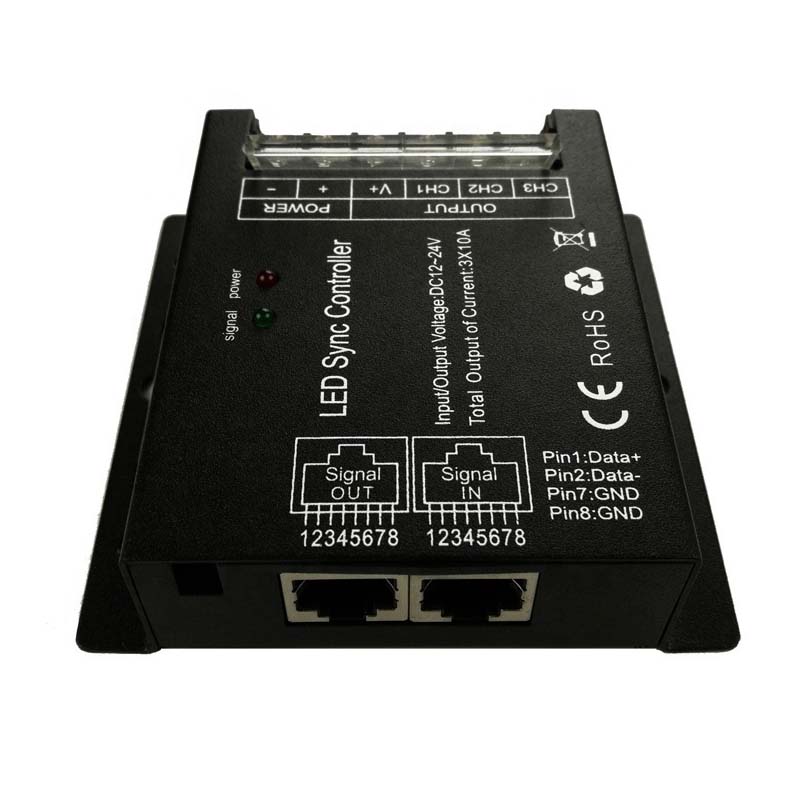

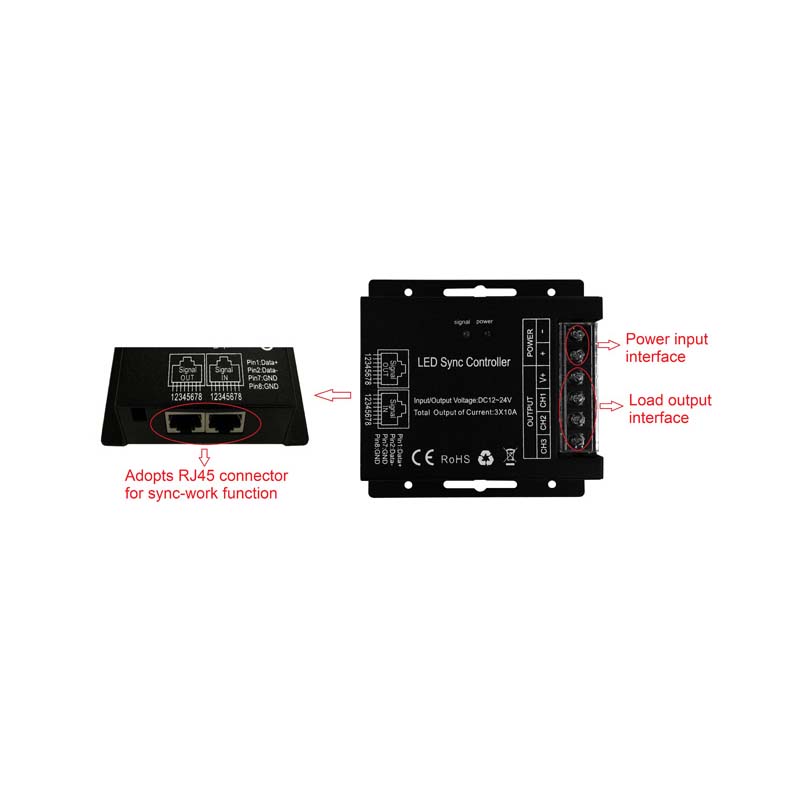

The CCT LED Strip Controllers, designed for the Tunable White CW+WW constant voltage LED Lights, have dual RJ45 Ports to achieve the synchronization function. Multiple LED Controllers can work synchronically, and the max length of the network cable is up to 80 meters. The Tunable White LED Strip Controller works in DC12-24V, with 2 output channels design. The max loading power is up to 480W when working in 24V, with memory function, each time power-on reserves the mode which stops in the last power-off. HX-RFBT-2.4G Remote Control includes 14 buttons in total and provides 11 working modes, three static colors, and eight dynamic modes. The brightness of static color is adjustable, with 256 levels in total. The speed of dynamic modes is adjustable, with 100 levels in total. Long-press the brightness and speed keys can get a fast adjustment.


CCT LED Strip Controller Features:

  • Working Temperature: -20-60℃
  • Size: 91*88*24mm(L*W*H)
  • Working Voltage: DC12-24V
  • Output Channels: 2
  • Max Output Current: ≤10A (Each Channel)
  • Max Output Power: 240W(12V), 480W(24V)
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode
  • Grayscale: 256 Levels
  • Speed Stage: 100 Grade
  • Mode: 11
  • 11 Modes In Total, 3 Static Colors And 8 Dynamic Modes
  • PWM Frequency: 433.92MHz
  • Remote Control Distance: ≤20M
  • Memory Function: YES
  • Short Circuit Protection: YES
  • Weight: 300g
  • 3 Years Warranty

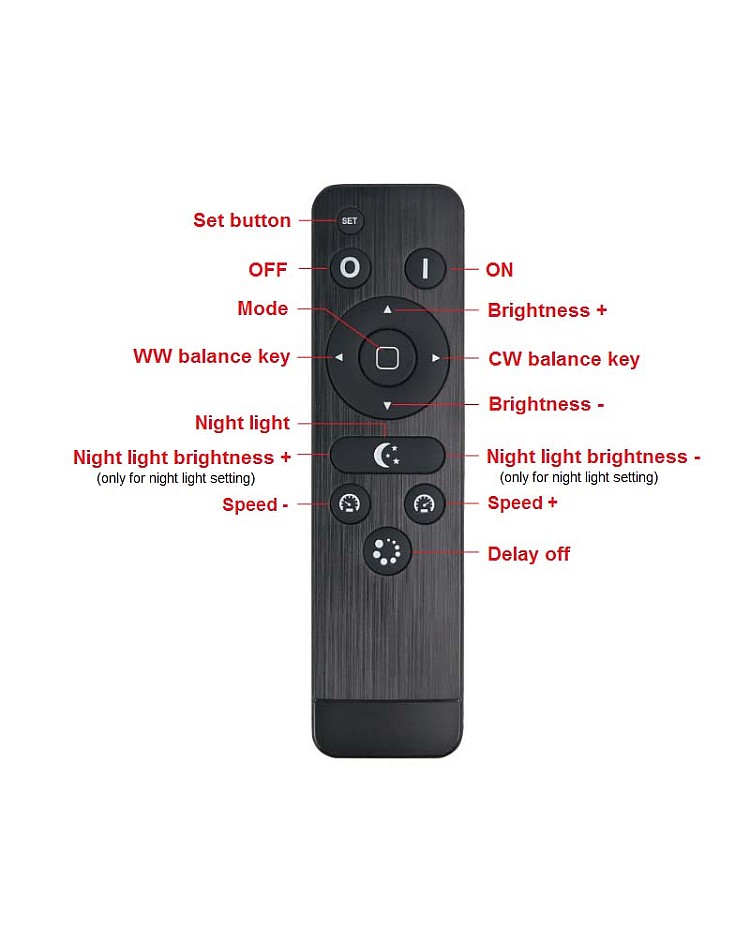

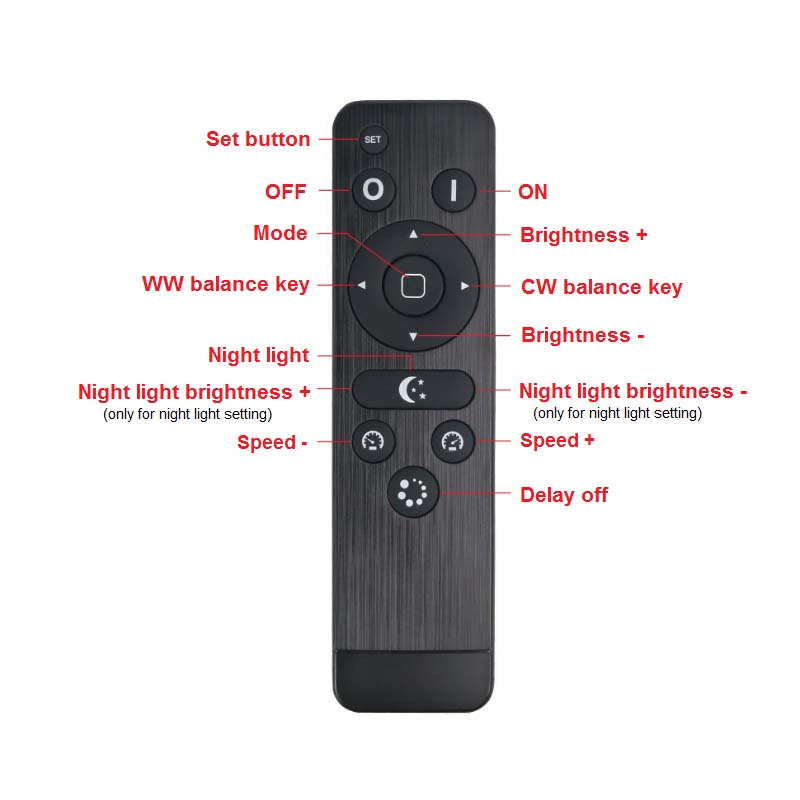

HX-RFBT-2.4G Remote Control Features:

  • Working Temperature: -20-60℃
  • Size: 150*40*20mm(L*W*H)
  • Working Voltage: DC3V(AAA*2)
  • Standby Current: <18uA
  • Working Current: <25mA
  • Standby Power: 54uW
  • Working Power: 75mW
  • RF Frequency: 433.92MHz
  • RF Distance: ≤20M
  • Weight: 65g

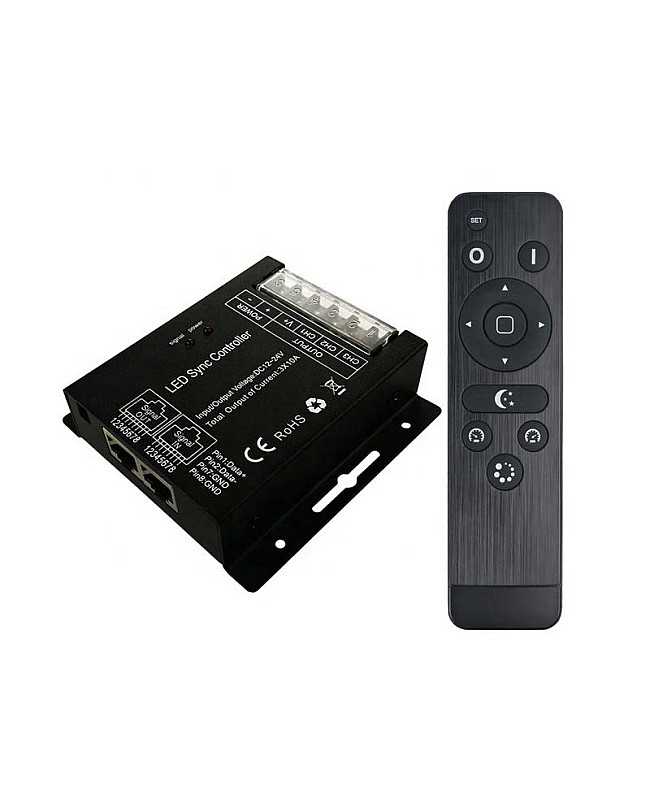

Includes:

1*CCT LED Strip Controller

1*HX-RFBT-2.4G Remote Control

CCT LED Controller
