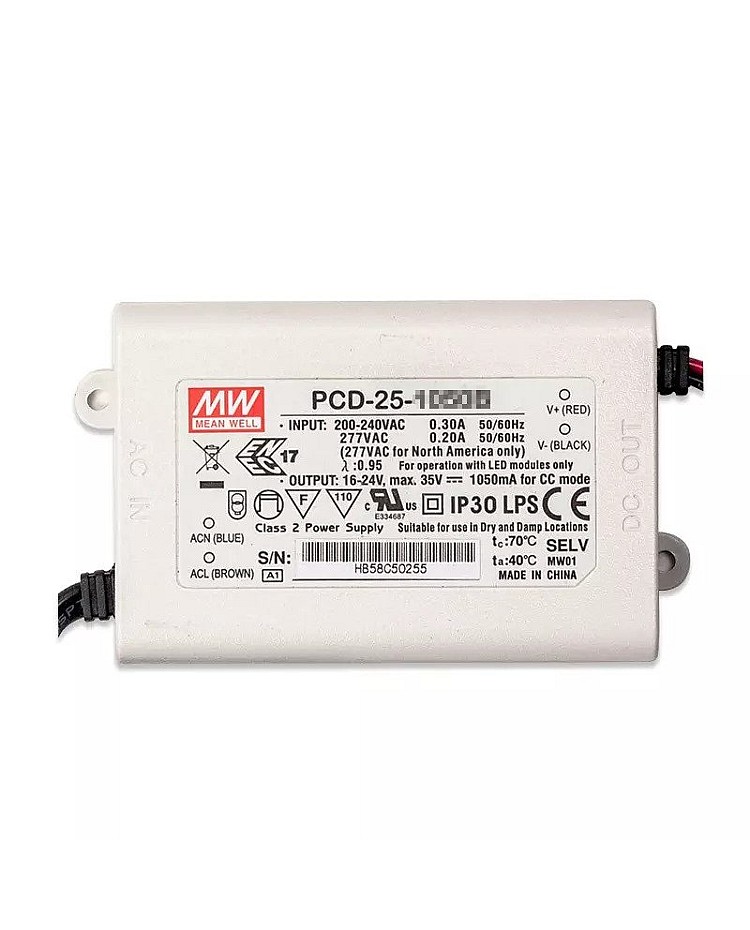

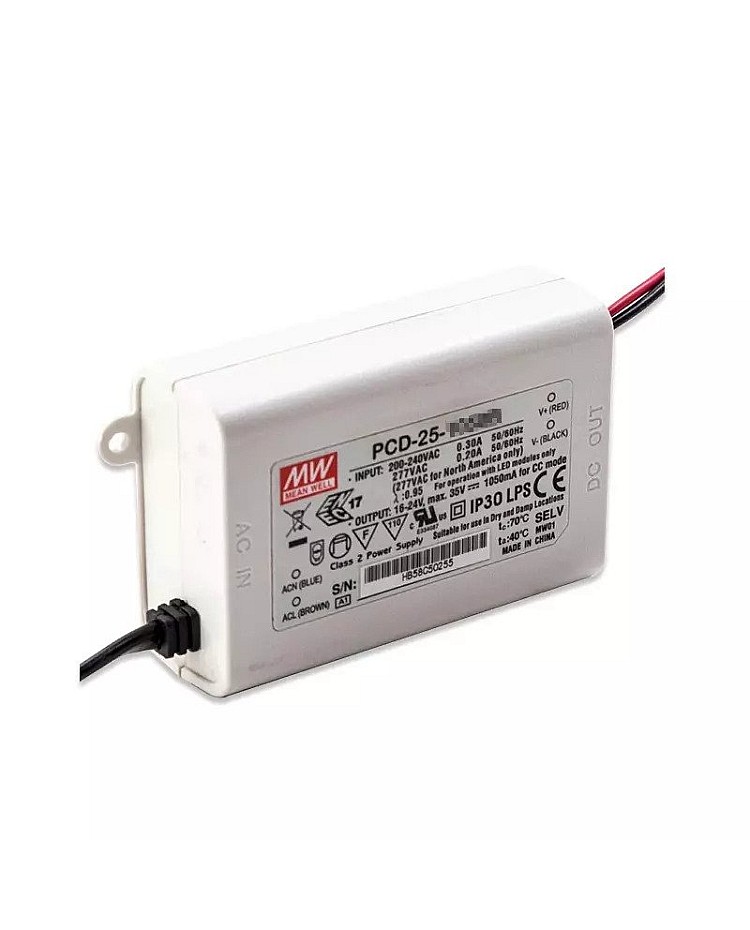

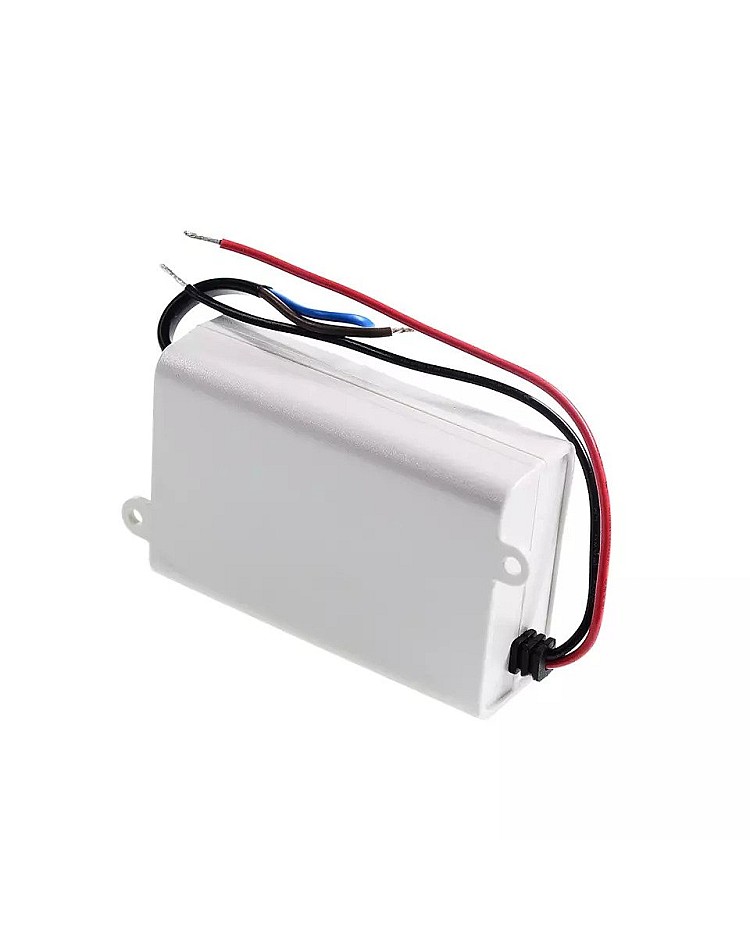

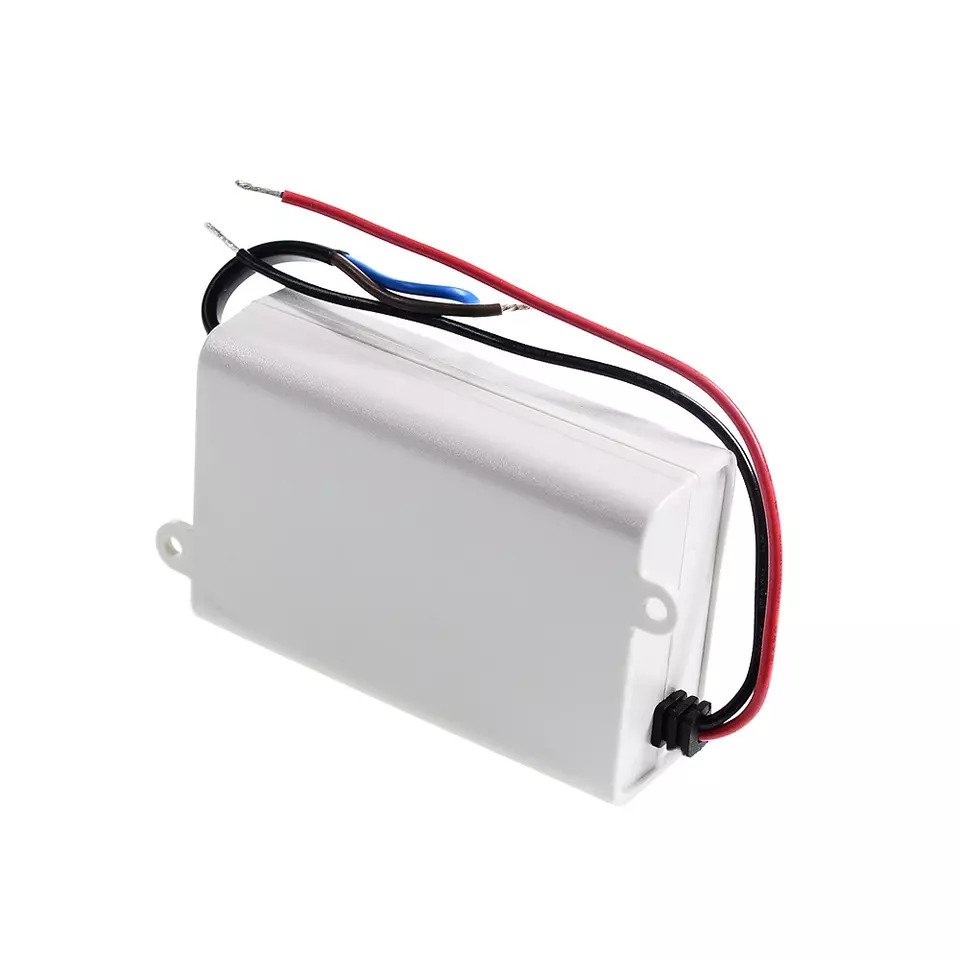

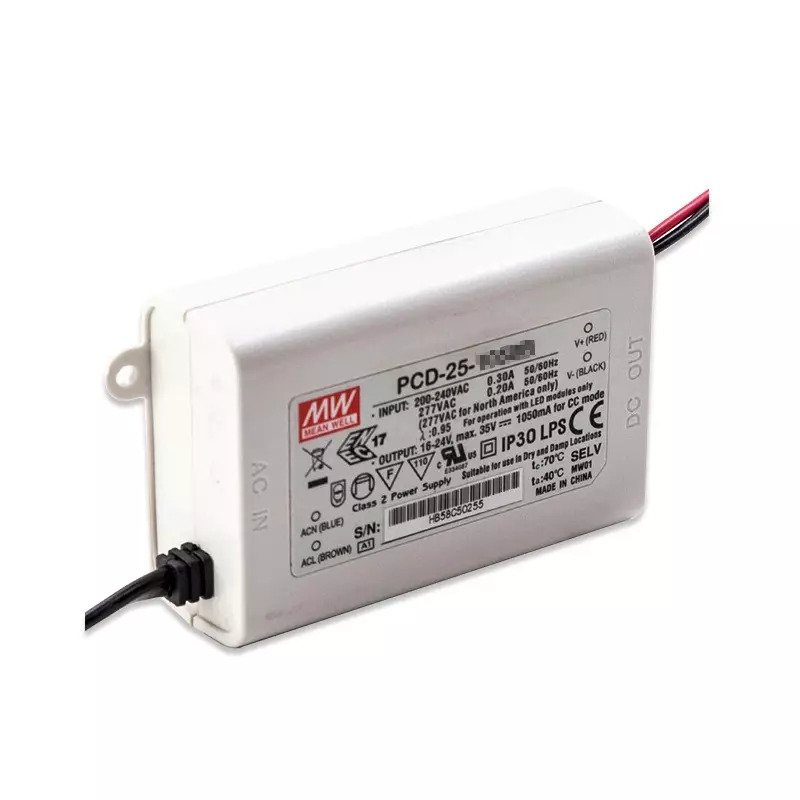

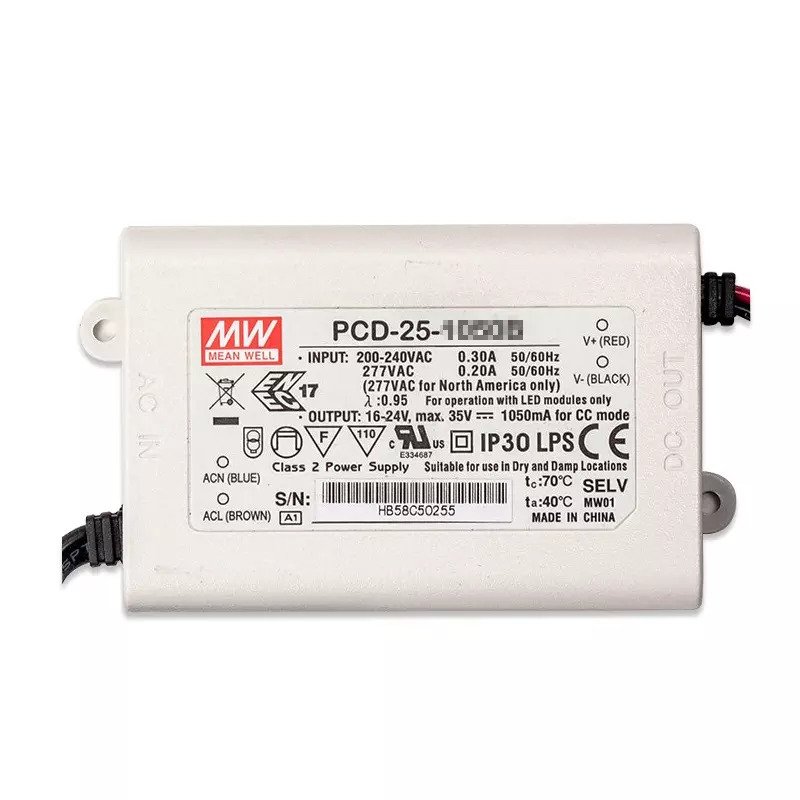

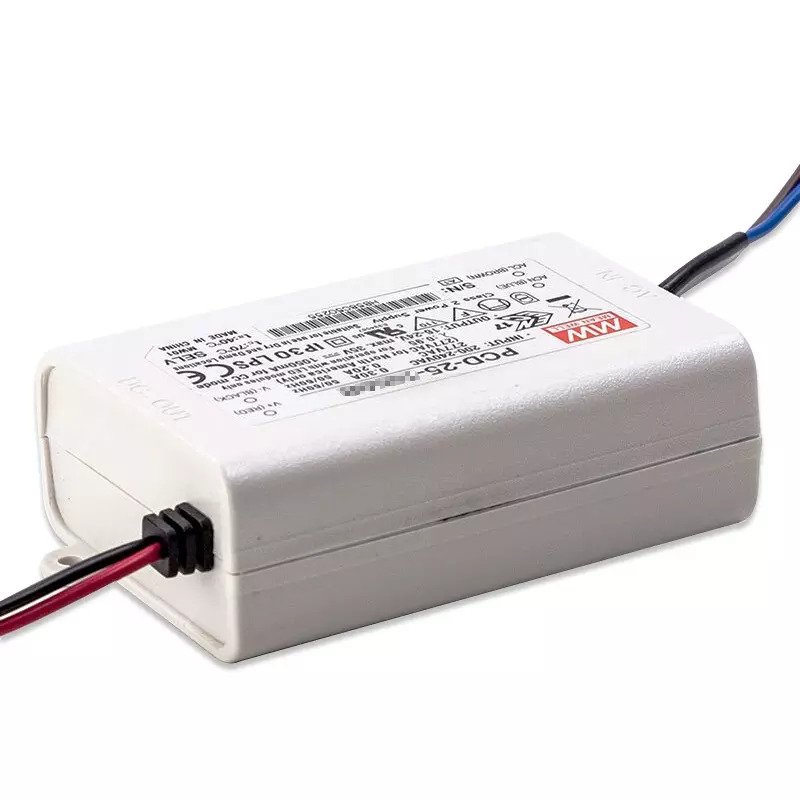

The Mean Well PCD-25 series triac dimmable LED drivers are fully isolated in a plastic case and have an IP42 design, cooling by free air convection, waterproof and dustproof, low cost, and high reliability. The Meanwell triac light drivers have a constant current output design, and you can take 350mA, 700mA, 1050mA, and 1400mA. A series and B series are available with 90- 135VAC input and 180- 295VAC input. The PCD-25 dimming drivers offer AC phase-cut dimming, can work with leading-edge and trailing-edge triac dimmers, and are suitable for LED decoration and advertisement devices.
- AC Phase-Cut Dimming
- Work With Leading Edge And Trailing Edge TRIAC Dimmers
- 115VAC Or 230VAC Models Available
- Built-in Active PFC Function
- Constant Current Design
- Cooling By Free Air Convection
- Fully Isolated Plastic Case
- IP42 Design
- Class II Power Unit, no FG
- Low Cost And High Reliability
- Suitable For LED Related Fixture Or Appliance
- 100% Full Load Burn-In Test
Specifications:
- Model: PCD-25
- Brand: Mean Well
- Size: 84*57*29.5mm(L*W*H)
- Models: PCD-25-350, PCD-25-700, PCD-25-1050, PCD-25-1400
- Type: A: With AC Input 90-135VAC; B: With AC Input 180-295VAC
- Rated Current: 350mA(PCD-25-350), 700mA(PCD-25-700), 1050mA(PCD-25-1050), 1400mA(PCD-25-1400)
- Working Voltage Range: 40-58V(PCD-25-350), 24-36V(PCD-25-700), 16-24V(PCD-25-1050), 12-18V(PCD-25-1400)
- Current Accuracy: ±5%
- Rated Power: 20.3W(PCD-25-350), 25.2W(PCD-25-700), 25.2W(PCD-25-1050), 25.2W(PCD-25-1400)
- Ripple & Noise (Max.) note.1: 4.6Vp-p(PCD-25-350), 2.7Vp-p(PCD-25-700), 2.2Vp-p(PCD-25-1050), 2Vp-p(PCD-25-1400)
- No Load Output Voltage(Max): 60V(PCD-25-350), 50V(PCD-25-700), 35V(PCD-25-1050), 25V(PCD-25-1400)
- Setup Time: 500ms/230VAC, 2000ms/115VAC At Full Load
- Frequency Range: 47- 63Hz
- Power Factor: PF>0.9/115VAC, PF>0.9/230VAC, PF>0.9/277VAC At Full Load
- Total Harmonic Distortion: THD<20% When Output Loading ≥70% And Output Loading ≥80% At 277VAC Input
- Efficiency: 82%(PCD-25-350), 81%(PCD-25-700), 80.5%(PCD-25-1050), 81%(PCD-25-1400)
- AC Current: 0.6A/115VAC, 0.3A/230VAC, 0.2A/277VAC
- Inrush Current: Cold Start 10A At 115VAC/230VAC
- Max NO. Of PSUs On 16A Circuit Breaker: A Series: 37 Units At 115VAC; B Series: 80 Units At 230VAC
- Leakage Current: <0.5mA/240VAC
- Working Temperature: -30℃-+60℃
- Working Humidity: 20-95% RH Non-condensing
- Storage Temp., HUMIDITY: -40-+80℃, 10-95% RH
- Temp.Coefficient: ±0.03%/℃(0-50℃)
- Vibration: 10-500Hz, 2G 12min./1 cycle, period for 72 min.each along X, Y, and Z axes
- Safety Standards: UL8750, CSA C22.2 No.250.0-08; ENEC BS EN/EN 613471-1, BS EN/EN 61347-2-13, BS EN/EN62384(For B Type Only), BIS IS15885(For 350B, 700B only), EAC TP TC 004, IP42 Approved; Design Refer To UL60950-1, BS EN/EN60347-1, BS EN/EN61347-2-13
- Short Circuit Protection
- Over Temperature Protection
- 3 Years Warranty
Includes:
1 * Meanwell PCD-25 Triac Dimmable Driver
