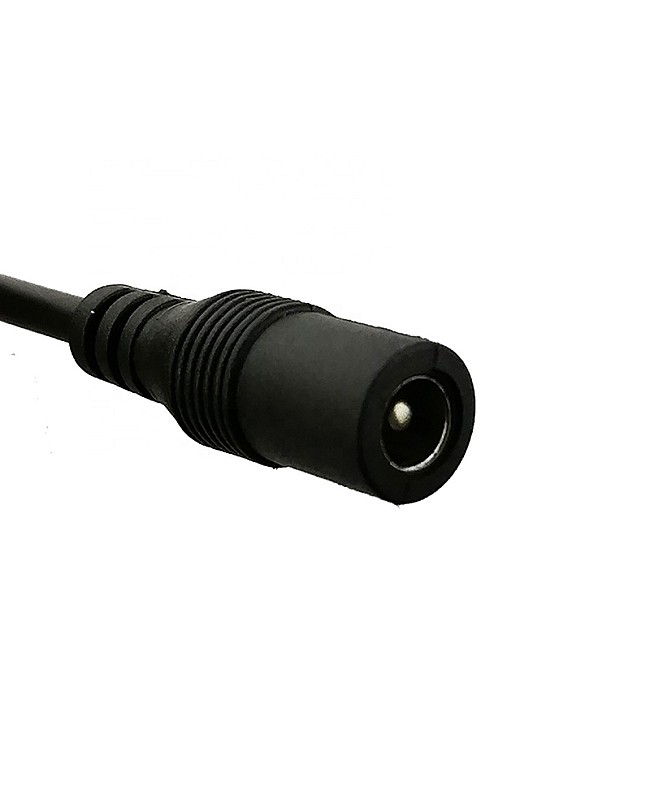

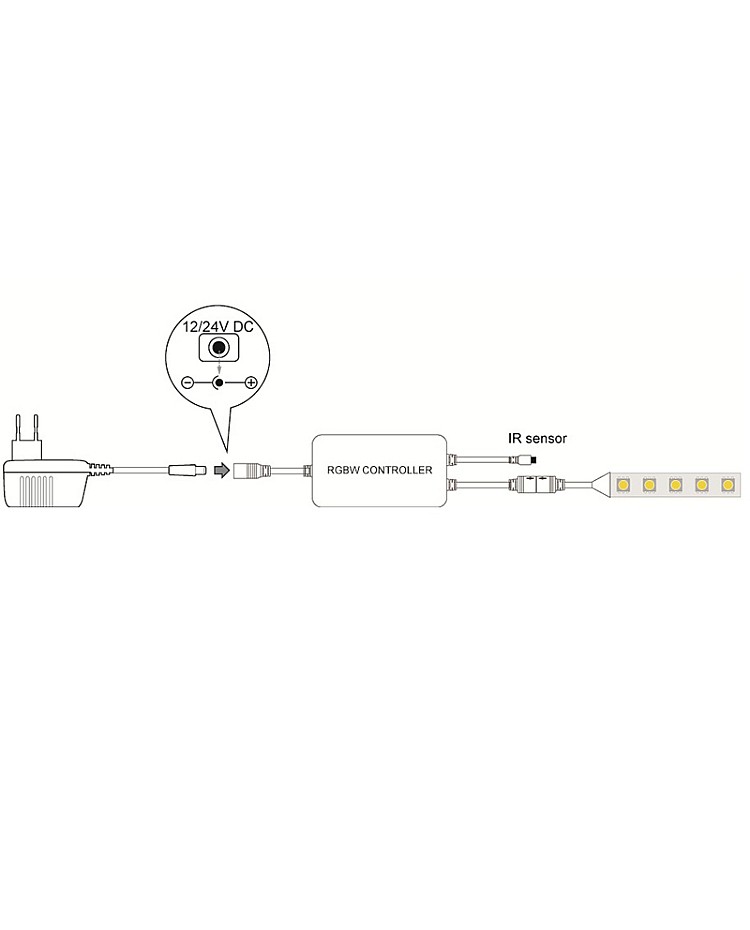

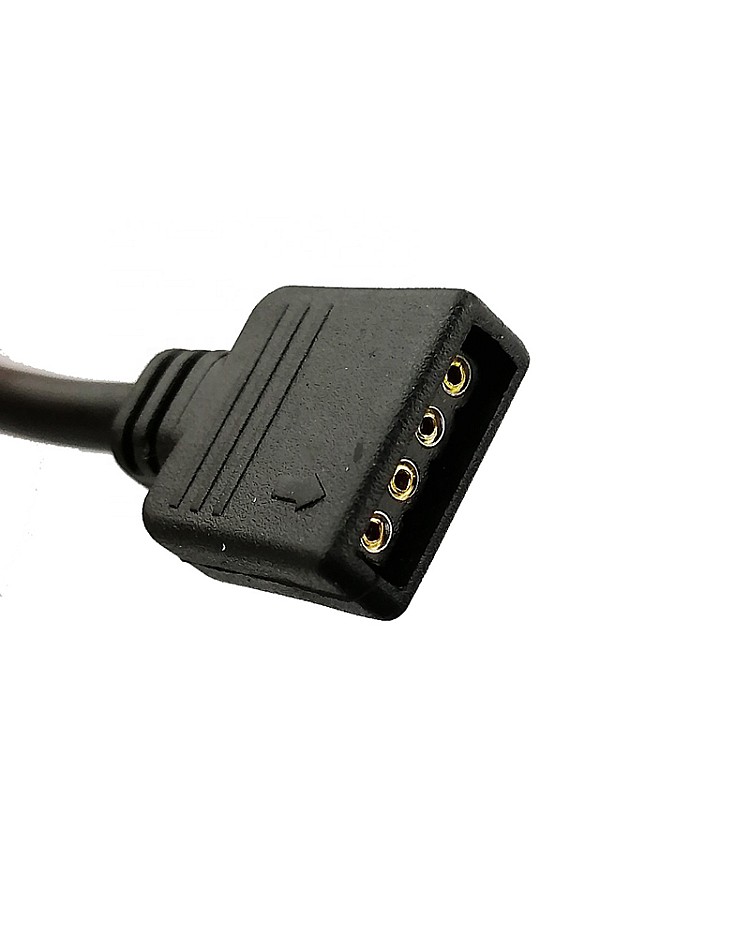

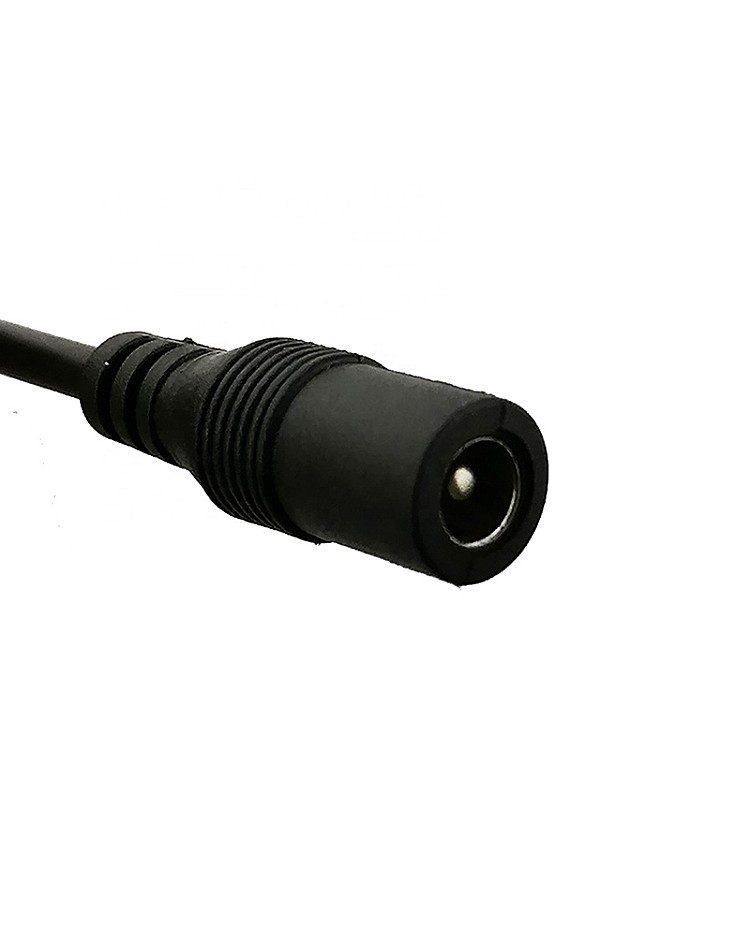

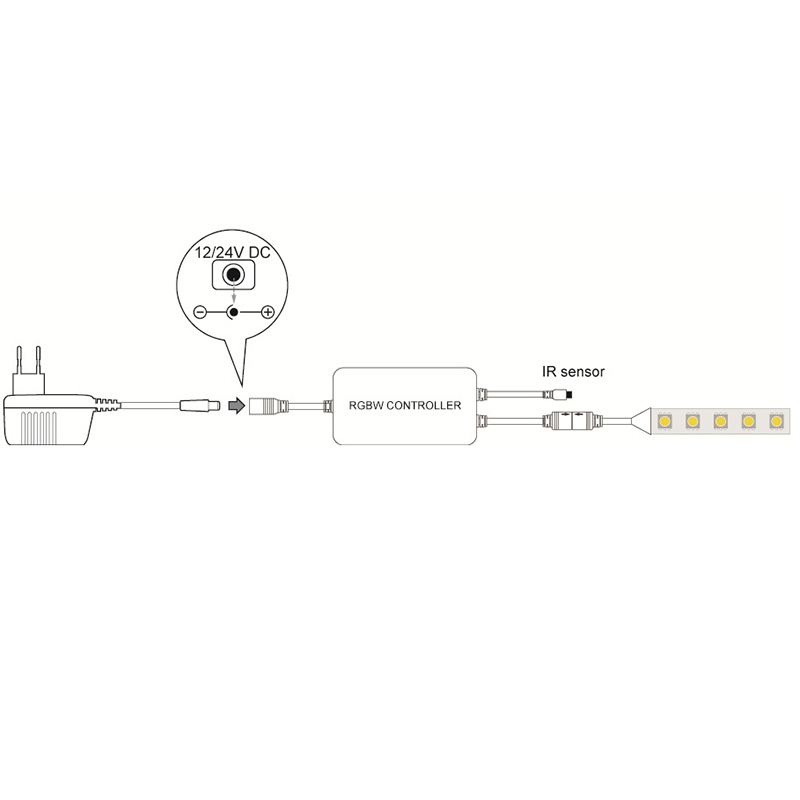

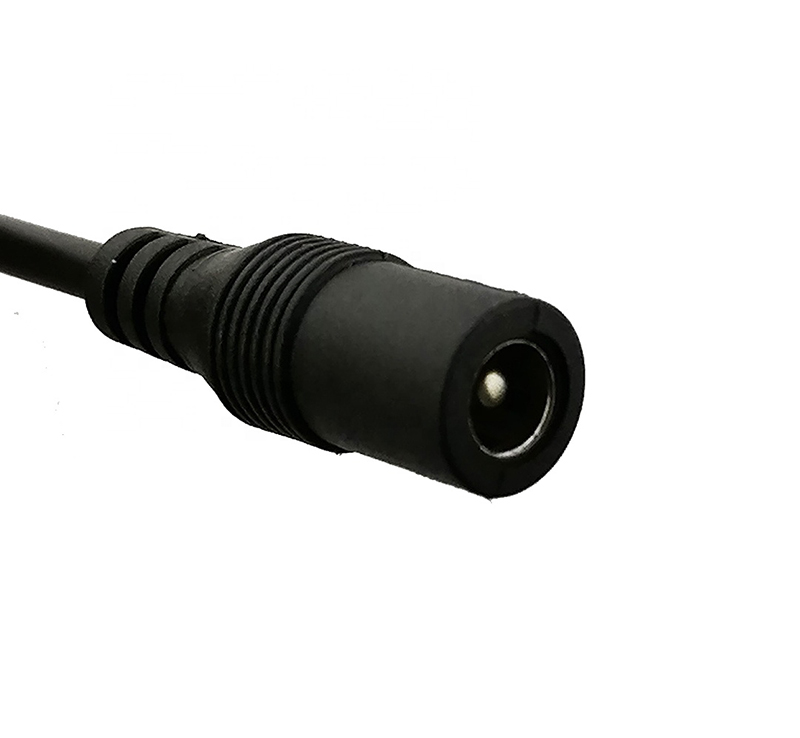

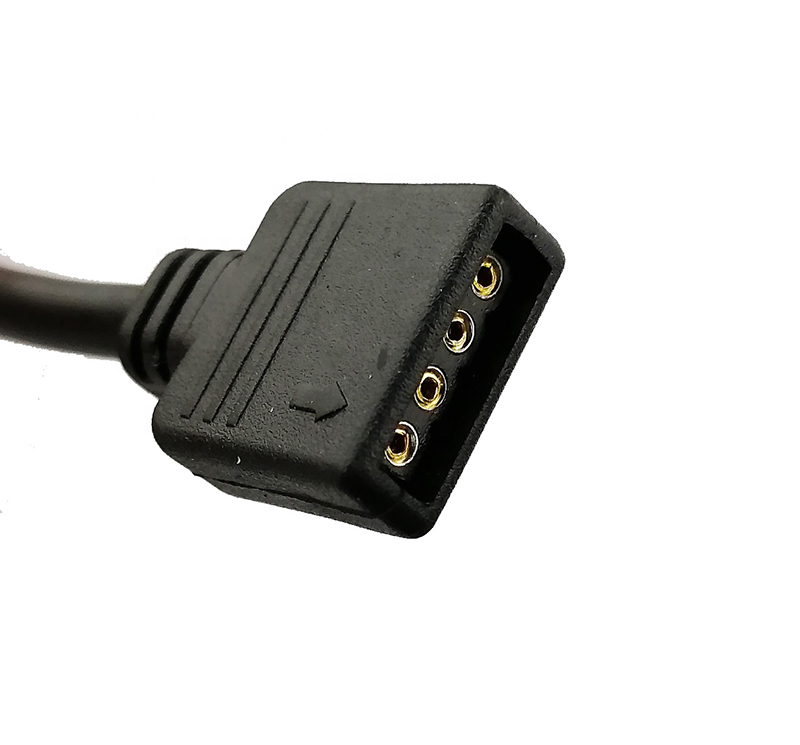

The PWM RGBW LED Strip Controller, which with a mini size, working in DC12-24V, with four output channels design, and the max output current of each channel is 1.5A, the max loading power up to 144W when working in 24V, adopts the PWM digital technology, designed for the RGBW constant voltage LED Lights, comes with 24 keys IR remote, the "W" channel can be turned/off and adjust the brightness independently, and three more brightness level keys. 13 modes for the RGB part, nine static colors, and four dynamic changes. The brightness of static colors and the speed of dynamic changes are adjustable. With the memory function, each time power-on reserves the mode which stops in the last power off. With the RGBW Controller with Female DC Connector and  5 Pin RGBW Connector, you can connect to the LED Power Supply, and RGBW LED Strips conveniently.


  • Model: HX-MINI-001-RGBW
  • Size:48*26*13mm(L*W*H)
  • Working Temperature: -20-60℃
  • Working Voltage: DC12-24V
  • Output Channels: 4
  • Max Output Current:1.5A*4CHs
  • Max Output Power: 72W(12V)/144W(24V)
  • Output Gray: 63 Levels(With Continuous Reception)
  • Adopts PWM Digital Technology
  • Signal Frequency: 150Hz
  • Connecting Mode: Common Anode
  • Remote Control Battery: CR2025
  • 13 Modes for RGB Part, 9 Static Colors And 4 Dynamic Modes
  • The brightness Of Static Colors And Speed Of Dynamic Modes Are Adjustable
  • Memory Function: YES
  • 3 Years Warranty

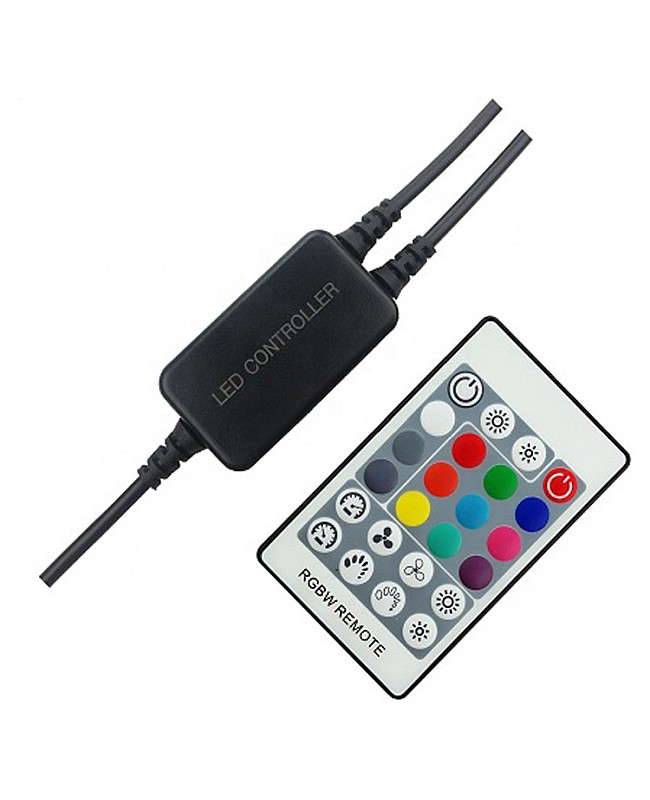

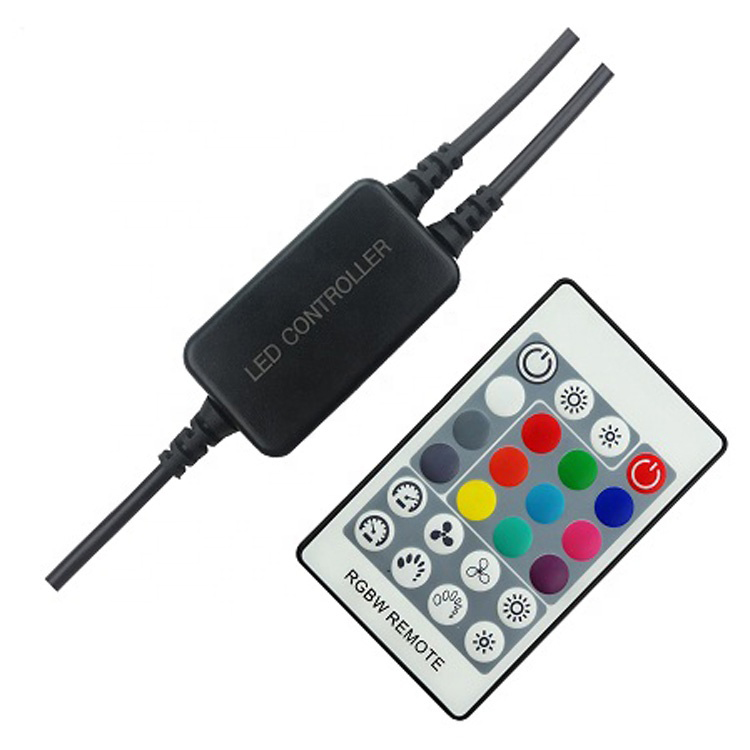

1*RGBW LED Strip Controller

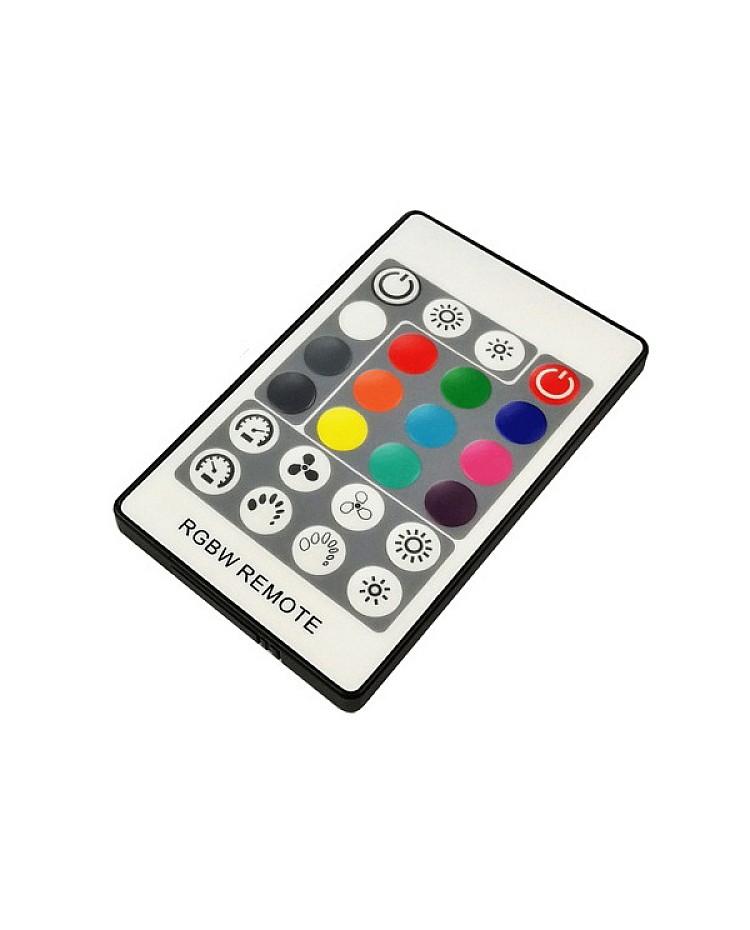

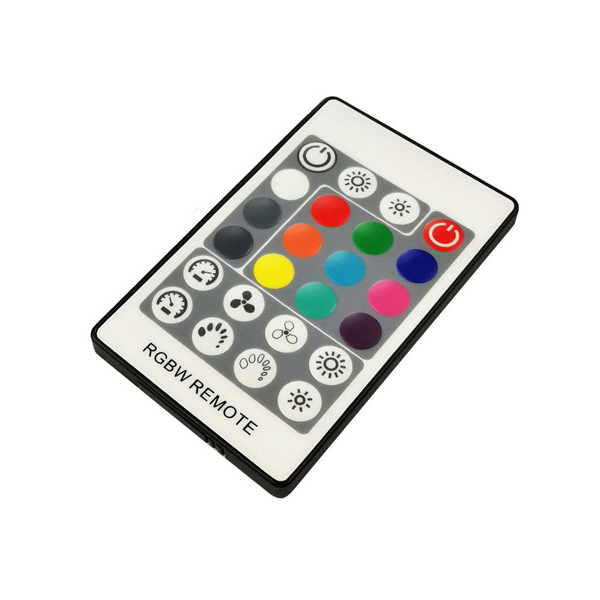

1*24 Keys IR Remote

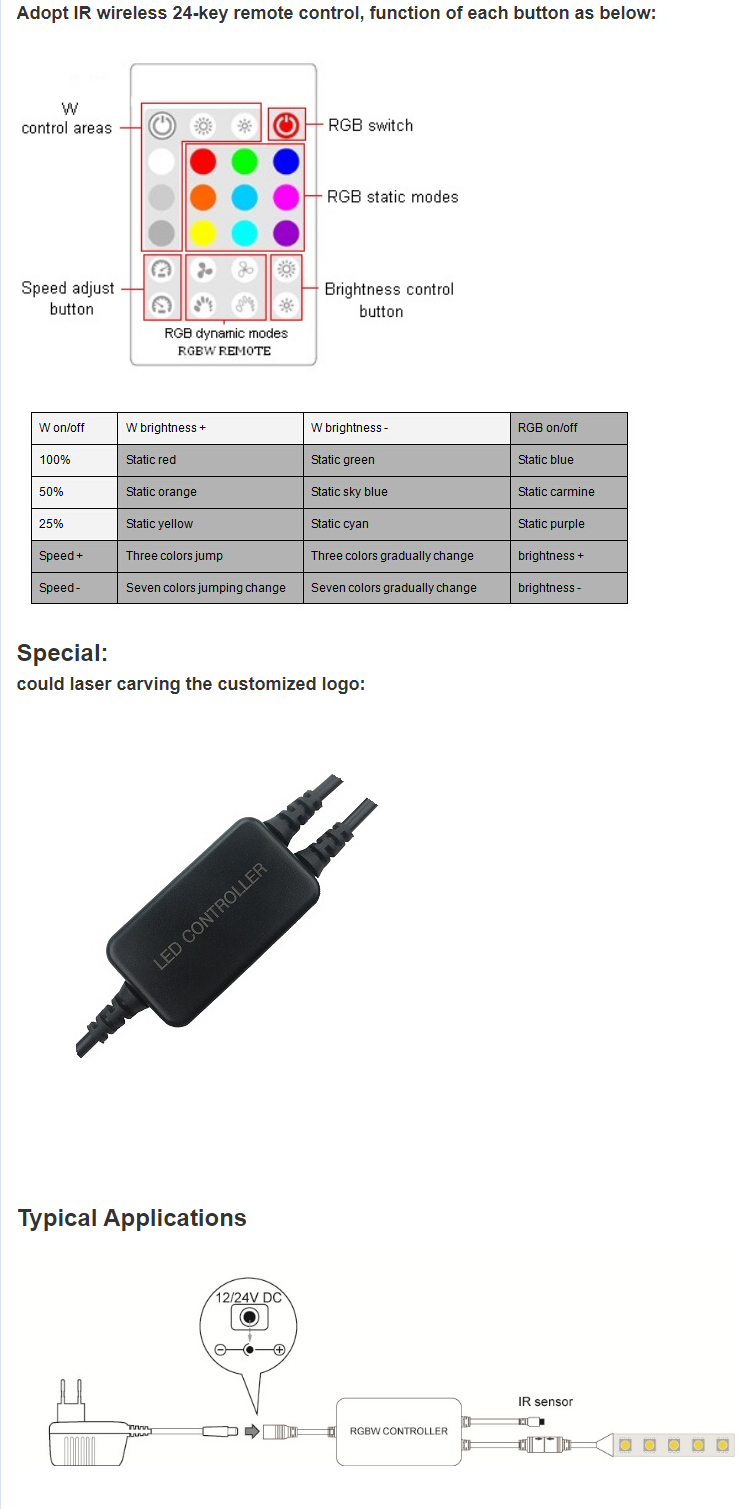

RGBW LED Light Controller
