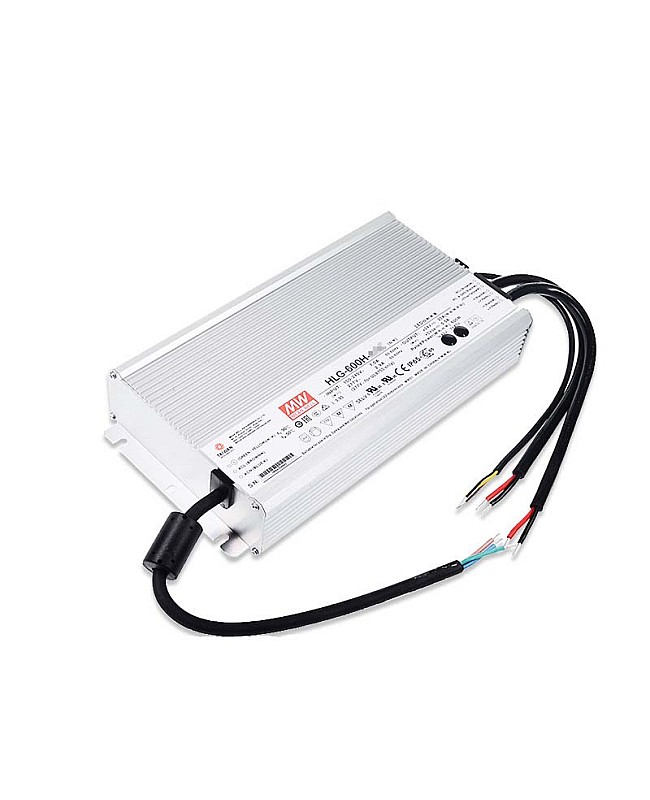

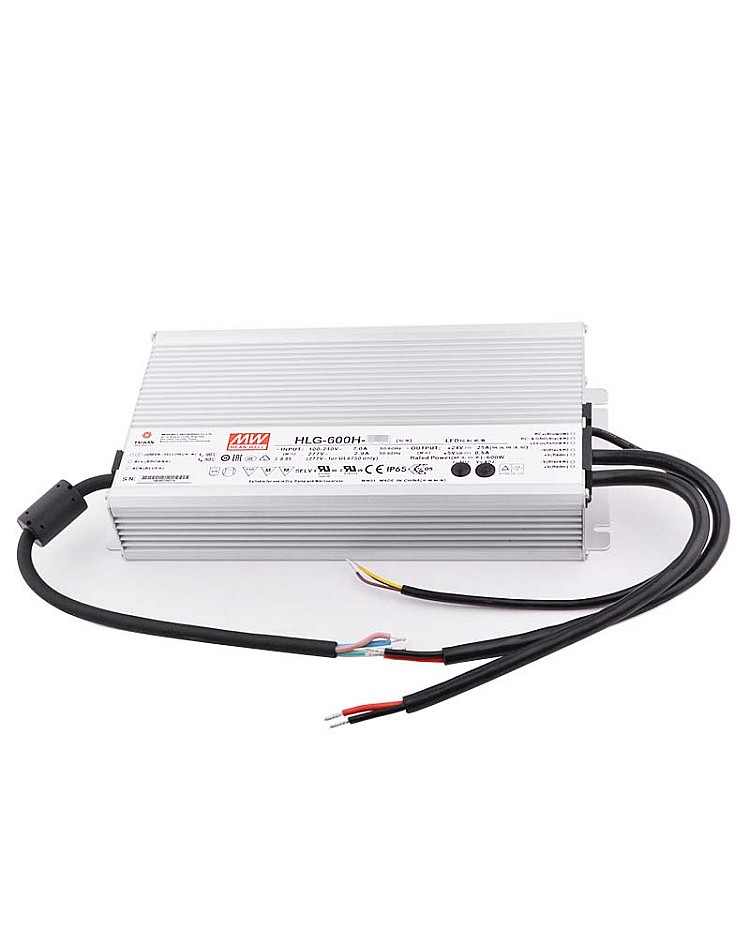

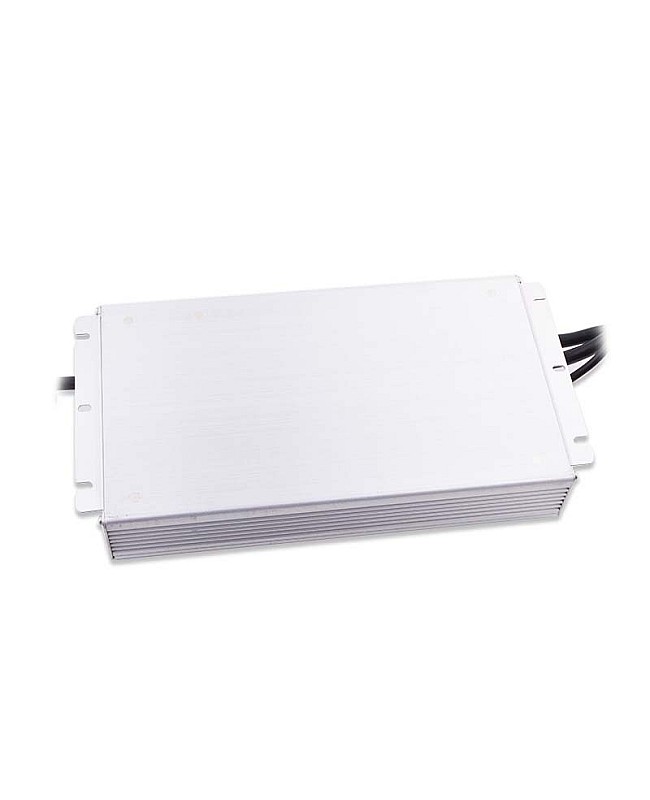

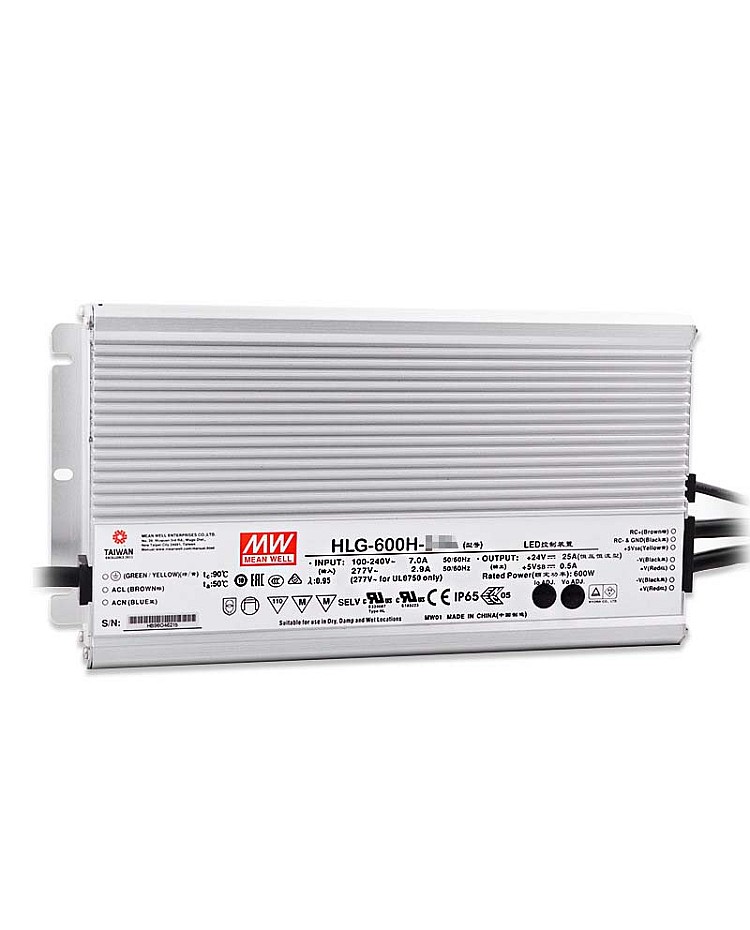

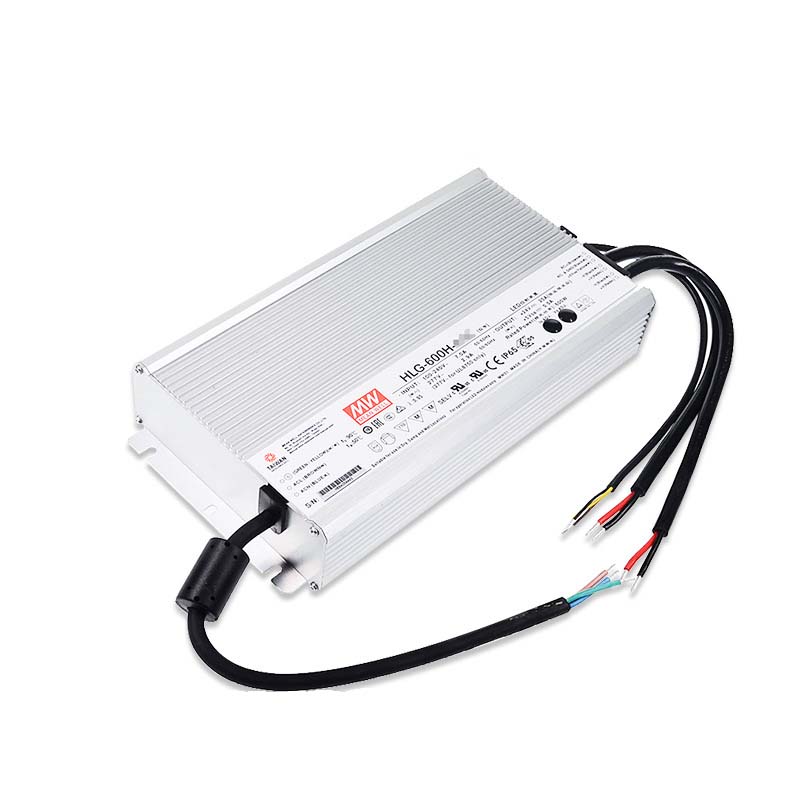

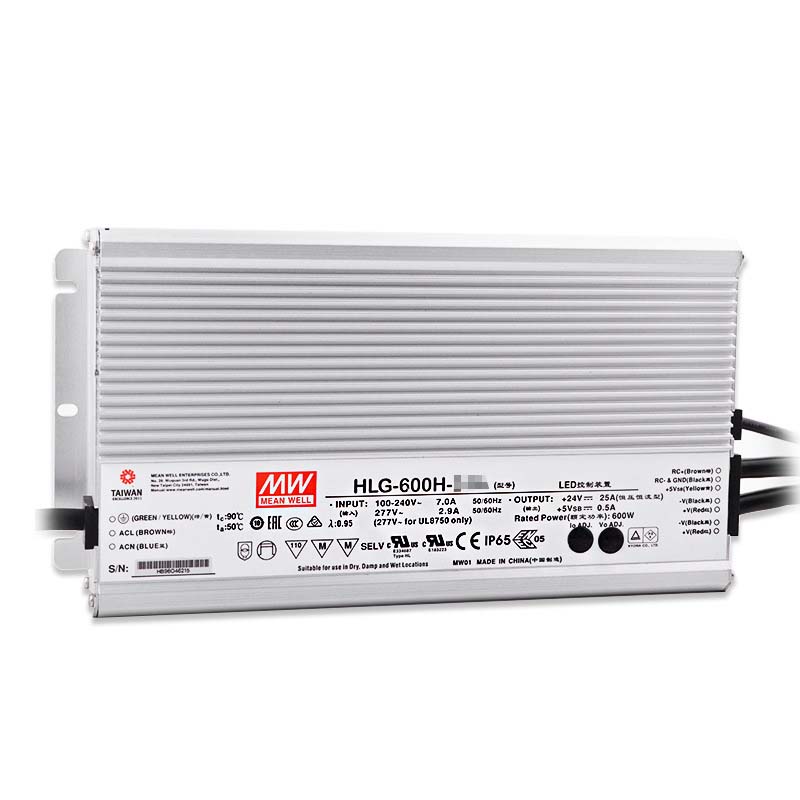

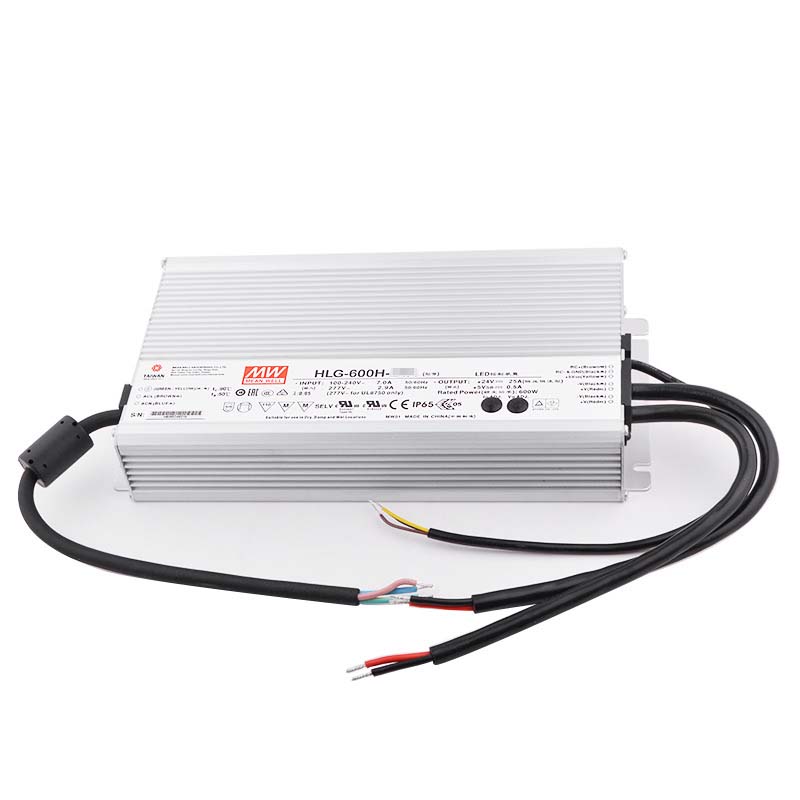

The Mean Well HLG-600H series DC adaptors, with a max loading power of up to 600W, are enclosed in a metal housing with a class I design, and the waterproof level can reach IP65/IP67. You can use them for indoor or outdoor applications. Suitable for high-bay lights, parking space lighting, fishing lamps, greenhouse lamps, etc. The HLG 600H features a dual-mode constant voltage and constant current output design. The input voltage range is from AC90V to AC305V, and it can connect to the public power system and requires no extra adapters. It offers models with different rated voltages ranging from DC12V to DC54V. Thanks to the high-efficiency rate up to 96%, the Meanwell DC adaptors can operate for -40℃ to 90℃ case temperature under free air convection with the fanless design. The A and AB types have an output voltage and current adjustable design, and the B and AB types have a 3:1 dimming function. Its lifespan is over 62,000 hours, and it has a 7-year warranty.
- Constant Voltage And Constant Current Mode Output
- 4 Types of Products Available
- Metal Housing With Class I Design
- Standby Power Consumption <0.5W At Remote Off
- IP65/IP67 Rating For Indoor Or Outdoor Installations
- Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming(Dim-To-Off)
- Lifespan: >62,000 Hours
- 7 Years Warranty
Quick Links:

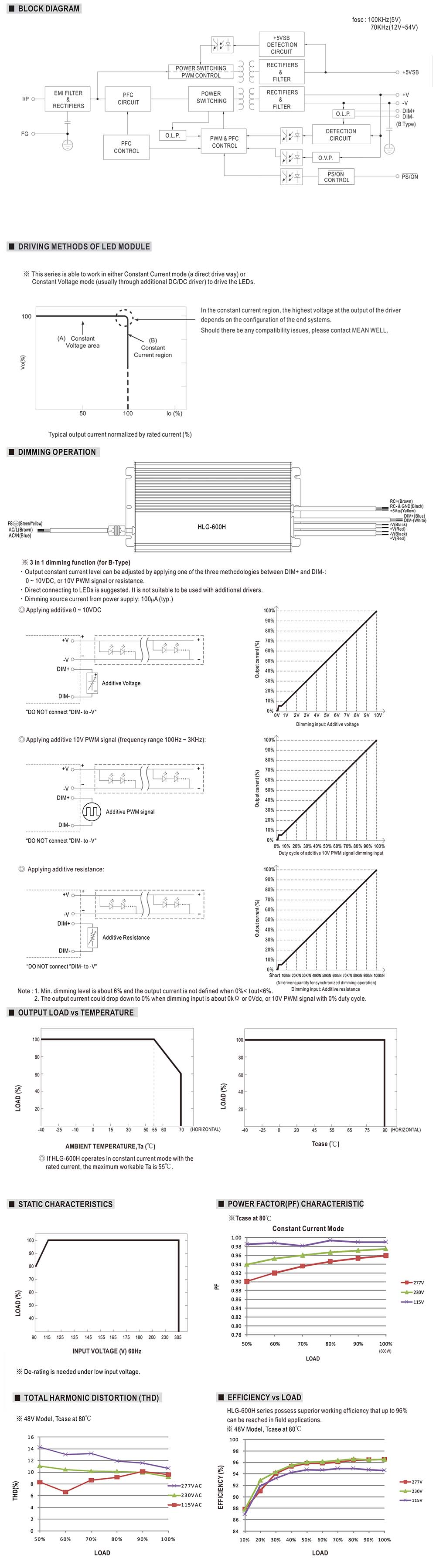

Mean Well HLG-600H Series Specification Document
Specifications:
- Model: HLG-600H

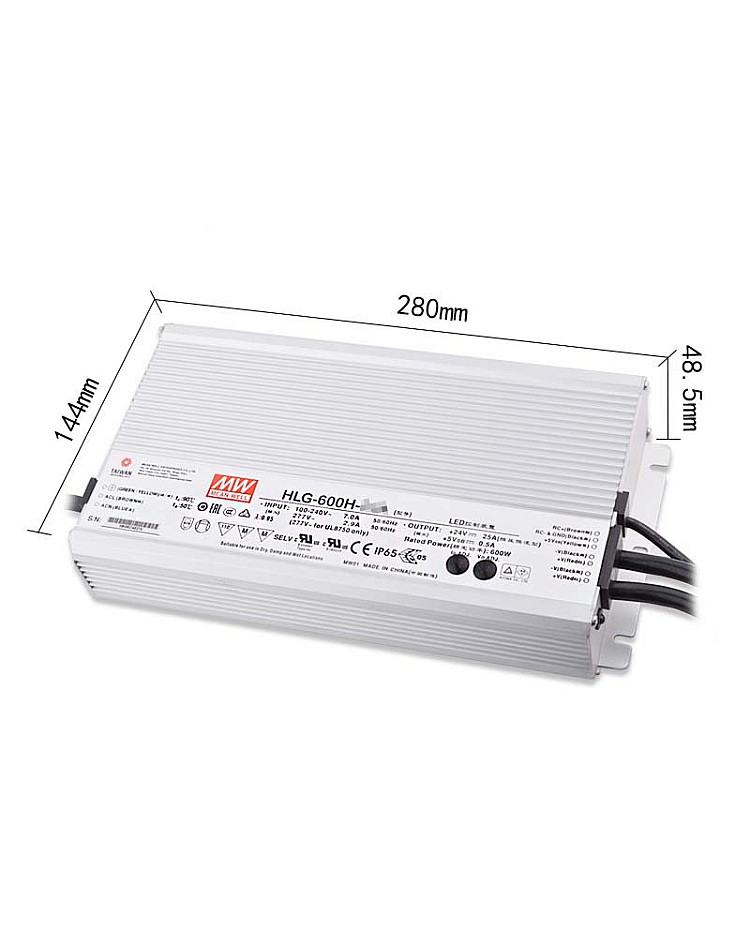

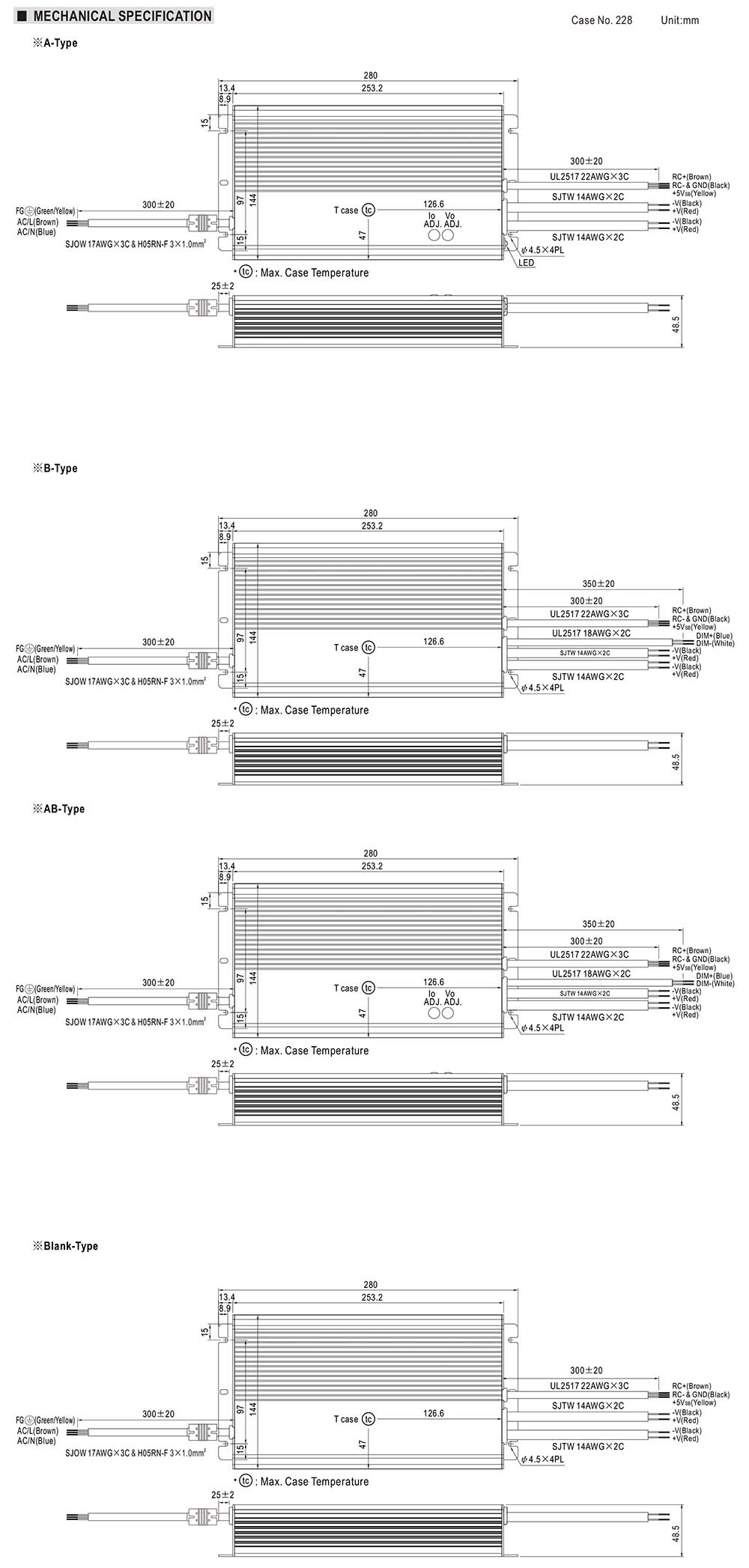

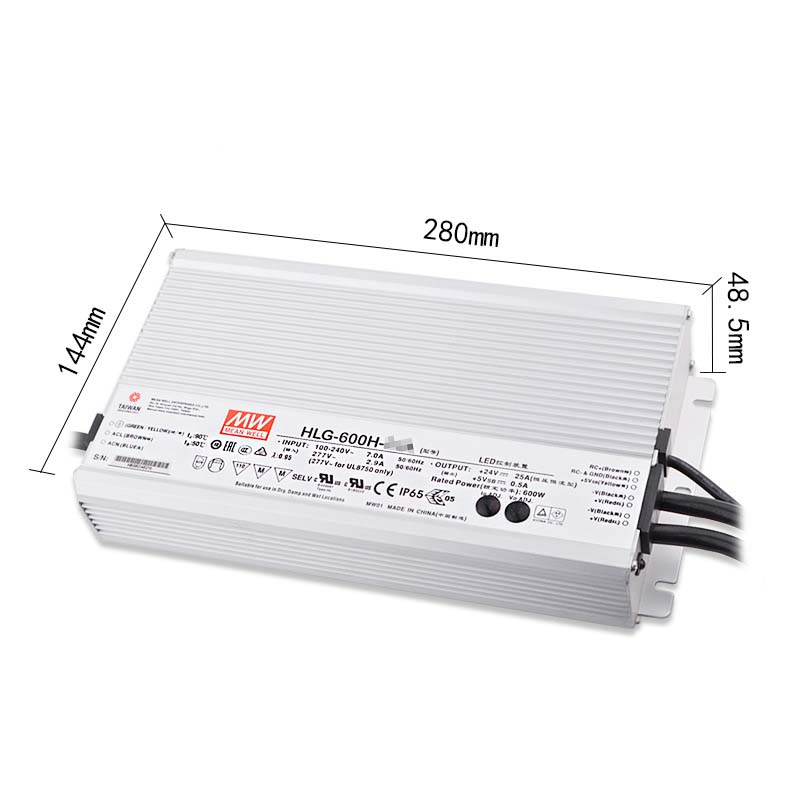

- Size: 280*144*48.8mm(L*W*H)
- Types:
- Blank: IP67 Waterproof Level, Voltage, And Current Fixed
- A: IP65 Waterproof Level, Voltag,e And Current Adjustable Through Built-in Potentiometer
- B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- AB: IP65 Waterproof Level, Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- Input Voltage Range: 90- 305VAC
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98/115VAC, PF≥0.97/230VAC, PF0.95≥277VAC
- Efficiency: 92%(DC12V), 93.5%(DC15V), 94.5%(DC20V), 95%(DC24V), 95%(DC30V), 95.5%(DC36V), 96%(DC42V), 96%(DC48V), 96%(DC54V)
- AC Current: 7A/115VAC, 3.3A/230VAC, 2.9A/277VAC
- Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
- Rated Current: 40A(DC12V), 36A(DC15V), 28A(DC20V), 25A(DC24V), 20A(DC30V), 16.7A(DC36V), 14.3A(DC42V), 12.5A(DC48V), 11.2A(DC54V)
- Rated Power: 480W(DC12V), 540W(DC15V), 560W(DC20V), 600W(DC24V), 600W(DC30V), 601.2W(DC36V), 600.6W(DC42V), 600W(DC48V), 604.8W(DC54V)
- Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 20-40A(DC12V), 18-36A(DC15V), 14-28A(DC20V), 12.5-25A(DC24V), 10-20A(DC30V), 8.3-16.7A(DC36V), 7.1-14.3A(DC42V), 6.2-12.5A(DC48V), 5.6-11.2A(DC54V)
- Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.2-12.6V(DC12V), 12.7-15.8V(DC15V), 17-21V(DC20V), 20.4-25.2V(DC24V), 25.5-31.5V(DC30V), 30.6-37.8V(DC36V), 35.7-44.1V(DC42V), 40.8-50.4V(DC48V), 45.9-56.7V(DC54V)
- Working Temperature: -40℃-+80℃
- Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
- Safety Standards: UL60950-1, UL8750(Type "HL"), CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP65 Or IP67, J61347-1, J61347-2-13, CCC GB4943.1, EAC TP TC 004, AS/NZS 60950.1(By CB). KC61347-1, KC613470-2-13(For 24A, 36A, 48A, 54A only) Approved
- Short Circuit Protection
- Over-Voltage Protection
- Over Temperature Protection
- 7 Years Warranty
Includes:
1 * Mean Well HLG-600H DC Adaptor
