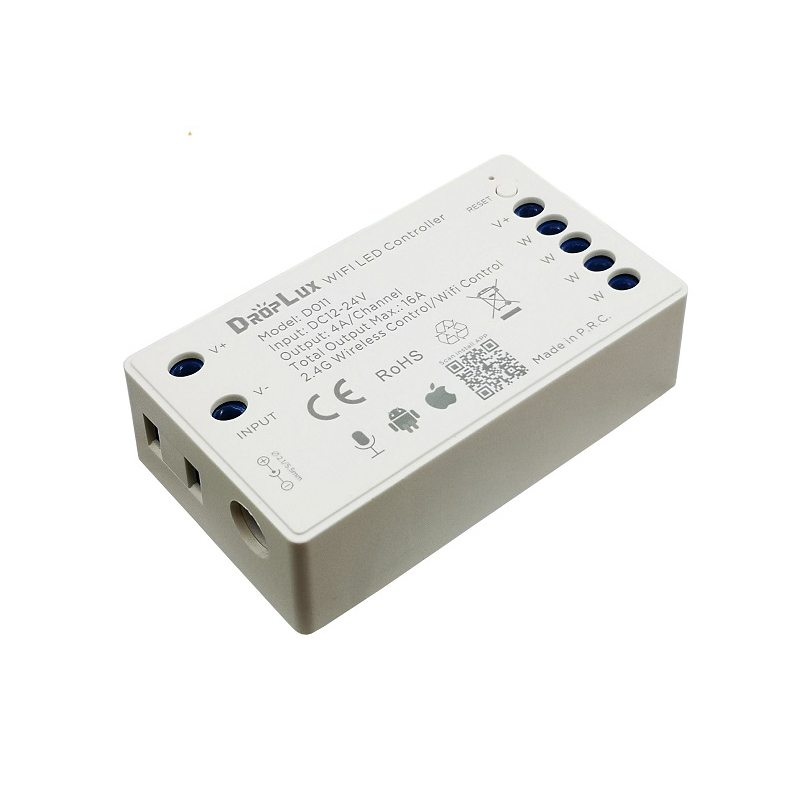

2.4G 12V PWM Light Dimmer With WIFI Control

Check the 2.4G Light Dimmer with WIFI control function, the WIFI technology powered by Tuya, and you could download an APP and connect the LED Light Dimmer to your mobile phone to adjust the brightness via WIFI. The surface of the LED Dimmer with a QR Code, and you can scan the code to download the Tuya App, which supports Android and IOS systems. The Lighting Dimmer works in DC12V-24V, with 4 output channels design. The max output current of each channel is 4A, and the max loading power rach 384W when working in 24V. The WIFI Light Dimmer is designed for constant voltage LED Lights. The RFBT15 Rotary Dimming LED Remote Control is included. You can use it to turn on or turn off the LED Light by the short press or long press during the LED Remote is in a working state, rotates it to adjust the brightness of the Single Color LED Light, or adjust the color temperature of the CCT LED Lights.

Light Dimmer Features:

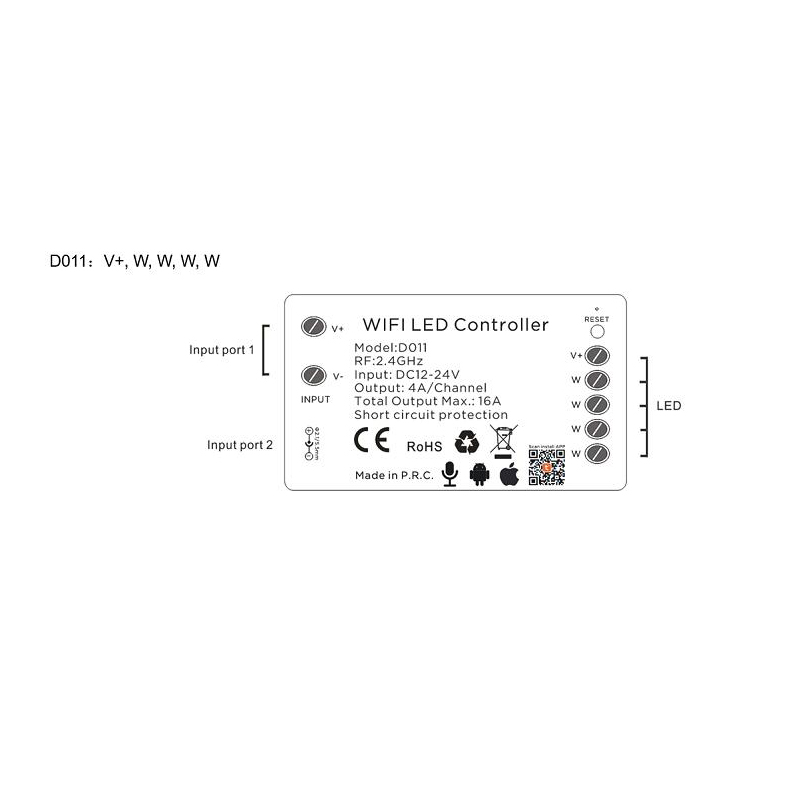

• Models: D011(DIM), D012(CCT)

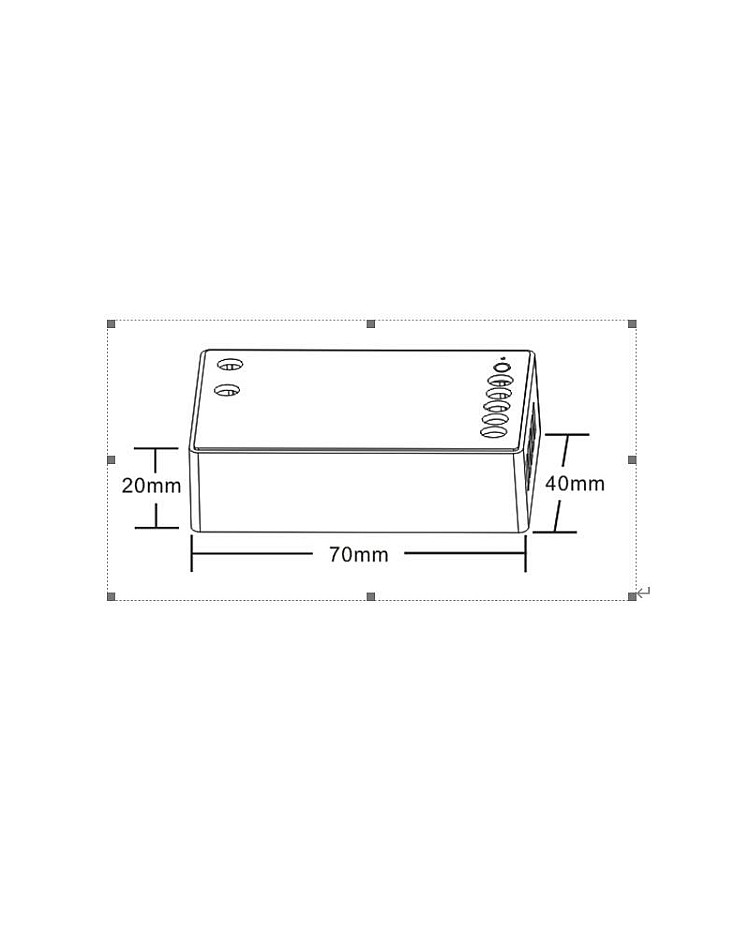

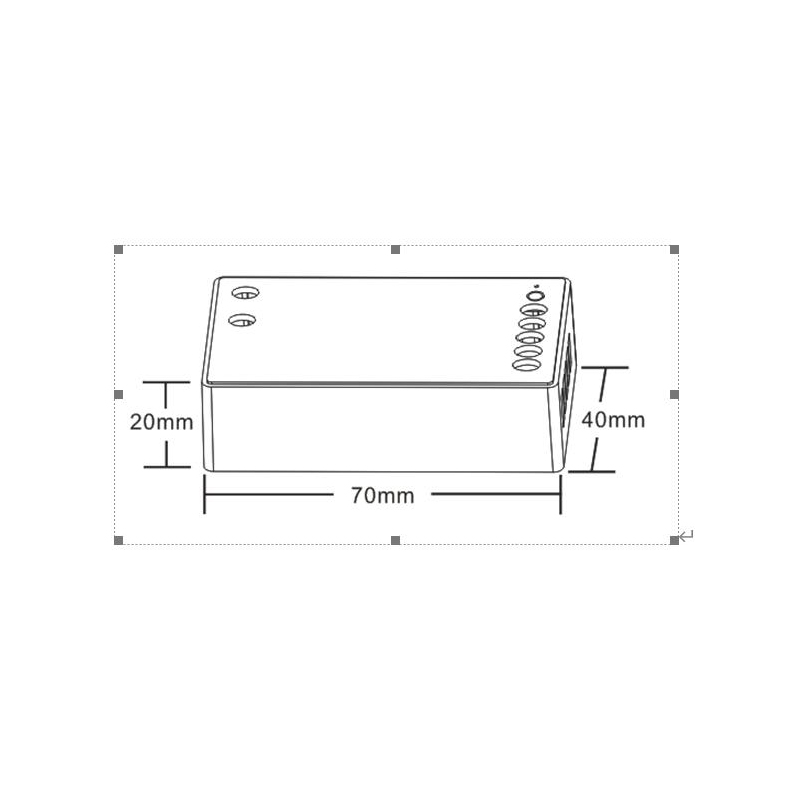

• Size: 70*40*20mm(L*W*H)
• Working Temperature: -20-60℃
• Working Voltage: DC12-24V
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Grayscale: 1024 Levels
• Speed Stage: 1024 Levels
• RF Frequency: 2.4GHz
• RF Distance: ≤20M

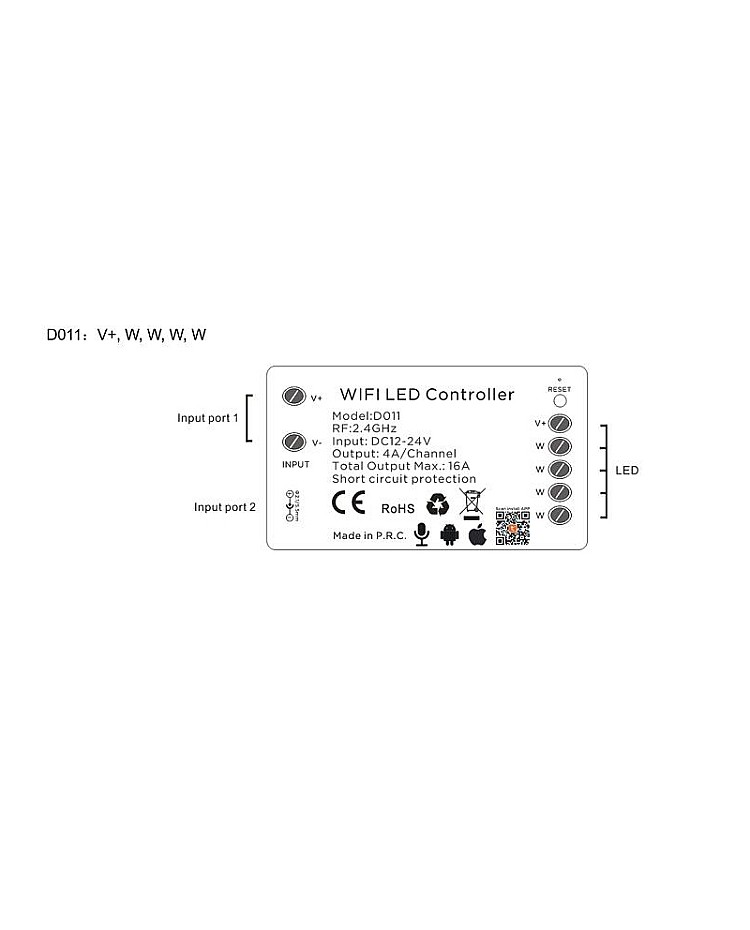

• Output: 4 Channels
• Output Current: ≤4A(Each Channel)
• PWM Frequency: 1KHz
• Max Power Output: 192W(12V)/384W(24V)
• 2.4G Wireless Control/WIFI Control Technology By Tuya
• Short Circuit Protection: YES
• Memory Function: YES
• Weight: 80G

Rotary Dimming Remote Control Feature:

• Size: 60*35mm
• Working Temperature: -20-60℃
• Working Voltage: 3V(AAA*2PCS)
• Sleep Current: <25uA
• Emission Current: <17mA
• Sleep Power Consumption: <75uW
• Emission Power Consumption: <51mW
• RF Distance: ≤30m
• RF Frequency: 2.4GHz
• Weight: 80g
• Holder And 3M Foam Sponge Glue Included

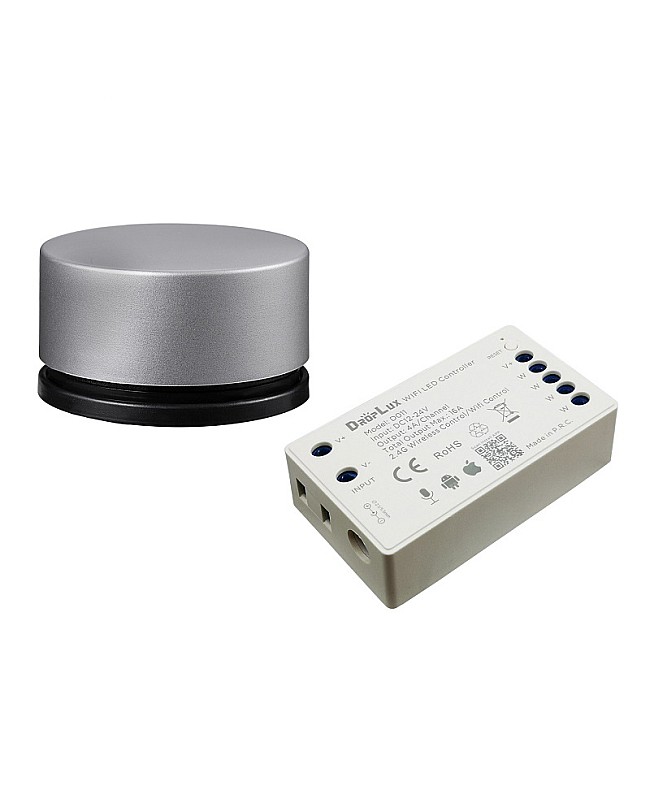

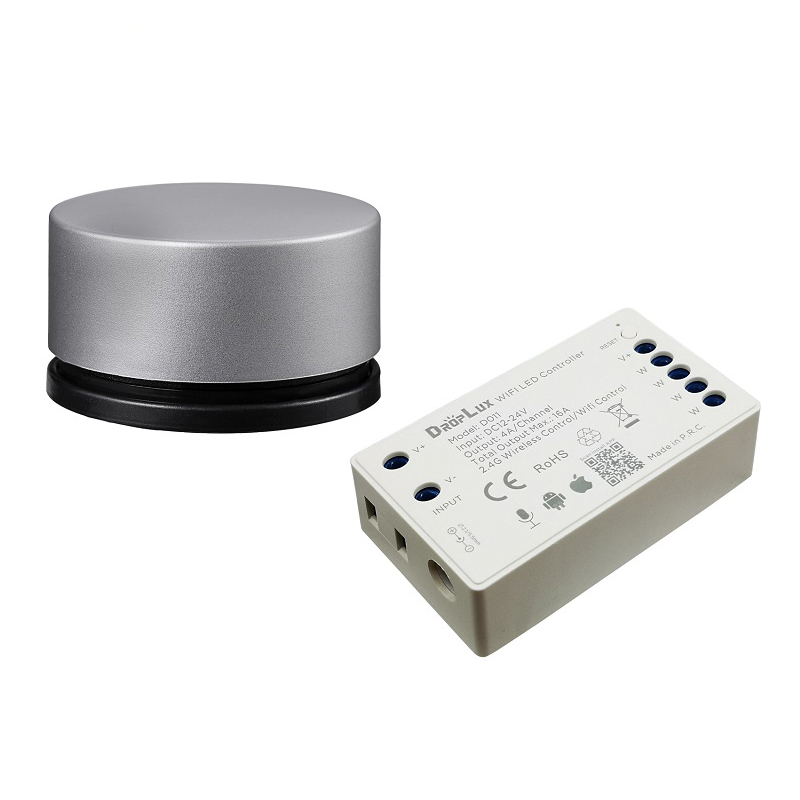

Includes:

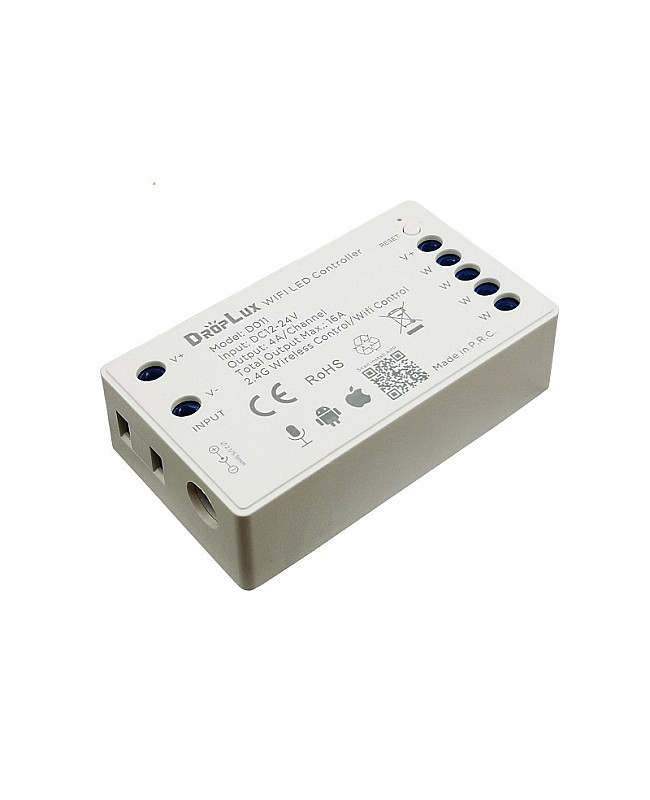

1*PWM Light Dimmer

1*2.4G Rotary Dimming Remote Control
