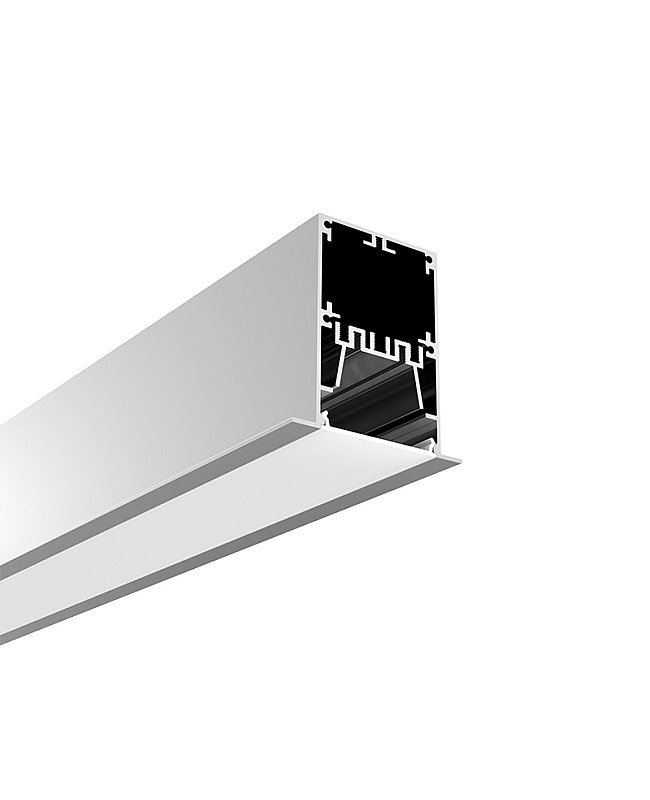

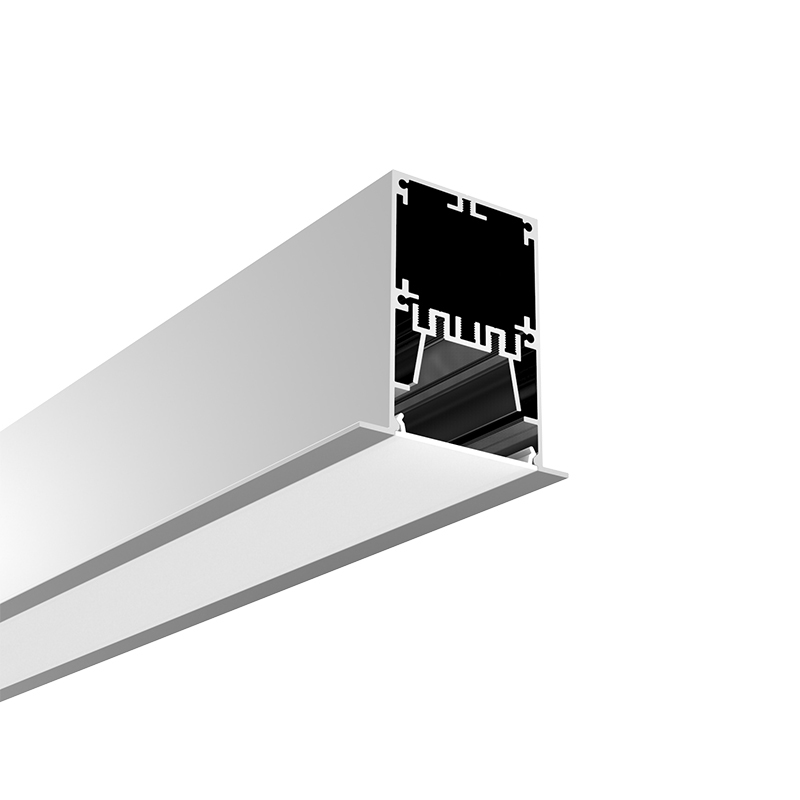

The 2-inch-wide recessed ceiling strip light diffuser is designed for use in architectural lighting systems. It's designed to reduce the harshness of direct light and create a more even, diffuse glow. The inner width is 18.5mm, allowing a max LED light width of 18mm, compatible with rigid LED strips or 5050 flexible COB LED strips as the light source.
The PC frosted opal covers are included and are made of Japan-brand material with stable quality, anti-yellowing properties, perfect light distribution, and soft light output. The strip light profile is made of 6063-T5 aluminum alloy with a silver anodized surface treatment, providing oxidation resistance and long-lasting durability. The standard length is 1M, and the max length is 2.5M; it can be cut to any size.

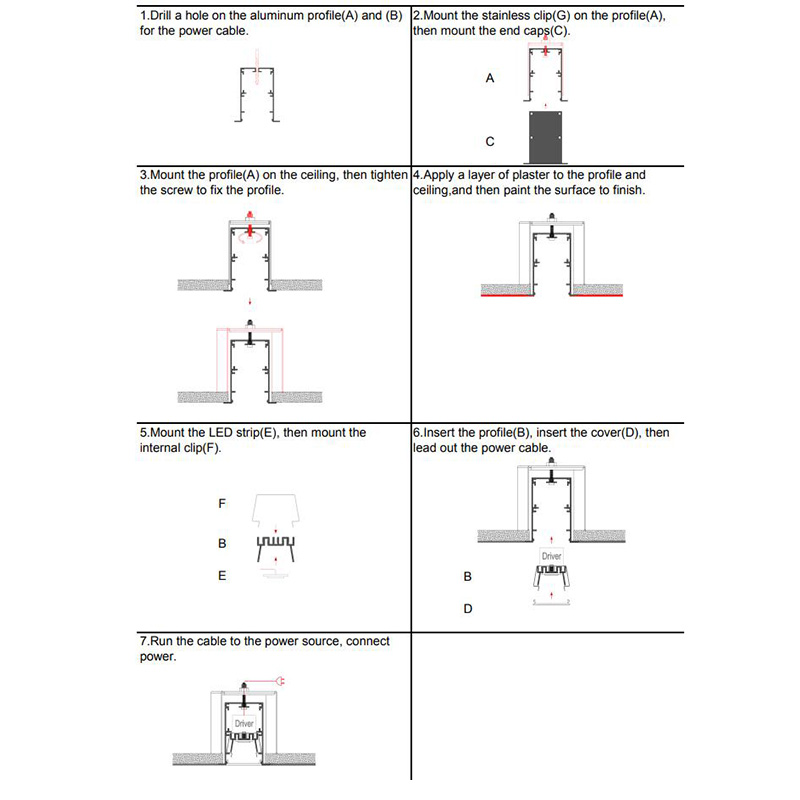

The aluminum channels can serve as heat sinks to improve heat dissipation, extending the lifespan of DIY LED diffuser strips. The end caps, internal clips, and mounting brackets support ceiling-recessed installation and are easy to install, creating a more inviting atmosphere in any space.
Specifications:

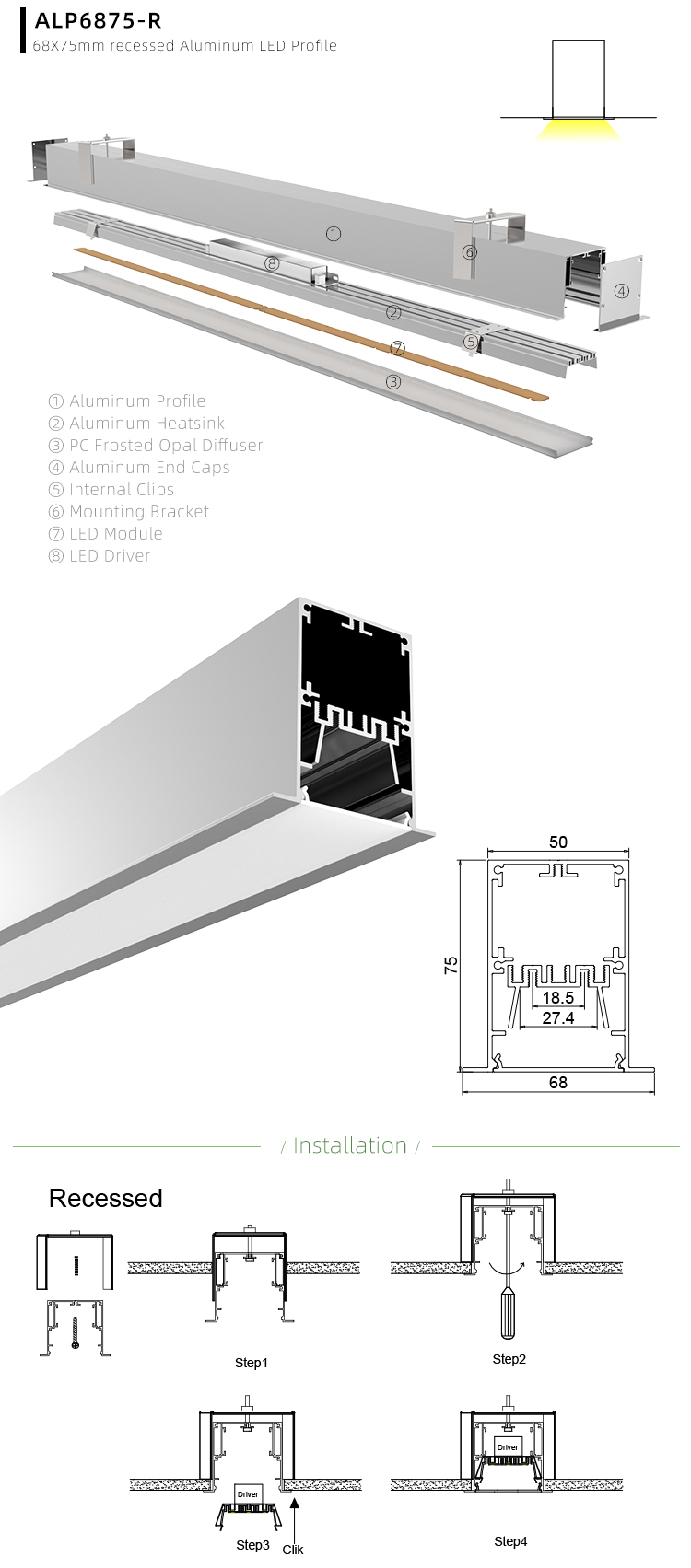

- Model: ALP-6875-R
- Material: 6063-T5 Aluminium Alloy
- Surface Treatment: Silver Anodized
- Colors: Silver(Default), White, Black

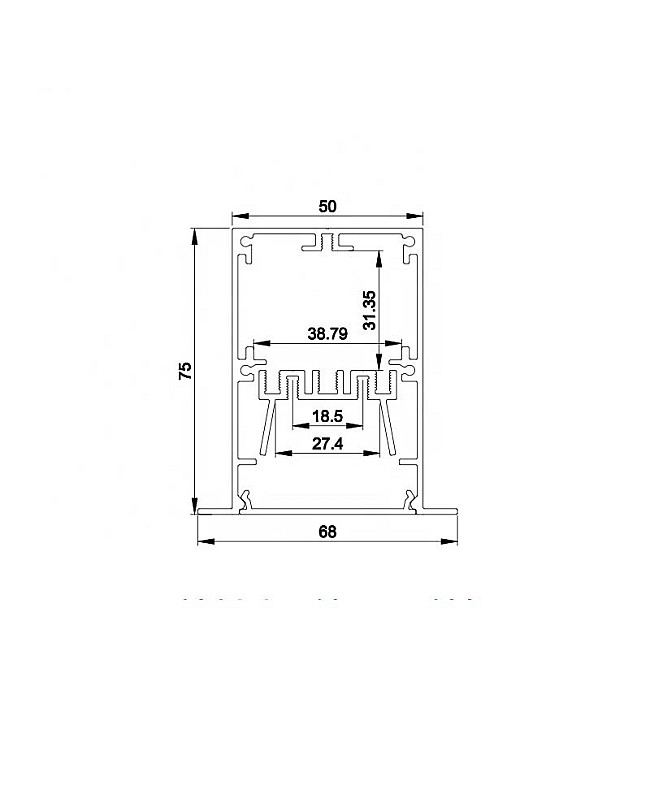

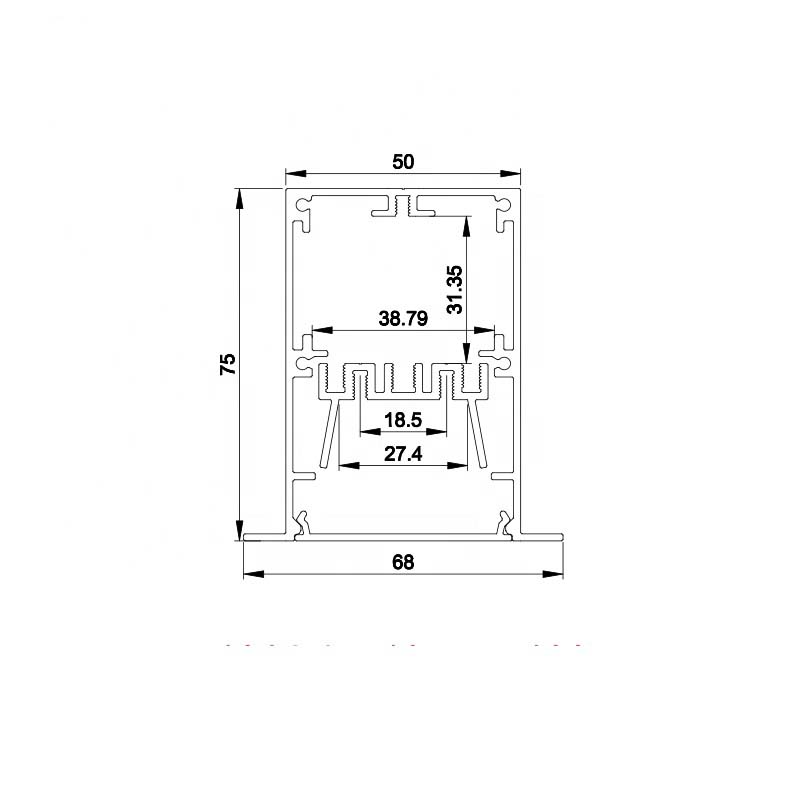

- Size:50*75mm
- Diffuser: PC Frosted Opal Cover
- Standard Length: 1 M, 2 M
- Custom Length Available: YES
- Inner Width: 18.5mm
- Compatible With Rigid LED Modules, 5050 LED Strips
- Max Power: <30W/Meter

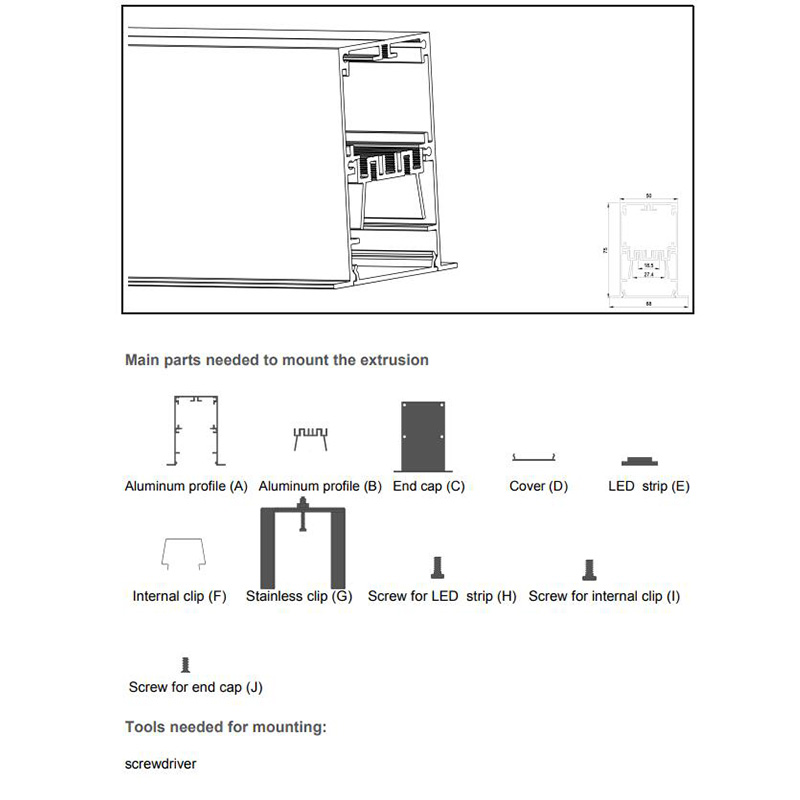

- Aluminium End Caps, Internal Clips, and Mounting Brackets Included

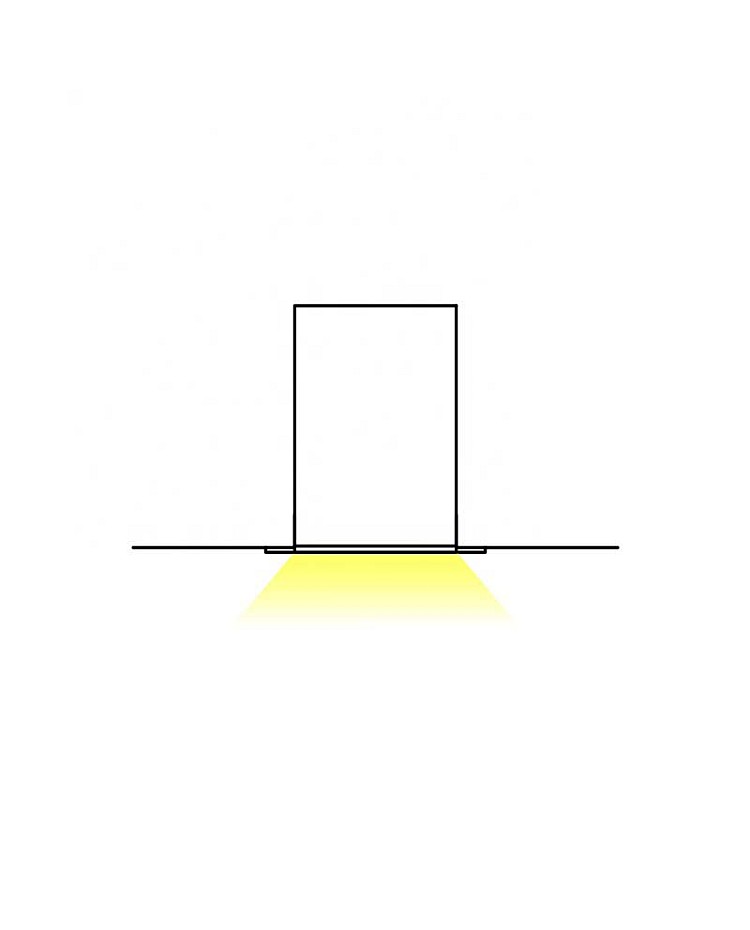

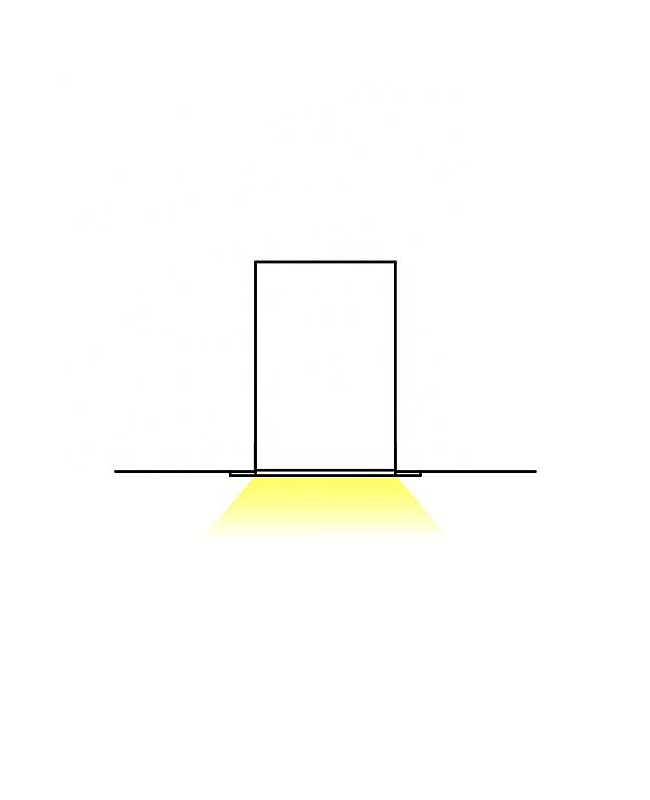

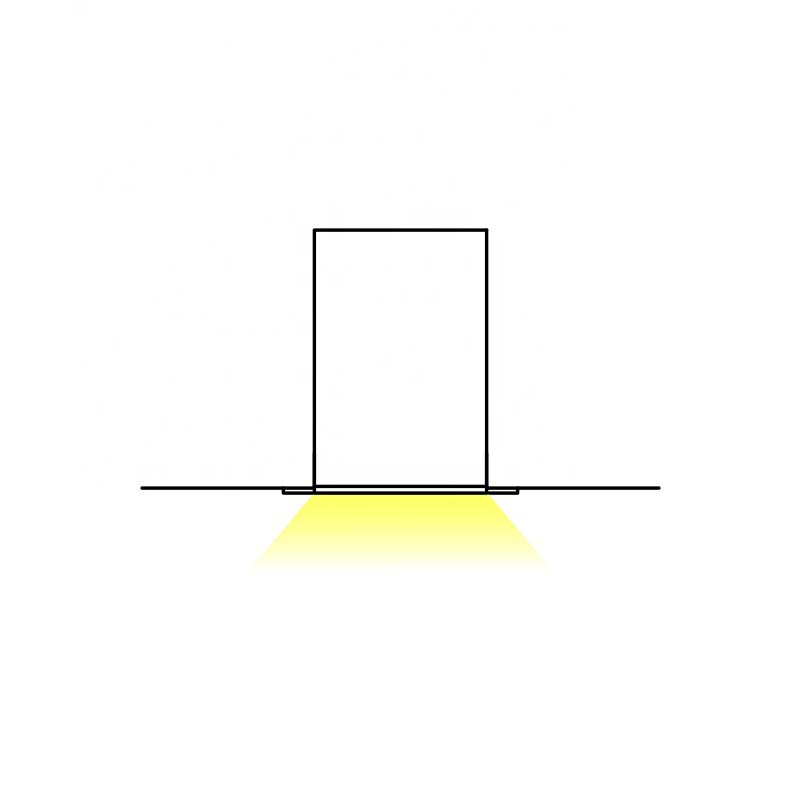

- Installation: Ceiling Recessed
- Applications: Shops, Homes, Hospitals, Bars, Offices, Supermarkets, etc
- 5 Years Warranty
Includes:
1 * LED Strip Channel Diffuser

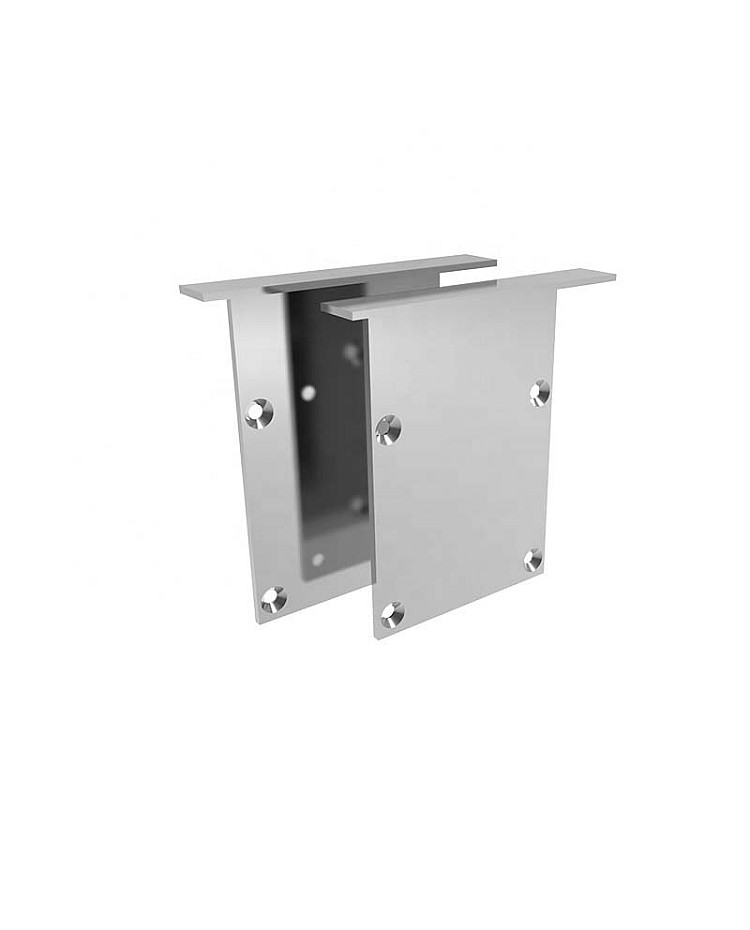

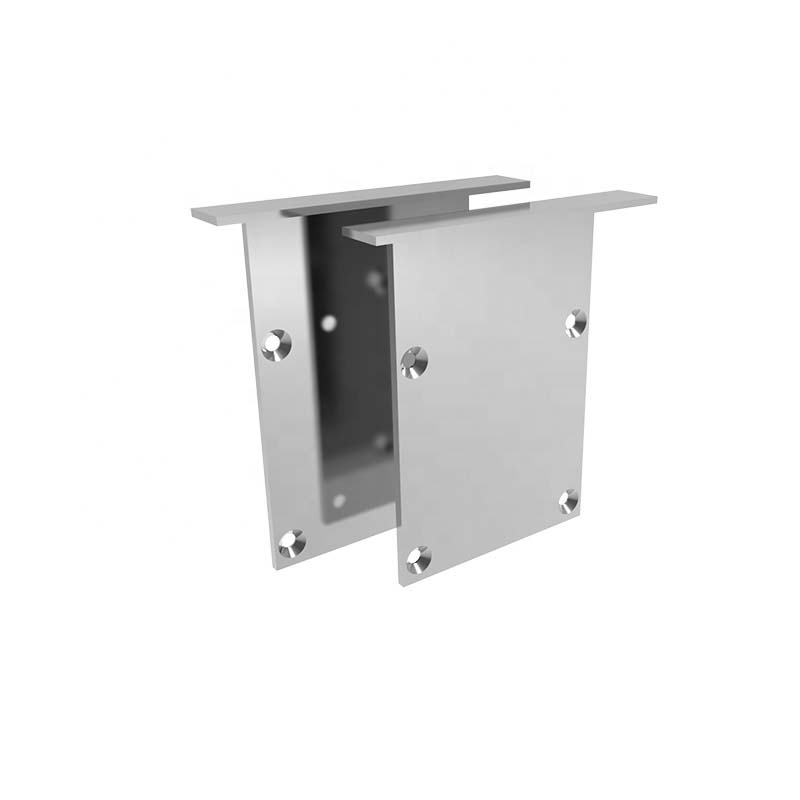

Aluminium End Caps

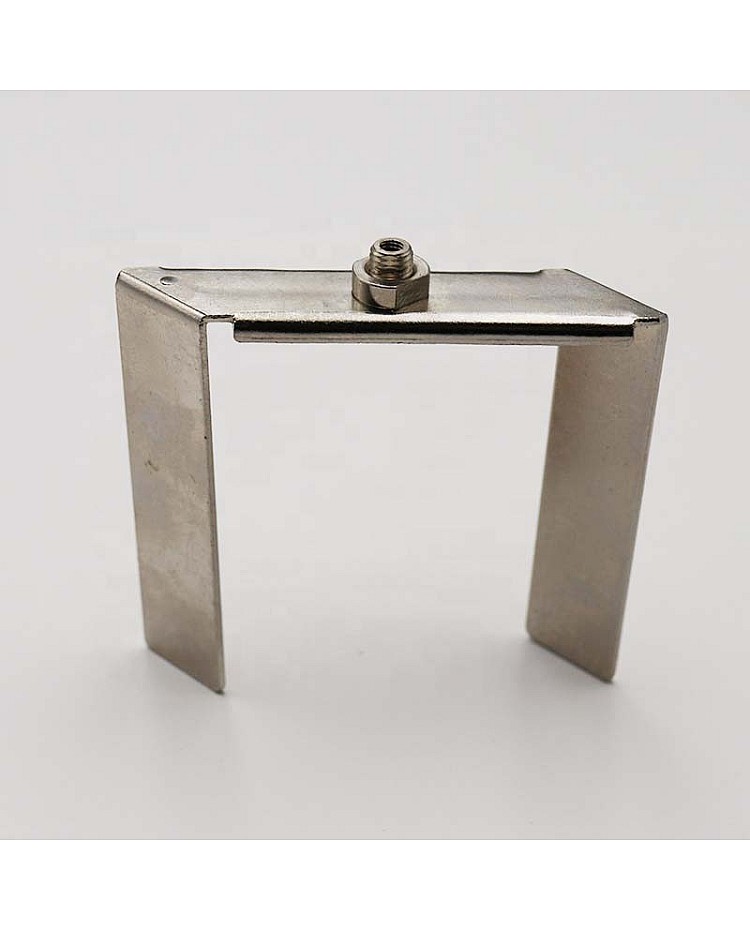

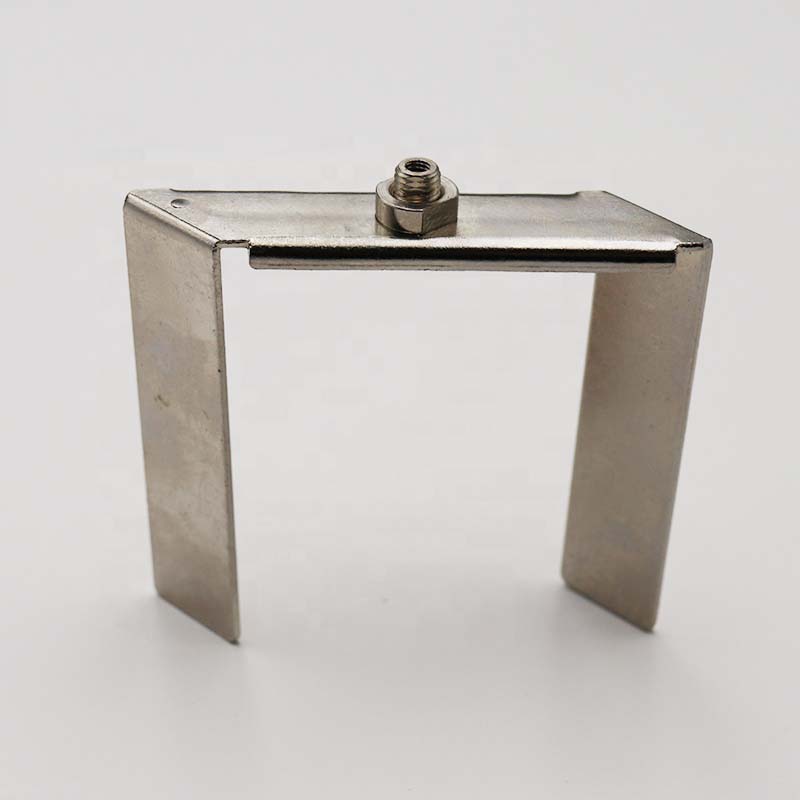

Mounting Brackets
Internal Clips
