In Stock
$11.90
Reward Points: 12
-
+
  • Brand: Hoion
  • Product Code: HCBK

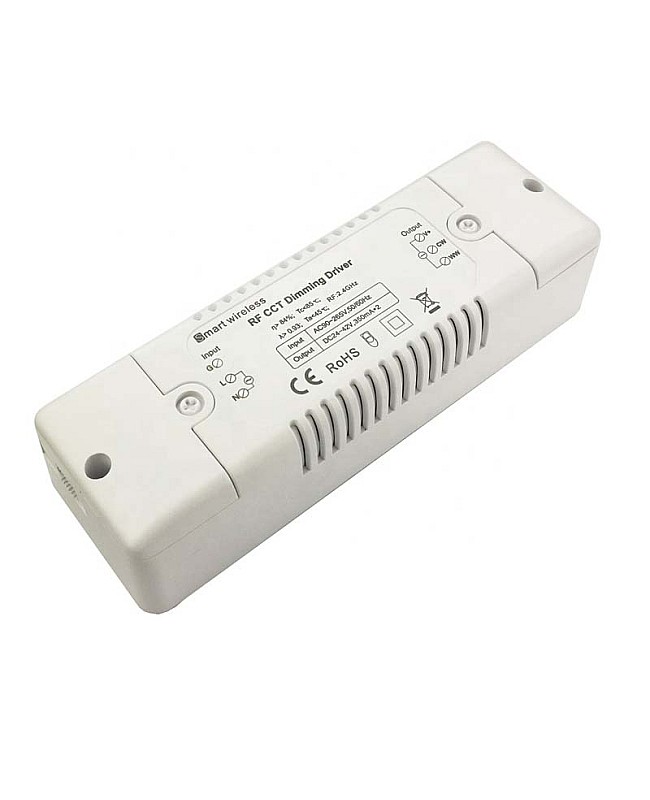

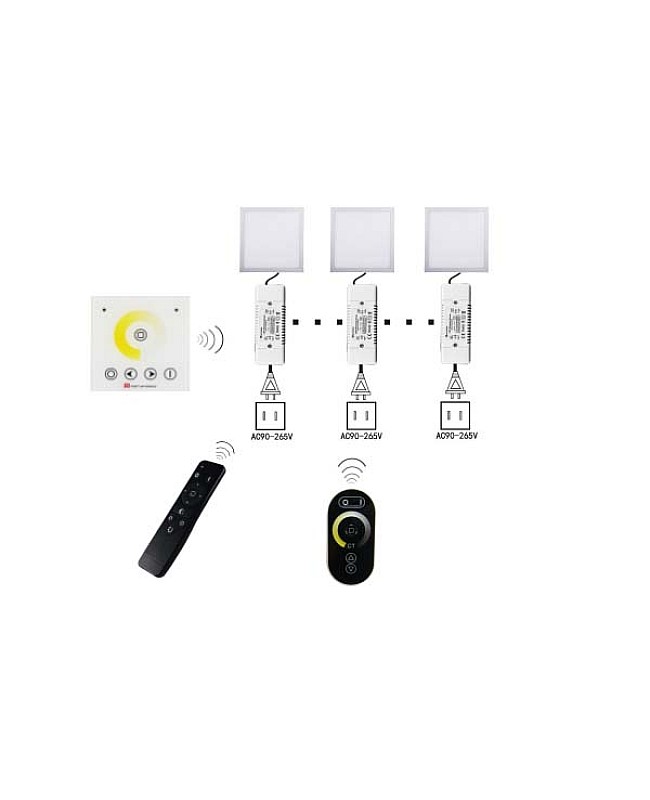

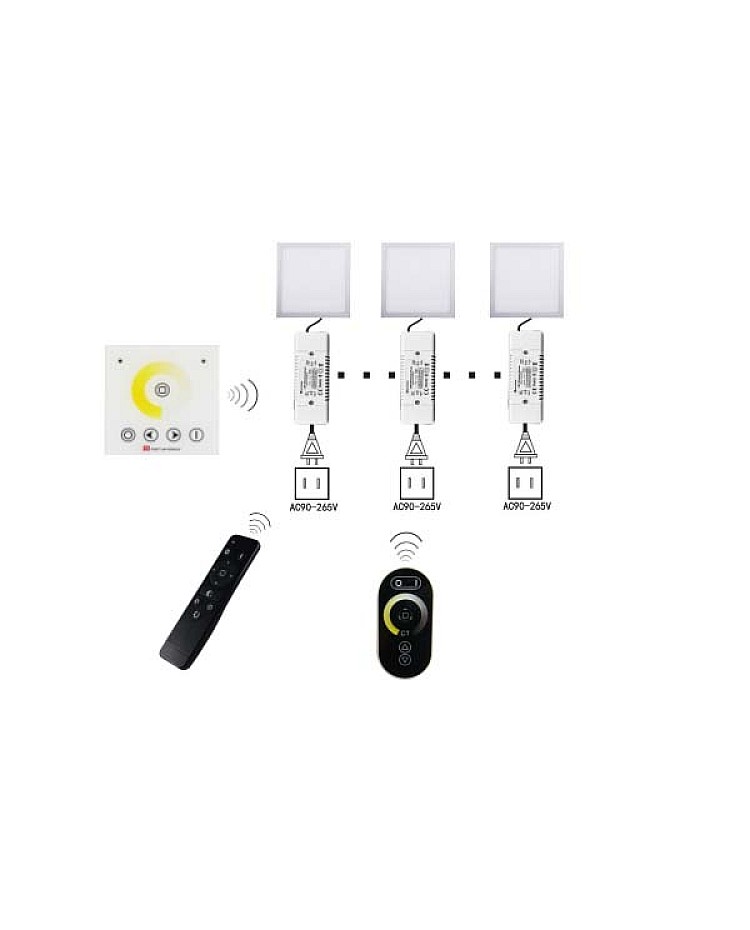

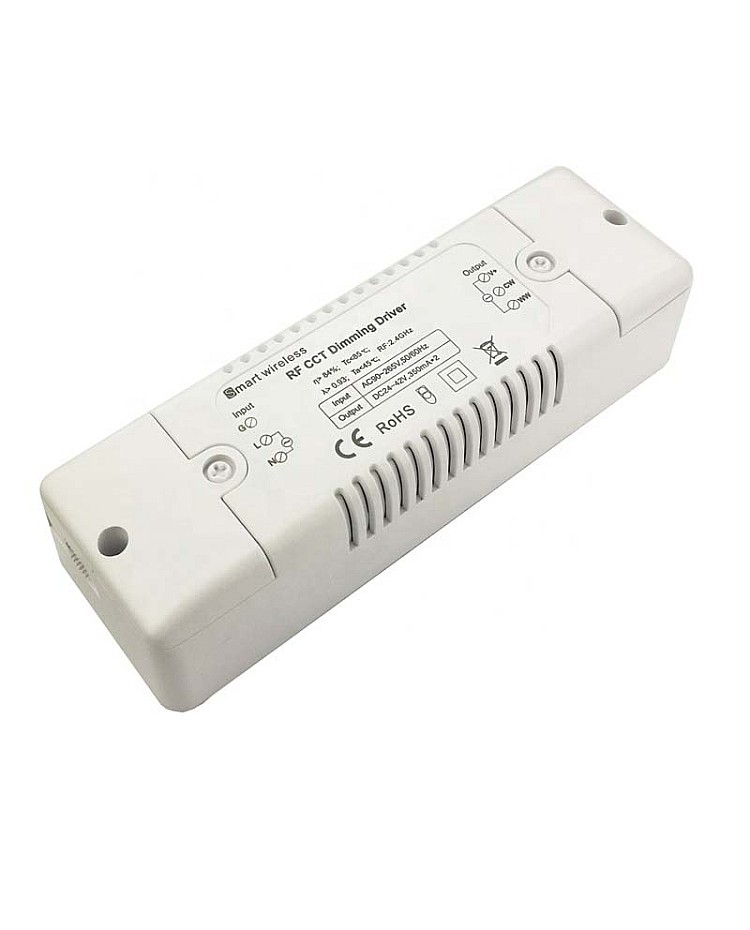

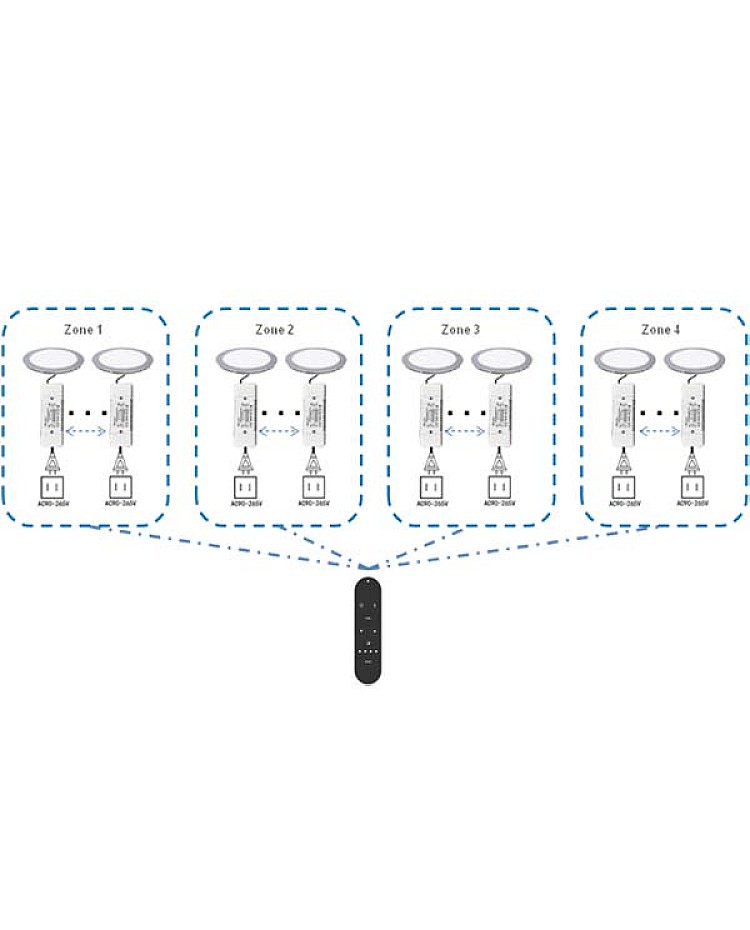

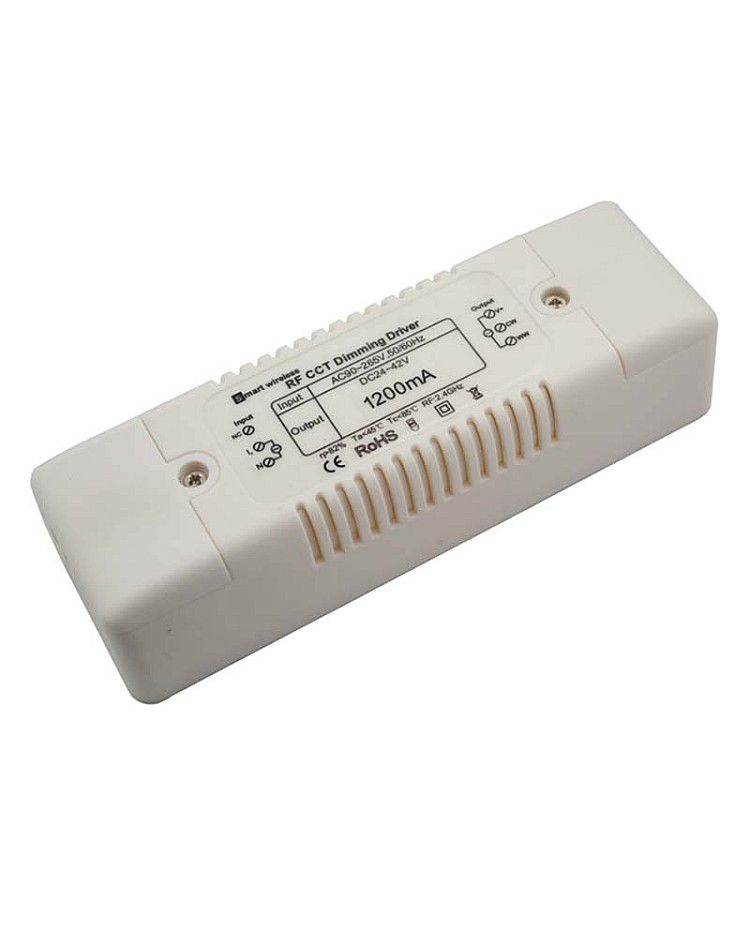

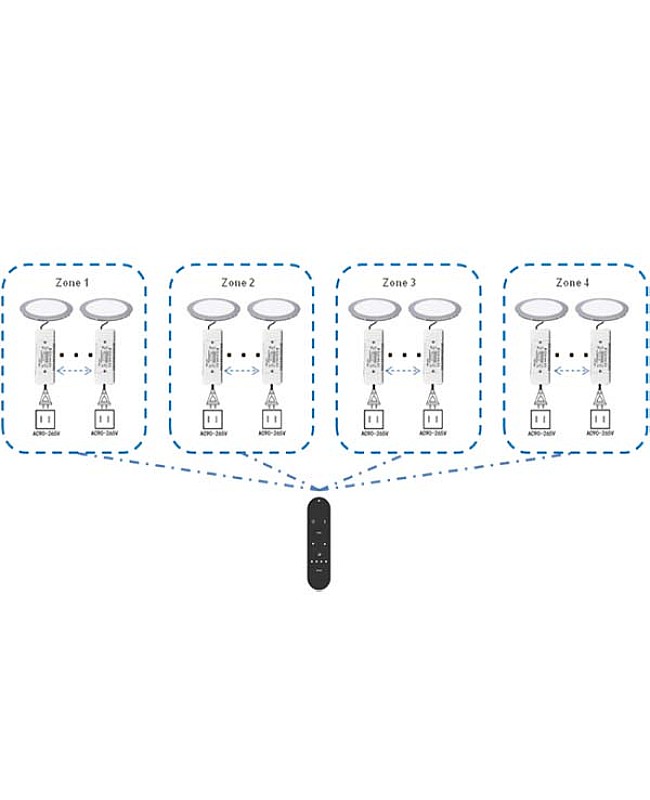

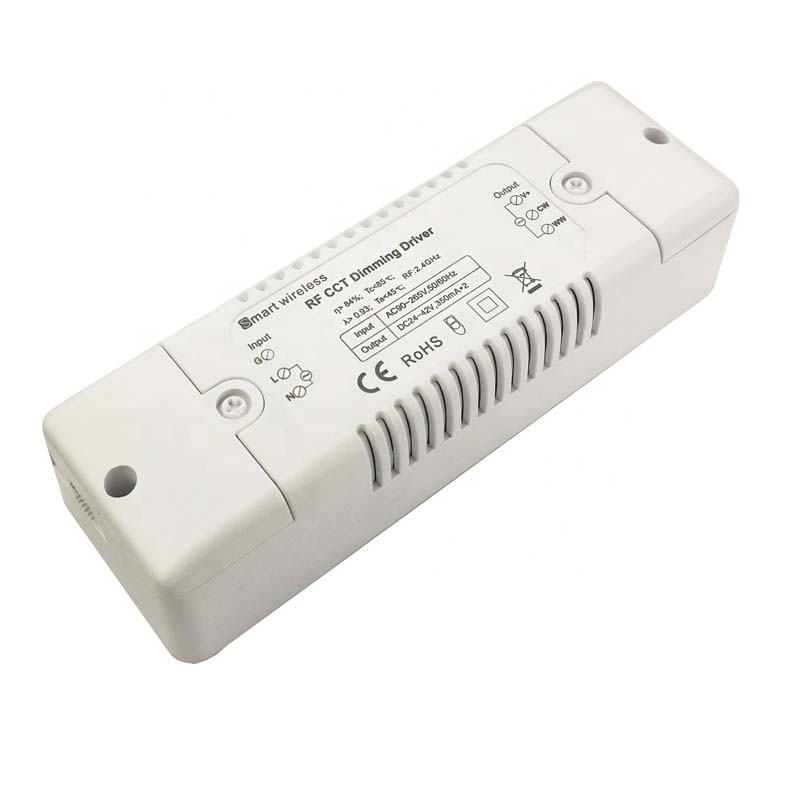

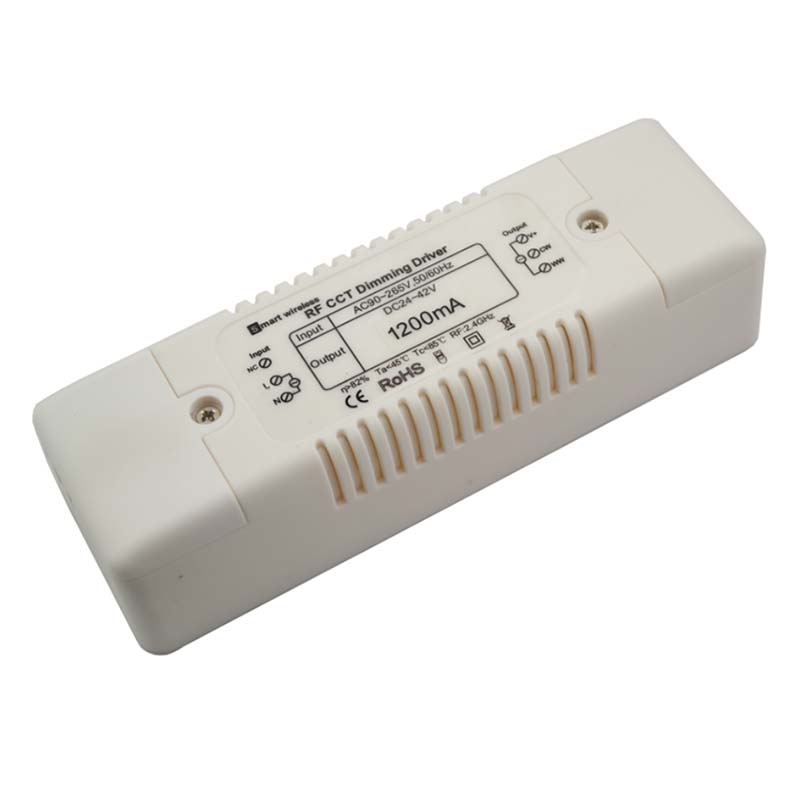

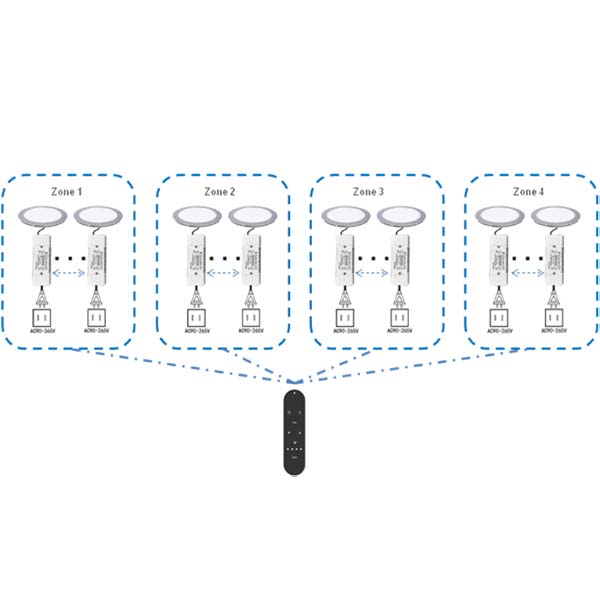

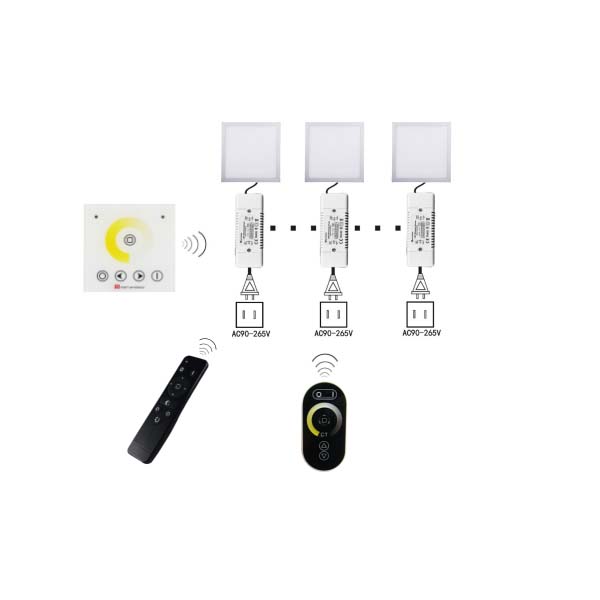

The CCT Dimmable Transformers, which is designed for the constant current CW+WW LED lights, LED panels, ceiling lamps, downlights, etc., the dimmable driver with isolated driver design, and the working voltage between AC90V to AC264V, can connect to the public power system directly with extra adapter, various constant current products available, you can choose from 300mA to 900mA. Adopt advanced PWM technology, 4096 levels, 2-100% dimming smoothly without flicker. With a 2.4G RF wireless remote control and air self-inspection, the sync control is compatible with all Hoion RF CCT remote controls. You could use the remote to adjust the brightness or color temperature remotely. The air self-inspection sync technology gives it an excellent wireless synchronization function compared to similar products. Dimmable LED drivers can be wirelessly connected to any sync controlled by one remote control, no longer limited by remote control distance. It can be widely used for intelligent household/commercial indoor lighting designs in malls, hotels, or offices.

Quick Links:

2.4G RF CCT Remote Control


Specifications:

  • Input Voltage: AC90V-AC264V
  • Frequency Range: 47- 63Hz
  • Rated Current: 0.23A(Full Load)
  • Surge Current: <50A
  • Standby Power: ≤1.3W
  • Efficiency: >85%(Full Load)
  • Power Factor: >0.91

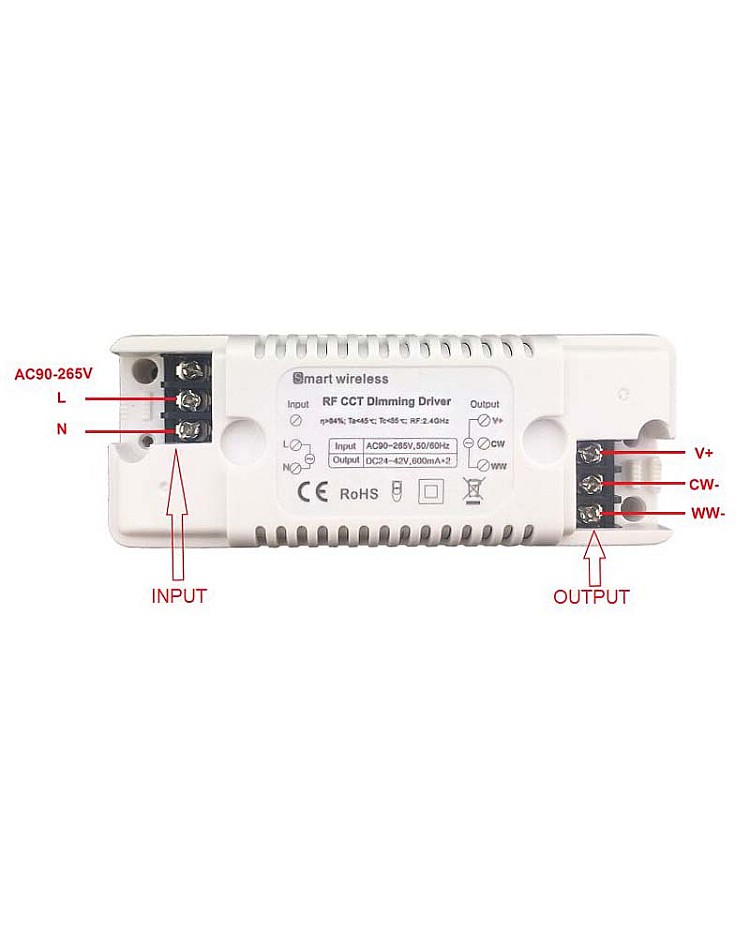

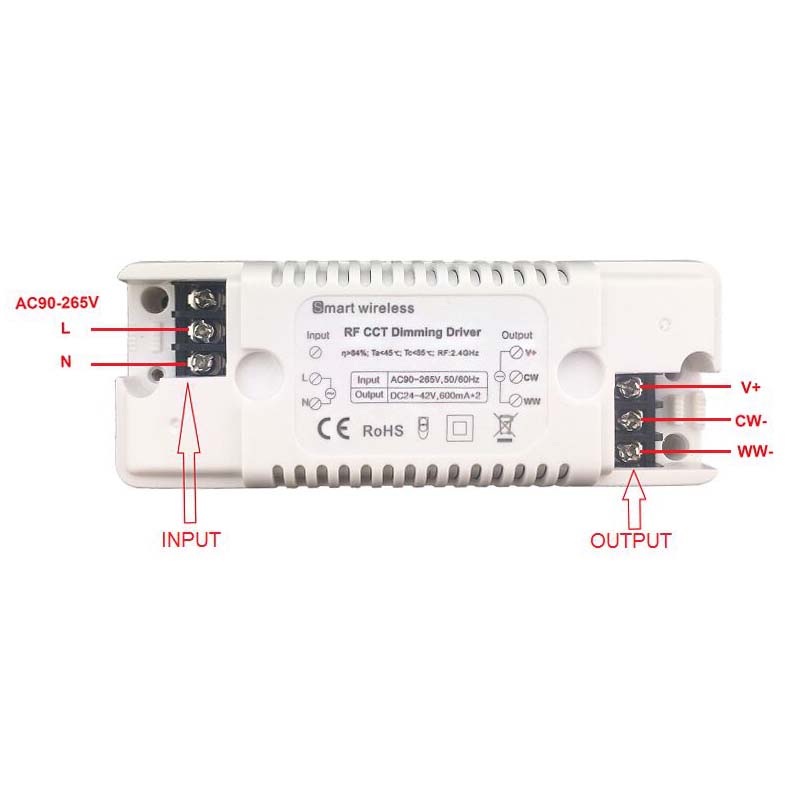

  • Port: Three Lines Input(L/N/FG)
  • No-Load Voltage: 53V
  • Output Voltage Range: DC18V-DC42V
  • LED Strings: 6-12
  • Rated Current: 13W(300mA), 15W(350mA), 17W(400mA), 19W(450mA), 21W(500mA), 25W(600mA), 27W(650mA), 30W(700mA), 32W(750mA), 34W(800mA), 36W(850mA), 38W(900mA)
  • Max Power Output: 38W(CW+WW)
  • Current Accuracy: ±5%
  • PWM Frequency: 3KHz
  • Dimming Level: 4096
  • Dimming Range: 2-100%
  • Camera Effect: Non-Flicker
  • Input Port: Three Lines Output, Common Anode
  • Power Supply: Isolated Power Supply
  • Frequency Of RF Remote Control: 2.4GHz
  • Remote Control Distance: 30m
  • 2.4GHz Wireless Remote Control & Air Self-Inspection Sync Control

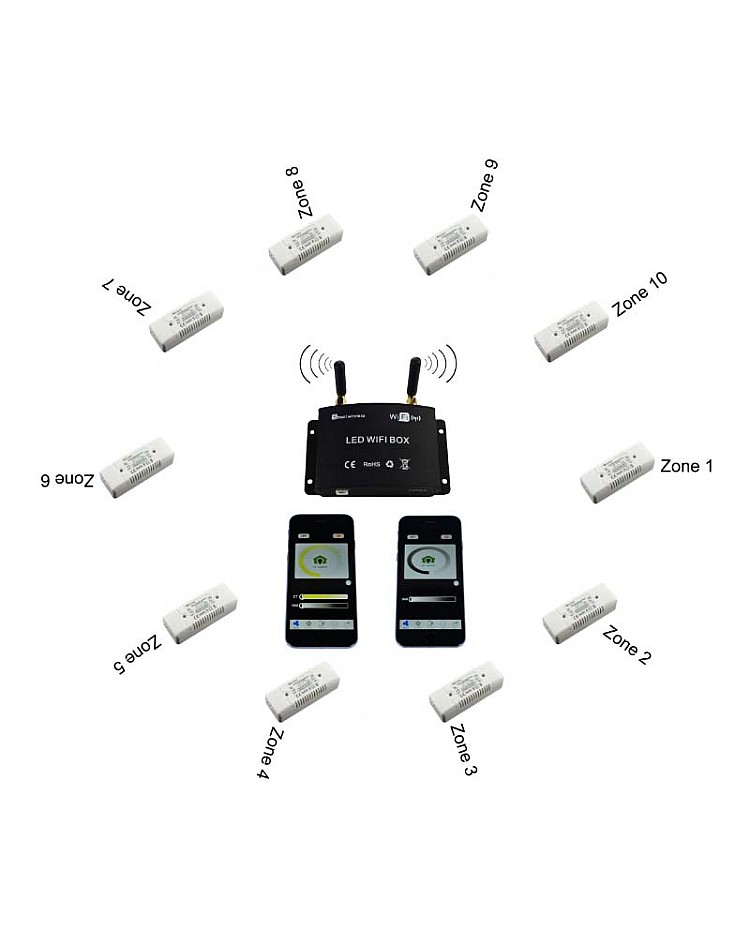

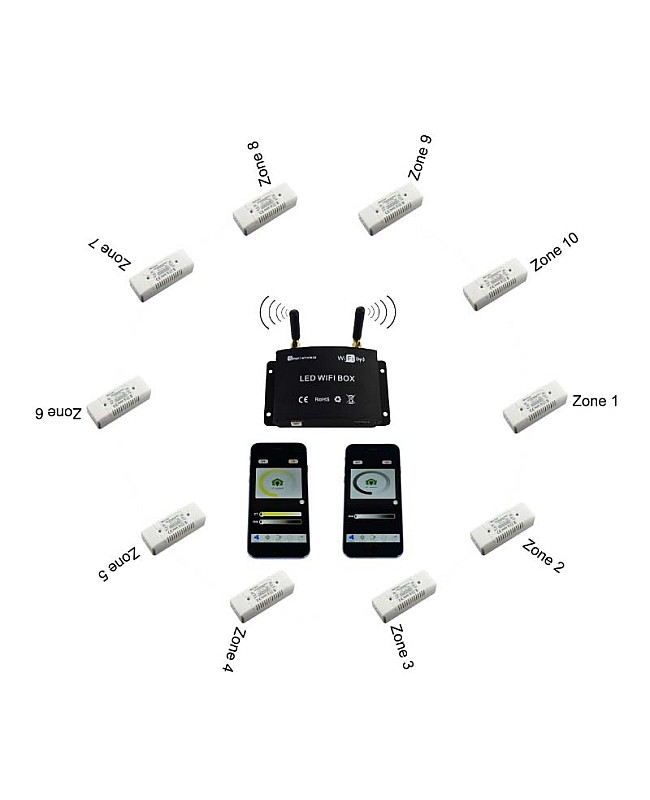

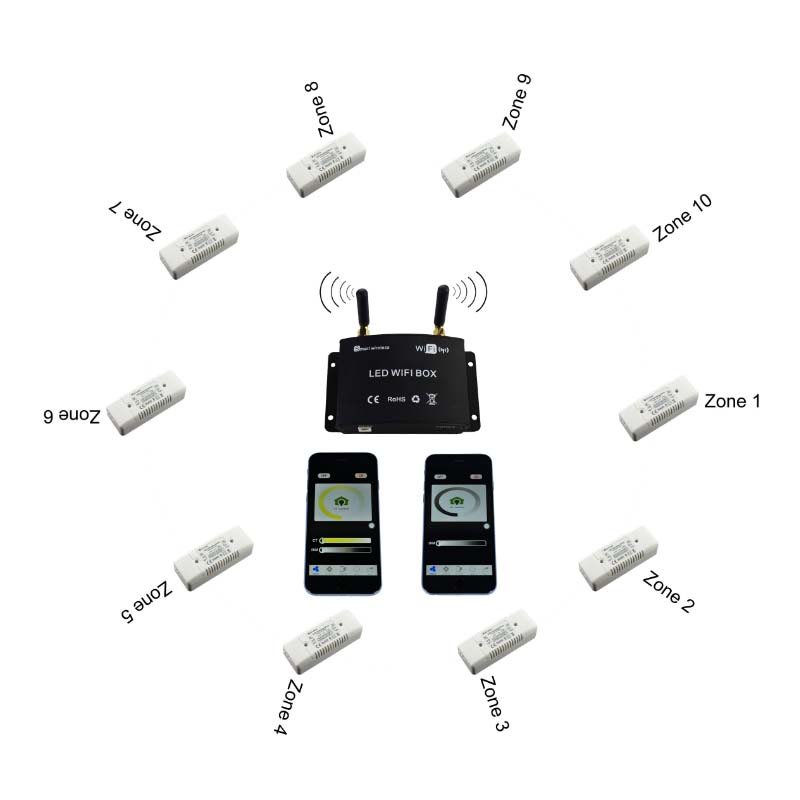

  • Compatible With Freelighting APP Control System, Achieve WIFI Intelligent Control By Mobile Phone
  • Designed For Constant Current CW+WW LED Lights: LED Panels, Ceiling Lamps, Downlights, etc
  • Memory Function: YES
  • Over Voltage Protection: YES
  • Overloading Protection: YES
  • Remote Control Sold Separately
  • Weight: 200g
  • Lifespan: 31,000 Hours
  • 3 Years Warranty


Includes:

1 * CCT Dimmable Transformer(Remote Not Included And Sold Separately)

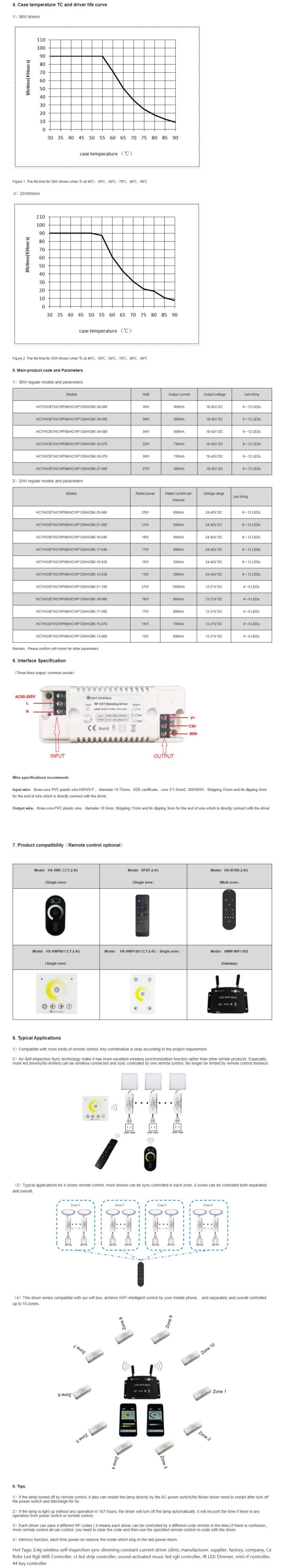

Dimmable Electronic Transformer
