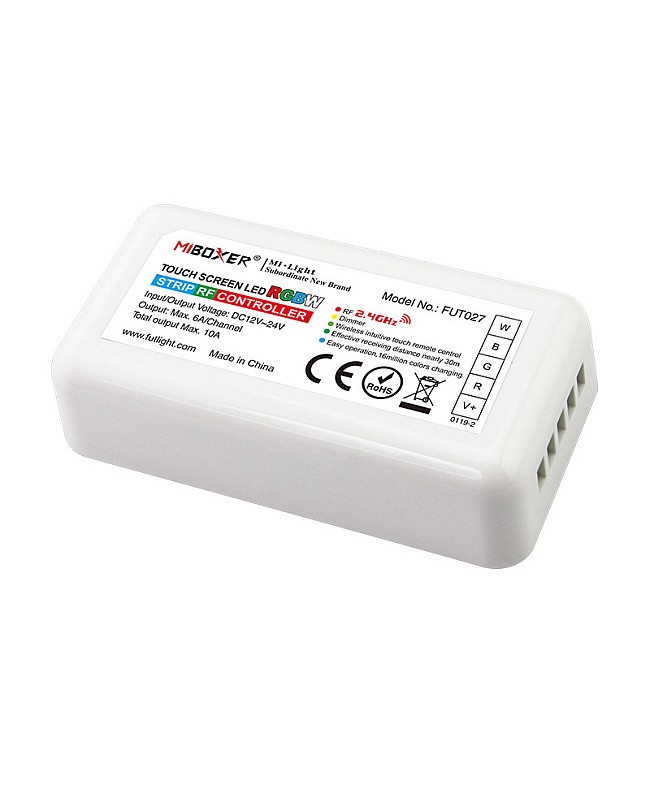

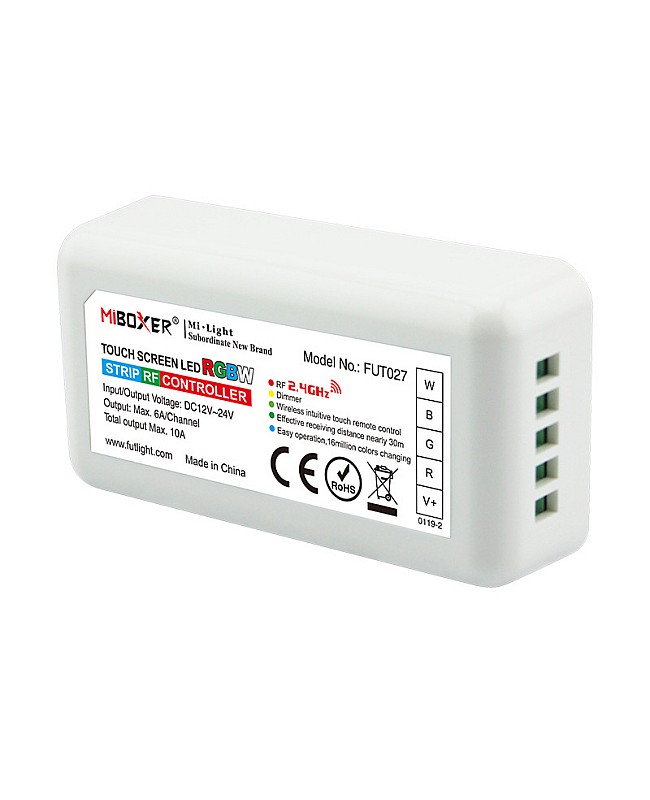

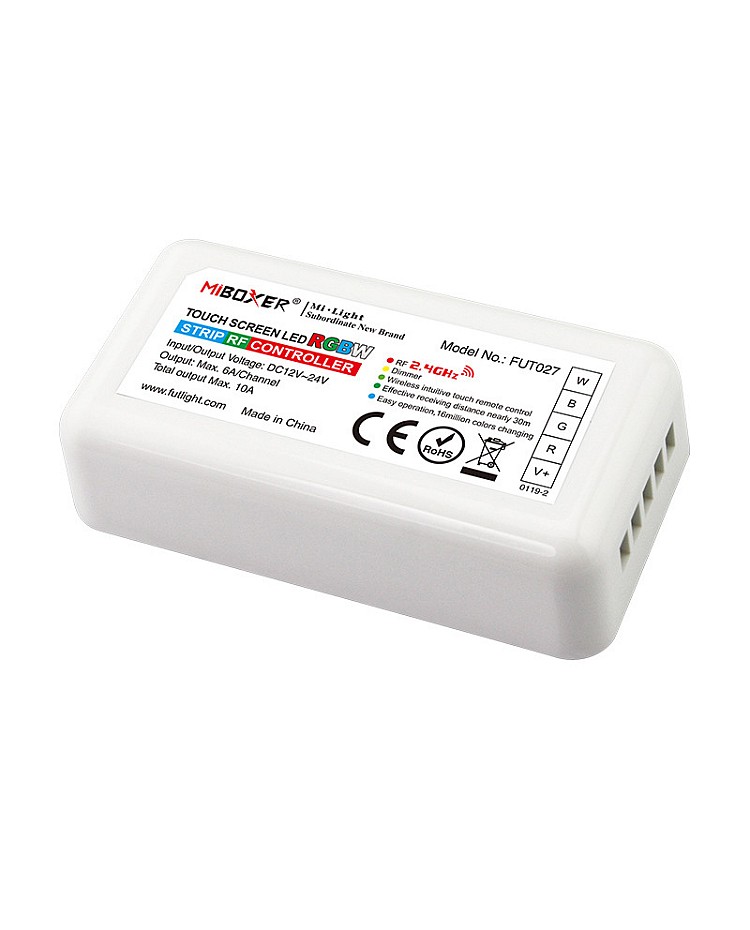

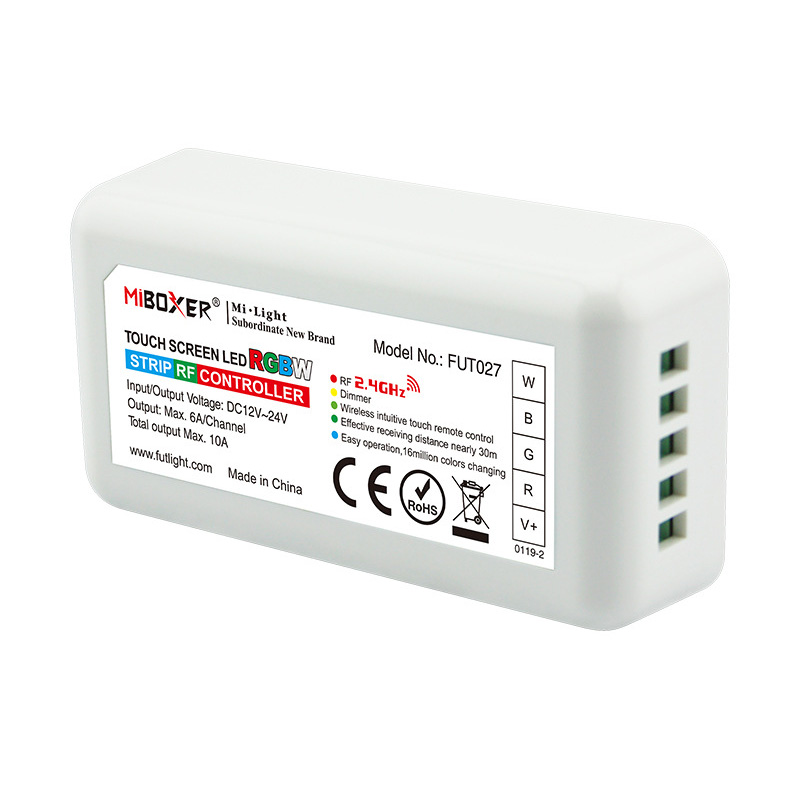

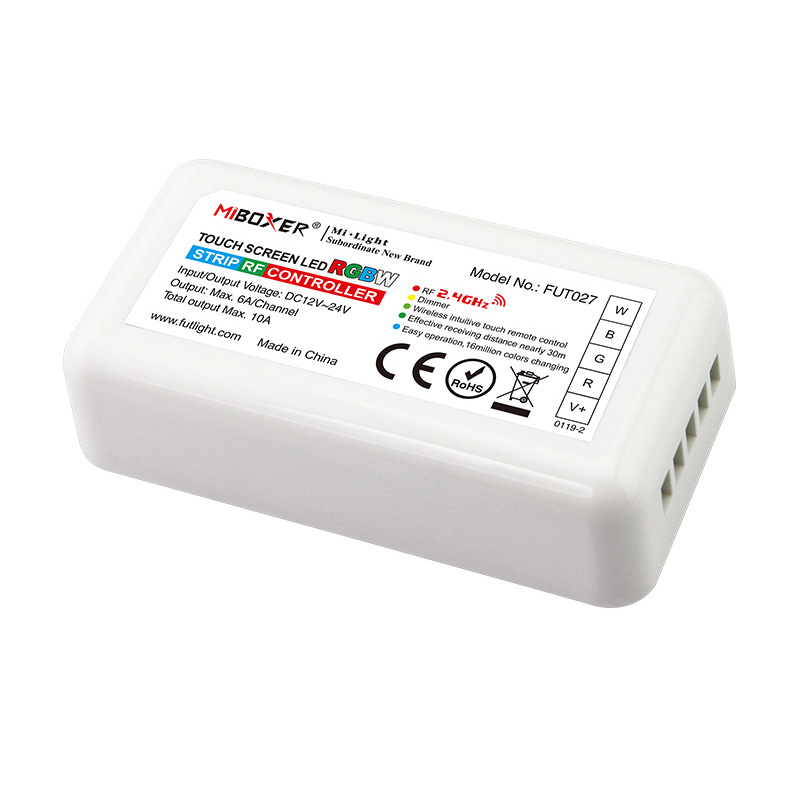

2.4G RF Wireless MiBoxer FUT027 5Pin RGBW Controller

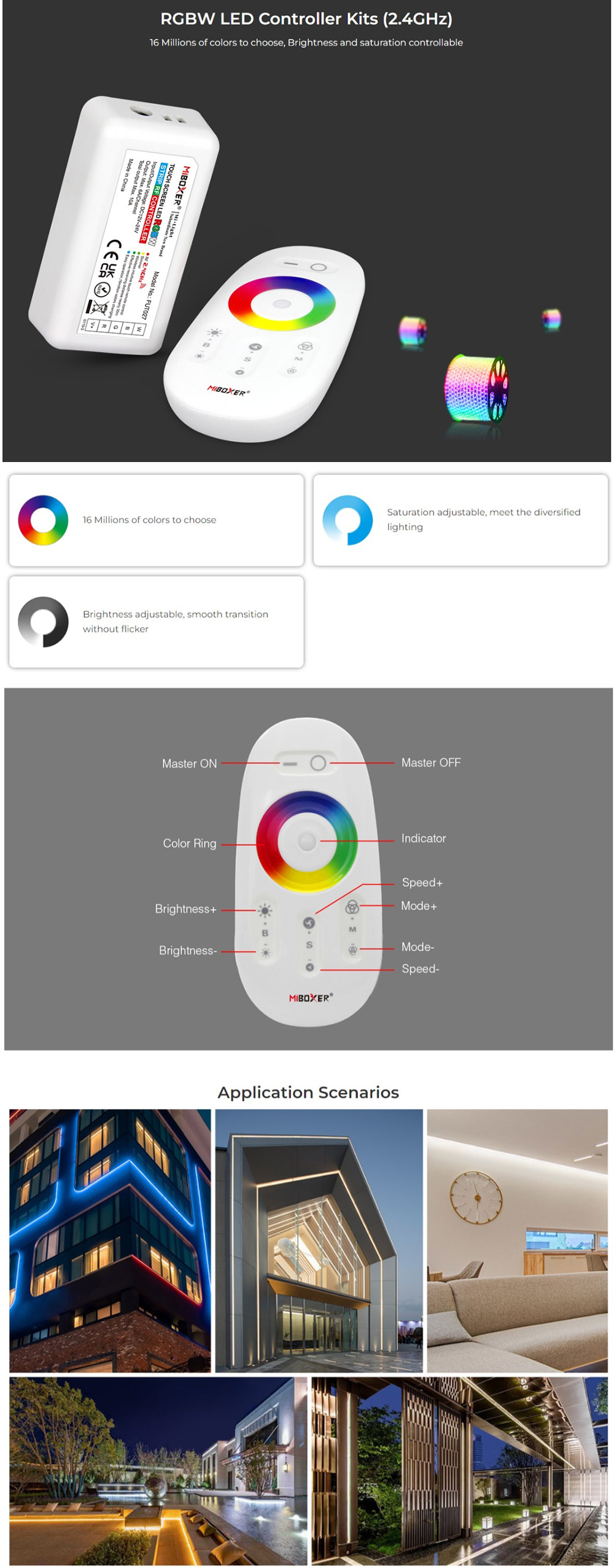

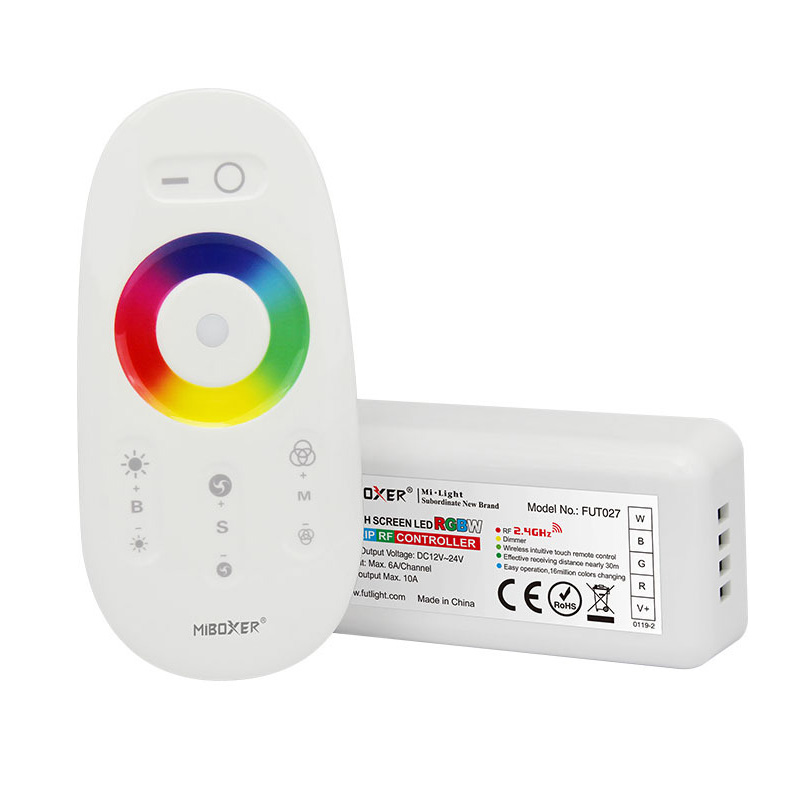

The MiBoxer FUT027 5Pin RGBW controller has a 4-output channel design and a touch remote; you can use it to control the RGBW LED tapes and modules. The MiBoxer RGBW controller works on DC12V-24V and adopts the most advanced PWM control technology. The remote can set 16 million colors or 12 dynamic modes. The brightness of static colors and speed of dynamic modes are adjustable, with memory function; the previous settings will be resumed when powered on again. With 2.4G signal wireless transmission technology, the control distance is up to 30 meters. The touch remote has simple and practical functions such as changing colors and dimming brightness. You can touch it to set your favorite color or other settings to fulfill various scenes.

Quick Links:

MiBoxer FUT027 5Pin RGBW Controller Manual

FUT027 Specifications:

• Working Voltage: DC12-24V
• Output Channels: R/G/B/W 4 Output Channels
• Max Load Per Channel: 6A
• Total Output Max: 10A
• Connecting Method: Common Anode
• Control Distance: ≤30m
• 16 Million Colors  And 12 Dynamic Modes Available
• Brightness And Speed Adjustable
• 2.4G RF Wireless Transmission
• Memory Function: YES
• 2 Years Warranty

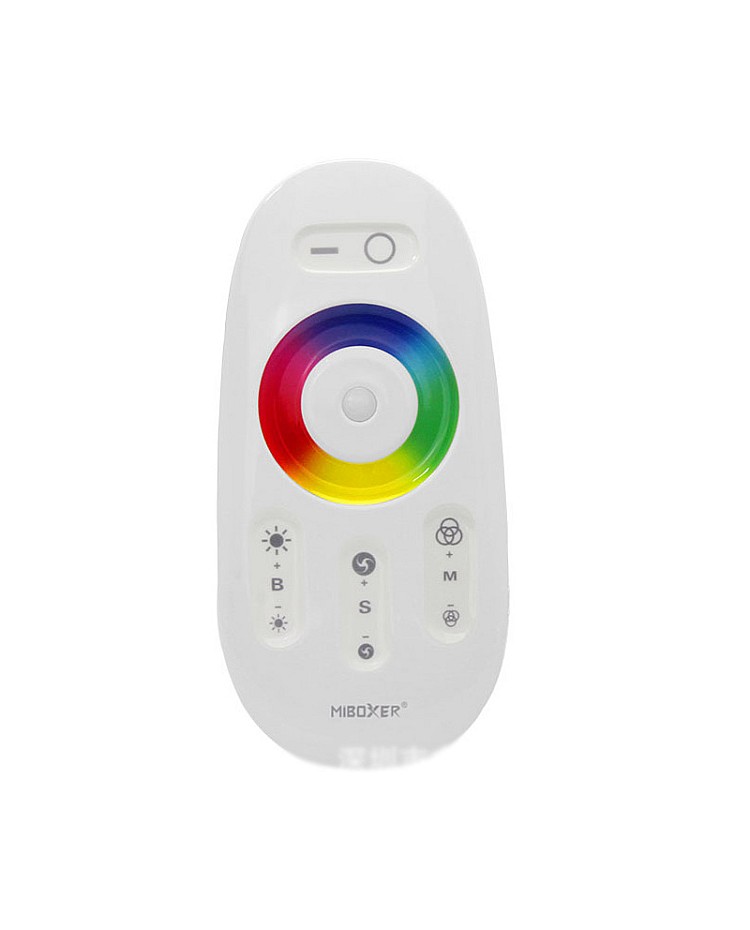

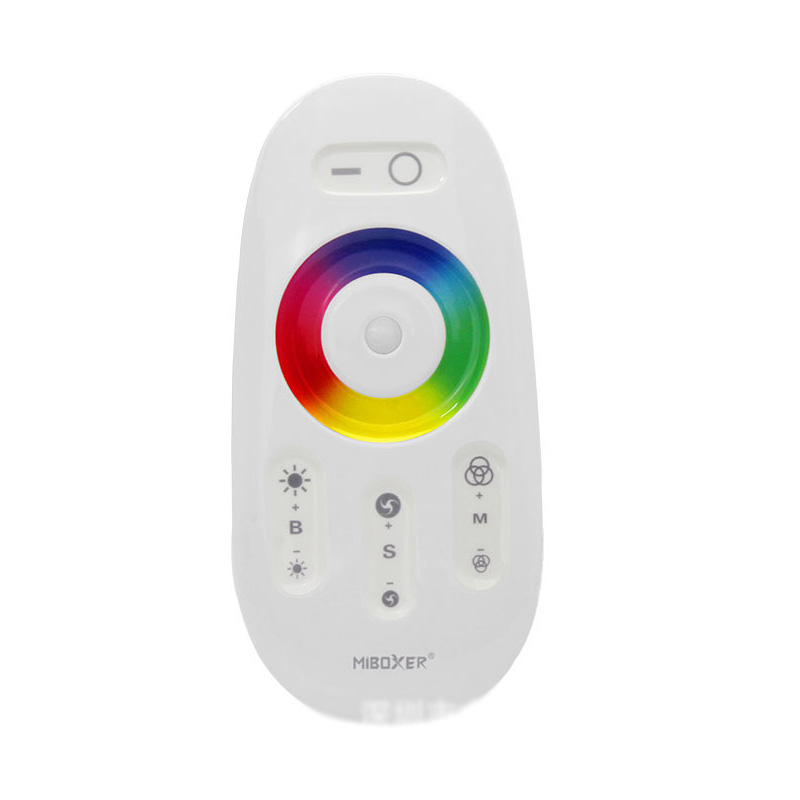

Remote Specifications:

• Material: ABS
• Fabrication Processing: Multicolor Printing & UV Varnish
• Size: 110*52*20mm(L*W*H)
• Working Voltage: DC3V
• Powered By 2PCS AAA Batteries(Sold Separately)
• Sensitive Touching Design
• 2.4G Wireless Signal Transmission

Includes:

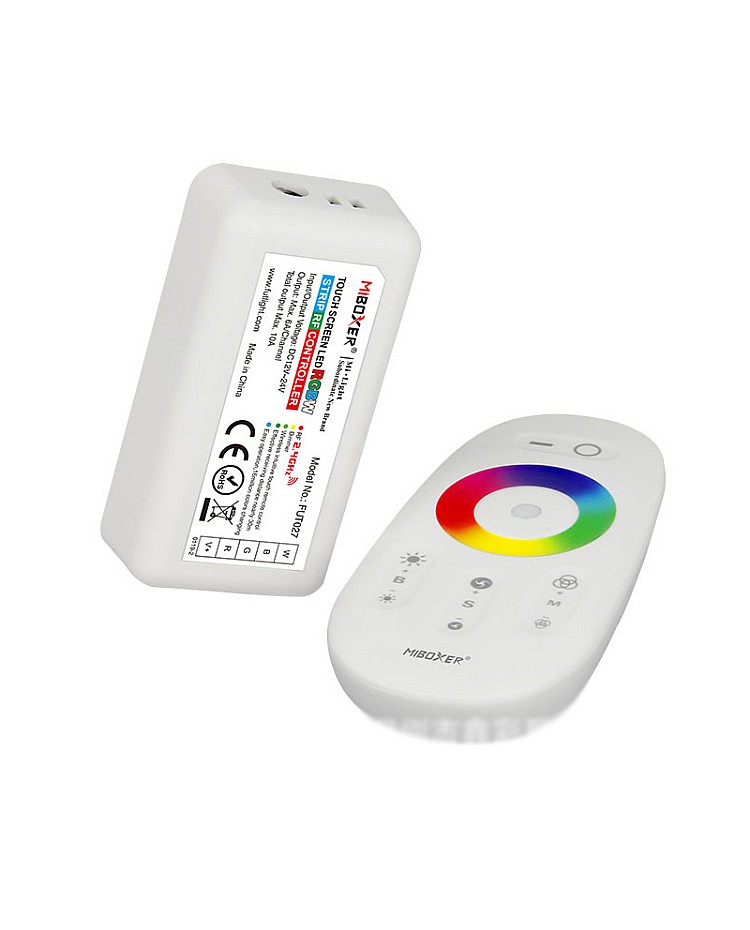

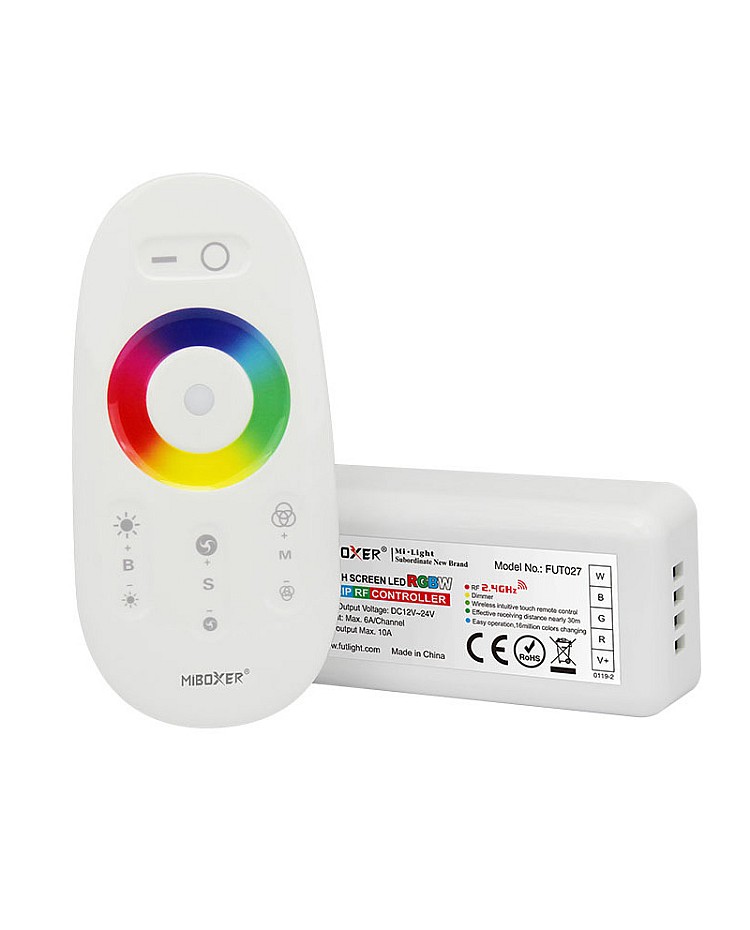

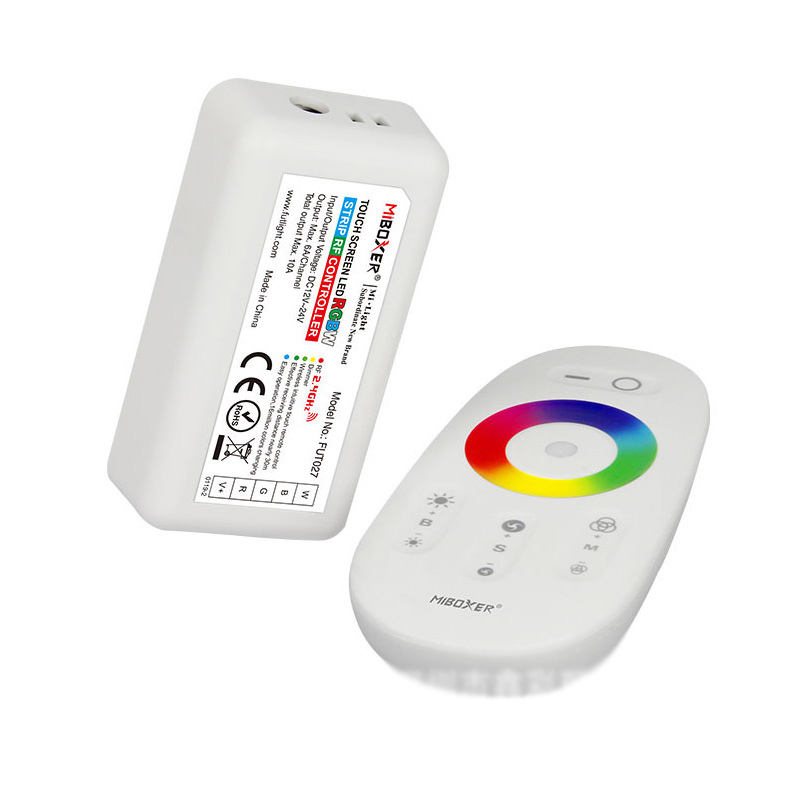

1 * FUT027 5Pin RGBW Controller

1 * RF Touch Remote Control

1 * User Manual
