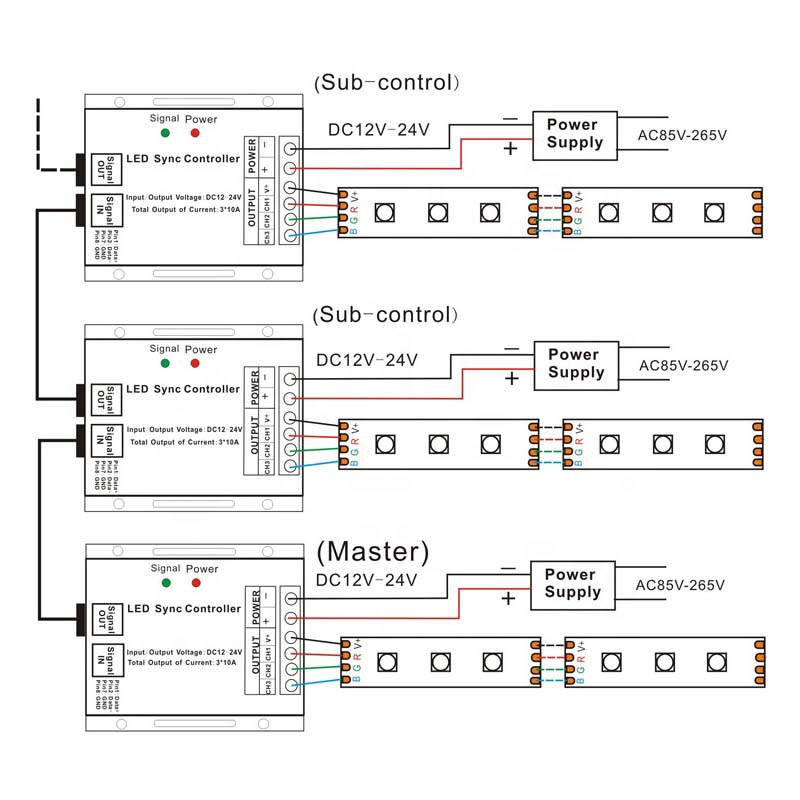

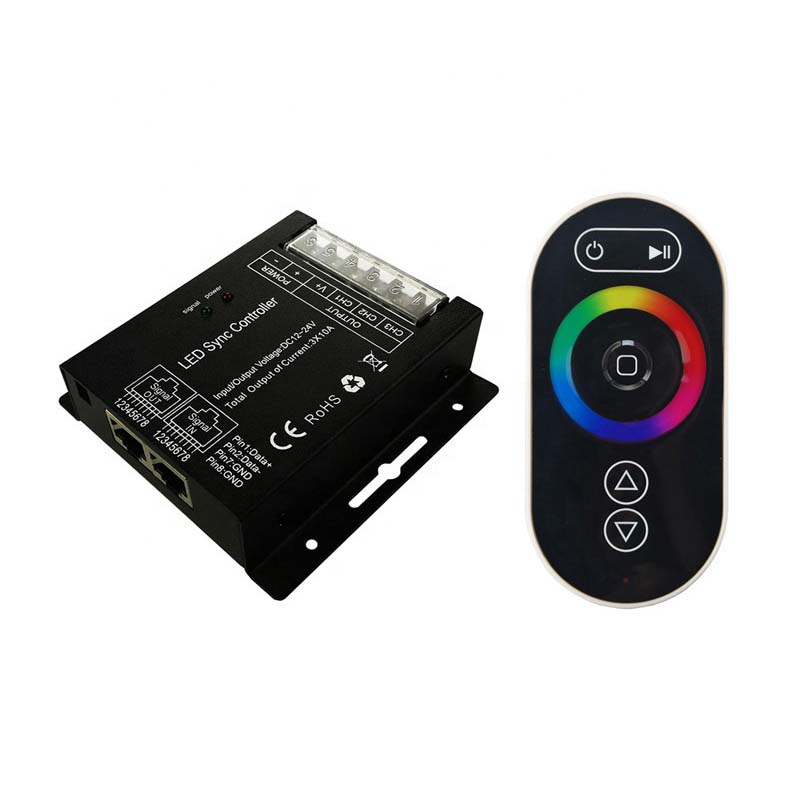

The 12V RGB Controller, which adopts the advanced micro control unit, can be used to control a variety of RGB LED Lights. The RGB Controller with three output channels design. The max output current of each channel is up to 10A, and the max loading power is up to 720W when working in DC24V. The RGB LED Controller with dual RJ45 cable ports allows connecting multiple Controllers to achieve the synchronization function. All of the loading LED Lights will change the lighting effects synchronously. The Touch RF Remote Control is included, with one color ring and one color sense lamp in the center, and all buttons are in the touchy form. The color ring has 128 levels in different colors. Ten models include the static white and nine dynamic modes, the brightness of static color, and the speed of dynamic mode adjustable.


  • Working Temperature: -20℃-60℃
  • Size: 91*88*24mm(L*W*H)
  • Connecting Mode: Common Anode
  • Working Voltage: DC12-24V
  • Output Channels: 3
  • Output Current: <10A(Each Channel)
  • Max Output Power: <360W(12V), 720W(24V)
  • RF Frequency: 433.9MHz
  • Output Gray: 256 Levels (RGB Each)

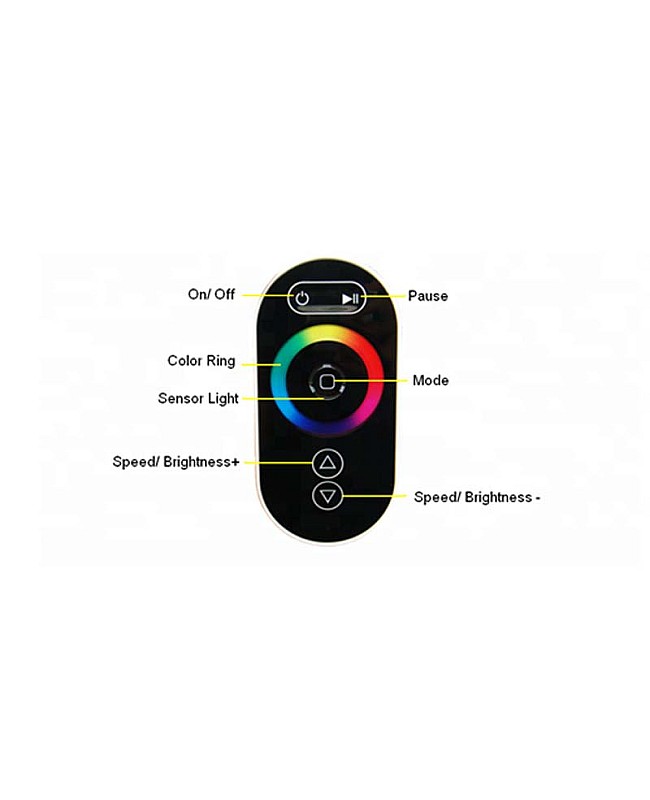

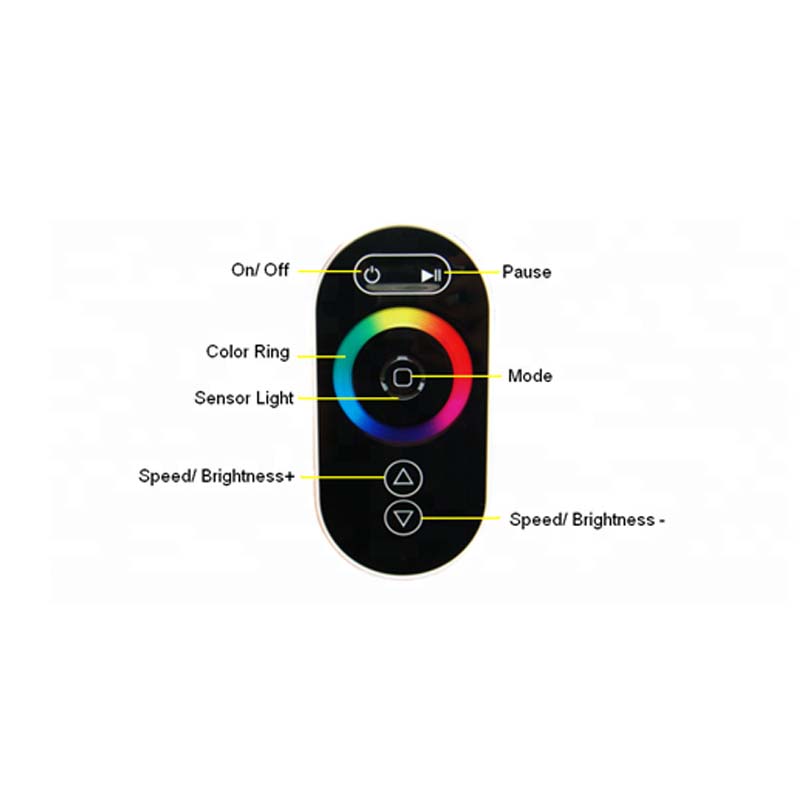

  • RF Remote Control With 1 Color Ring, 1 Color Sense Lamp In The Center, All Buttons In The Touch Form

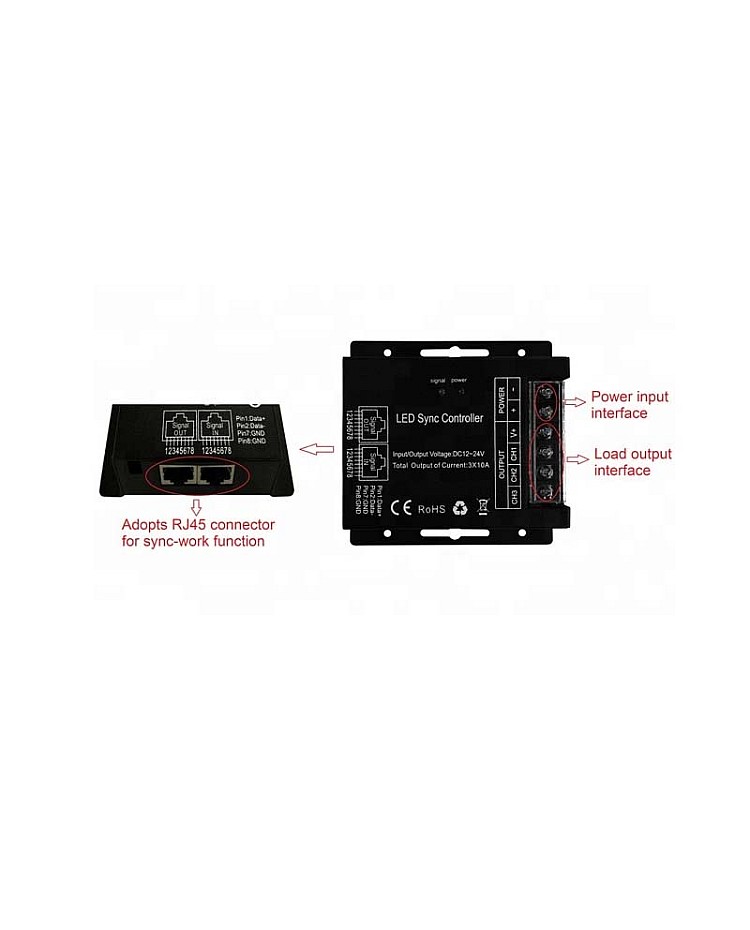

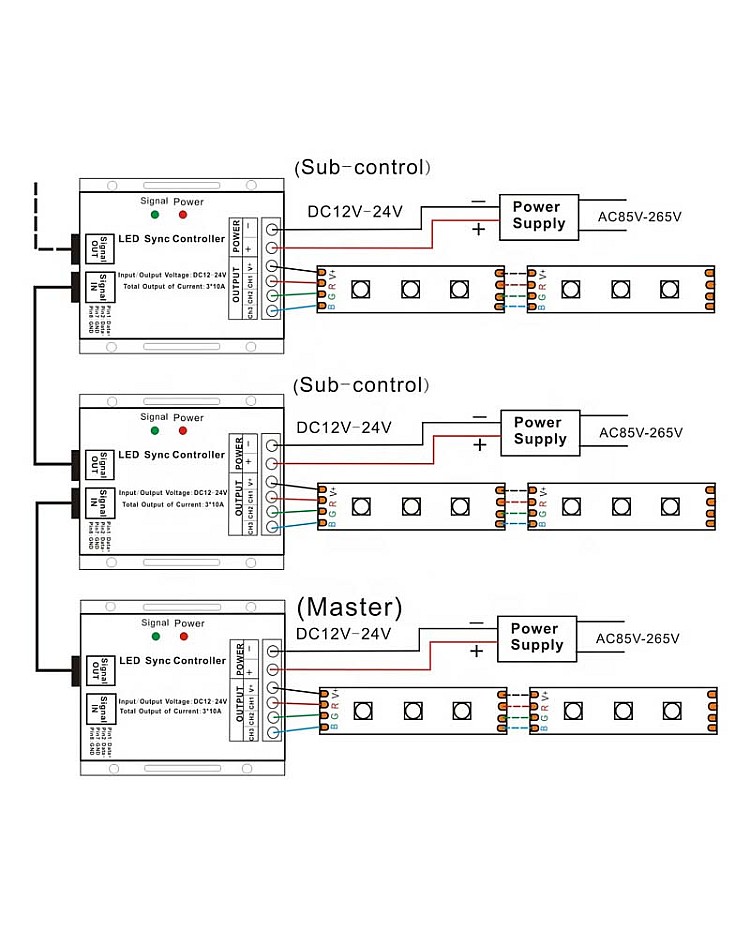

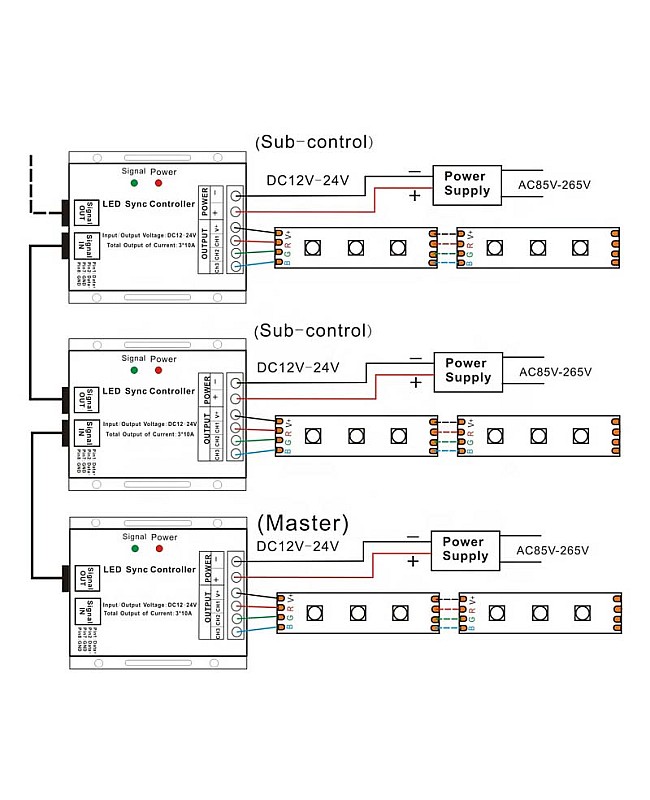

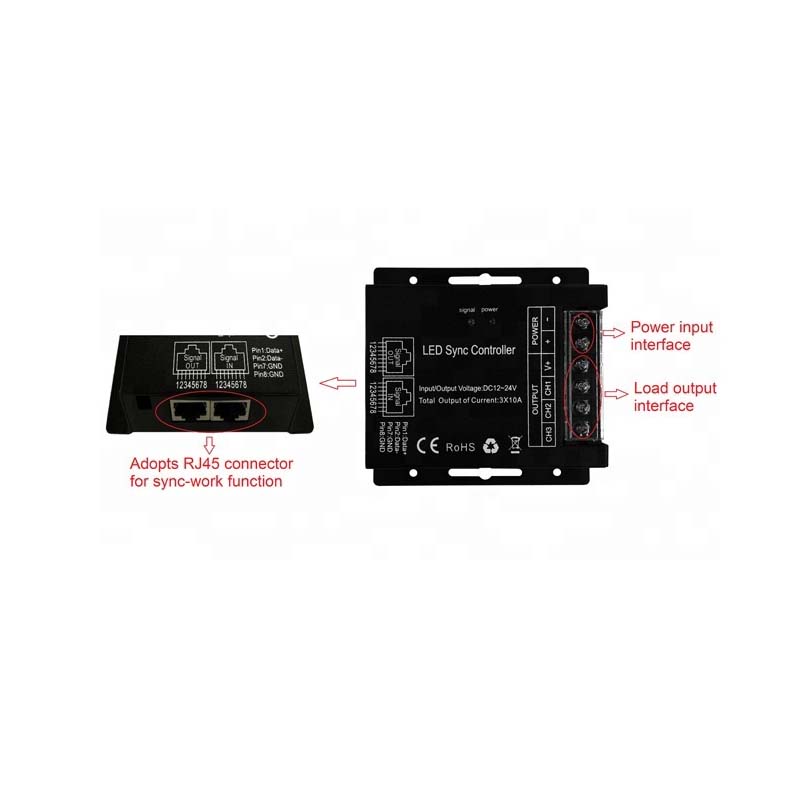

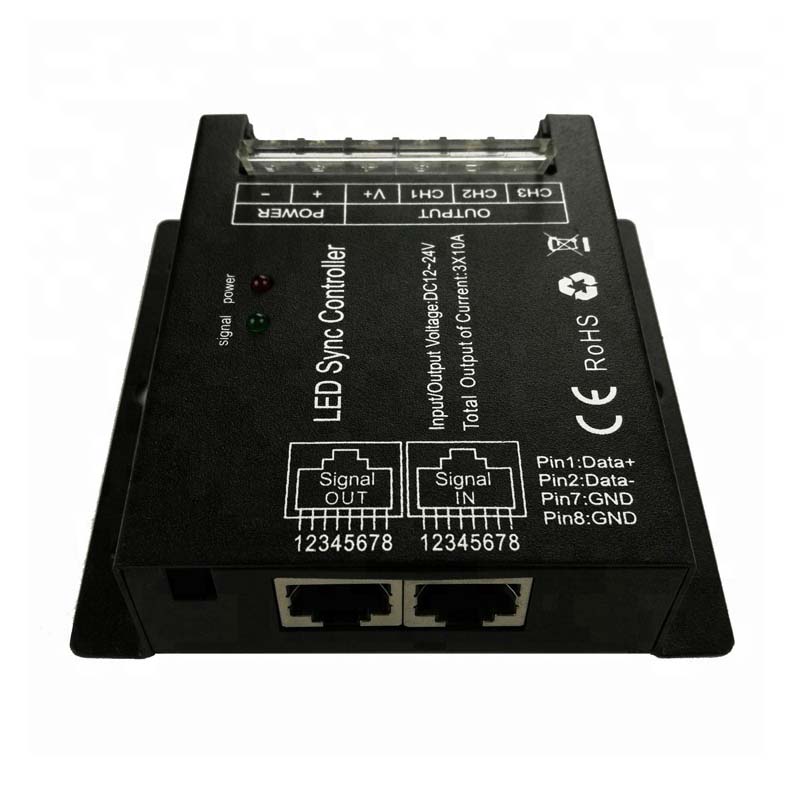

  • RJ45 Ports For Sync-Work Function
  • 10 Working Modes In Total, Including 1 White Static Color And 9 Dynamic Modes
  • Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
  • Weight: 320g
  • 2 Years Warranty

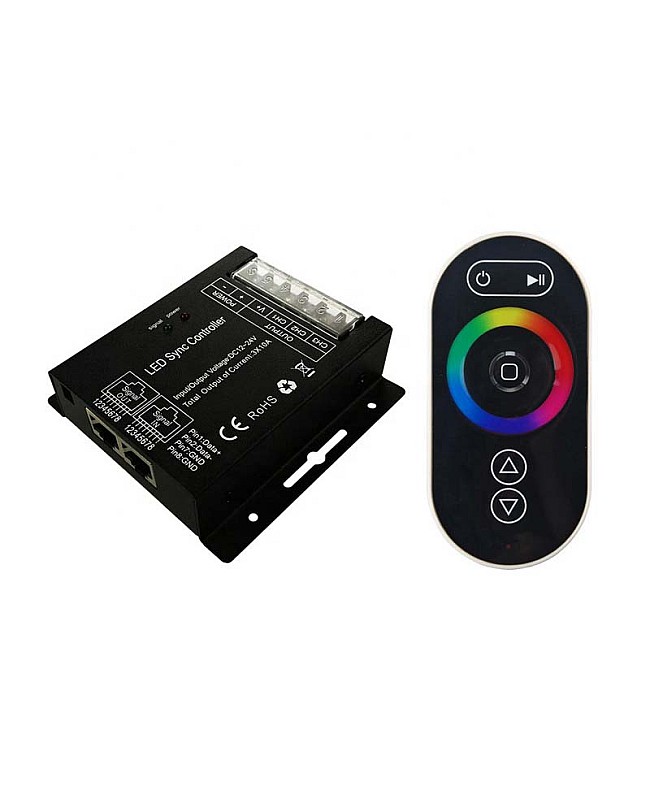

1*12V RGB Controller

1*LED Touch Remote

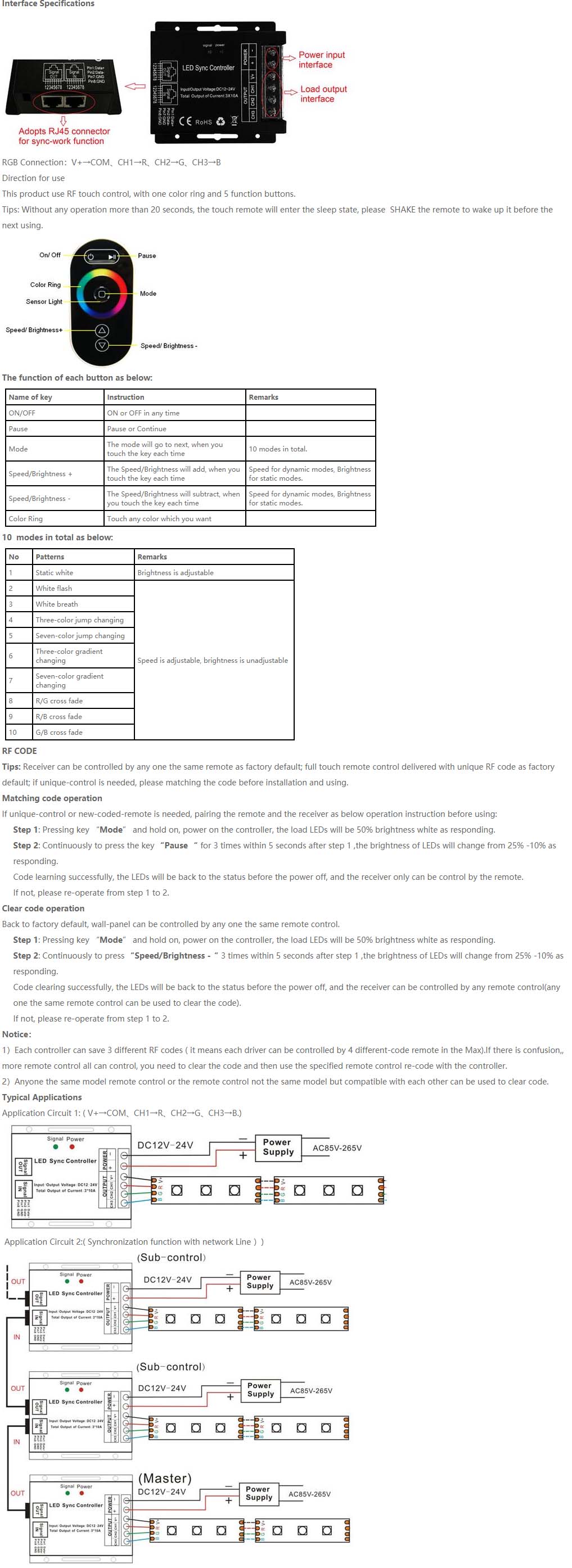

12V Controller For RGB Lights
