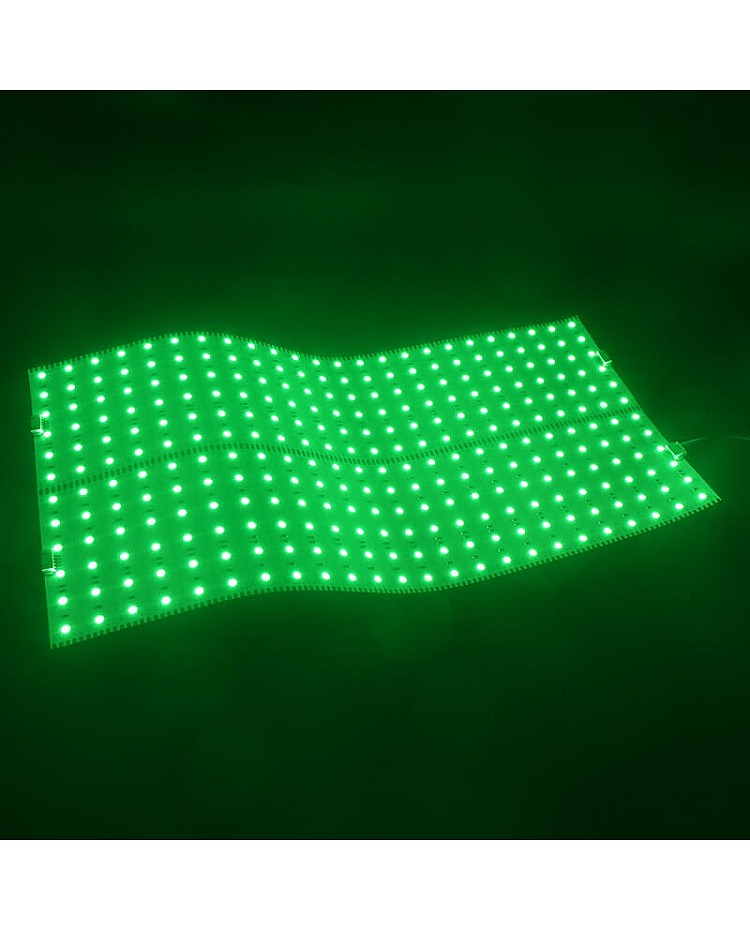

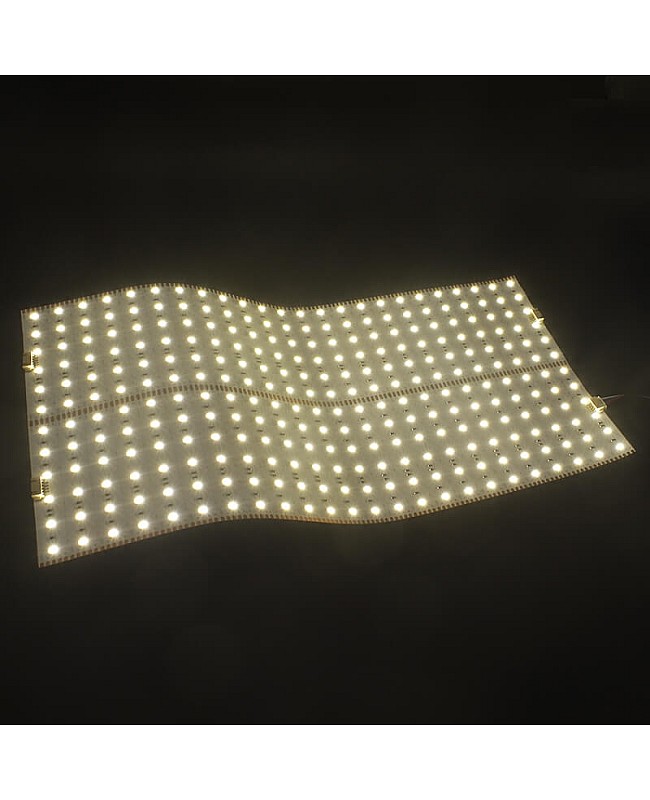

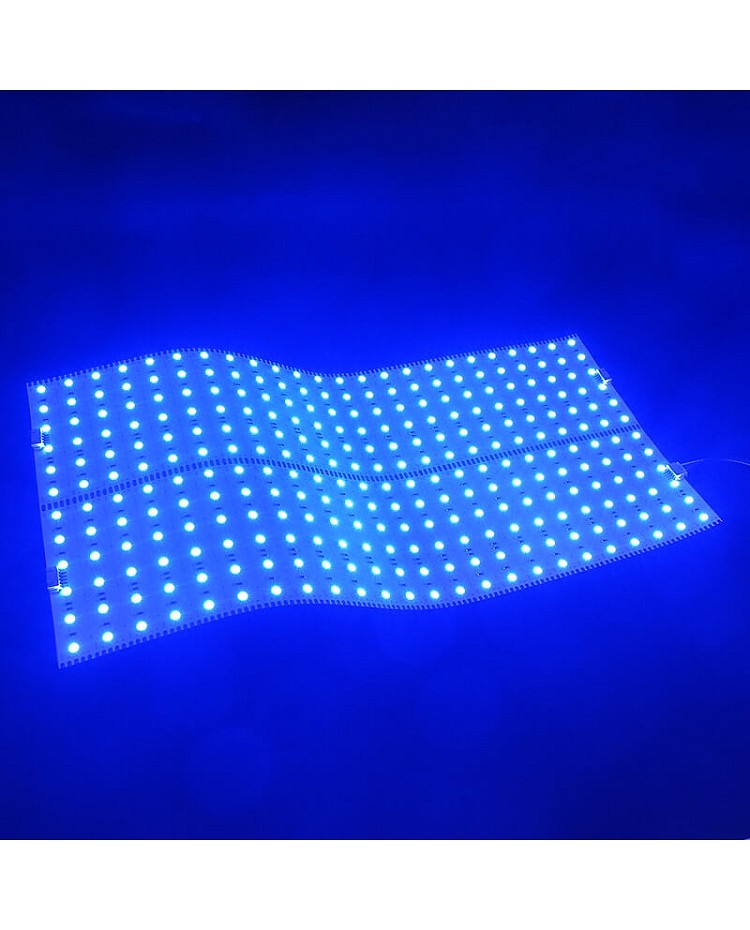

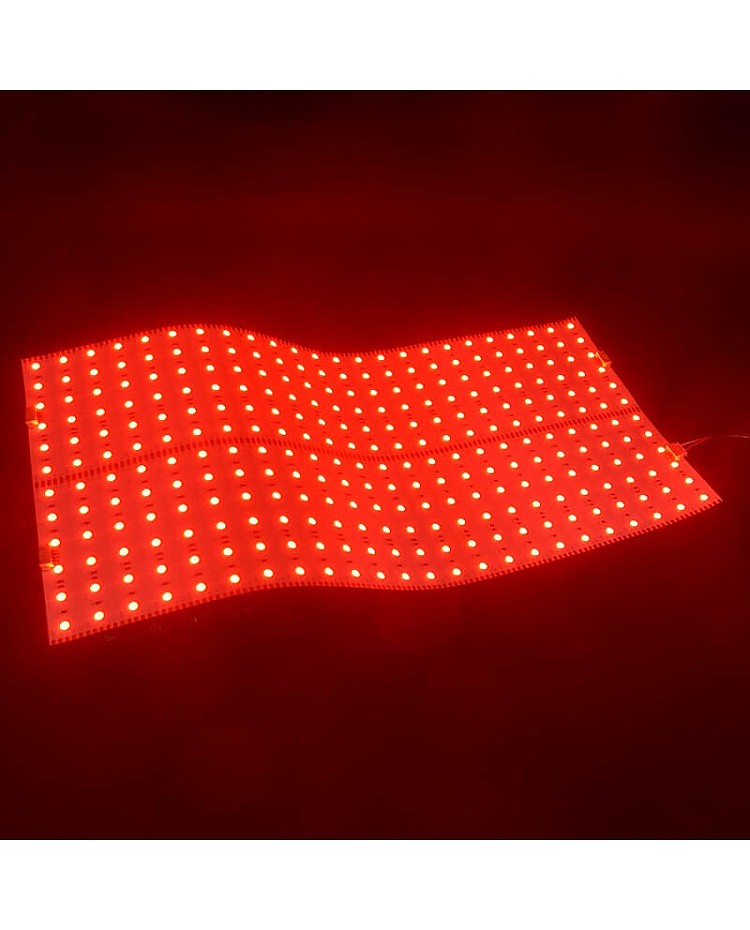

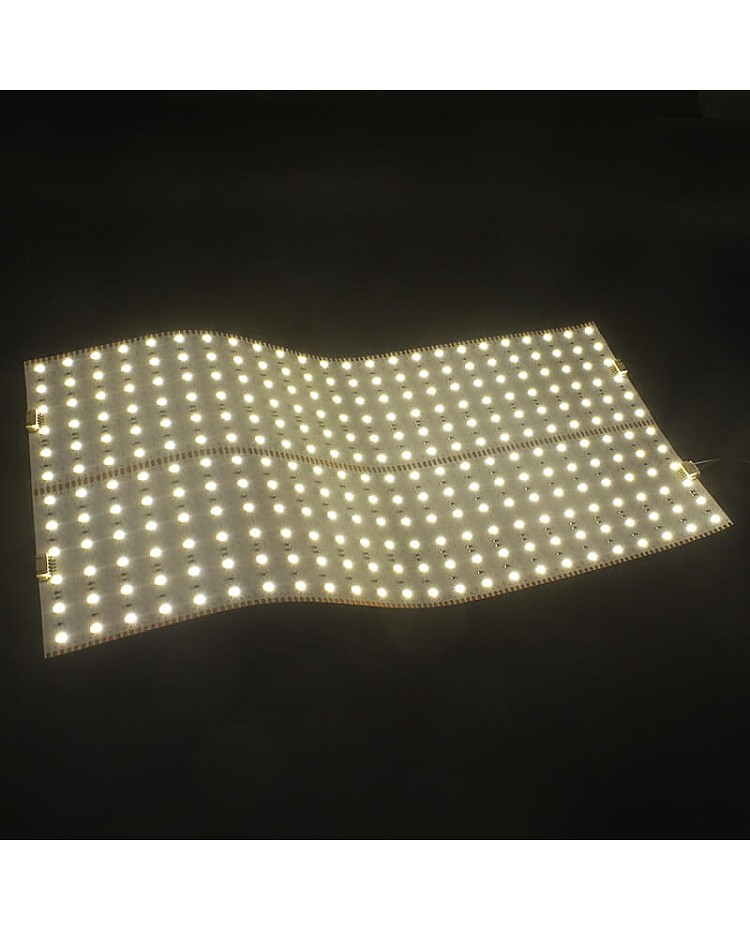

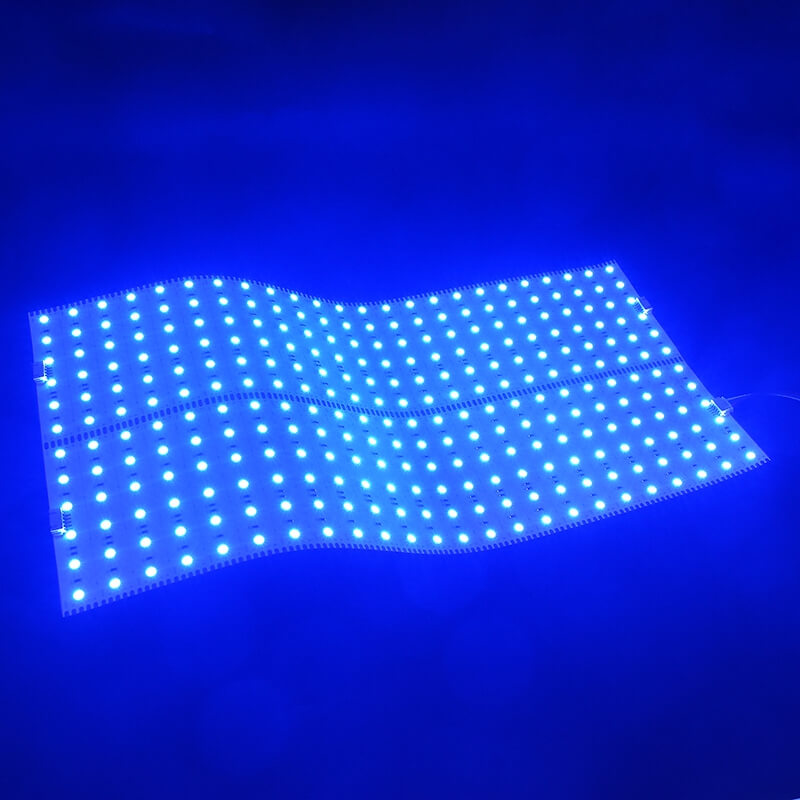

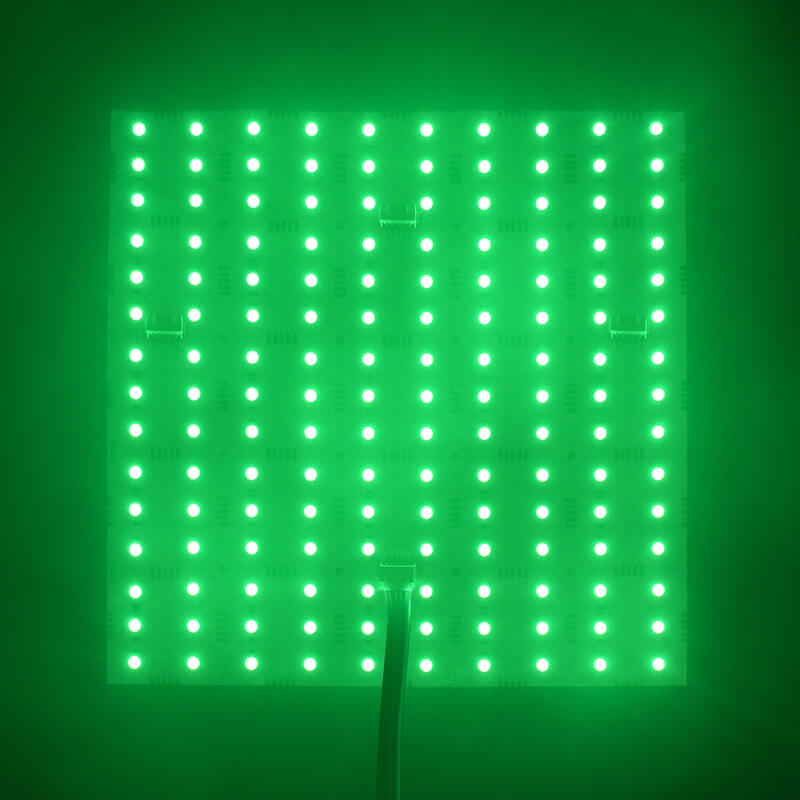

The 24V flexible RGBW LED light sheet panels are flexible, bendable, cuttable, and easy to connect. They are ideal for backlighting, creating bright, dotless, uniform lighting for countertops, stones, signs, and more.

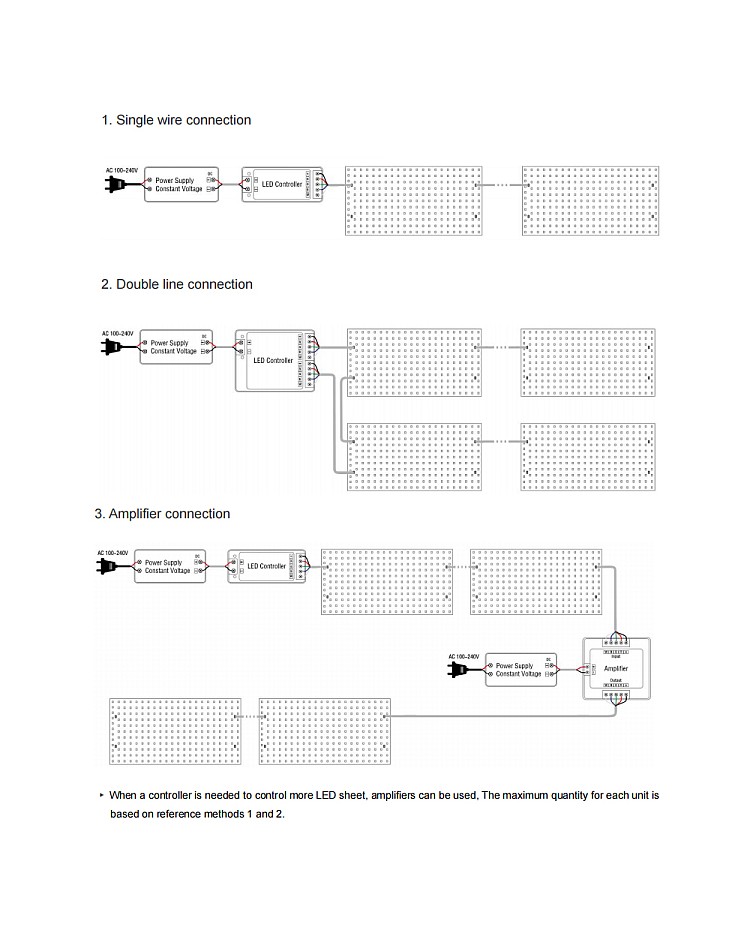

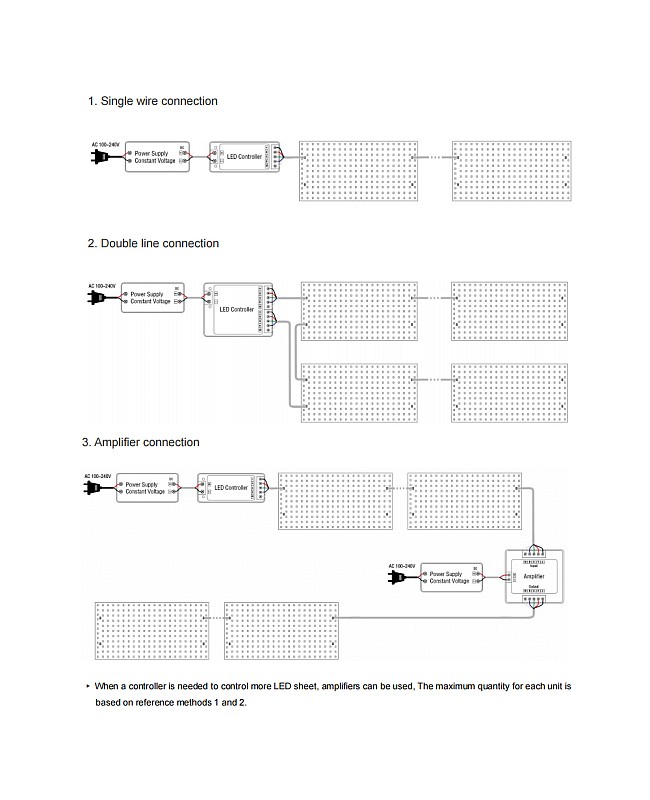

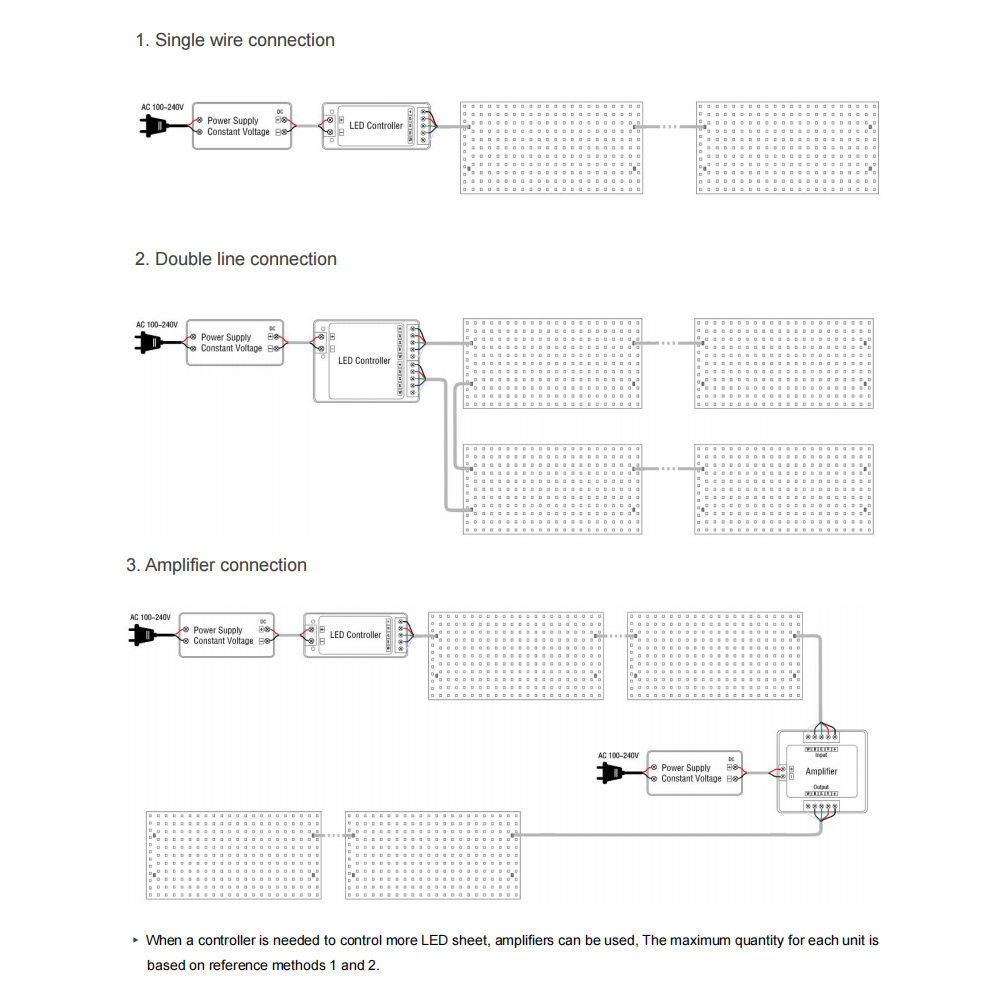

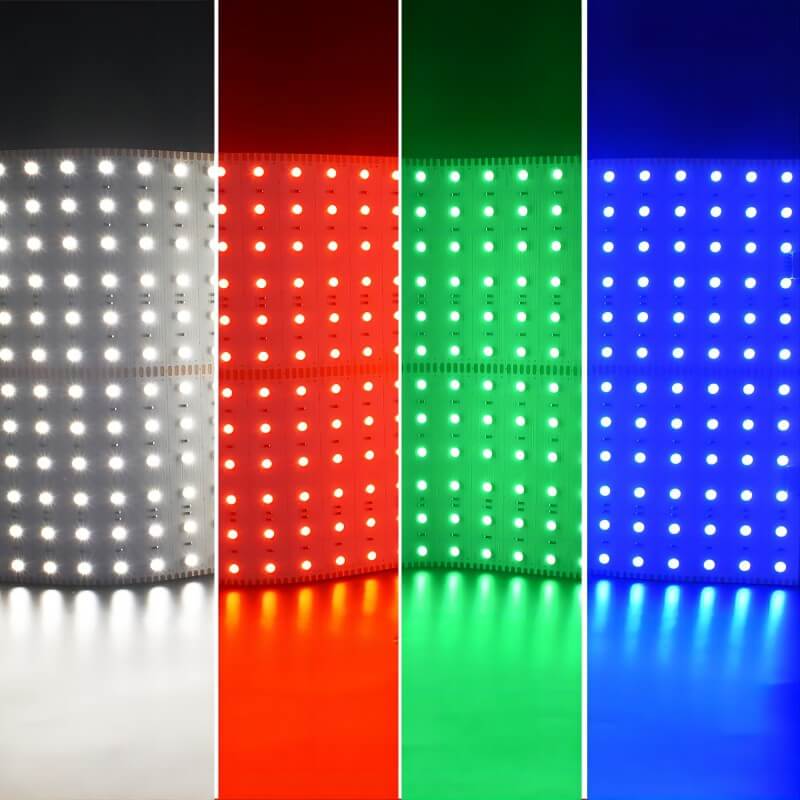

Quick connectors on the lighting sheets allow easy connection in large lighting projects. The RGBW LED light sheets use high-quality 4-in-1 5050 SMD LEDs as their light source, each incorporating white, blue, red, and green LED chips. Easy to connect to an RGBW LED controller to create various dynamic modes, static colors, and brightness levels for multiple scenes.

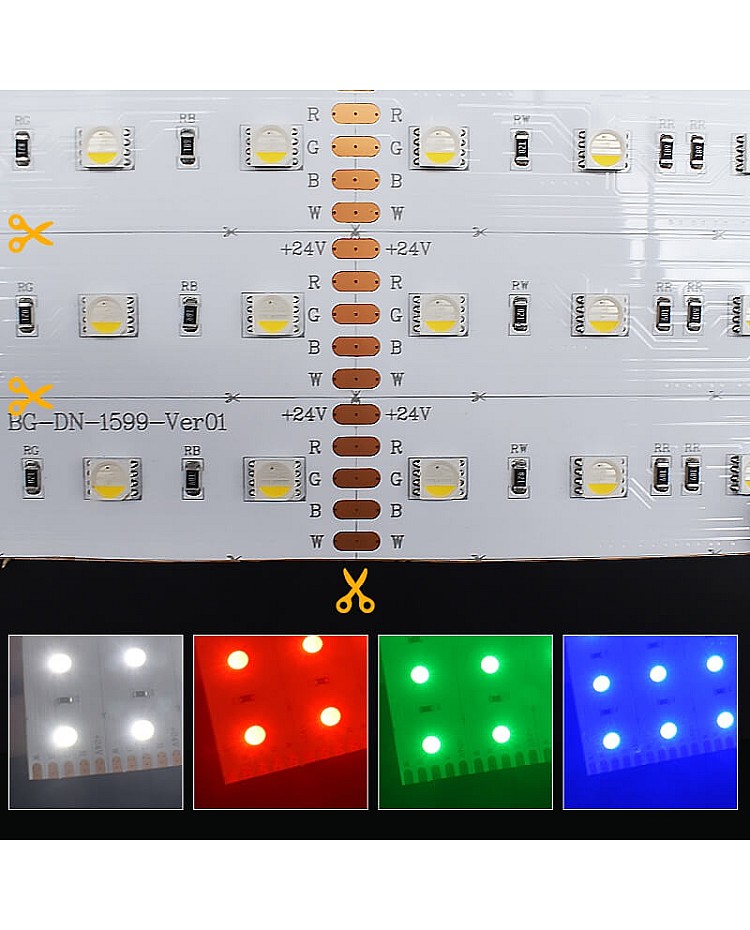

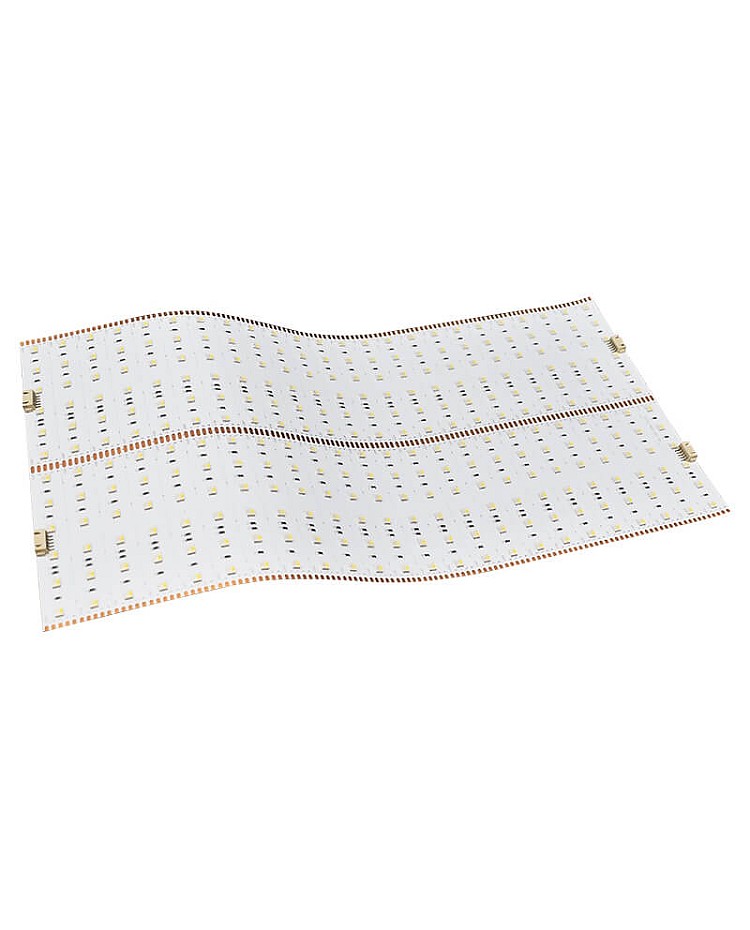

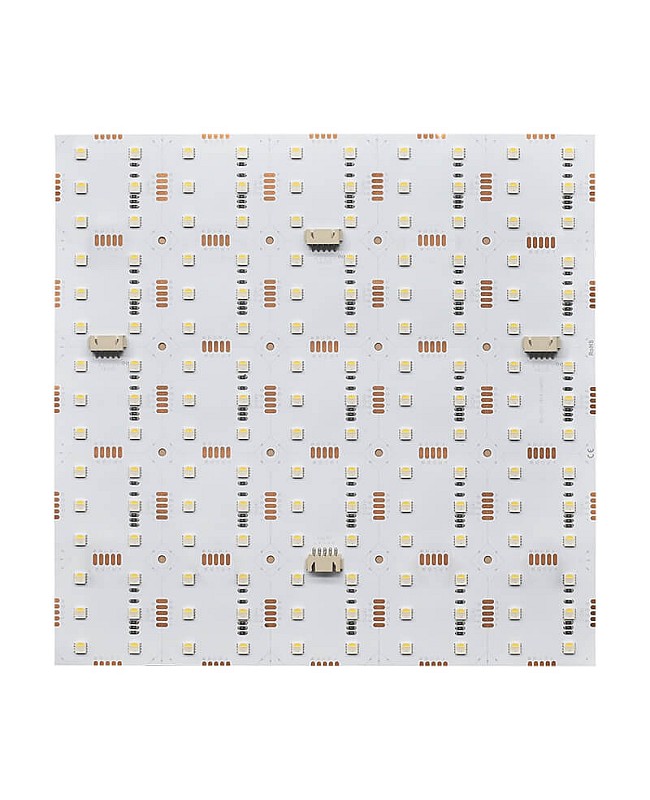

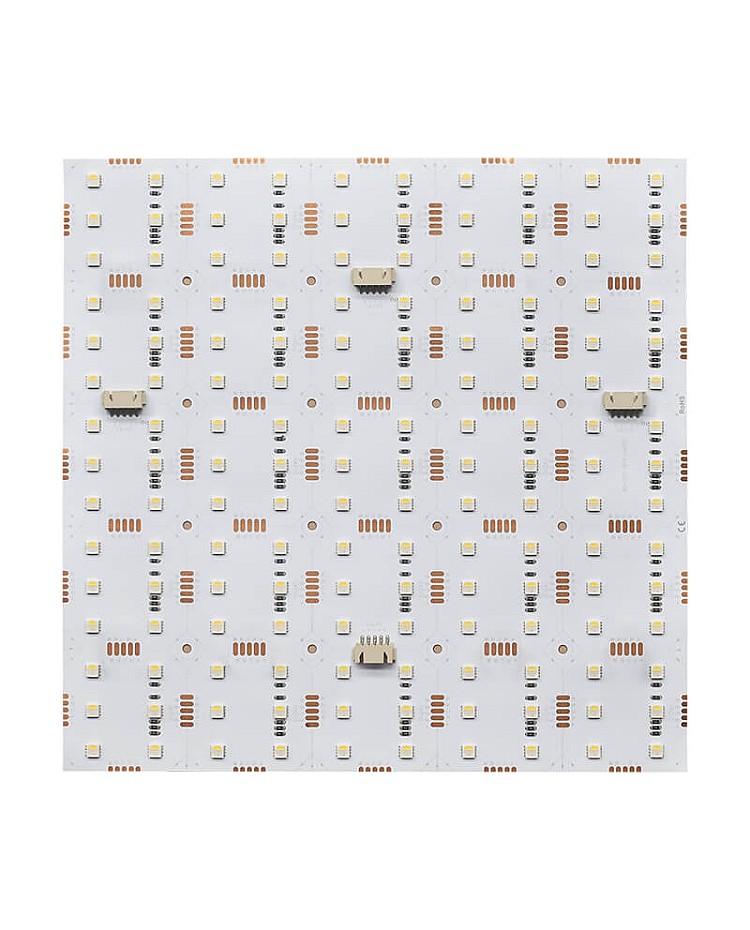

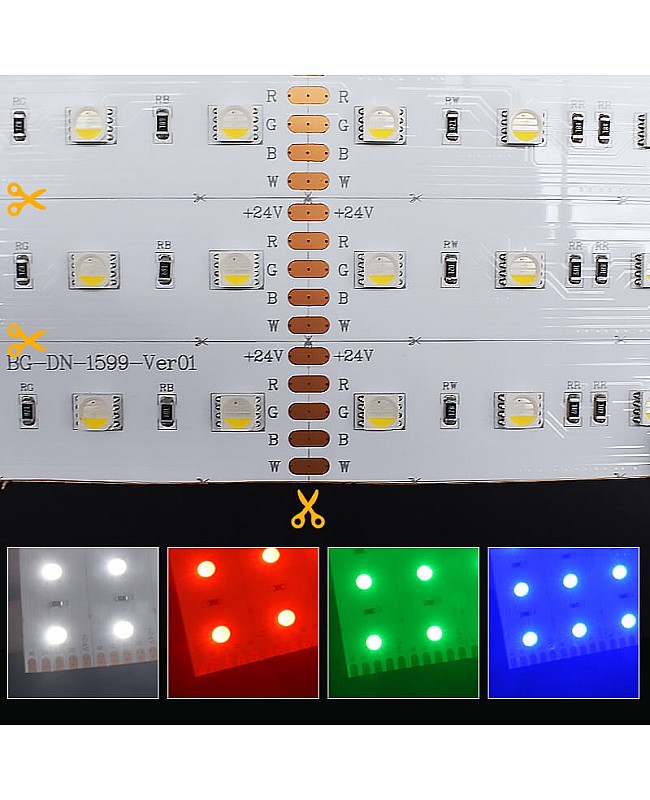

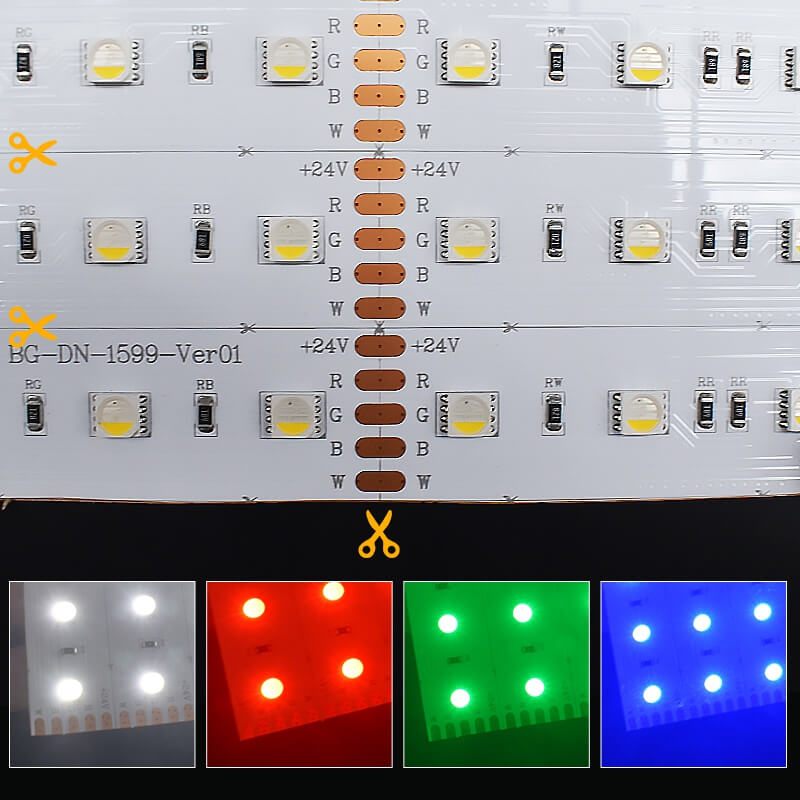

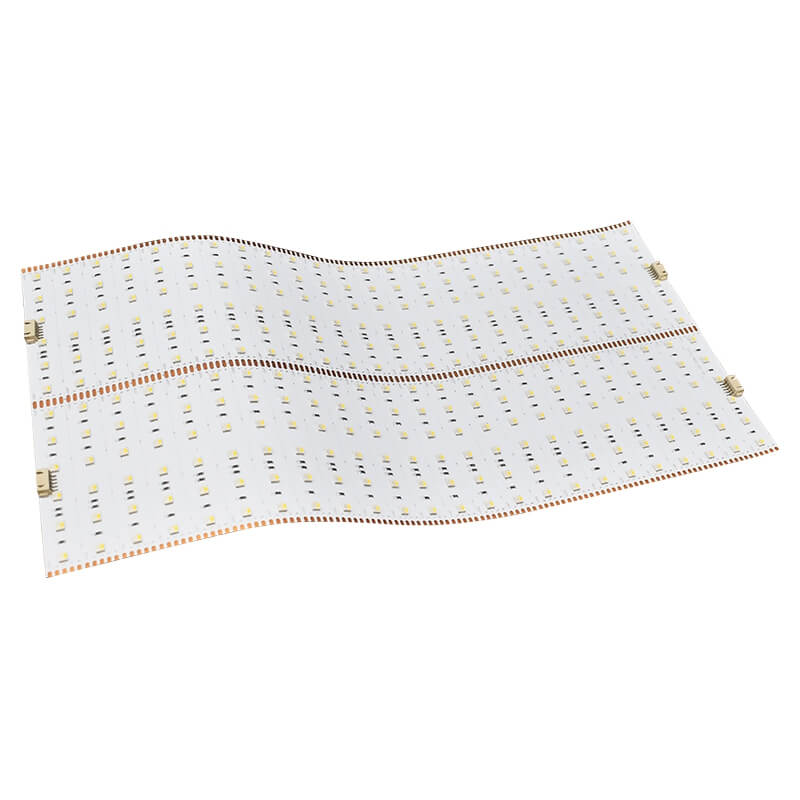

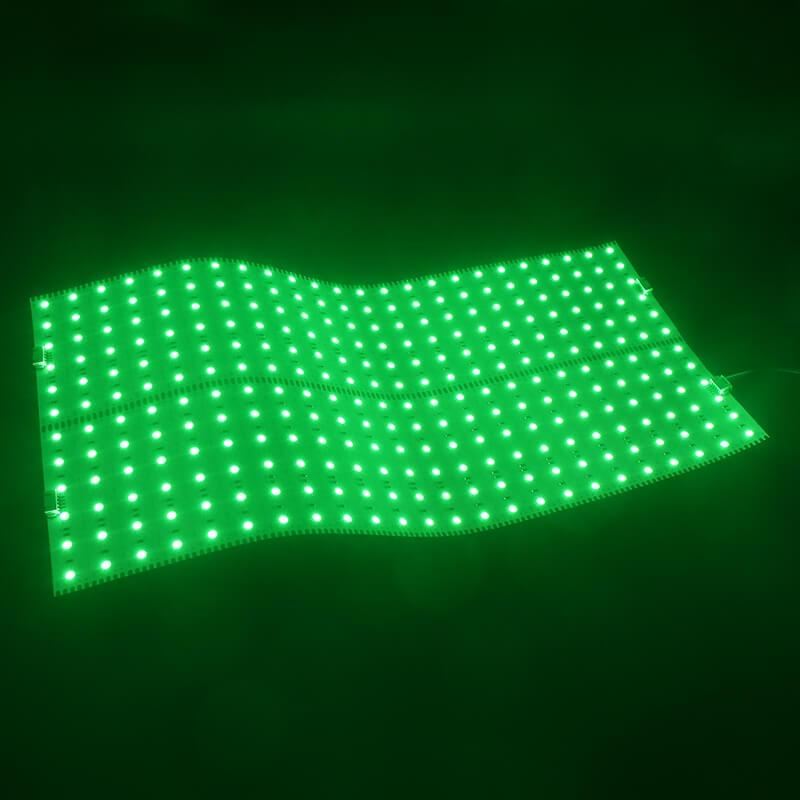

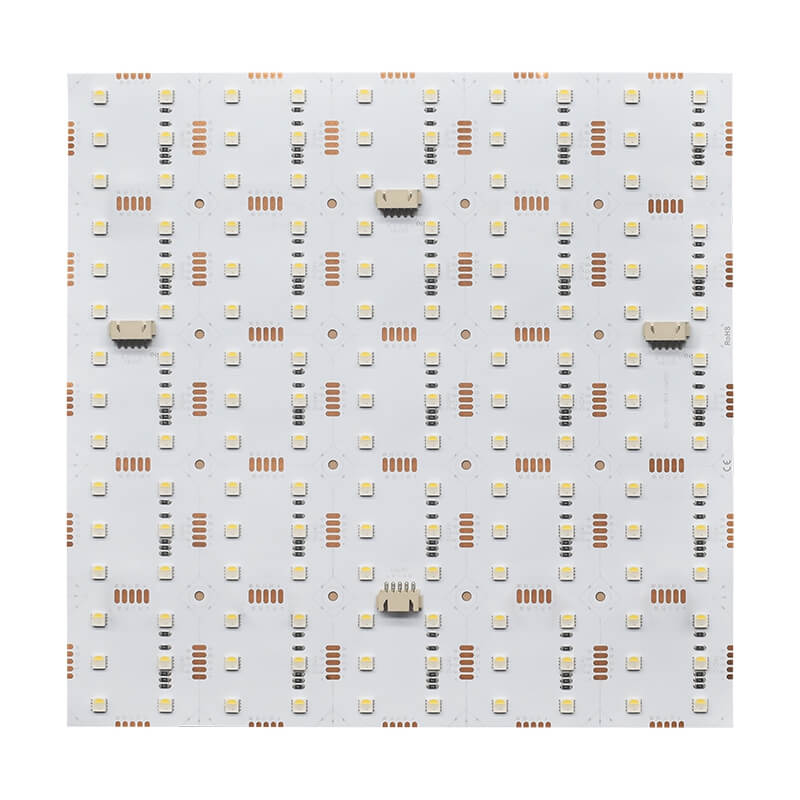

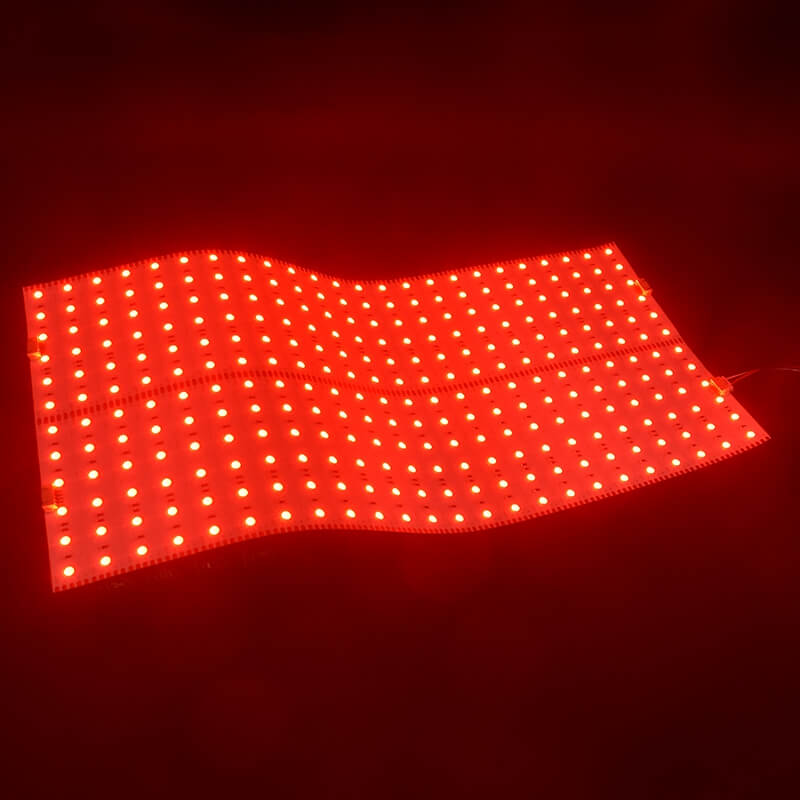

The LEDs are mounted on a dual-layer, flexible PCB. You can cut it to any size using the cutting points and bend it for various projects, including curved structures, walls, ceilings, squares, and DIY applications. The back has double-sided adhesive tape, making installation easy wherever you need it.
Link: RGBW LED light sheet data sheet
Specifications:
- Type: RGB+ white LED sheet lights
- Model: BG-316-5050-150 / BG-296-5050-288

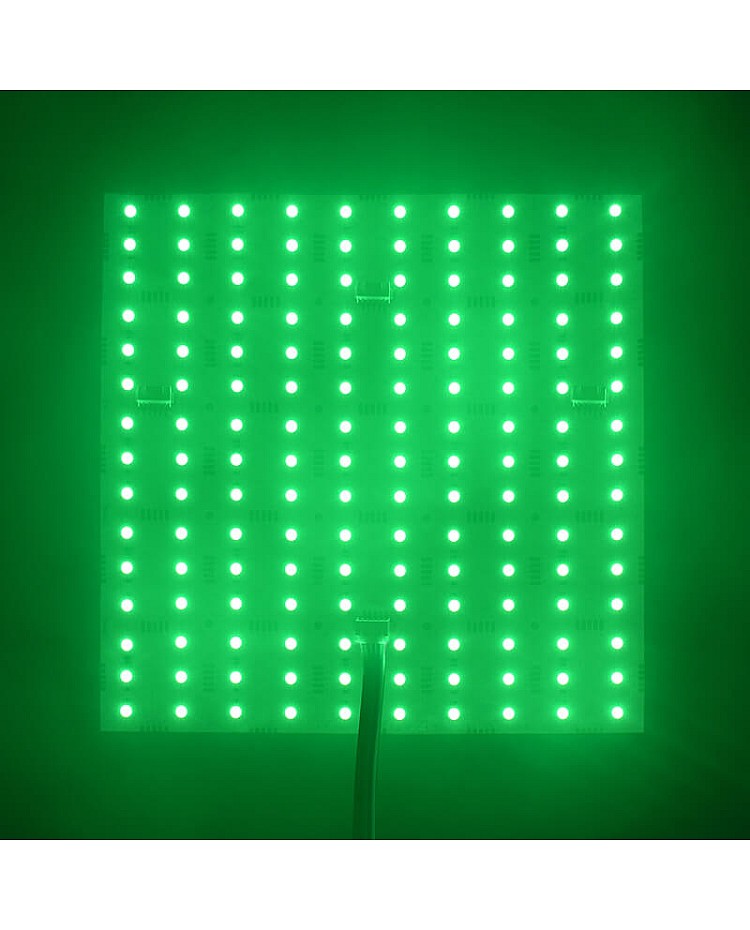

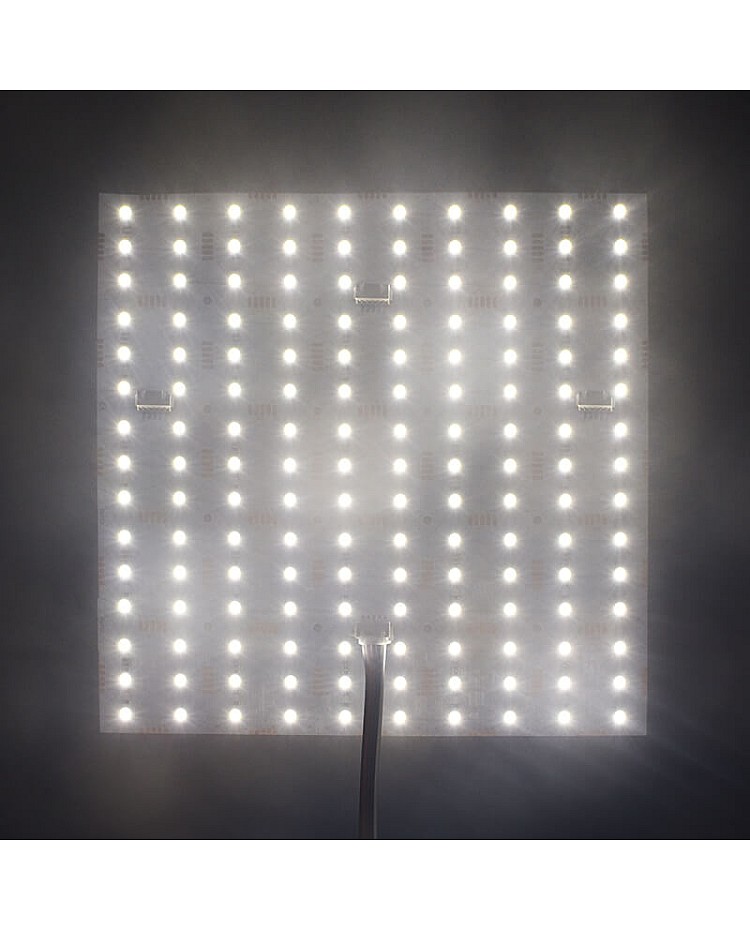

- Size( L x W ): 250 mm x 250 mm ( 9.84" x 9.84" )( BG-316-5050-150 ), 490 mm x 245 mm ( 19.29" x 9.65" )( BG-296-5050-288 )
- LED type: 5050 RGBW 4 In 1 SMD LEDs
- LED quantity: 150 LEDs/piece ( BG-316-5050-150 ) / 288 LEDs/piece ( BG-296-5050-288 )
- Working voltage: DC 24V
- Power: 24 W/piece ( BG-316-5050-150 ) / 48 W/piece ( BG-296-5050-288 )

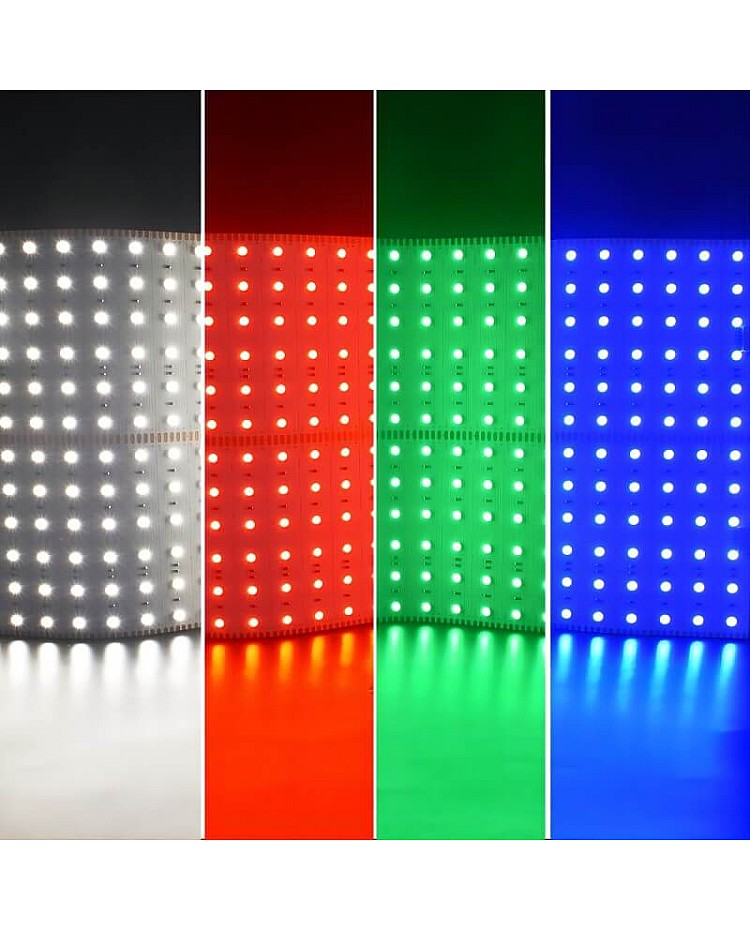

- Emitting color: RGB + warm white ( 3000K ), RGB + natural white ( 4000K ), RGB + cool white ( 6000K )
- Light Efficiency: 90 LM/W
- Minimum cutting length: 50 mm x 50 mm ( BG-316-5050-150 ) / 20.4 mm x 122.5 mm ( BG-296-5050-288 )
- Beam angle: 120°
- Dimmable: YES

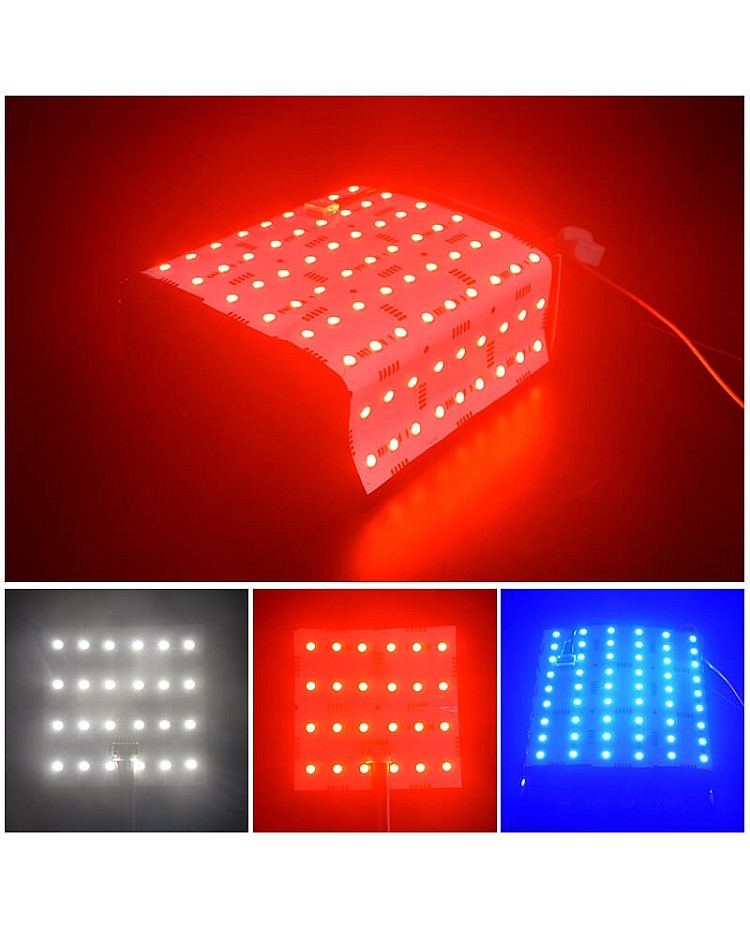

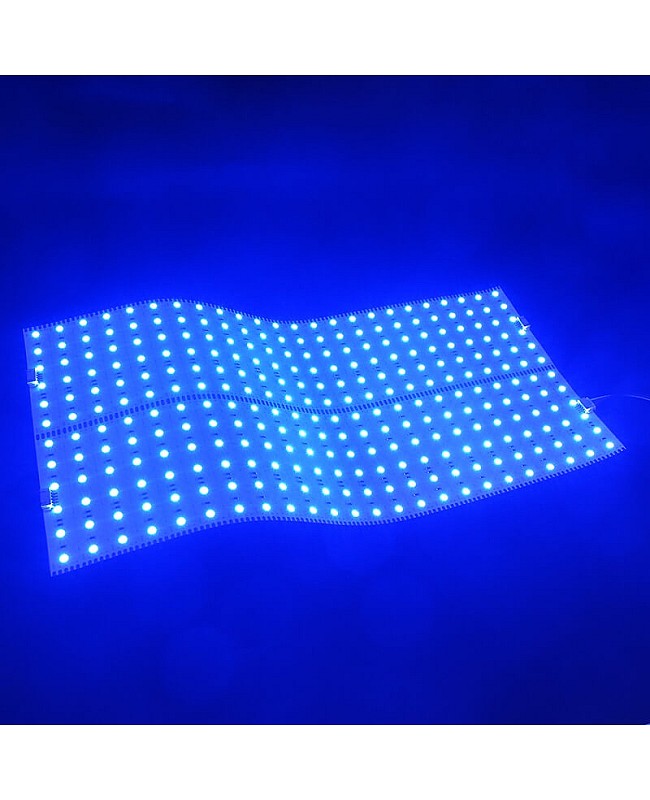

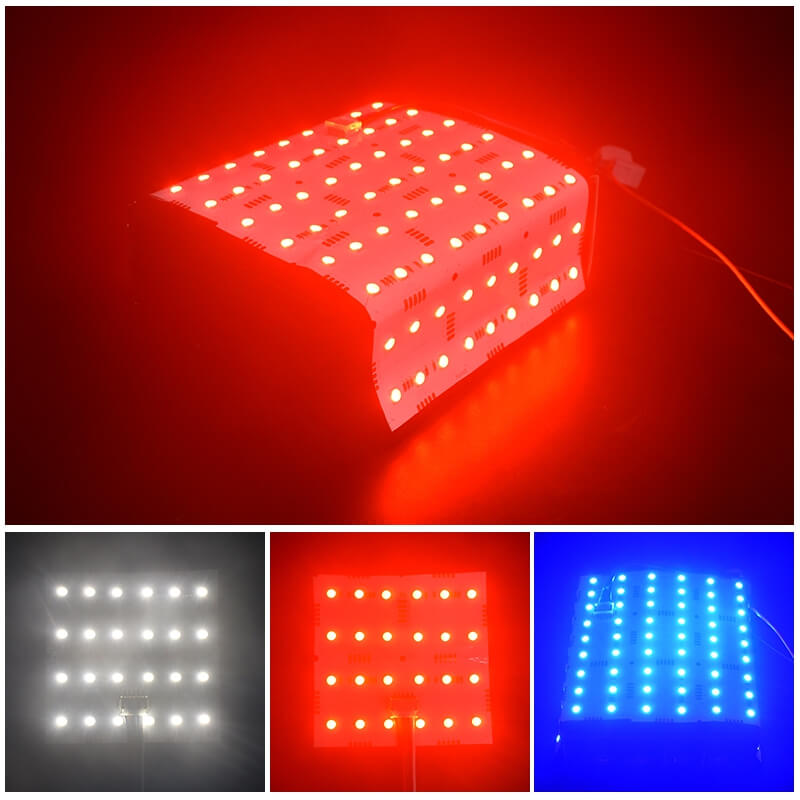

- Flexible and bendable
- Free cutting and splicing
- The back has double-sided adhesive tape
- Waterproof Level: IP20 non-waterproof, IP54 waterproof
- Storage temperature; - 20 ℃ + 65 ℃ ( -4 °F - 113 °F )
- Working temperature: - 20 ℃ + 45 ℃ ( -4 °F - 149 °F )
- UL listed (UL-US-26114234-0)
- Lifespan: >35,000 hours
- Warranty: 3 years

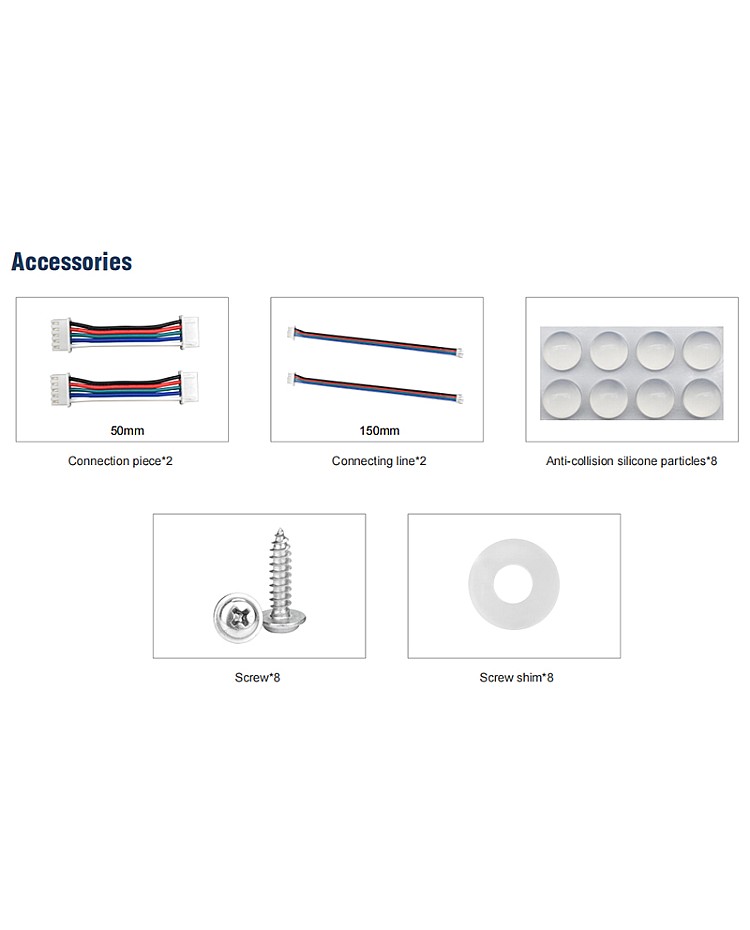

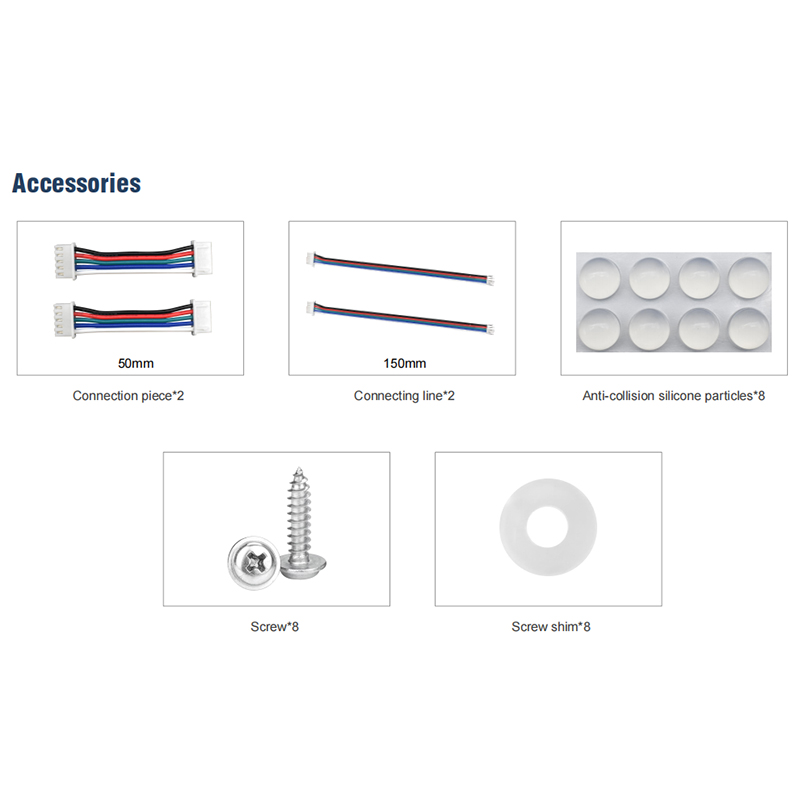

Includes:
1 x DC24V RGBW LED light sheet
2 x 5P connection cables
2 x 5P input cables
4 / 8 x Anti-collision silicone particles
