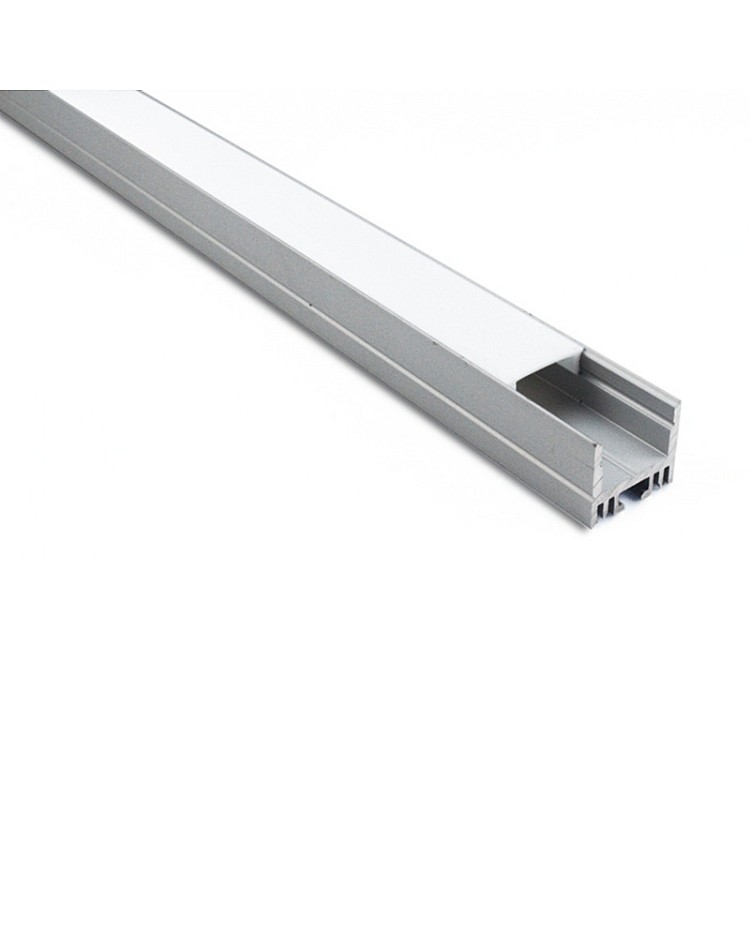

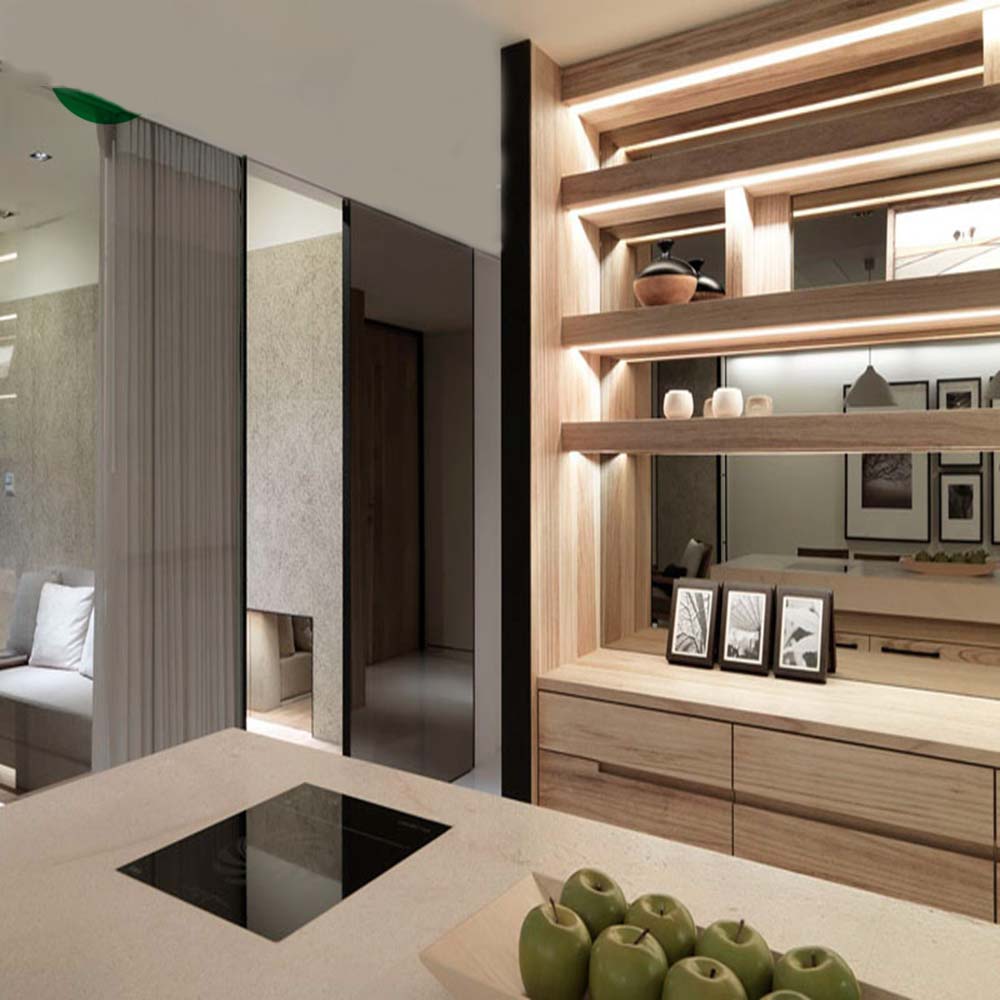

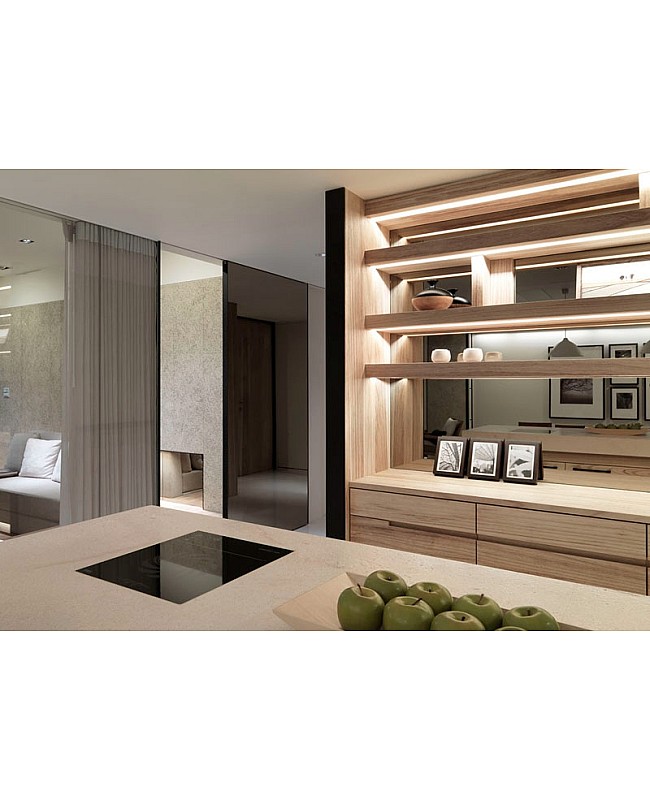

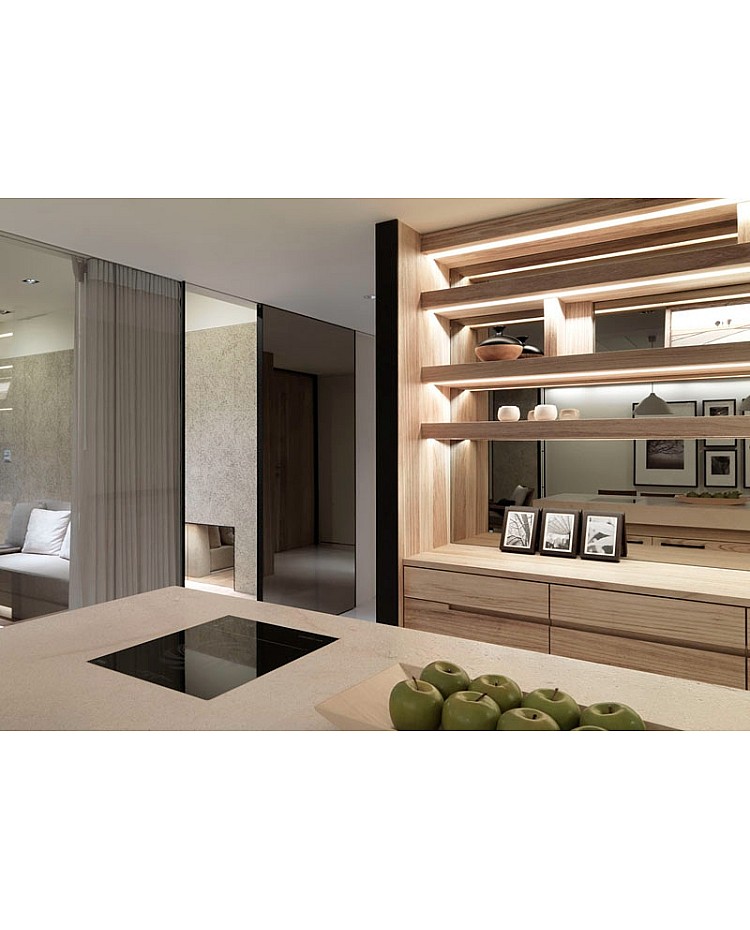

The 15mm high LED light channels and diffusers provide a great lighting solution for your kitchen and come with mounting clips that allow surface-mounted or recessed installation in kitchens, under cabinets, shelves, and more. They are made of 6063-T5 anodized aluminum material with an anodized finish, anti-oxidation resistance, and a longer lifespan than similar products. The standard lengths are 1M and 2M, allowing cutting any size that fits your needs. Six different diffusers are available, and you can choose the PMMA series and PC Series diffusers for the other lighting transmittance effects. The Covers are made of brand material with stable quality, anti-yellowing, and perfect light distribution. You can install the LED tape lights into the LED light channels easily, and the aluminum base can be used as a heat sink for better heat dissipation, extending the LED lights' lifespan. The light channel and diffuser come with end caps with or without wire holes; you can connect them to the LED light dimmer or LED light controller to adjust the brightness or color-changing style.
Specifications:
- Model: ALP043
- Material: Extruded aluminium
- Surface treatment: Anodized
- Color: Silver

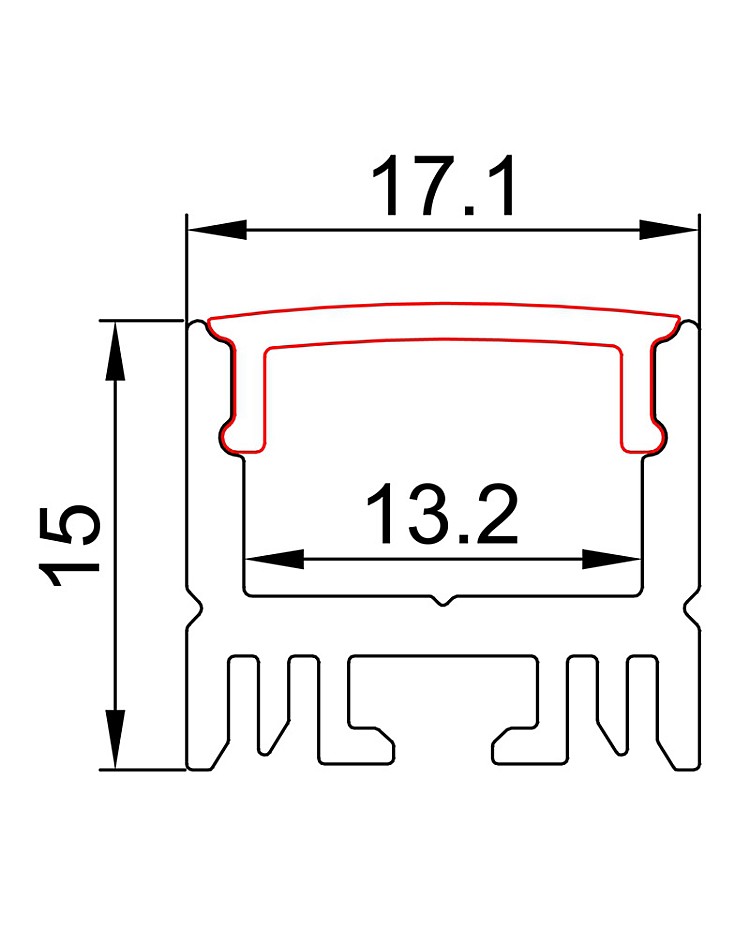

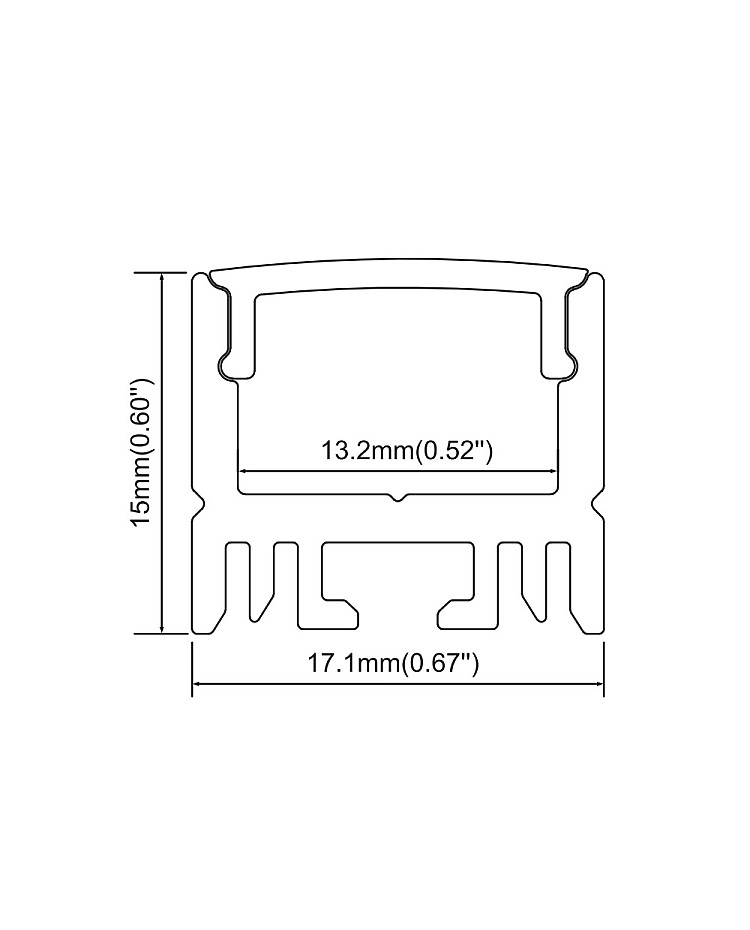

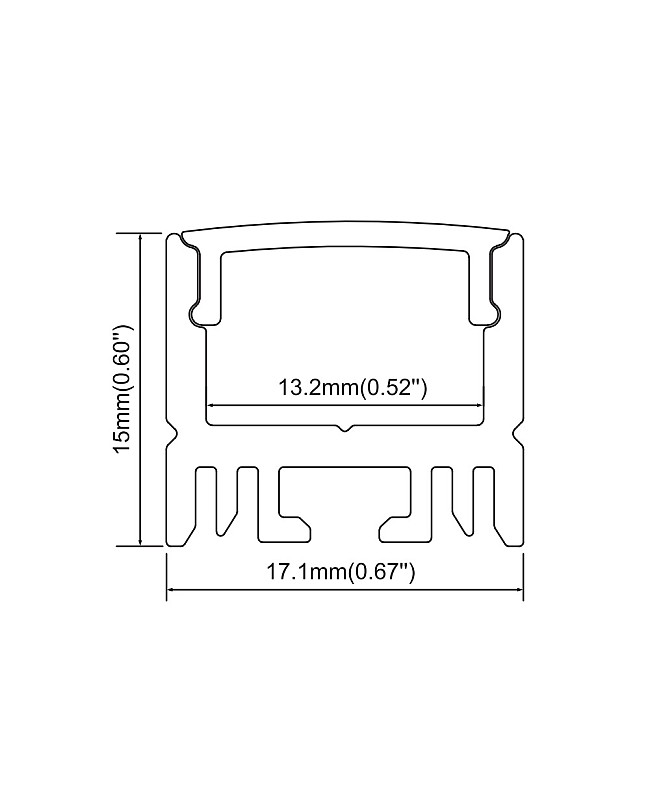

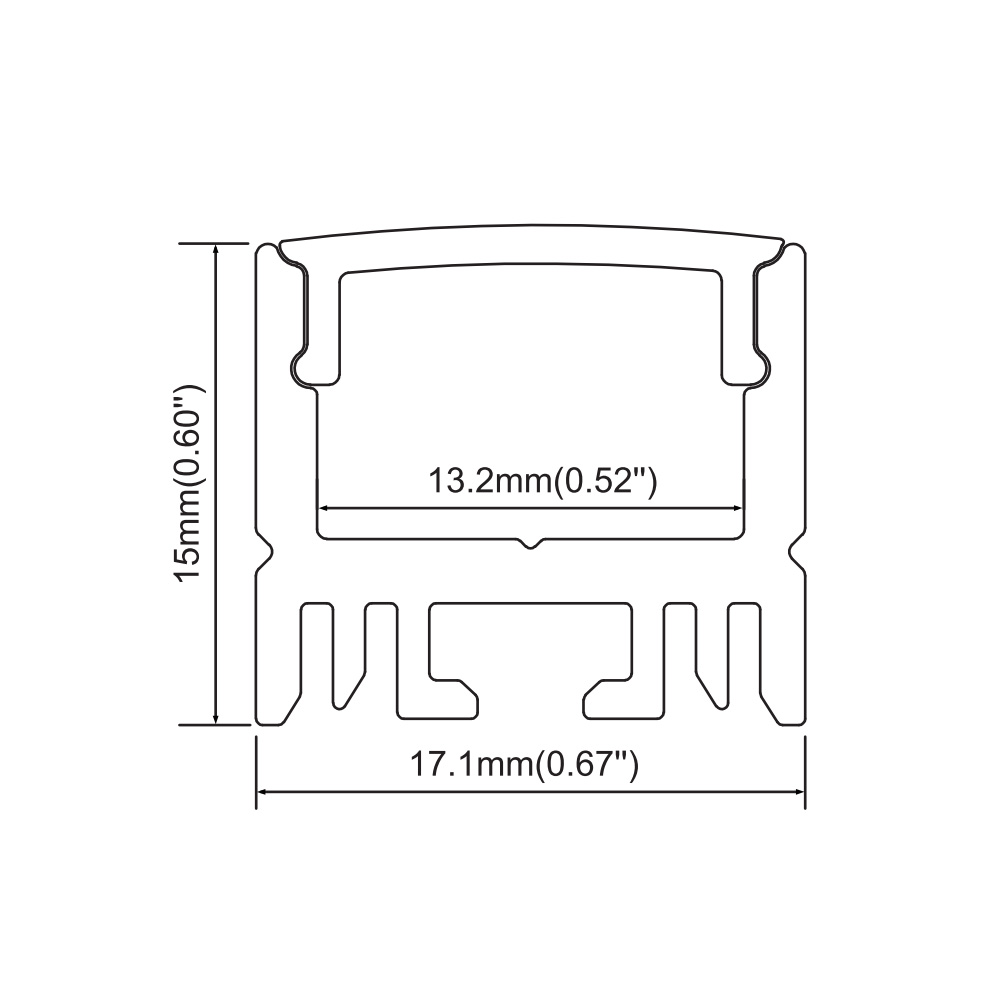

- Size ( W x H ) : 17.1 mm x 15 mm ( 0.67" x 0.6" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 13.2 mm ( 0.52" )
- Max LED strip width: 12 mm ( 0.47" )
- Max power: 20W/m

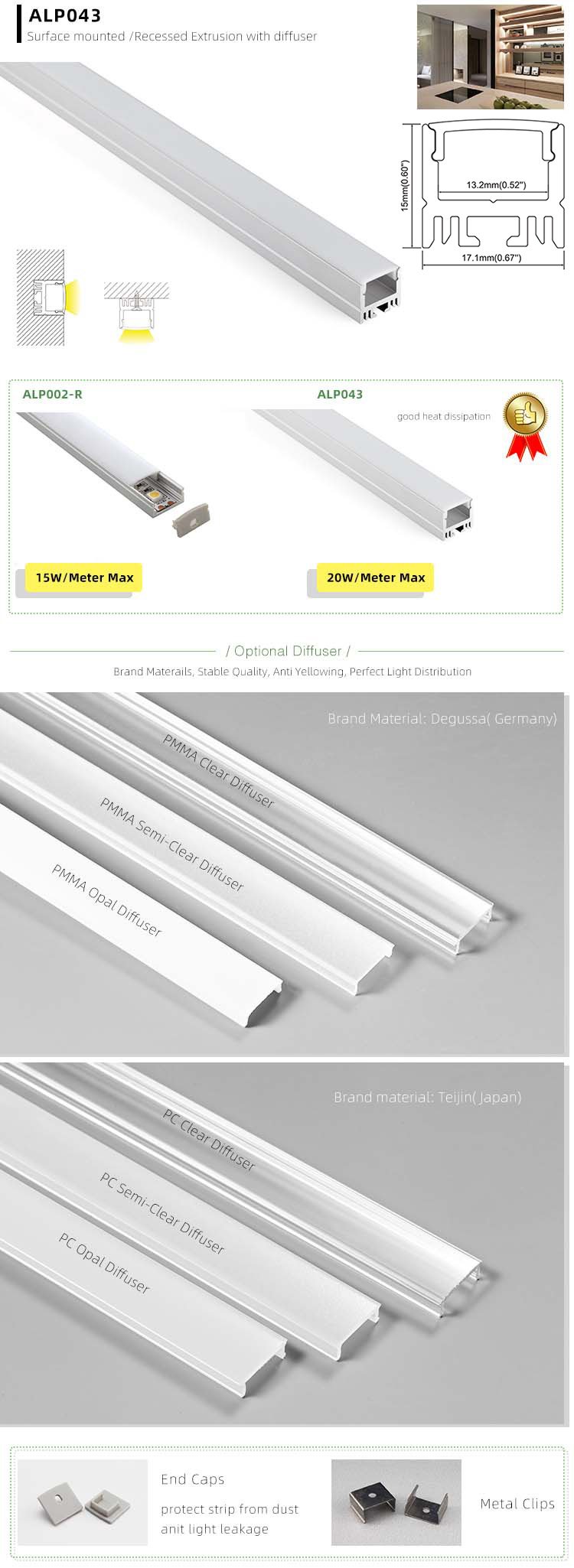

- Diffused covers: PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover, PC diffused cover
- Beam angle: 100°

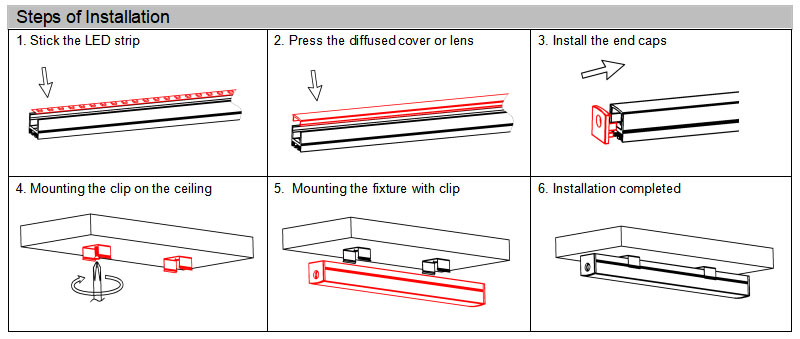

- Installation: Surface-mounted or recessed
- End caps with and without wire holes are included
- Certifications: CE, ROHS
- Warranty: 5 years
Includes:

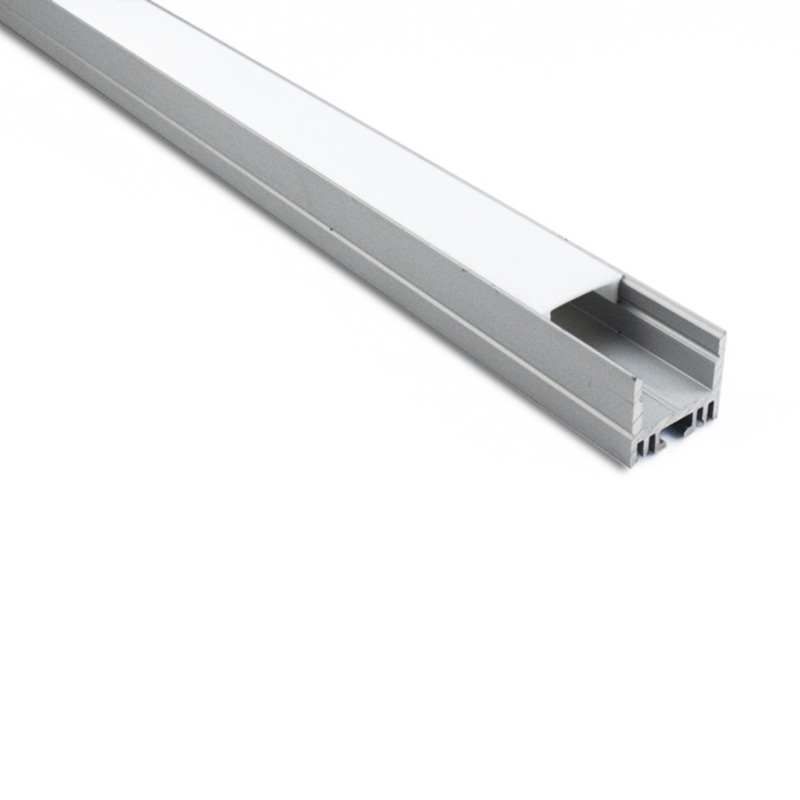

1 * LED light channel with diffuser

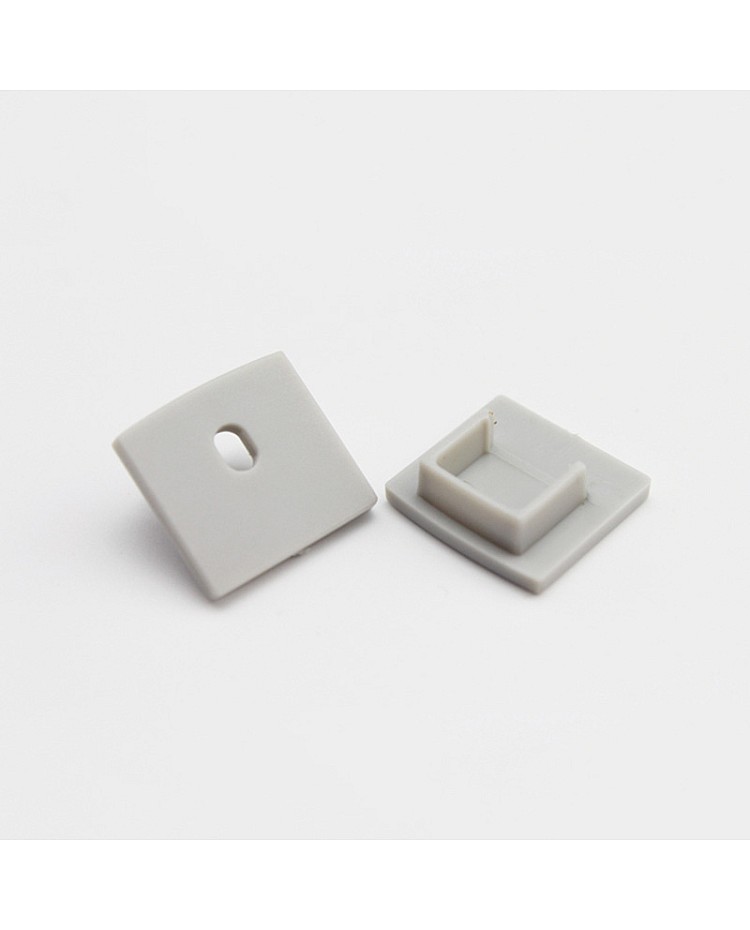

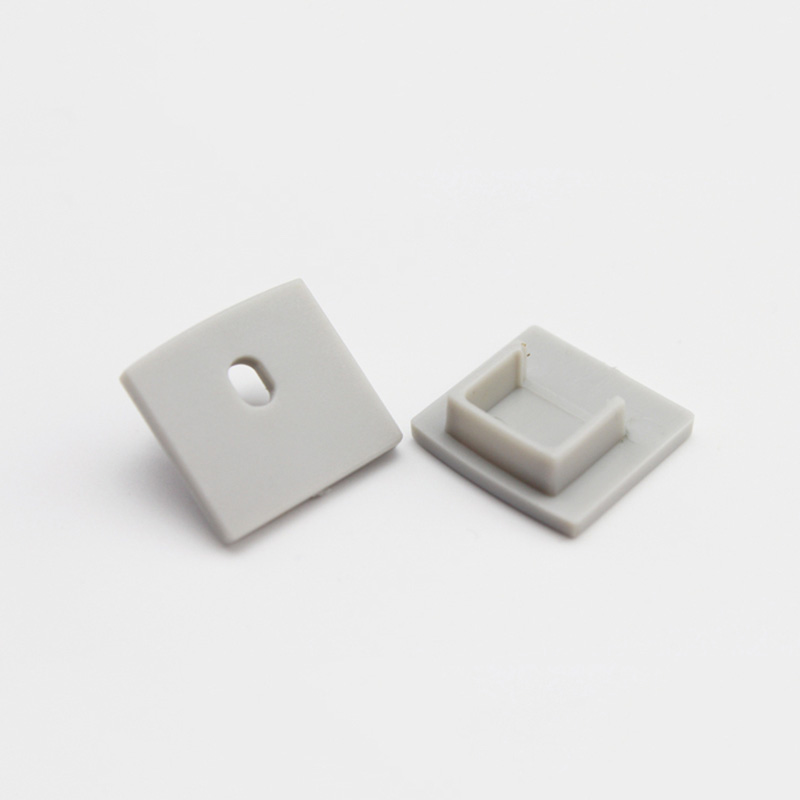

End caps(With and without wire hole)

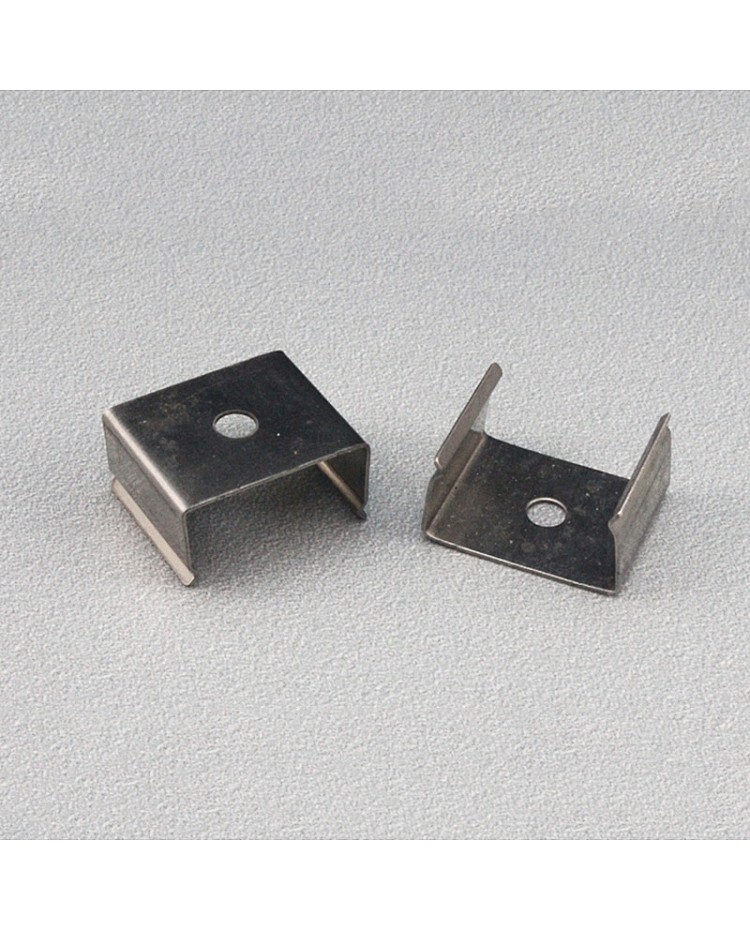

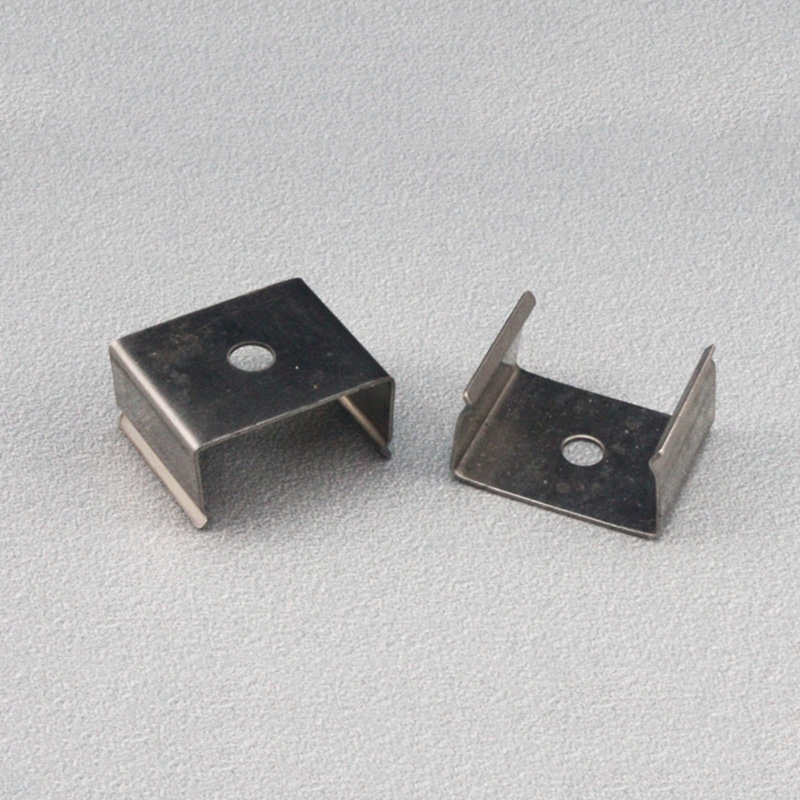

Metal clips
