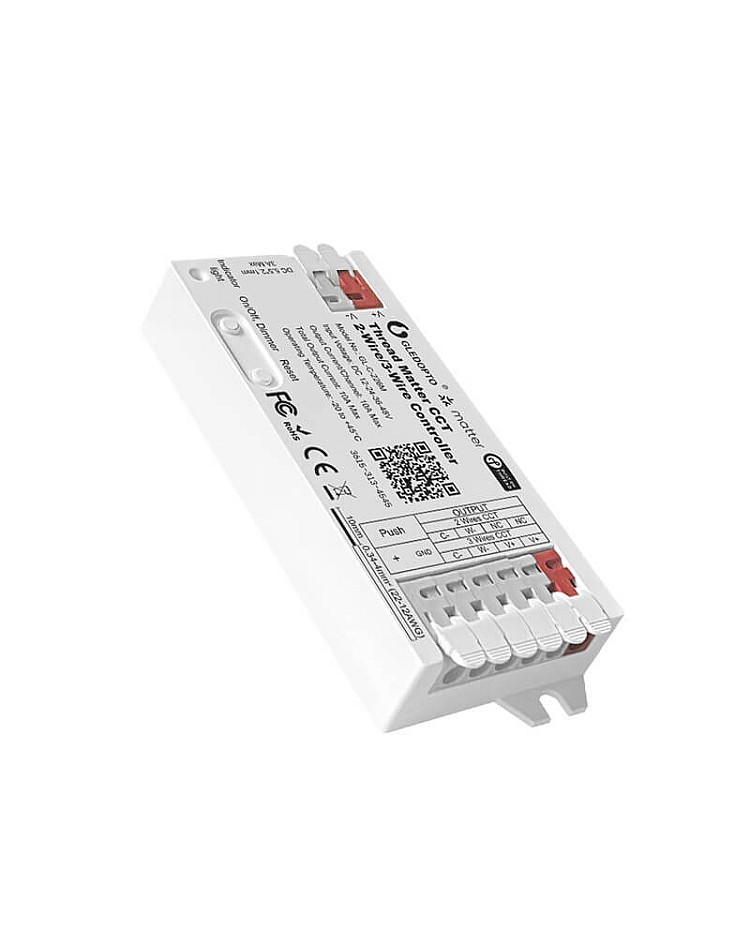

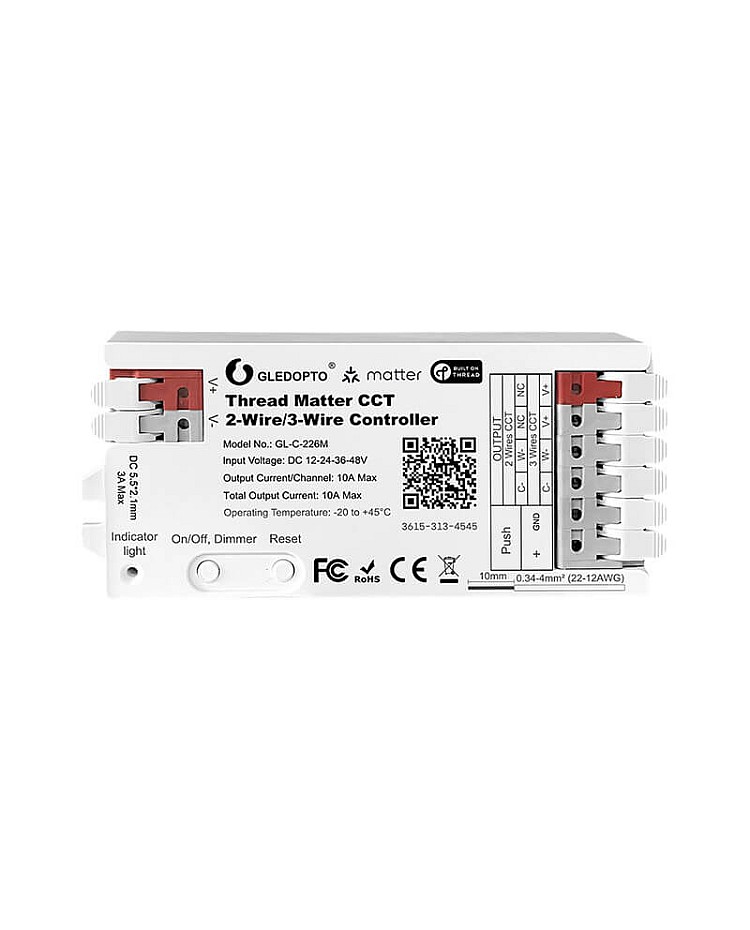

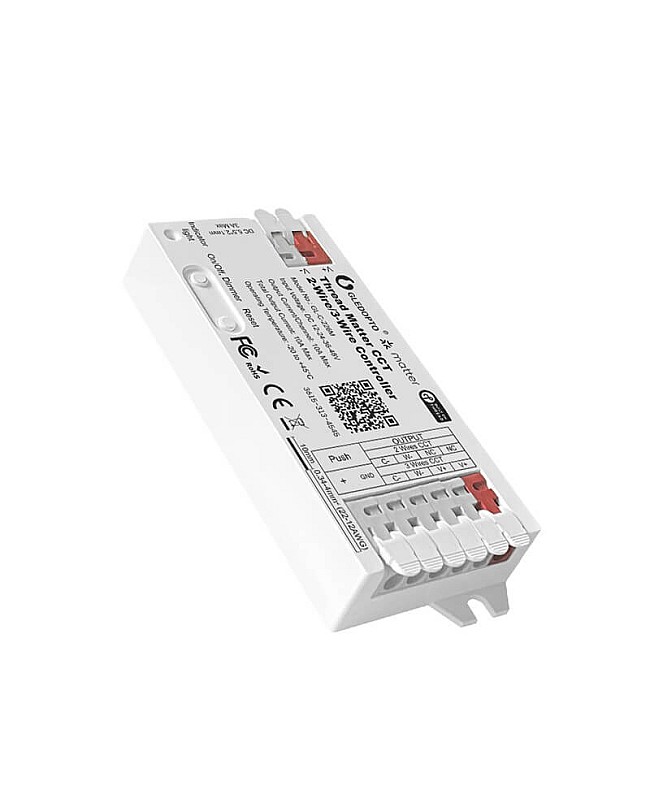

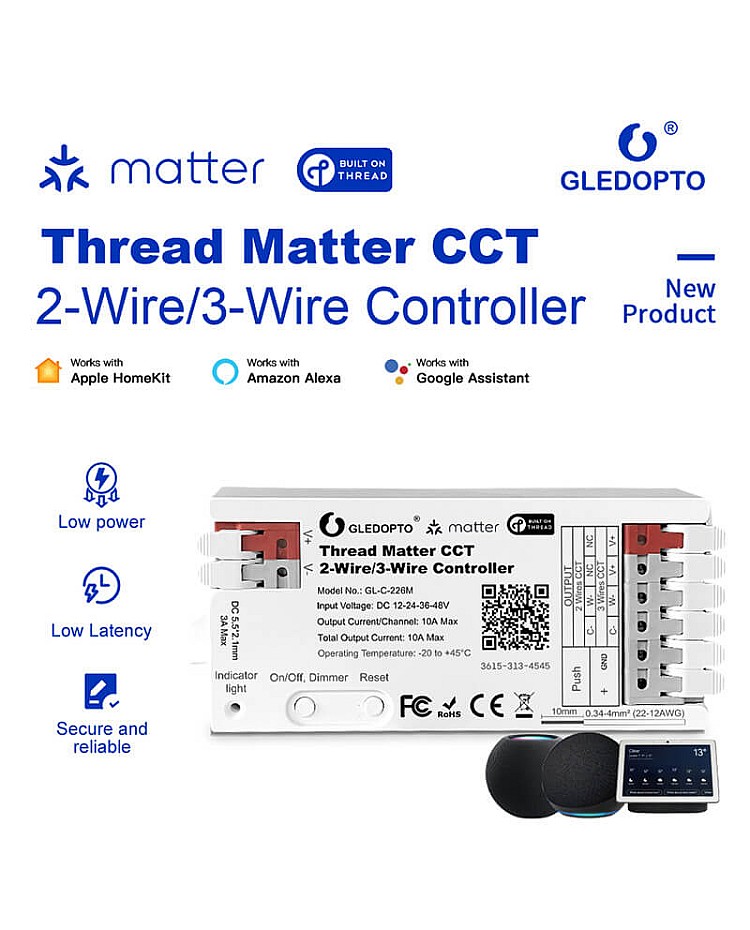

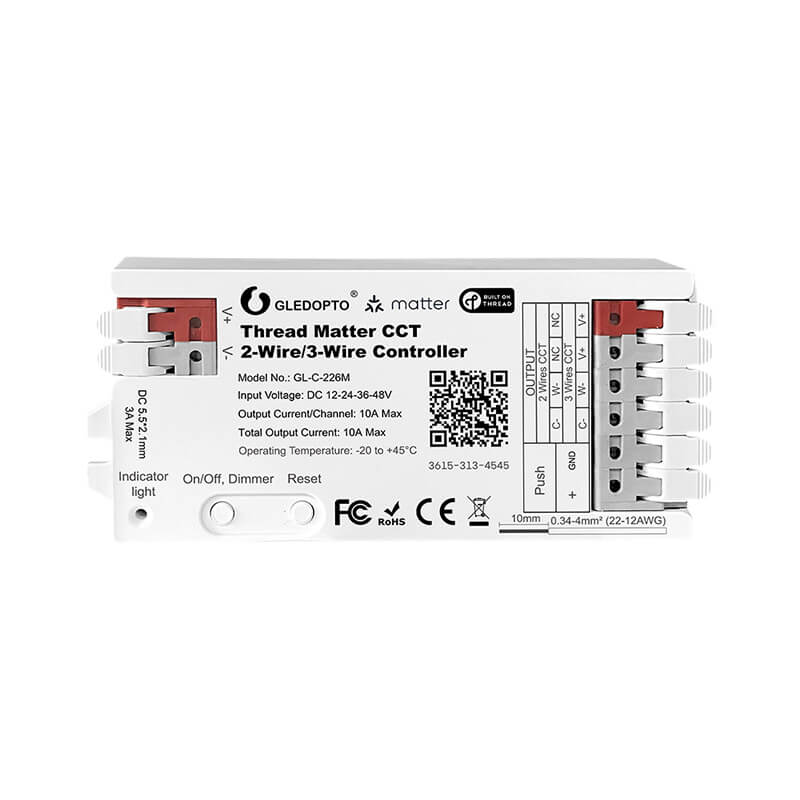

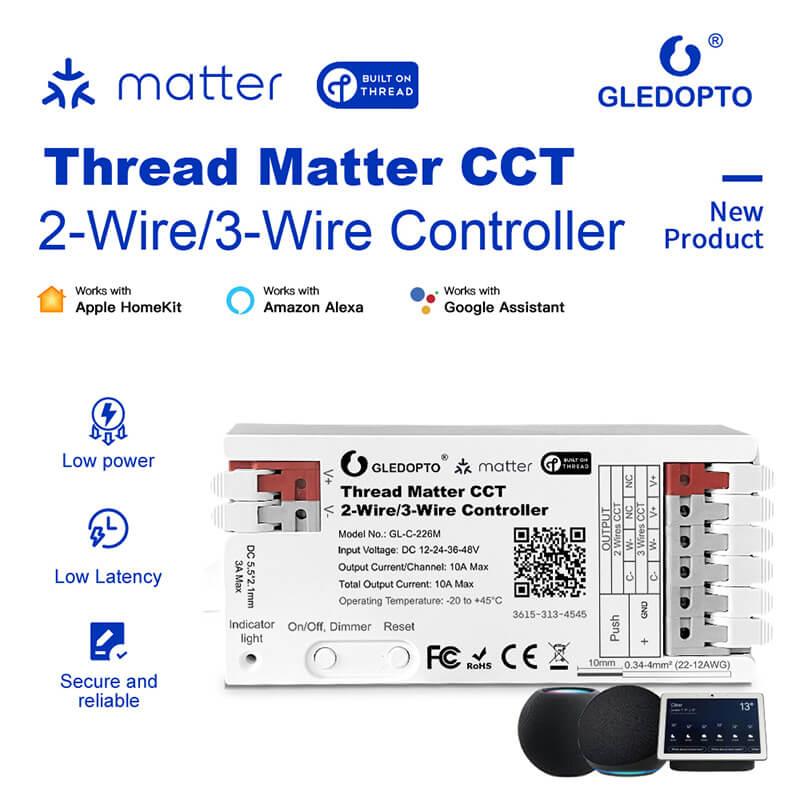

The GL-C-226M is the newest Gledopto Matter Thread smart controller, built specifically for tunable white strip lights. Designed for 2-wire and 3-wire CCT LED strips, it will bring your smart home connectivity and make it easy to dim and change the color temperature to your preference.

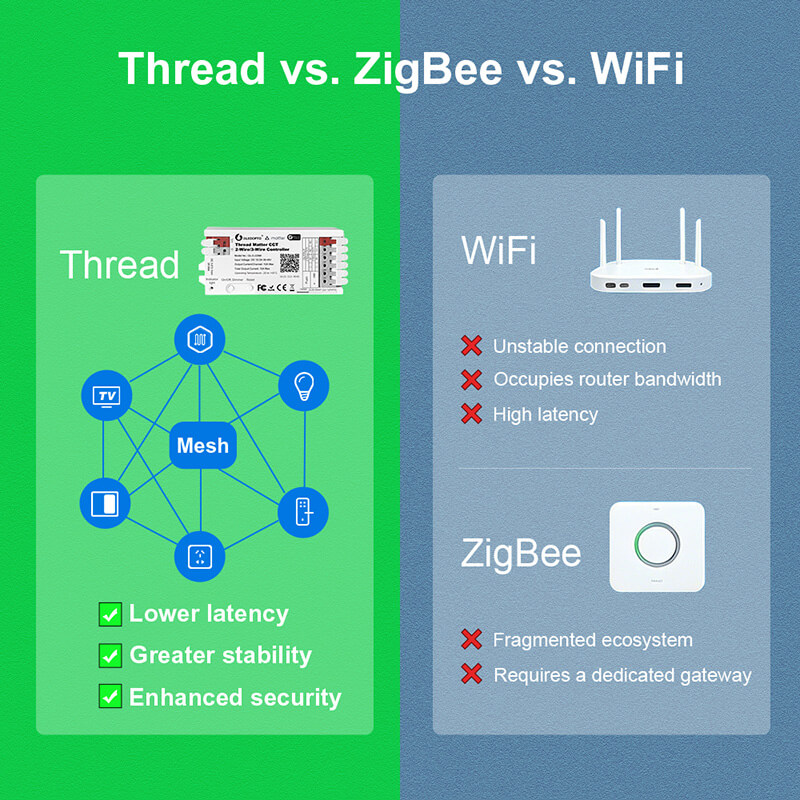

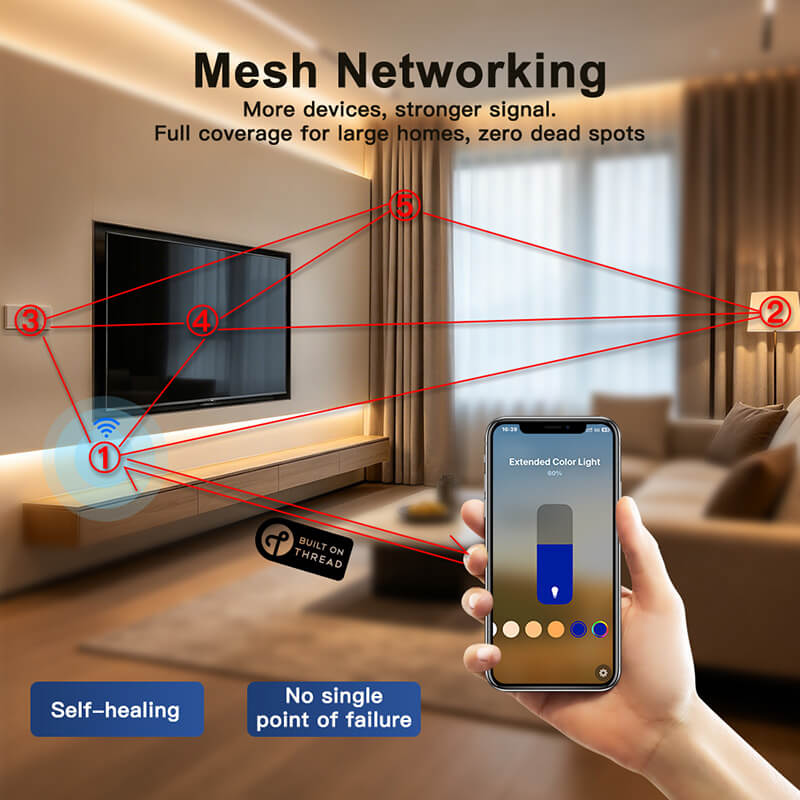

It is compatible with major smart home ecosystems that support Matter, enabling voice and app-based control. Can work with Apple Home, Google Home, Amazon Alexa, and other Matter/Thread-enable hubs. The Matter over Thread mesh networking offers a stronger signal and supports adding more devices. Full coverage for large homes with lower latency, greater stability, and enhanced security.

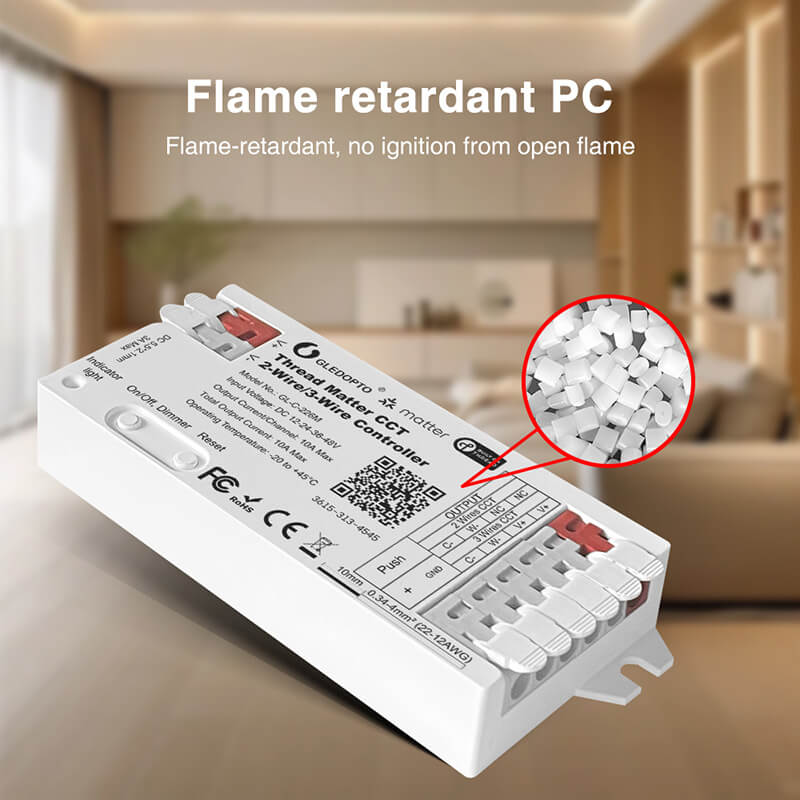

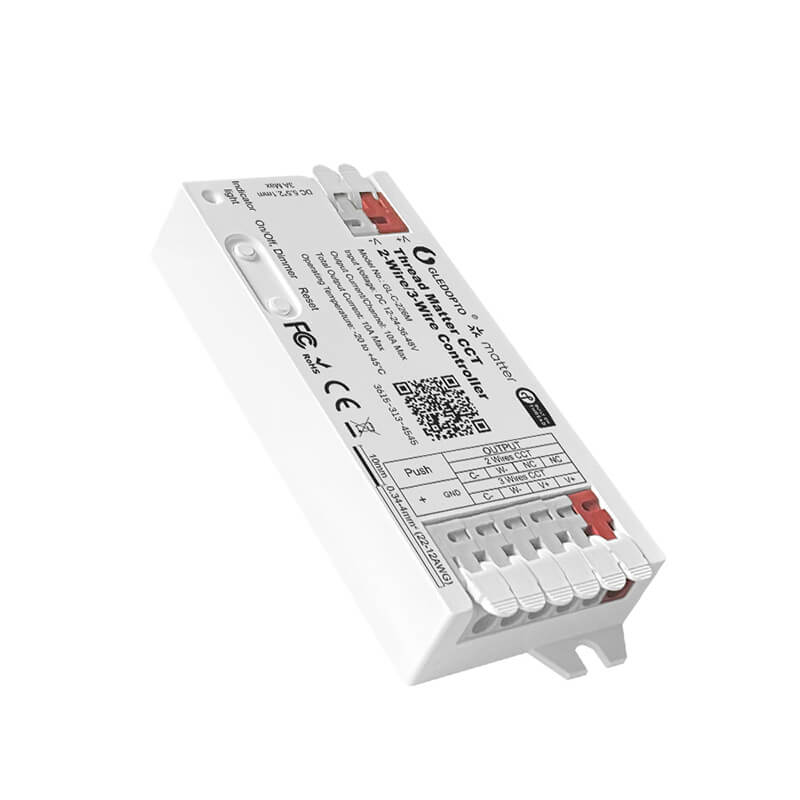

The Gledopto strip light controller is made of flame-retardant PC and features DC and screw terminals for straightforward, solder-free setup. The compact structure allows it to be concealed behind ceilings, coves, or cabinetry. There are two physical buttons for easy operation. The Matter controller supports a push switch; you can connect to one for quick dimming. The 750Hz PWM frequency for the smoother dimming and stable lighting.
Specifications:
- Material: Flame-retardant PC
- Color: White
- Dimensions (L x W x H): 108 x 45 x 18mm ( 4.25" x 1.77" x 0.71" )
- Input voltage: 12-48V DC
- Output current: 10A

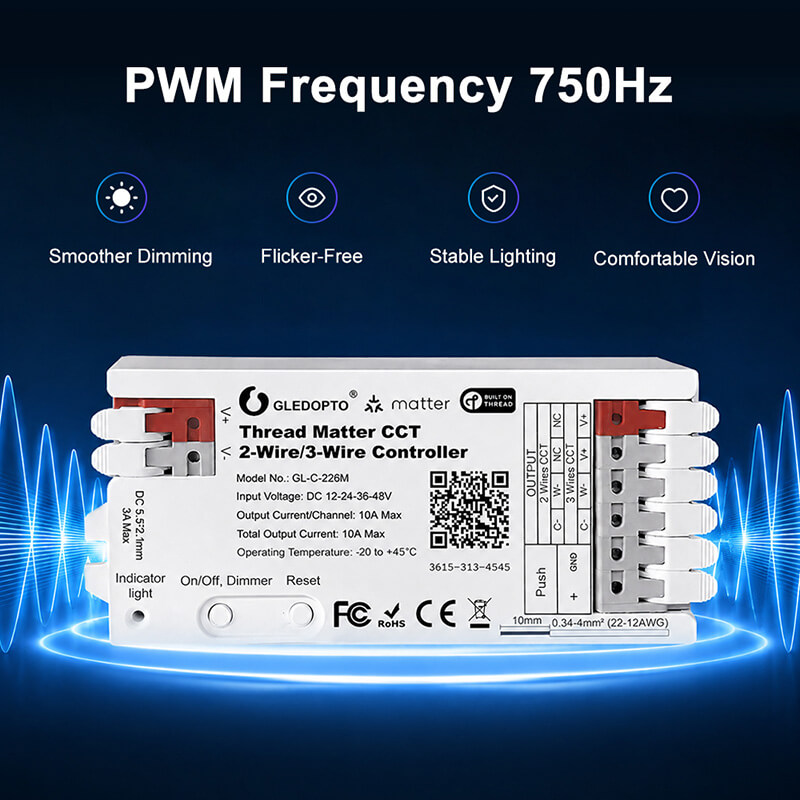

- PWM frequency: 750Hz
- Smoother dimming, flicker-free
- Dimming range: 1%-100%
- Color temperature adjustable
- Works with Apple HomeKit, Amazon Alexa, Google Assistant
- Compatible with multiple smart home platforms: HomeKit, HomePod, Apple TV, iPhone 15 and Above ( IOS ) / Amazon Alexa, Echo Dot 4th generation ( Alexa ) / Google Home app, Google Nest Hub Max ( Google )
- Control the tunable white LED strips via voice control

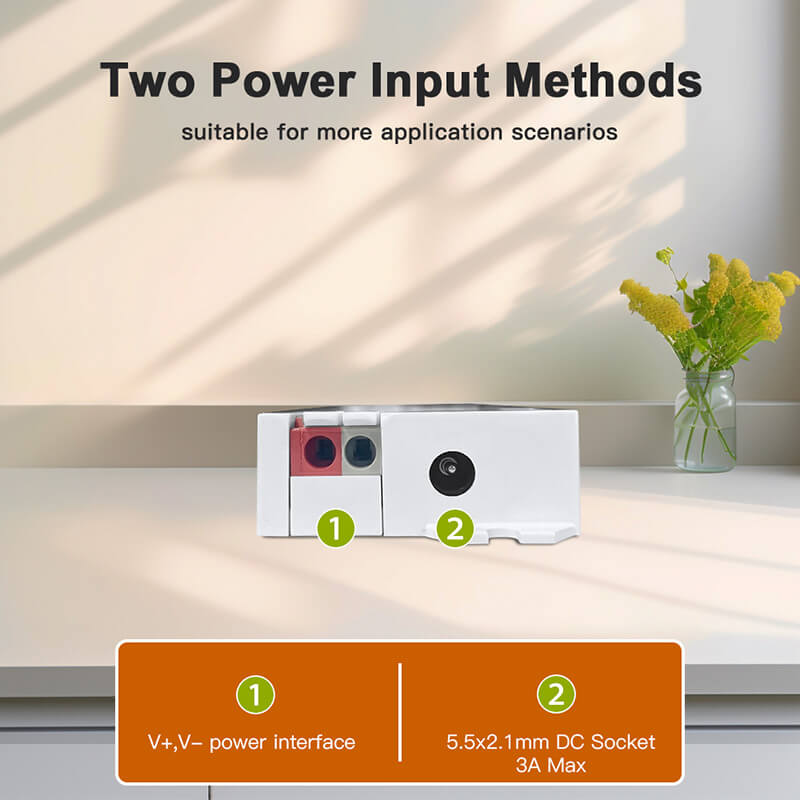

- Two-port input methods: DC socket ( 3A Max ) and V+/V- power interface

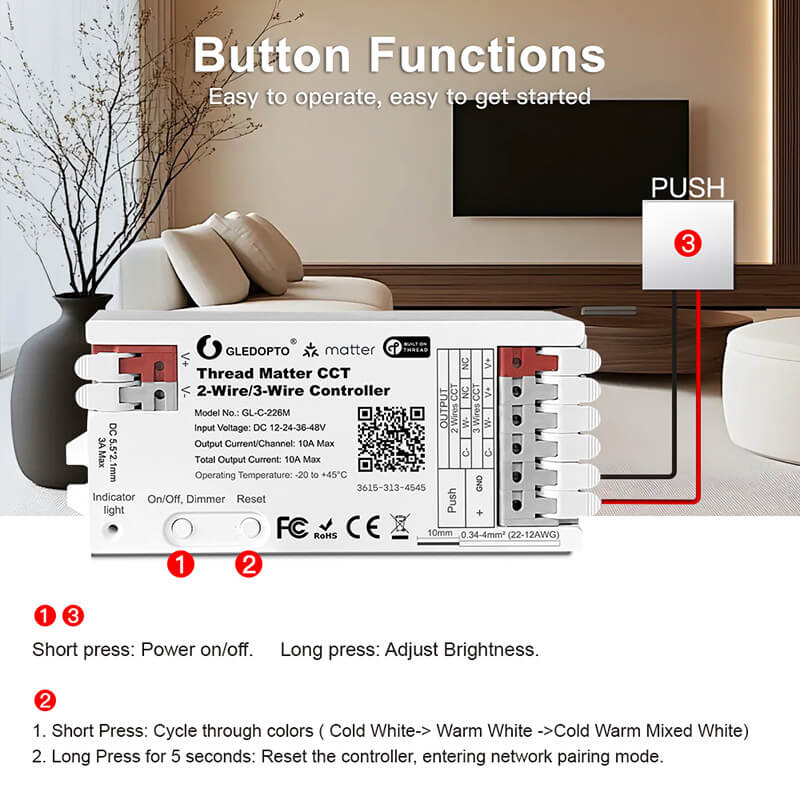

- Buttons on controllers for easy operation

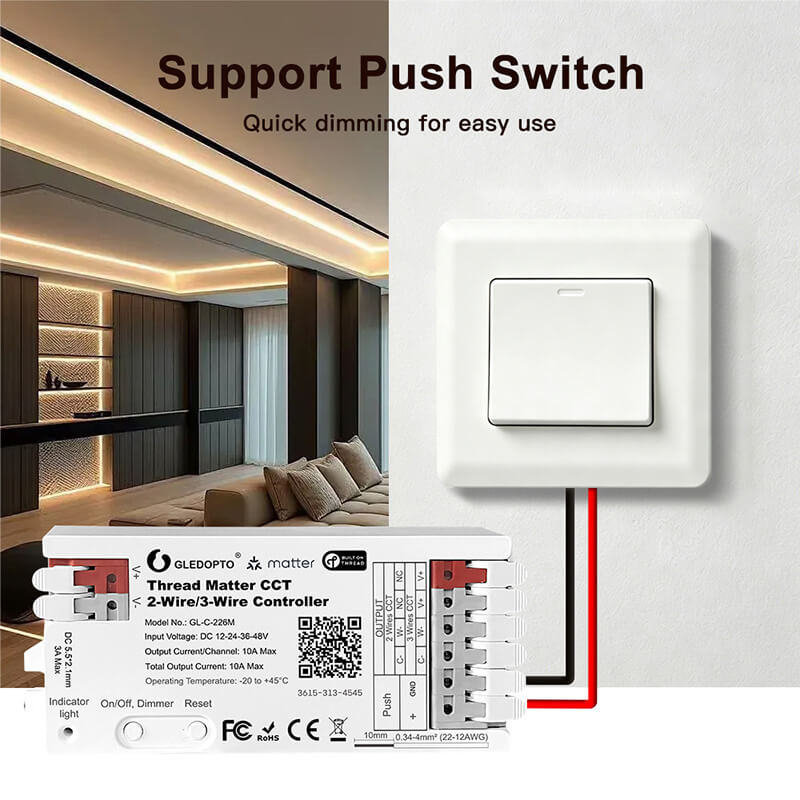

- Support push switch

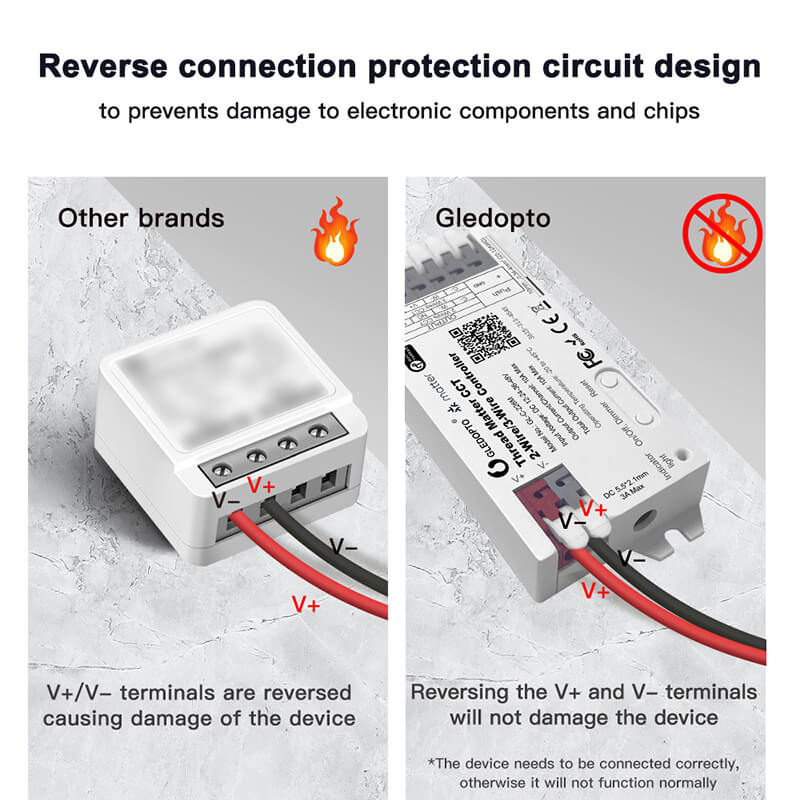

- Reverse connection protection

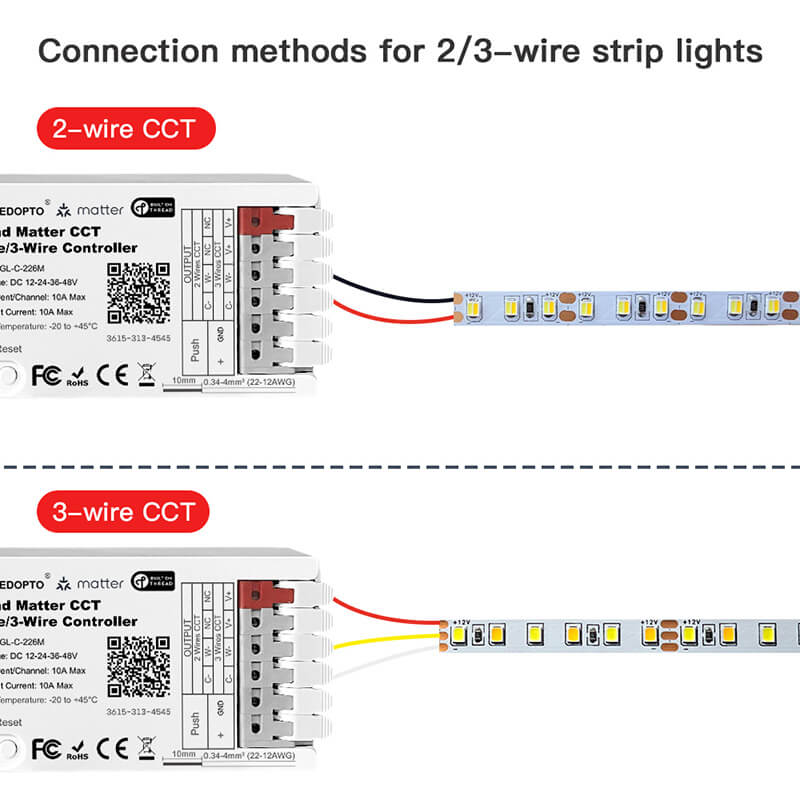

- Can work with 2 and 3-wire tunable white strip lights
- Warranty: 2 years
