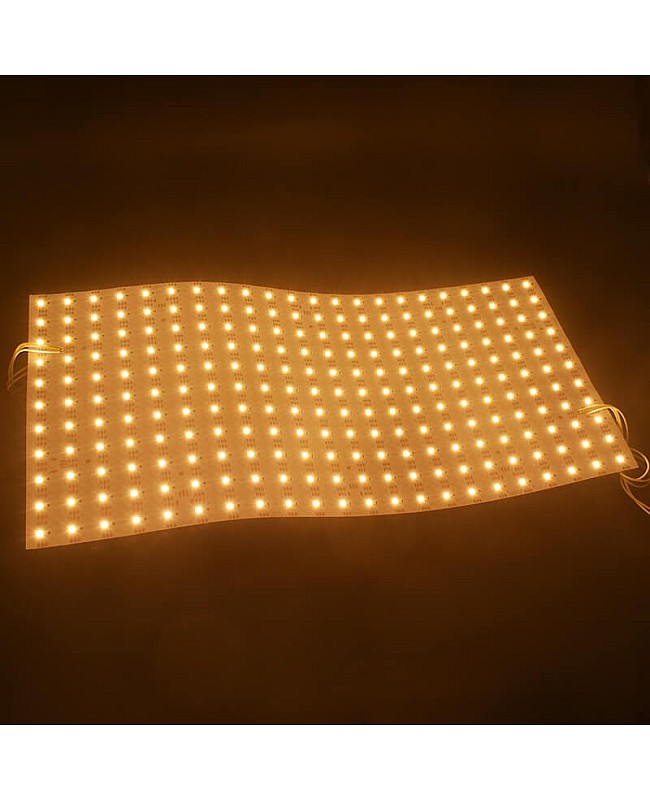

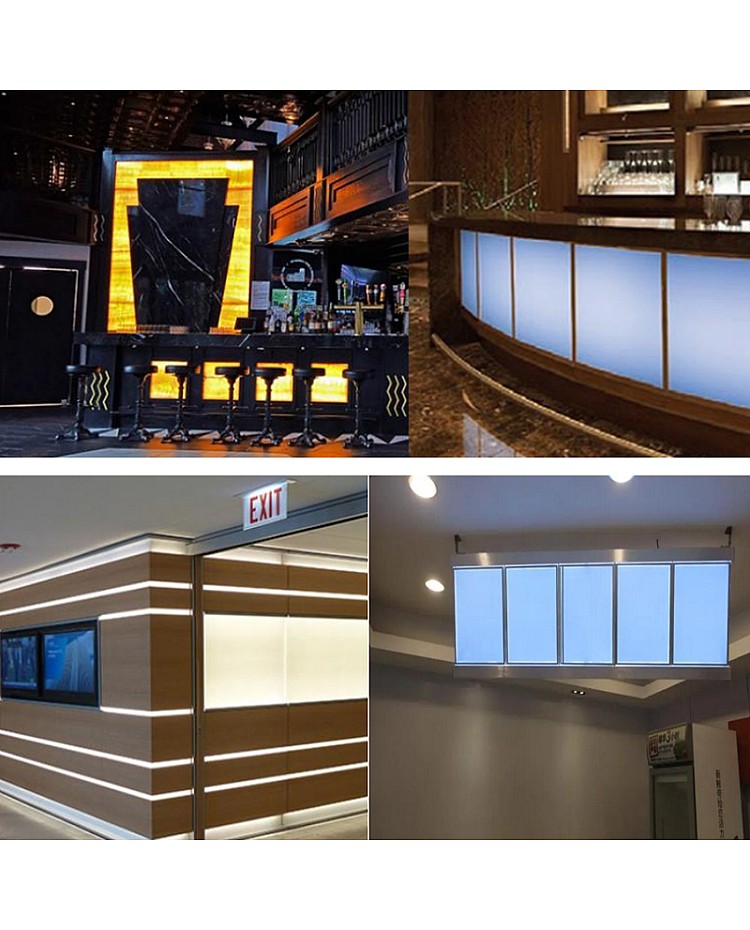

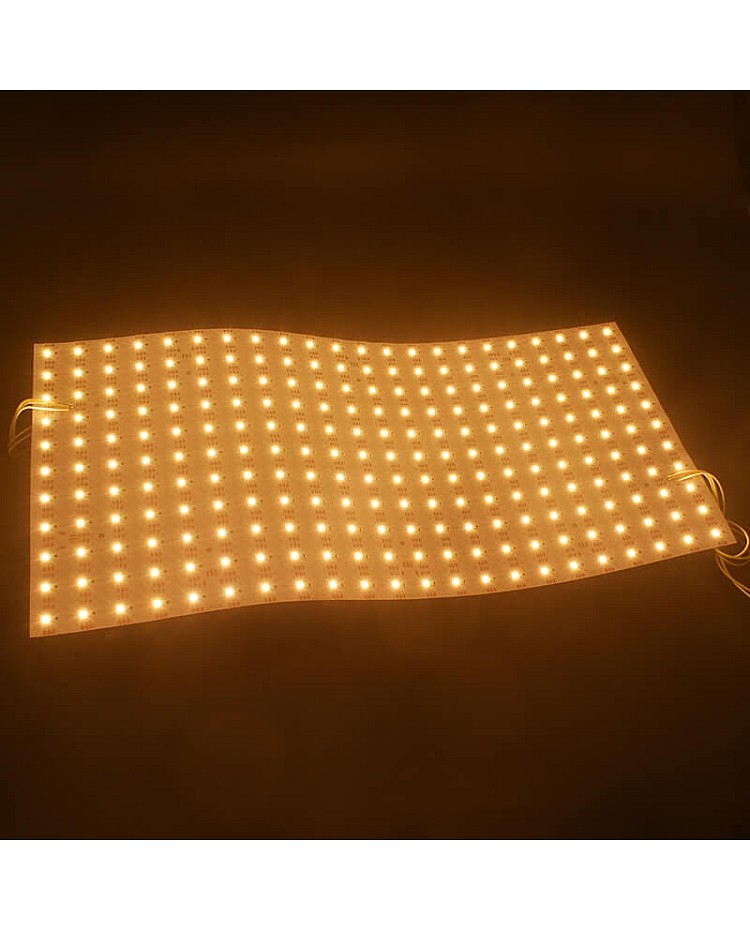

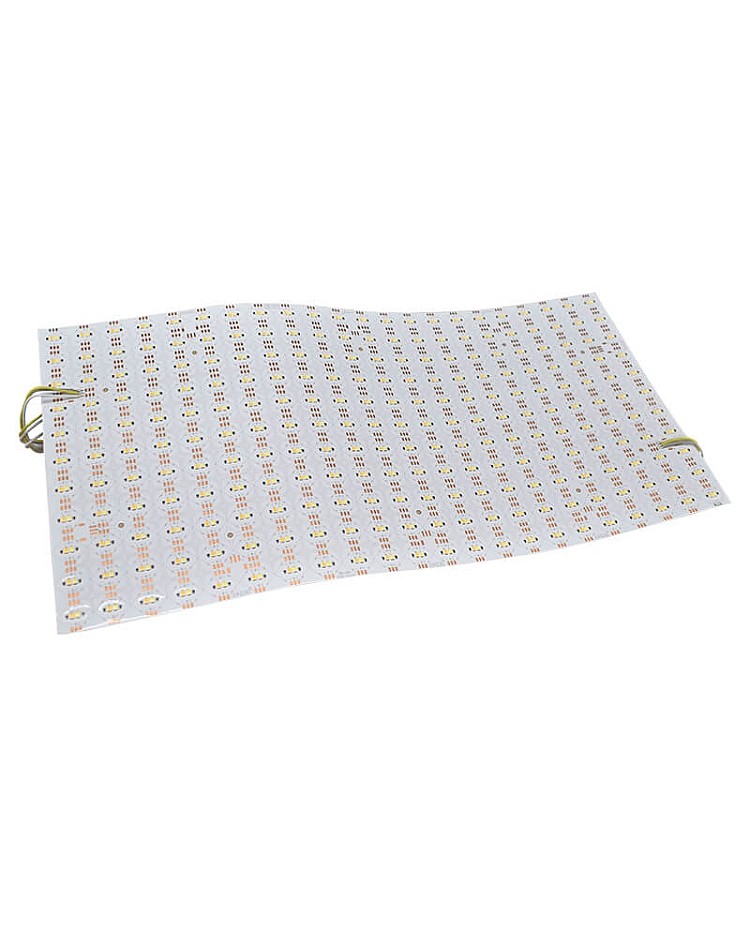

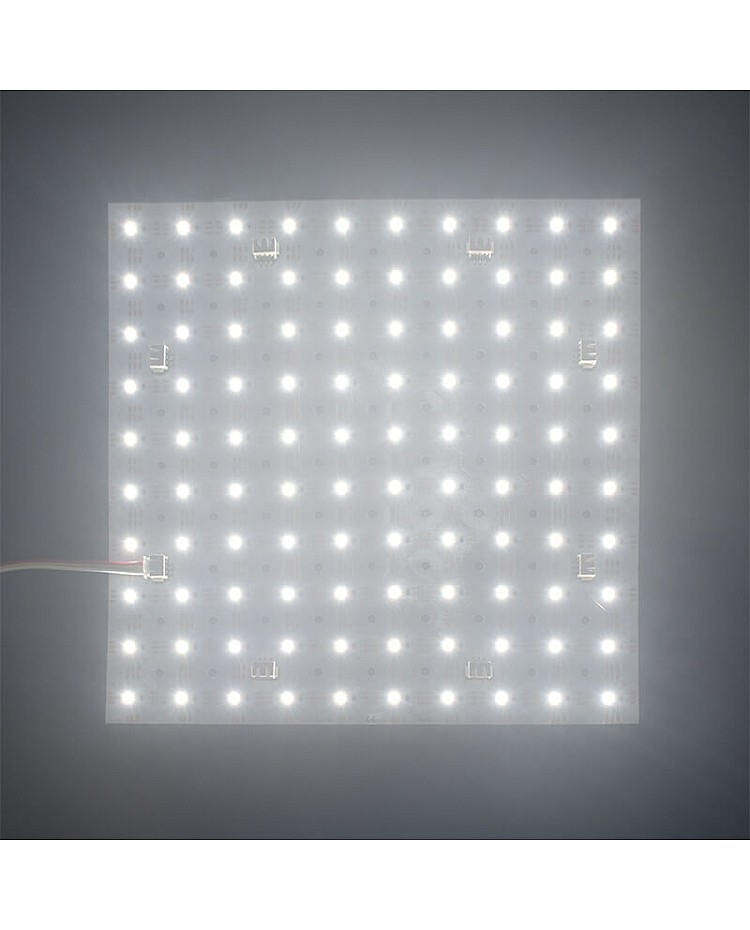

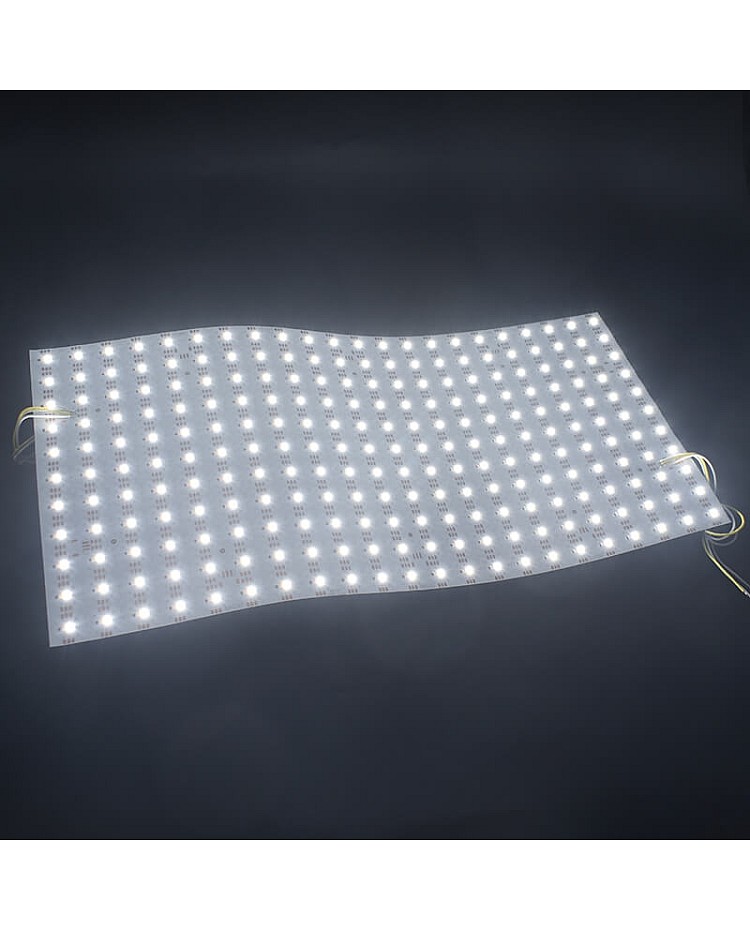

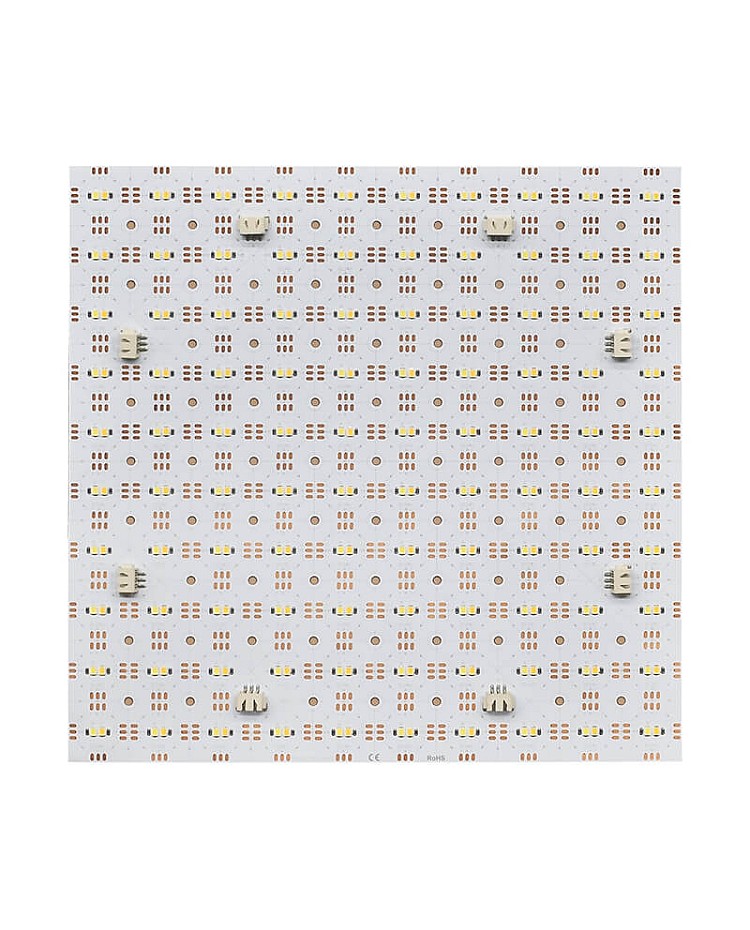

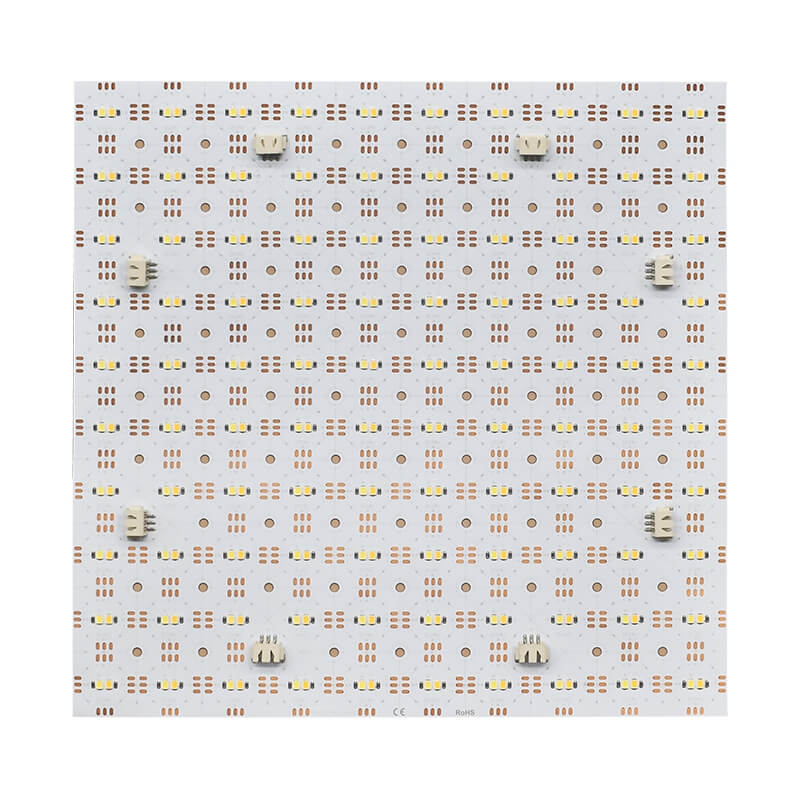

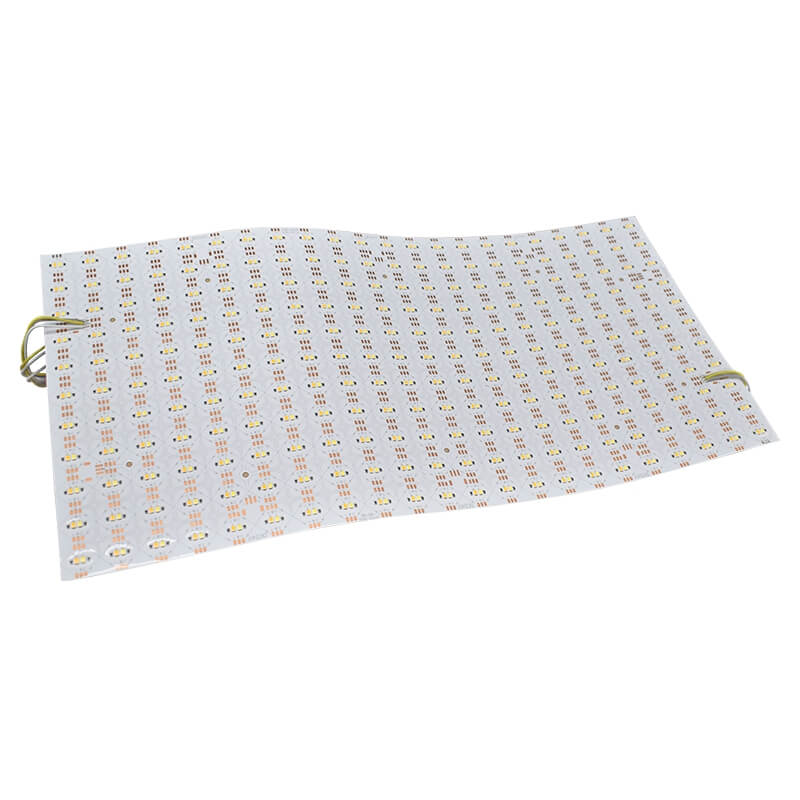

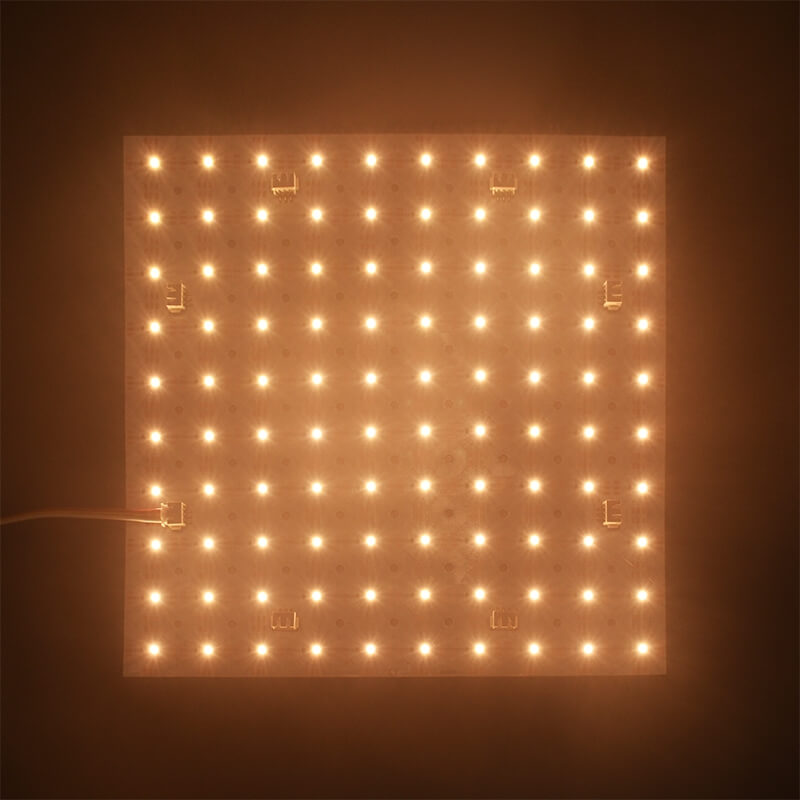

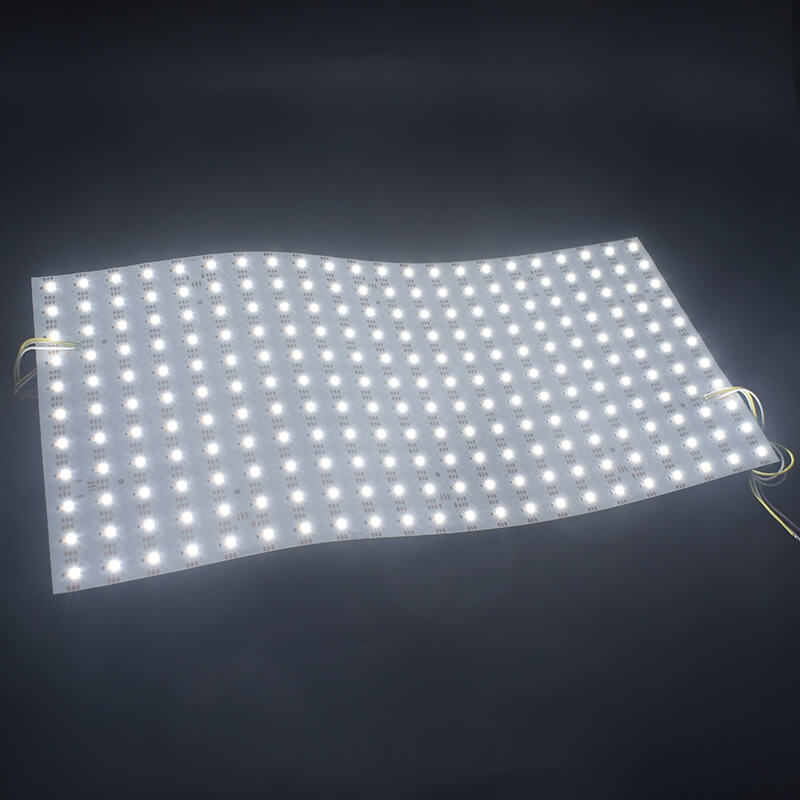

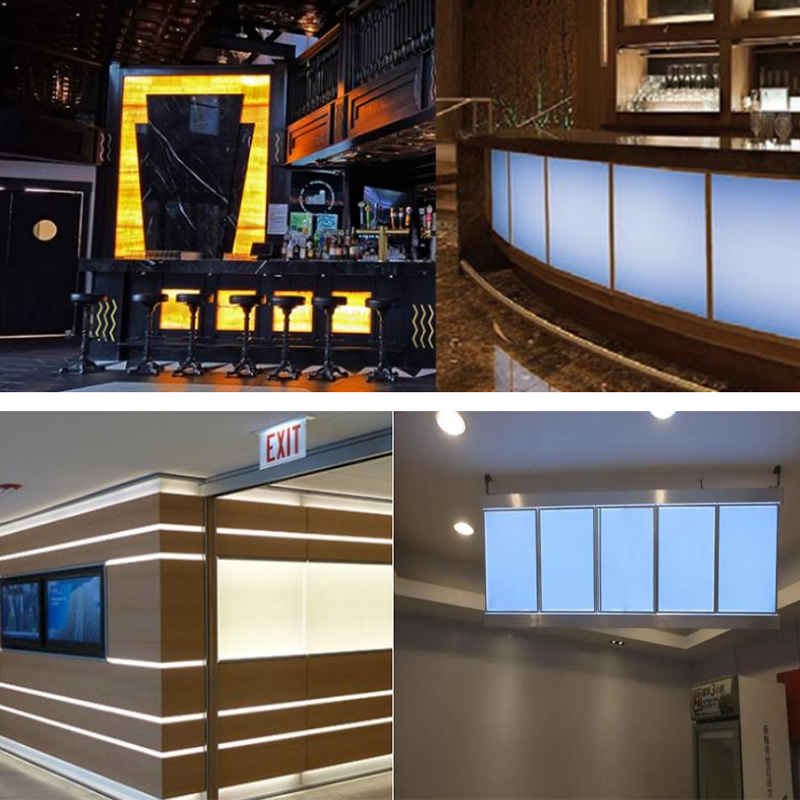

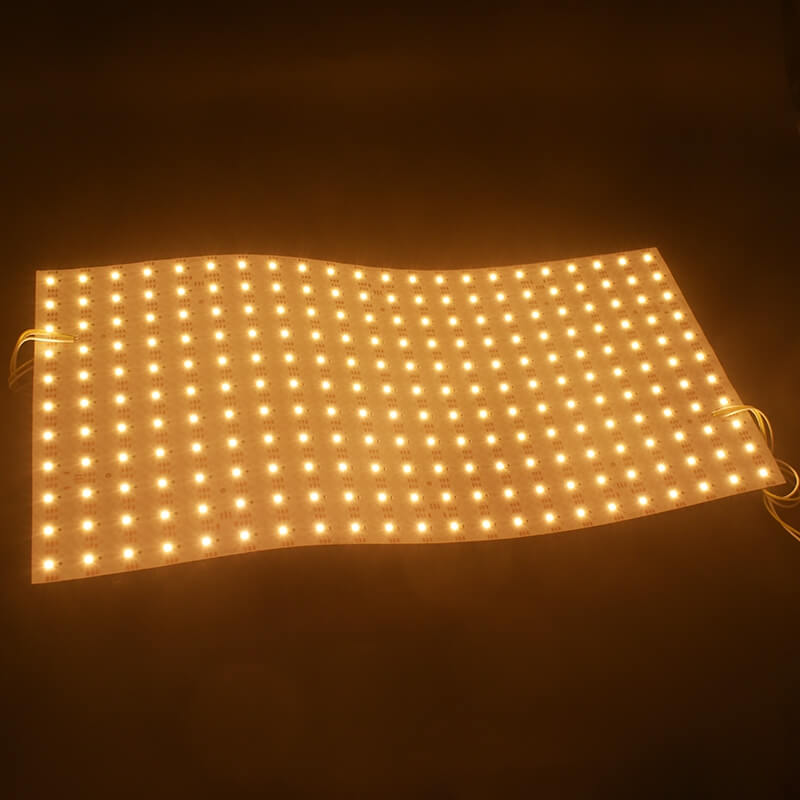

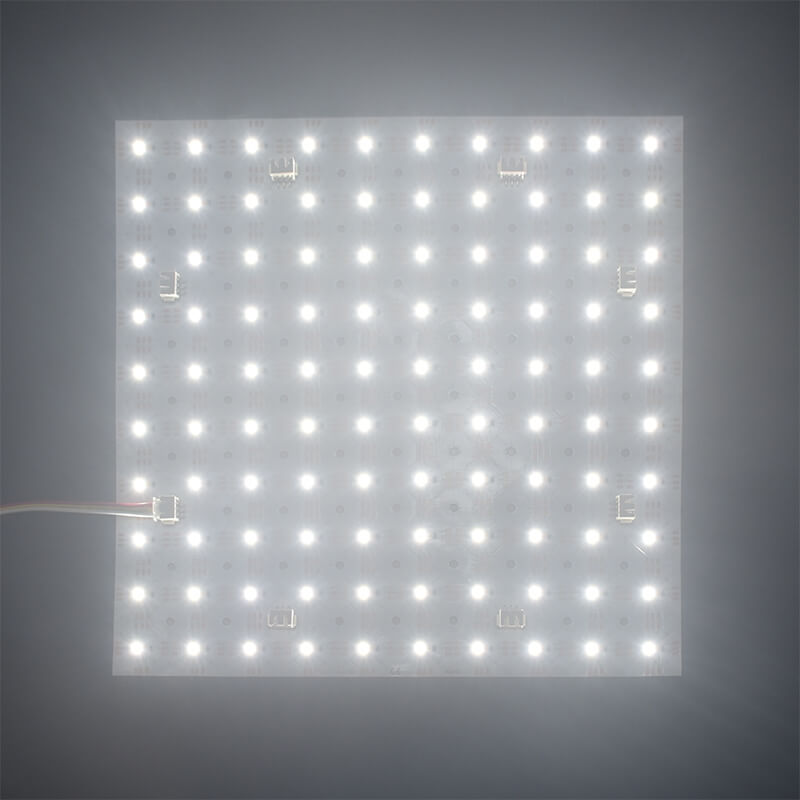

The tunable white LED light sheets have an ultra-thin design. They are lightweight, flexible, and bendable, allowing them to conform to flat and contoured surfaces. This provides uniform illumination and enables the adjustment of color temperature and brightness for various scenes. You can use them to highlight architectural features or as backlighting for shopping windows, advertisement displays, countertops, and more. Two sizes of sheet paper are available: 250 mm x 250 mm and 490 mm x 250 mm. The SMD LEDs are arranged on dual-layer PCB boards, and the back features double-sided adhesive tape for simplified installation. They are trim lines on the PCB board, allowing you to cut to any size for your projects. There are power connectors on the LED panels; you can use them to connect multiple panels for large projects. The flexible boards can work with the CCT LED controller to adjust the color temperature from 2700K warm white to 6500K cool white and adjust the brightness to fulfill various needs.
Link: CCT LED Sheets Spec Sheet
Specifications:
- Type: Dual White Lighting Sheets
- Models: LB-2835-200 / LB-2835-484

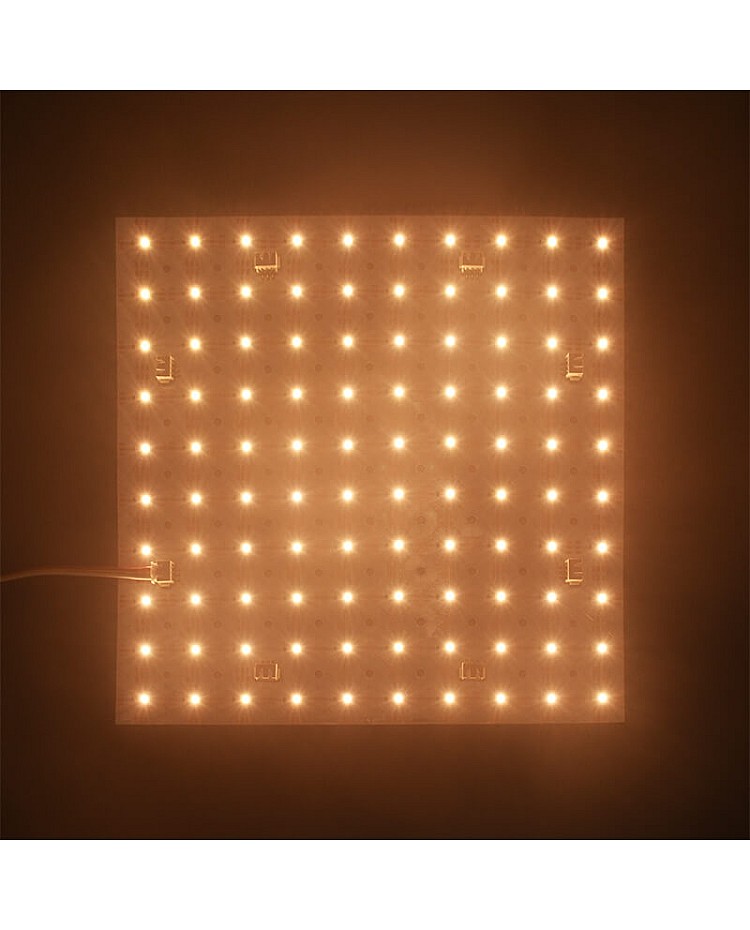

- Size: 250*250mm/9.84"*9.84"(LB-2835-200) / 490*245mm/19.29"*9.65"(LB-2835-484)
- LED Type: 2835 SMDs
- LED QTY: 200PCS/Piece(LB-2835-200) /484PCS/Piece(LB-2835-484)
- Working Voltage: DC24V
- Power: 16W/Piece(LB-2835-200) / 40W/Piece(LB-2835-484)

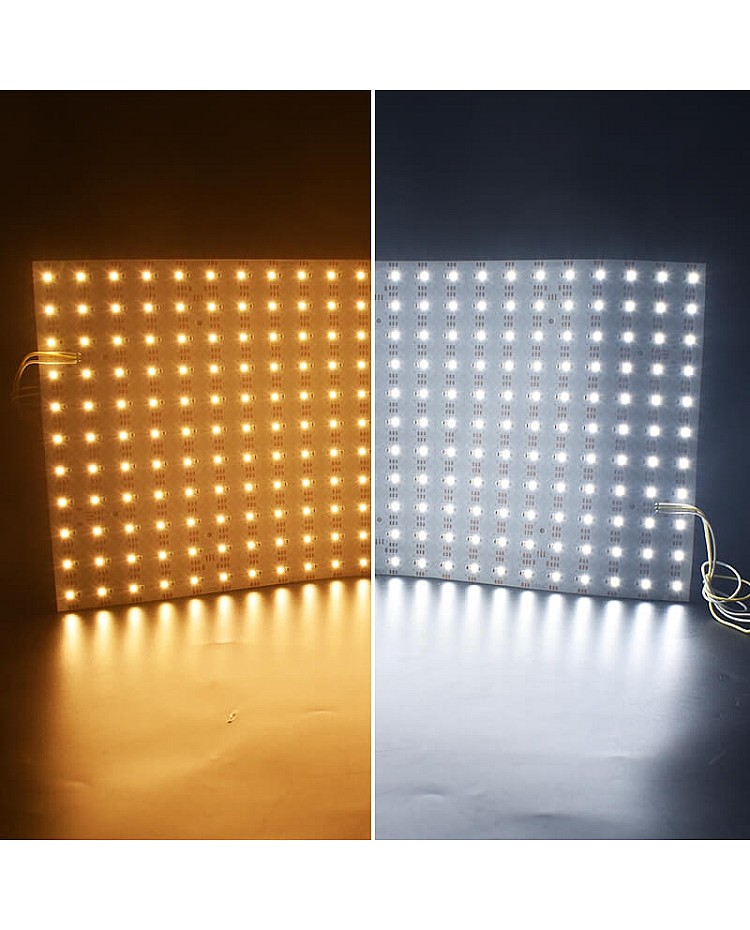

- Color Temperature Adjustable Range: 2700K-6500K
- Luminous Flux: 1600lm/M(LB-2835-200) / 3800lm/M(LB-2835-484)
- Color Rendering Index: >90Ra
- Minimum Cutting Length: 2LEDs/25*25mm(LB-2835-200) / 2LEDs/22.3*22.3mm(LB-2835-484)
- Dimmable: YES
- Beam Angle: 120°

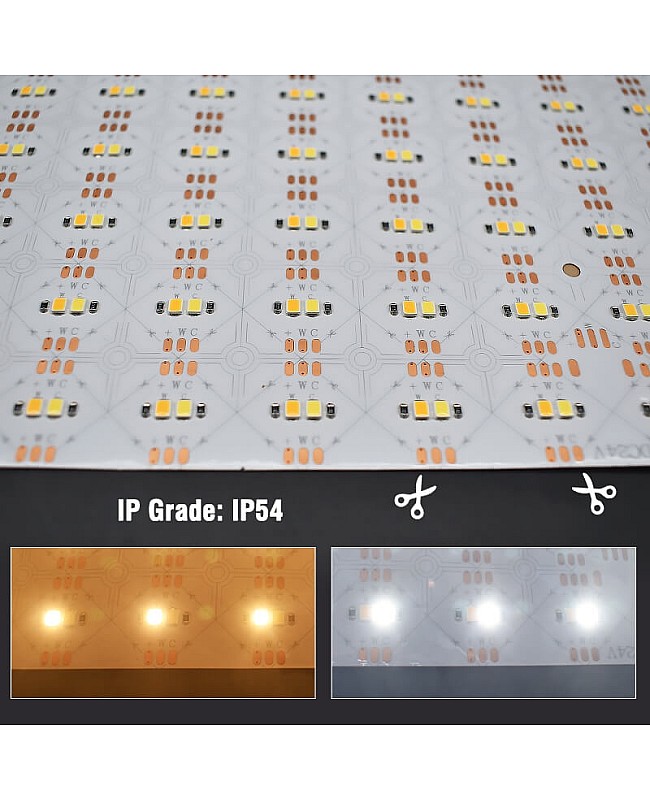

- Waterproof Level: IP20 Non-waterproof, IP54 Waterproof
- Storage Temperature; -20℃-+65℃(-4°F-113°F)
- Working Temperature: -20℃-+45℃(-4°F-149°F)
- Certifications: CE, ROHS
- Lifespan: >35,000 Hours
- Warranty: 3 Years Replacement

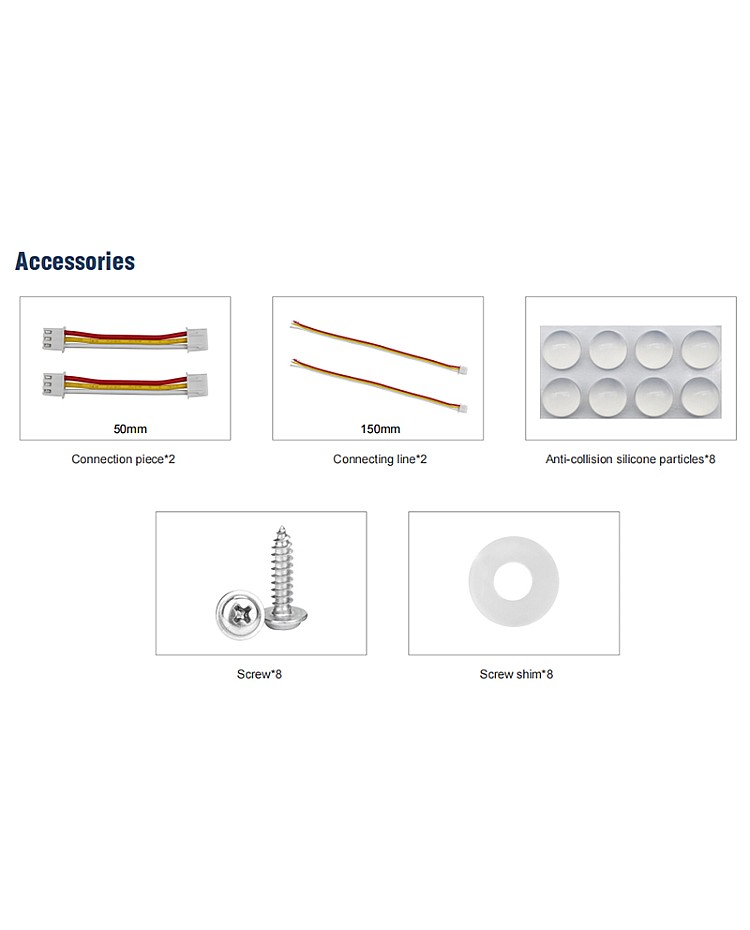

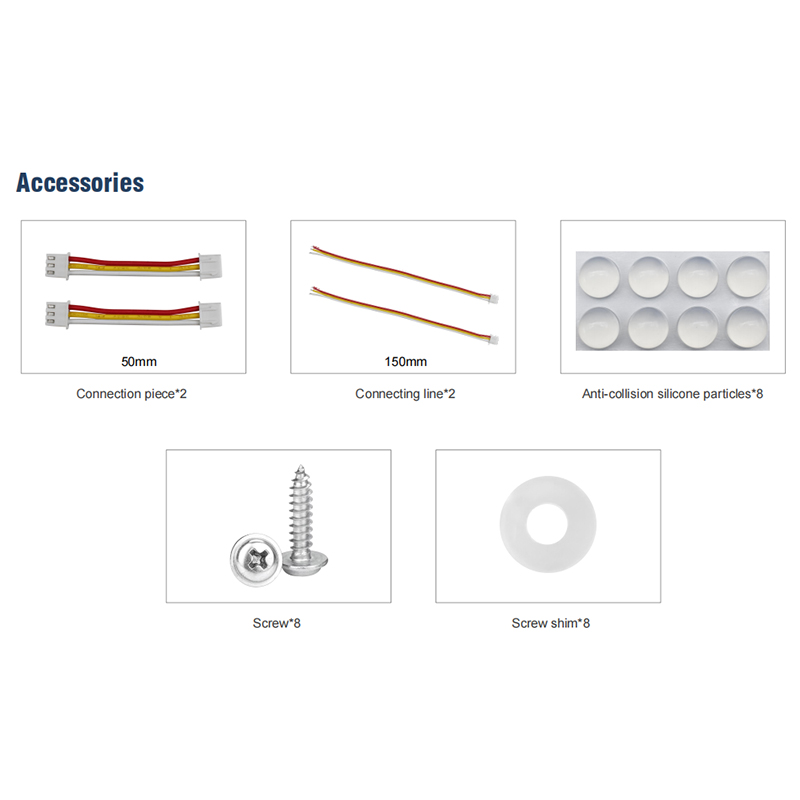

Includes:
1 * Dual White Light Sheet Panel
2 * 5cm 3P Connectors(Both Ends With Connectors)
2 * 15cm 3P Connectors(Single End With Connector)
1 * Anti-collision Silicone Particles
1 * Screws And Screw Shims
FAQs:
1. What is the advantage of sheet panels over LED strips?
2. Can those be used for outdoor projects?
No, they can only be used for indoor projects. The IP54 waterproof products have silicone coated on the surface, allowing you to use them in wet environments.
3. How can I install them?
They have screw holes and double-sided adhesive tape on the back. The screws are included in the accessory bag. You can stick them on the place that you want to install or use the screws to mount. Before the installation, please clean the surface of the area to ensure it is dry and not dirty.
4. Can I cut them to the desired size by myself?

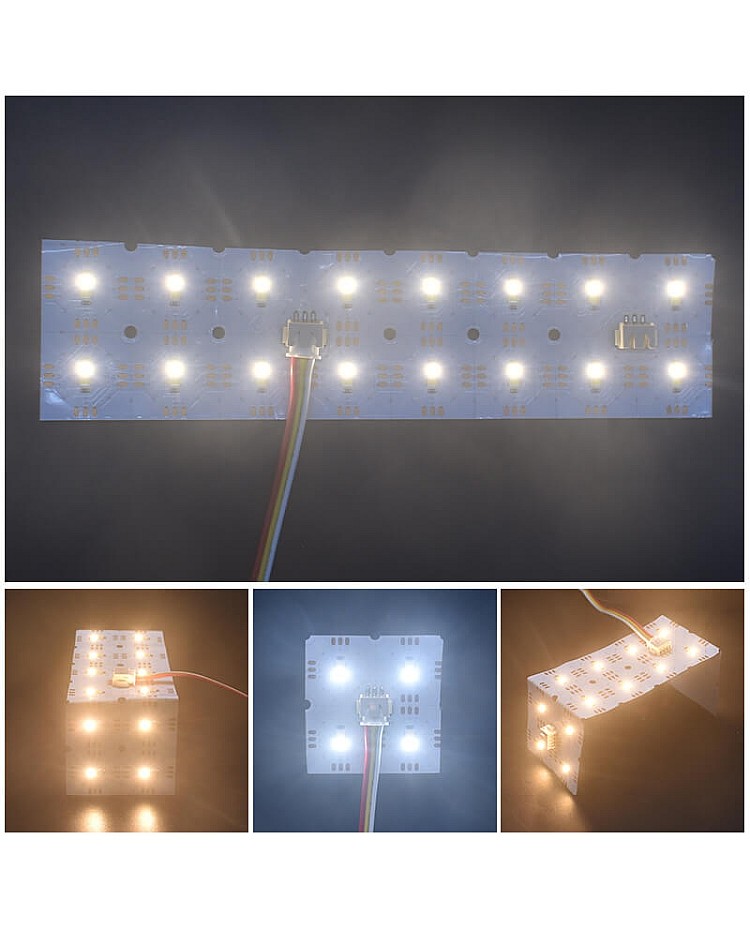

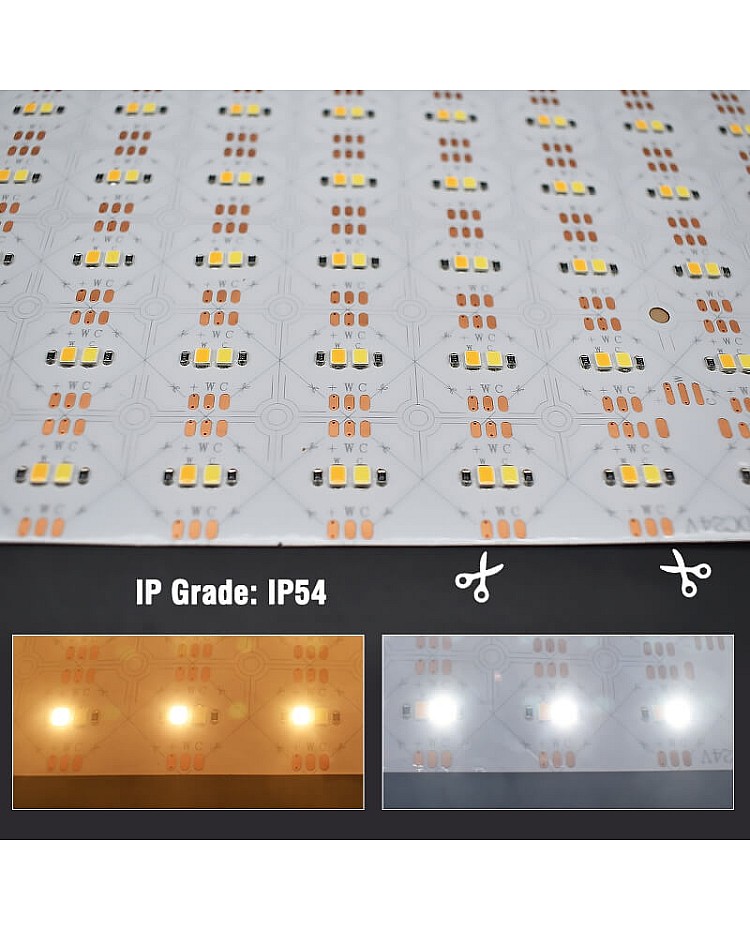

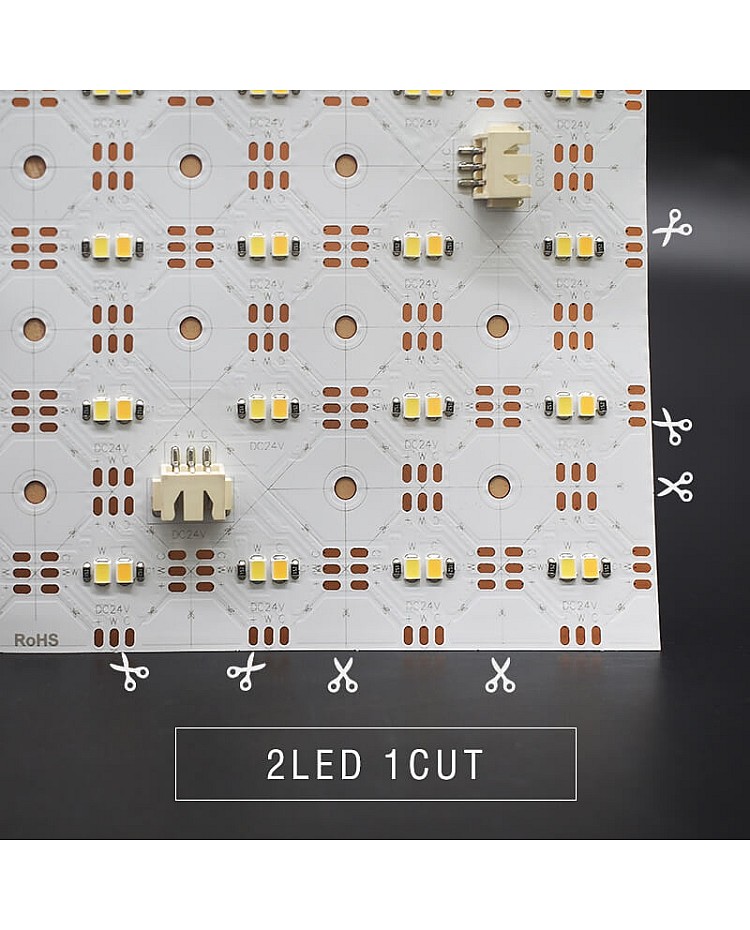

Yes, you can. You can use a knife to cut any size from the cutting marks. The cutting marks are vertical and horizontal lines on the PCB boards. If you are unsure how to do it, please contact us.
5. Should we need a dimmer to adjust the color temperature?
Yes, you will need a CCT dimmer to adjust the color temperature range from warm white to cool white. Most of our CCT dimmers support tunable white panels. Please contact us if you want us to pick one for you.
6. Certifications and warranty.
They have CE and ROHS certifications, and the UL listed await approval. They will get 3 years replacement.
