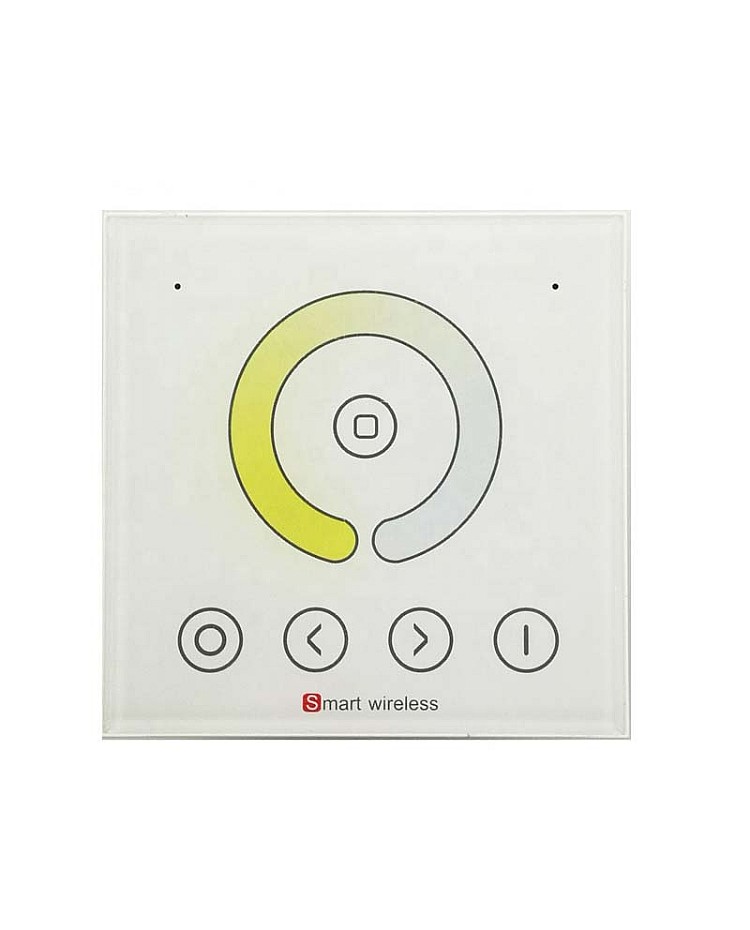

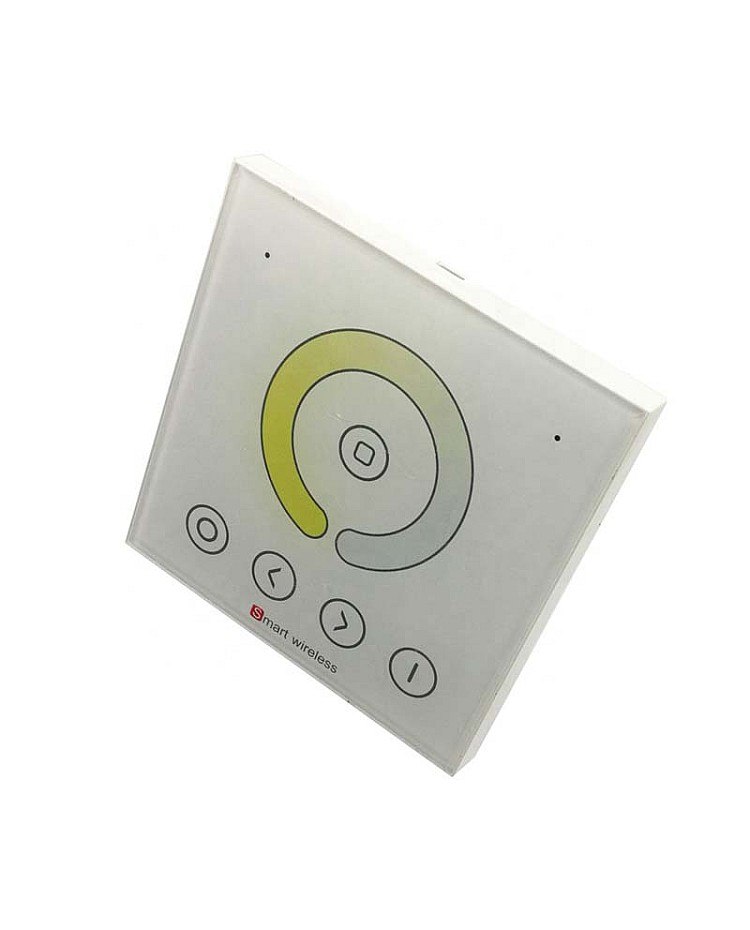

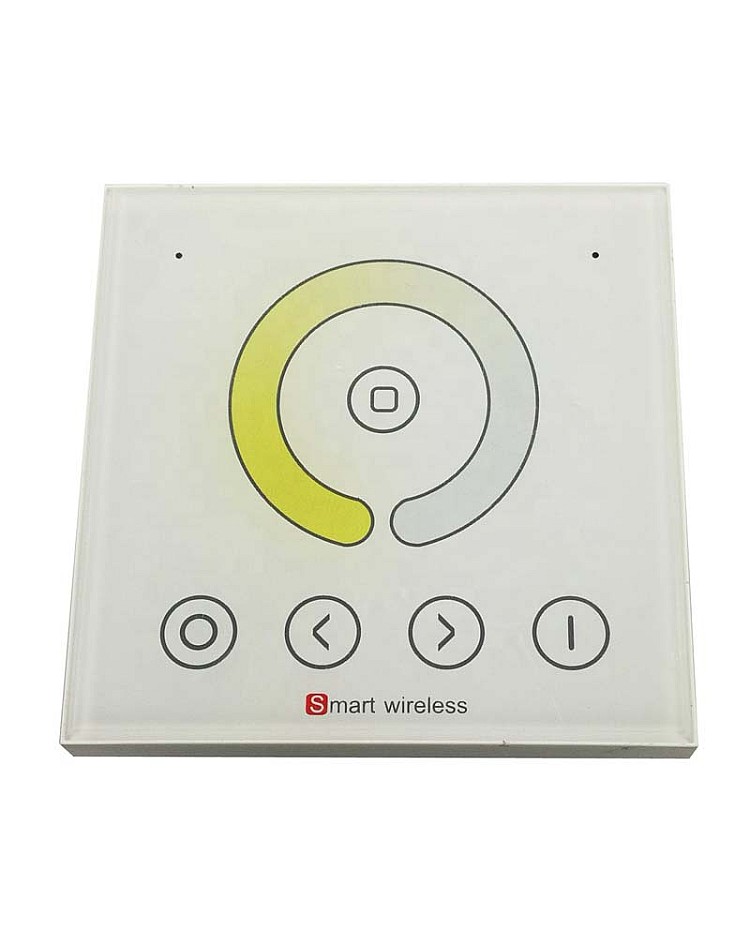

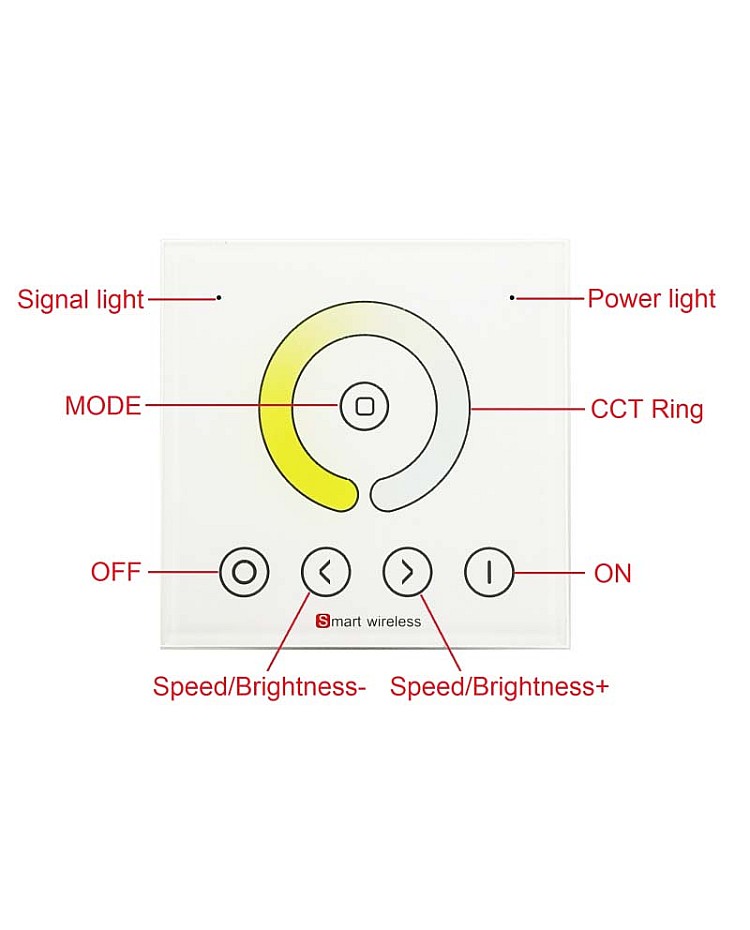

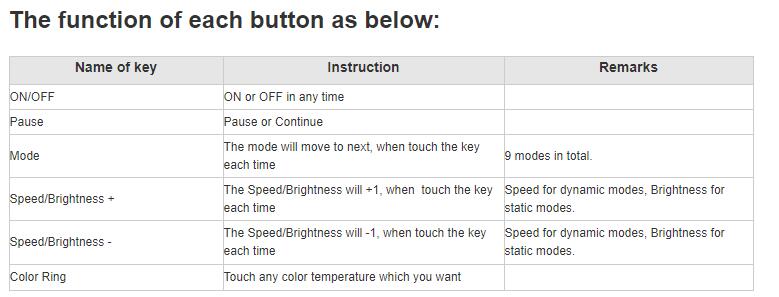

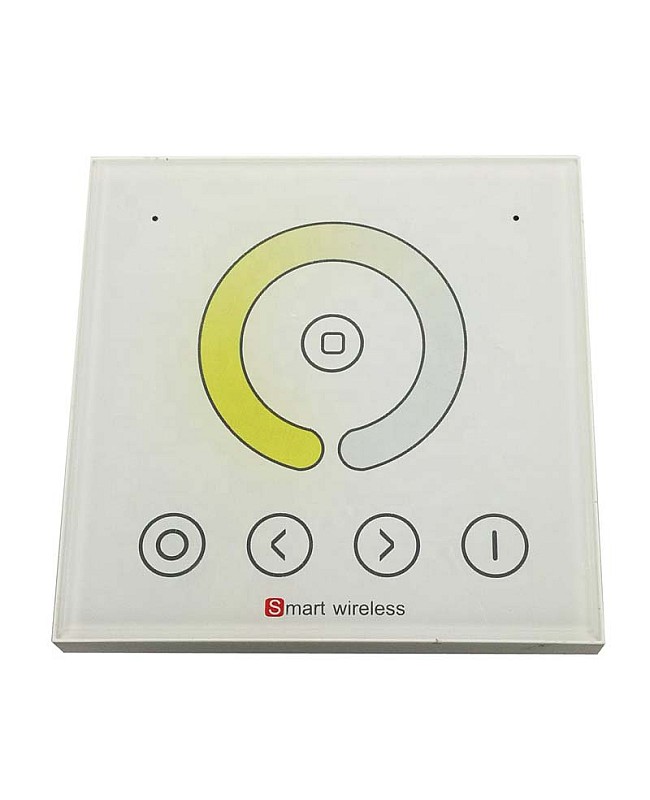

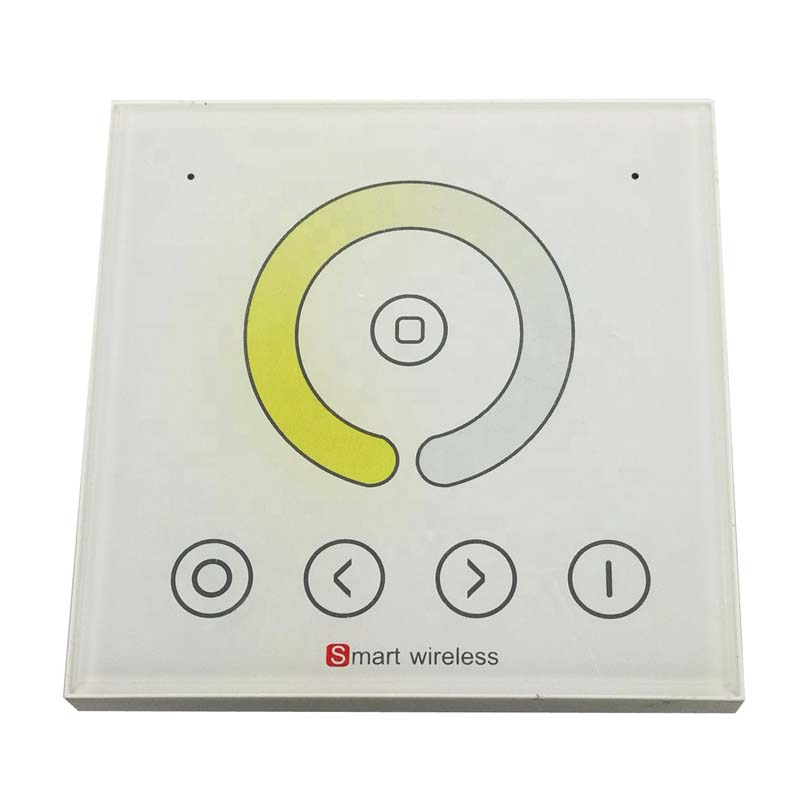

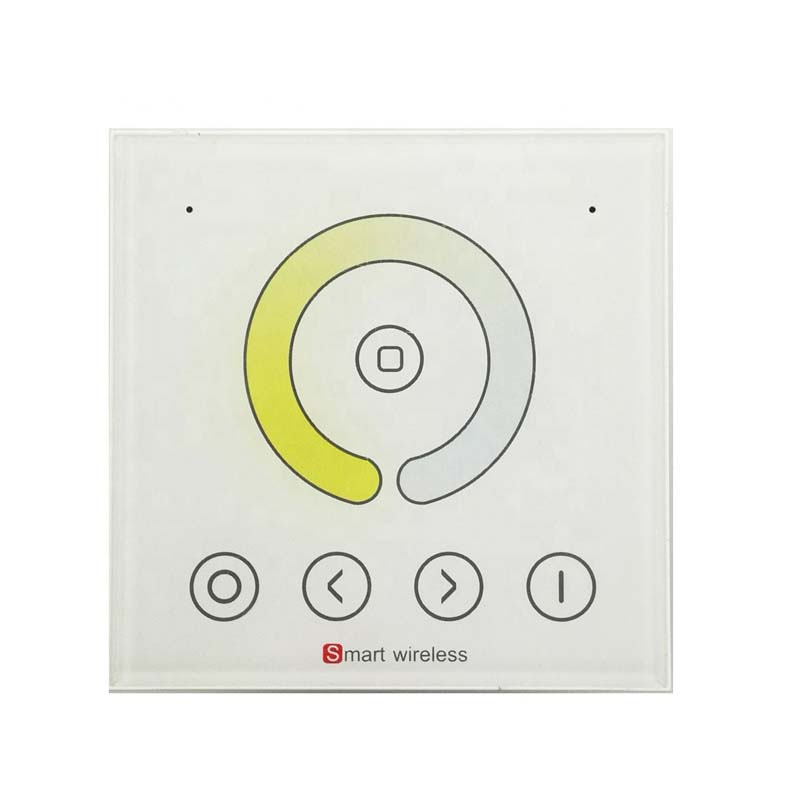

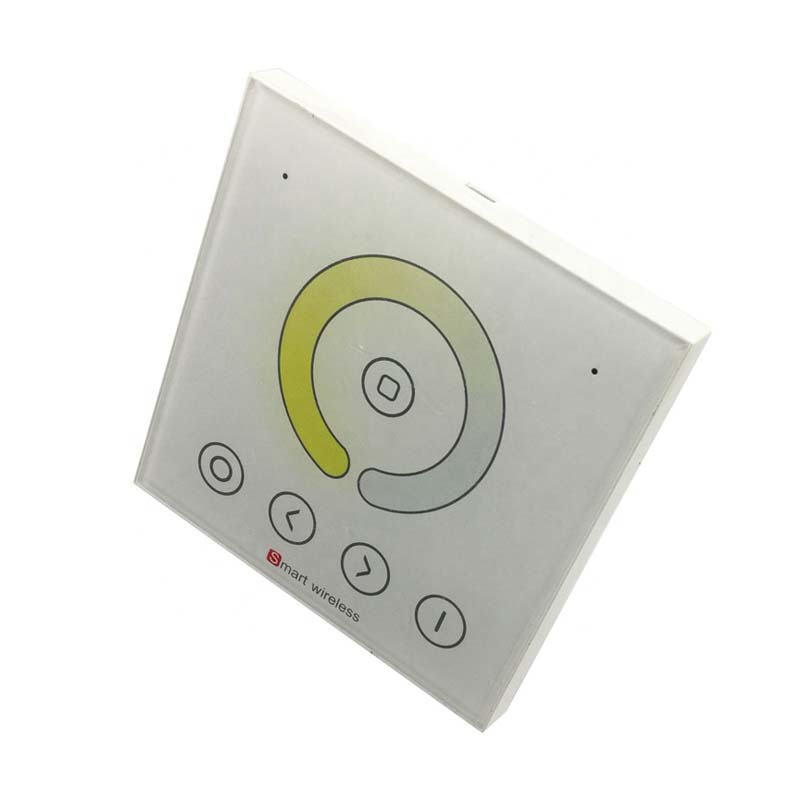

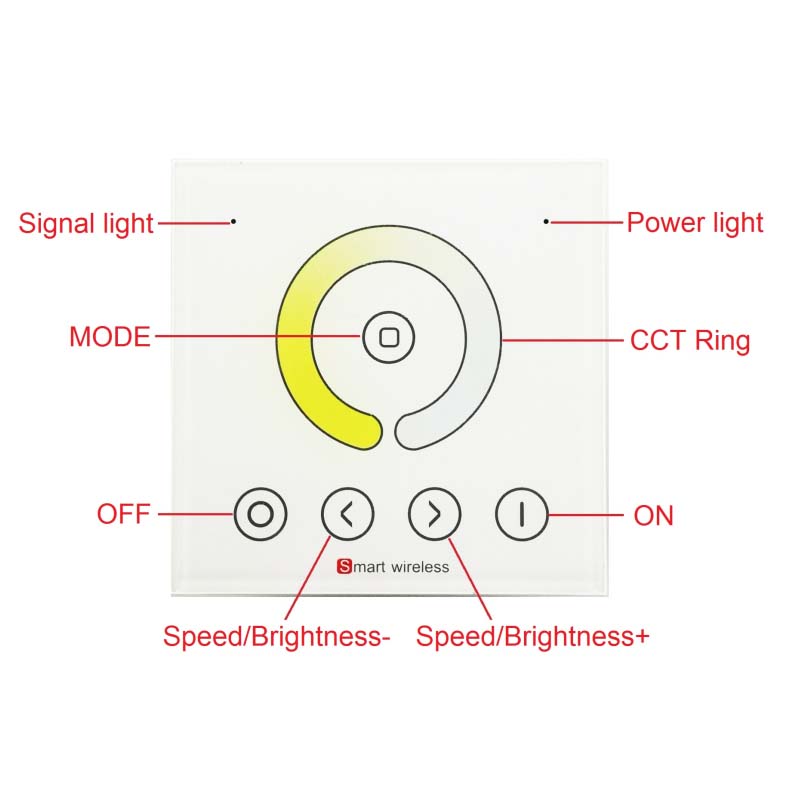

Check the RF Wall Panel CCT LED Controller, working in DC12V or DC24V, designed for the constant working voltage LED Lights, the CCT LED Controller with 2 output channels design, the max output current is 4A, the max output power up to 192W. adopts the capacitive touch-sensitive design, unique appearance and easy operation. with memory function, each time power-on reserves the mode which stops in the last power-down. the dimension according to the 86 type European standards. the wall panel controller with 5 buttons and 1 CCT control ring, you can set the working mode, 9 working modes in total, can control the speed for dynamic or brightness for static color. the CCT color ring can be used to control the color temperature you want.


  • Size: 86*86*34mm
  • Working Voltage: DC12V/DC24V
  • Output Channel: 2 Channels
  • Output Current: 4A
  • Max Output Power: 96W(DC12V)/192W(DC24V)
  • Designed For CW+WW LED Lighting
  • Gray Scale: 256 Levels
  • PWM Frequency: RF
  • Remote Distance: 20-30M
  • Memory Function: YES

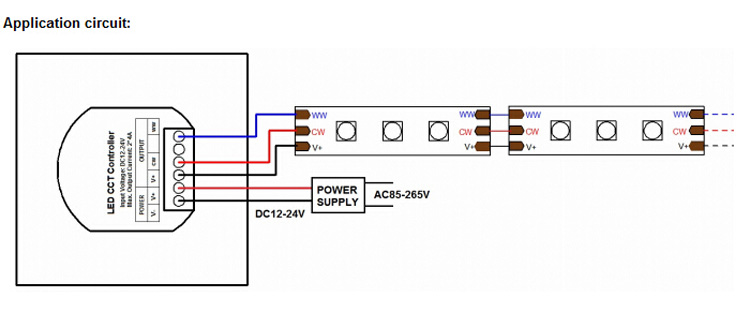

  • Connecting Mode: Common Anode
  • Static Power Consumption: <1W
  • 3 Years Warranty


1*RF Wall Panel CCT LED Controller

CCT Strip Light Controller RF Wall Panel CCT LED Controller DC24V CCT LED Controller
