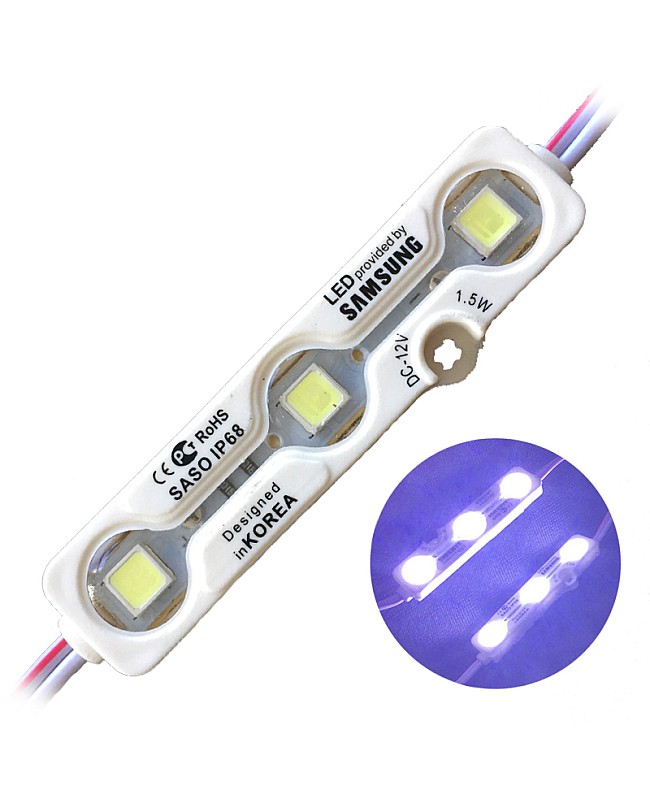

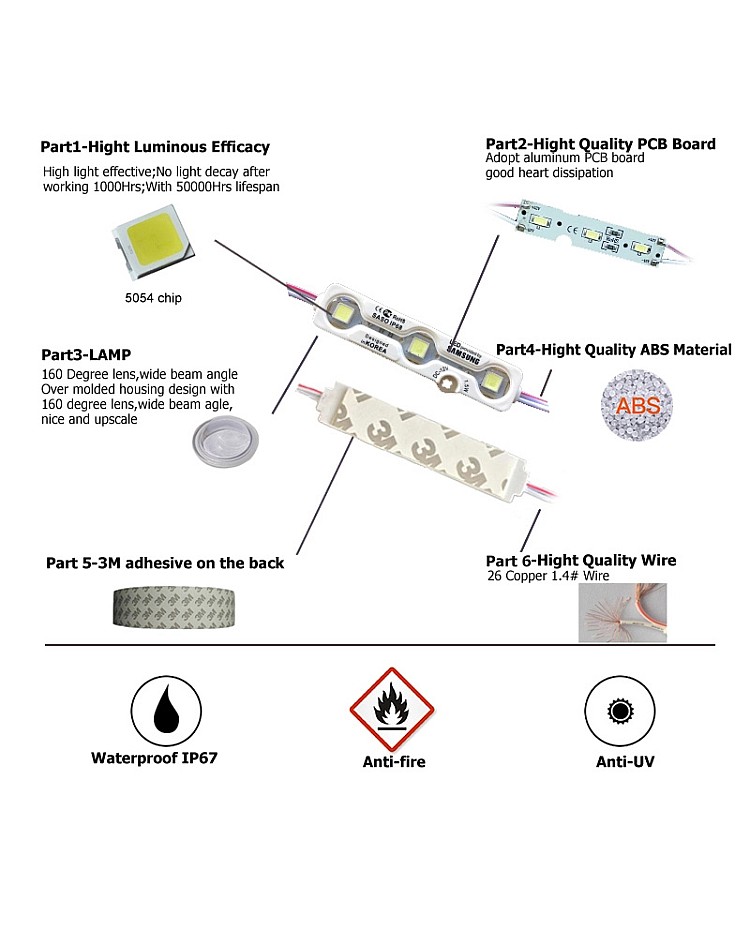

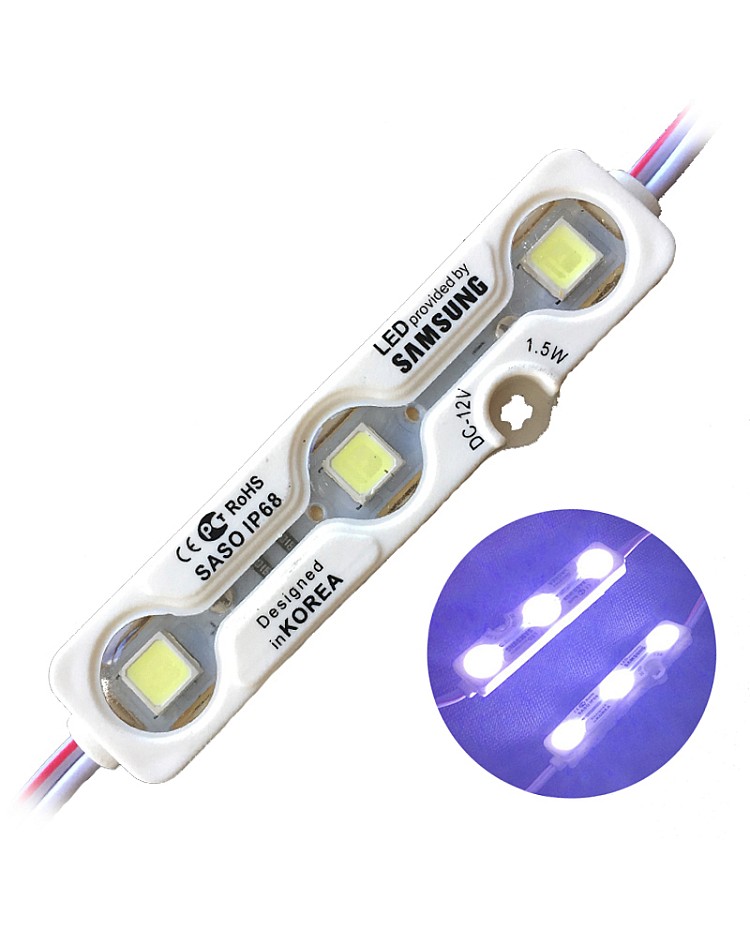

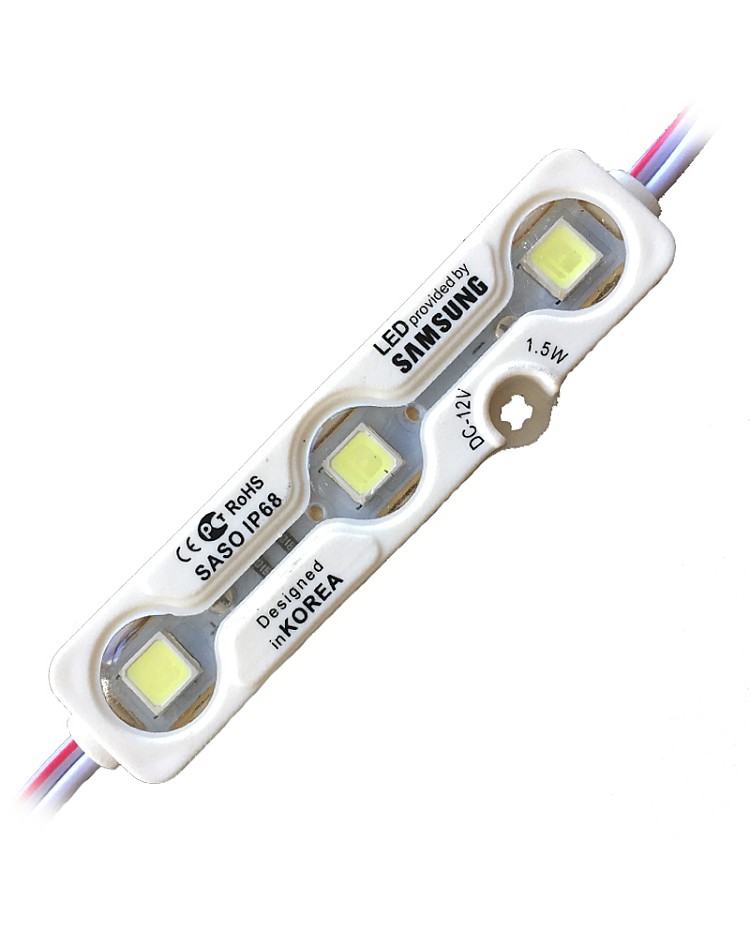

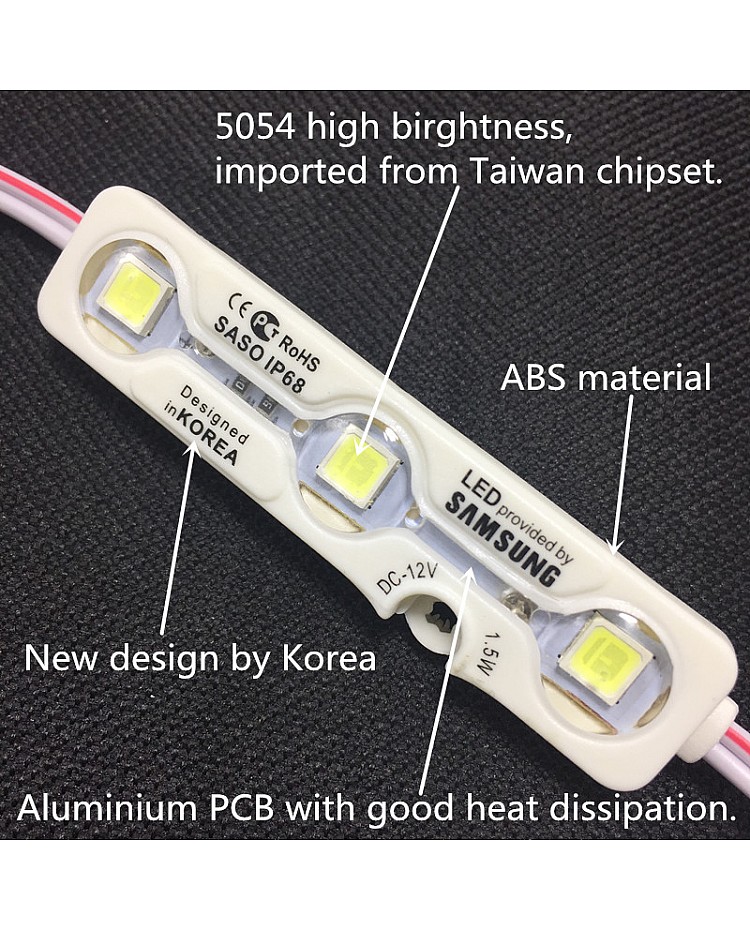

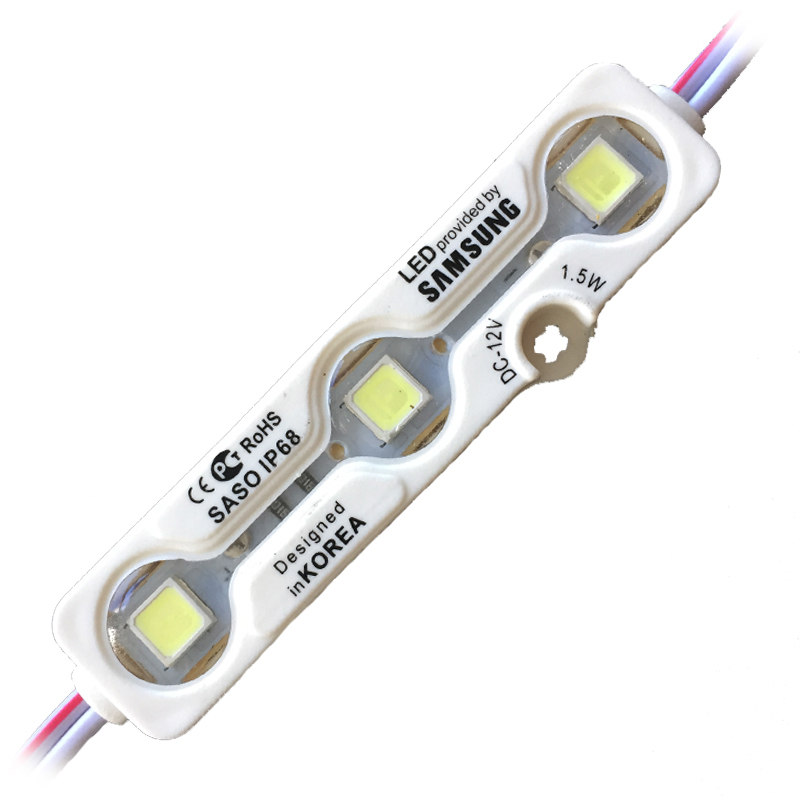

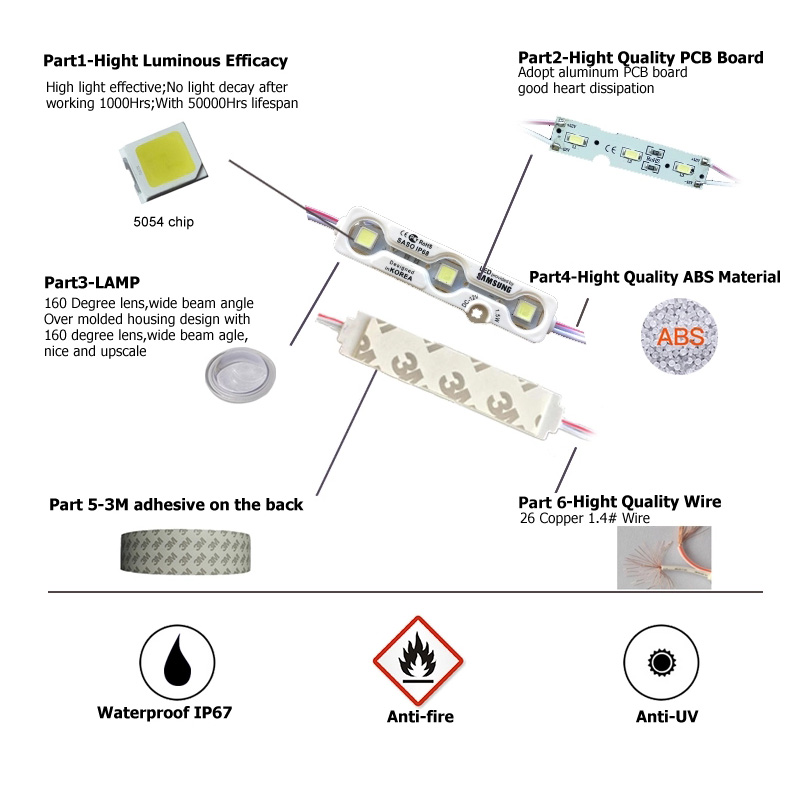

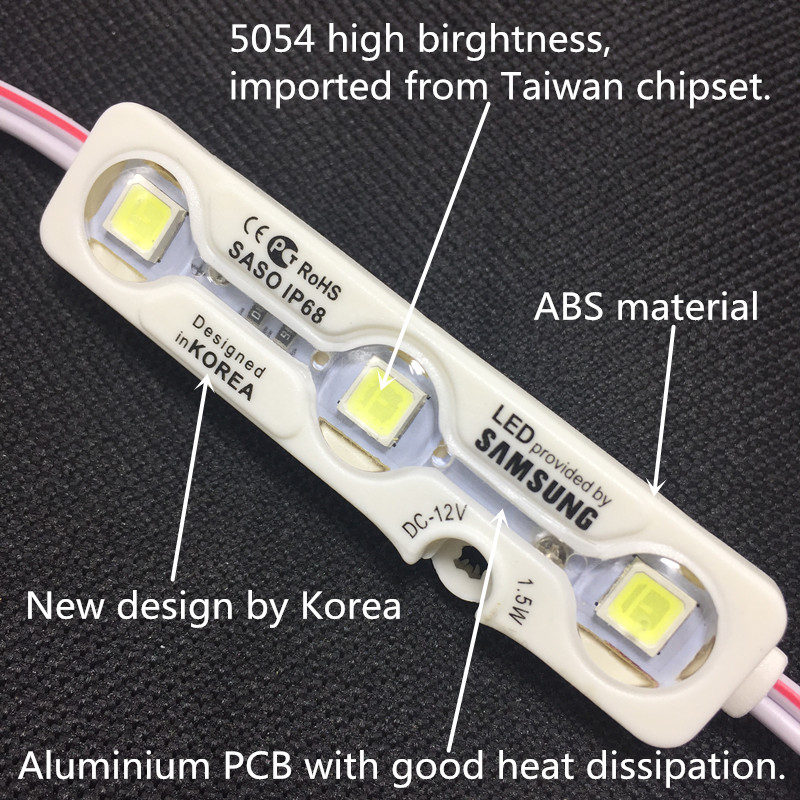

The 5054 LED Sign Lighting Modules, which was designed in Korea, use 3pcs high-quality Epistar 5054 SMD LEDs as the light source, all of them mounted on the aluminum PCB board, the aluminum board for better heat dissipation and longer lifespan. the 5054 Modules working in DC12V, various emitting colors available. the waterproof level can reach to IP68, which is the best waterproof level, you can use them for the projects indoor or outdoor. the 5054 LED Light Modules are 20pcs per string, 3 years warranty.


  • Model: 5054U-3LED
  • LED: 5054 SMD LEDs
  • LED Chip: Epistar LED Chip
  • Chip Material: AlGaInP
  • LED Quantity: 3PCS
  • Size: 66*19mm
  • Waterproof Level: IP68

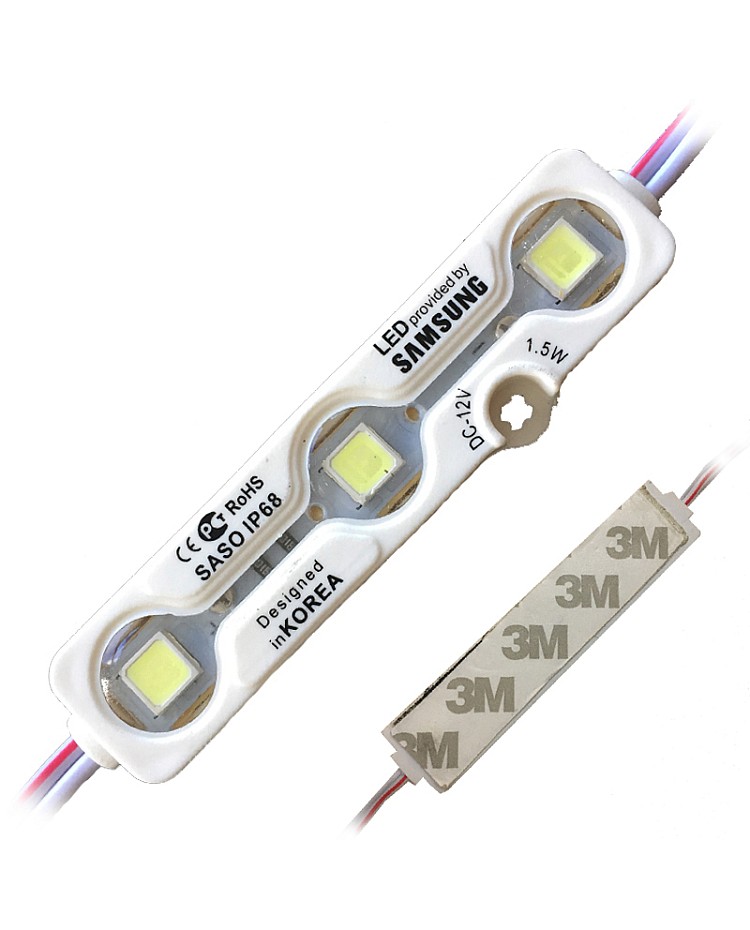

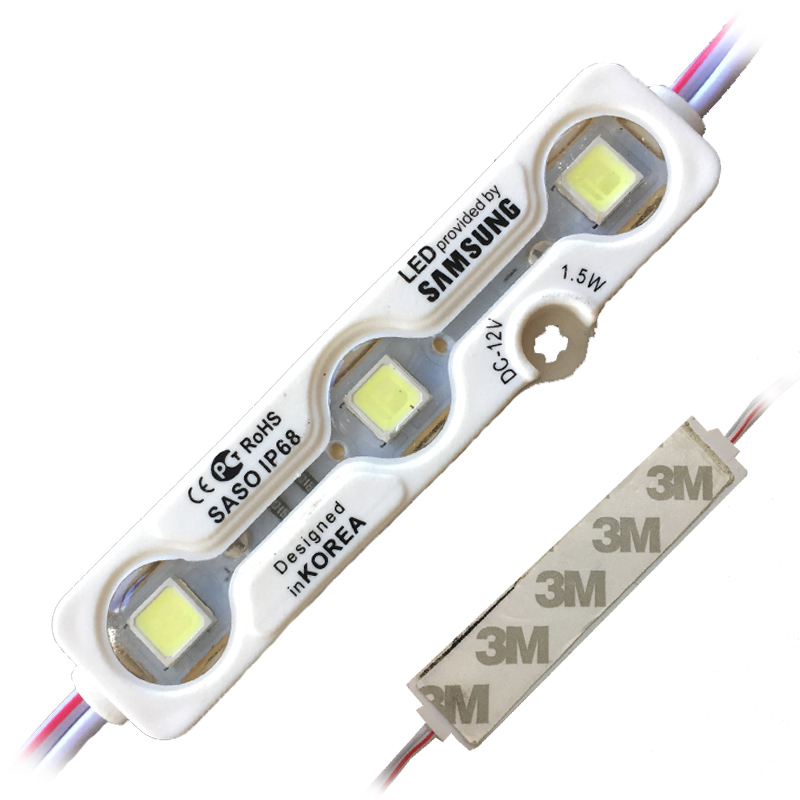

  • Back Wit 3M Double-Sided Tape
  • Working Voltage: DC12V
  • Output Power: 1.5W
  • Color Rendering Index: 80Ra
  • Viewing Angle: 120°
  • Lumen: 210-225lm
  • Optical Attenuation: 1000H≥1%
  • Emitting Colors: Warm White, White, Red, Green, Blue, Yellow, Pink
  • Warranty: 3Years


1*LED Sign Lighting Modules(20PCS/String)
