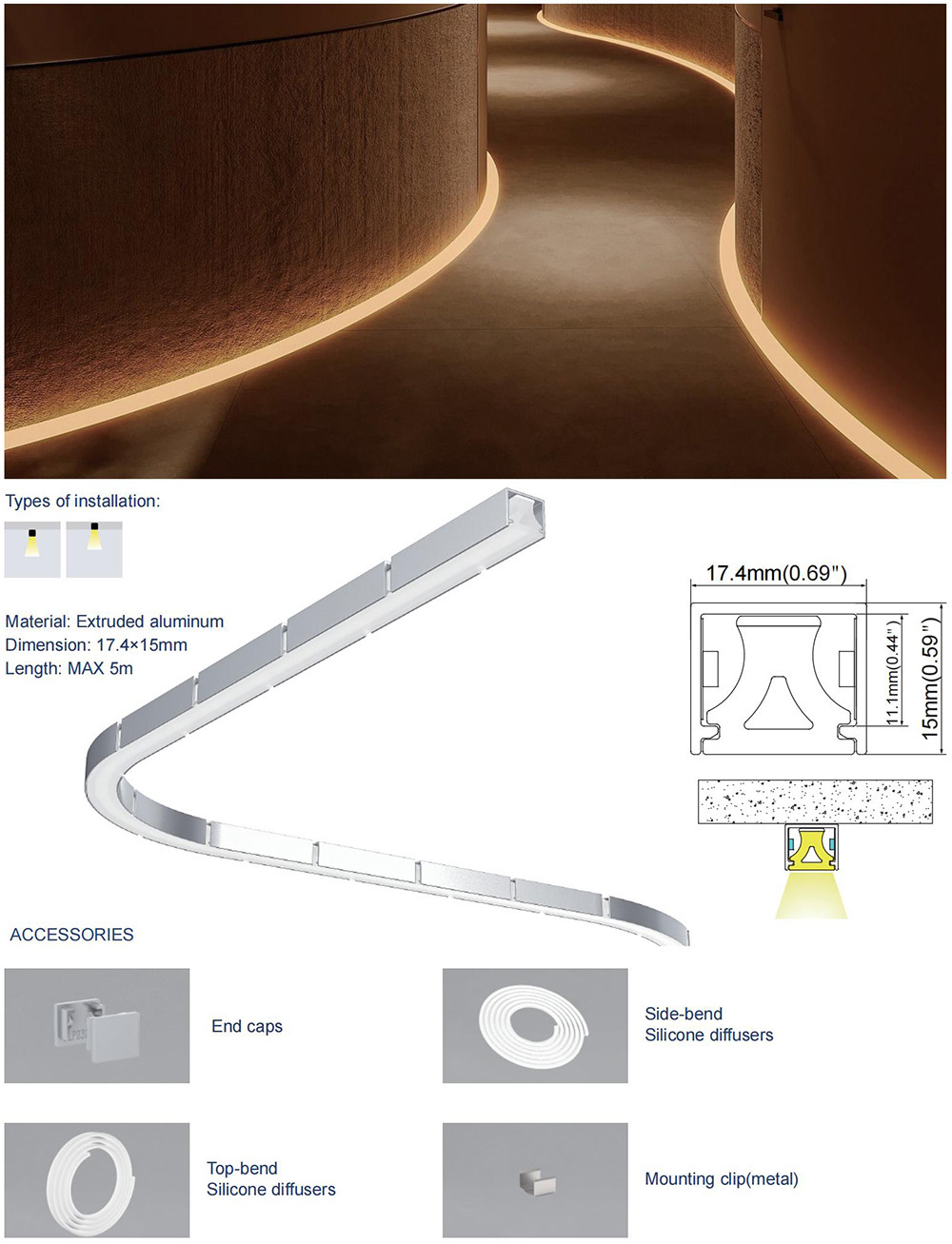

The LB234-C is a bendable, slim aluminum LED channel designed for modern architectural lighting. There are side-bendable and up-and-down bendable products available. The mini size allows them to be installed in a limited space. The bendable structure allows smooth integration into curved ceilings, rounded wall edges, cove lighting, furniture contours, retail displays, pathway edges, and more. Ideal for creating seamless curved lighting installations. The silicone diffuser covers are made of high-quality materials, feature perfect light distribution and anti-yellowing properties, and diffuse the lighting evenly and smoothly, without harshness. You can use them to create cozy accent lighting. The maximum length of the silicone diffusers is 20 meters per roll, which allows for a continuous, glare-free light output. The aluminum channels are made from high-quality extruded aluminum material and feature anodized surface treatment for enhanced durability. Standard lengths are 1 m and 2 m, with custom lengths also supported. The end caps and metal clips are included to make installation simple and versatile.
Features:
- Model: LB234-C
- Material: Extruded aluminum
- Surface treatment: Anodized
- Color: Silver

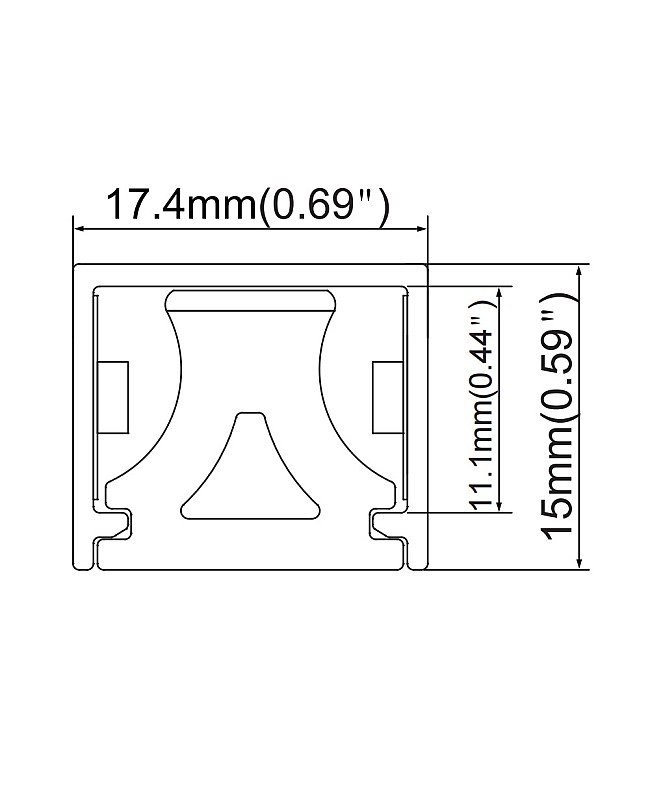

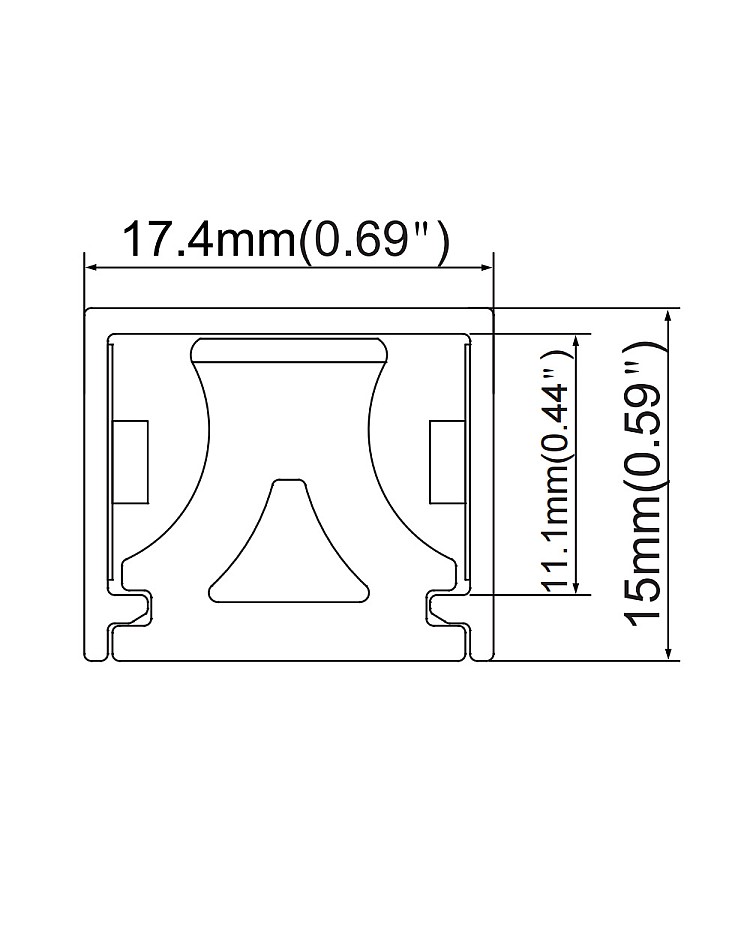

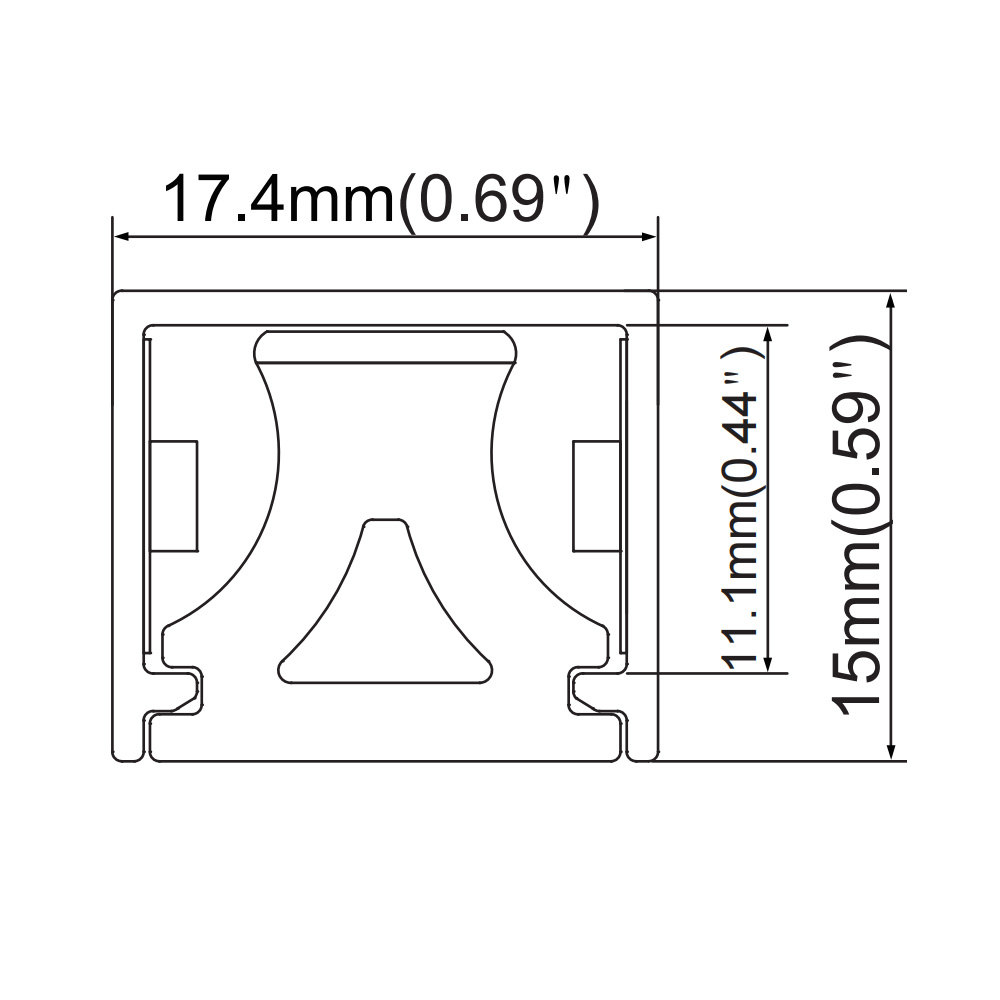

- Size ( W x H ): 17.4 mm x 15 mm ( 0.69" x 0.59" )
- Lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 11.1 mm ( 0.44" )
- Maximum LED strip width: 8 mm ( 0.31" )( side-bendable ) / 10 mm ( 0.39" ) ( up-down bendable )
- Maximum power: 10W/m ( side-bendable ) / 15W/m ( up-down bendable)
- Diffusers: Silicone diffused cover ( Maximum length: 20 meters/roll)

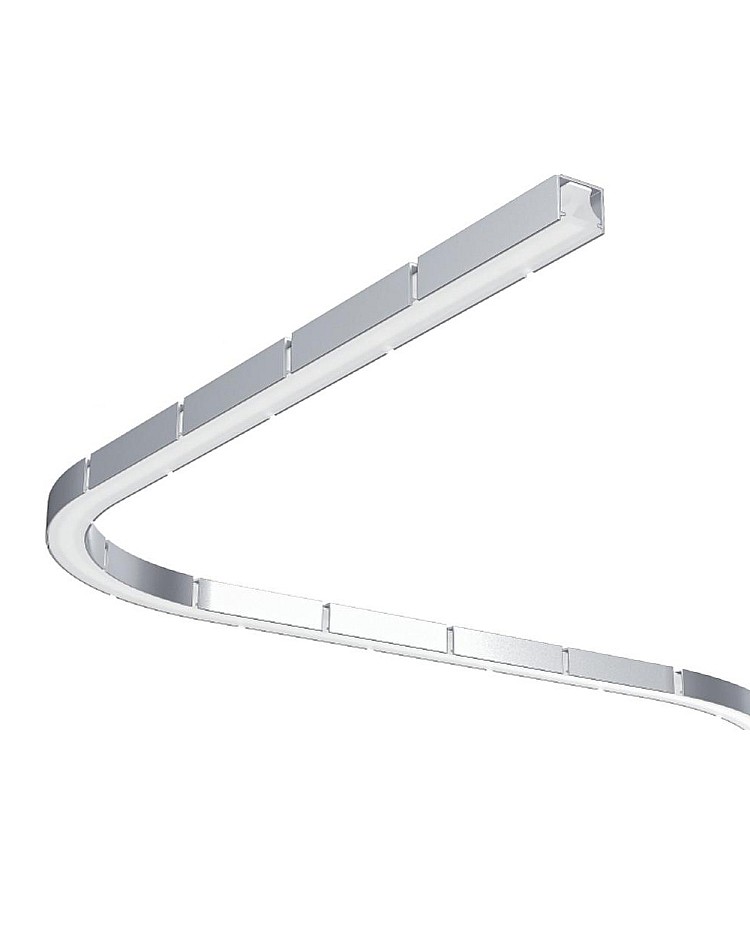

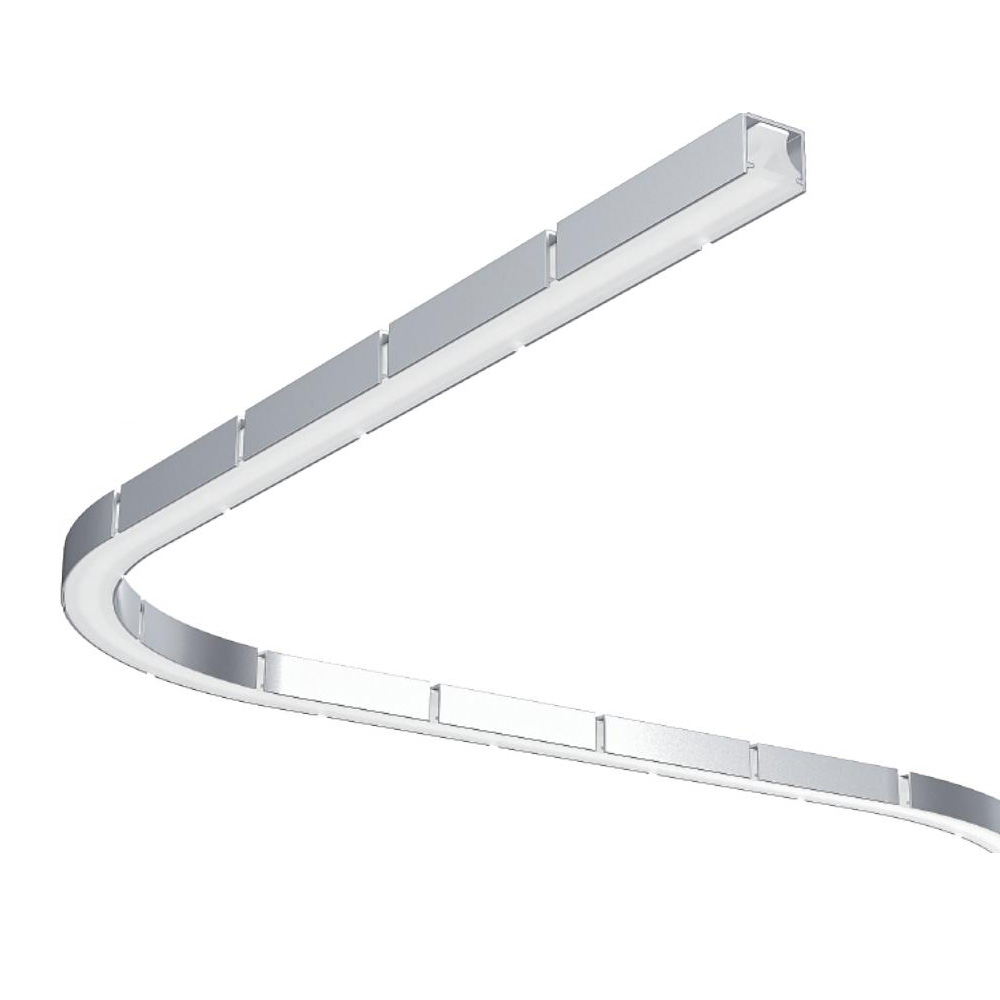

- Bendable Type: Side bendable or up-down bendable
- End caps and metal clips are included

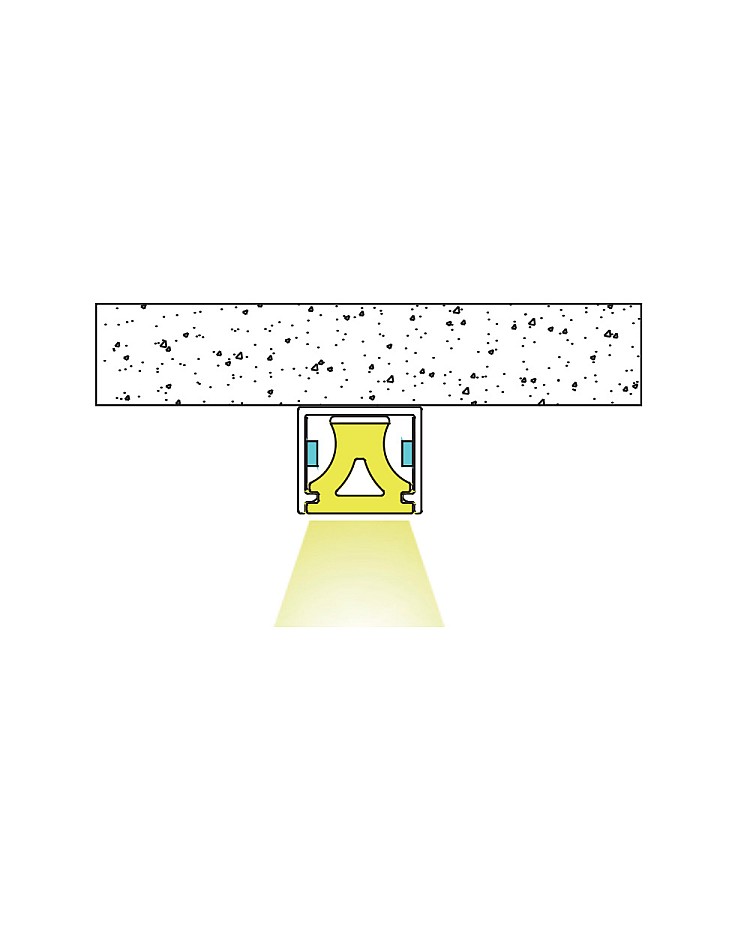

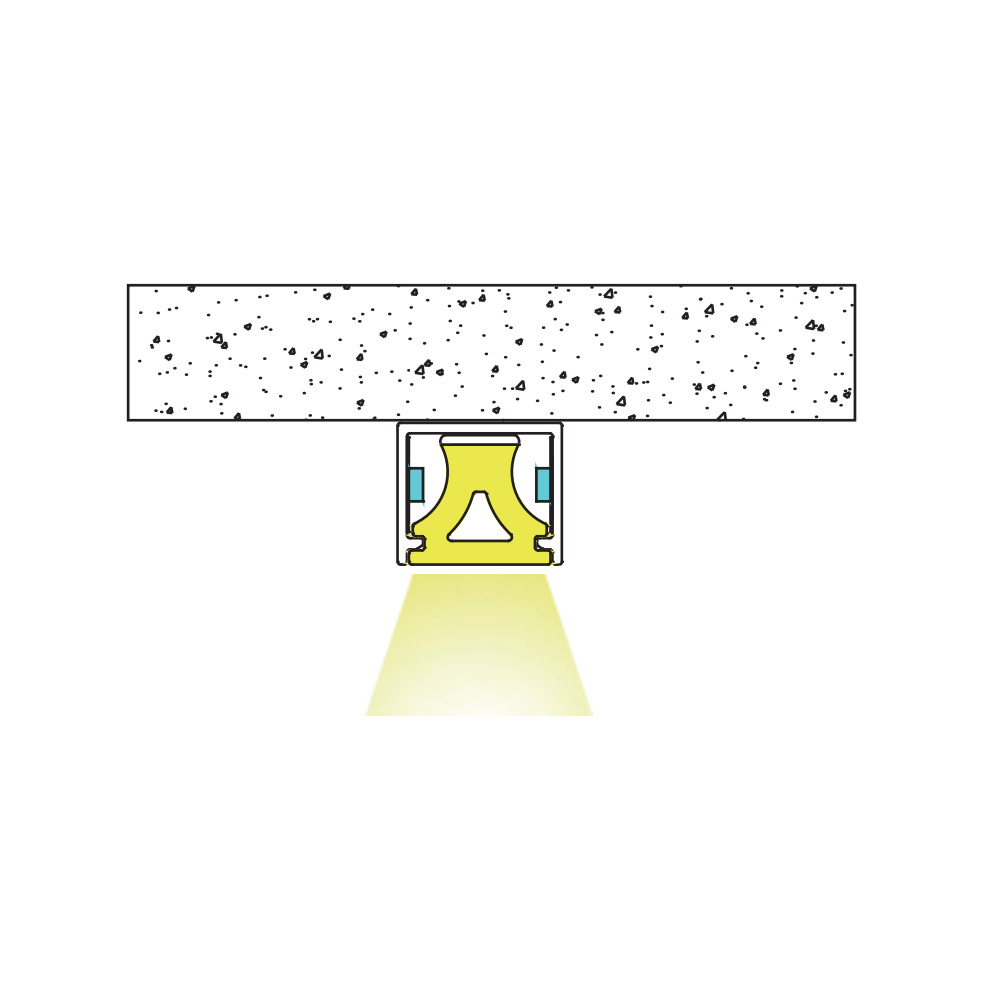

- Installation methods: surface-mounted or recessed
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:

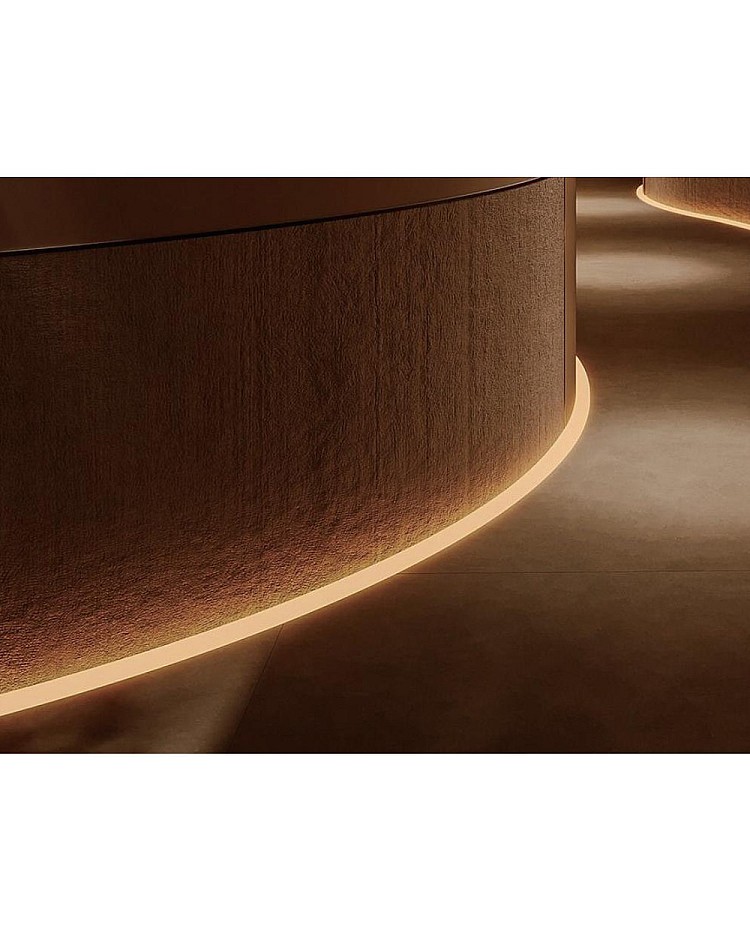

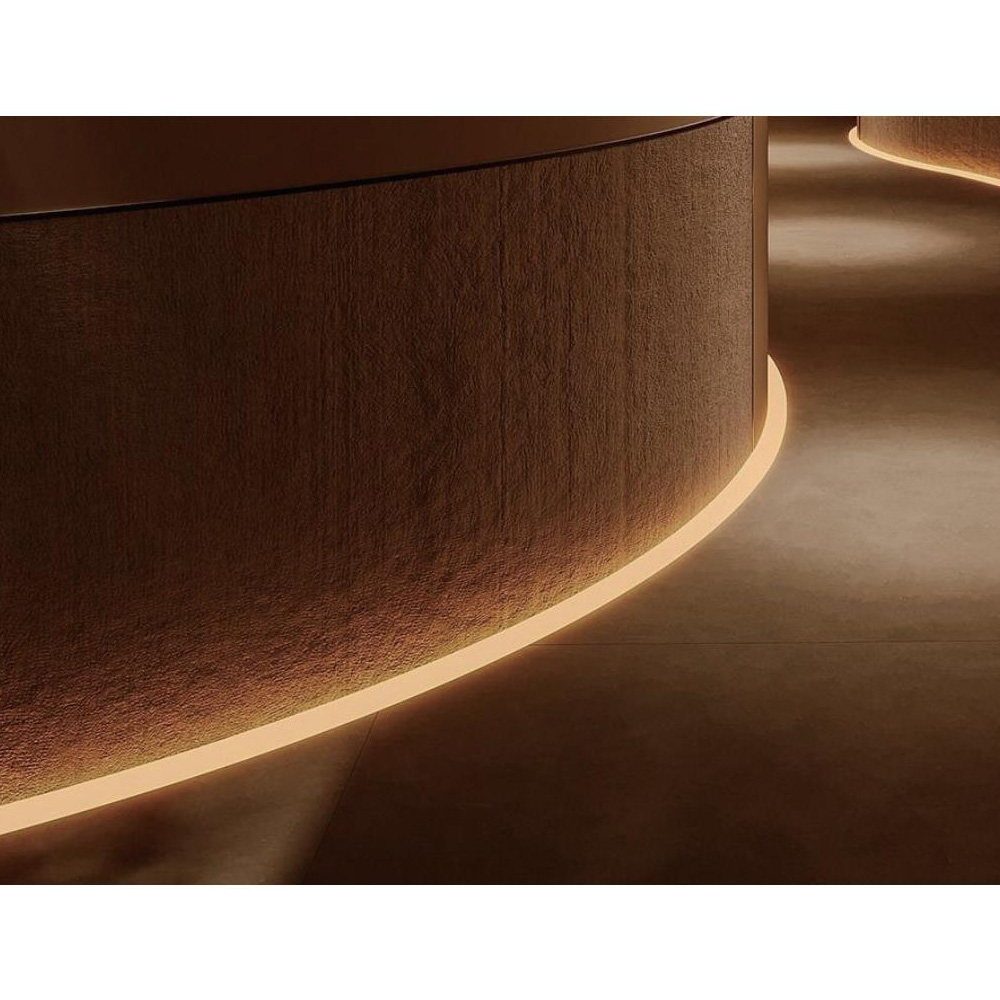

- Curved ceilings and walls: Ideal for recessed or surface mounting along curved edges or irregular shapes.
- False ceiling/cove lighting: Seamless follows curved or wave-like ceiling design.
- Hallways and corridors: Guide lighting that enhances architectural flow.
- Furniture integration: Install curved furniture edges, reception desks, bars, or counters.
- Stage and event lighting: Flexible designs for creative outlines.
- Hotels, restaurants, and lounges: Accent lighting to create ambiance in curved spaces.
Includes:
1 x Slim flexible LED channel
1 x silicone diffuser
End caps
Metal clips
