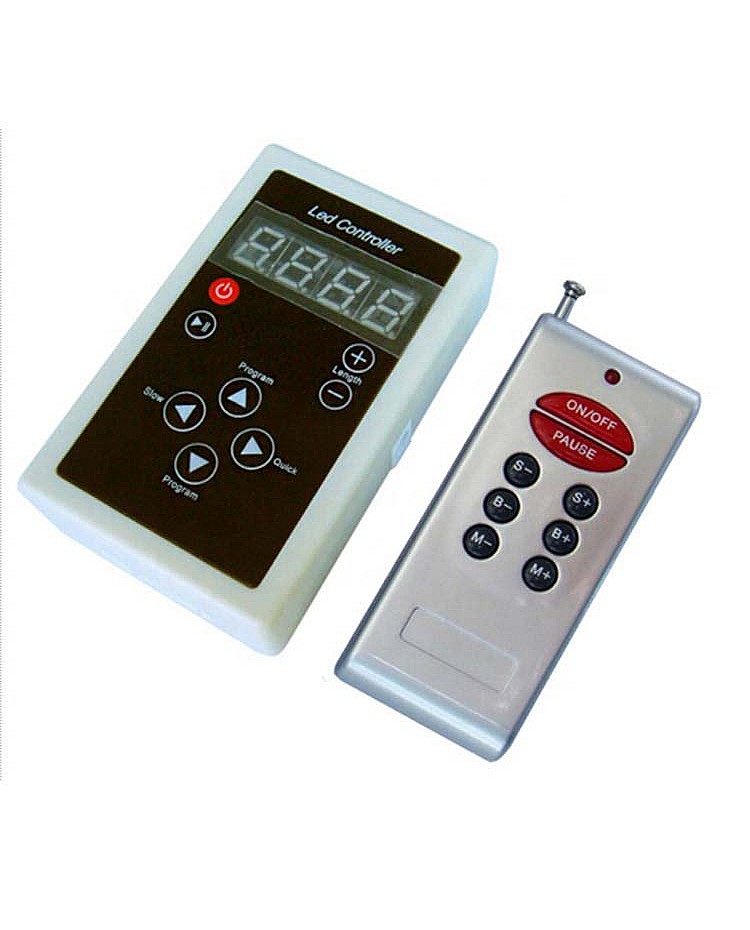

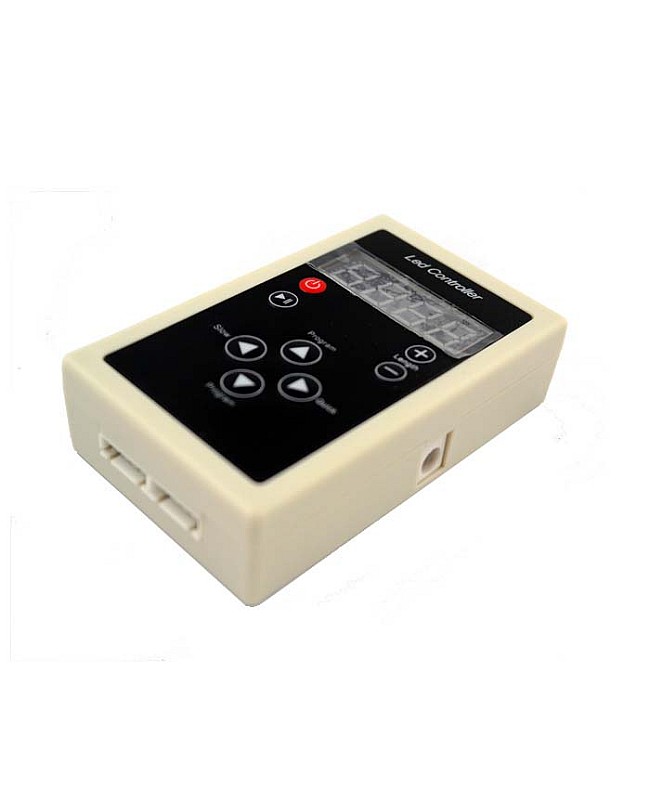

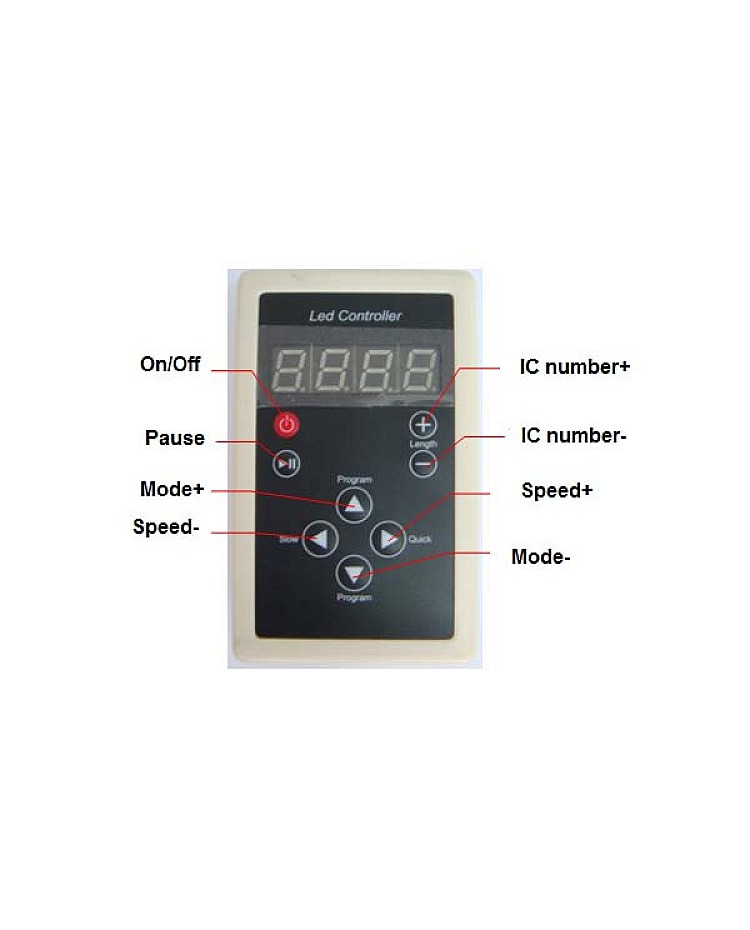

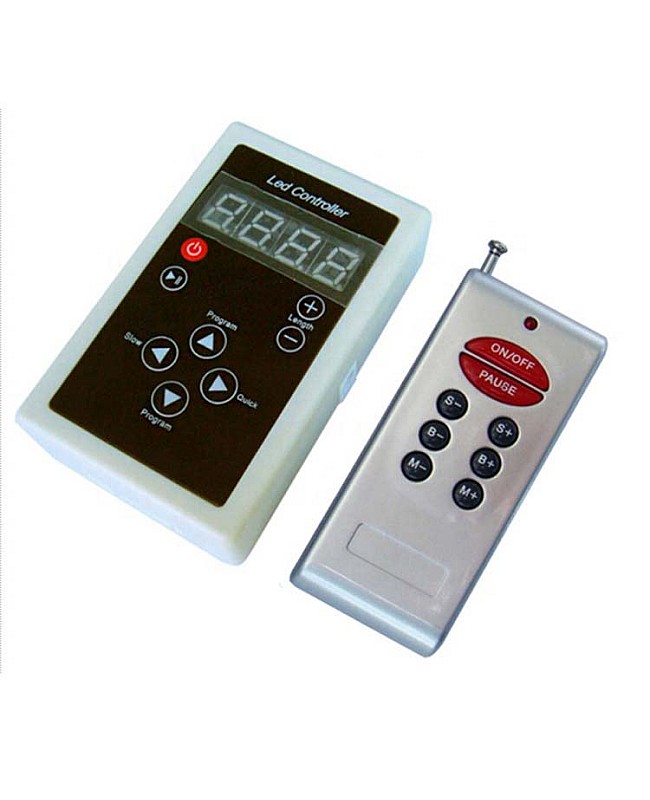

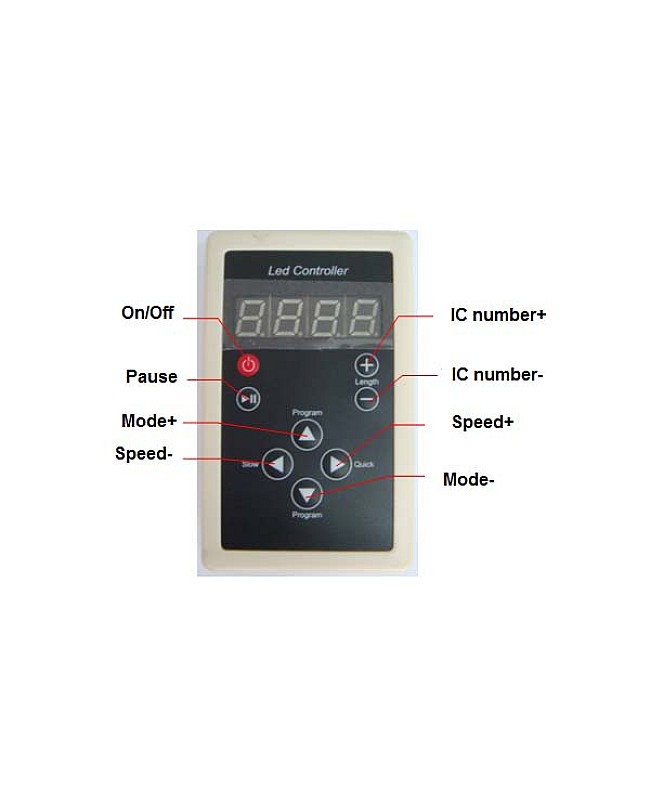

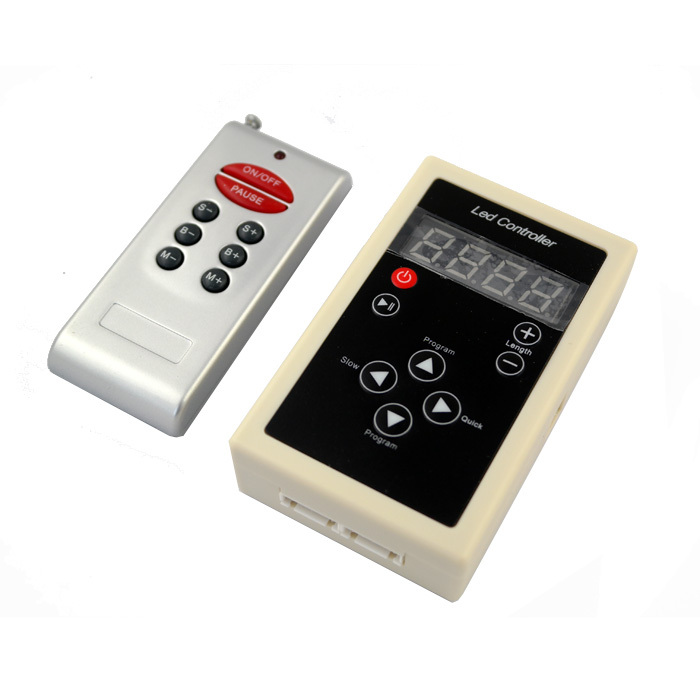

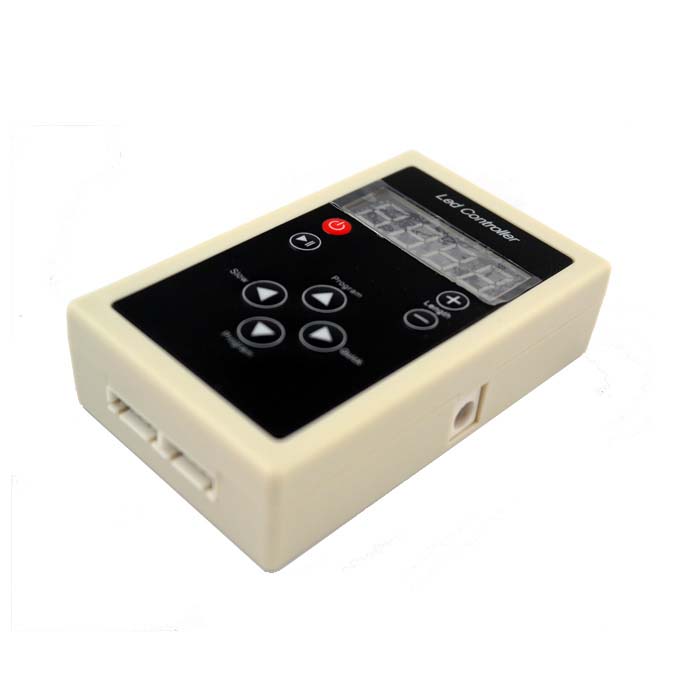

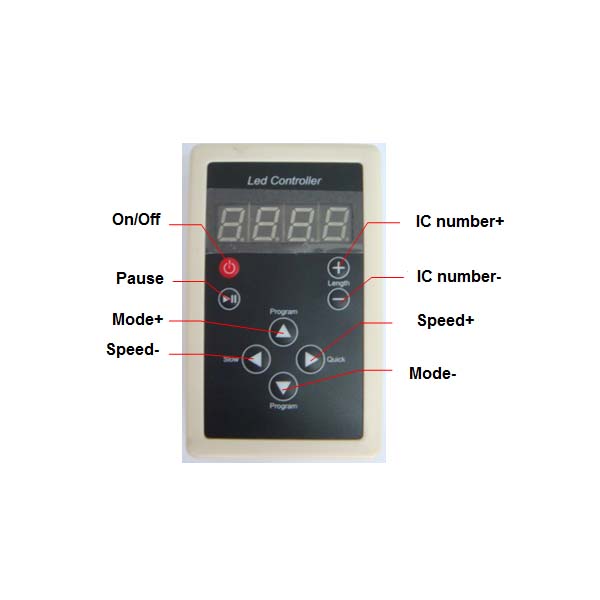

The addressable LED controllers are designed for products that use the LPD series, UCS series, TM series, and WS series (LPD6803/UCS1903/TM1804/TM1809/TM1812/WS2811/WS2801) ICs as the driver, which is very useful for lightbox advertisements, stage lights, house decorations, etc. The constant voltage digital LED controller operates between DC 12V and DC 24V, with a memory function; each time it powers on, it retains the mode it was stopped in at the last power-off. Digital LED strip controller with eight physical keys, allowing you to turn the LED light on or off, adjust the controlled IC numbers, switch between working modes, and adjust the speed of lighting effects. The eight-key RF remote control is included. You can use it to turn on/off, select the dynamic lighting pattern, or adjust the brightness or color-changing speed. There are 133 modes in total; the 132nd mode is the auto-cycle, which runs from 1st to 131st, and the 133rd mode is the DIY mode. With two groups of SPI signal output, each group drives at most 2048 pixels.
Specifications:
- Item NO: HX-SPI-RF8K
- Manufacturer: Hoion
- Working Temperature: -20-60℃
- Size: 95*58*25mm(L*W*H)
- Working Voltage: DC12V-24V
- Static Power Consumption: <0.4W
- Gray Scale: 256 Levels(1903, 2801), 32 Levels(6803)
- Memory Function: YES
- Effects Model: YES
- Maximum Control Points: 1024(Low-Speed) Points 2048(High-Speed) Points

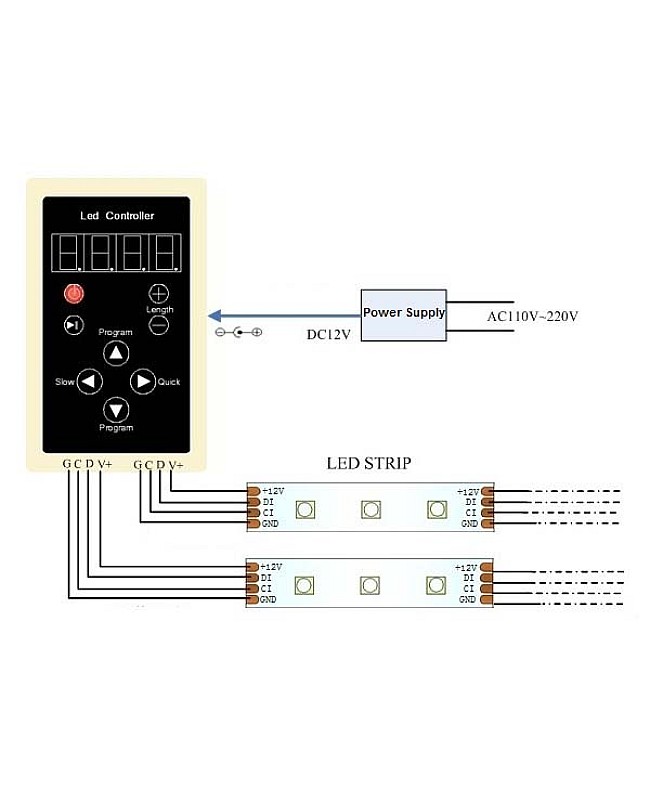

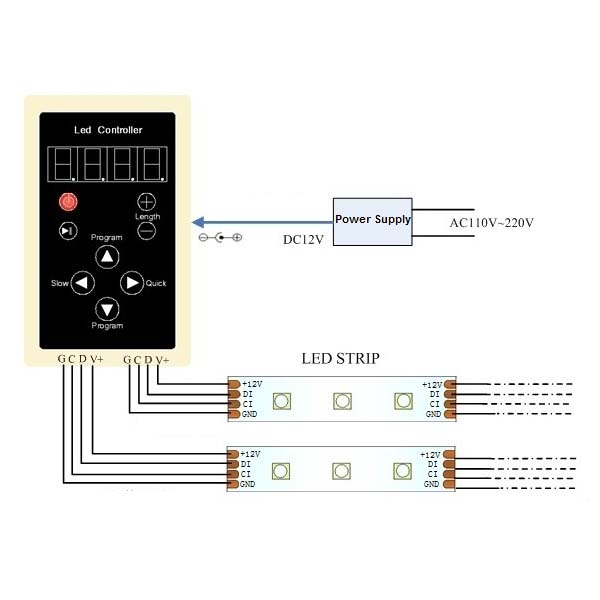

- Output: 2 Groups SPI Signal
- Controlled IC Model: LPD 6803, UCS 1903, WS2801

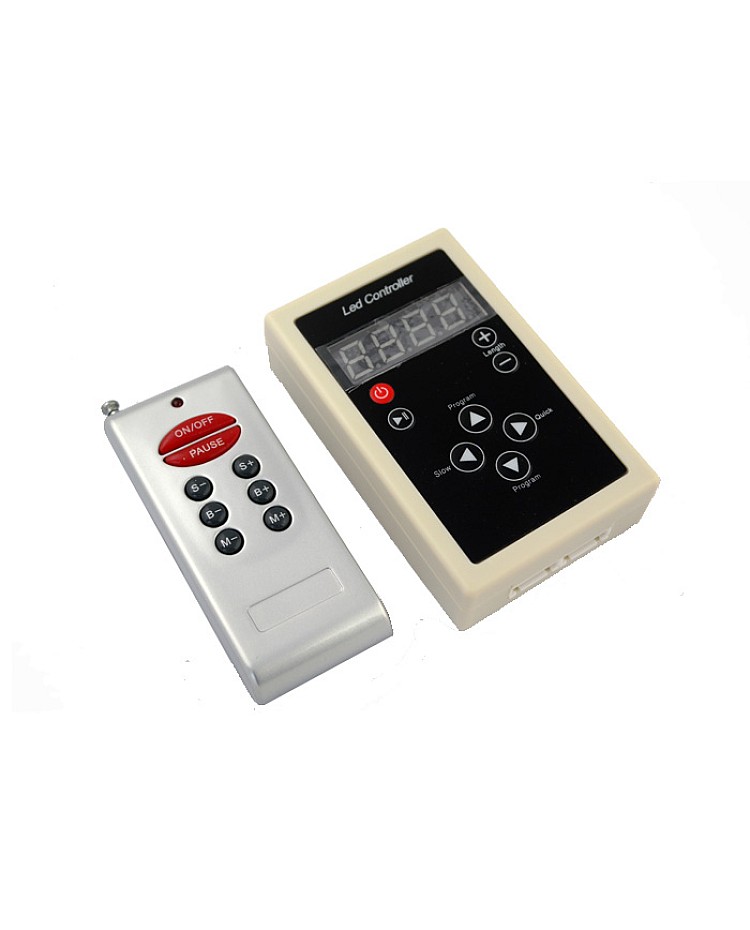

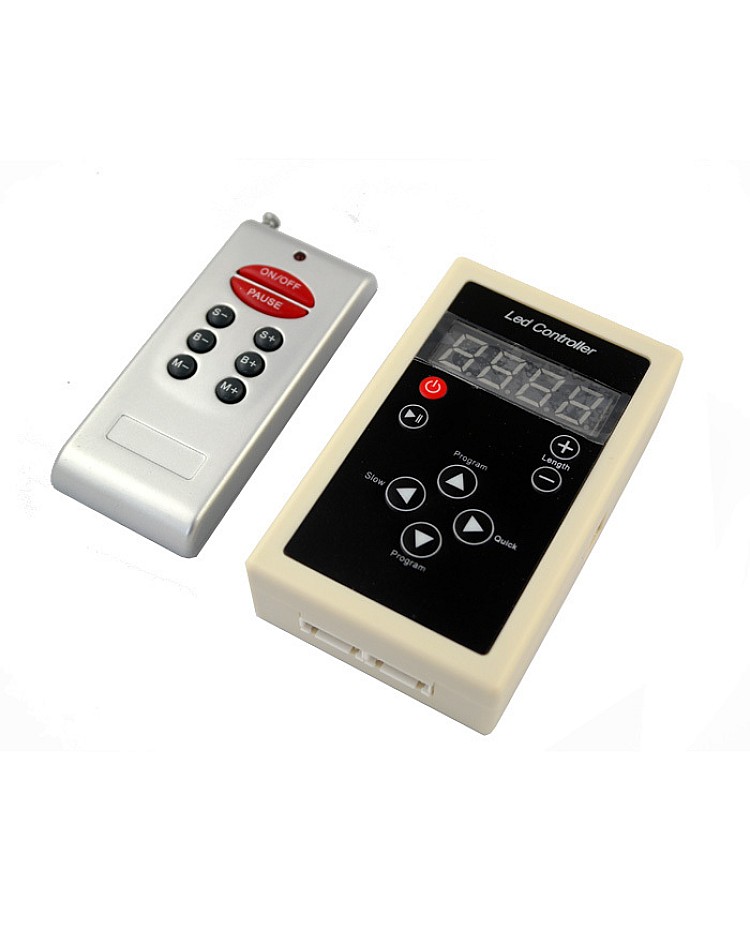

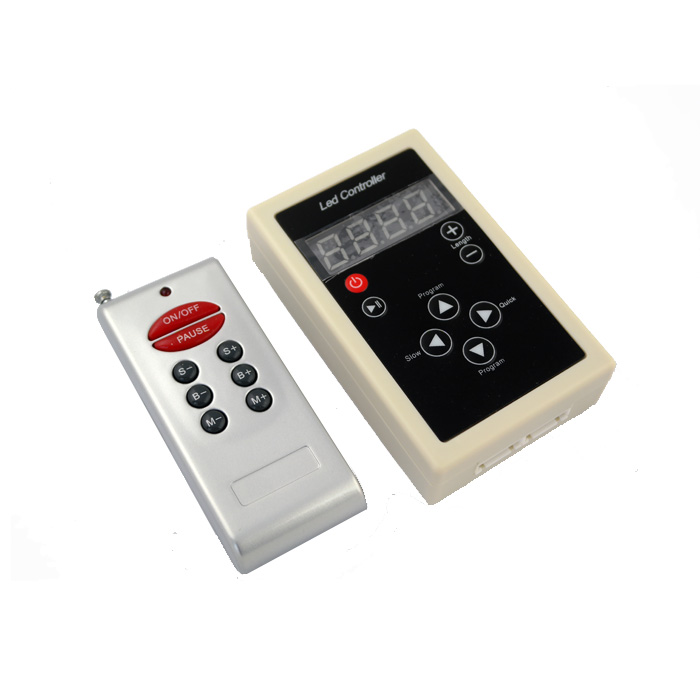

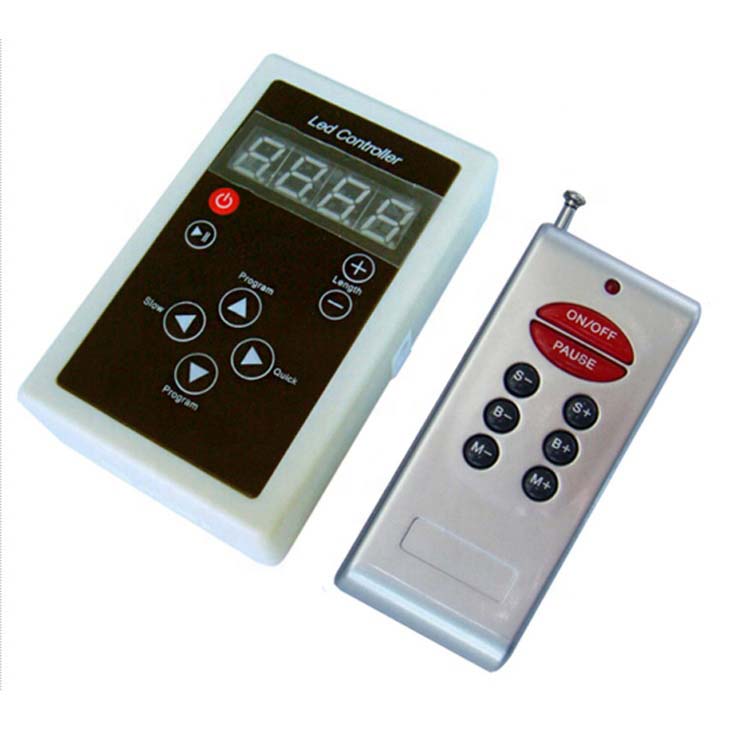

- 8 Keys RF LED Remote Included

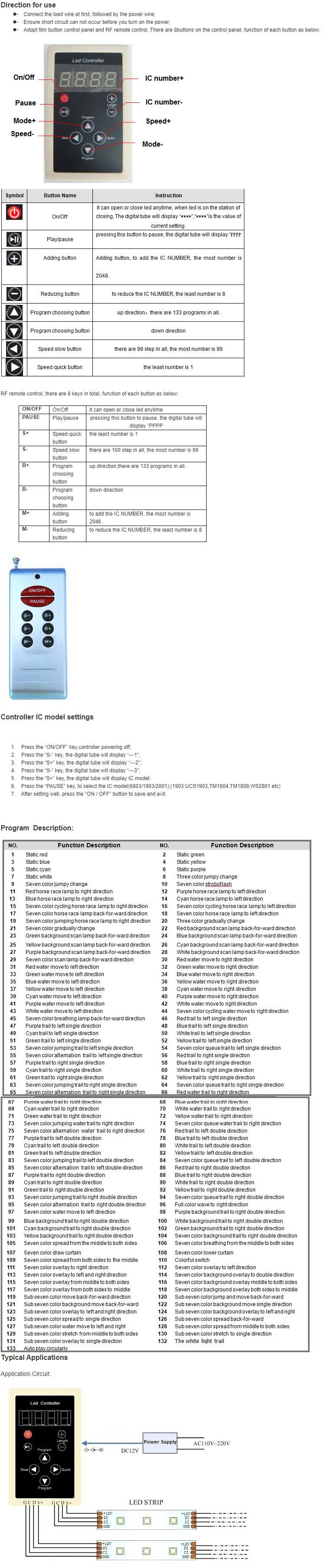

- 133 Modes In Total, 132nd Mode Is The Auto-Cycle Running From 1st To 131st. The 133rd mode is the DIY Mode.
- Weight: 200g
- 2 Years Warranty
Package:
1 * WS2811 RGB LED Controller
