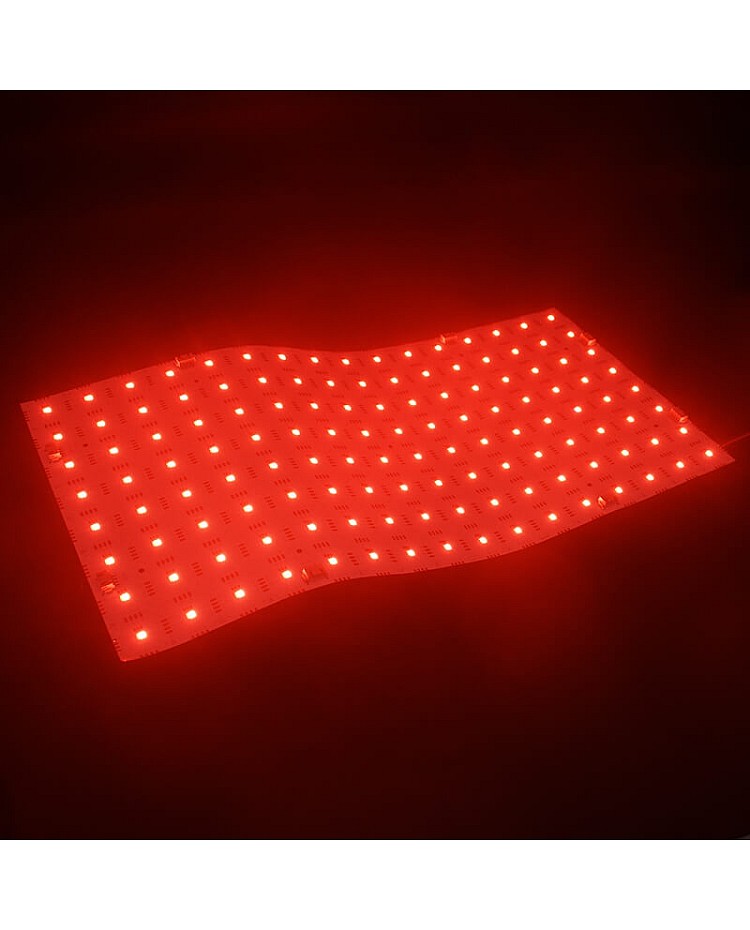

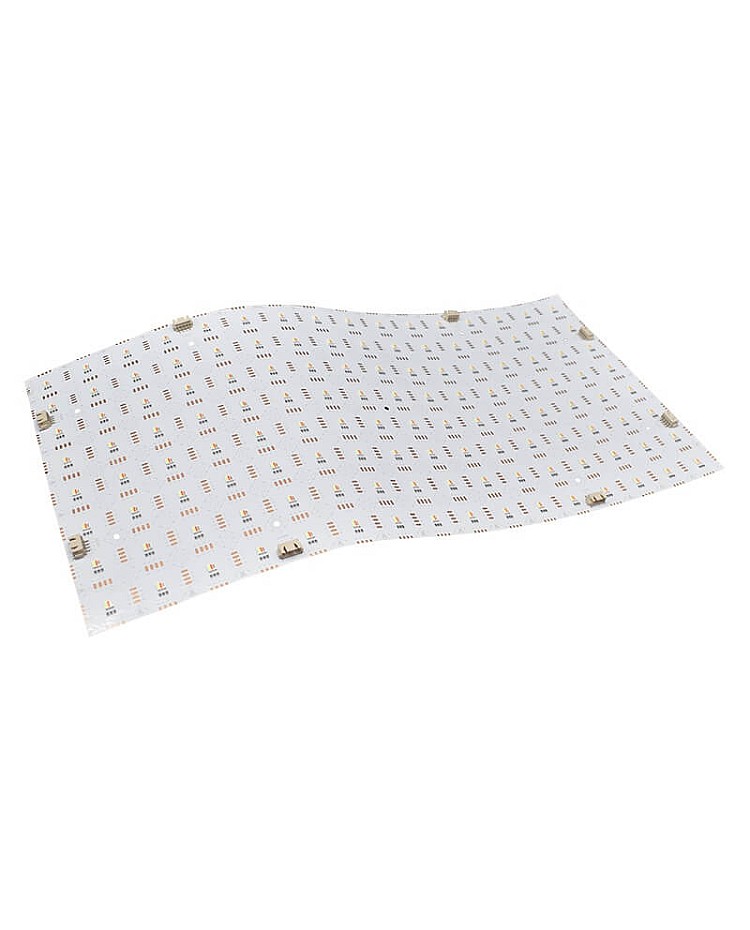

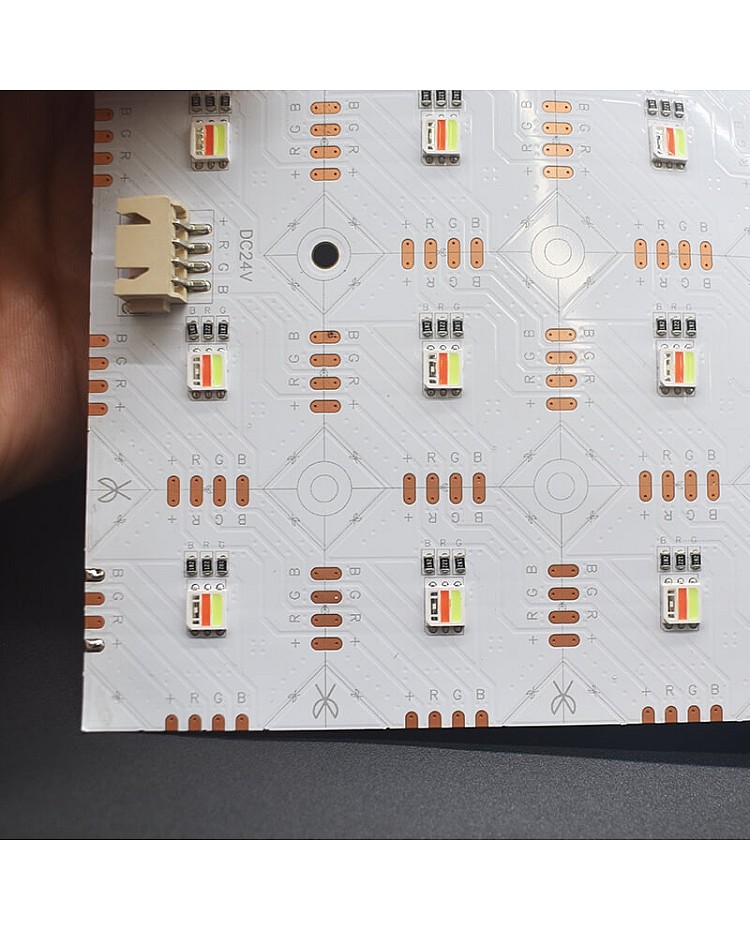

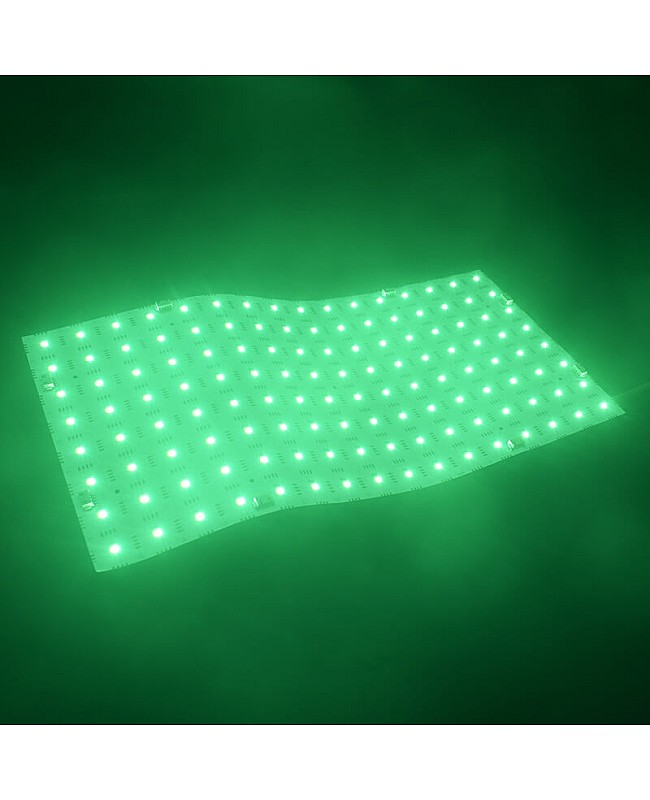

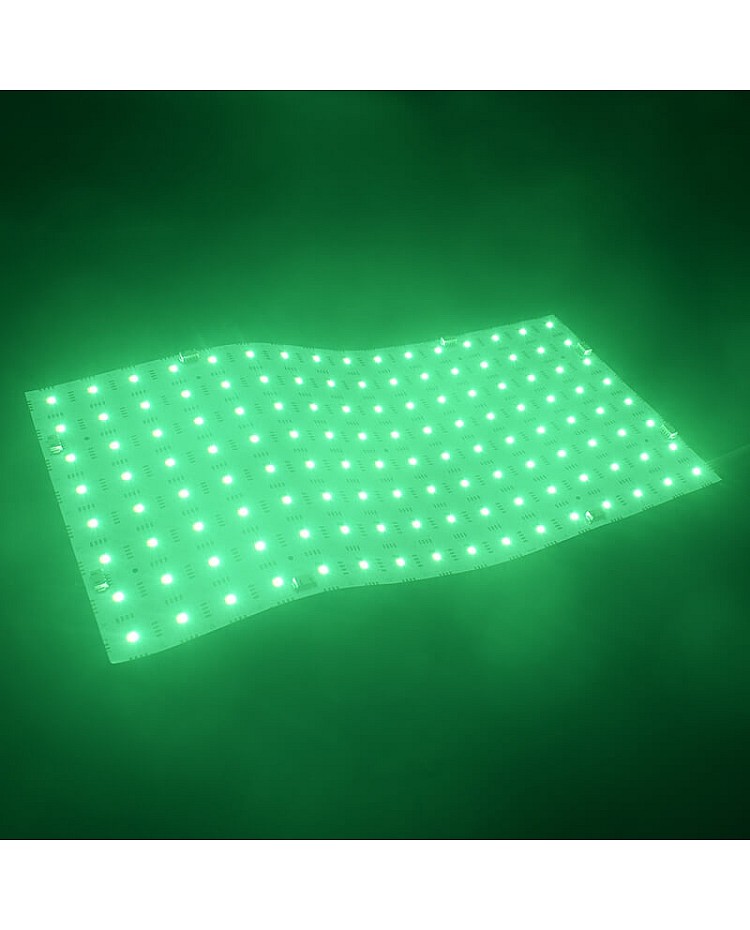

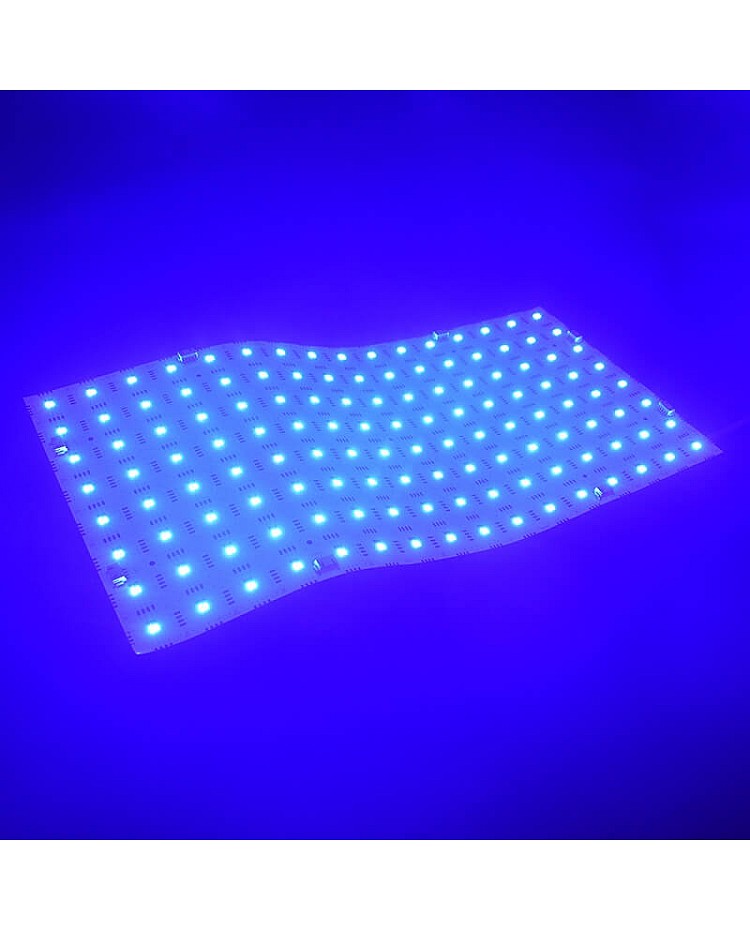

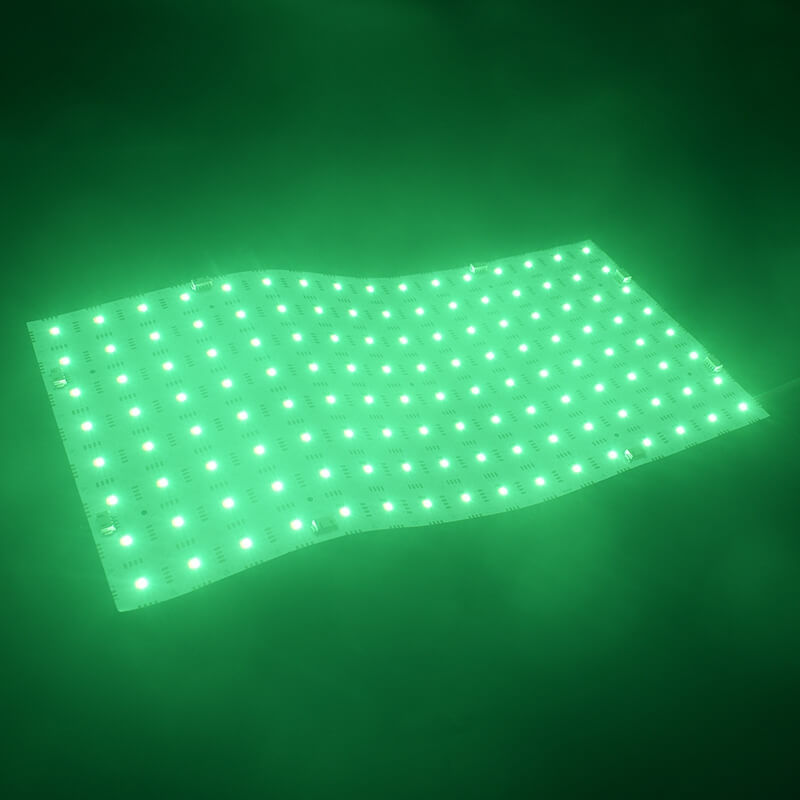

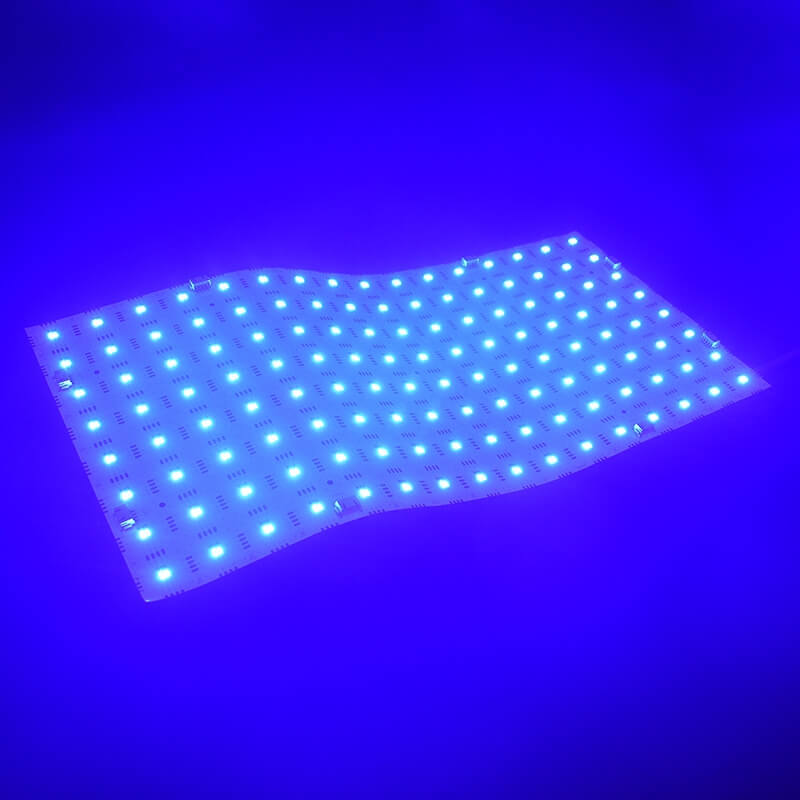

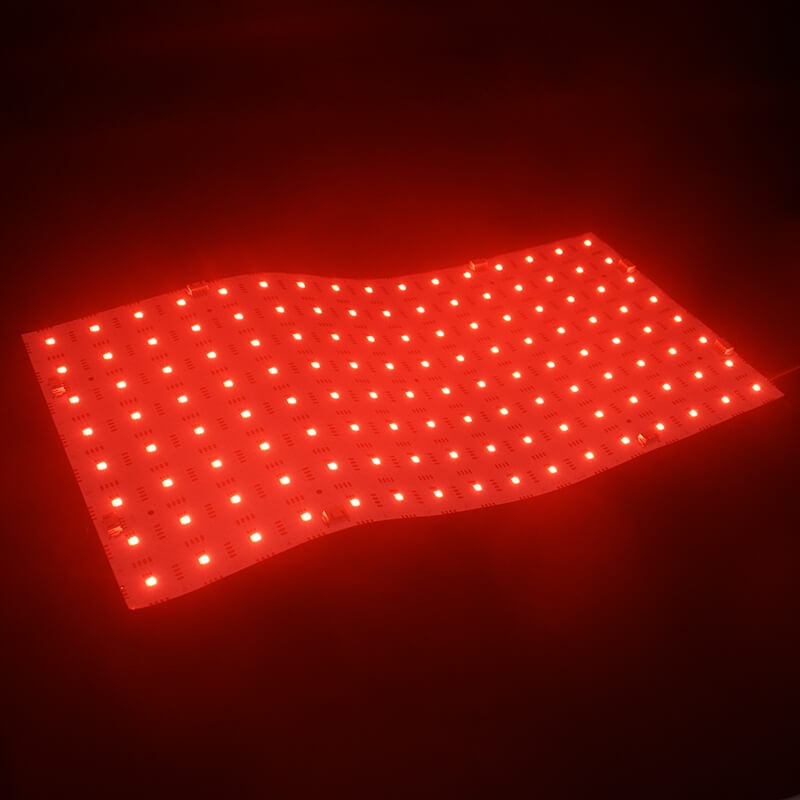

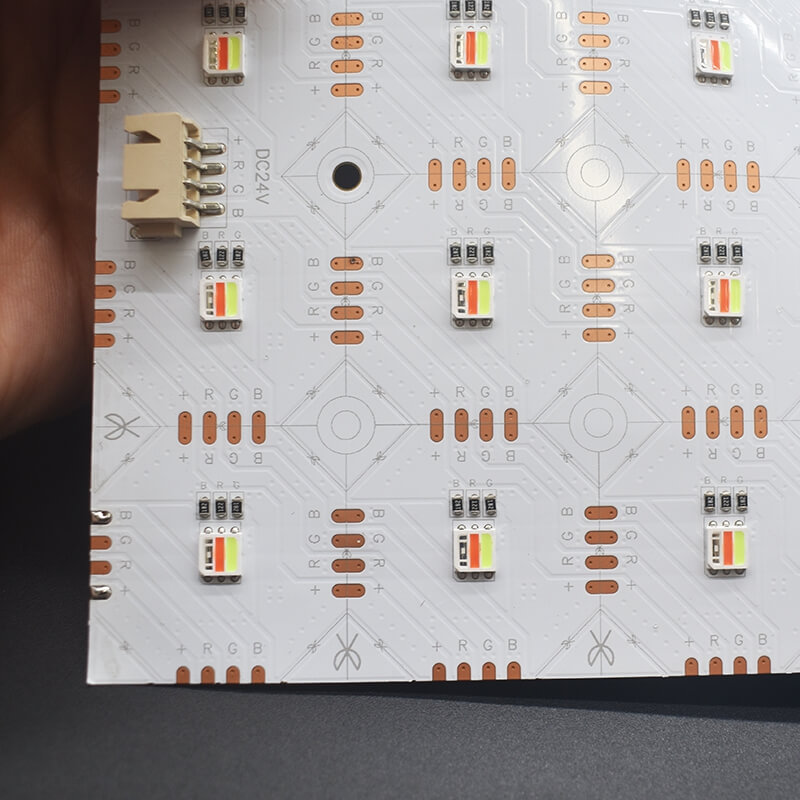

The color-changing RGB LED panel sheets feature an ultra-thin design and utilize high-quality 5050 RGB SMD LEDs as their light source. The LEDs are uniformly laid out on a dual-layer flexible PCB, enabling uniform brightness and allowing for setting various colors or dynamic modes.

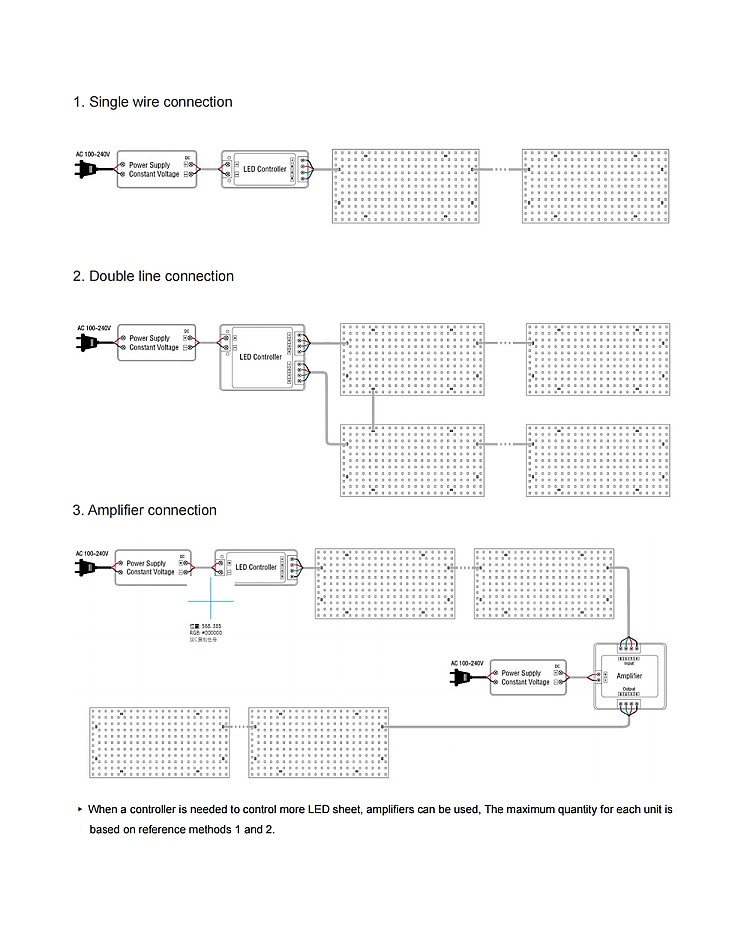

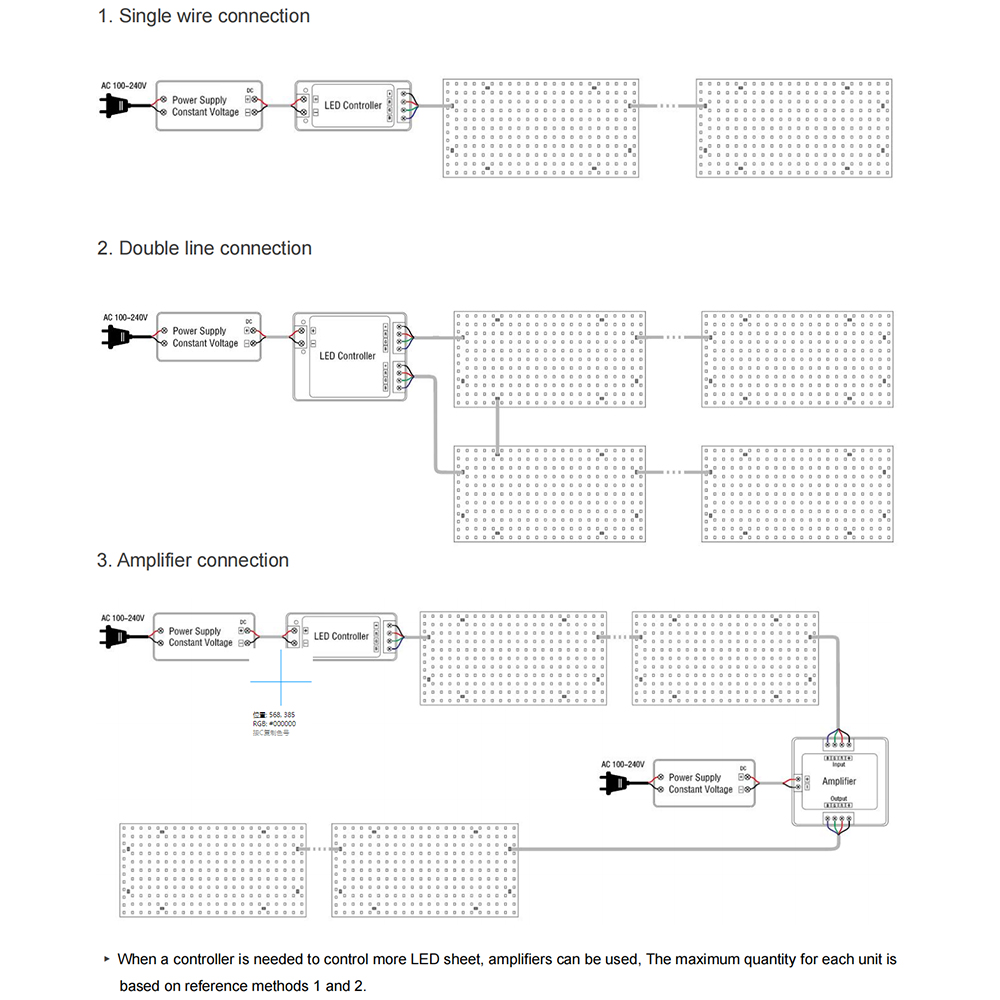

The sheet lights are cuttable and feature multiple LED connectors, making it easy to trim along designated cut lines for a perfect fit. You can connect multiple pieces for large lighting projects, especially for backlighting countertops, signage, advertisement displays, and display boxes. The RGB panel sheet can be used with the RGB LED controller to create dynamic lighting patterns and static colors for different scenes. You can also adjust the speed of dynamic mode or the brightness of a single color.

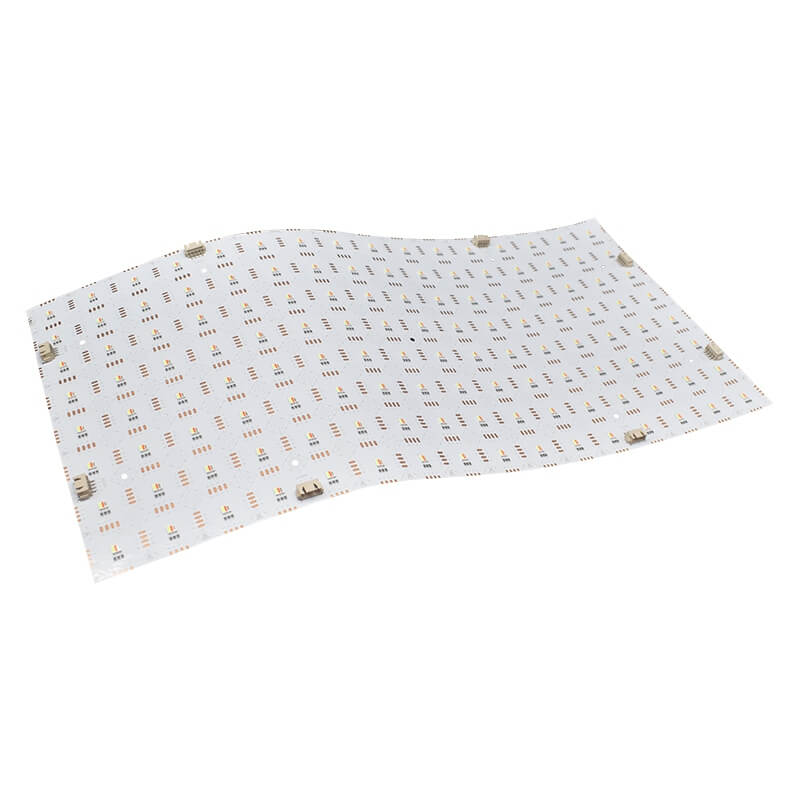

The sheet panels are bendable and cuttable, which allows you to use them for DIY lighting projects. The back has double-sided adhesive tape for easy installation. There are IP20 non-waterproof and IP54 waterproof products available, suitable for both indoor and outdoor use.
Link: RGB LED panel sheet data sheet
Specifications:
- Type: Color-changing LED sheet panels
- Model: LB-299-5050-128

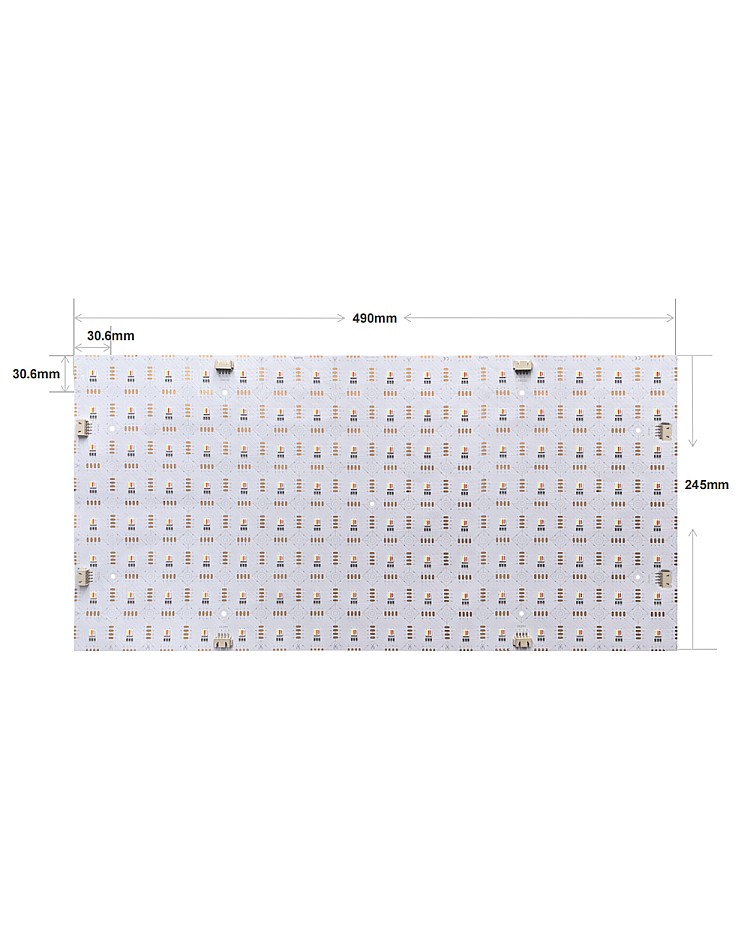

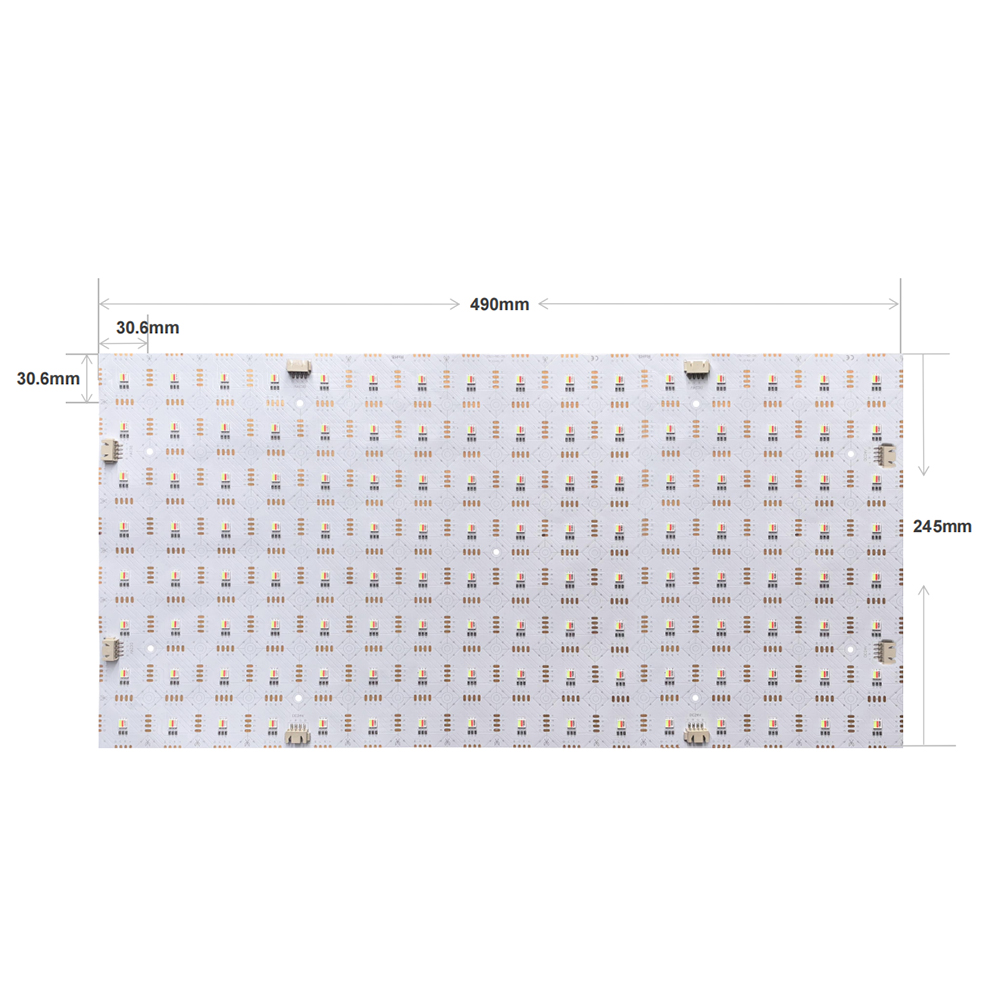

- Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.64" )
- LED type: 5050 3 In 1 RGB SMD LEDs
- LED quantity: 128 pieces
- Working voltage: DC 24V
- Power: 45W
- Color: RGB
- Dimmable: YES
- Cut length: 39.6 mm
- Beam angle: 120°
- Waterproof level: IP20 non-waterproof, IP54 waterproof
- Storage temperature; - 20 ℃ + 65 ℃ ( -4 °F - 113 °F )
- Working temperature: - 20 ℃ + 45 ℃ ( -4 °F - 149 °F )
- UL listed
- Lifespan: >35,000 hours
- Warranty: 3 years

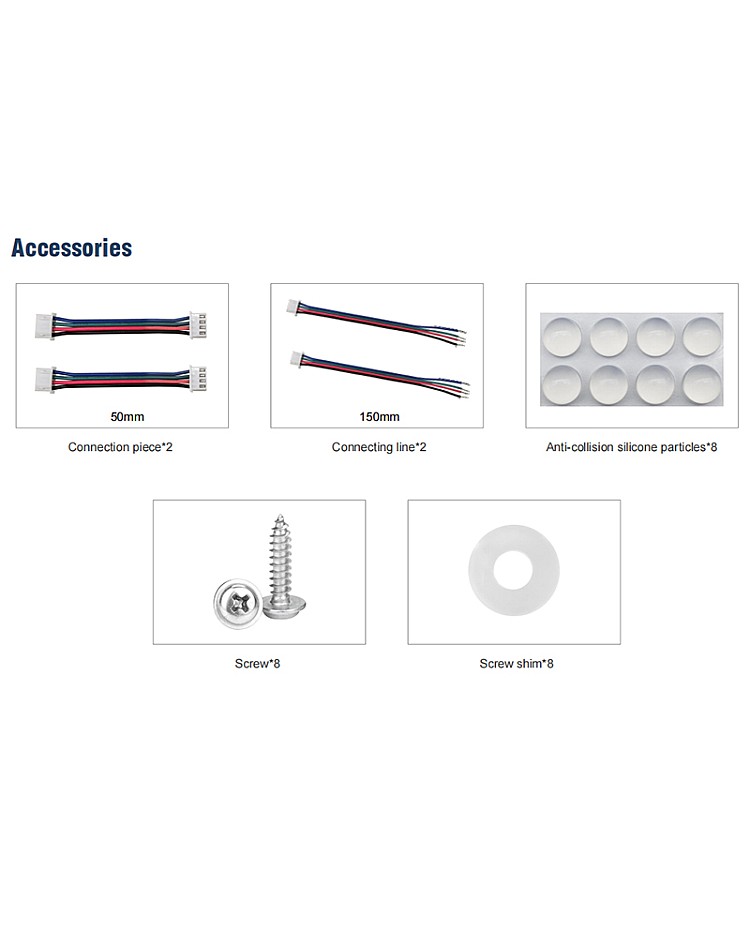

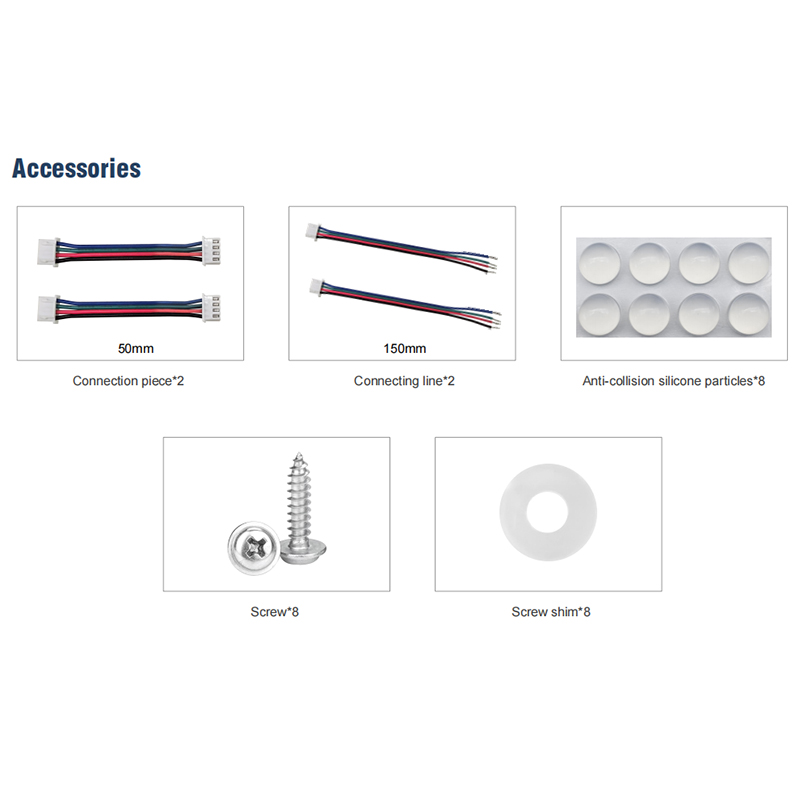

Includes:
1 x RGB LED panel sheet
2 x 4P connection cables
2 x 4P input cables
8 x Anti-collision silicone particles
