In Stock
$13.99
Reward Points: 14
-
+

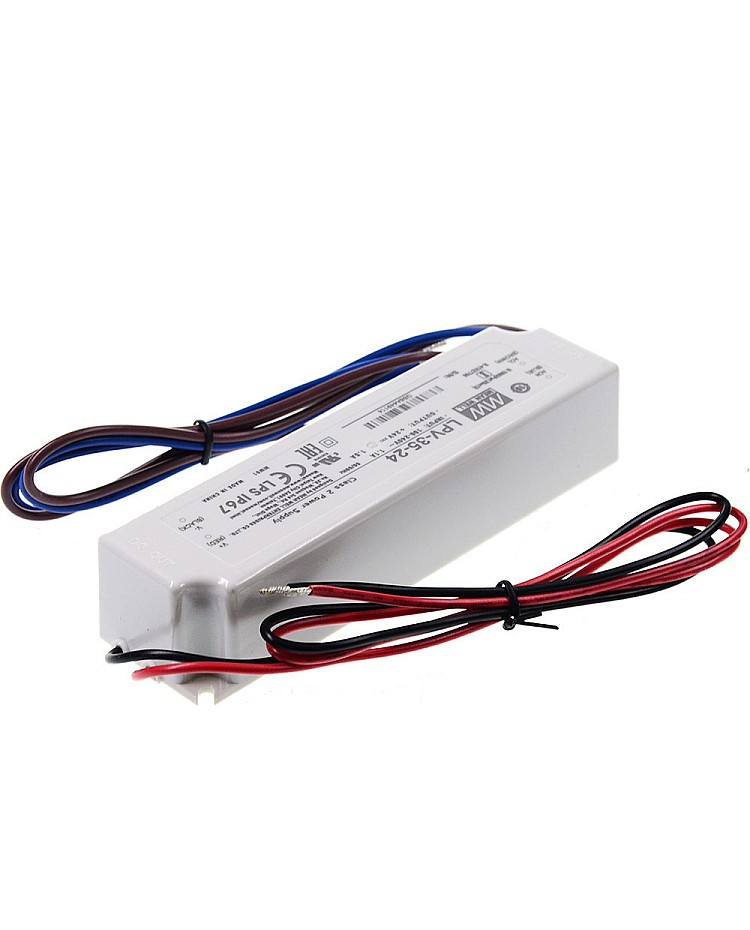

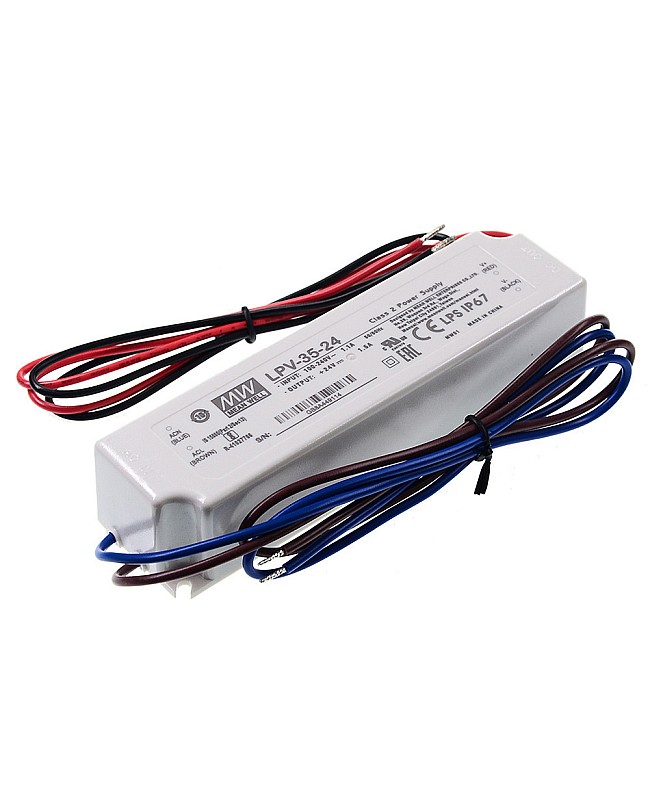

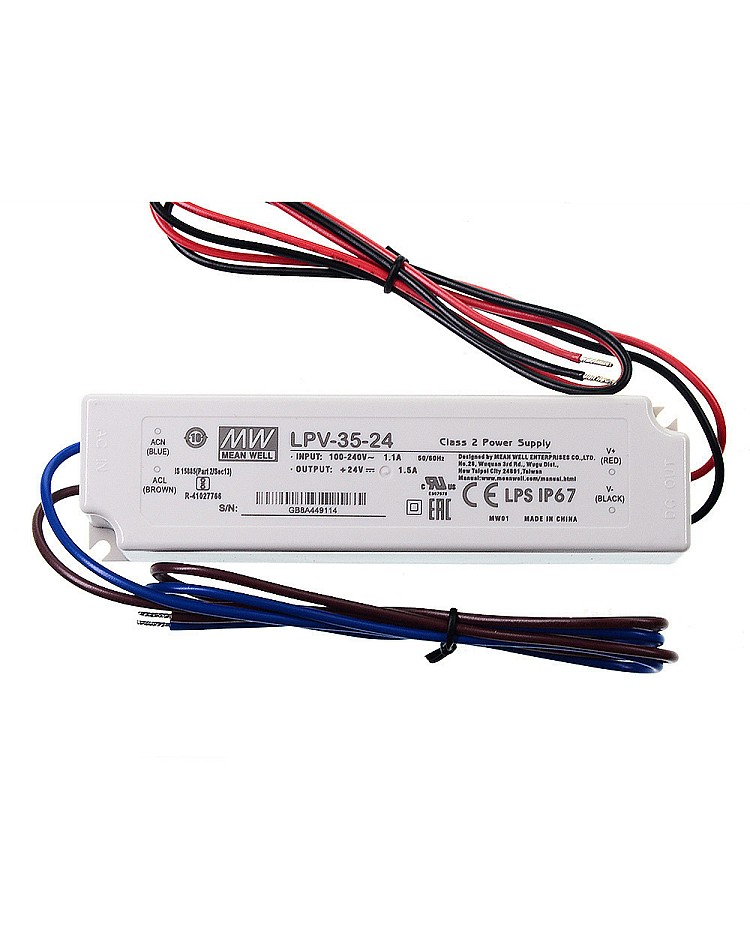

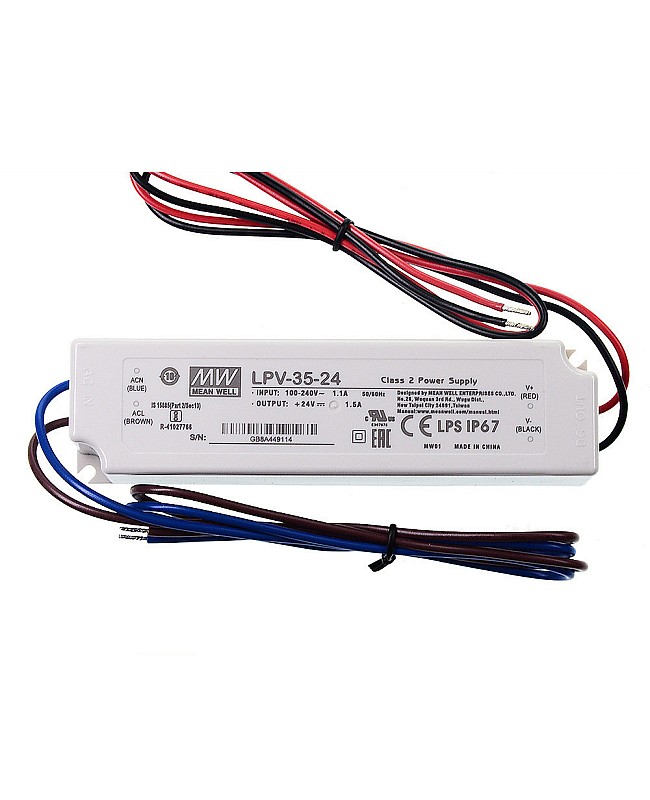

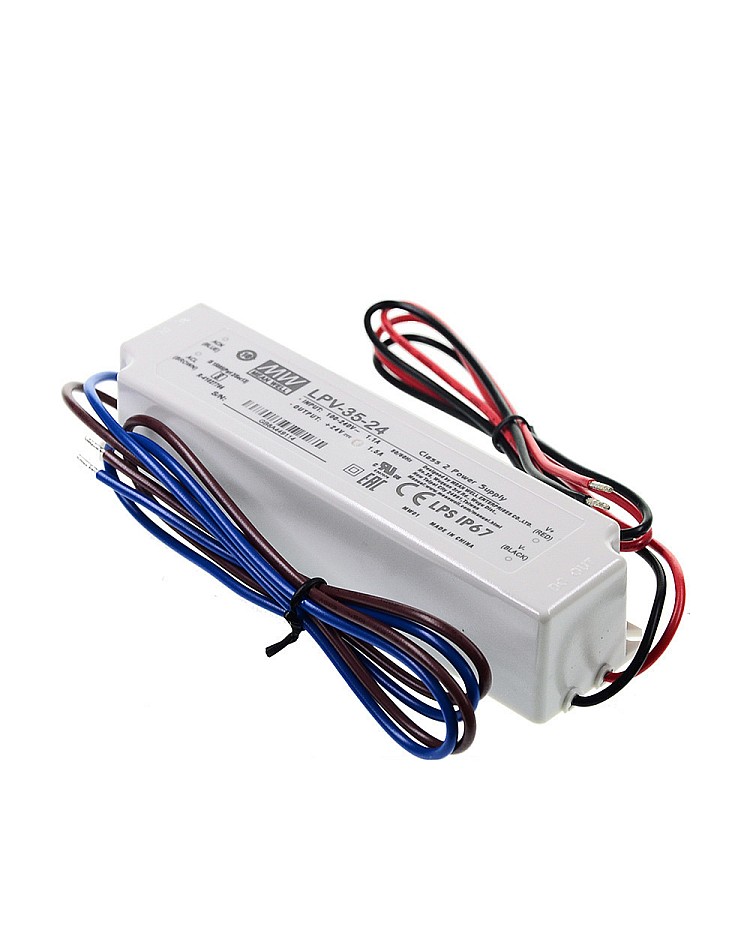

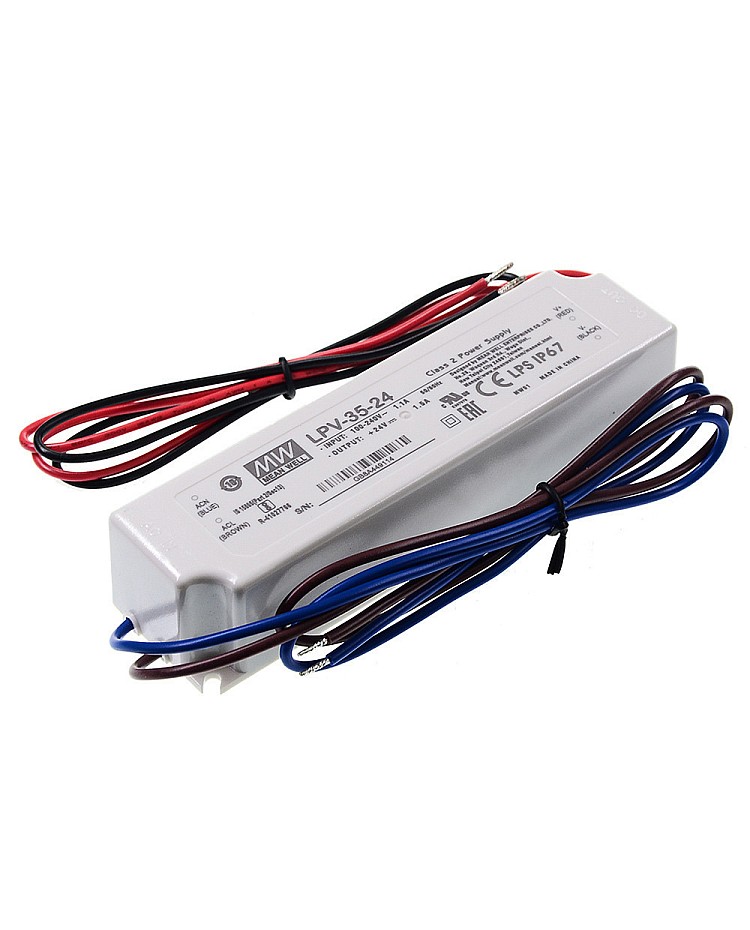

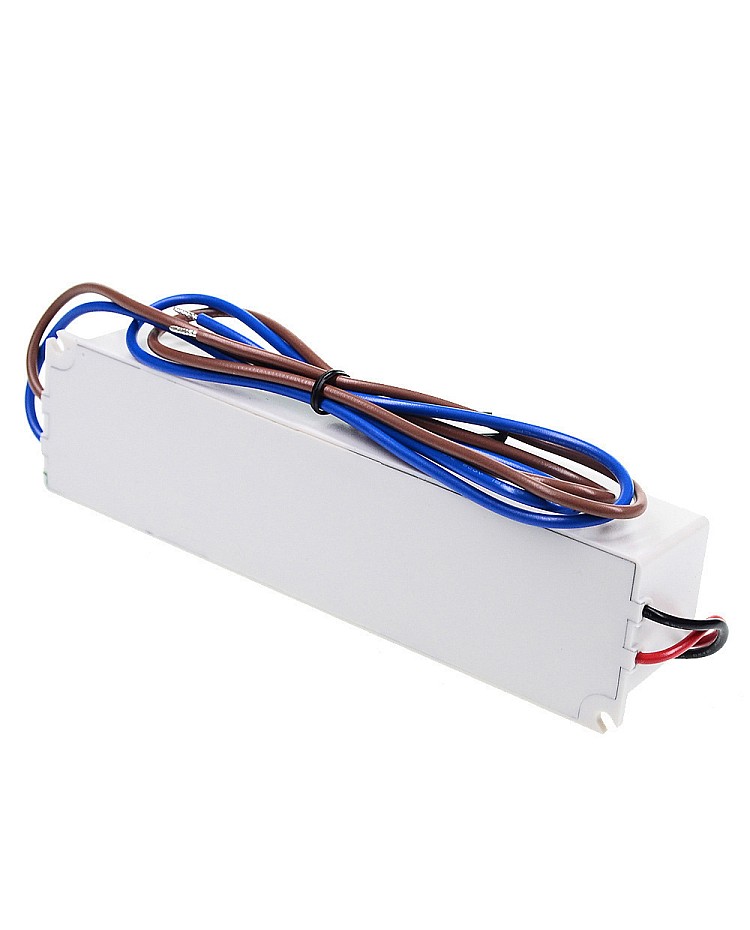

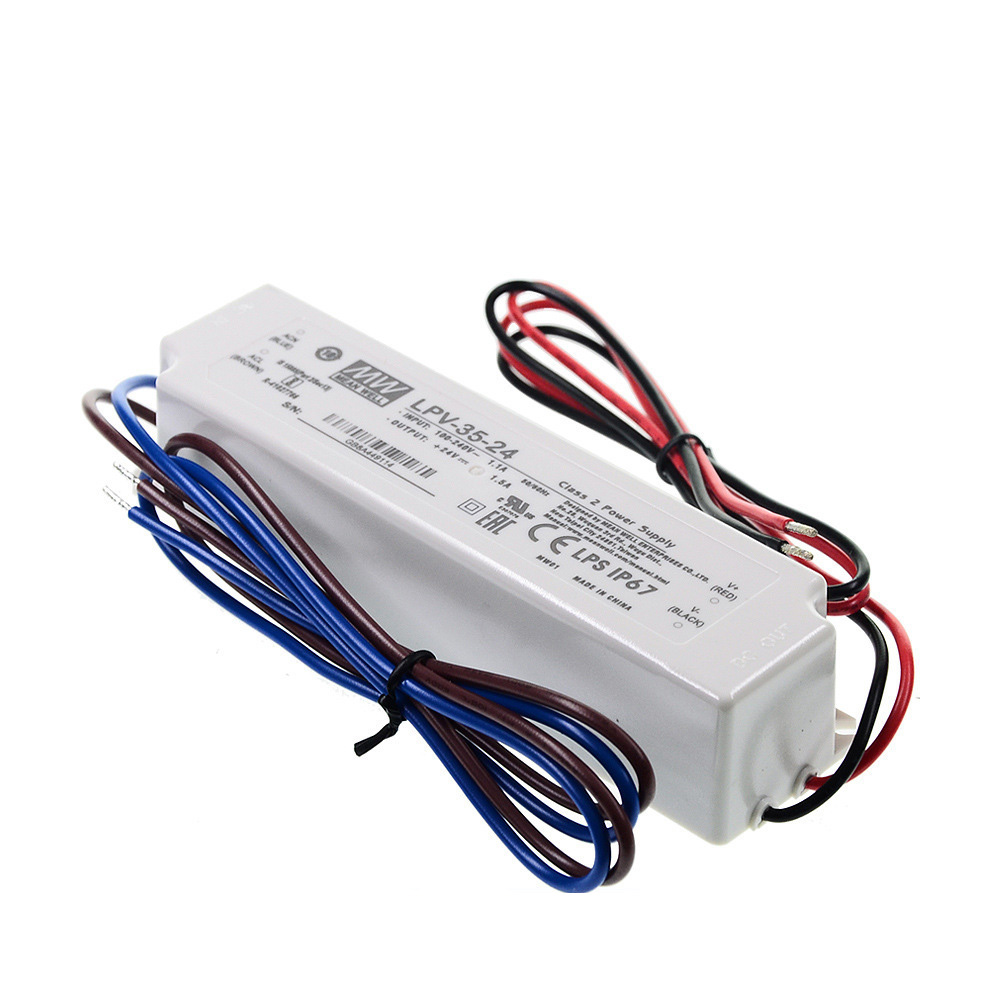

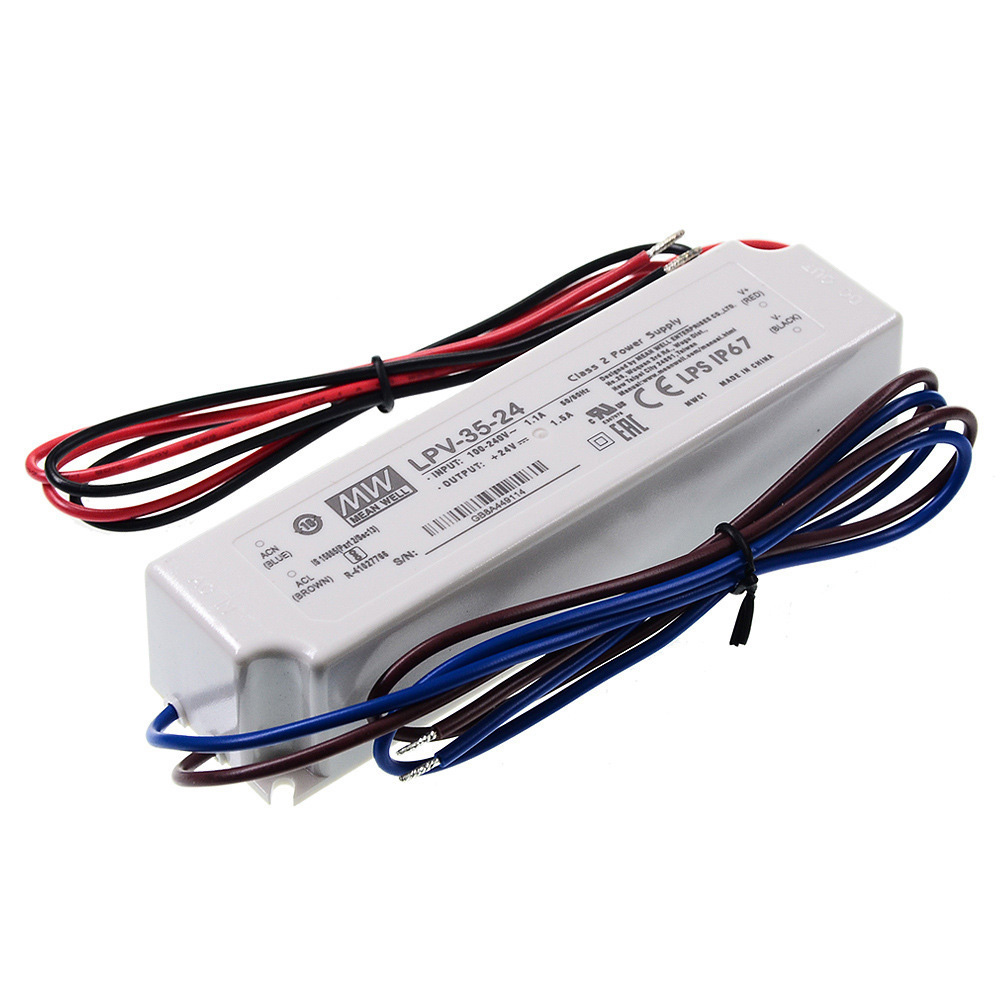

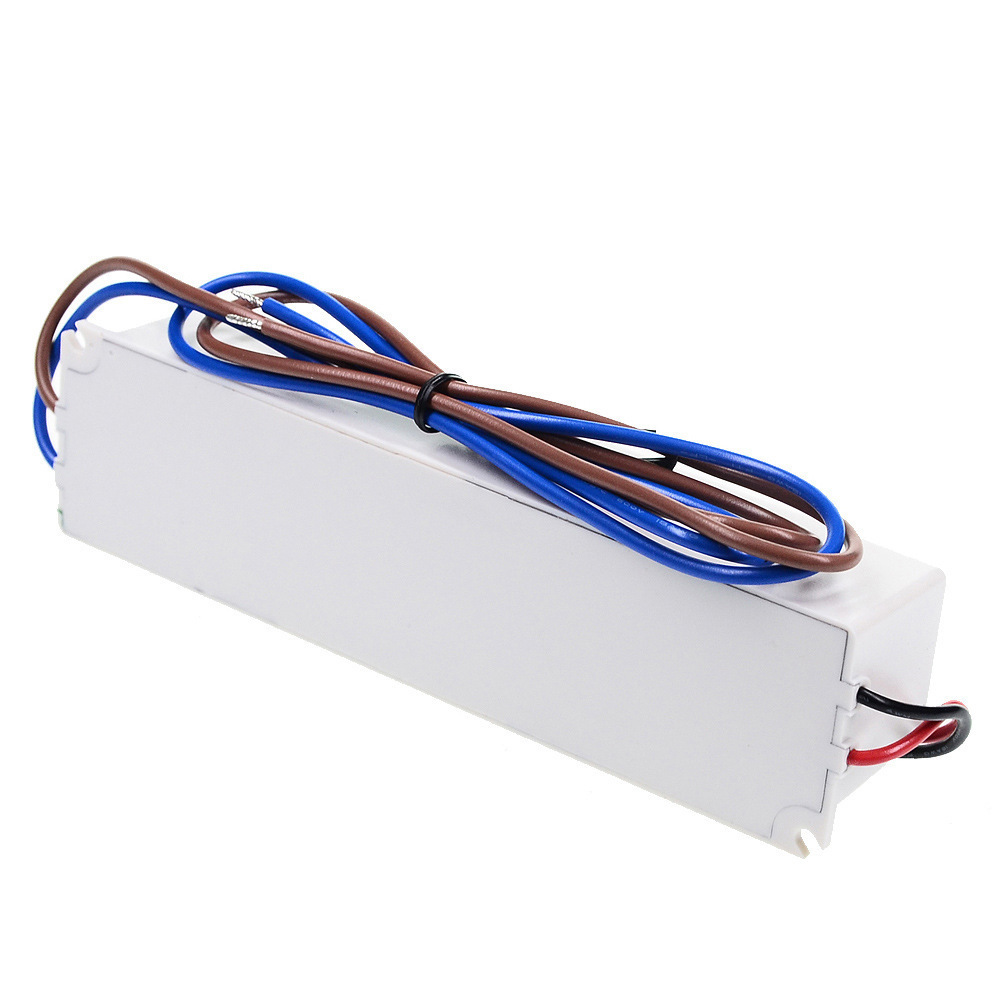

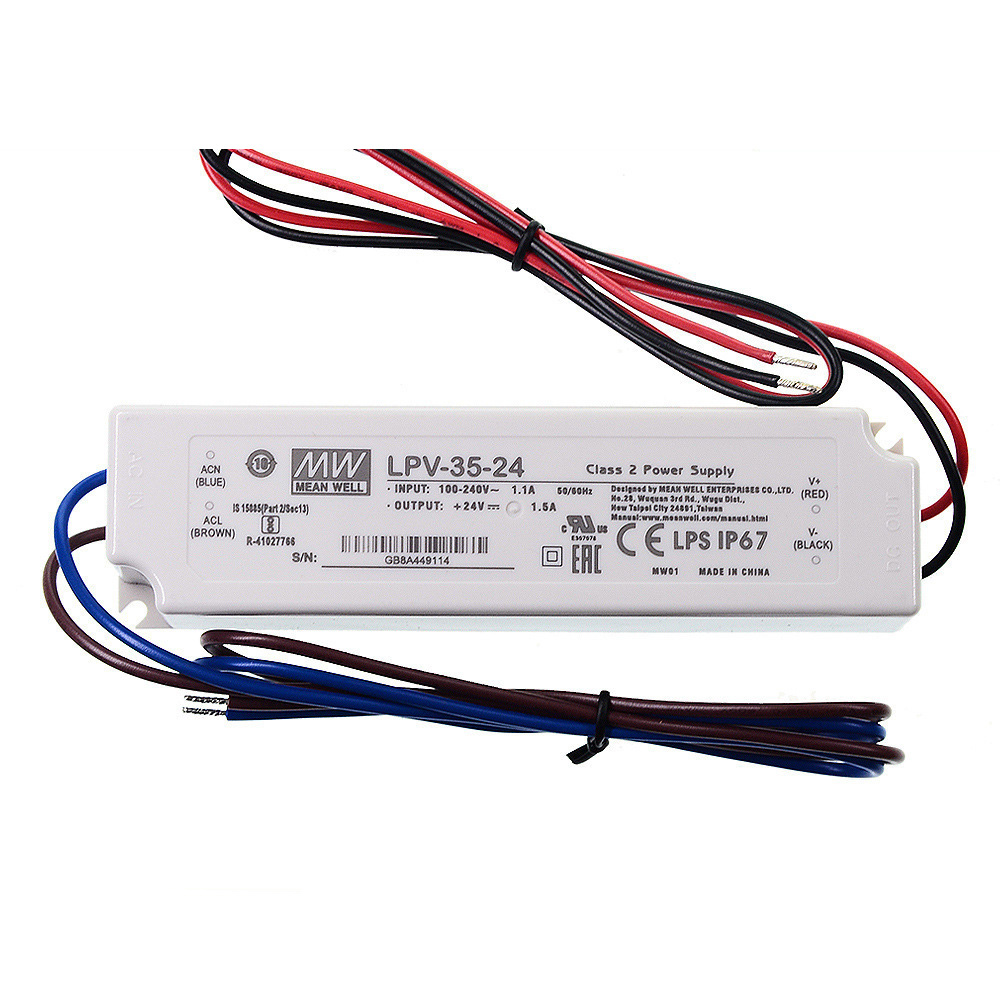

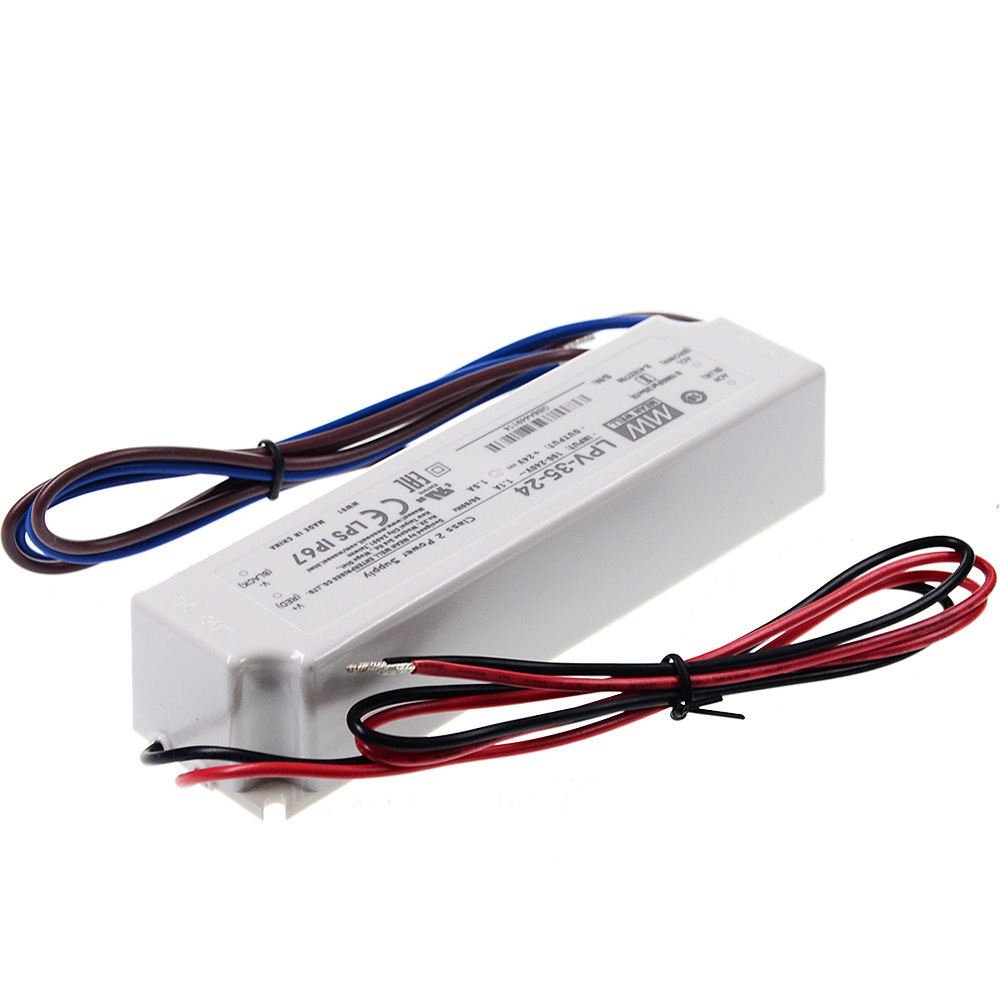

Check the 35W Waterproof Mean Well LED Drivers LPV-35, which with constant voltage output design and suits all kinds of constant voltage LED Lights, like the LED Strips, LED Modules, etc. the class 2 II power unit is encapsulated in a plastic case, the waterproof level up to IP67, you can use them in wet, rainy or harsh locations. the Meanwell Drivers with universal AC input design and support full range input voltage from 90VAC to 370VAC, easy to connect to the public power system directly. there are various output voltage products available from 5VDC to 36VDC, you can use them for various voltage LED Lights. the 35W LED Driver with multiple protections to ensure high reliability, 2 years warranty.

  • Constant Voltage Design
  • Universal AC Input / Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • Protections: Overload / Over Voltage / Short Circuit
  • Cooling By Free Air Convection
  • Fully Encapsulated With IP67 Level
  • Fully Isolated Plastic Case
  • Class II Power Unit, no FG
  • Class 2 Power Unit
  • Pass LPS
  • Suitable For All Kinds Of Constant Voltage LED Lights(Low Voltage Garden Lights, LED Strips, LED Modules, etc)
  • 100% Full Load Burn-in Test
  • Low Cost, High Reliability

Link: Mean Well LPV-35 Instruction


Features:

  • Model: LPV-35-5(5V), LPV-35-12(12V), LPV-35-15(15V), LPV-35-24(24V), LPV-35-36(36V)
  • Size: 148*40*30mm(L*W*H)
  • Input Voltage: 90-264VAC, 127-370VAC
  • Output Voltage: DC5V, DC12V, DC15V, DC24V, DC36V
  • Rated Current: 5A(5V), 3A912V), 2.4A(15V), 1.5A924V), 1A(36V)
  • Rated Power: 30W(5V), 36W(12V), 36W(15V), 36W(24V), 36W(36V)
  • SETUP, RISE Time: 500ms, 20ms/230VAC, 500ms, 20ms/115VAC At Full Load
  • Hold Up Time: 50ms/230VAC, 16ms/115VAC At Full Load
  • Frequency Range: 47-63Hz
  • Efficiency: 77%(5V), 84%(12V), 84%(15V), 85%(24V), 85%(36V)
  • Leakage Current: 0.25mA/240VAC
  • Over Load Protection
  • Over Voltage Protection
  • Working Temperature: -30-65℃
  • Working Humidity: 20-90% RH non-condensing
  • Vibration: 10-500Hz, 2G 10min./1 cycle, period for 60min, each along X, Y, Z axes
  • Safety Standards: UL 1310 class 2, CAN/CSA No.223-M91, BIS IS 15885(For LPV-35-12, LPV-35-24 only), IEC62368-1, EAC TP TC 004, IP67, BS EN/EN62368-1 Approved
  • 2 Years Warranty


Includes:

1*Mean Well LED Driver

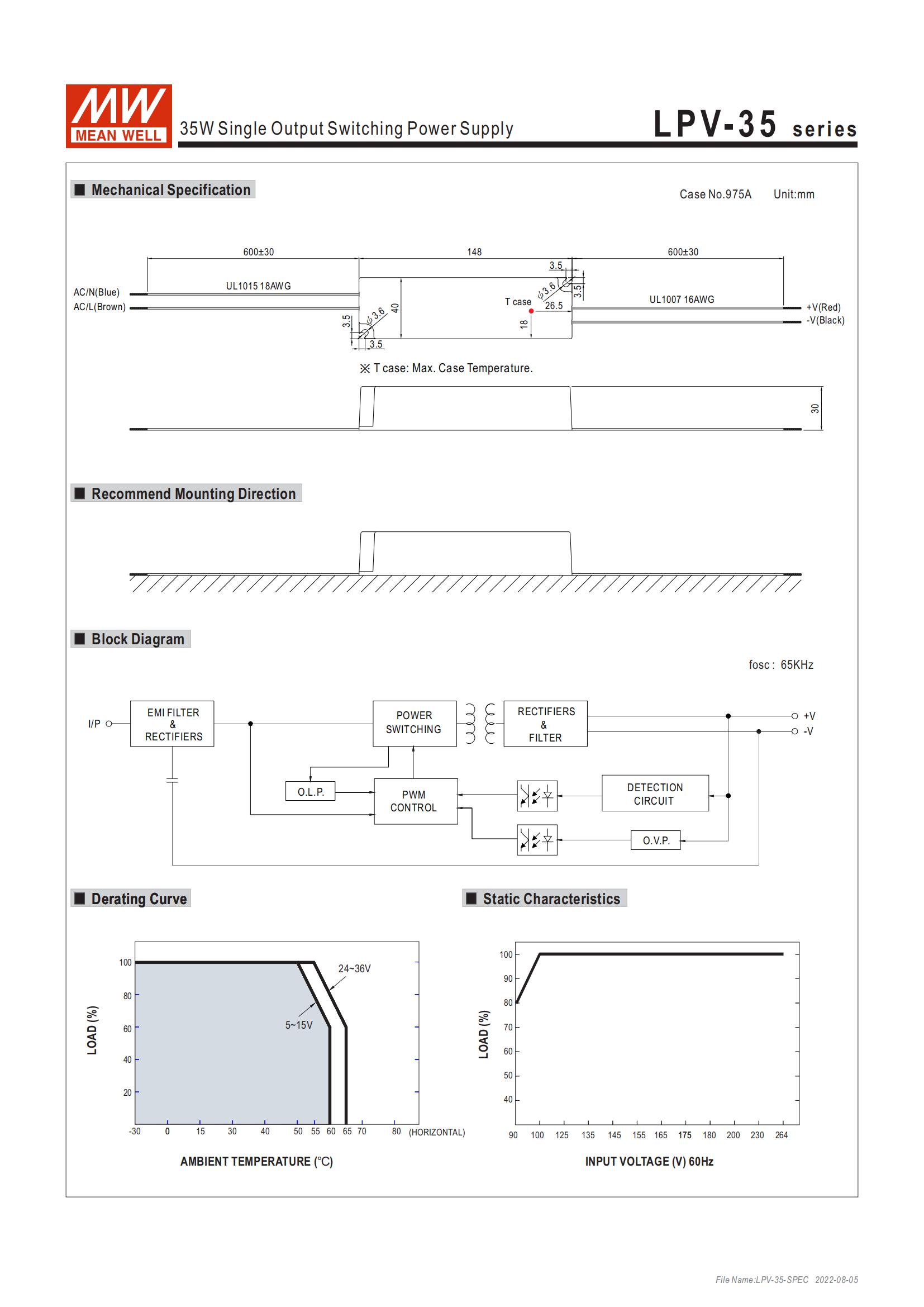

LPV-35 Features
