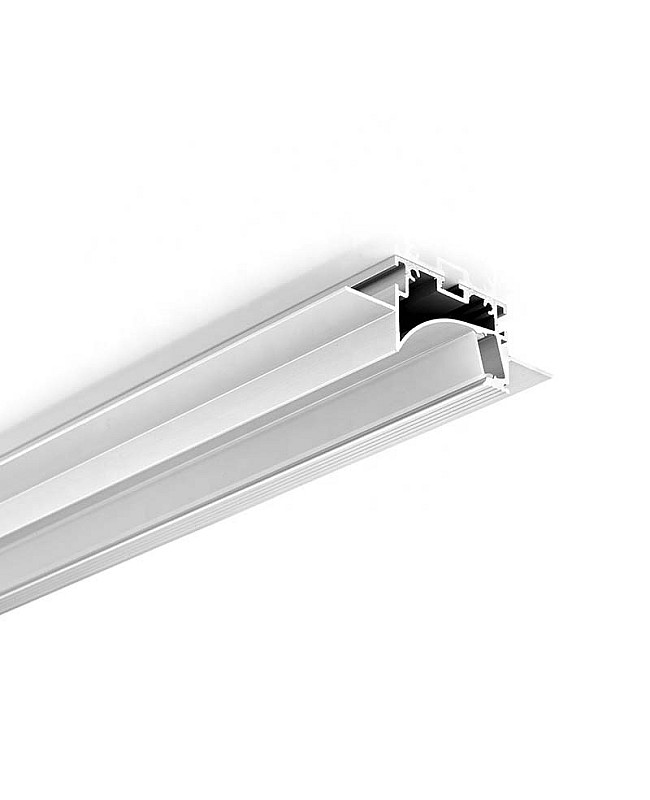

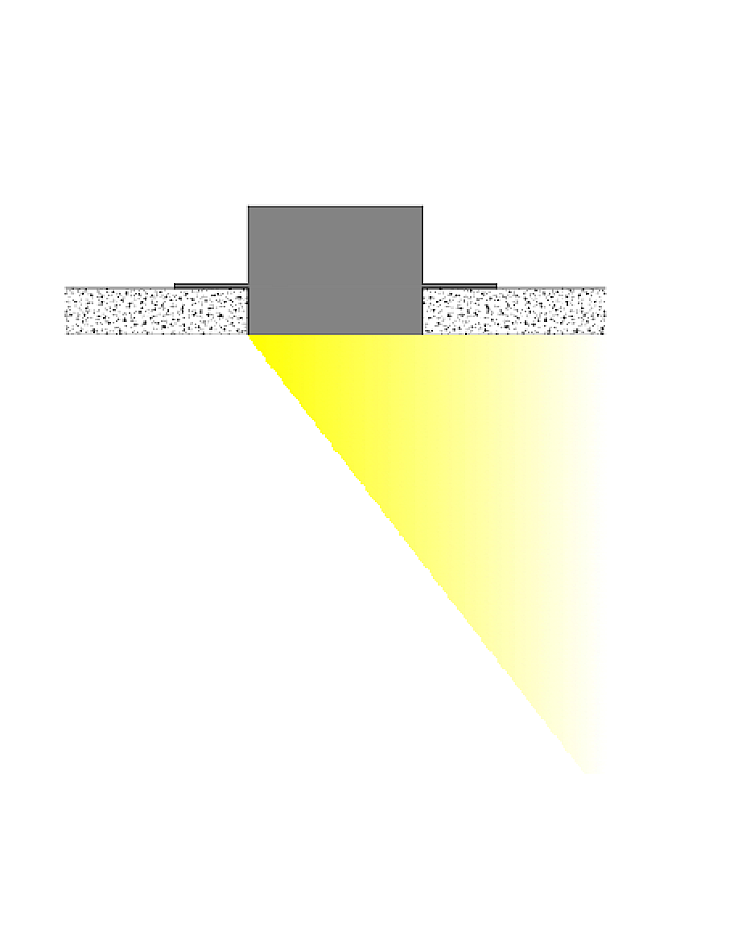

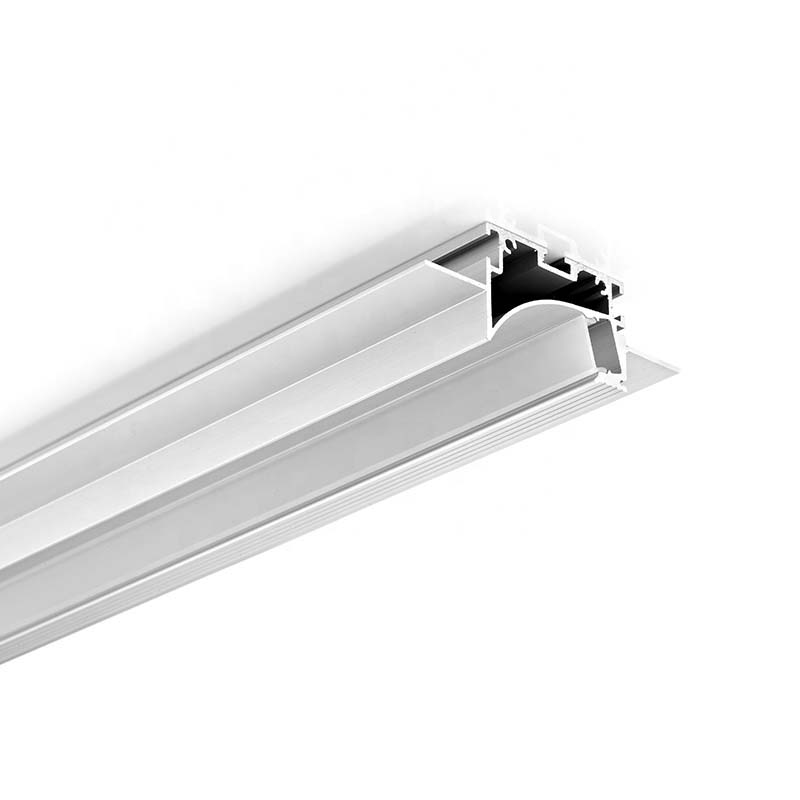

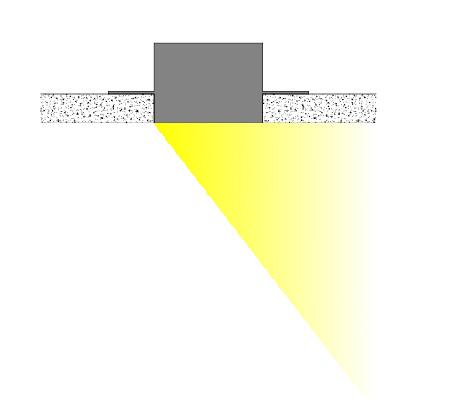

The polarized LED profiles can be seamlessly integrated into 12.5mm plasterboards on ceilings, providing a clean, frameless finish. These recessed LED channels feature a polarized lighting structure, directing light at an angle to create elegant wall-washing effects. Ideal for highlighting textures, artwork, or feature walls. The inner width is 14.5 mm, allowing for a maximum width of 14 mm; you can add high-power SMD or COB LED strip lights inside. The aluminum channels can work as heat sinks for better heat dissipation. The diffused cover will diffuse the lighting evenly without visible light dots. The standard lengths are 1 m and 2 m; you can cut to any size for your project. Trimless LED channels are made of 6063-T5 extruded aluminum with a white powder-coated surface treatment, providing anti-oxidation resistance and a longer lifespan. The white color allows them to blend with the surrounding decoration. Six types of diffused covers are available, made of brand-stable material and featuring anti-yellowing properties, with various light transmittance and effects suitable for different scenes. End caps are included. There are 90°, 90° vertical, and 180° joiners available for angled or straight connections.
Specifications:

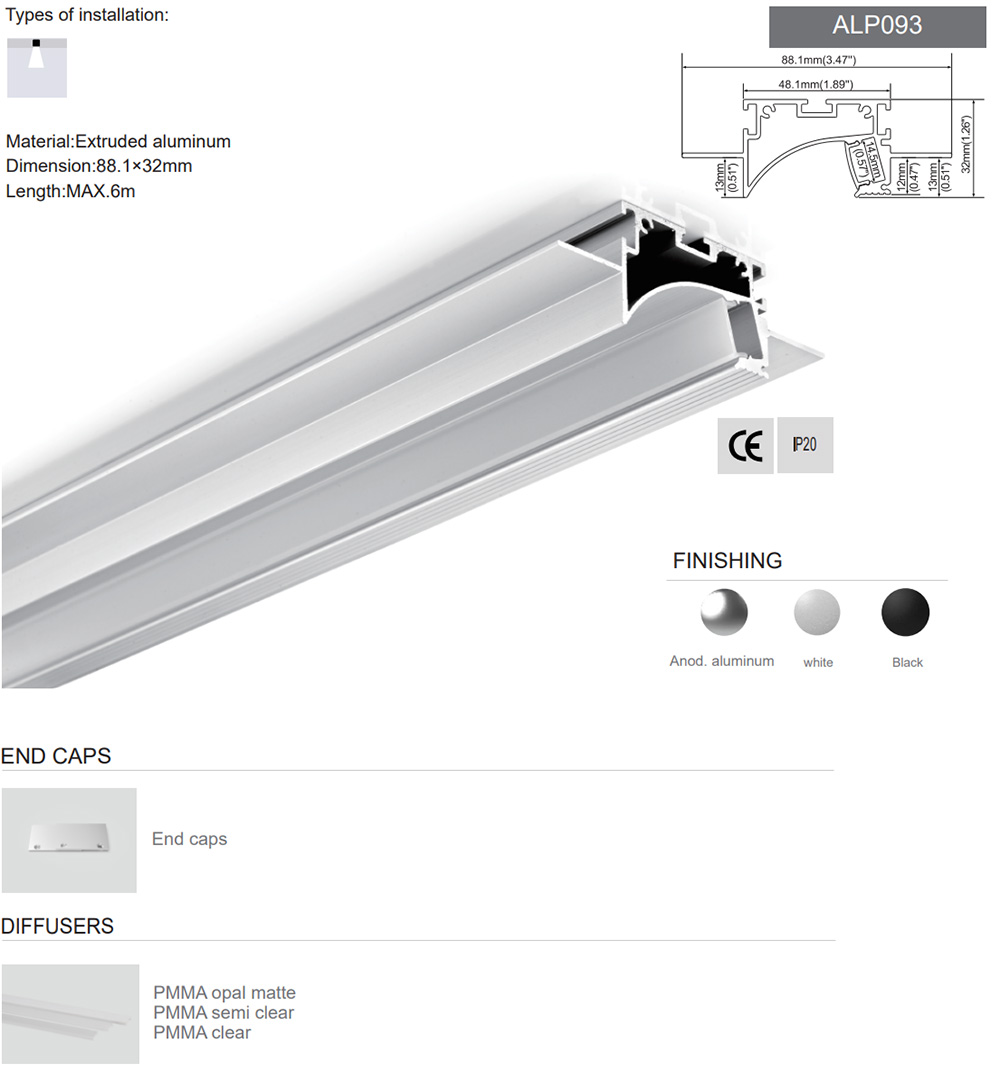

- Model: ALP093
- Material: 6063-T5 extruded aluminum
- Surface treatment: Powder-coating
- Colors: White

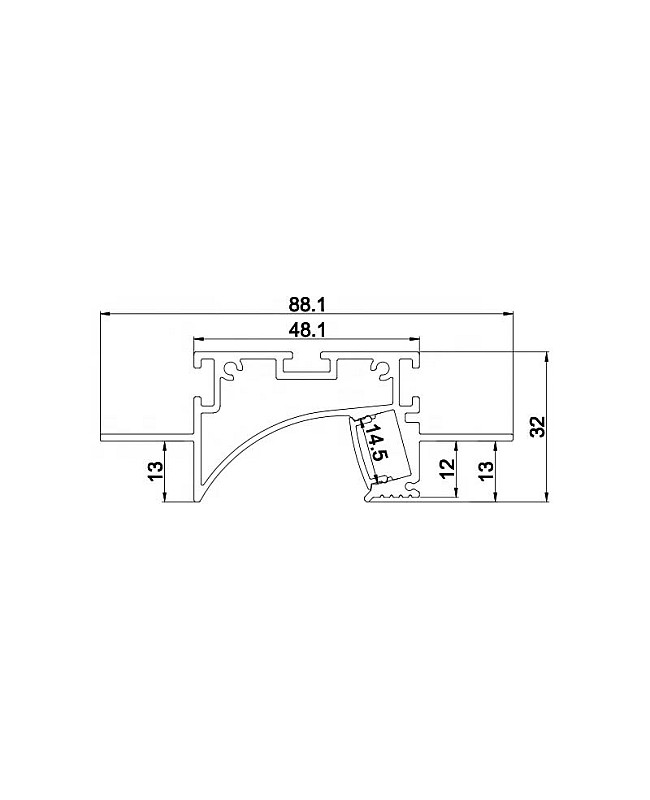

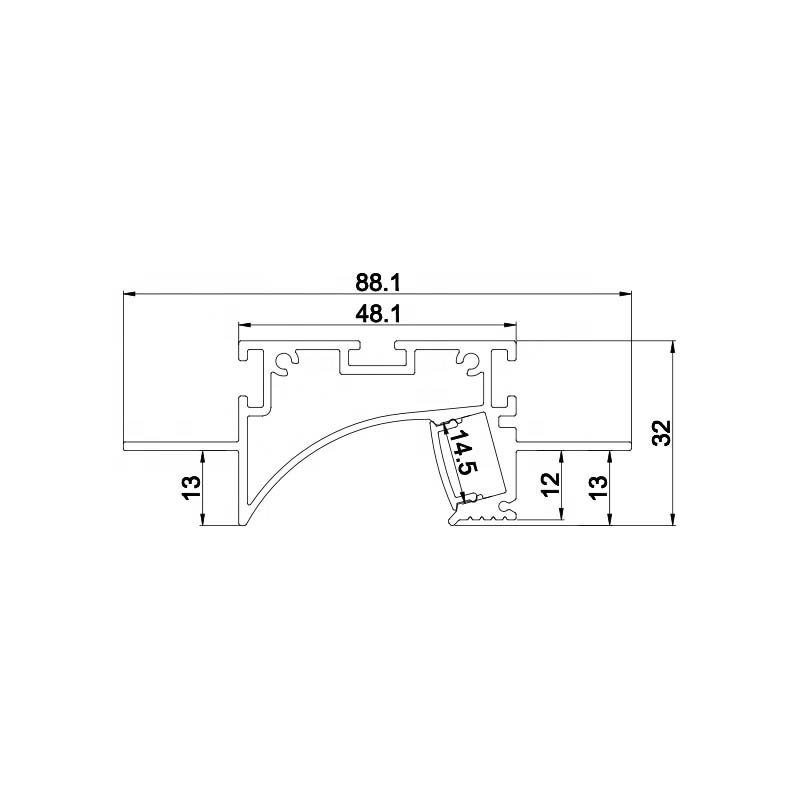

- Size ( W x H ): 88.1 mm x 32 mm ( 3.47" x 1.26" )
- Standard lengths: 1 m ( 39" ) , 2 m ( 78" )
- Custom length available: YES
- Inner width: 14.5 mm ( 0.57" )
- Max LED strip width: 14 mm ( 0.55" )
- Max power: 30W/m
- Diffuser: PC opal matter covers, PC diffused covers, black PC cover, PMMA opal matte cover, PMMA semi-clear cover, PMMA clear cover
- Beam angle: 60°

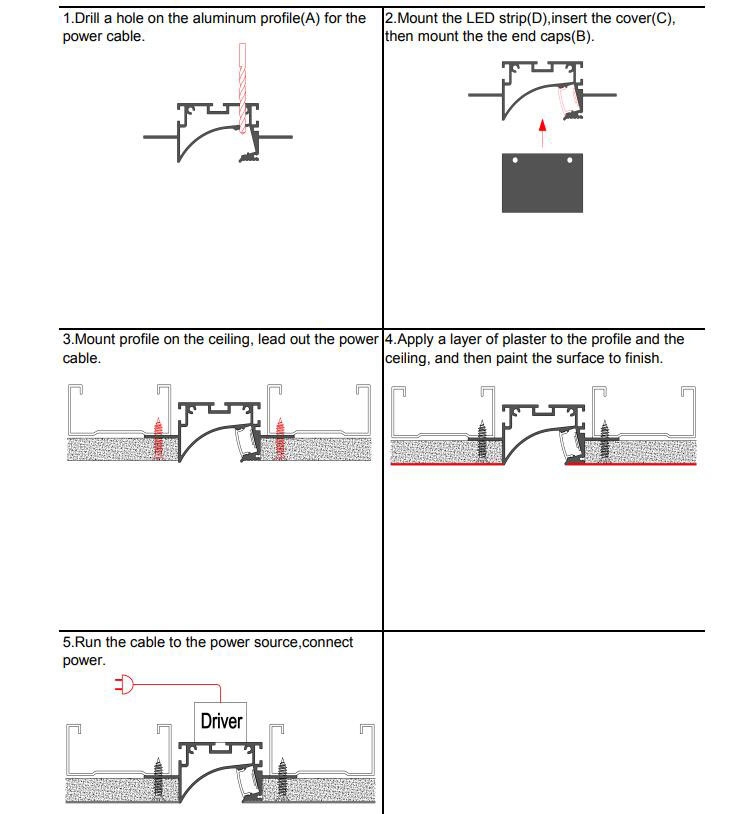

- Installation: Recessed

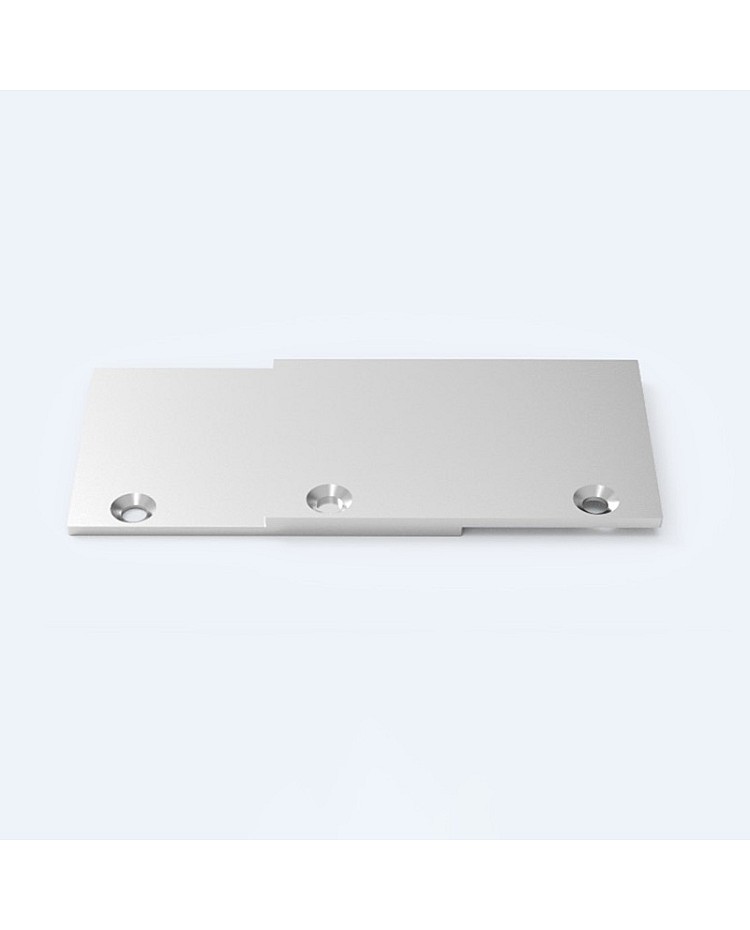

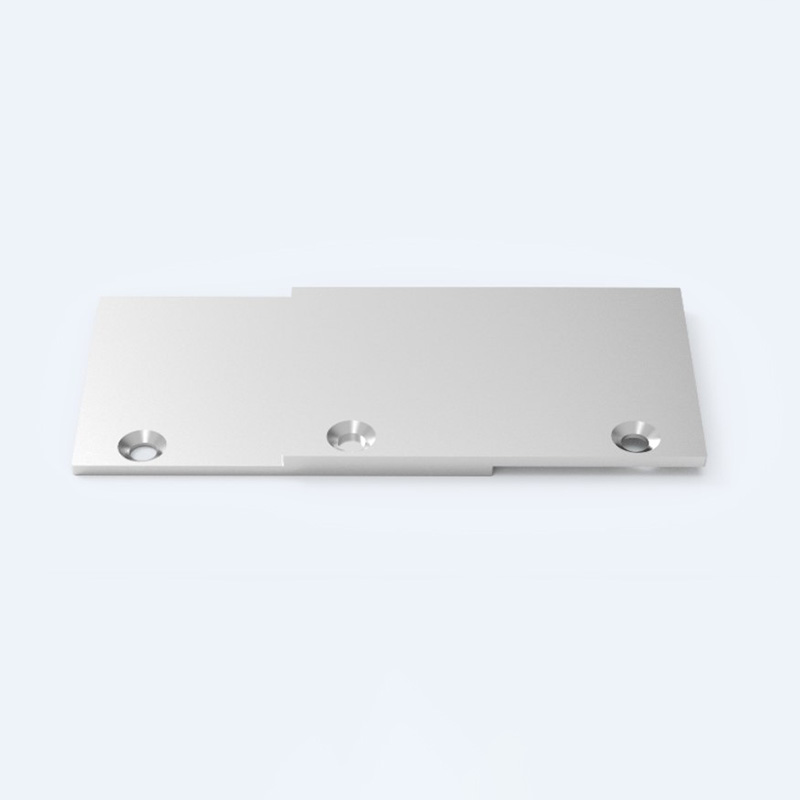

- End caps are included

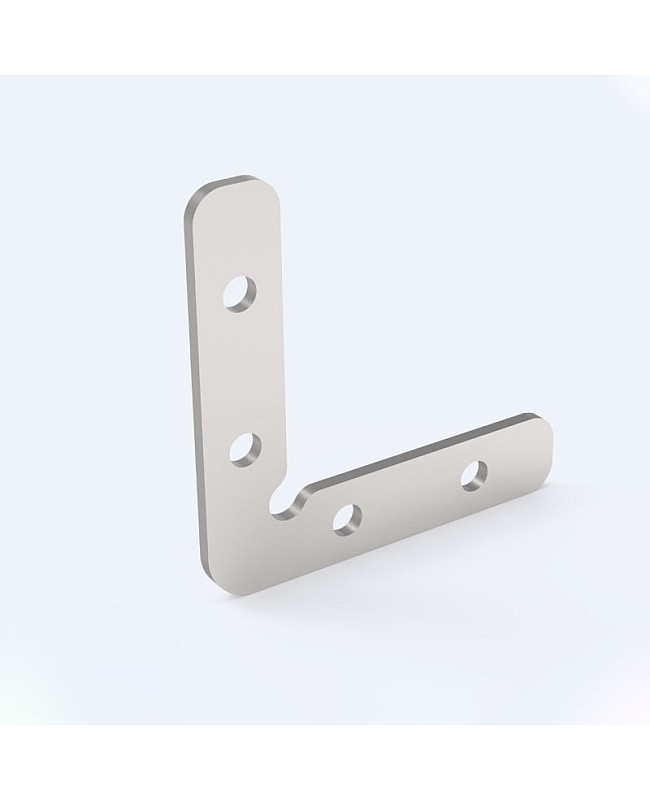

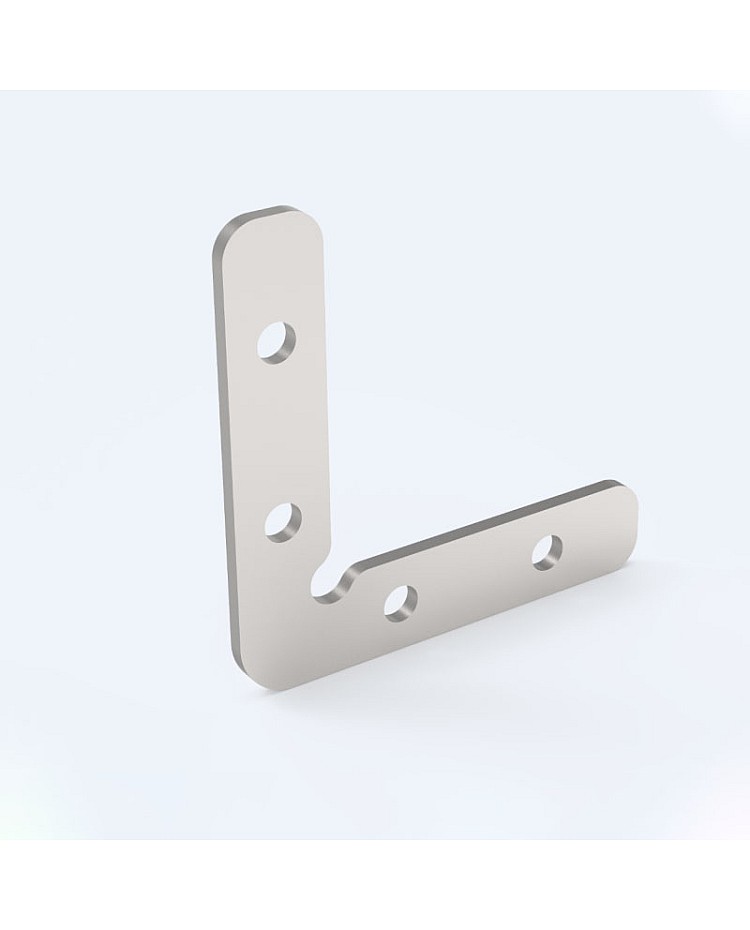

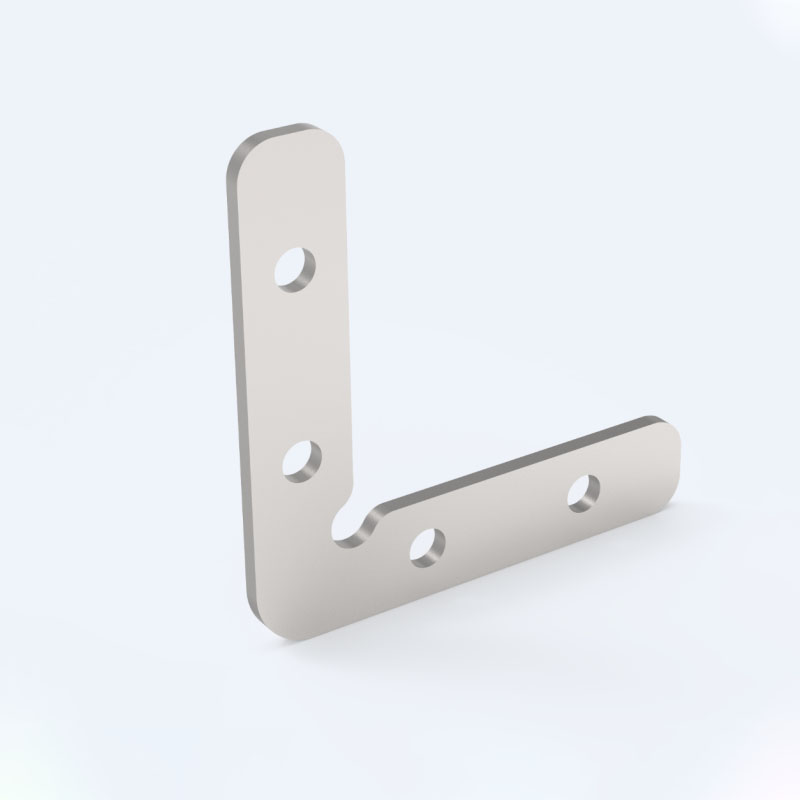

- 90°, 90° vertical, and 180° joiners are sold separately
- Certifications: CE, ROHS
- Warranty: 5 years

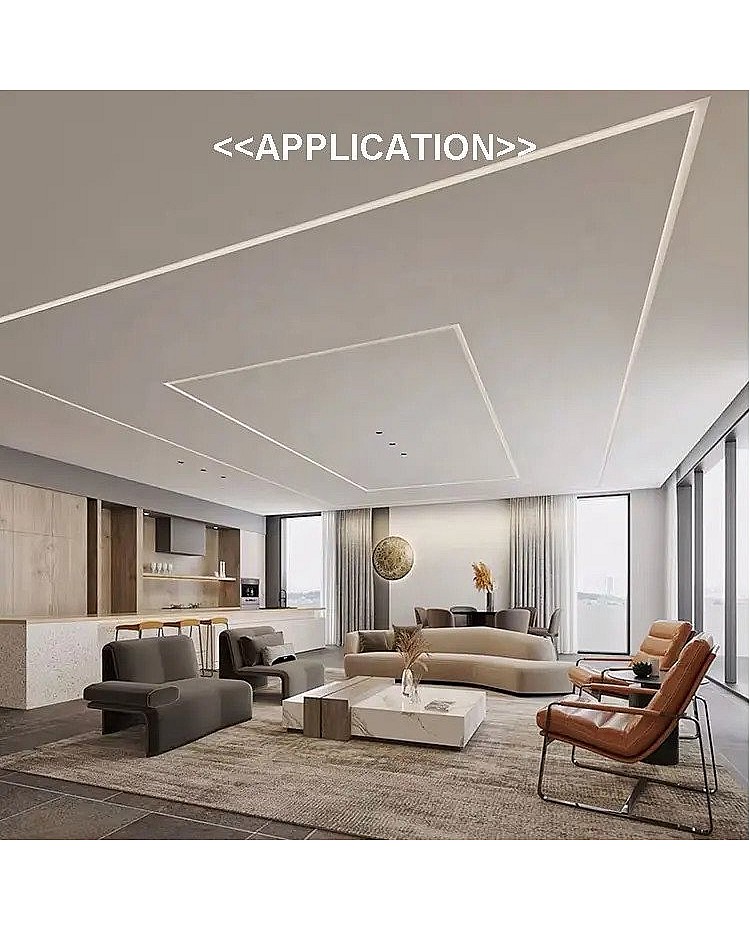

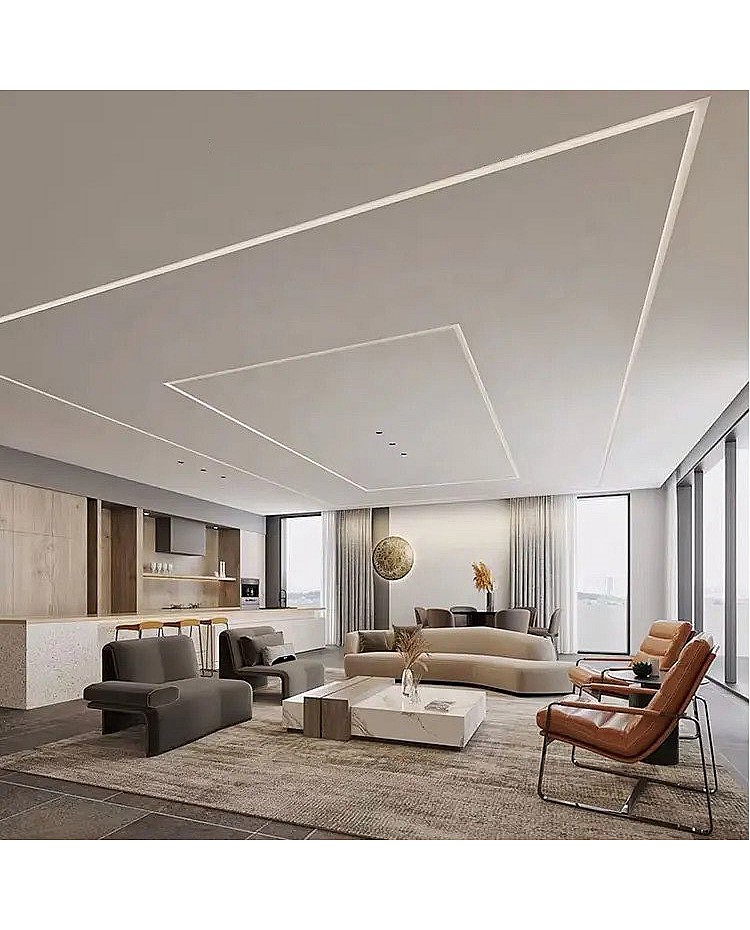

Applications:
- Wall washing/grazing lighting

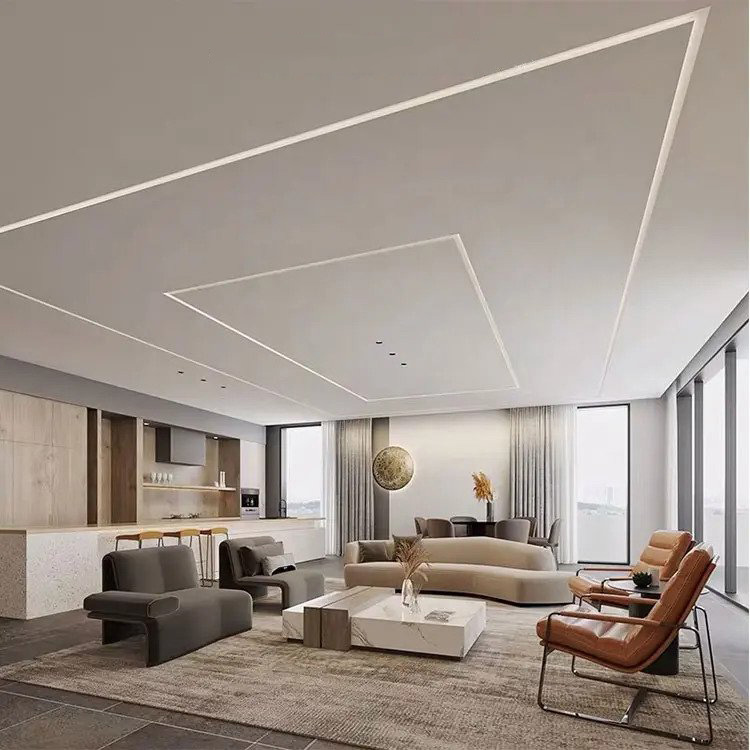

- Indirect cove or ceiling lighting
- Architectural accents in hallways or lobbies
- Task lighting with directional focus
- Media walls/feature ceilings

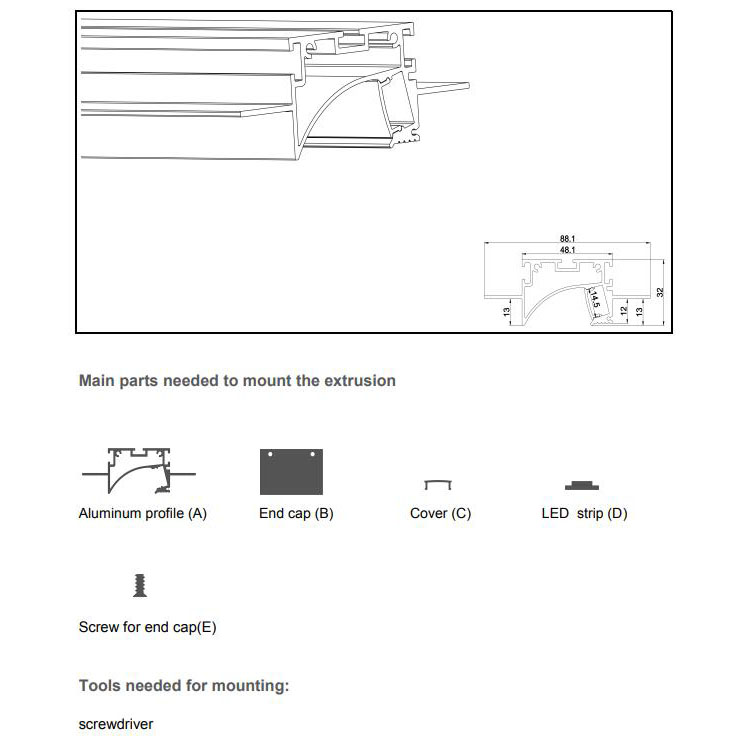

Includes:
1 * 1/2 Inch drywall LED channel with diffuser
End caps


+
+
+
+
+
+
+
+
