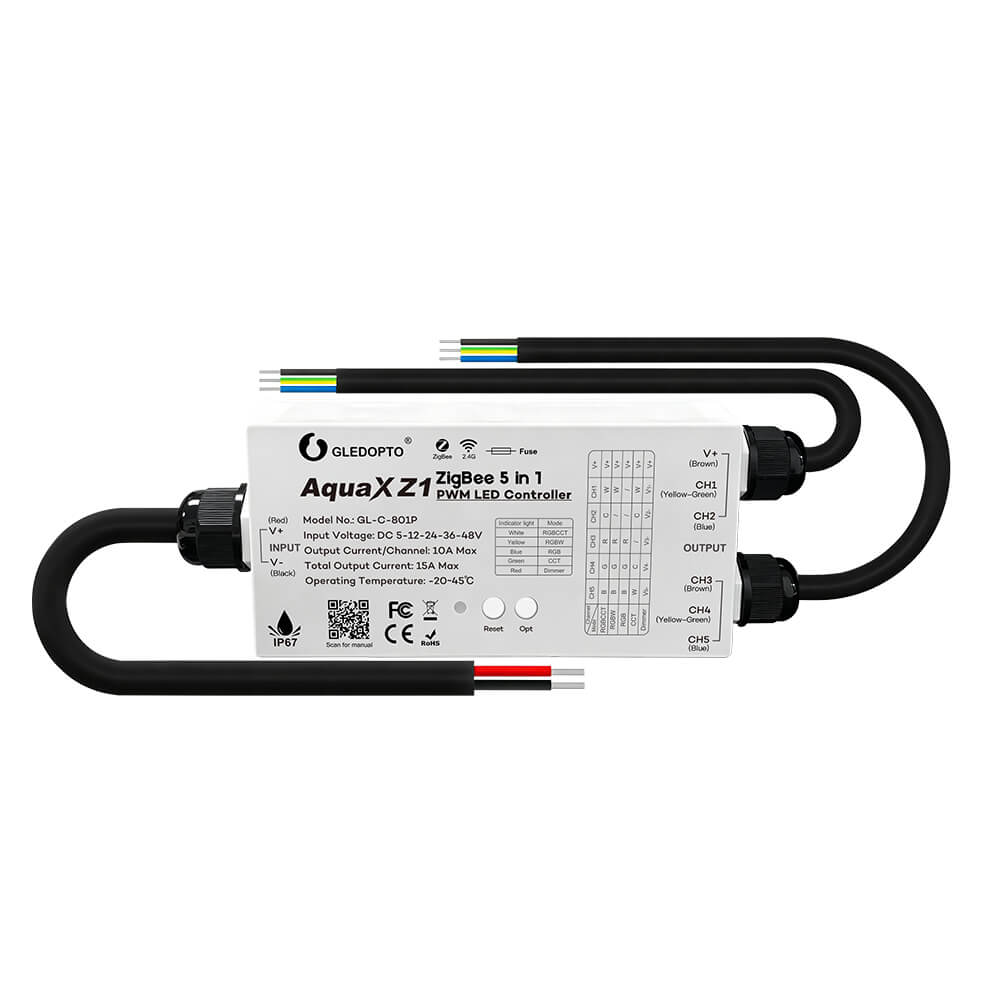

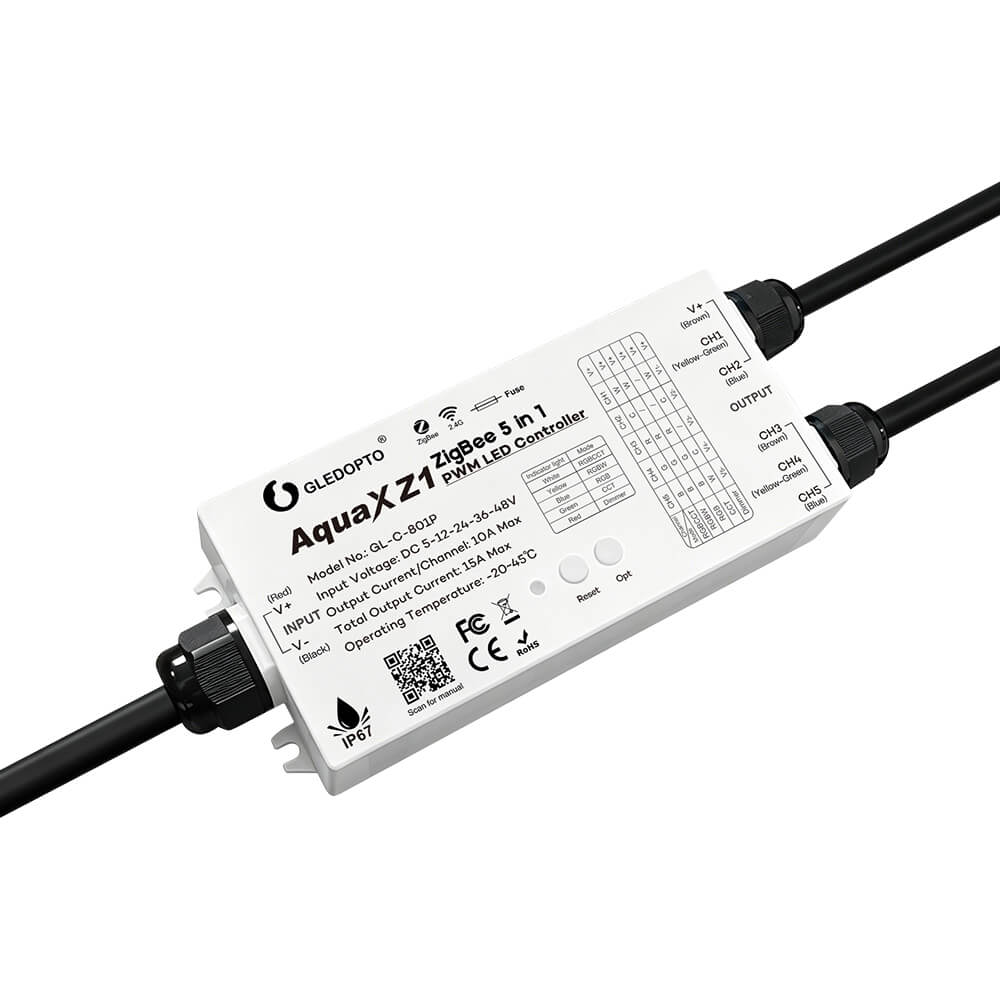

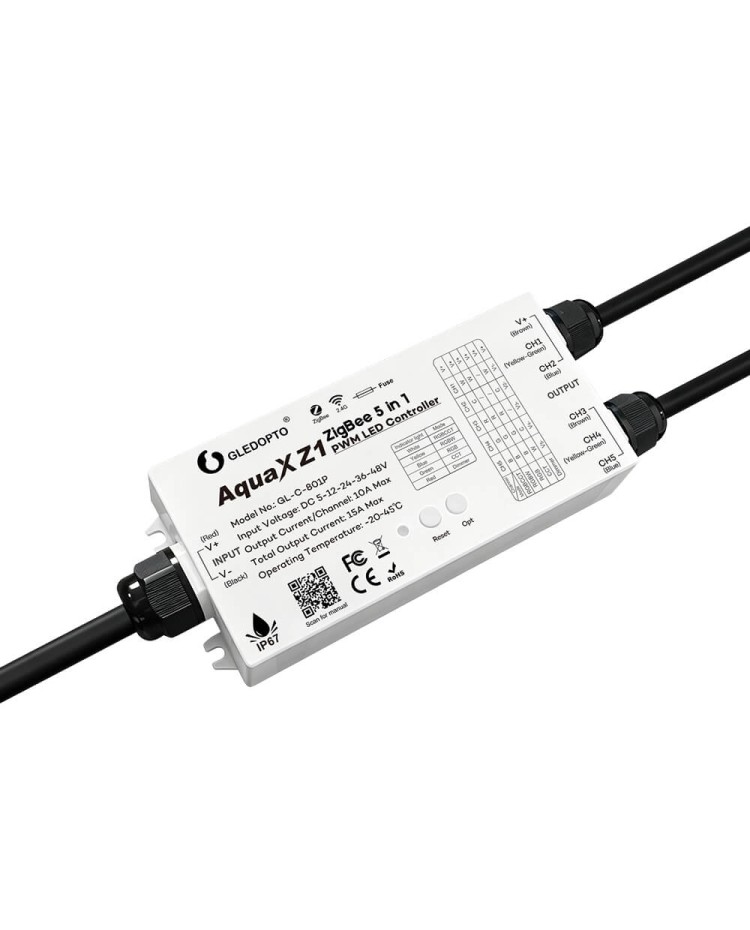

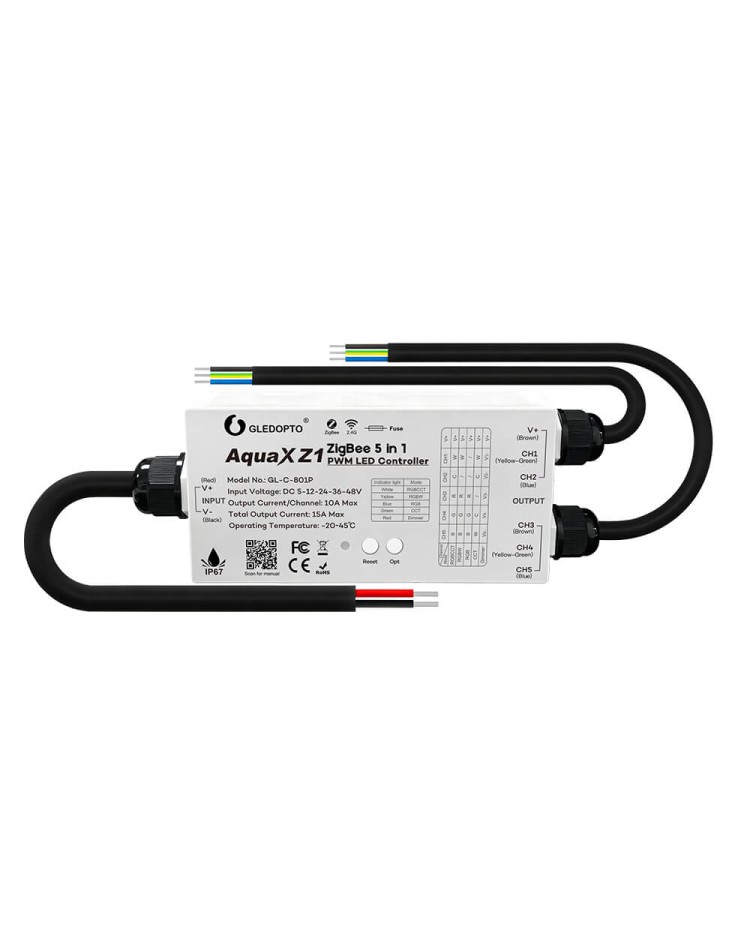

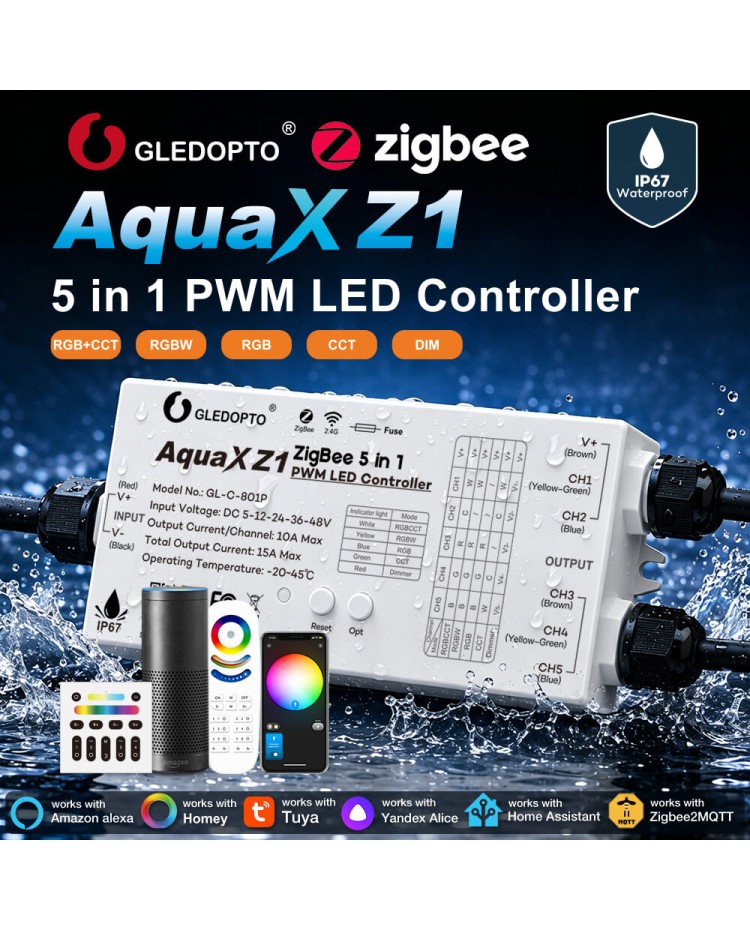

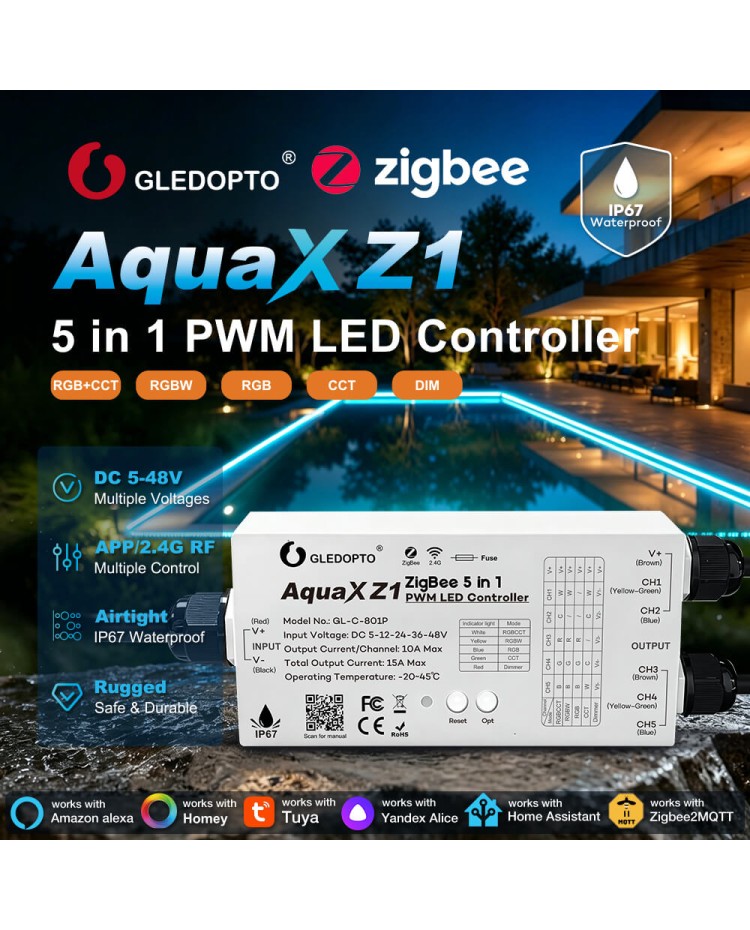

The Gledopto GL-C-801P is an IP67 waterproof-grade Zigbee PWM strip light controller engineered for indoor and outdoor wet or rainy environments. It delivers waterproof reliability and flexible smart lighting control for modern lighting projects.

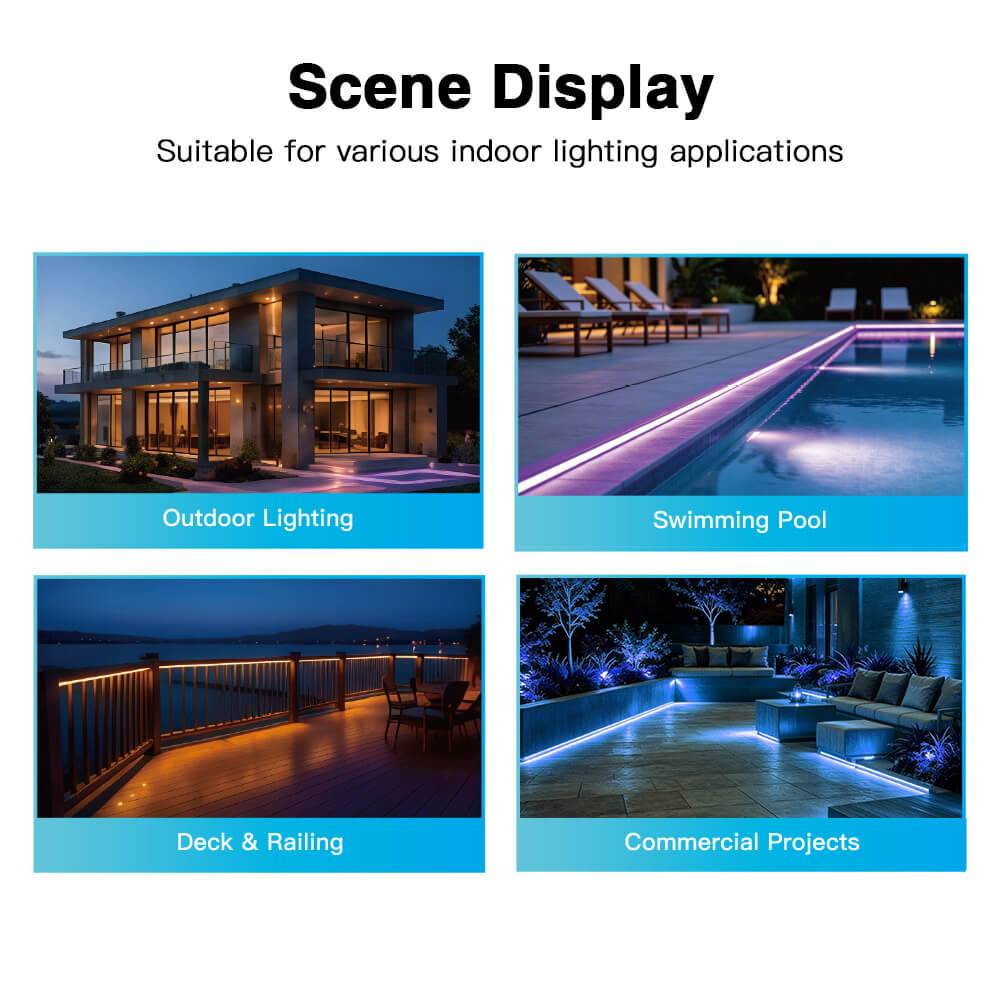

It combines IP67-rated waterproof protection with Zigbee 3.0 wireless technology, integrating seamlessly into your smart Zigbee lighting control system while maintaining robust durability against moisture, dust, and temporary immersion. Use it to control waterproof strip lights in bathrooms, kitchens, shower niches, and on outdoor walls, gardens, yards, swimming pools, etc.

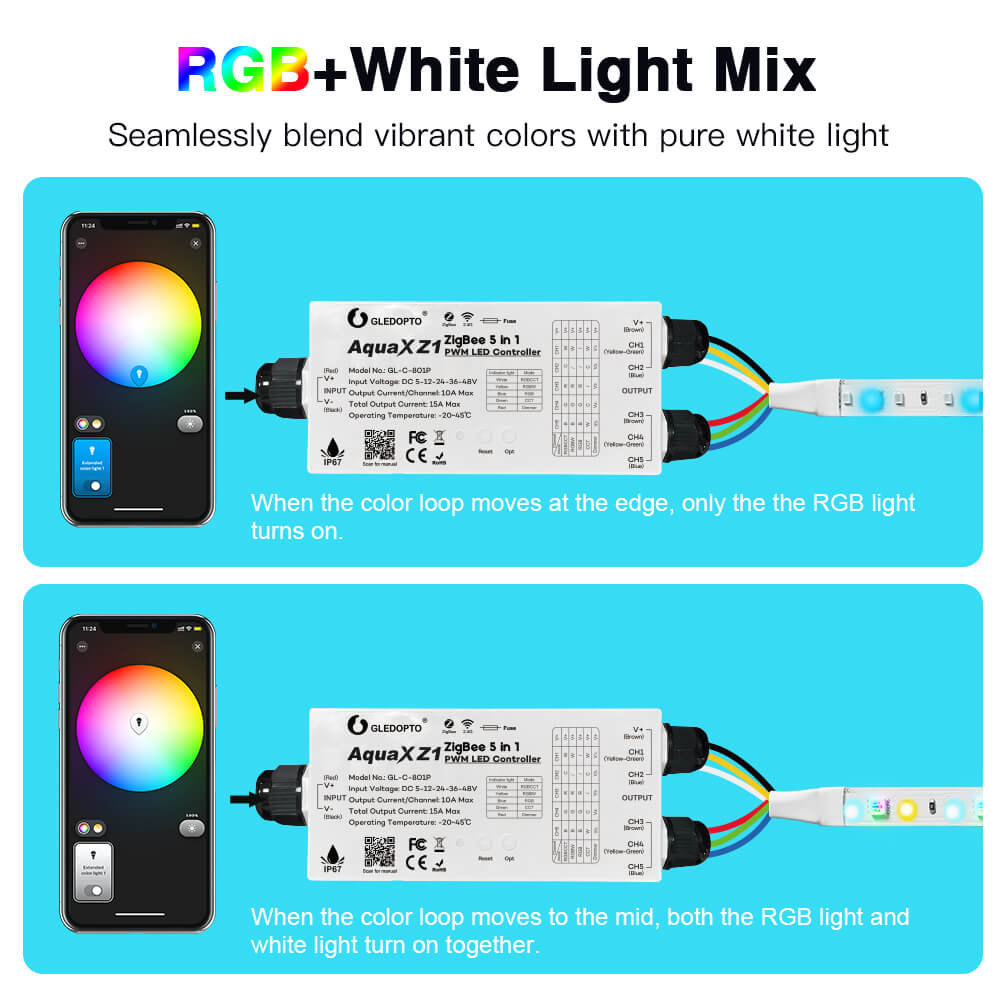

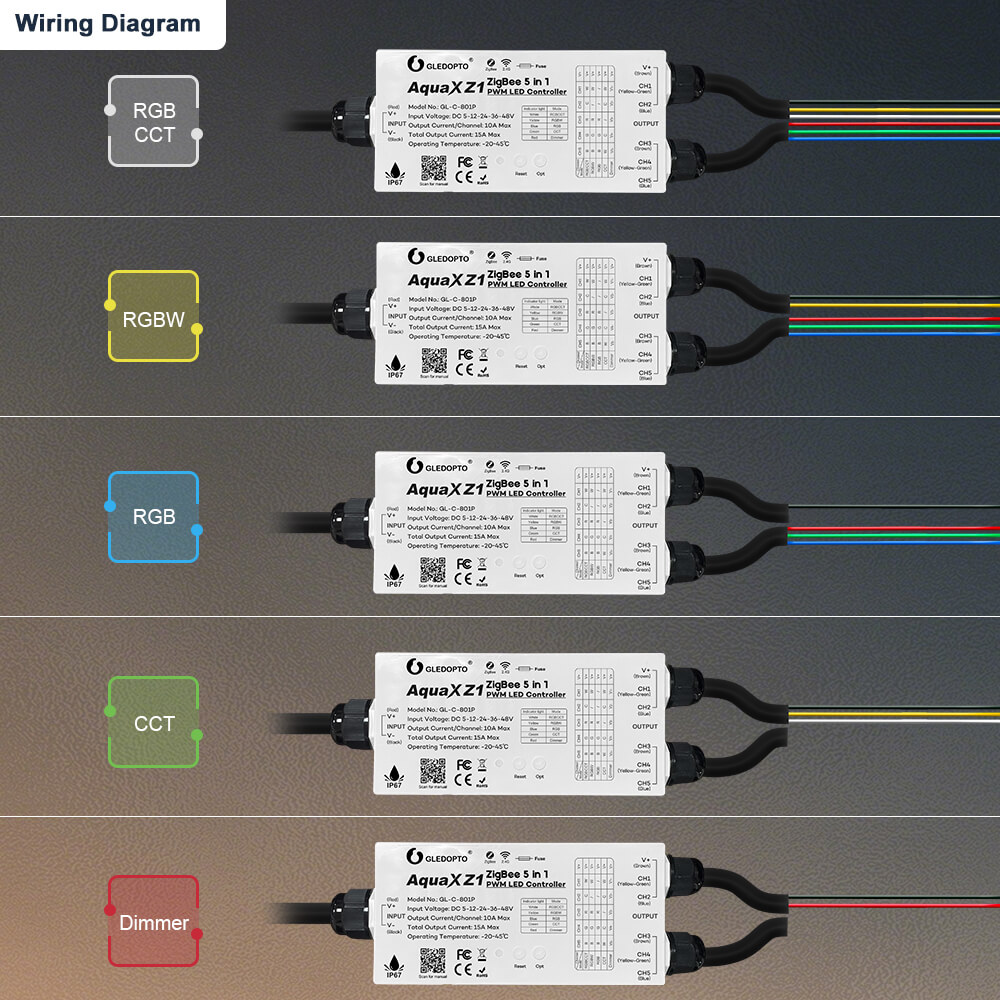

The Gledopto waterproof controller works with five major types of LED strips, whether COB or SMD: single-color, CCT, RGB, RGBW, and RGB+CCT. Use the 2.4G remote control or phone app to set the static color, choose a dynamic mode, and adjust color temperature or brightness to create a vibrant ambiance.
The waterproof LED controller uses the latest Zigbee 3.0 technology for a stable, reliable wireless connection with low latency and excellent networking capabilities. It is compatible with major Zigbee 3.0 gateways like Philips Hue, Amazon Echo Plus, Samsung SmartThings, Tuya, and Smart Life. These allow the 5-in-1 Zigbee PWM controller to integrate into the existing home control system and control the lighting by a pp.
Link: Gledopto GL-C-801P User Manual
Specifications:
- Model: GL-C-801P
- Size ( L x W x H ): 132 x 67 x 30 mm ( 5.2" x 2.64" x 1.18" )
- Material: Flame-retardant PC
- Color: White

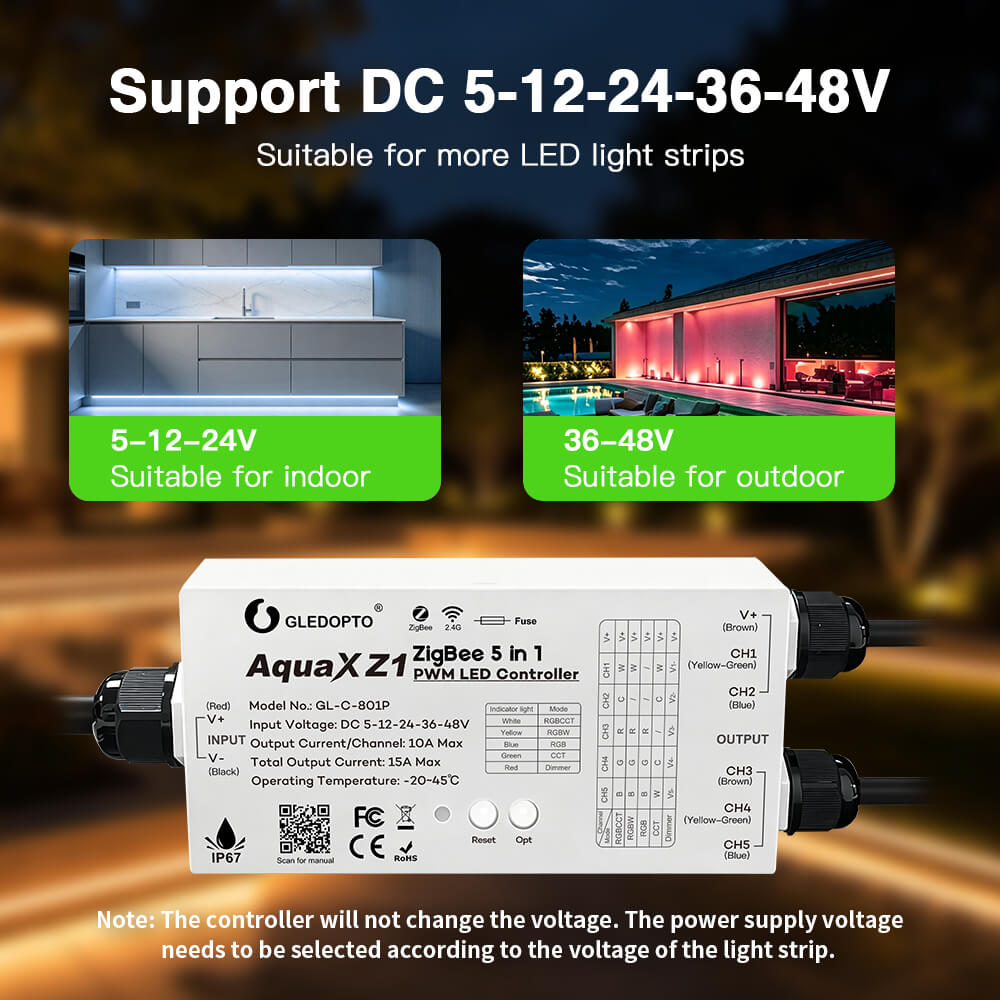

- Input voltage: DC5V, DC12V, DC24V, DC36V, DC48V
- Total output current: 15A
- Output current per channel: 10 A max
- 16 million colors, color temperature and brightness adjustable
- 5 working modes switchable: dimmer, CCT, RGB, RGBW, RGBCCT
- Smartphone app control: Homey, Tuya, Yandex Alice, Home Assistant, Amazon Alexa, Zigbee2MQTT

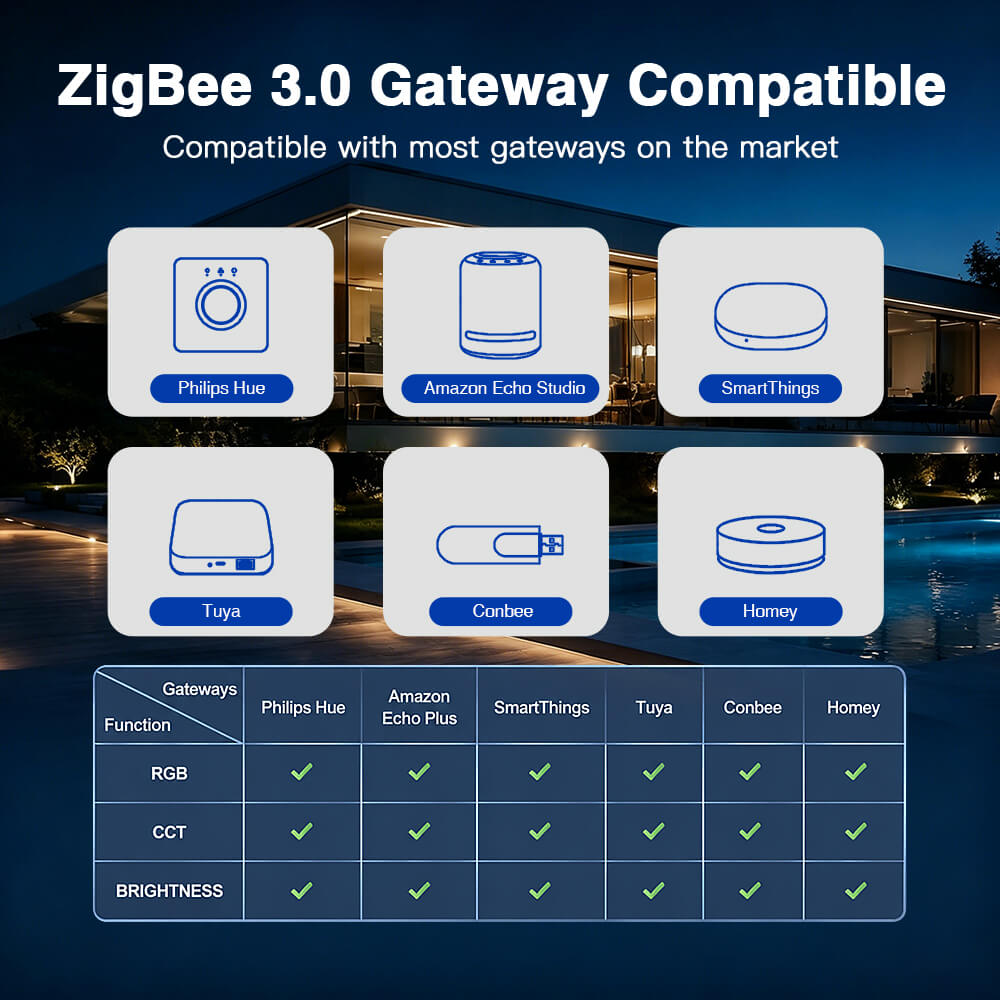

- Compatible with Zigbee 3.0 gateways: Philips Hue, Amazon Echo Studio, Samsung SmartThings, Tuya, Combee, Homey

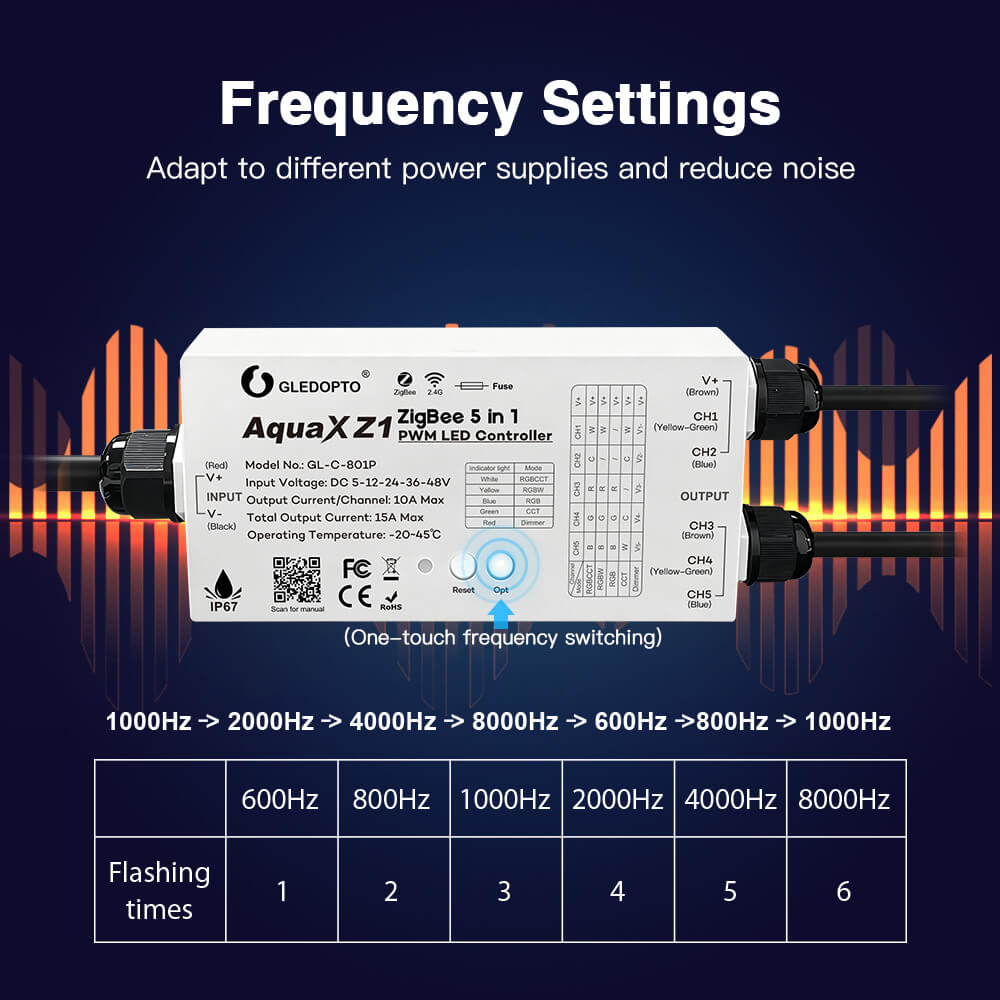

- Frequency settings: 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz

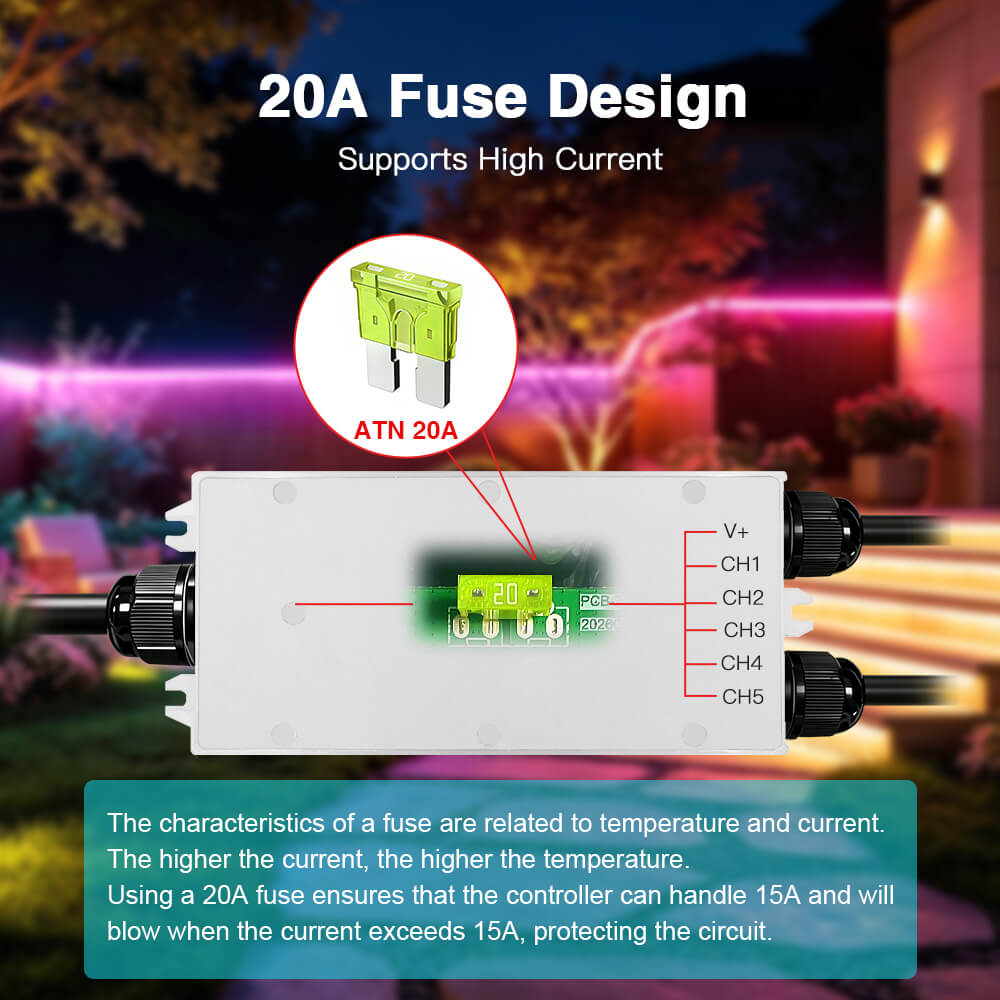

- 20A fuse design

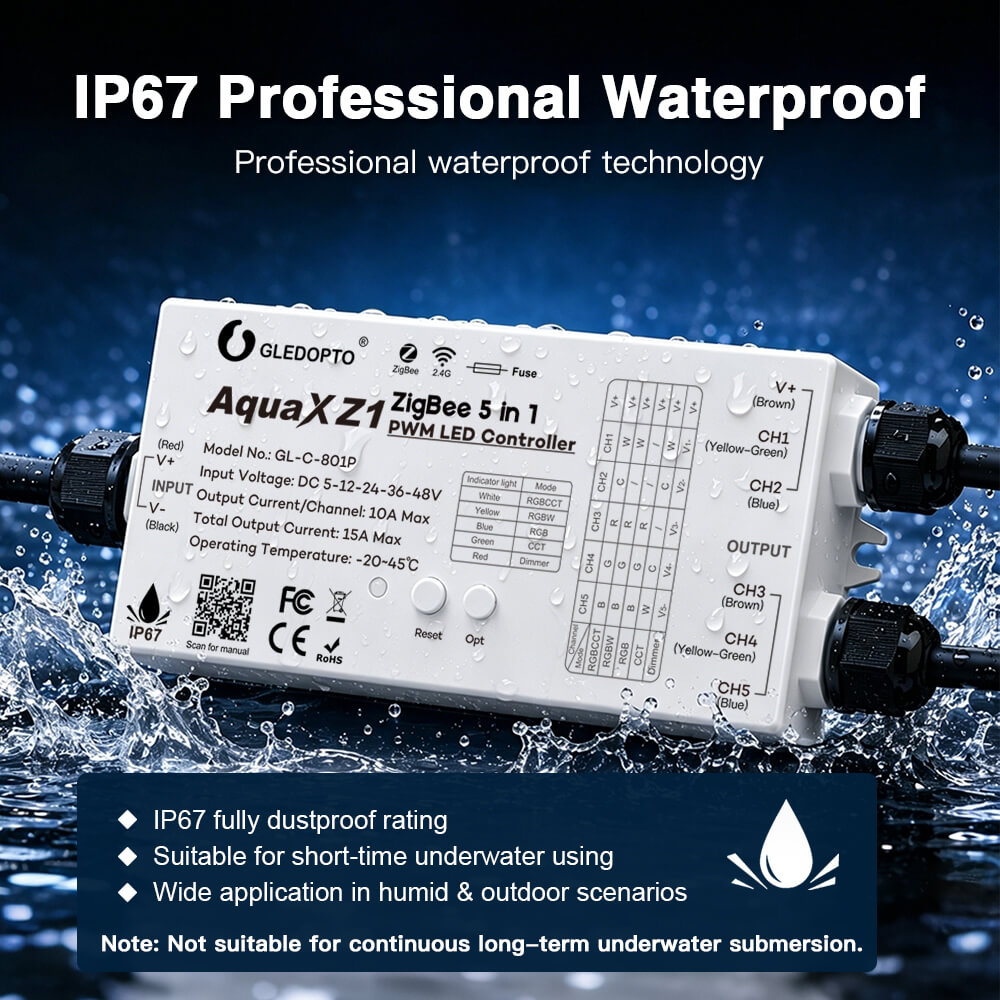

- IP rating: IP67 waterproof

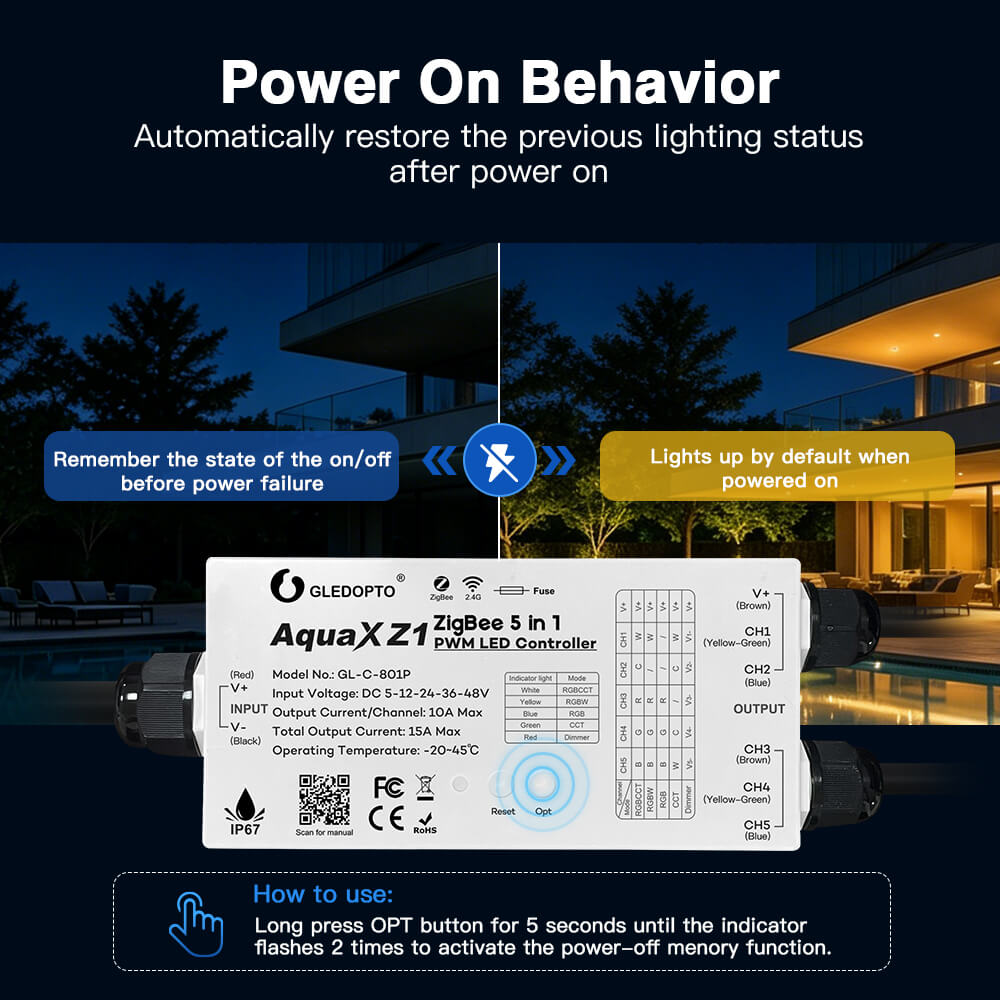

- Automatically restores the previous lighting status after power-on
- Working temperature: -20-45℃
- Warranty: 2 years
