The 45-degree LED channels are designed for angled, glare-free lighting for corner and edge LED strip installations and offer IP67 protection against moisture, rain, dust, and environmental exposure. They will soften and spread the light evenly at a 45° angle, reducing harshness and providing soft, uniform light diffusion for optimal coverage and visual comfort.

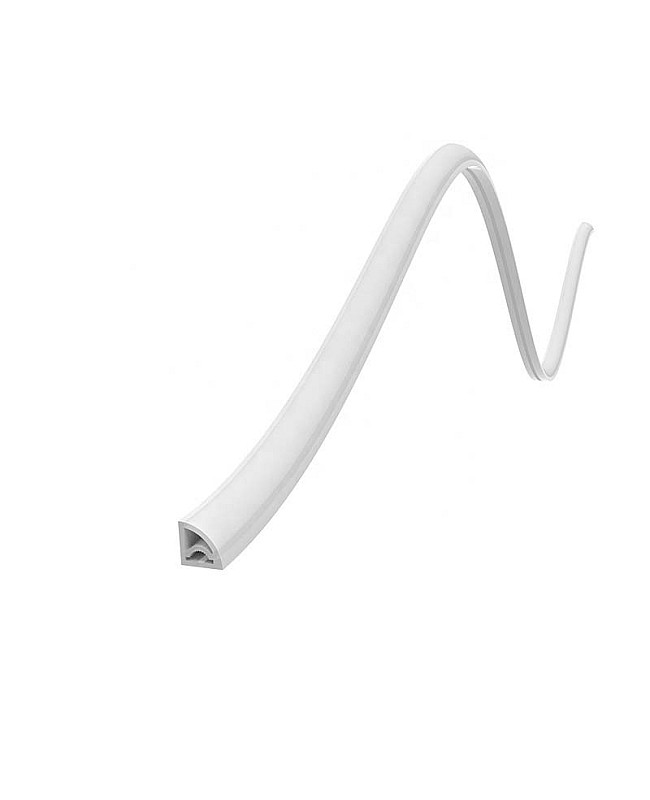

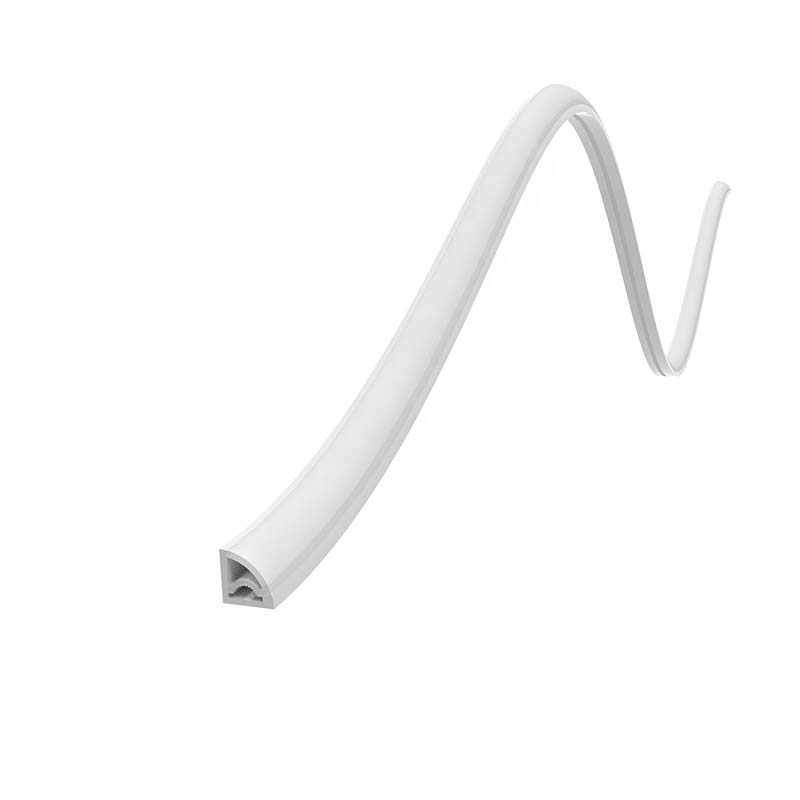

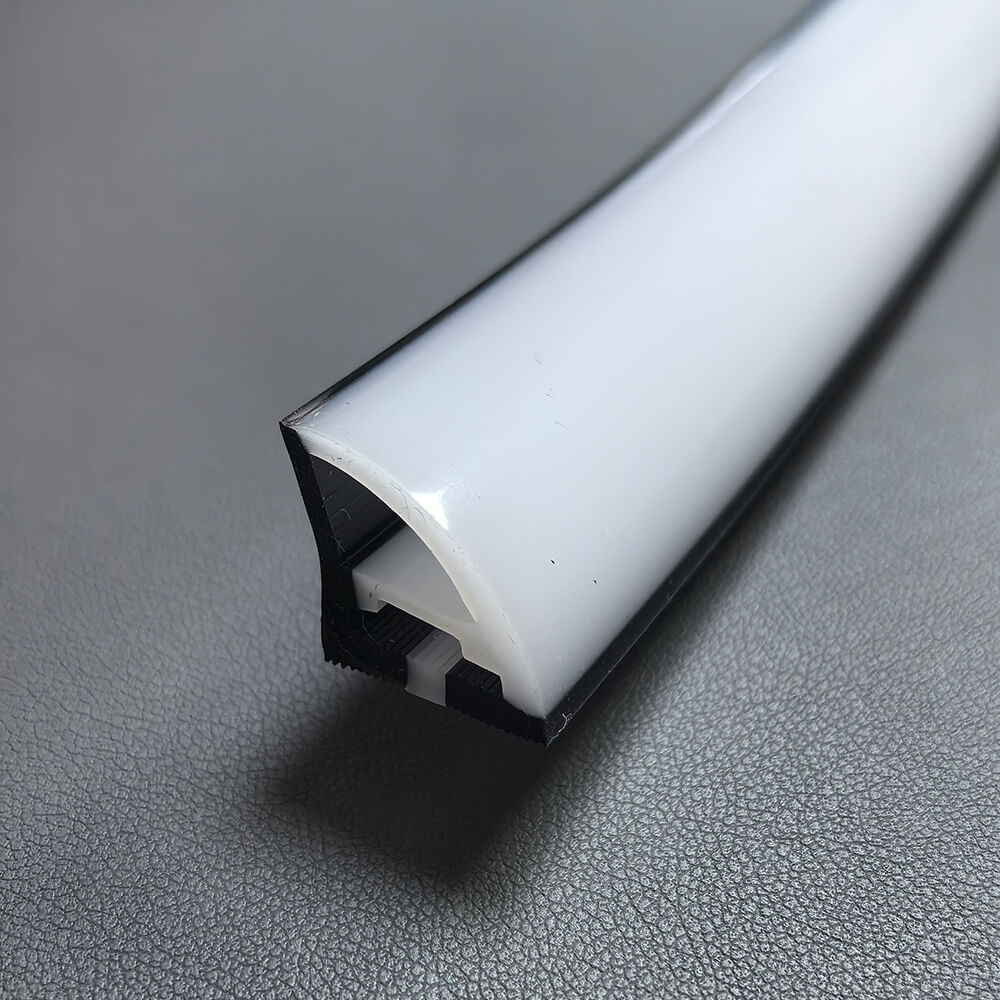

The corner LED profiles are made of high-quality silicone for anti-yellowing and are bendable. The silicone construction allows greater flexibility, making them suitable for both straight runs and gently curved installations while maintaining a clean, modern appearance. The integrated silicone diffuser effectively eliminates hotspots, creating a smooth, dot-free lighting effect.
The standard roll length is 5 meters, and the maximum roll length is 50 meters. You can cut them to the desired length easily for your project. The inner width is 10.8mm, allowing a maximum LED strip width of 10mm. Recommend adding high-density SMD or COB 24V tape lights as the light source without hotspots. The end caps (with and without wire holes) are included and provide a waterproof seal, allowing the wire to lead out to a controller or a waterproof dimmable power supply. The metal clips are included for easy mounting. Ideal for use in indoor spaces, kitchens, shower niches, bathrooms, and outdoor environments.

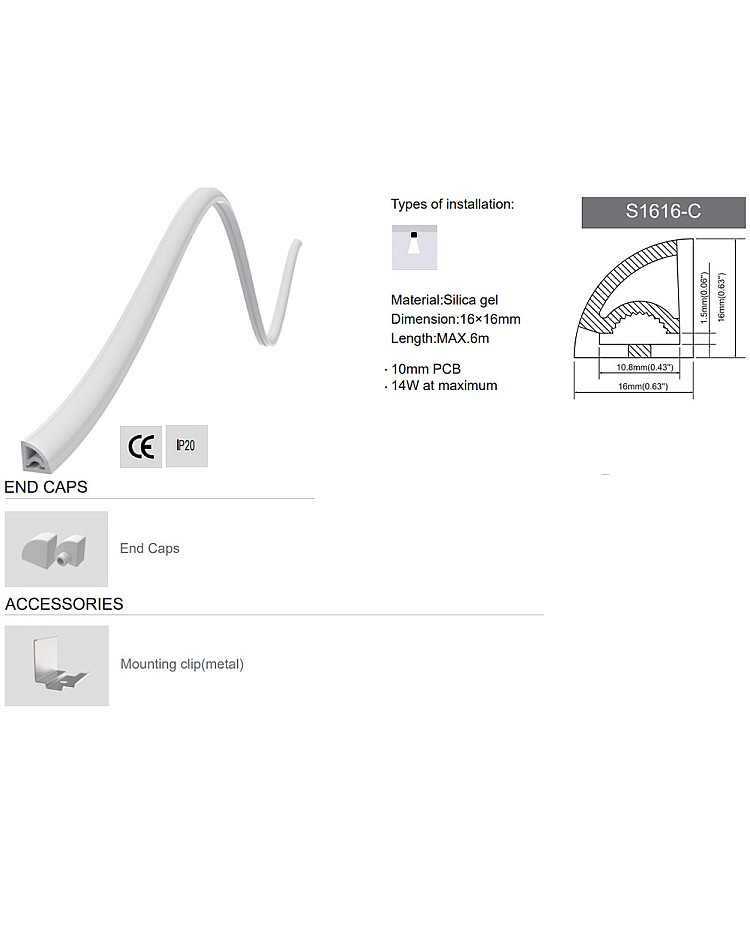

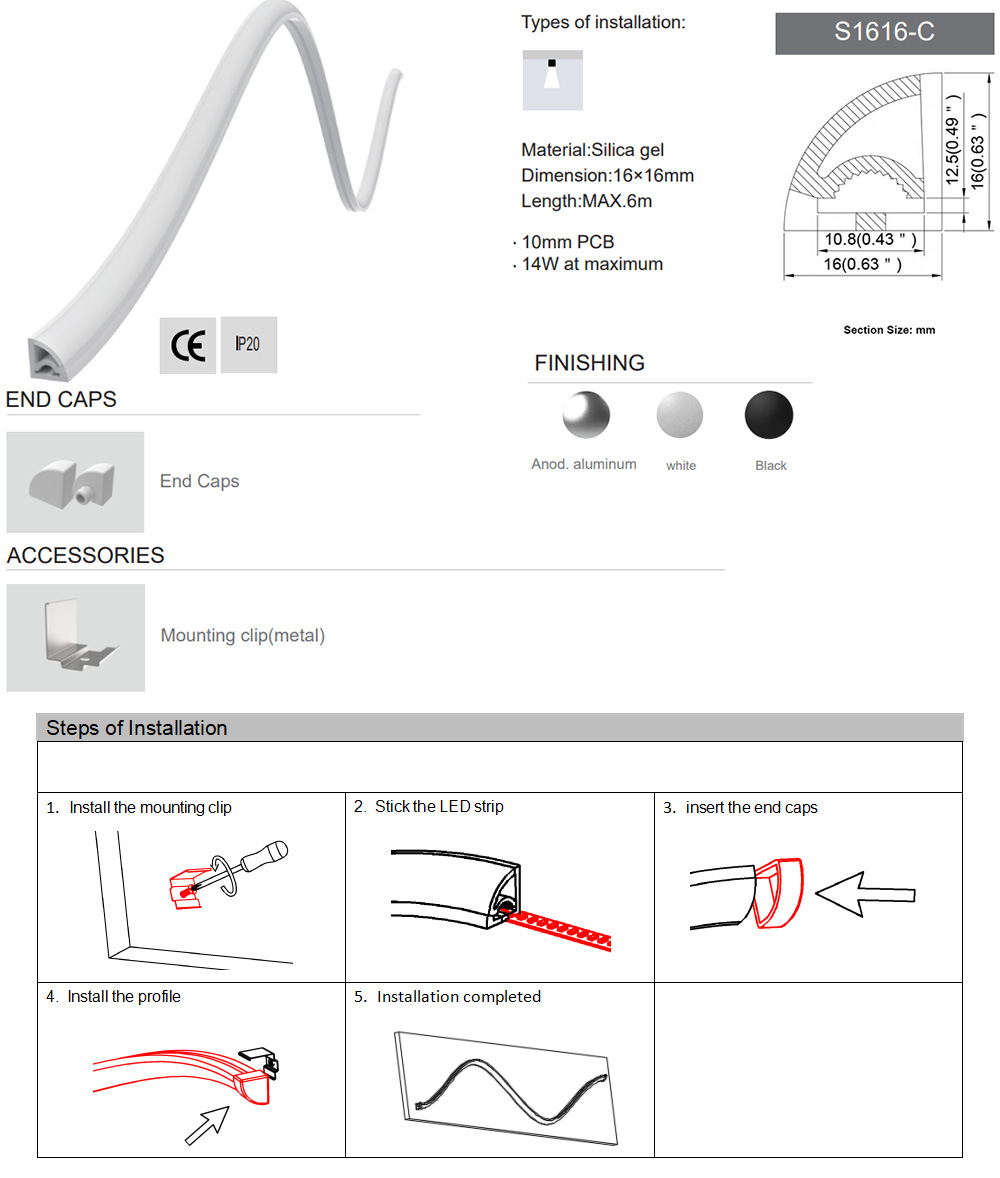

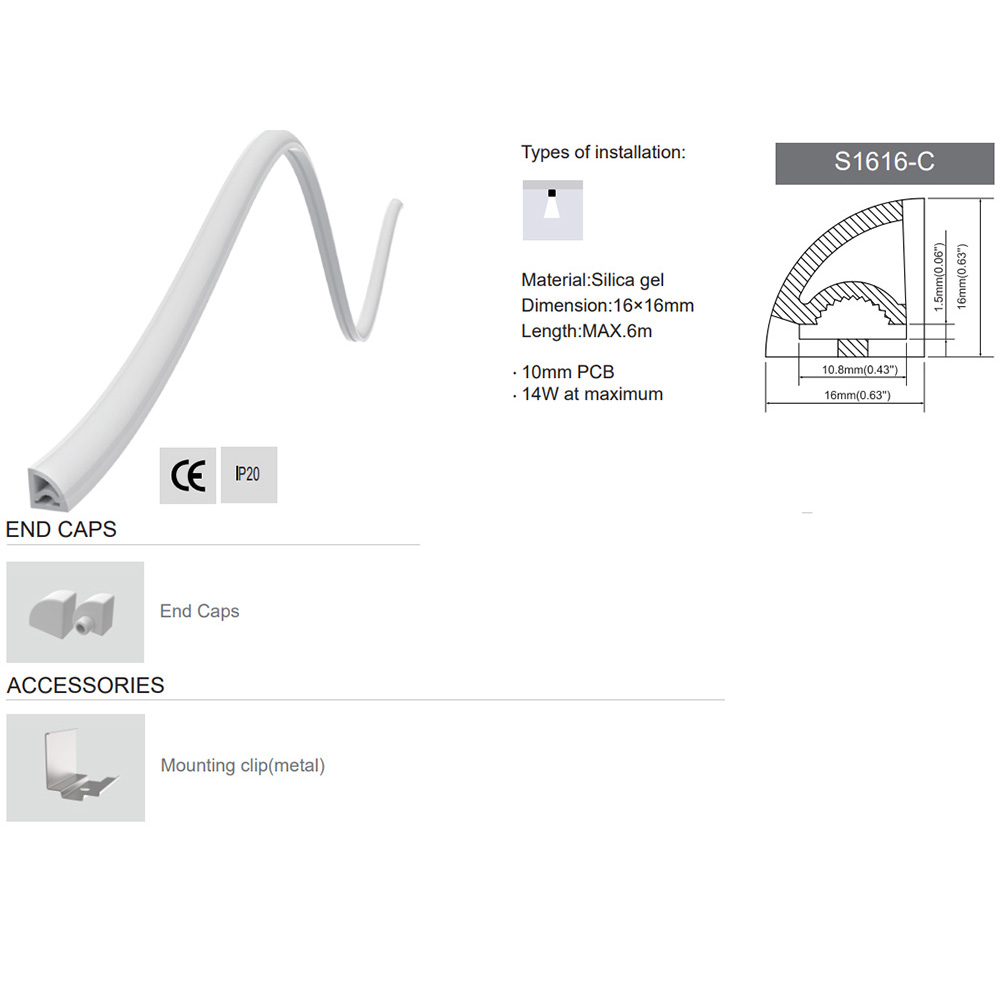

Specifications:
- Material: Silica gel
- Model: S1616-C
- Color: Milky white

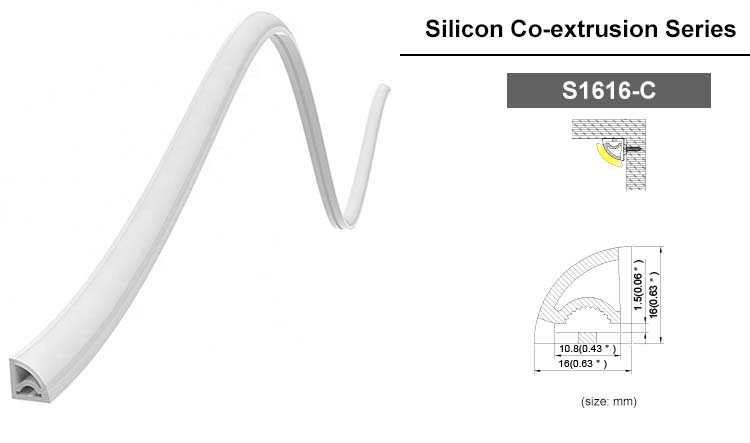

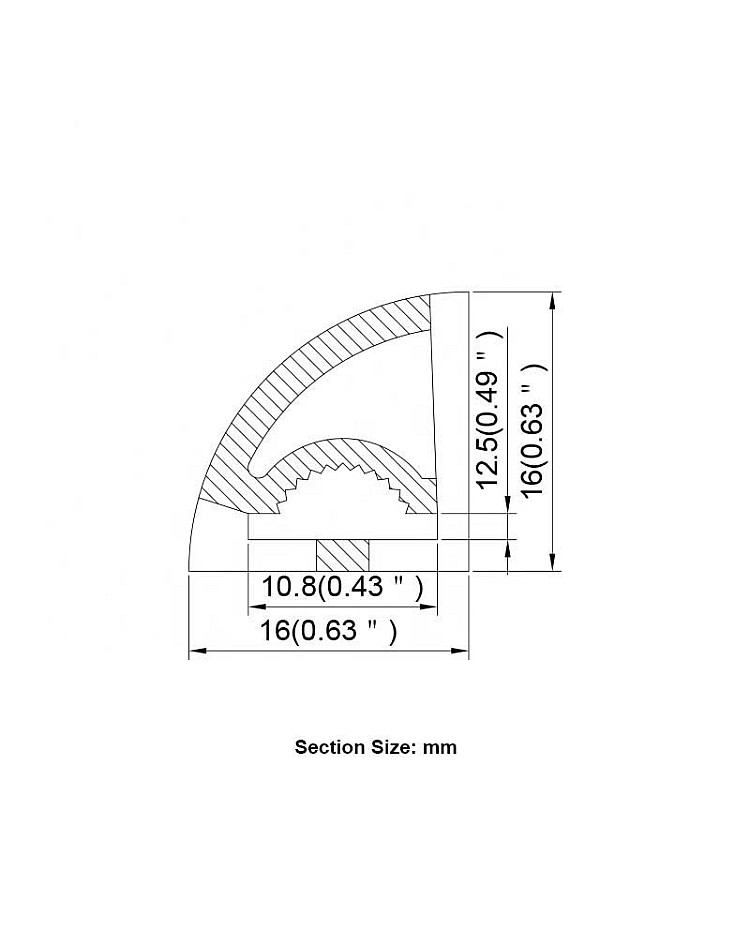

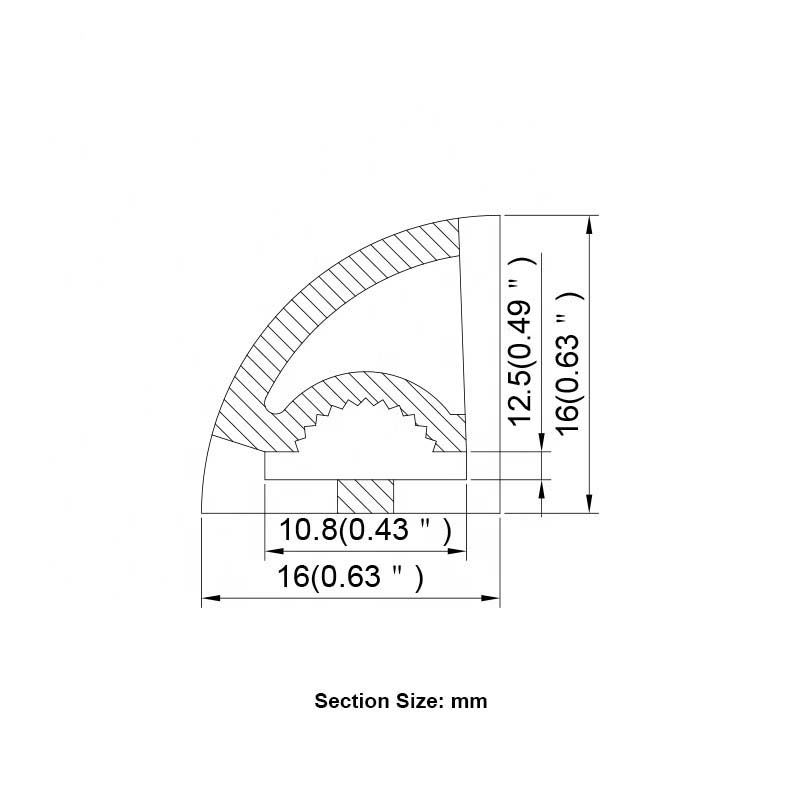

- Size ( Width x Height ): 16 mm x 16 mm / 0.63" x 0.63"
- Standard lengths: 5 m/16.4ft per roll
- Max length available: 50m/roll
- Inner width: 10.8 mm / 0.43"
- Allow the maximum width of strips: 10mm / 0.39"
- Max power: 14W/m
- IP rating: IP67 waterproof
- Cuttable: YES

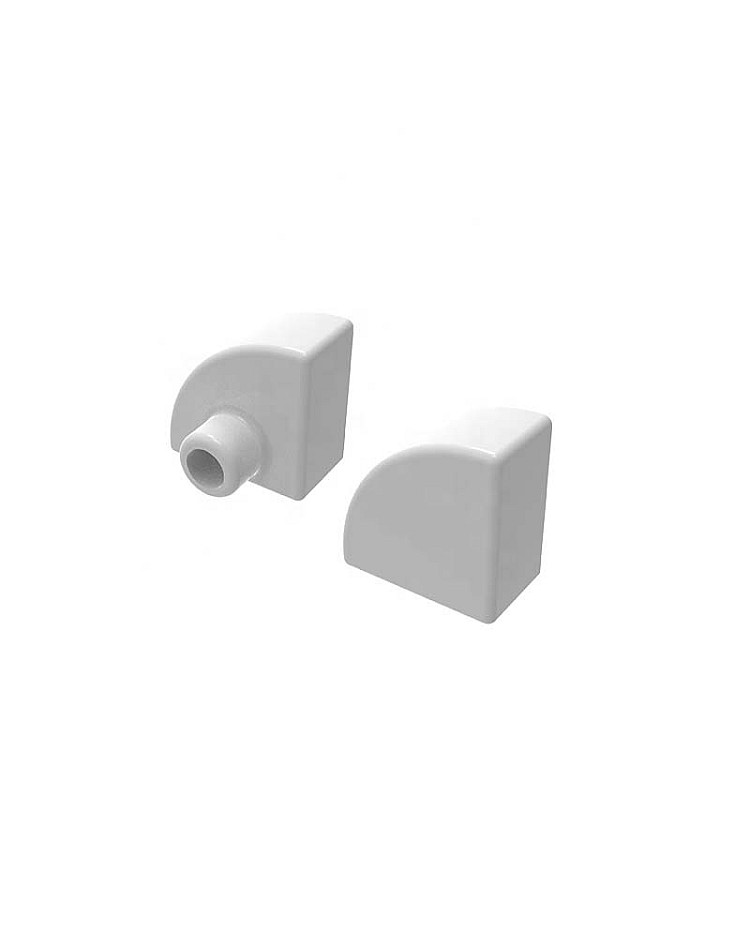

- Silicone end caps with/without wire holes are included

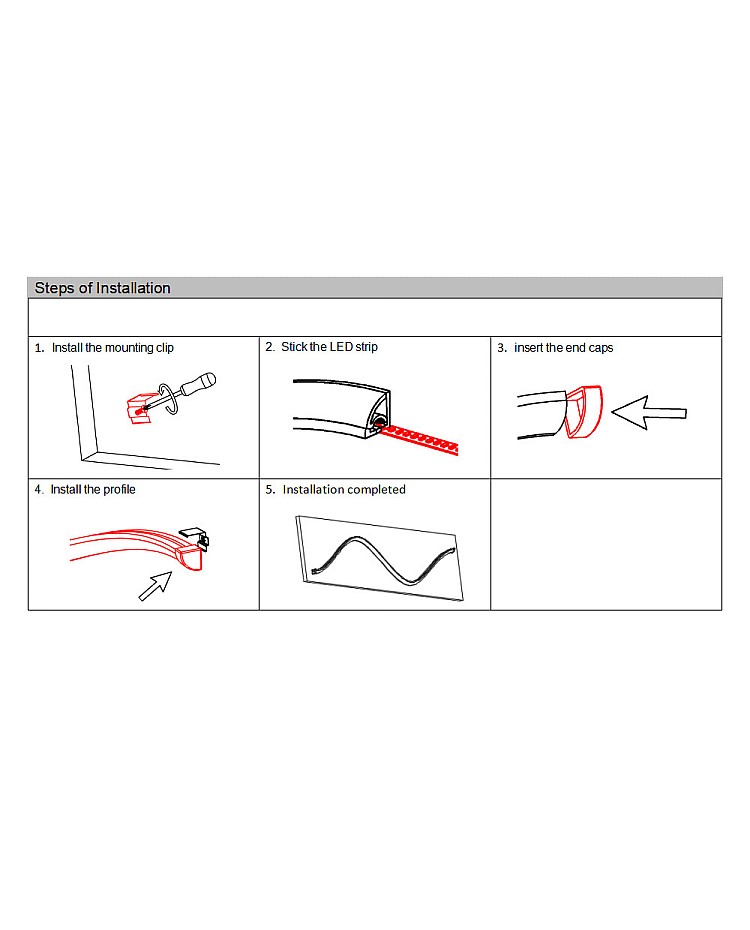

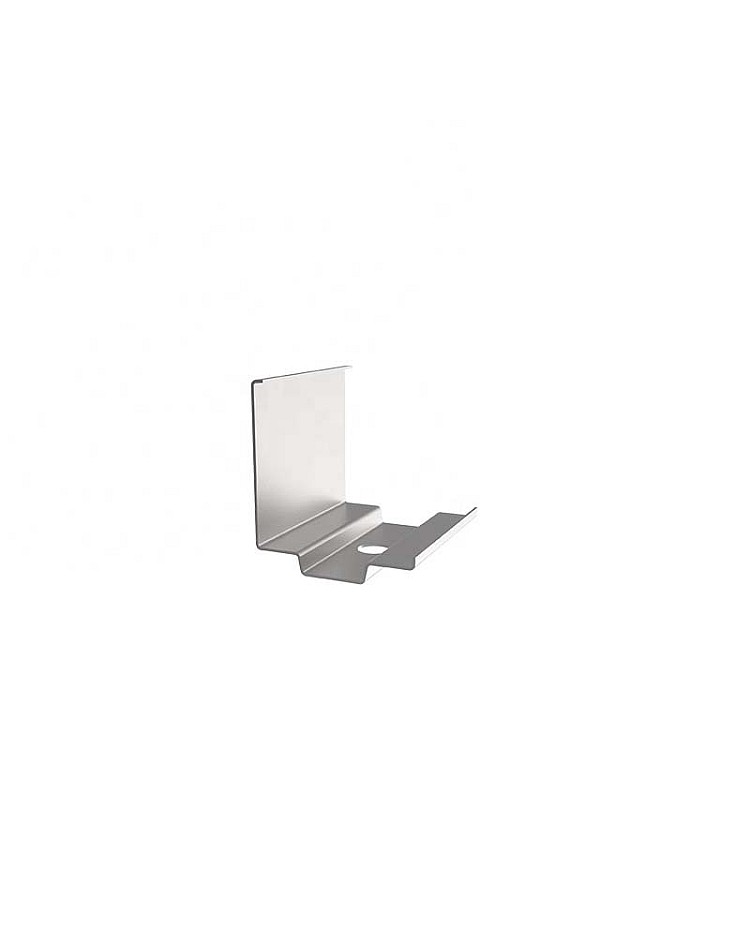

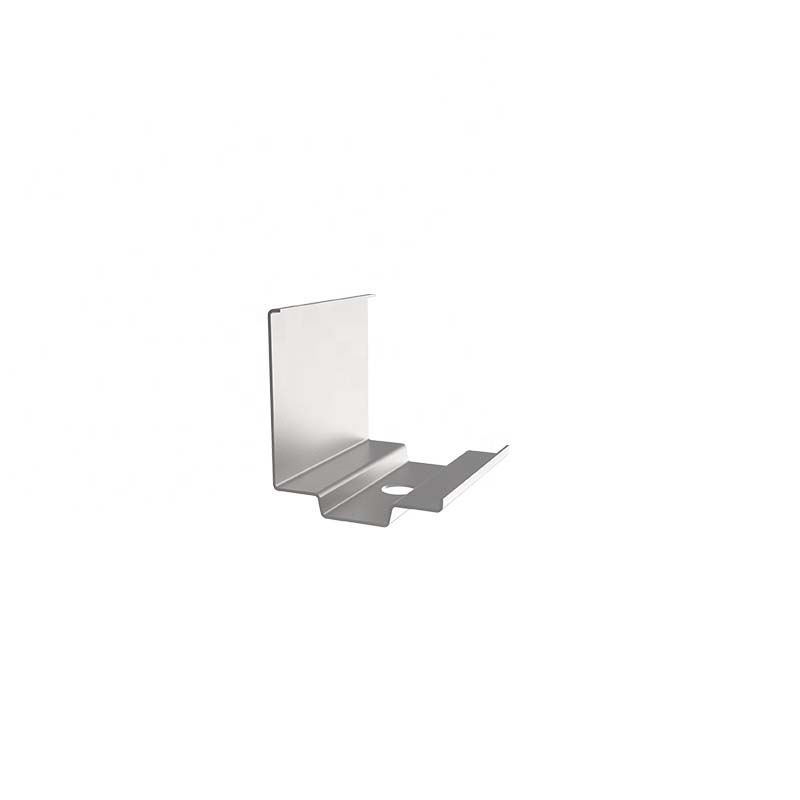

- Metal mounting clips included

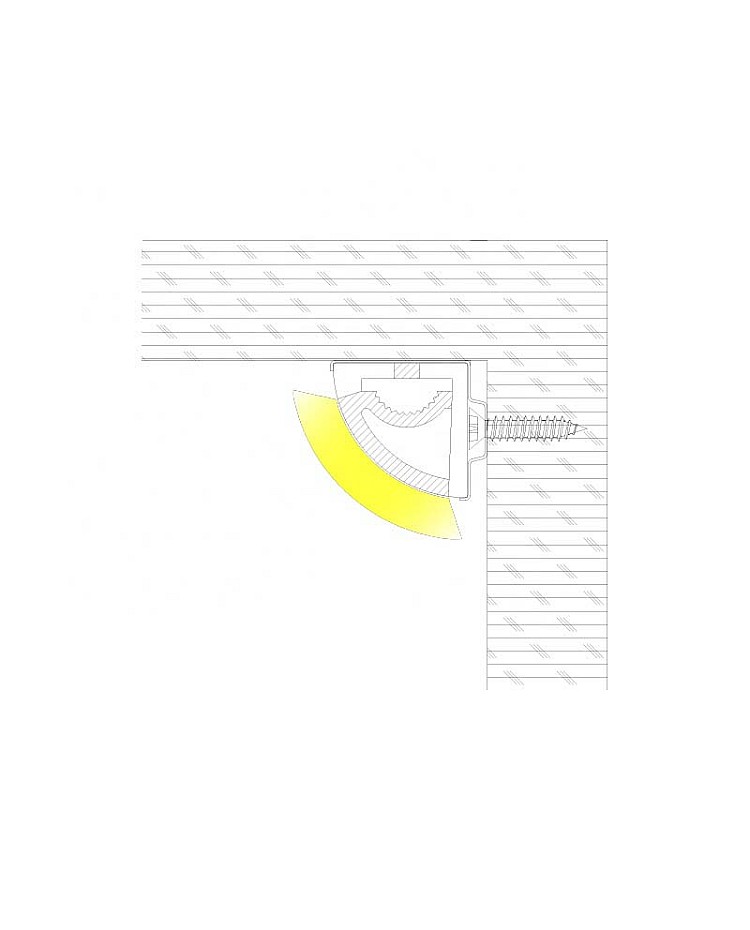

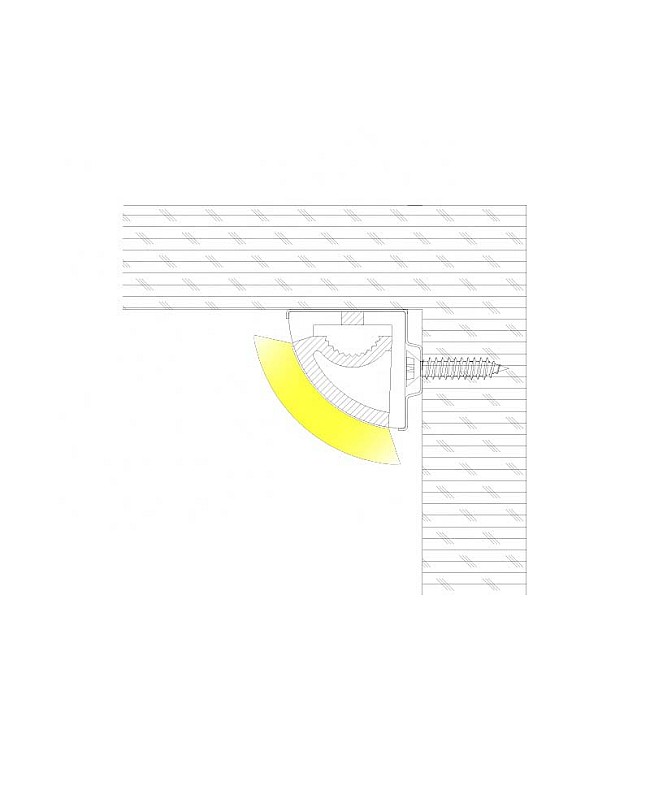

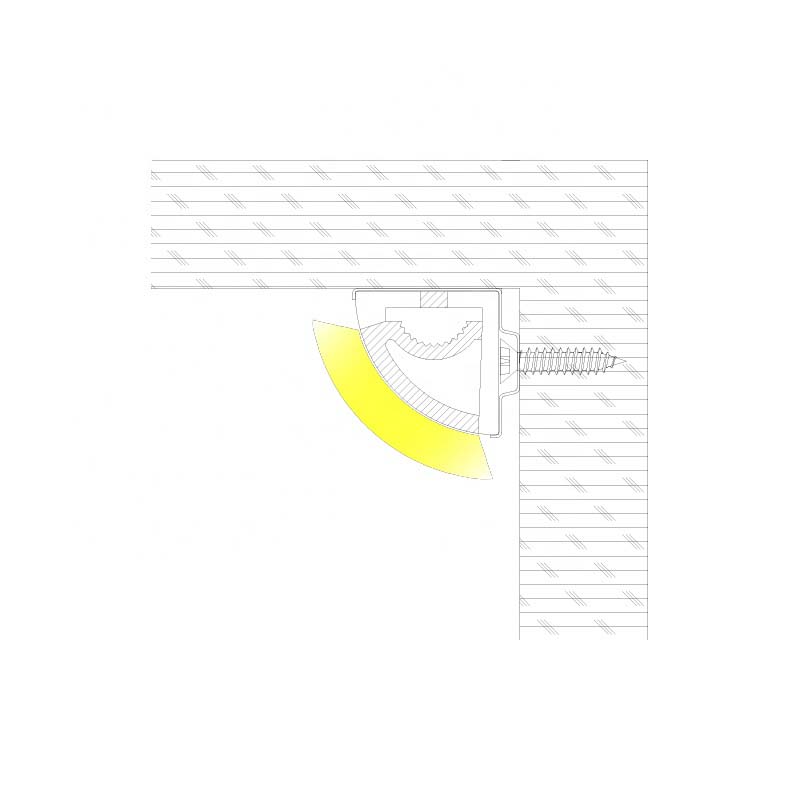

- Installation: Corner-mounted
- Applications: Decorative lighting/neon lights, etc
- Warranty: 5 years
Includes:
1 * Silicone corner LED strip channel ( 5 meters/roll )
1 * End caps ( With and without wire holes )
10 * Metal clips

+
+
+
+
+
+
+
