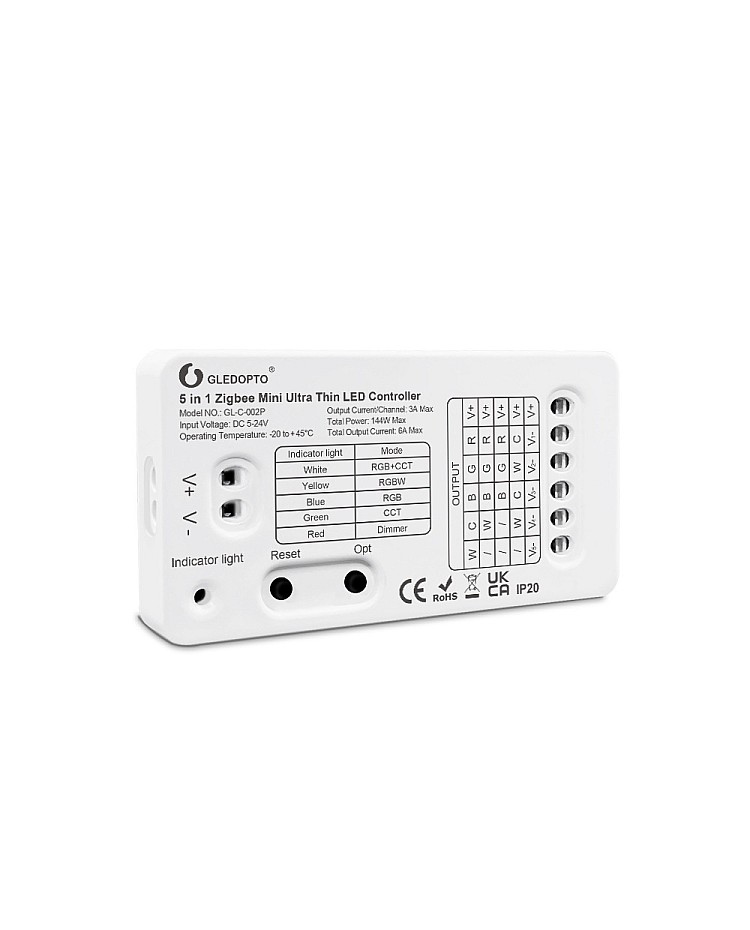

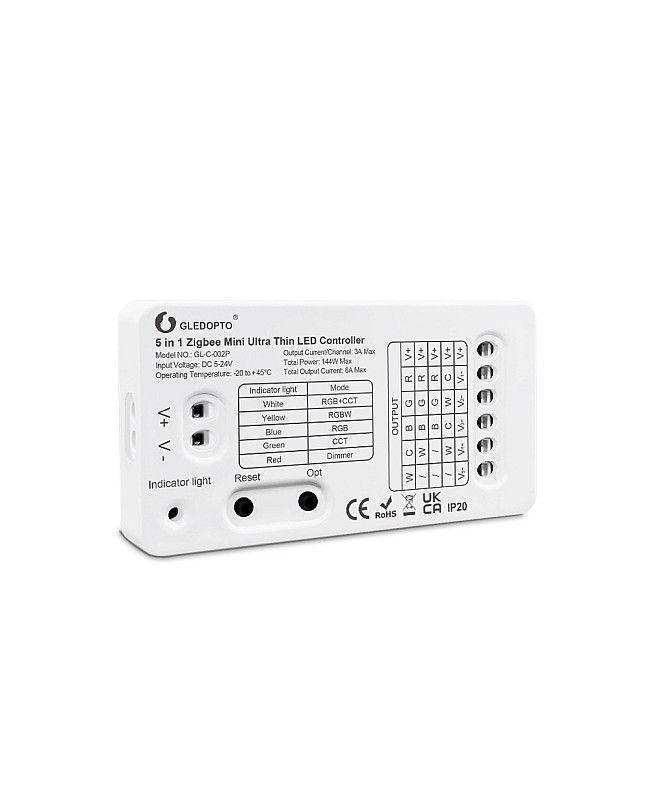

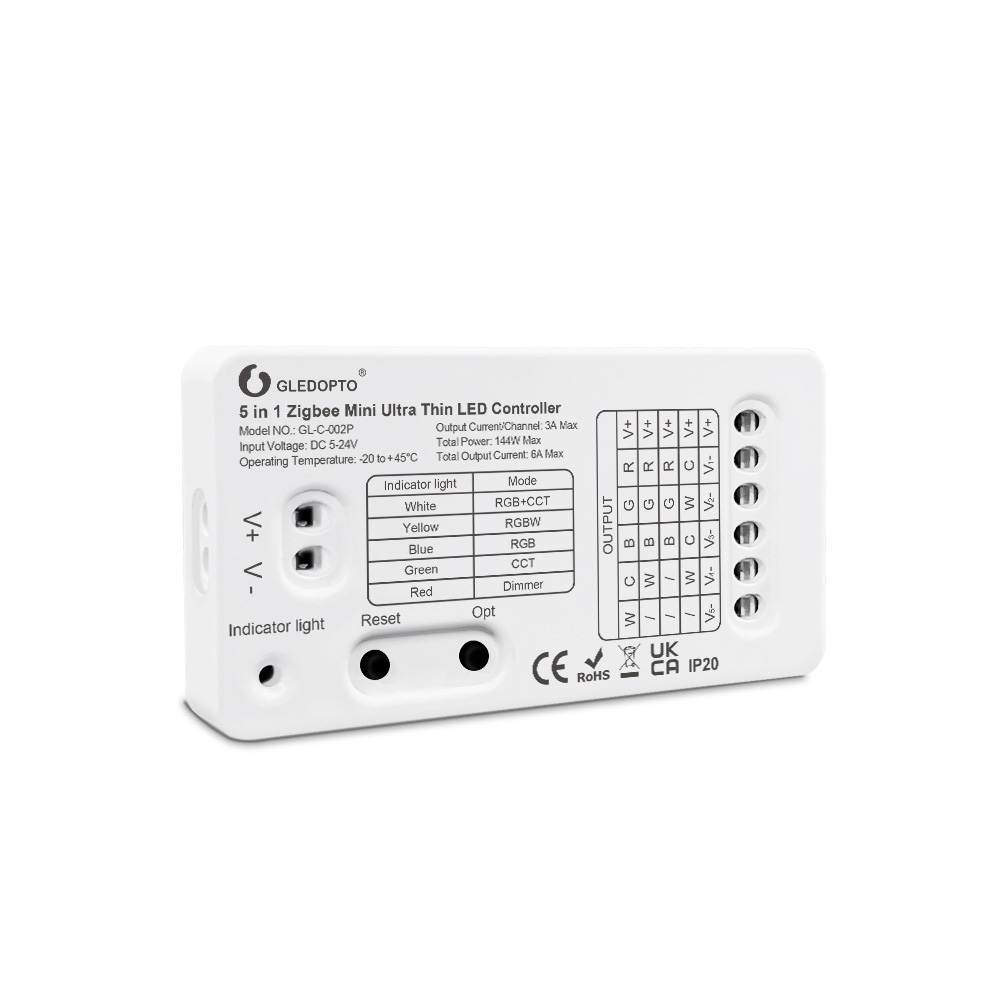

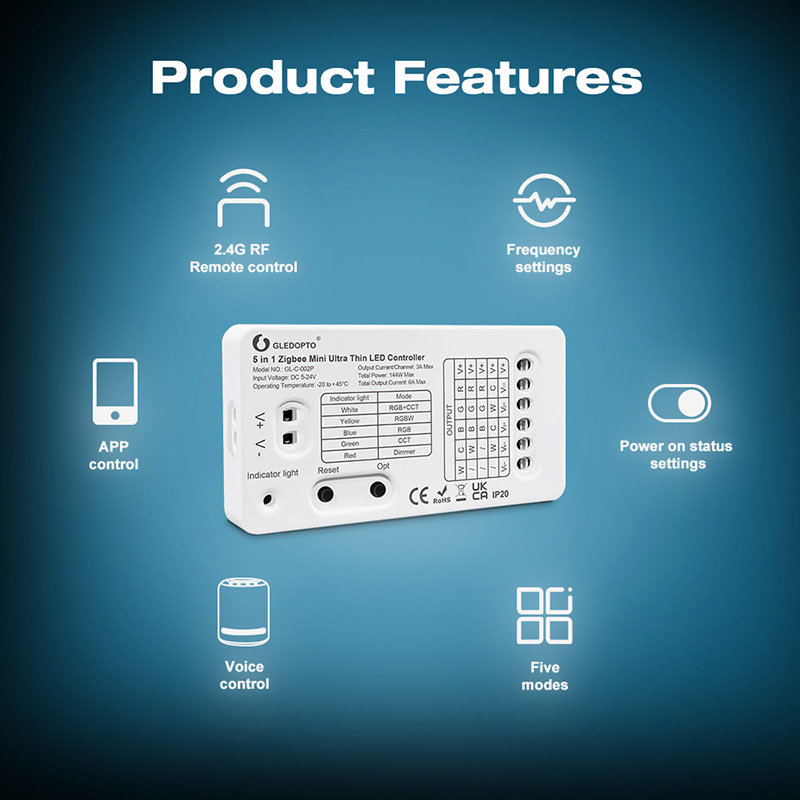

The 5-in-1 mini Zigbee Gledopto controller, with a 5-working-mode switchable design, can be used for RGB+CCT, RGBW, RGB, CCT, and single color LED lights. The Gledopto controller has an ultra-thin size and lightweight design, is smaller than one credit card, and weighs only 23.5 grams. It is easy to install in a small or narrow location. The GL-C-002P works on DC5V to DC24V, with a max output current of 6A and a max loading power of 144W. There are two buttons on the surface. You can press the "Opt" button to switch the working modes; the intuitive LED indicator light will show various colors to indicate the different working modes. There are two power-on modes available, long-press the "opt" button to switch from the mode " remember the status of the ON/OFF before power off" or "lights up by default when powered on".The Zigbee LED controller is compatible with Zigbee 3.0 gateways like Philips HUE, Tuya, Amazon Echo Studio, Smarthings, etc., and can be controlled by a smartphone APP, 2.4G RF remote. You can set the color and adjust the color temperature and brightness. There are 16 million colors available, the color temperature changes from 2200K to 6500K, and brightness is adjustable from 1% to 100%. The Gledopto Zigbee controller can work with Amazon Echo Plus, and you can adjust ON/OFF and brightness through voice commands. The working frequency setting is changeable to match more power supplies to reduce noise. Press the "Reset" button to change the frequency from 600Hz to 8000Hz.
Specifications:
- Model NO: GL-C-002P

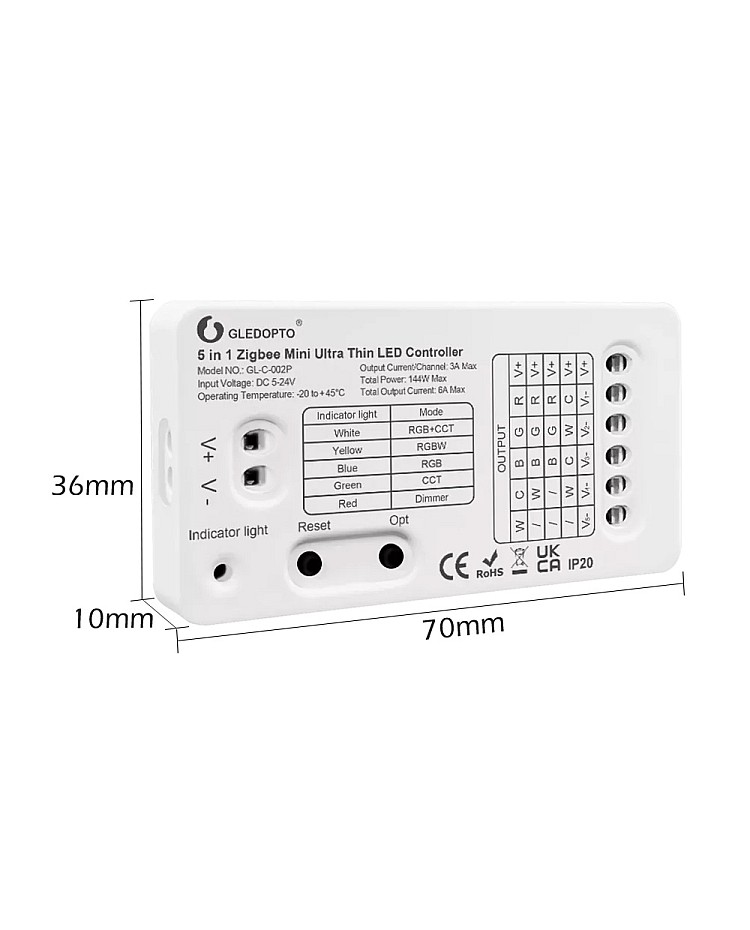

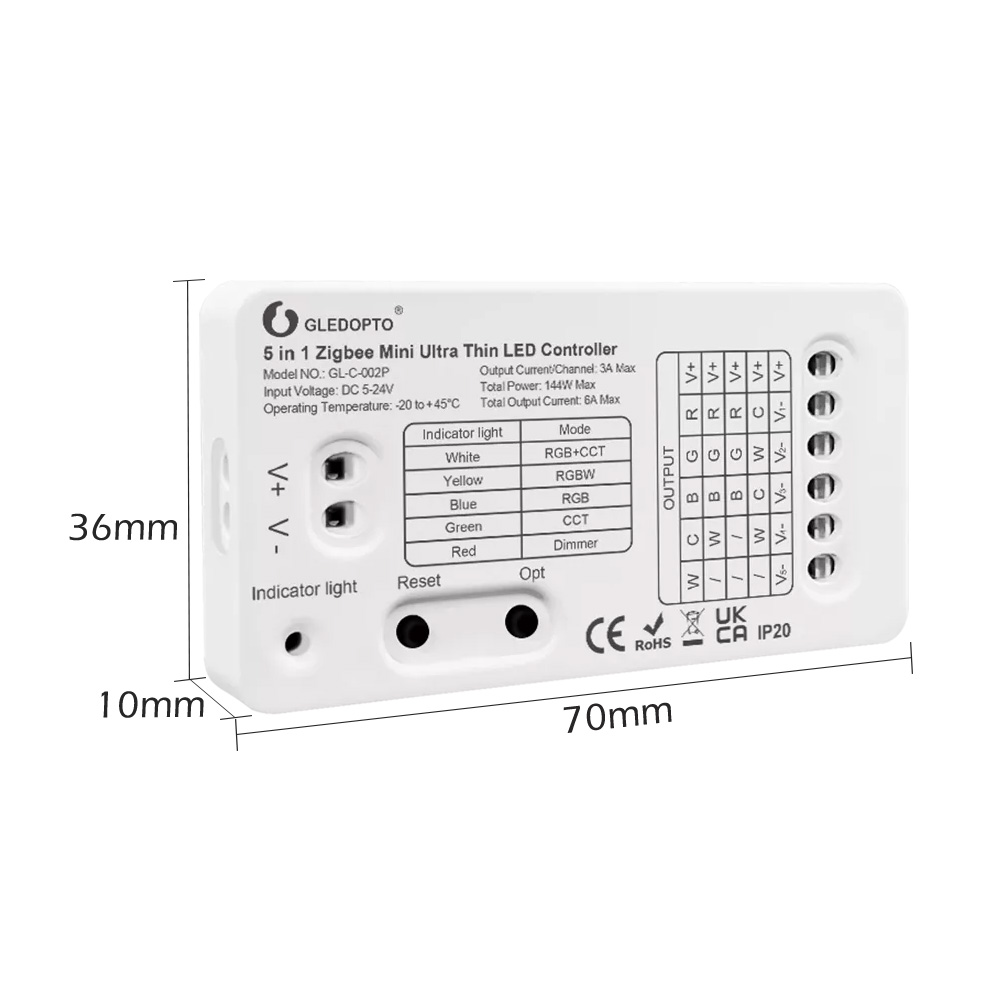

- Size: 70*10*36mm(L*W*H)
- Fireproof And High-Temperature Resistance Material
- Input Voltage: DC5-24V
- Output Current: 3A Max Per Channel
- Total Output Current: 6A Max
- Total Power Output: 144W

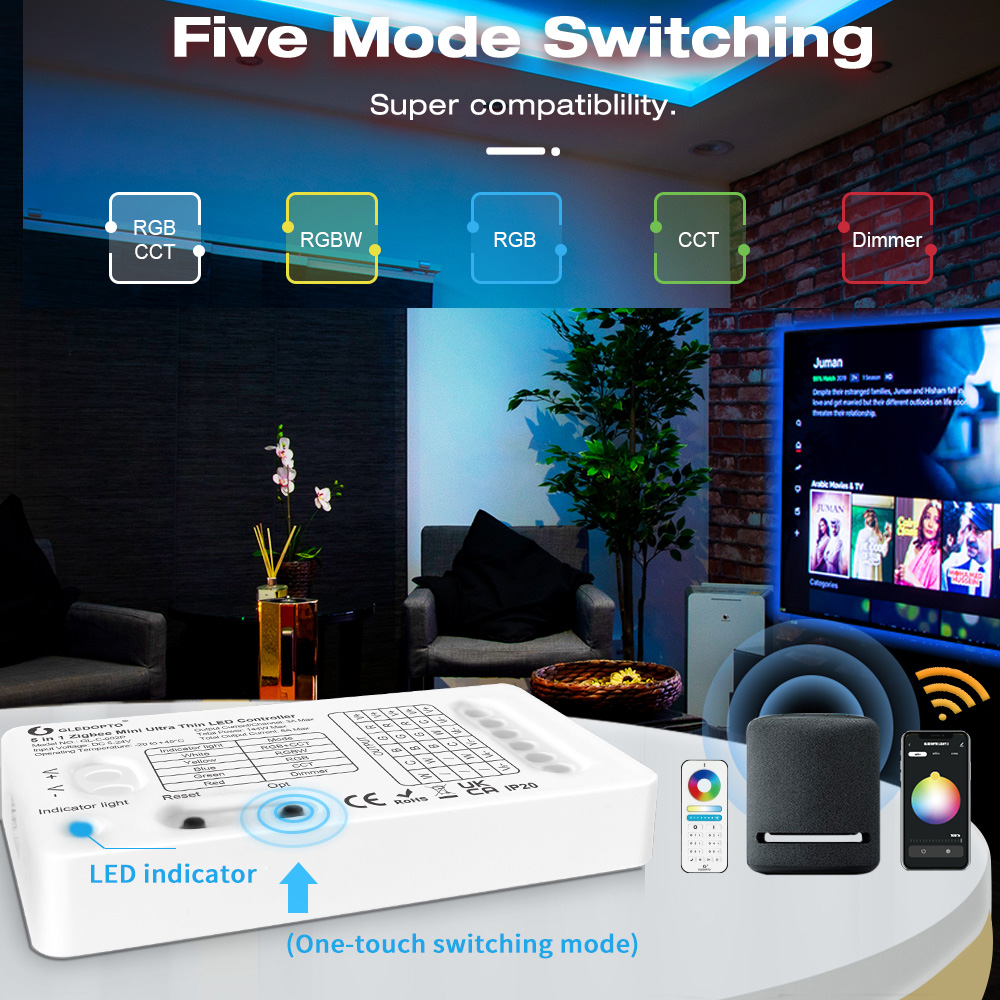

- 5-In-1 Modes Switchable: RGB+CCT, RGBW, RGB, CCT, Dimmer
- Compatible With Zigbee 3.0 Gateways: Philips HUE, Smarthings, Amazon Echo Studio, Conbee, Terncy, Tuya
- Intuitive LED Indicator Light
- Power-on Modes Optional: Remember The Status Of The ON/OFF Before Power Off/Lights Up By Default When Powered On
- 16 Million Colors Changing
- Color Temperature Adjustable From 2200K To 6500K
- Brightness Adjustable From 1% To 100%

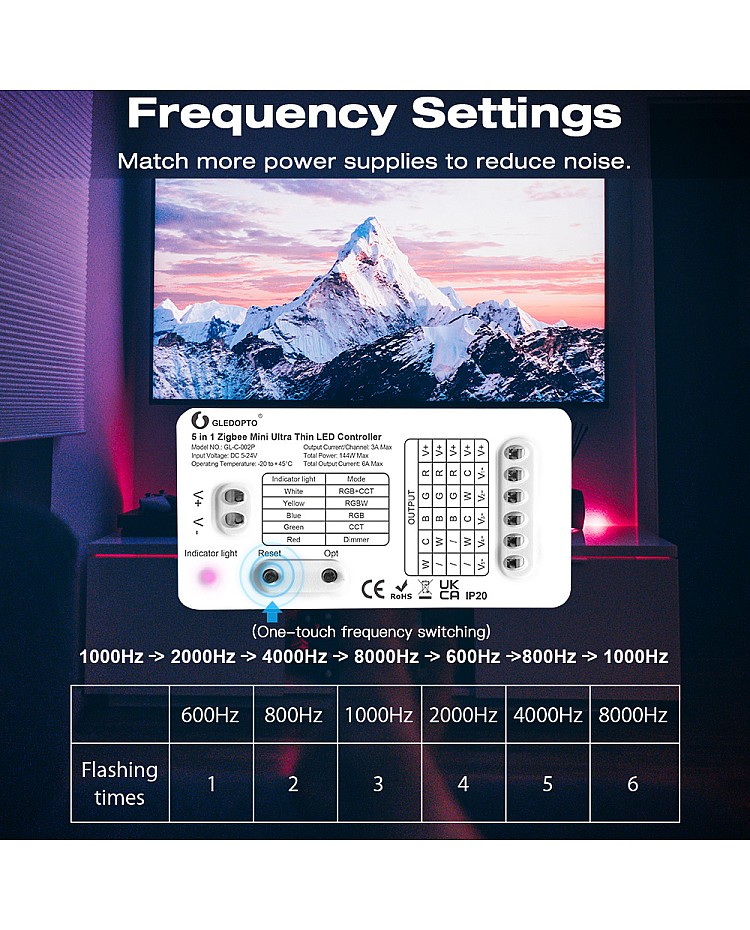

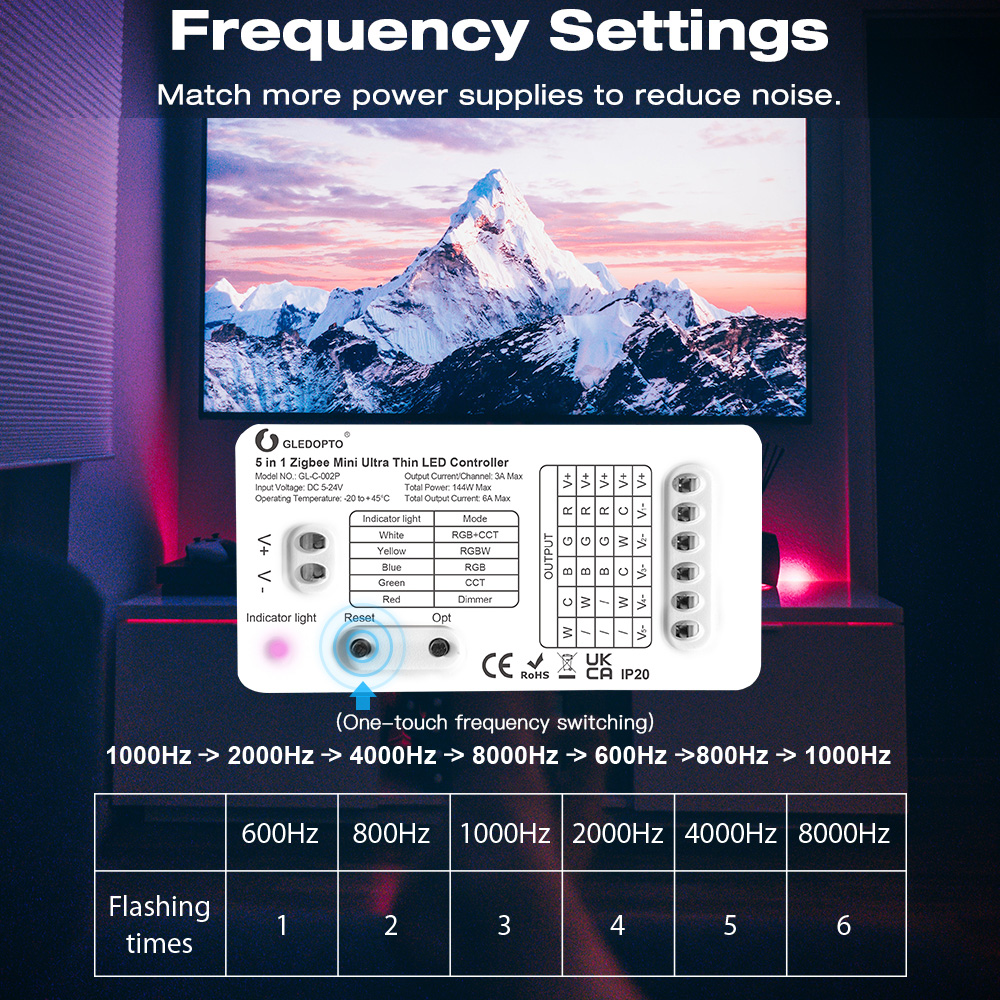

- Frequency Settings: 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz
- Smart Phone APP Control
- Works With Amazon Echo Plus
- 2.4G RF Remote Control Controllable
- IP Rating: IP20
- Working Temperature: -20℃-45℃
- 3 Years Warranty

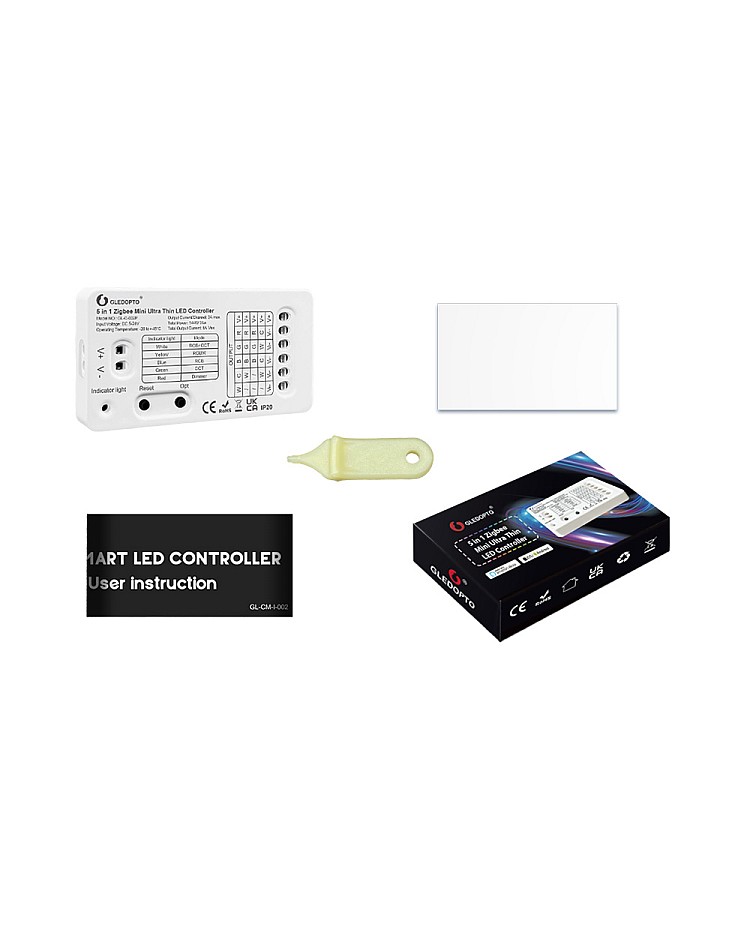

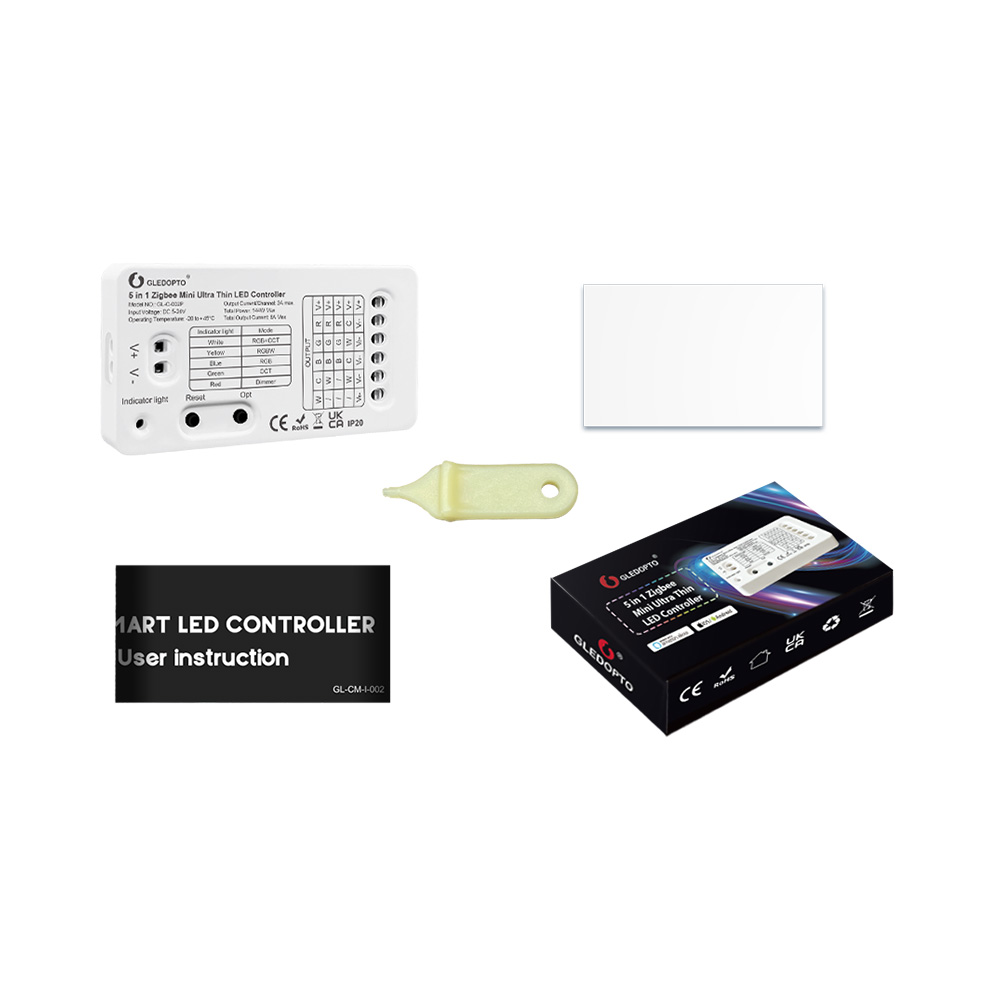

Includes:
1 * Gledopto 5-In-1 Mini Zigbee Controller
1 * Wiring Tool
1 * 3cm Sticker
1 * User Manual
