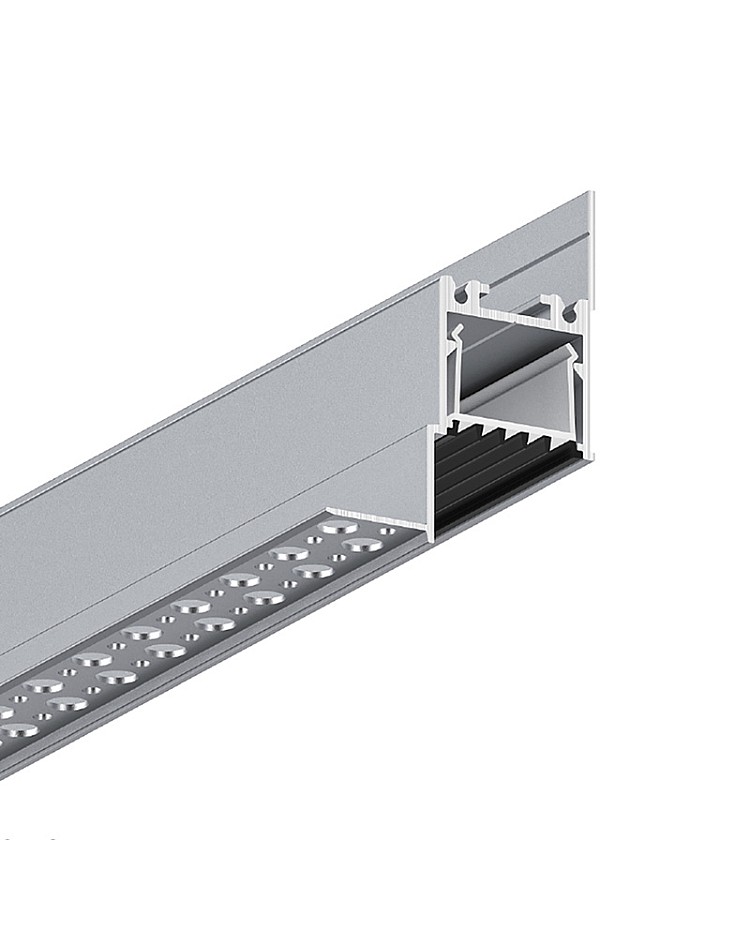

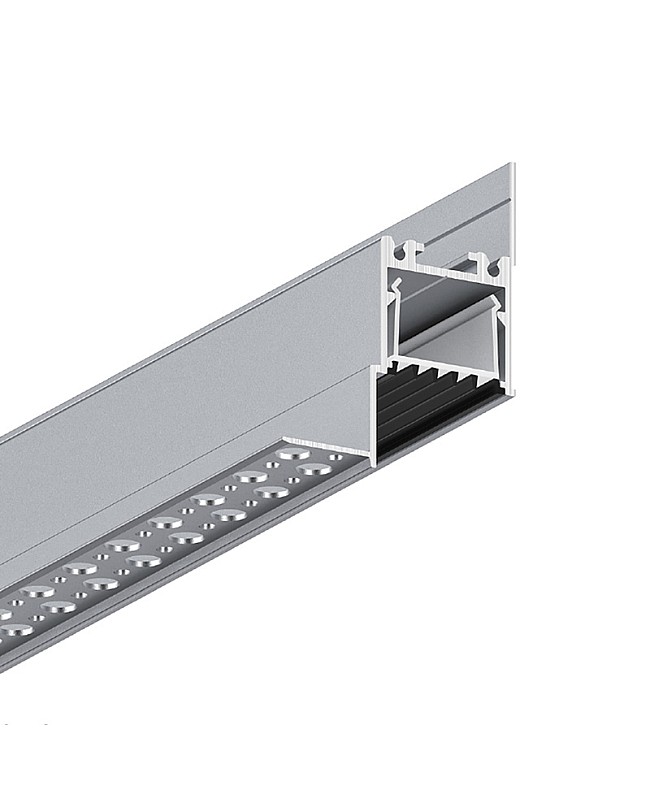

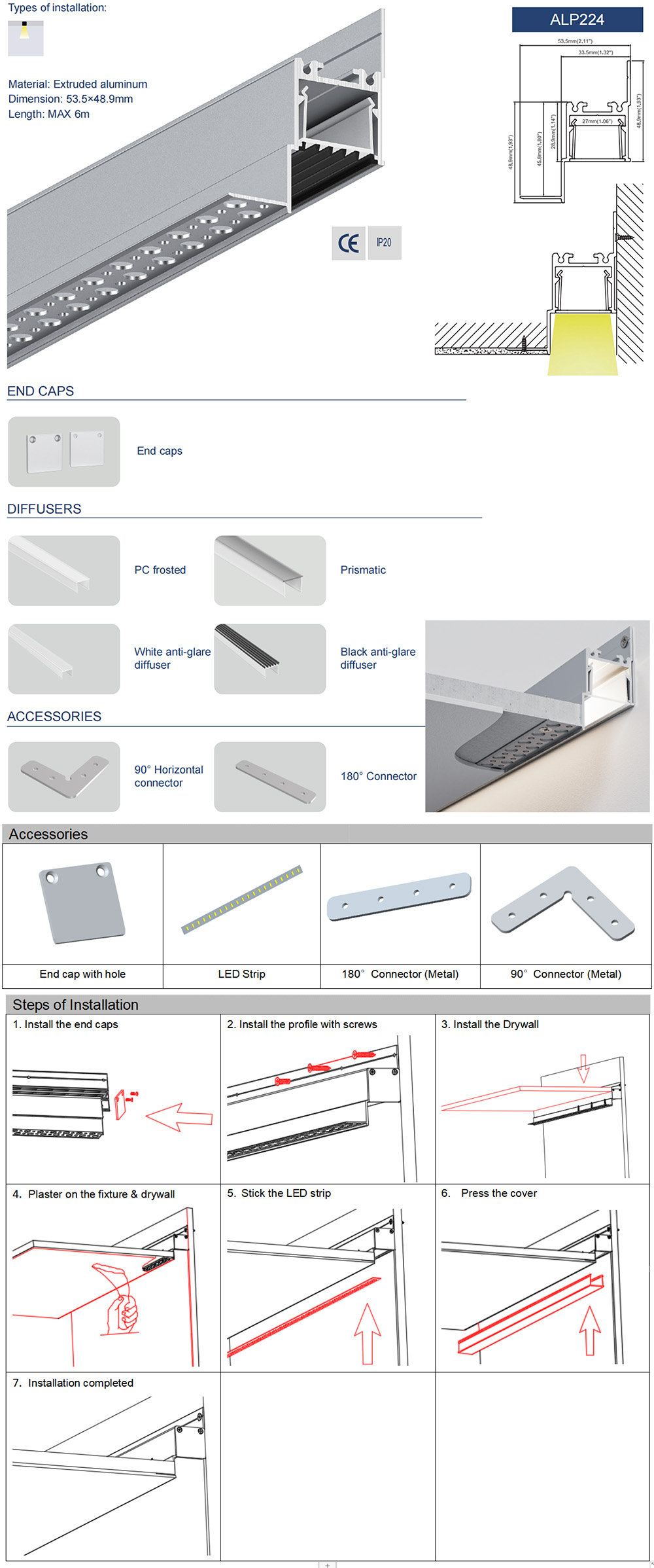

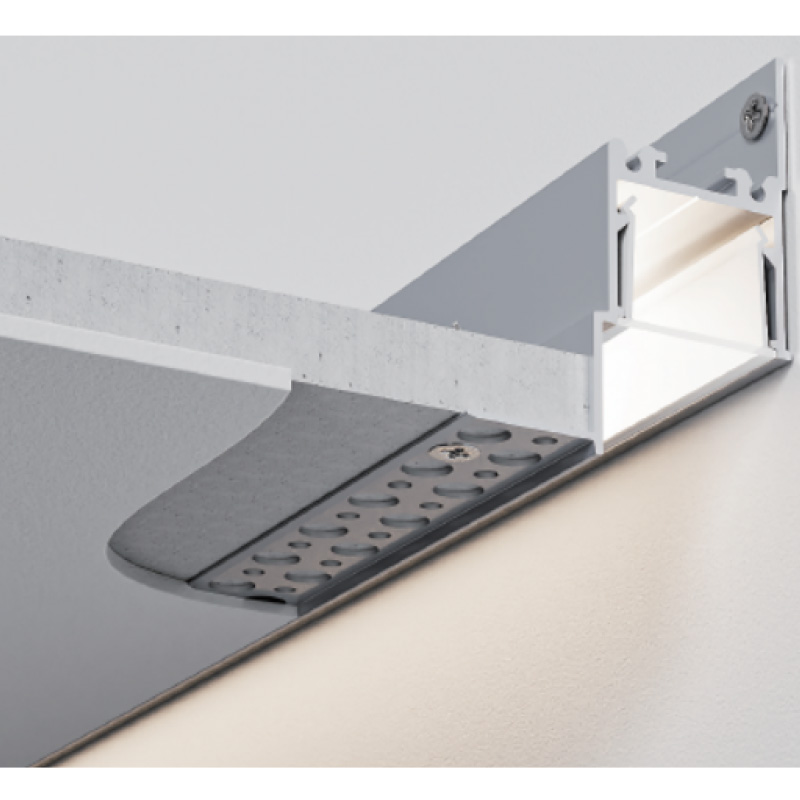

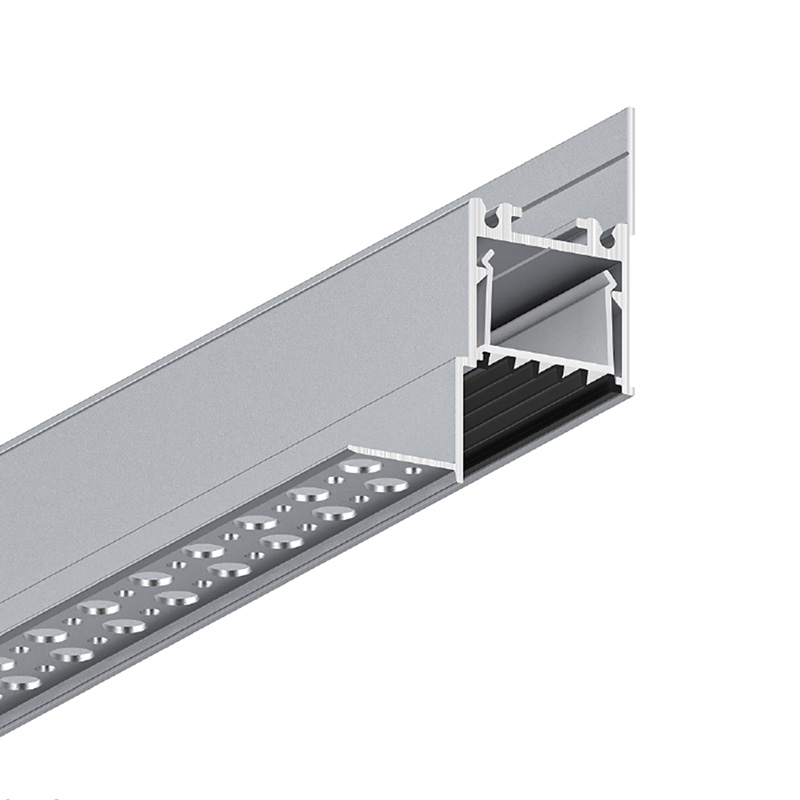

The plaster in LED lighting channels can seamlessly blend into the ceiling perimeter, creating a seamless and integrated modern perimeter lighting system without visible edges. It has a regressed cover design, and the cover will be installed slightly back from the edge of the LED channels to create a subtle shadow gap or indirect lighting effect. There are two anti-glare diffusers available, which you can use to eliminate visible light dots and harsh glare, delivering soft, uniform light. The stock length is 2 meters per piece and can be cut to any size for your needs. The perimeter light channels are made of 6063-T5 extruded aluminum alloy, have a silver anodized finish, and are resistant to oxidation, making them long-lasting. Four types of diffusers are available: white and black anti-glare covers, PC frosted covers, and prismatic covers. They are made of high-quality material, are anti-yellowing, and have perfect light distribution. The inner width is 27mm, allowing a maximum width of 26 mm for the strip lights. We recommend using flexible COB LED strips as the light source to create consistent line lighting without dark areas and hot spots. The 180° and 90° couplers are sold separately and can be used for straight or angled installations.
Specifications:
- Material: 6063-T5 extruded aluminum alloy
- Surface Treatment: Anodized
- Colors: Silver

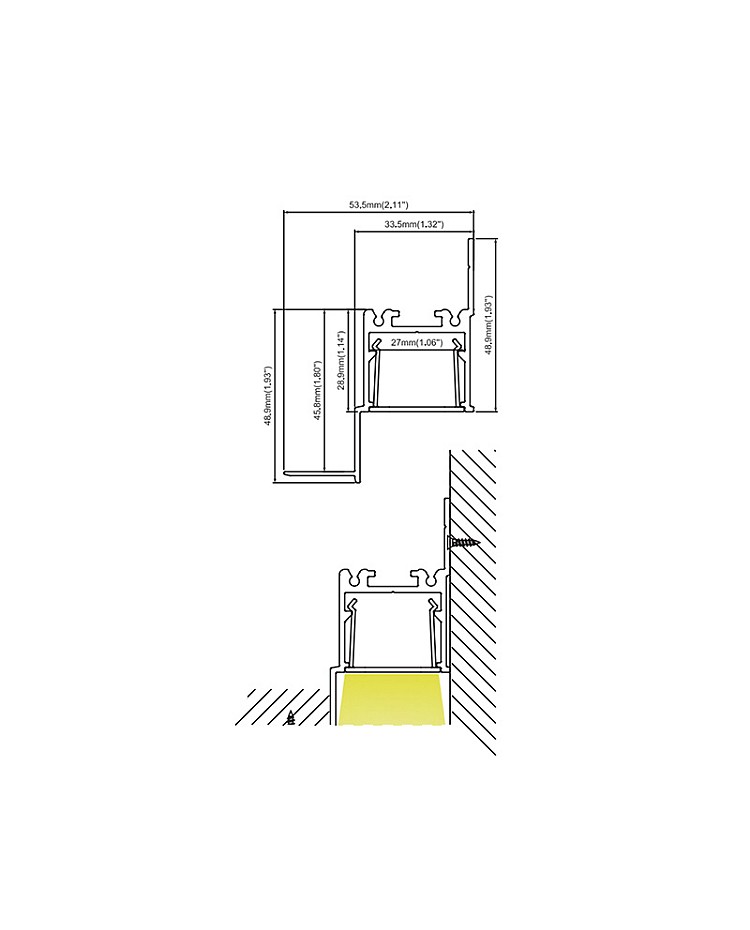

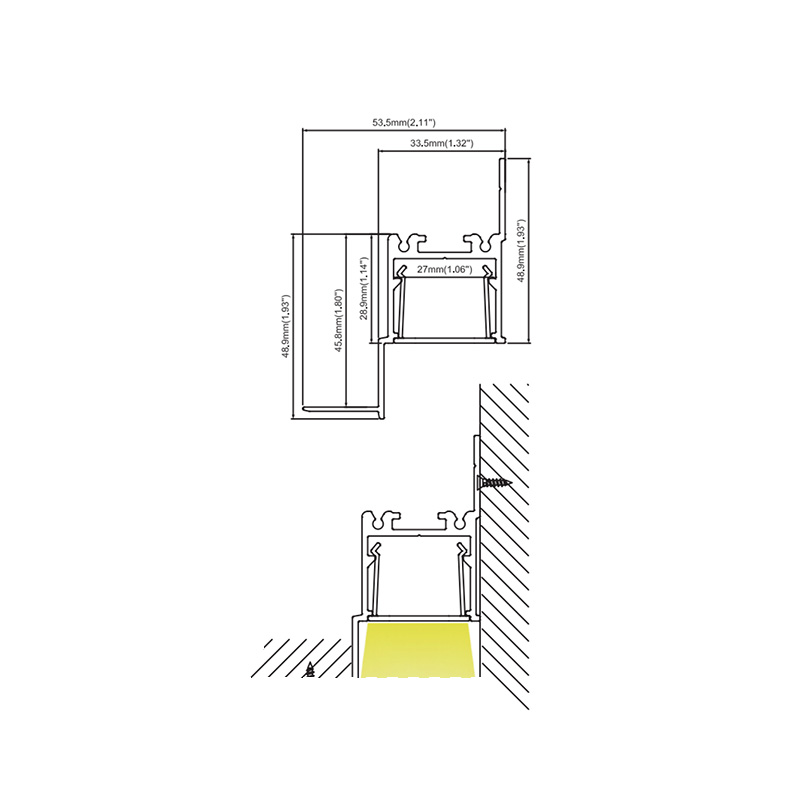

- Size(W*H): 53.5*68.9mm/2.11"*2.71"
- Length: 1 M(39") / 2 M(78")
- Custom Length: YES
- Inner Width: 27 mm/1.06"
- Max LED Strip Width: 26mm/1.02"
- Max Power: 23W/M

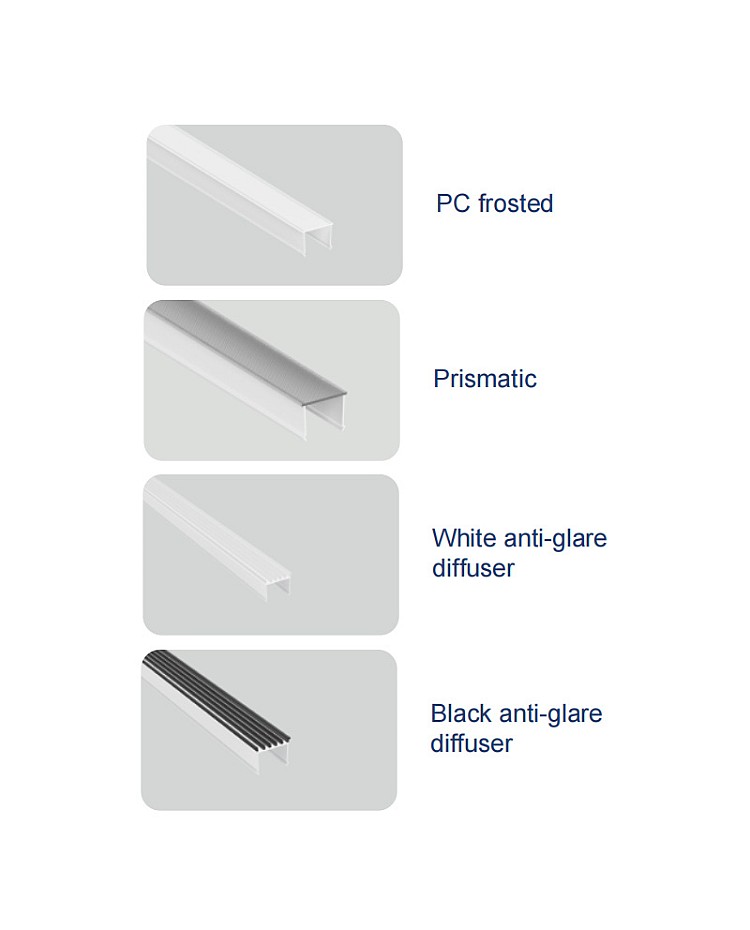

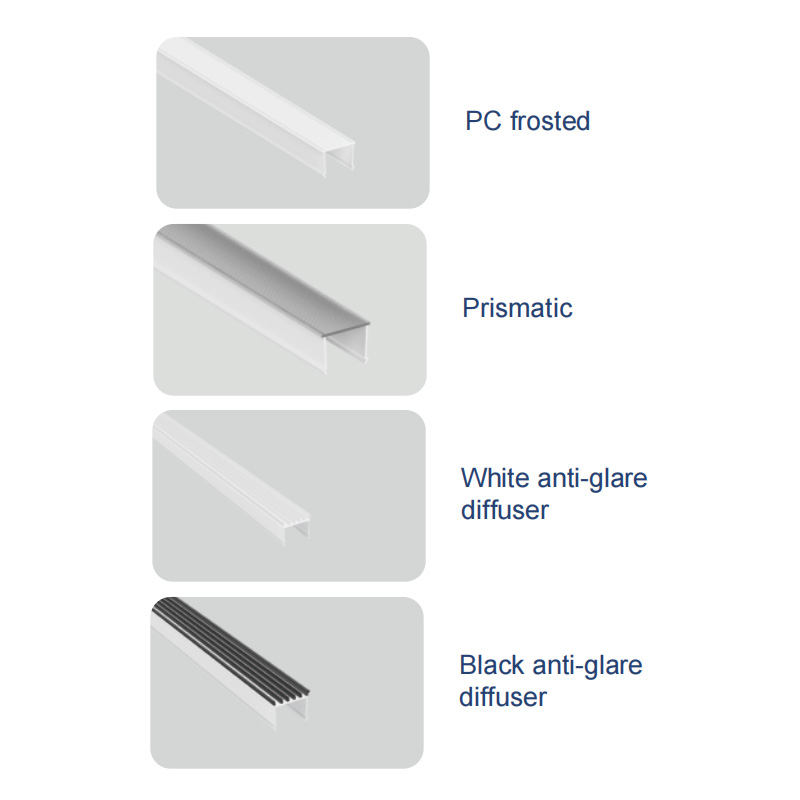

- Diffusers Available: PC frosted covers, prismatic lens, white anti-glare covers(ribs), black anti-glare covers(ribs)

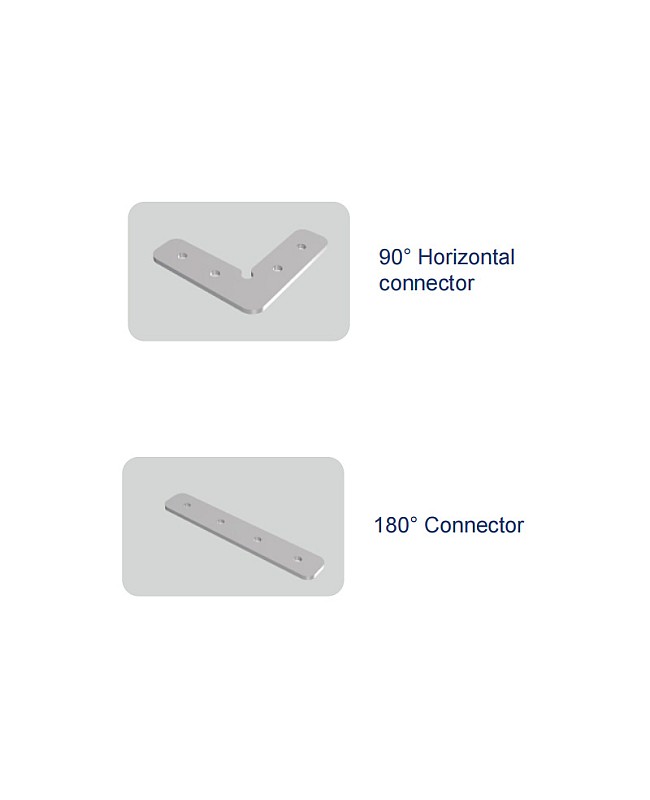

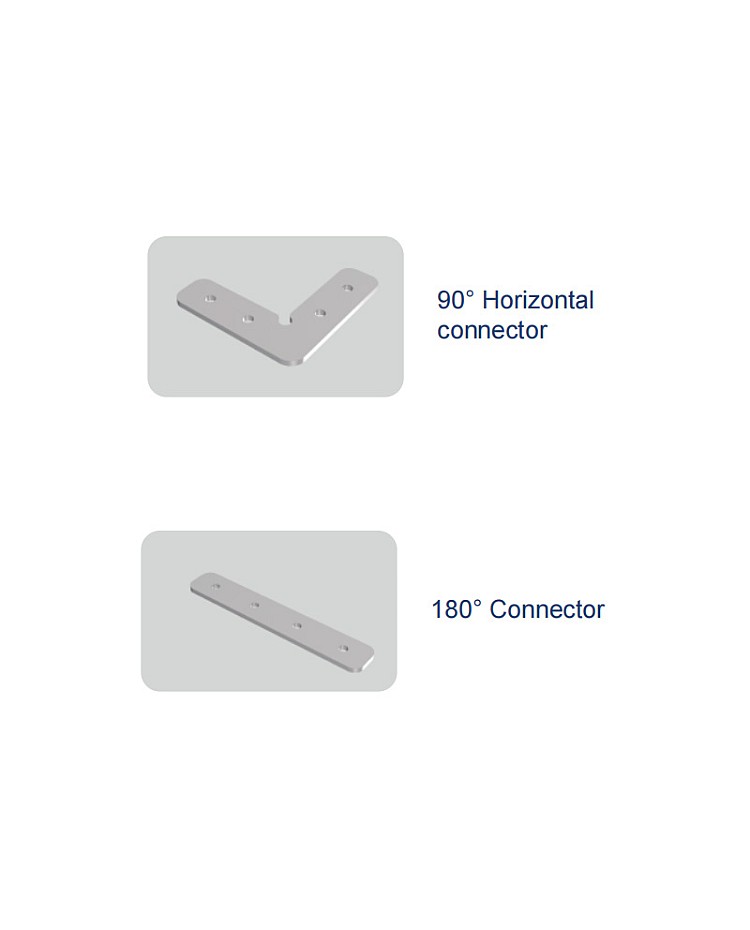

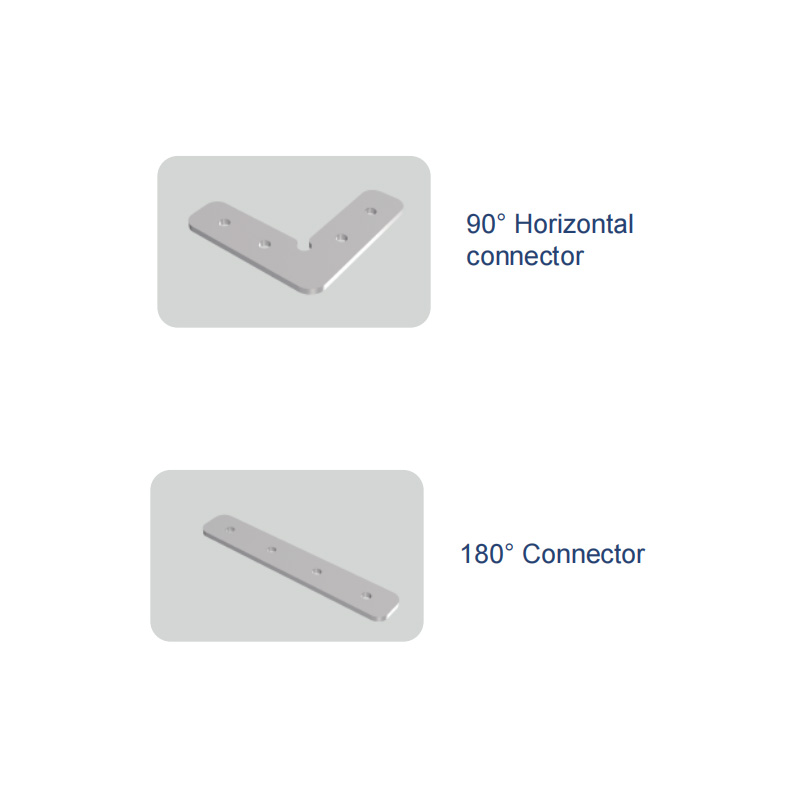

- 180° and 90° couplers sold separately
- Tolerance: ±1%
- IP Rate: IP20 non-waterproof

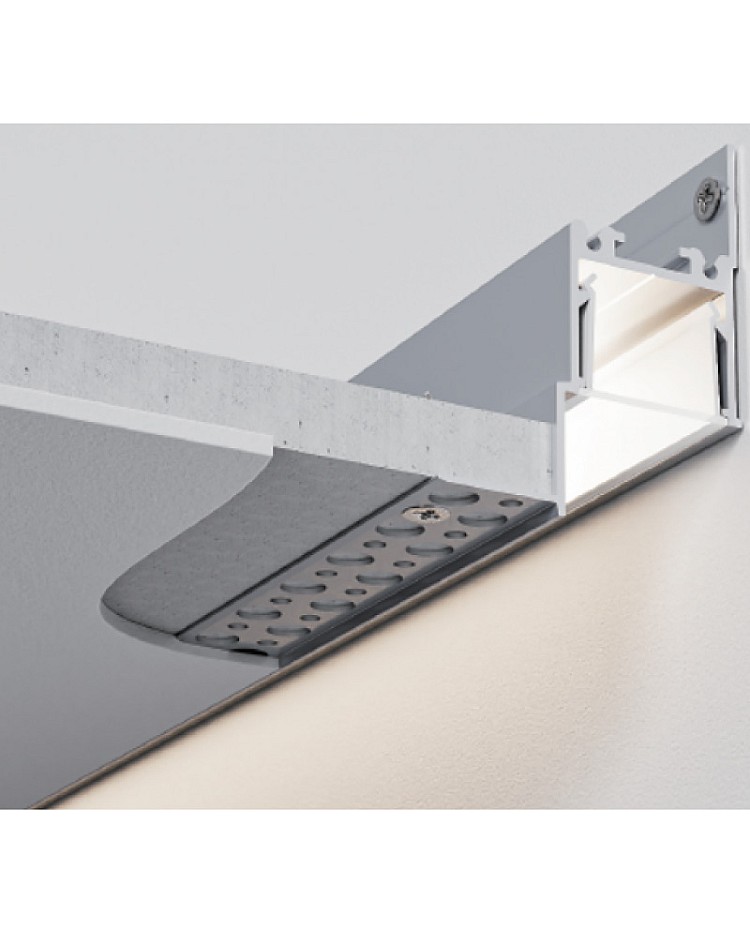

- Installation: Plaster-in
- 5-year warranty
Applications:
- Shadow gap/perimeter lighting
- Cove lighting
- Architectural accent lighting
- Indirect illumination
Includes:
1 * Perimeter light channel with diffuser

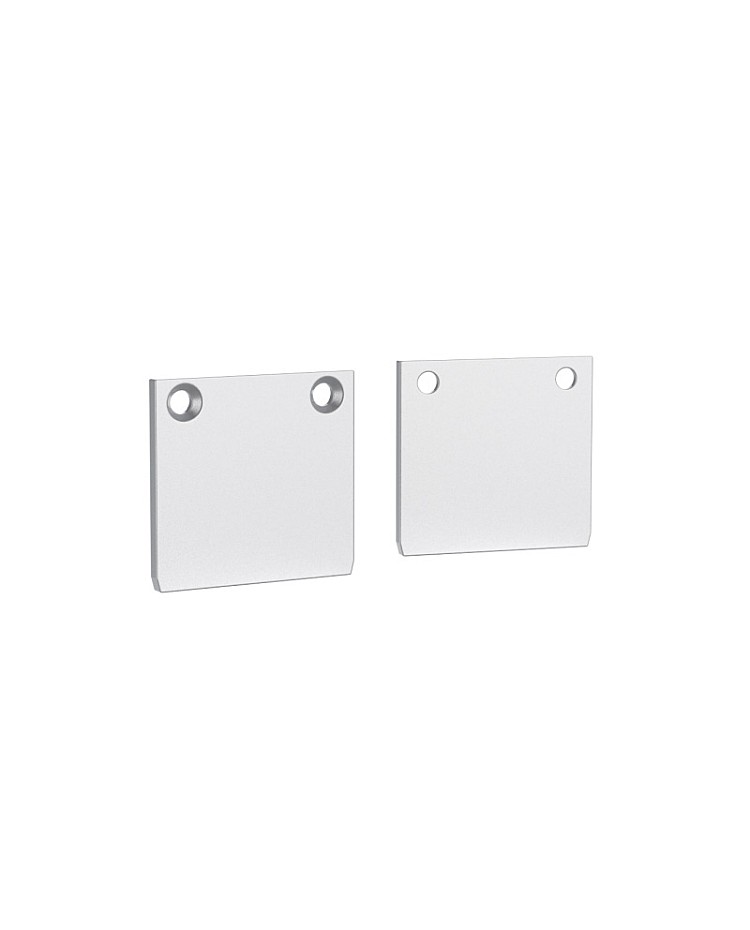

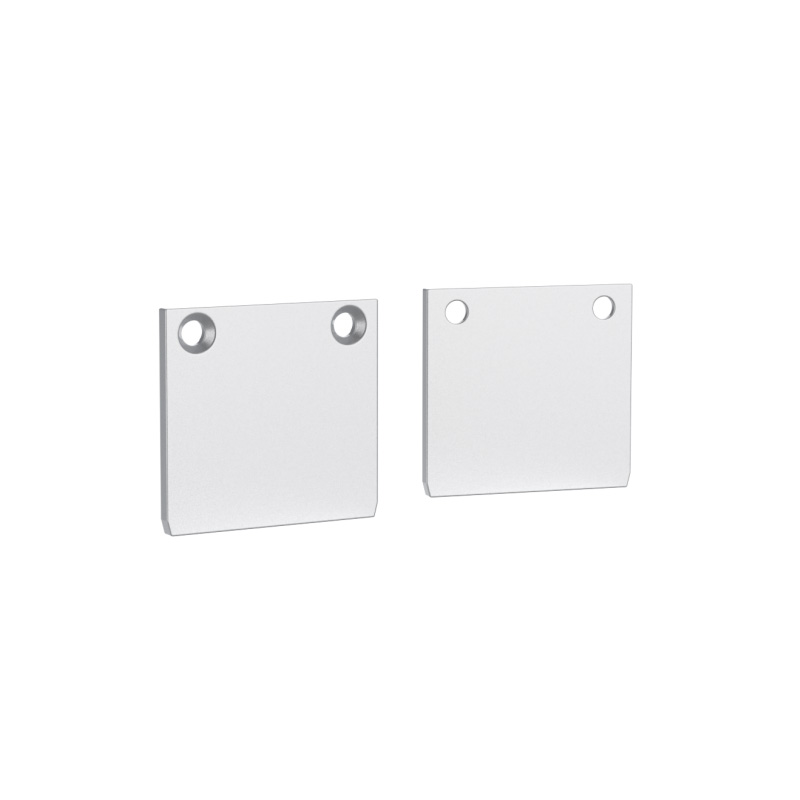

End caps(with/without wire holes)
