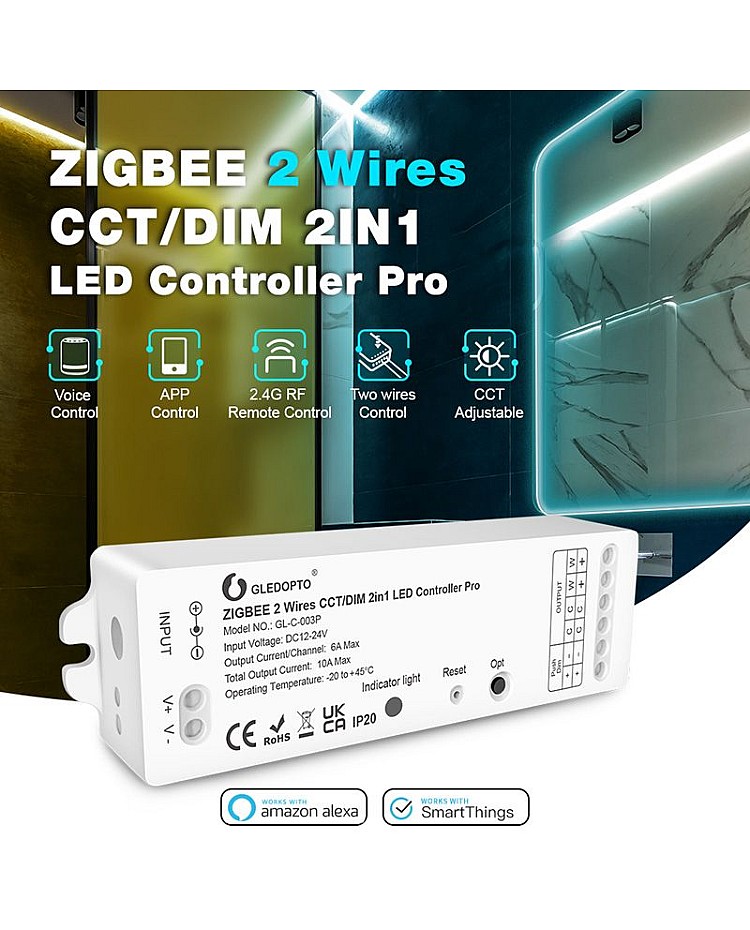

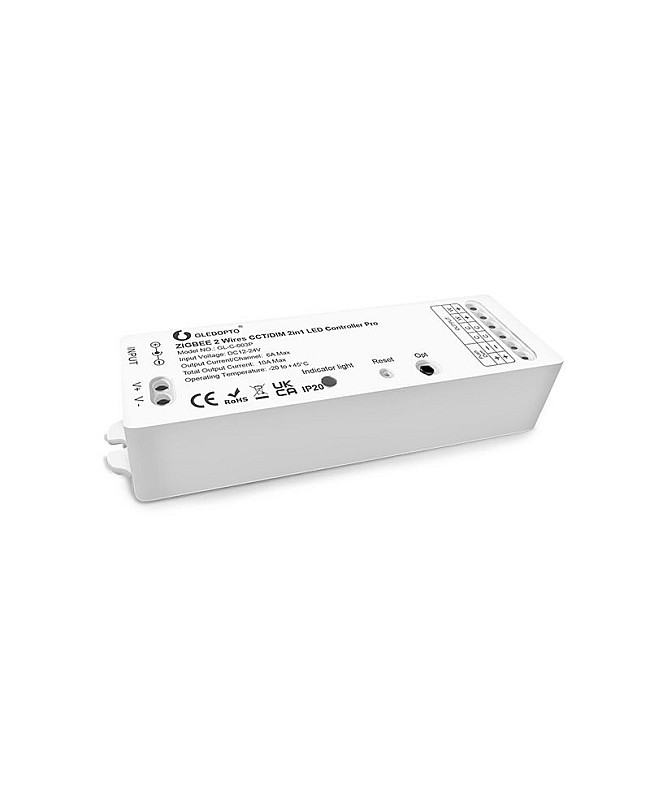

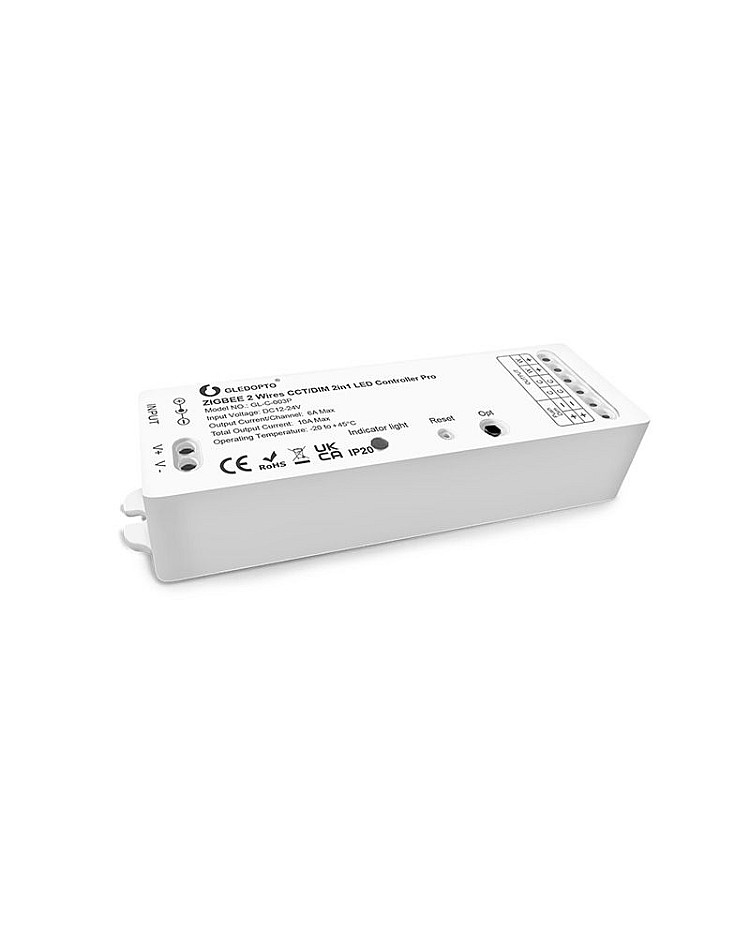

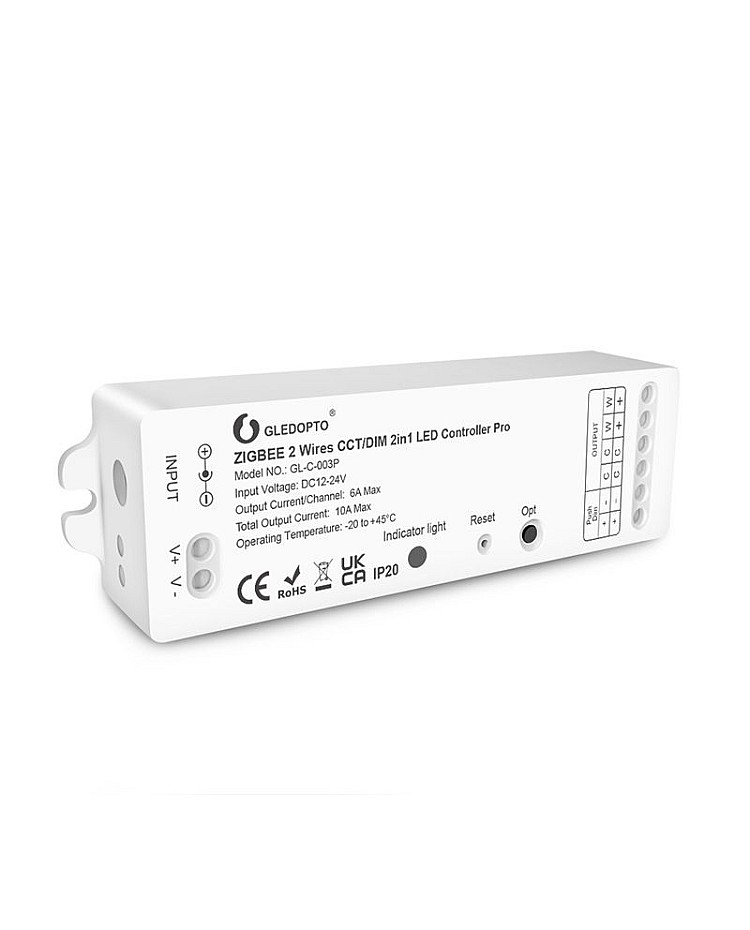

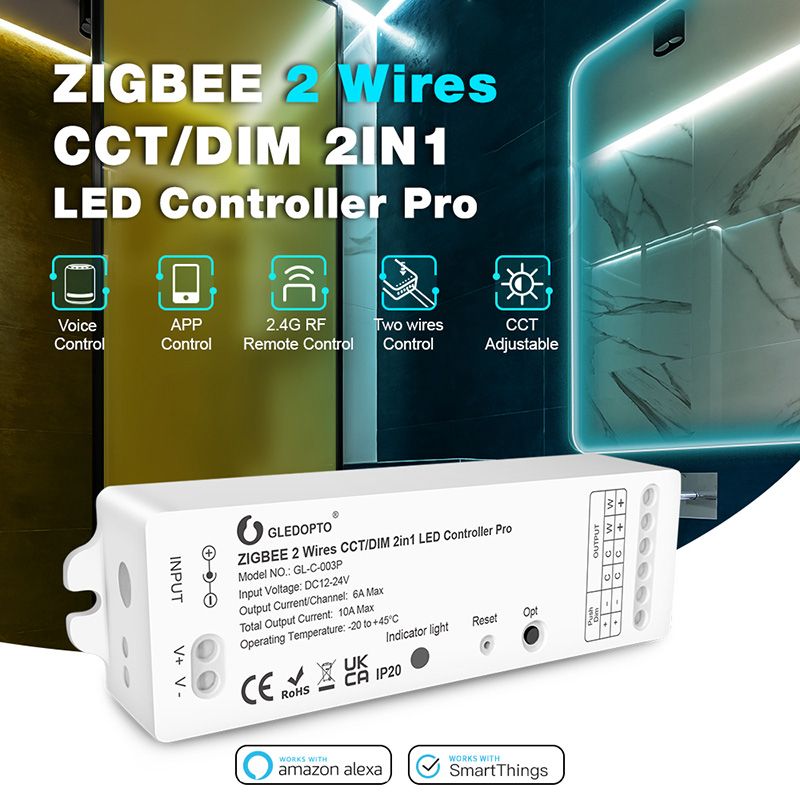

The Gledopto GL-C-003P 2 Wires CCT/DIM 2 in 1 Zigbee LED Controller is a Zigbee-compatible device designed to control the single color and dual white LED Lighting, especially for the 2 wires CCT LED Strip Lights. The Gledopto Controllers are compatible with the common Zigbee 3.0 Gateways, and you can control the lights in all rooms through the phone APP, making your life more convenient. The LED Controllers can also be controlled by a 2.4G RF remote control, voice control, and group control to adjust the brightness from 1% to 100% and the color temperature for various scenes. There is a " Reset " button on the Controller; short press once to switch the function; long press for more than 2S to restore the factory setting. The Gledopto Zigbee Controller with two wires control connects two-wire CCT or dimmer strip lights for easy control. The Controller has two types of input terminals: DC Connectors and ports, which makes it easy to connect to the Light Driver. With press type design output terminal, easy to connect the CCT or single-color LED Strips. The Zigbee Controllers with external push switches allow them to connect to a push controller to ON/OFF and adjust the brightness. It can work with Amazon Echo Plus, which allows to control the LED Lights through voice commands.


  • Type: 2 Wires Zigbee LED Controller
  • Model: GL-C-003P

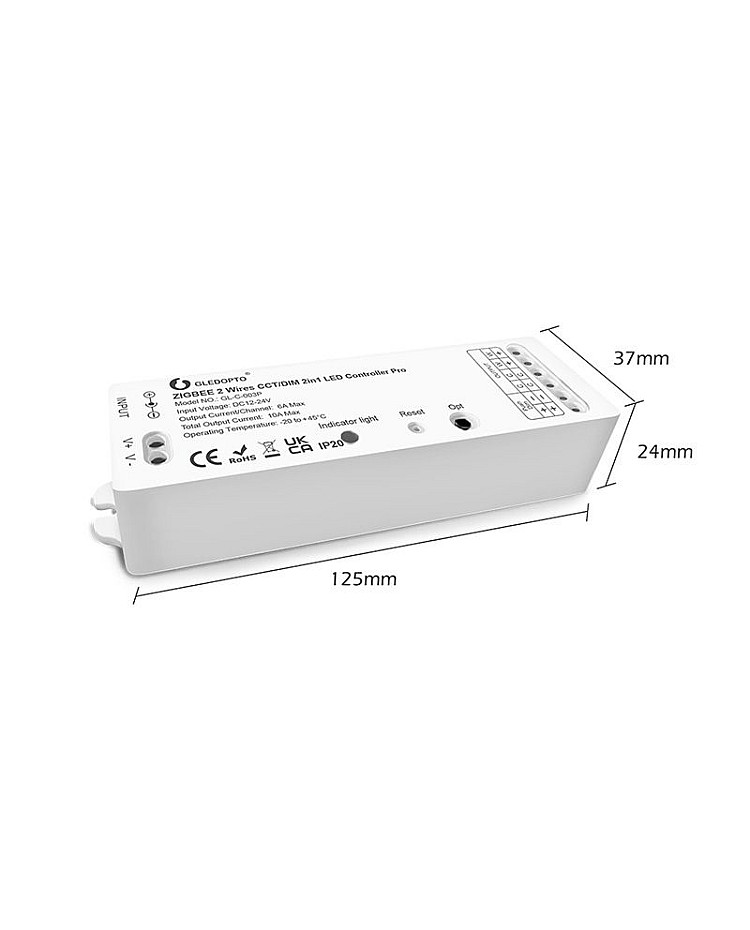

  • Size: 125*37*24mm(L*W*H)
  • Working Voltage: DC12-24V
  • Total Output Current: 10A Max
  • Output Current/Channel: 6A
  • Brightness Adjustable From 1% To 100%
  • Color Temperature Adjustable
  • Voice Control / APP Control / 2.4G RF Remote Control / Two Wires Control / External Push Switch Control
  • Compatible With Common Zigbee 3.0 Gateways
  • Two Working Modes Switching: CCT / Dimmer (Short Press The " Reset " Button)
  • Works With Amazon Alexa
  • IP Rating: IP20
  • Input Ports: DC Socket 5.5*2.1mm / V+ And V-
  • Press Type Design Output Terminal
  • Intuitive LED Indicator Light
  • Fireproof And High-Temperature Resistance Material
  • Working Temperature: -20℃-+45℃
  • 2 Years Warranty

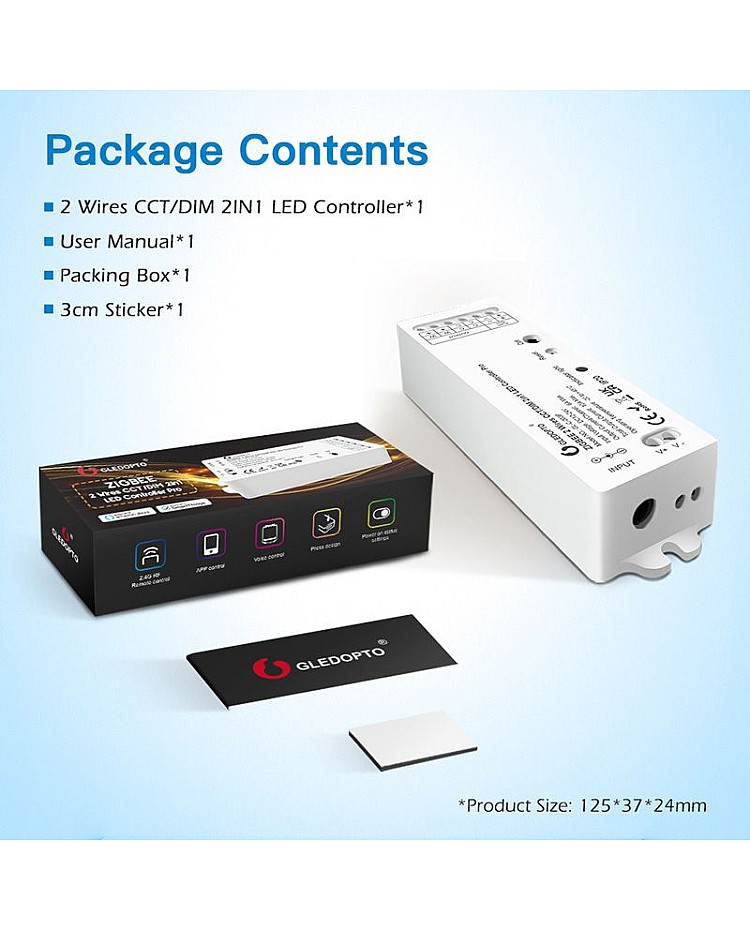

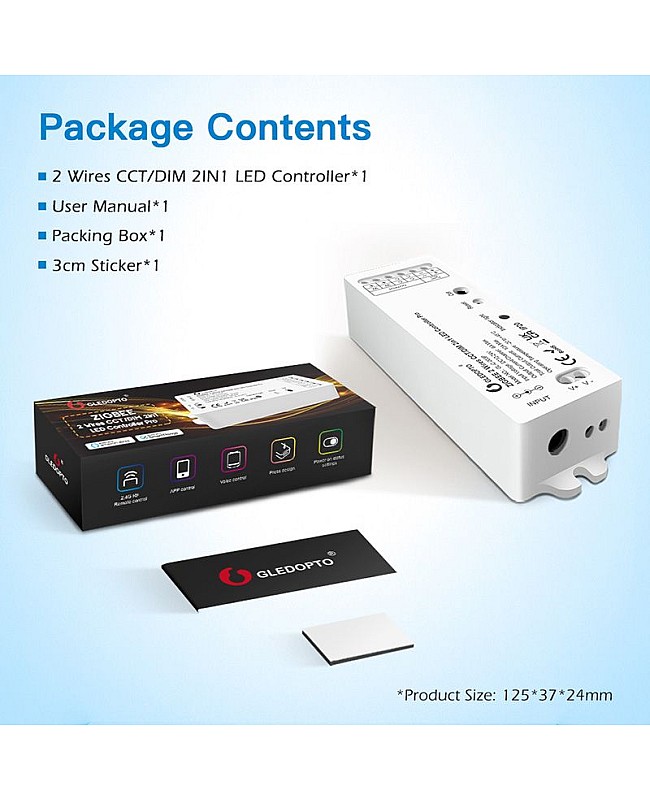

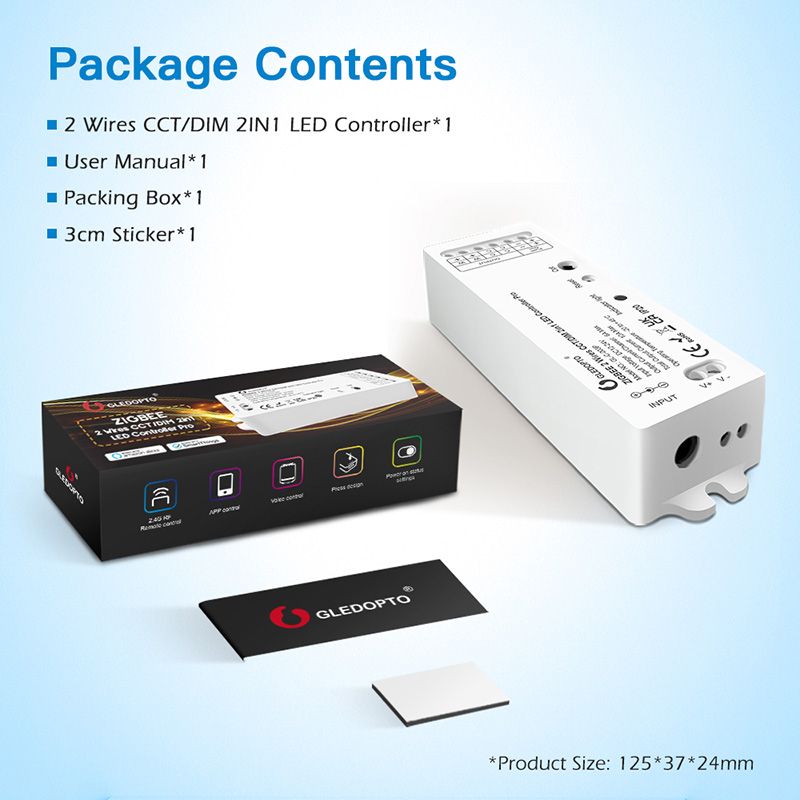

1*GL-C-003P 2 Wires Zigbee Controller

1*User Manual

1*3cm Sticker

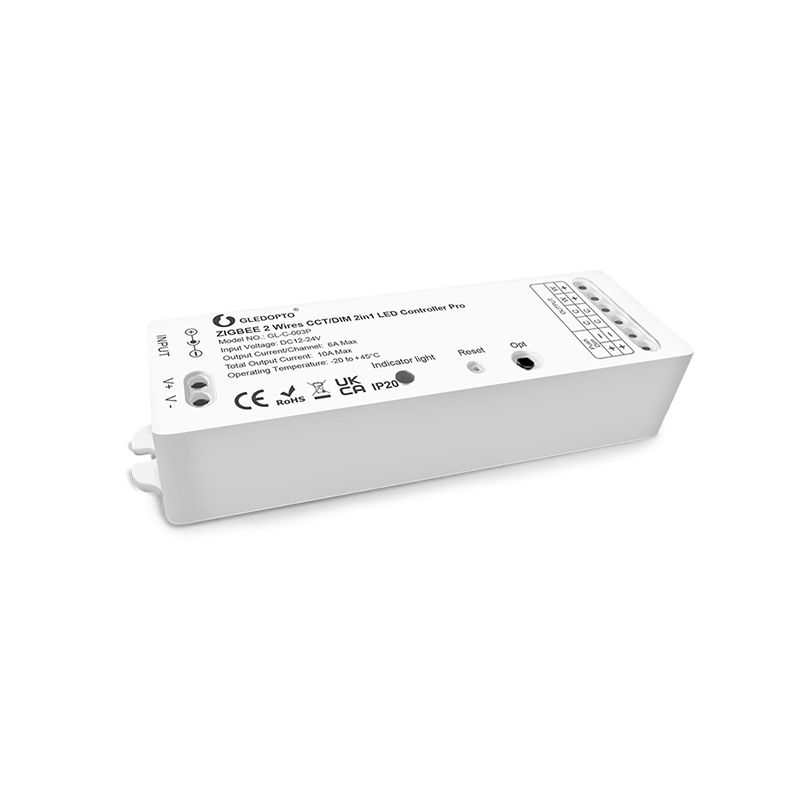

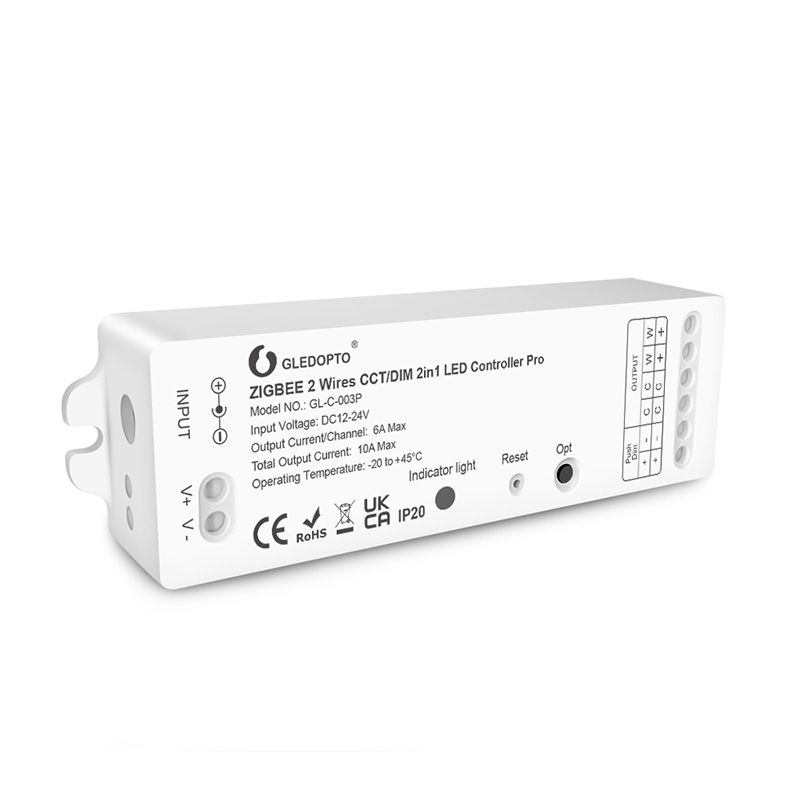

Gledopto GL-C-003P 2 Wires Zigbee Controller
