4MM 5MM 7MM Full Color WS2812B Mini LED Strips

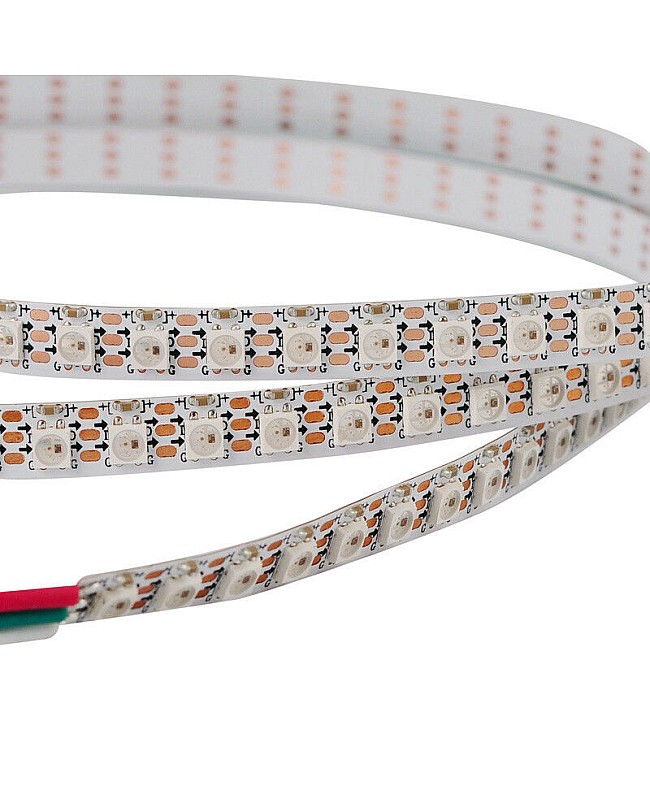

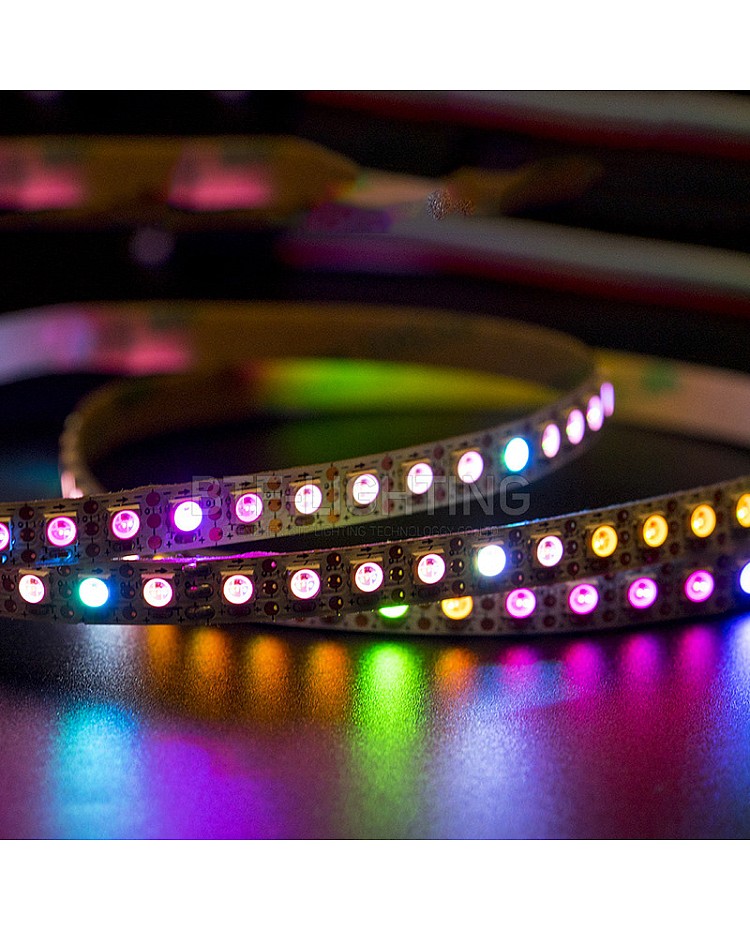

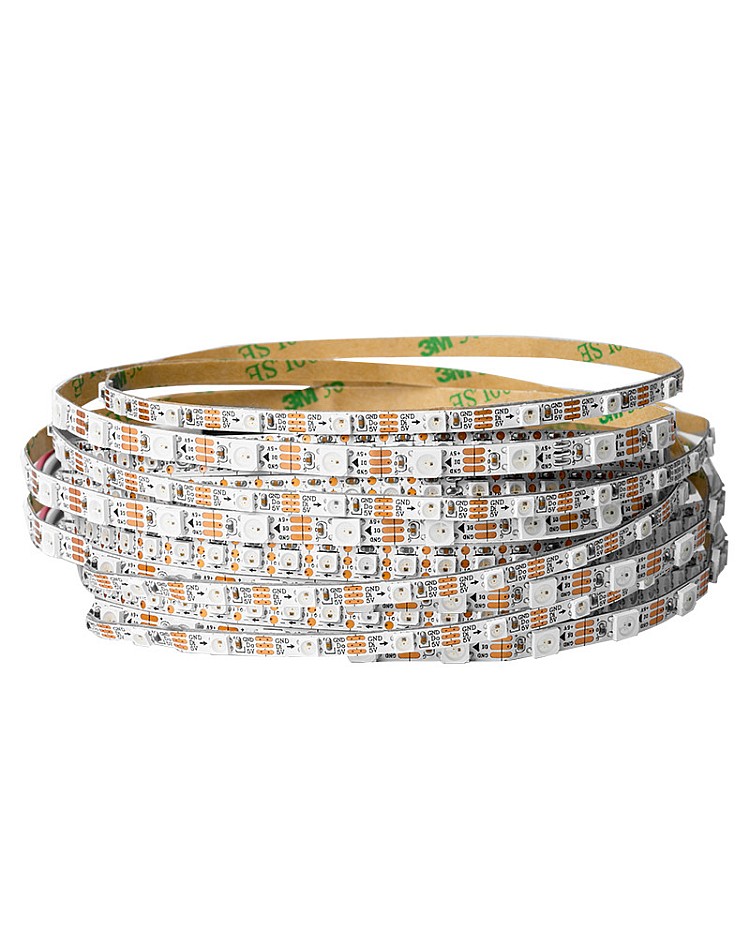

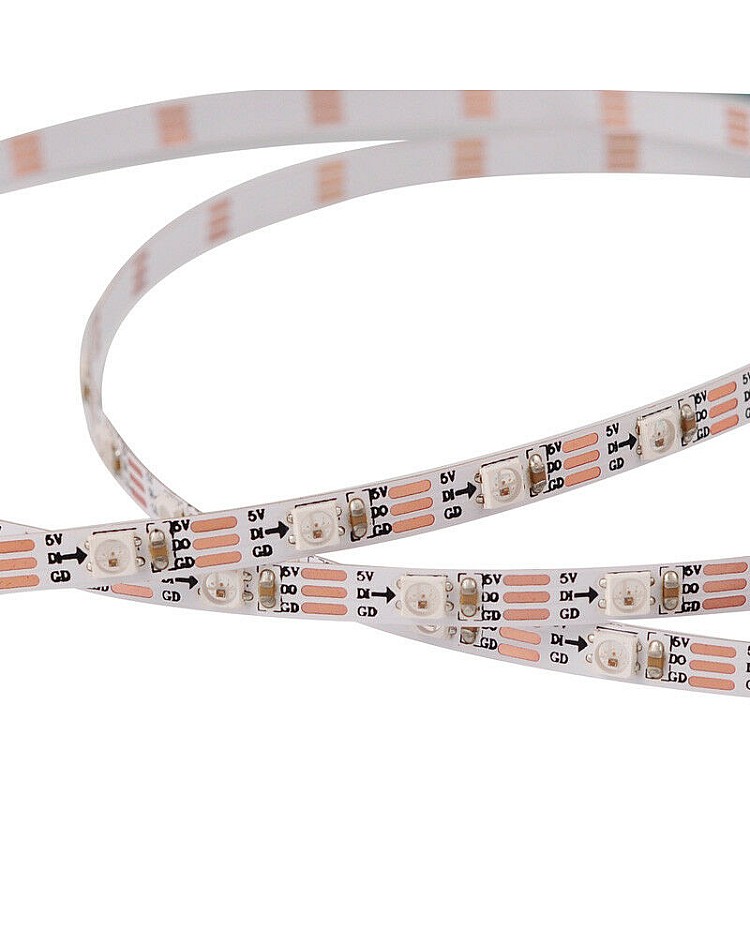

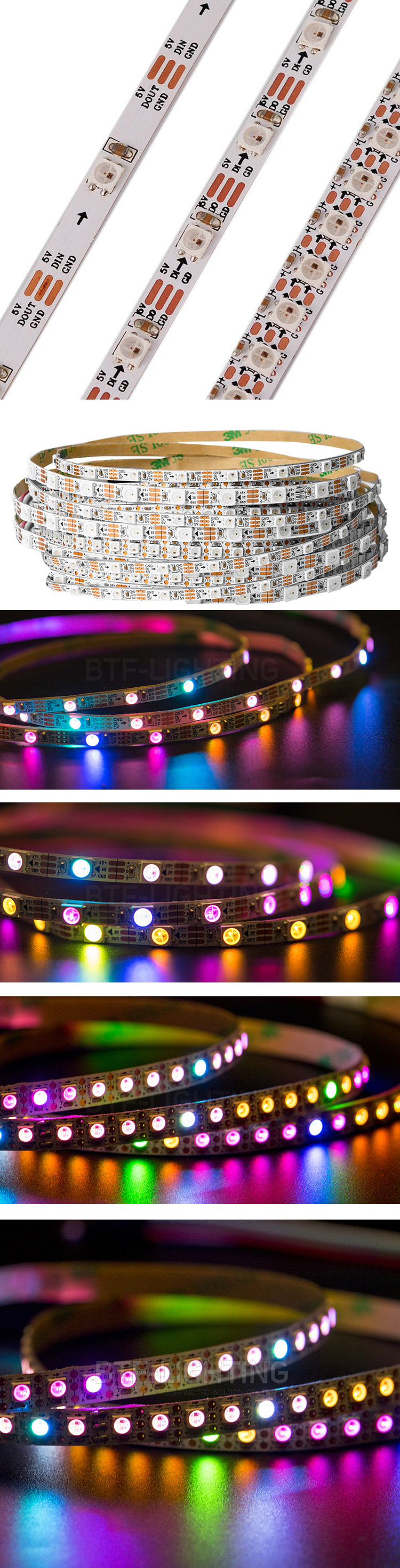

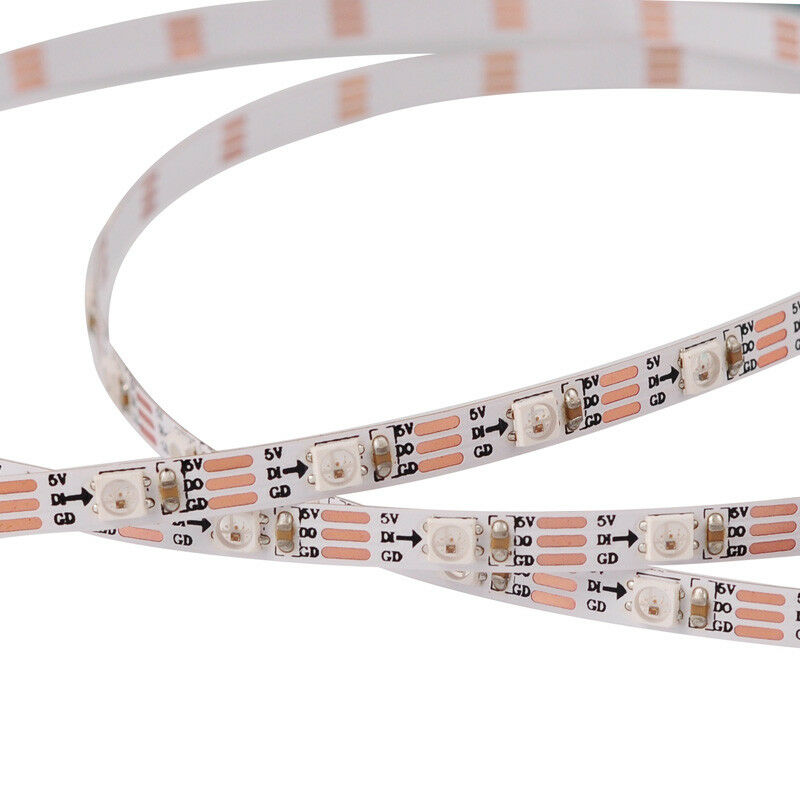

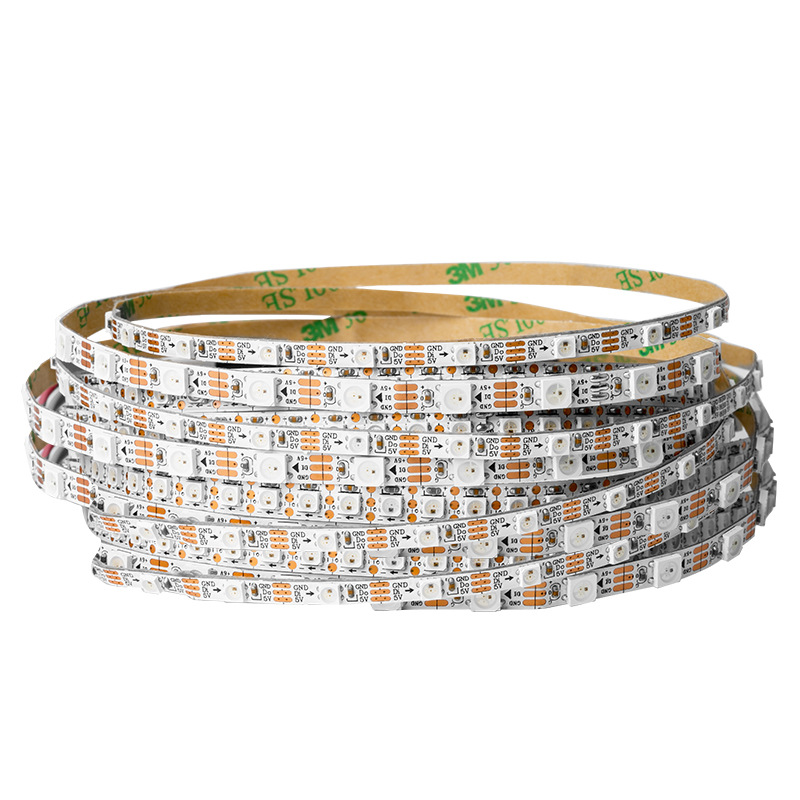

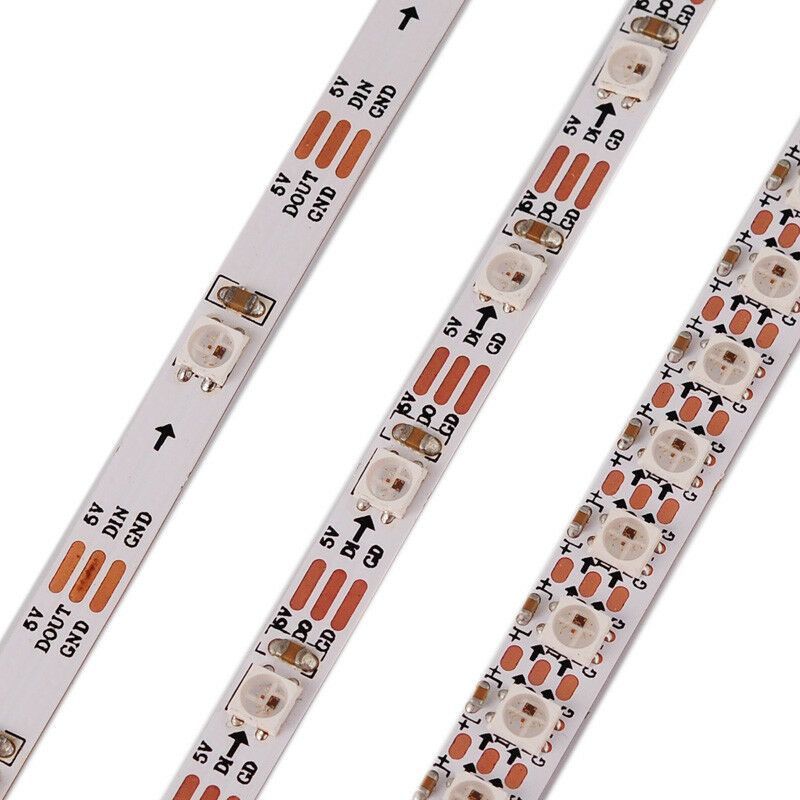

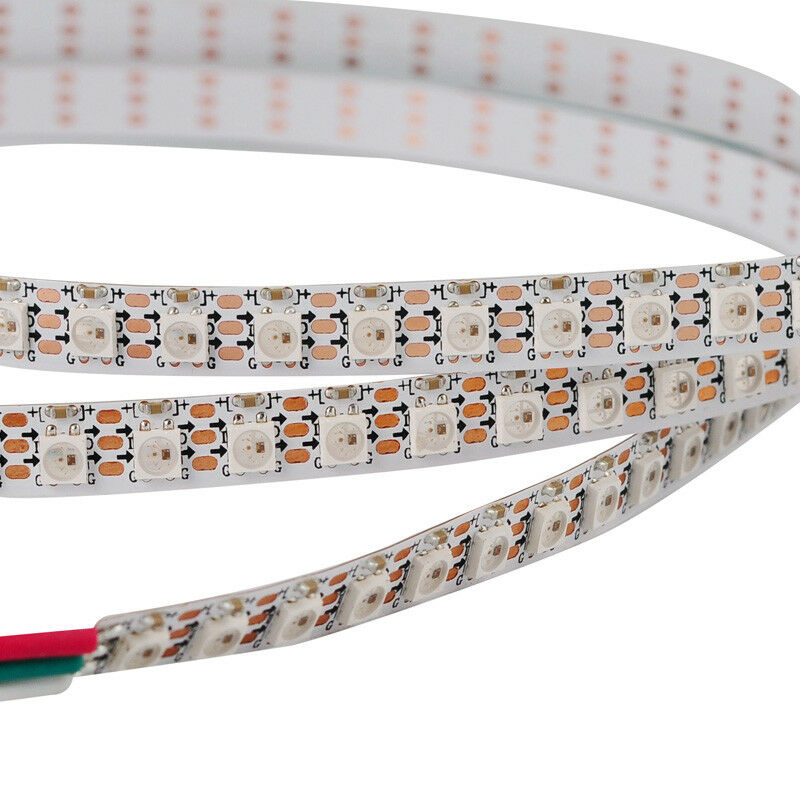

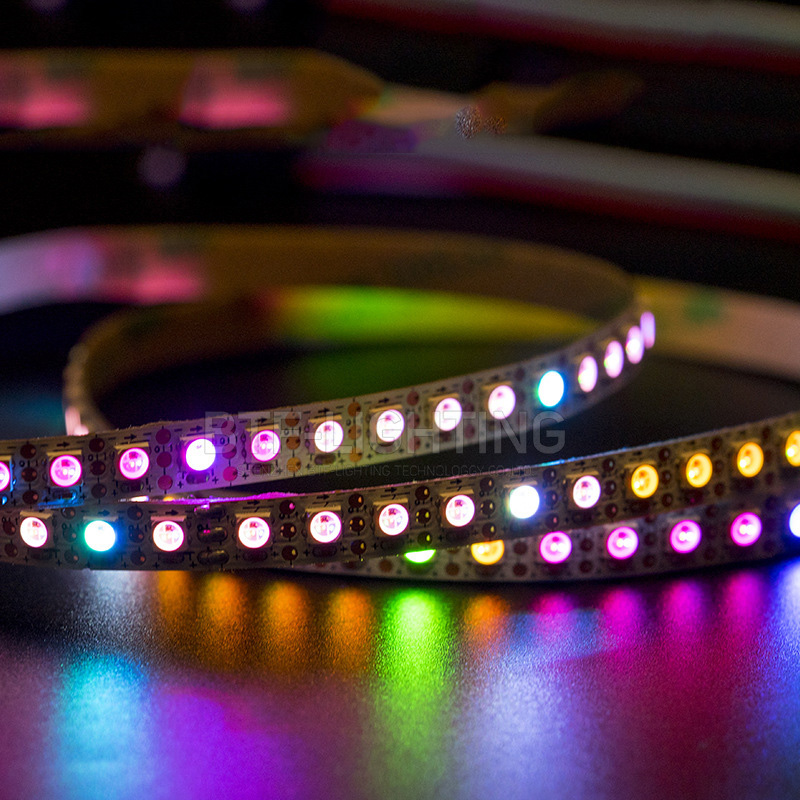

The WS2812B Mini LED Strips, which use high-quality 3535 or 5050 RGB SMD LEDs as the light sources, have a built-in smart IC for individual addressability and can work with our Programmable Digital LED Controllers to achieve hundreds of fantastic lighting effects, like curtain-up, flowing water, raindrop, jump, flash, etc. You can edit the animation file with CorelDRAW, Flash, or LedEdit software for DIY effects. The LEDs are mounted on a super-slim white PCB board, and you can choose from 4mm, 5mm, or 7.2mm options. You can use them in tight spaces. Only IP30 non-waterproof products are available, and they are recommended for indoor applications. Each LED is cuttable, allowing you to cut it to any length for your project. The WS2812B strip lights feature 3-pin connectors on both ends, making them easy to install and use. The back has double-sided adhesive tape, making it easy to stick where you want.

Note:

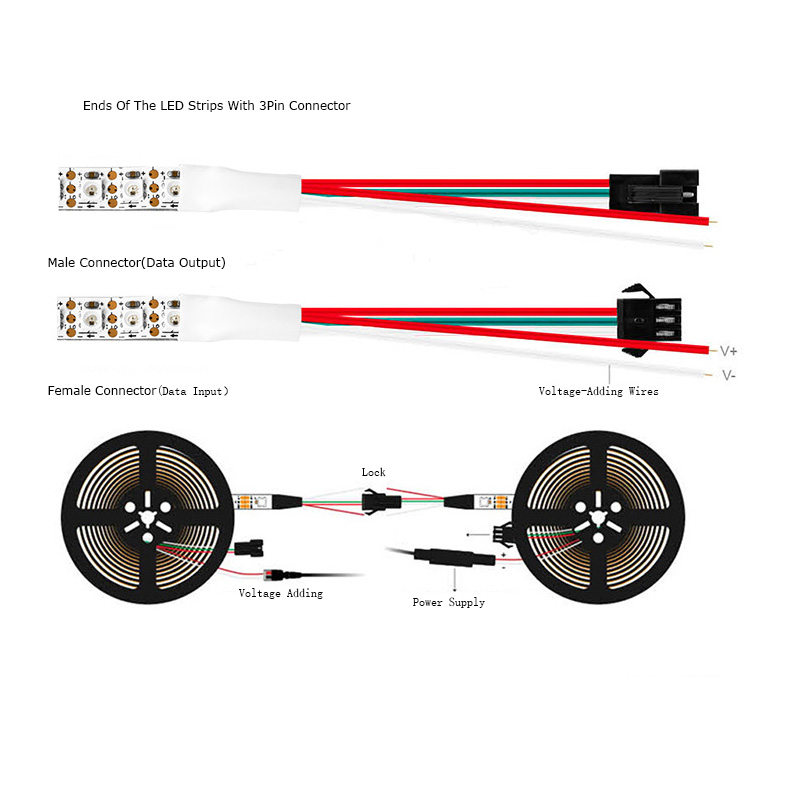

The LEDs at the far end may be dimmer due to the added resistance and voltage drop. We recommend adding the same working voltage every 5 meters (16.4 ft), depending on the actual situation, to maintain the same brightness.

Specifications:

• Working Voltage: DC5V
• LED Type: 5050/3535 RGB SMD LEDs

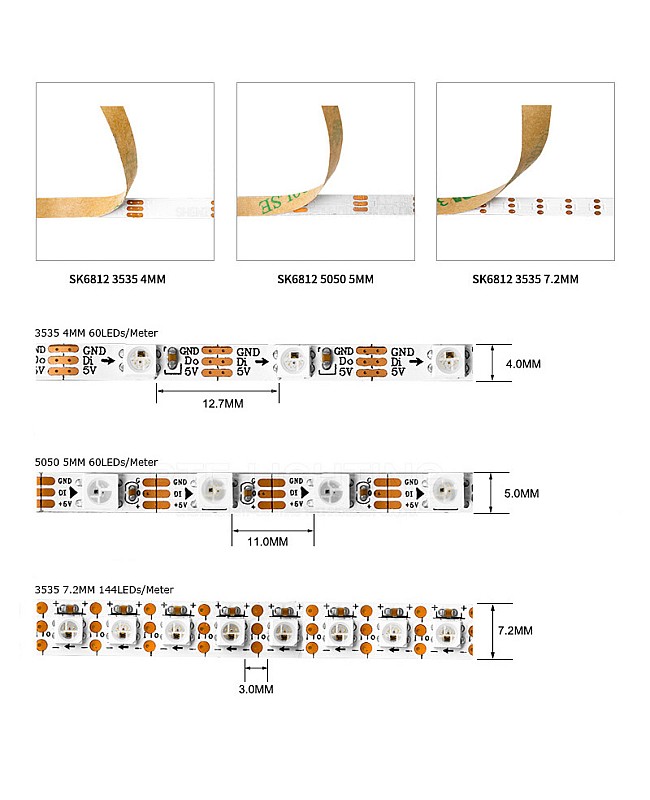

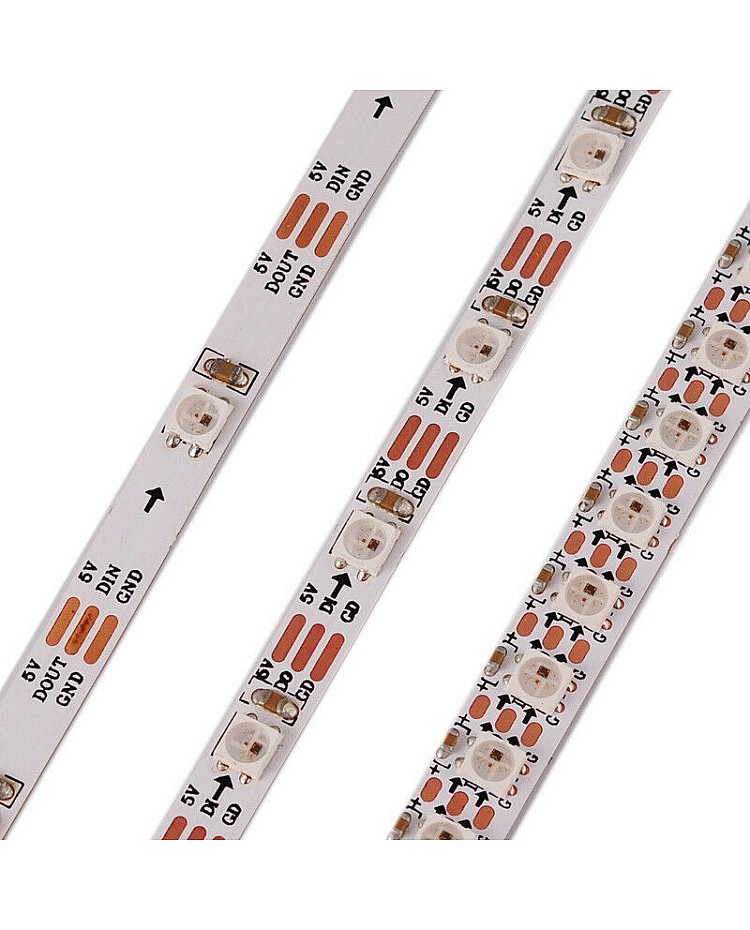

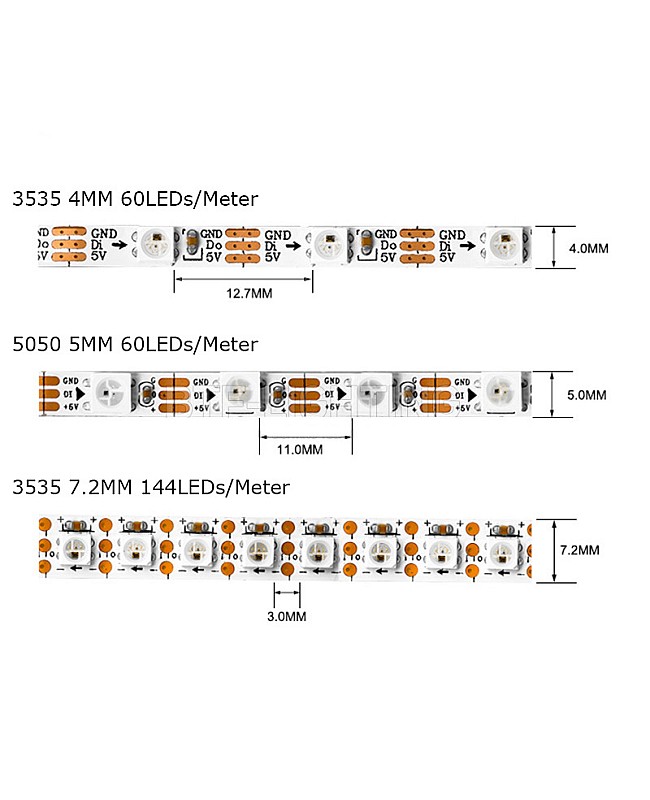

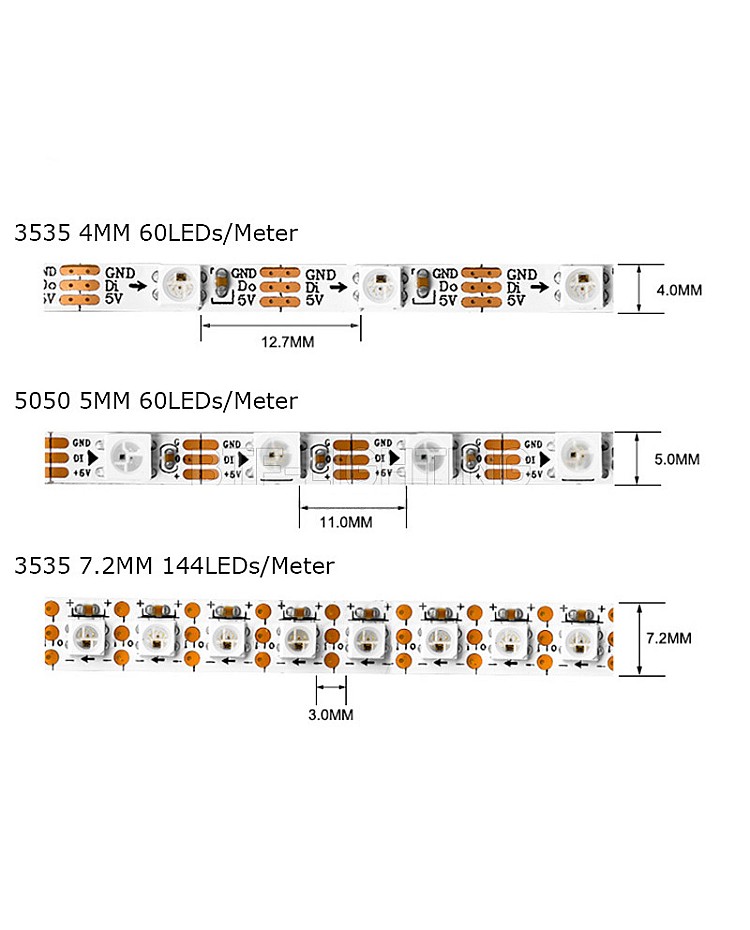

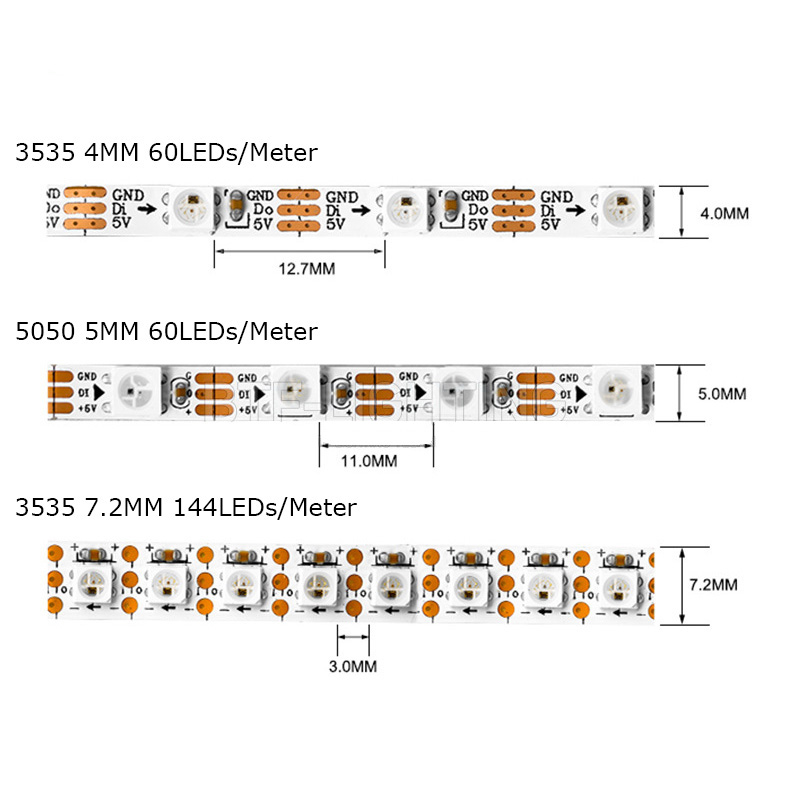

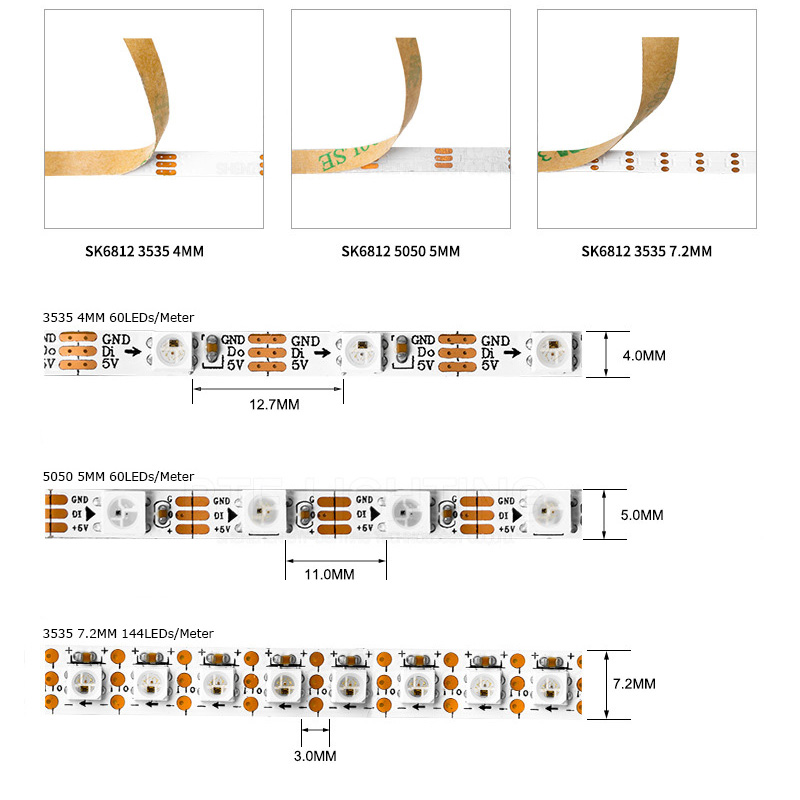

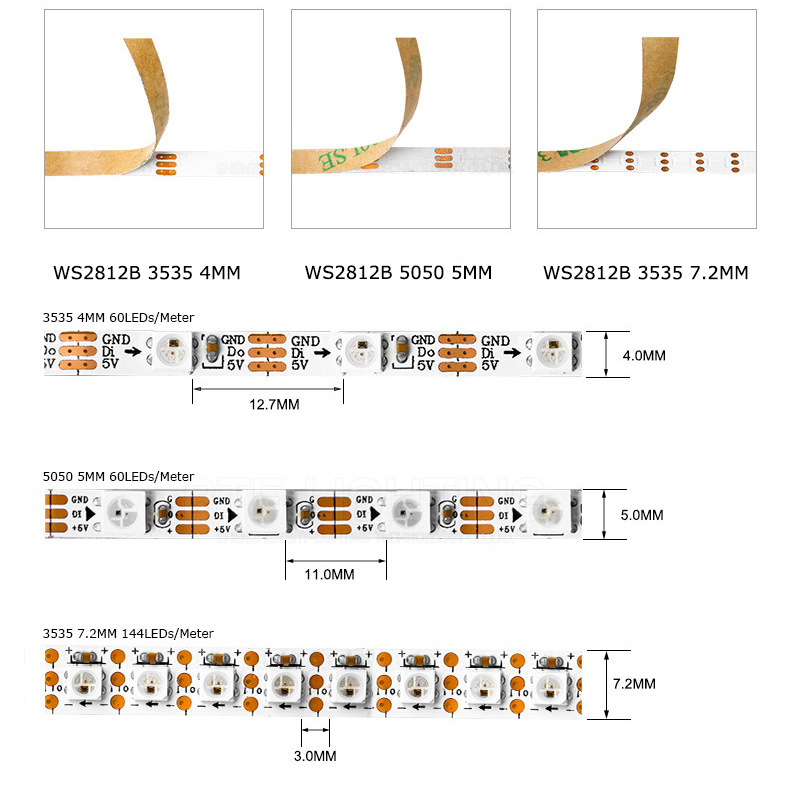

• Size:
• 30 LEDs/Meter, Width: 5mm, 3535 LEDs
• 60 LEDs/Meter, Width: 4mm, 3535 LEDs
• 60 LEDs/Meter, Width: 5mm, 5050 LEDs

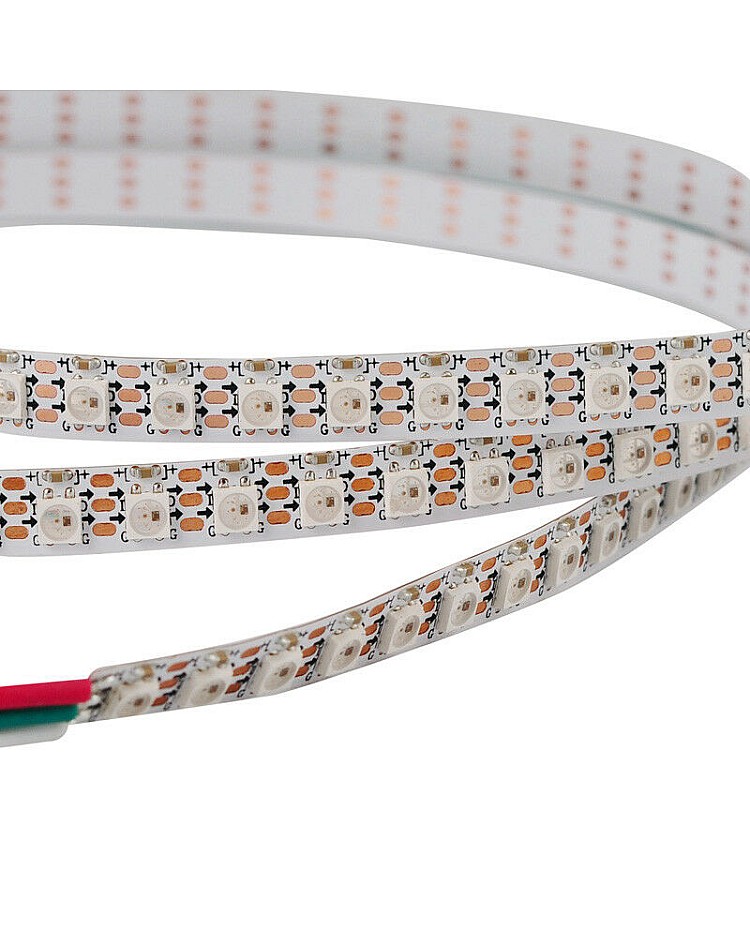

• 144 LEDs/Meter, Width: 7.2mm, 3535 LEDs
• LED QTY: 30LEDs/Meter, 60LEDs/Meter, 144LEDs/Meter
• IC Type: WS2812B
• IC QTY: 30PCS/M, 60PCS/M, 144PCS/M(One IC Controls One LED)
• Power: 0.3W/LED
• Lengths Available: 1M, 2M
• Emitting Colors: Full Color/8-Bits
• Color of PCB Board: White
• Greyscale Levels: 256

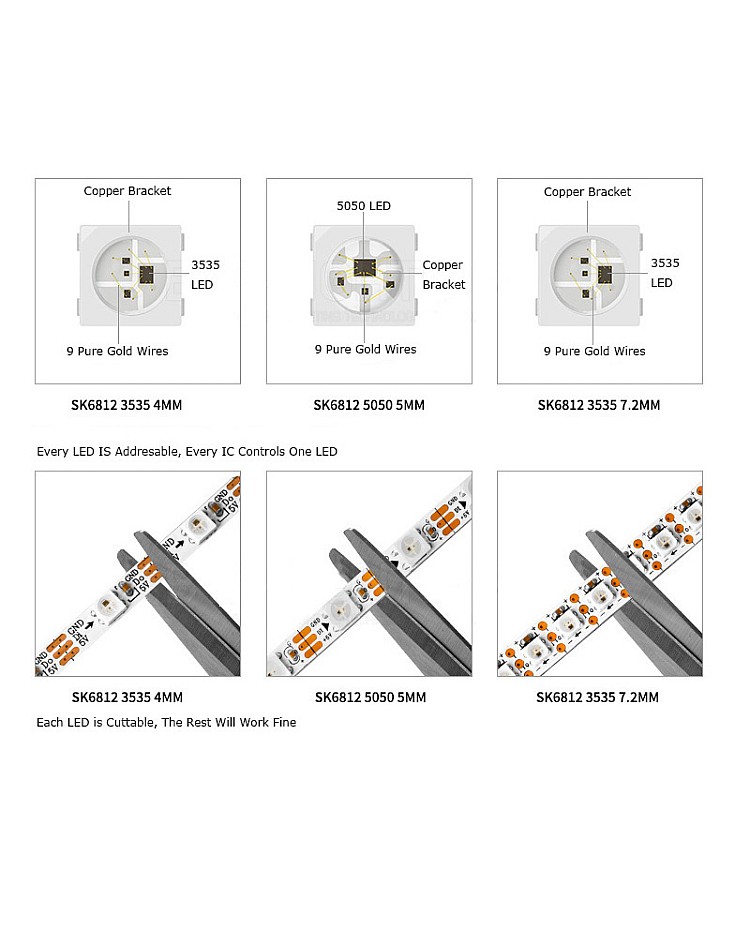

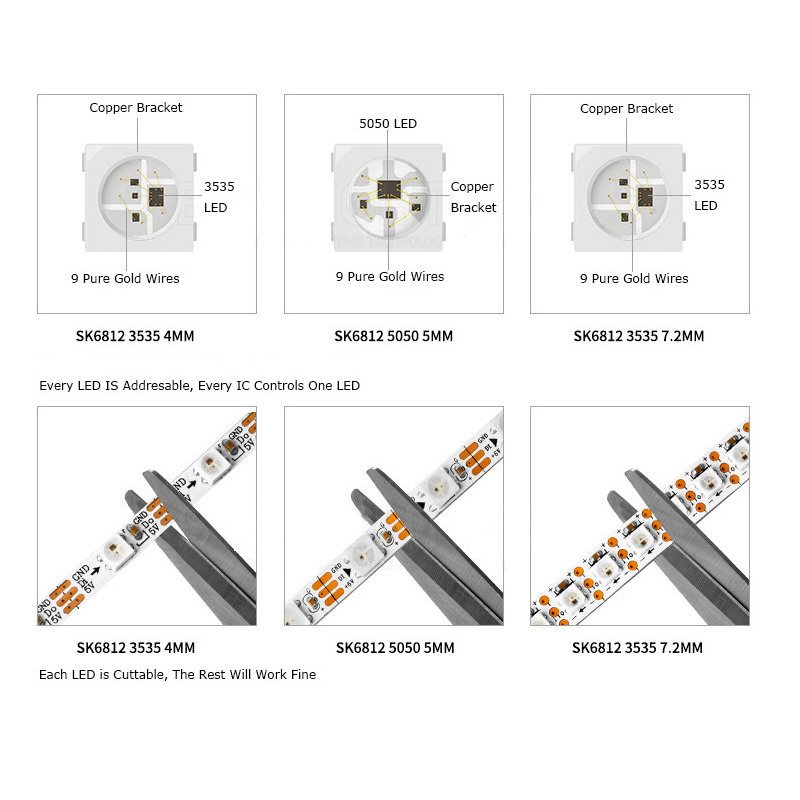

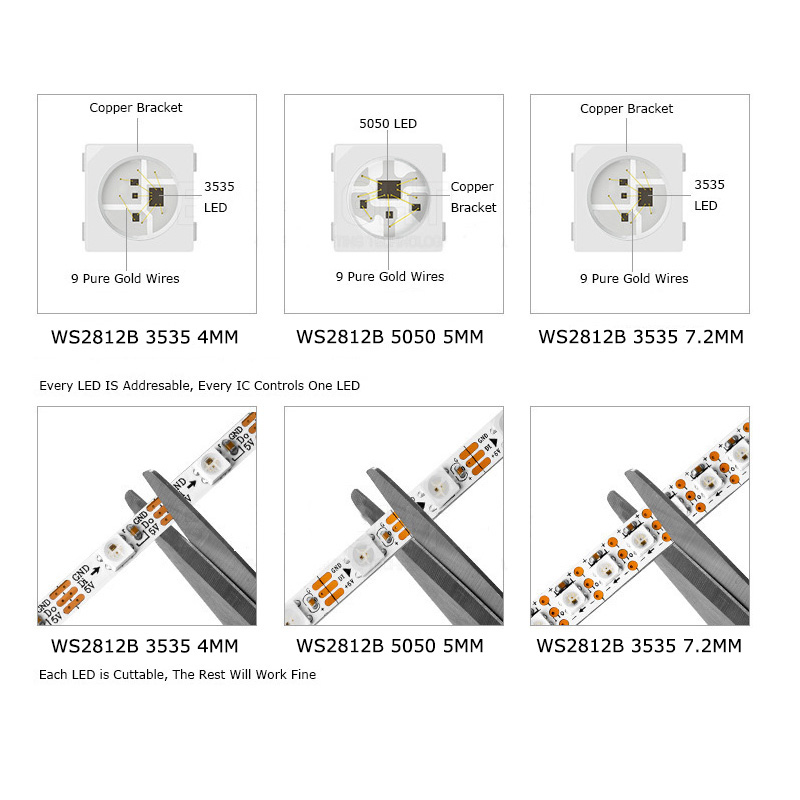

• Every LED Is Cuttable
• Waterproof Level: IP30 Non-Waterproof
• Back With Double-Sided Adhesive Tape
• Dimmable: YES
• Compatible With SP105E, SP107E, SP108E, SP110E, K-1000C

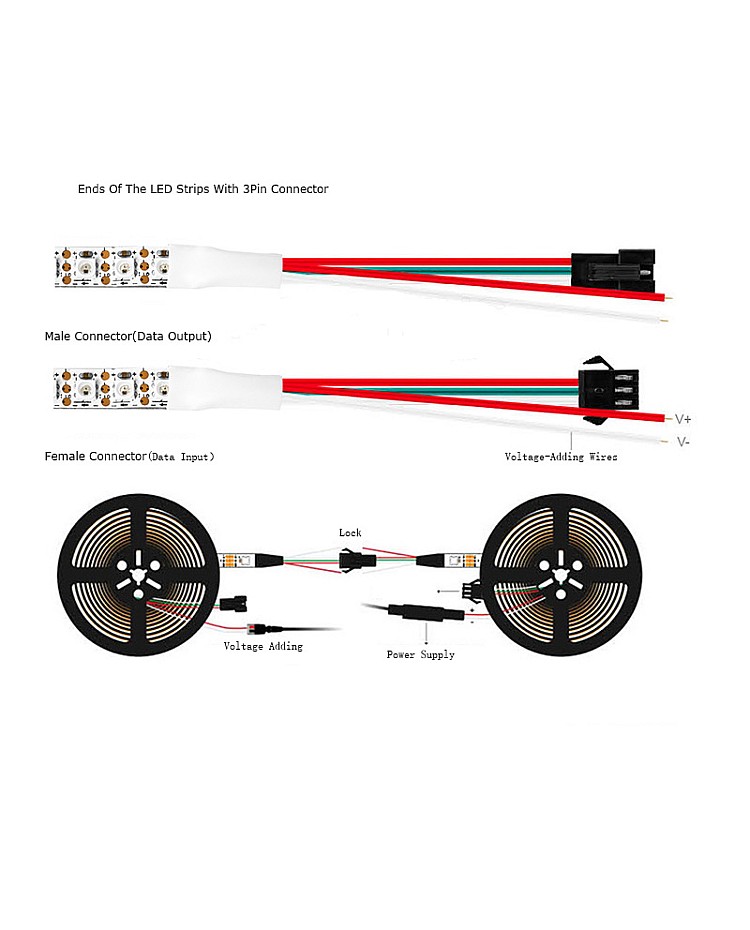

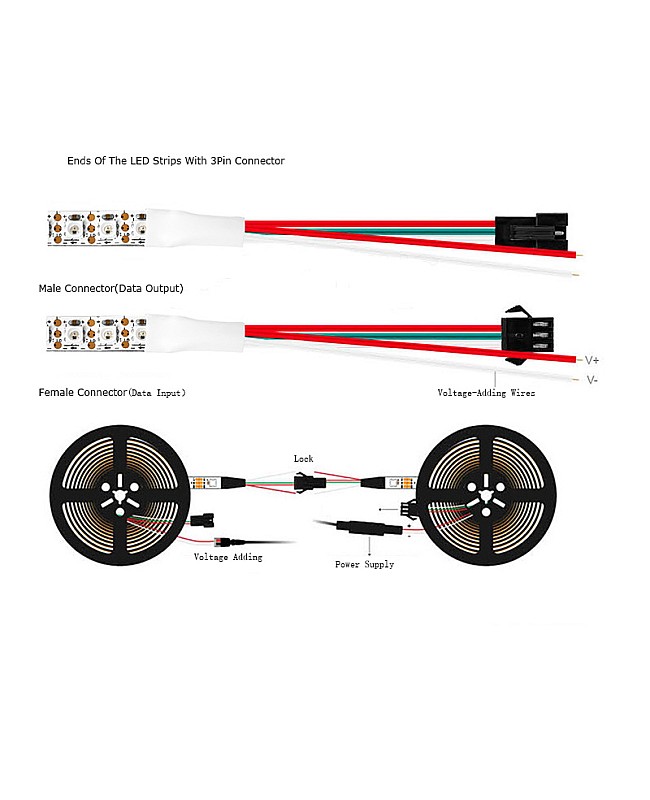

• 3 Pin Connectors Included
• Working Temperature: -20℃-+50℃
• Lifespan: 50,000 Hours
• 2-Year Warranty

Includes:

1 * Mini LED Strips With 3 Pin Connectors
