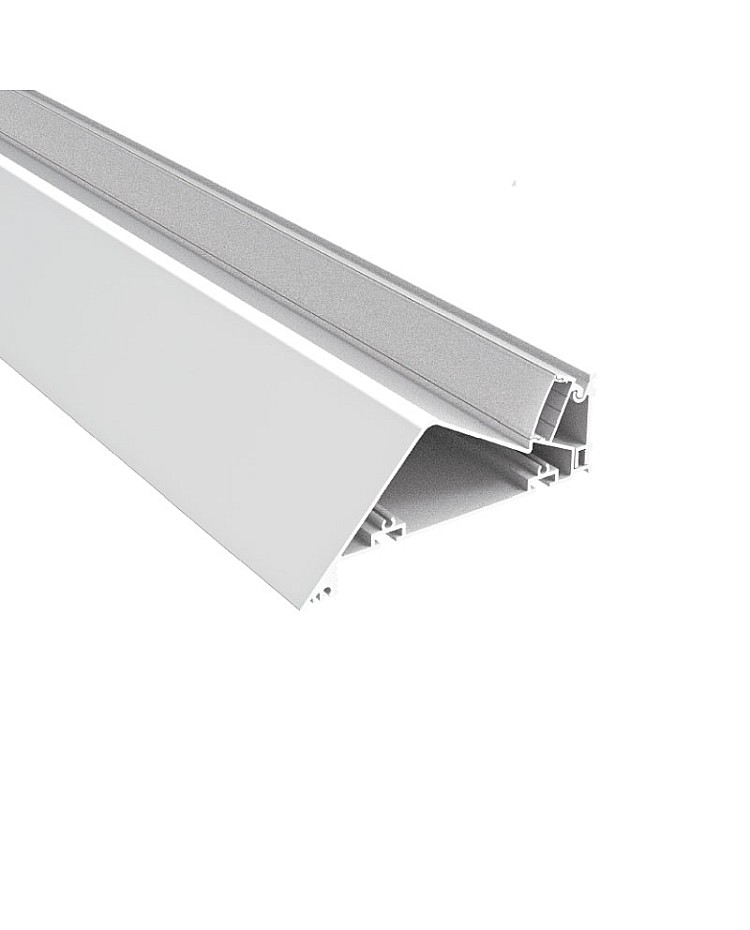

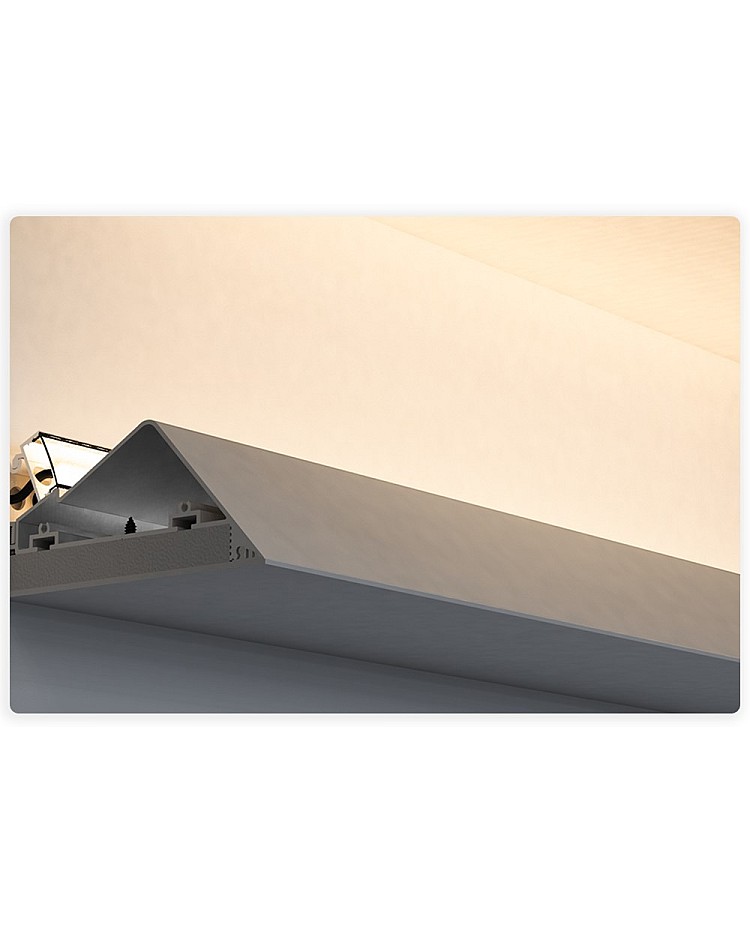

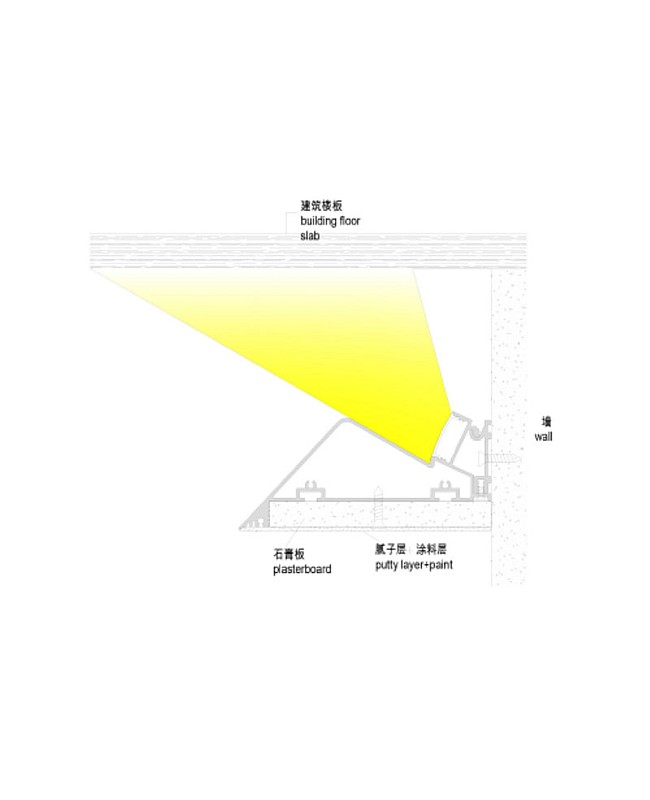

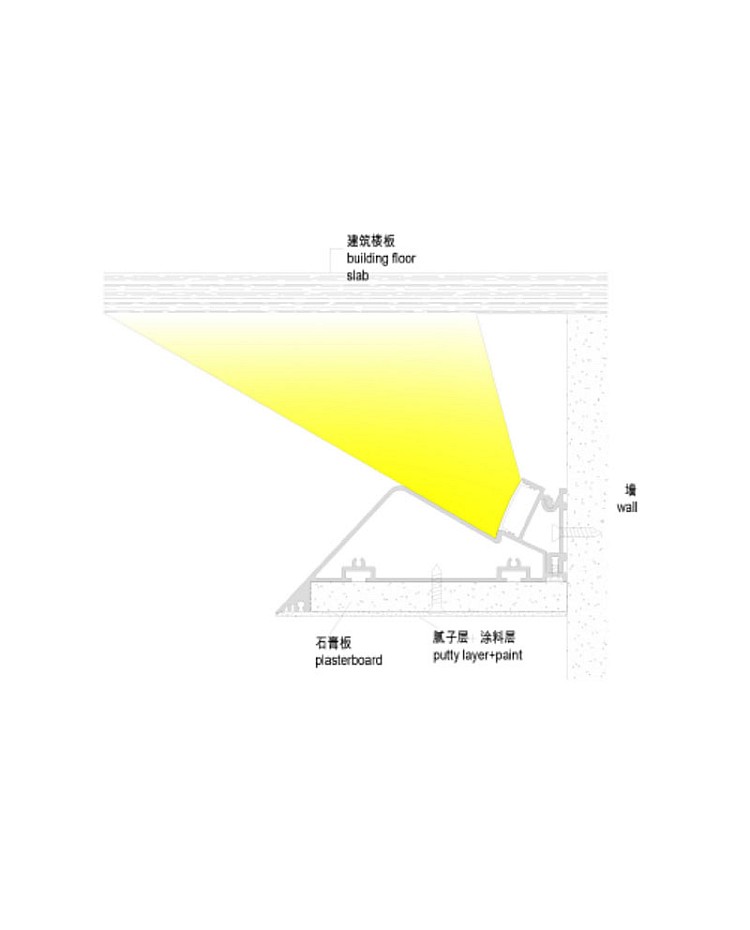

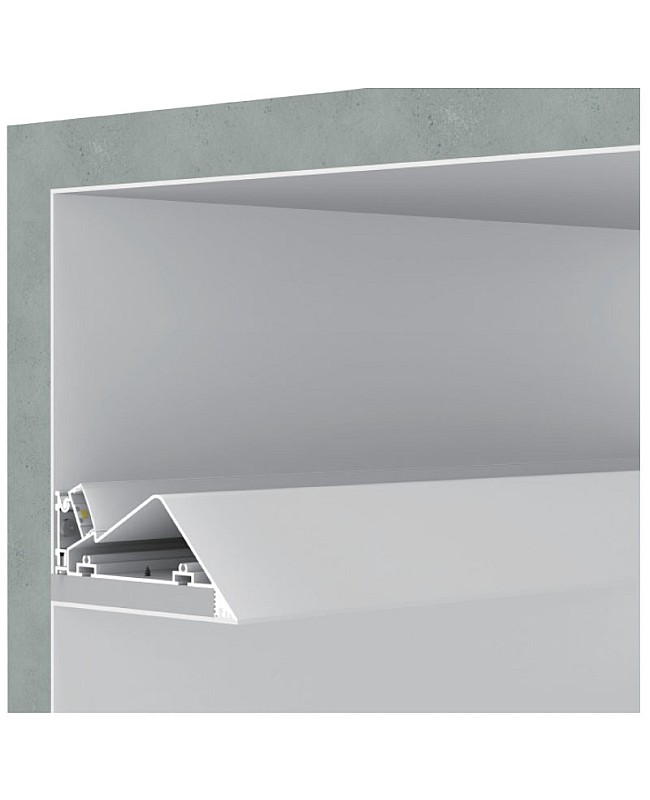

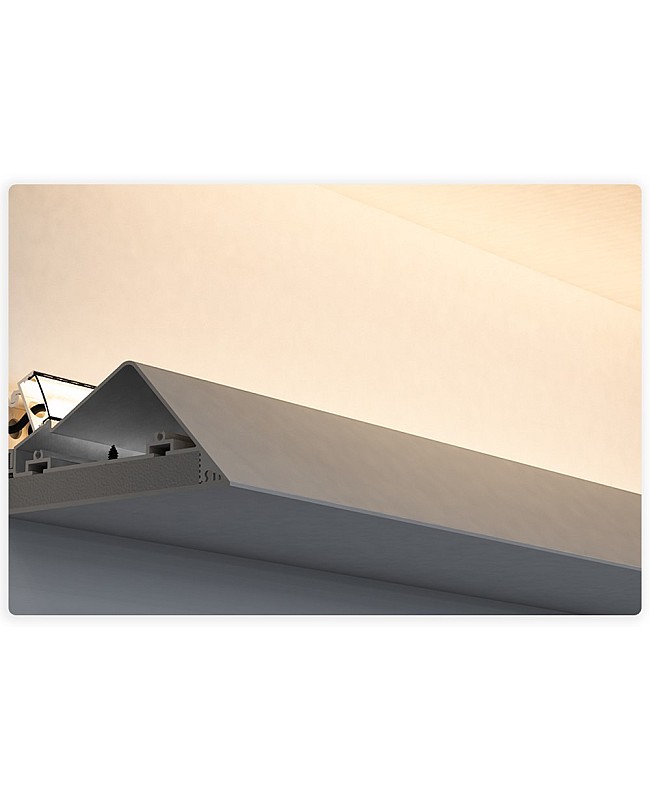

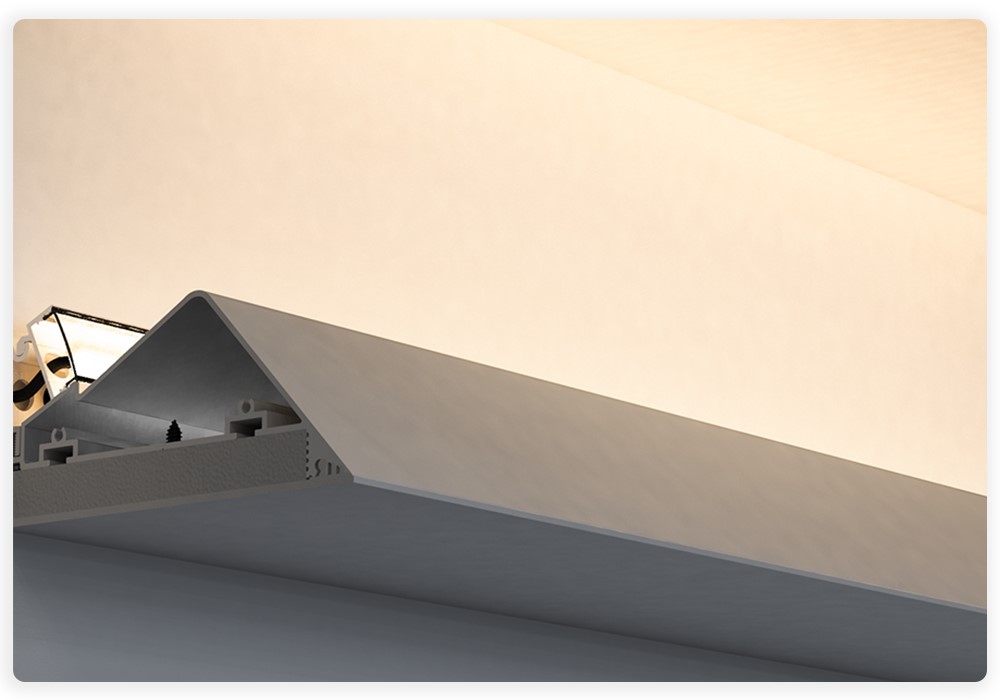

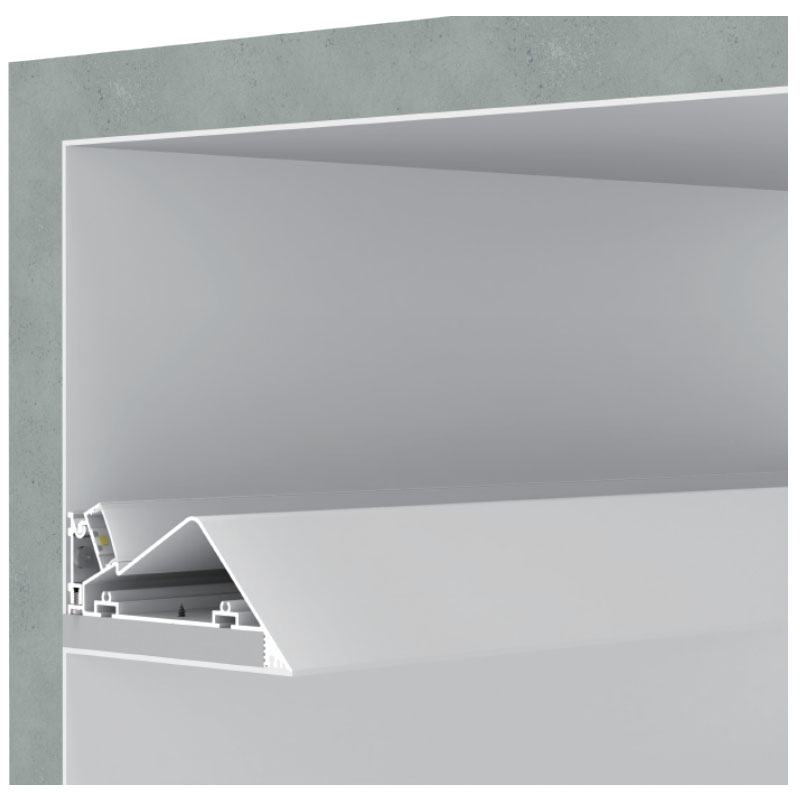

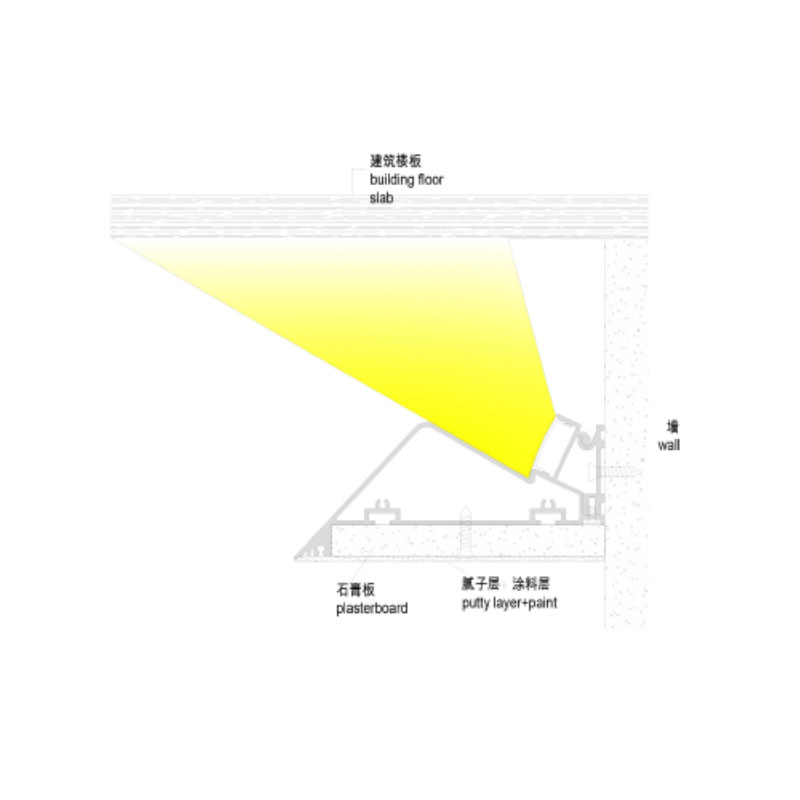

The knife-edge aluminum LED channels are designed to be integrated into 1/2-inch plasterboard at the ceiling-to-wall junction, providing a clean, minimalist finish. They feature an inclined lighting design that conceals the LED strips, with light reflected upward along the perimeter of the ceiling, providing a soft, indirect wall-wash effect. Ideal for living rooms, hotels, lobbies, corridors, and upscale retail interiors.

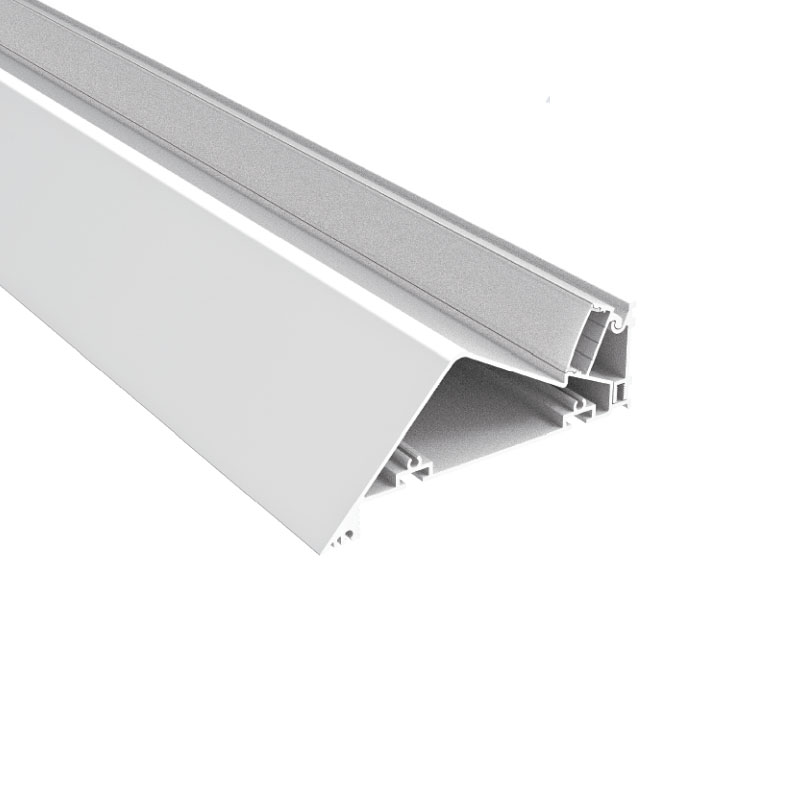

The indirect light channels are made of 6063-T5 aluminum and feature a powder-coated surface treatment, providing oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and allow for easy cutting to any desired length. Two types of diffused covers are available: PC diffused and PC semi-clear. They are made of imported-brand material, anti-yellowing, and with perfect light distribution.
The inner width is 18.9 mm, allowing a maximum light strip width of 18 mm. We recommend using our 15mm high-power COB strip lights as the light source to create continuous linear lighting, with no visible light dots or dark areas. The 90°, 90° vertical, and 180° connectors are sold separately and can be used for angled or straight connections. The end caps are included.
Specifications:
- Model: ALP193
- Material: 6063-T5 aluminum
- Surface treatment: Powder-coated
- Colors: White

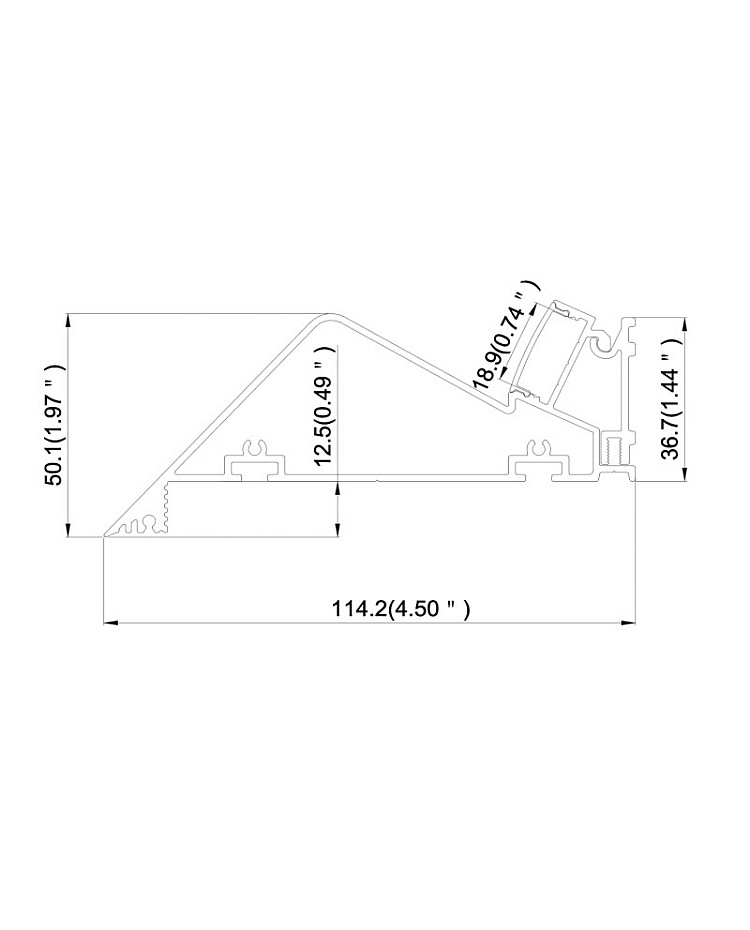

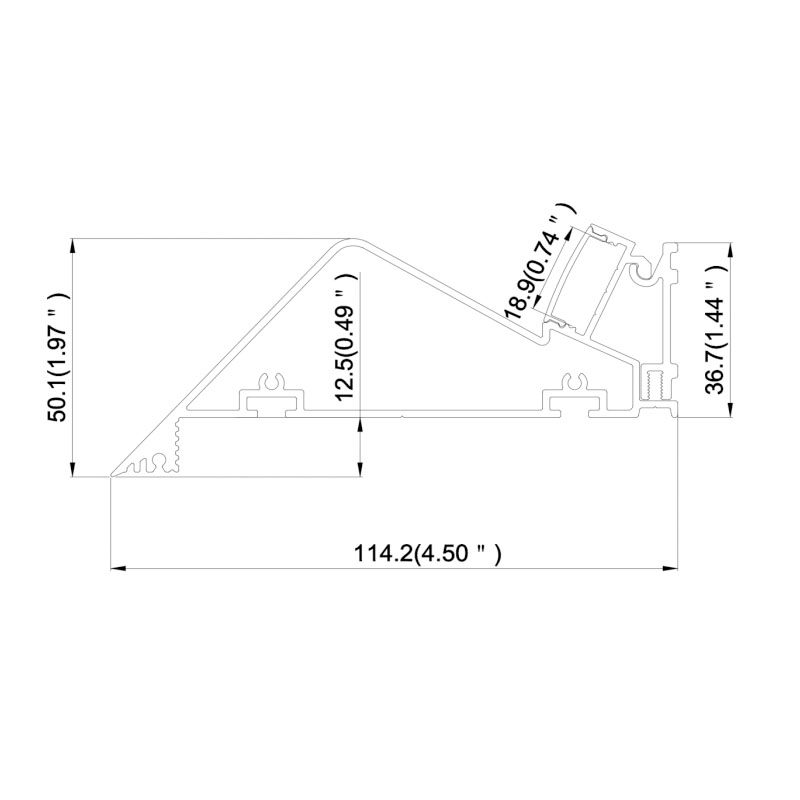

- Size( W x H ): 114.2 mm x 50.1 mm ( 4.5" x 1.97" )
- Standard lengths: 1m ( 39" ), 2 m ( 78" ), 3 m ( 118" )
- Custom lengths available: YES
- Diffusers: PC diffused cover, PC semi-clear cover
- Inner width: 18.9 mm ( 0.74" )
- Max width of LED strips: 18 mm ( 0.71" )
- Max power: 18W/m
- Beam angle: 100°
- Tolerance: ±1%
- IP rate: IP20 non-waterproof

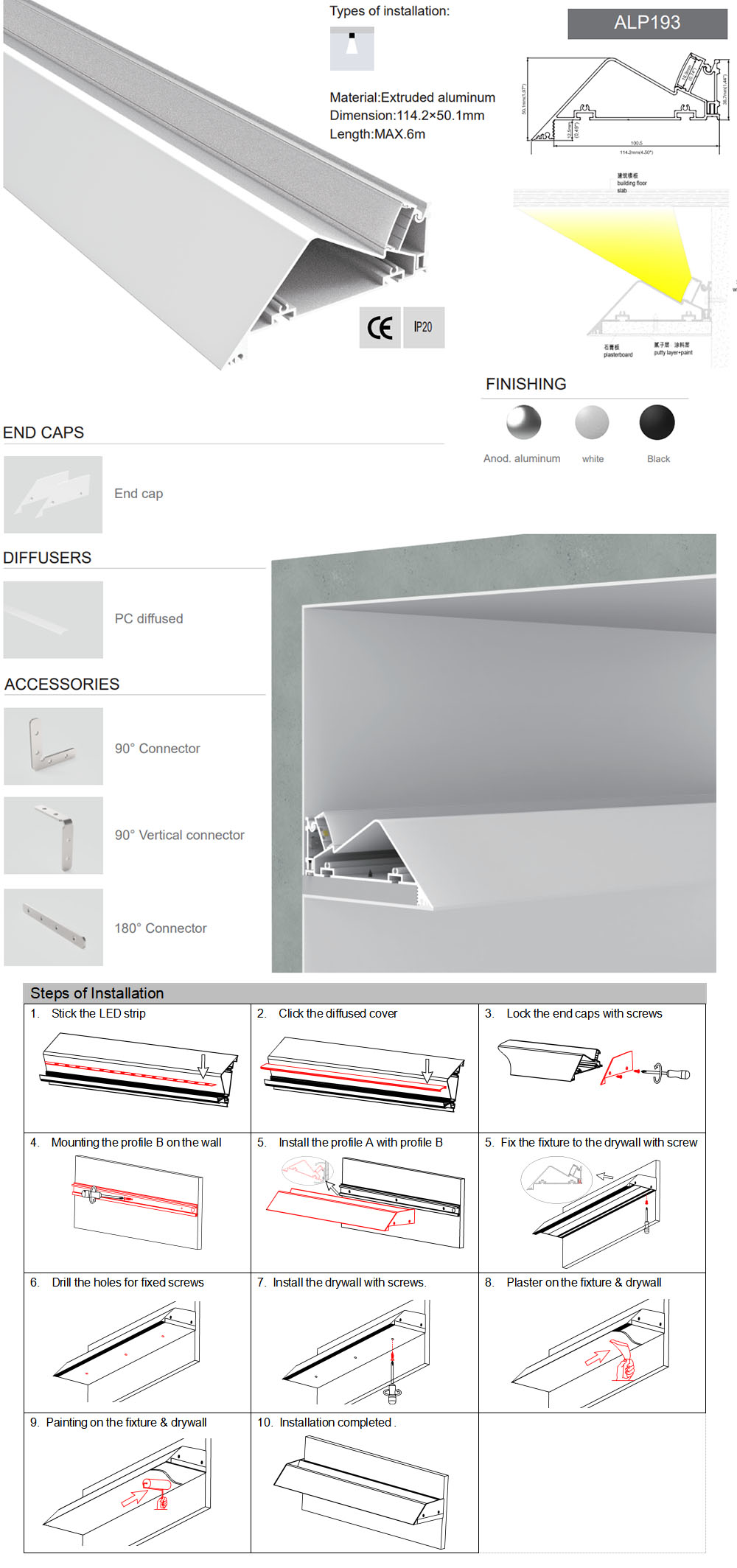

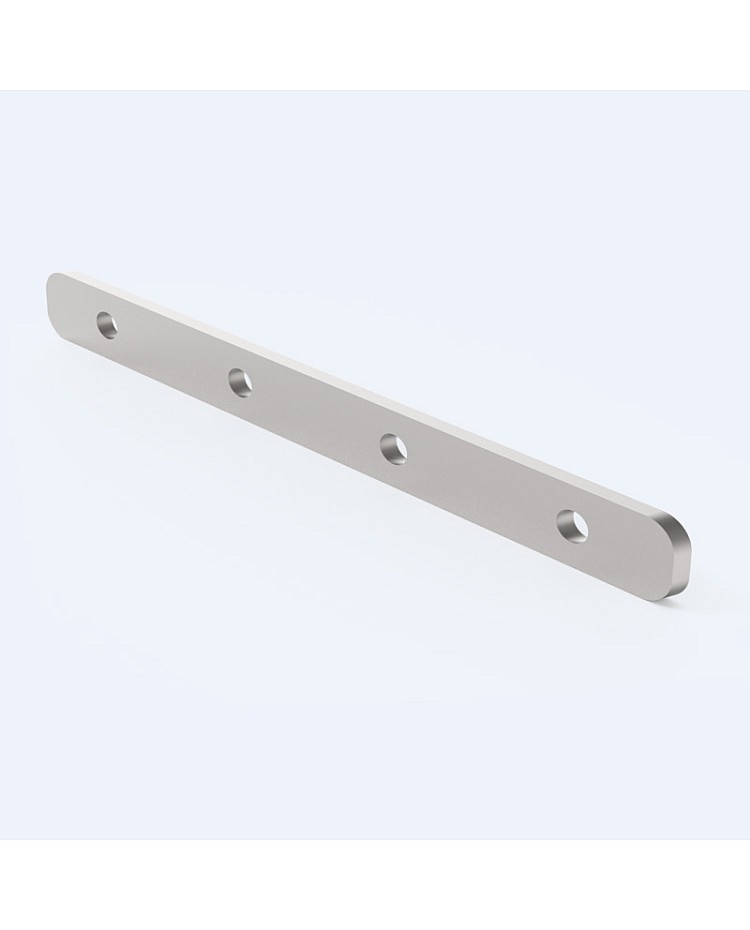

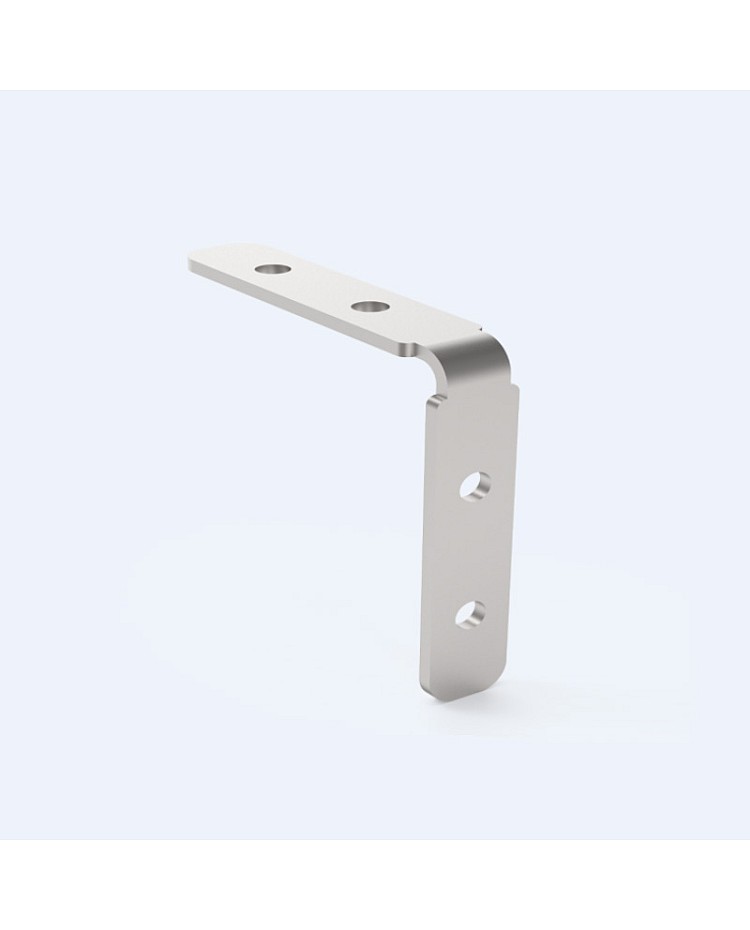

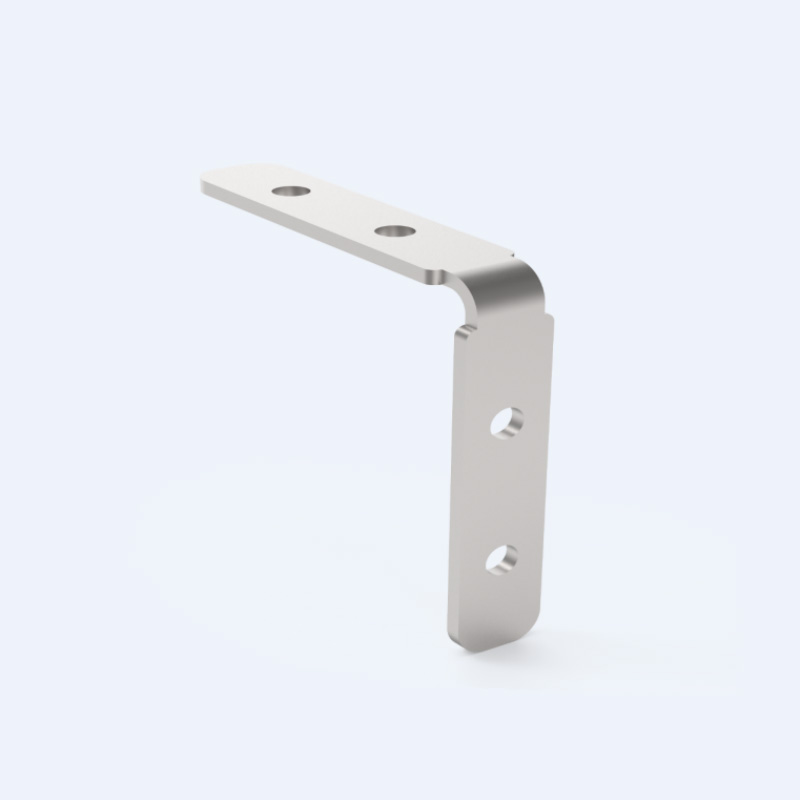

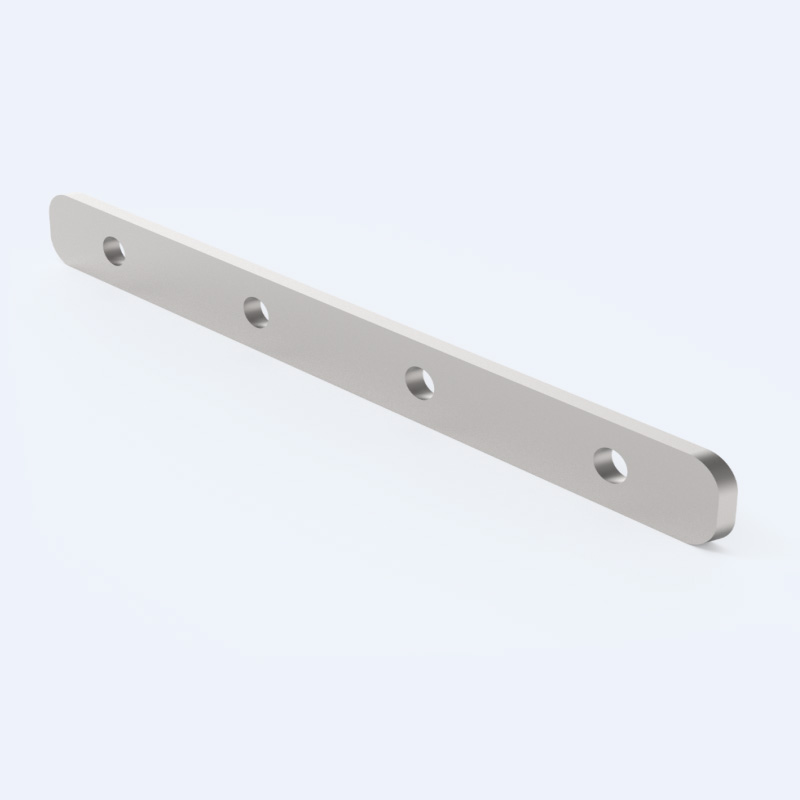

- 90°, 90° vertical and 180° connectors are sold separately
- LED strips, dimmers, controllers, and transformers are sold separately
- Installation: Surface mounted
- Certifications: CE, ROHS
- Warranty: 5 years
Includes:
1 * Cove lighting LED channel with diffuser

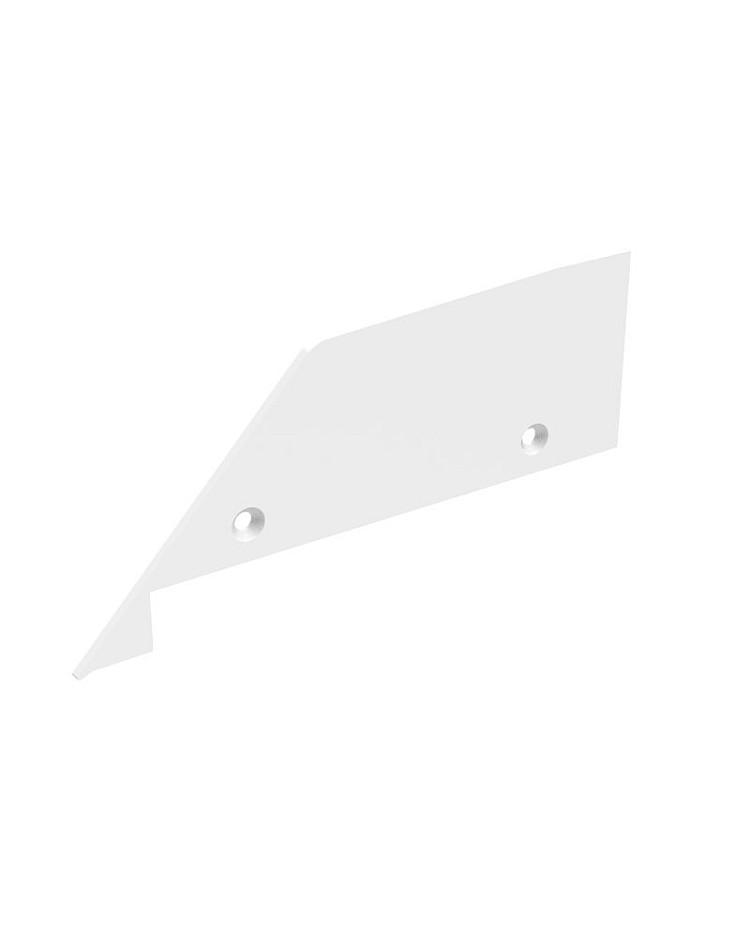

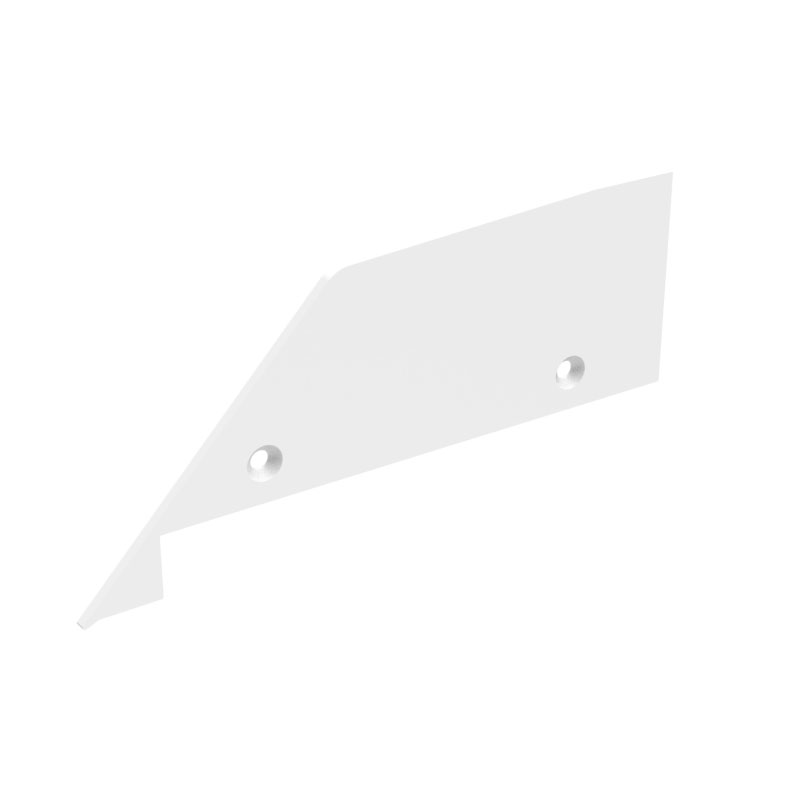

End caps
