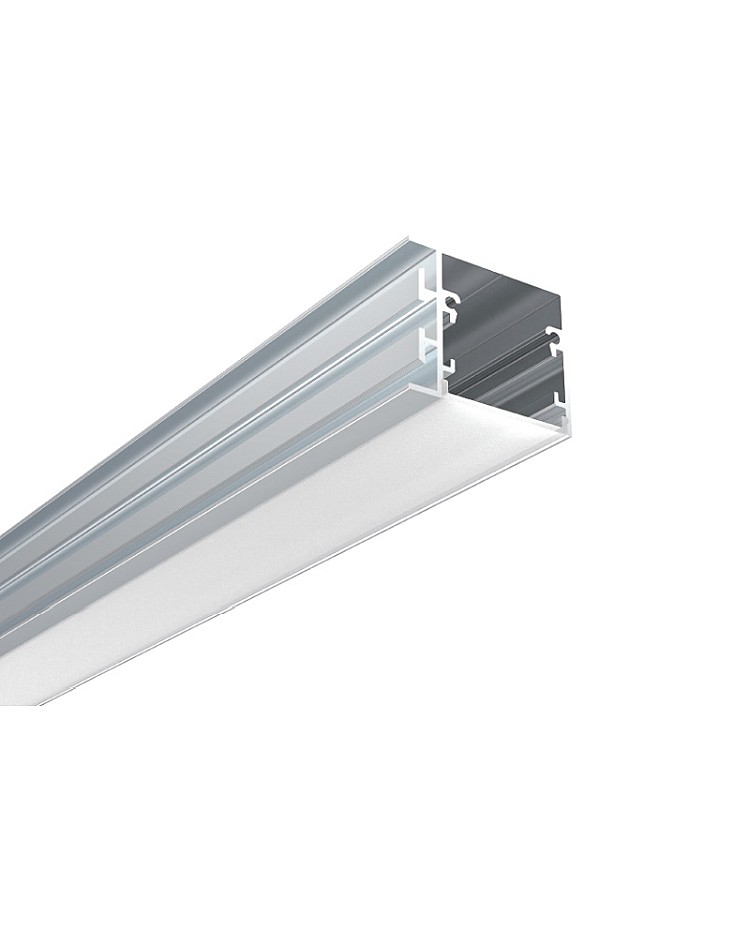

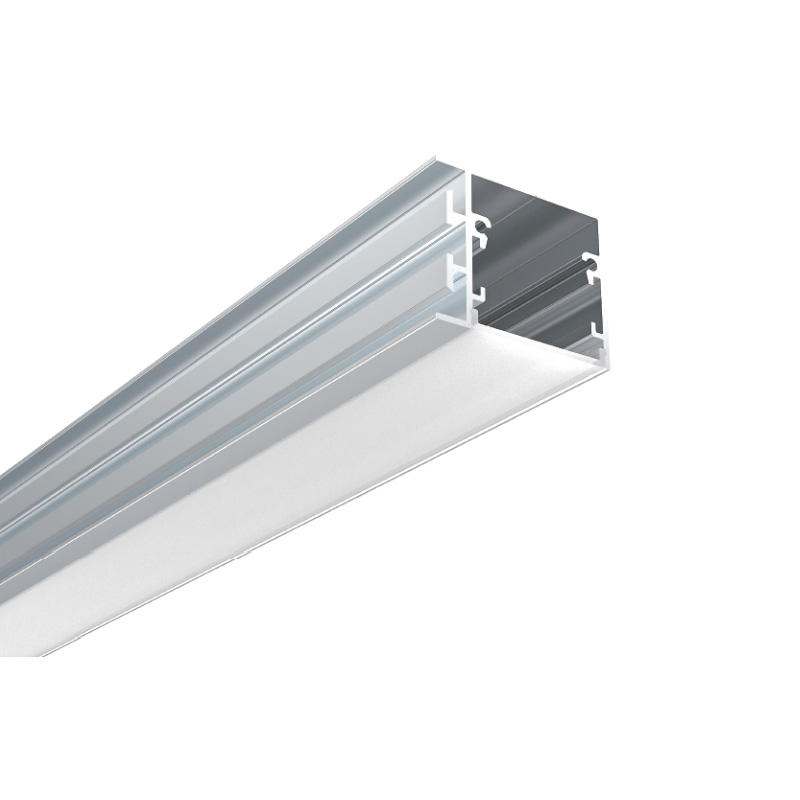

Check the LED Wall Washer Light Channels, which can be mounted on the wall for the up or down wall wash lighting project, you can use them to create indirect lighting with LED Strips. the Wall Wash Channels are made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation resistance and a longer lifespan, there are 3 colors available, the default color is silver, you also can take the white and black colors. the standard length is 1M, you also can take other lengths like 1.5M, 2M, 2.5M, 3M and max 6M, cuttable and custom lengths available. there are 2 types of diffusers available, PC diffused cover and PC semi-clear cover, both of them are made of imported brand material, anti-yellowing, perfect light distribution and smooth light output. the inner width is 32mm and allows the max-width of LED Strips is 30mm, you can install a single row or multiple rows of LED Strips inside as the light source, recommend the COB LED Strip Lights, no visible light dots and dark area, to create seamless linear lighting projects. the end caps and mounting clips included, easy to connect to the Strip Light Driver to light up, you can fix them on the wall with the mounting clips, there are 3 types of connectors are available, 90°, 90° vertical and 180° connectors are sold separately, you can use them to reconnect the LED Channels together for indoor lighting projects.


  • Model: ALP019-R
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized

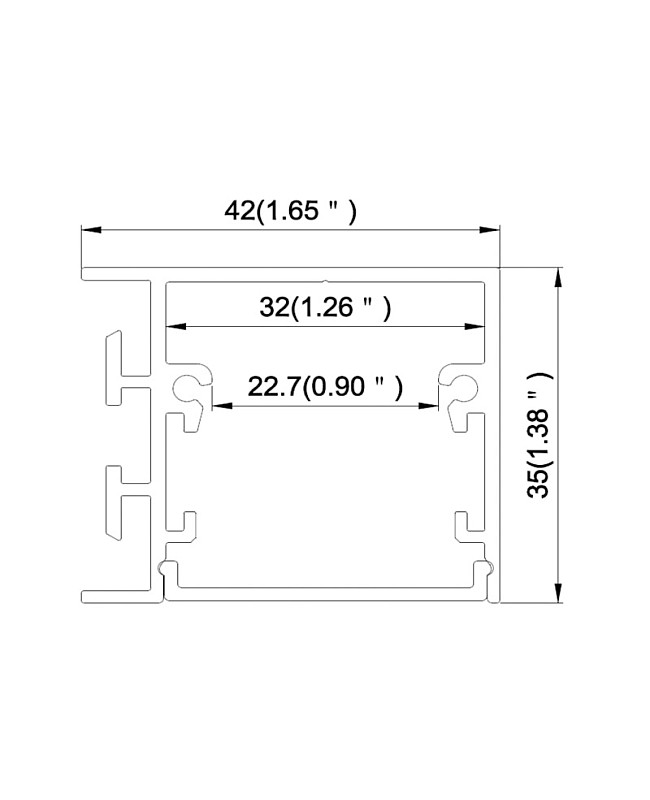

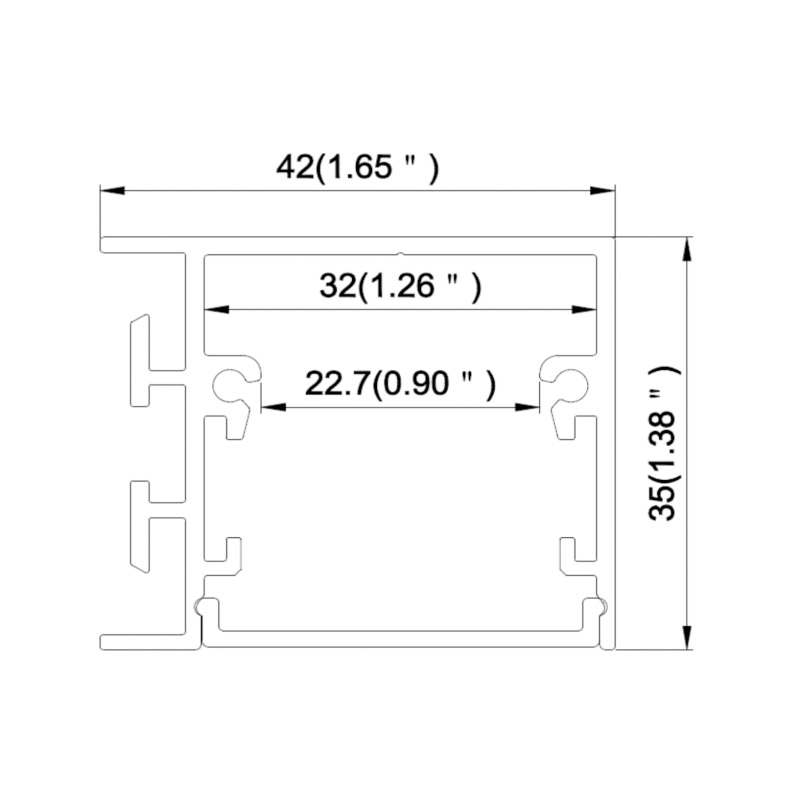

  • Size: 42*35mm(W*H)
  • Colors: Silver(Default), White, Black
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover, PC Semi-clear Cover
  • Inner Width: 32mm
  • Max Width Of LED Strips: 30mm
  • Max Power: 25W/M
  • Beam Angle: 100°
  • Tolerance:±1%
  • IP Rate: IP20 Non-waterproof
  • End Caps And Mounting Clips Included

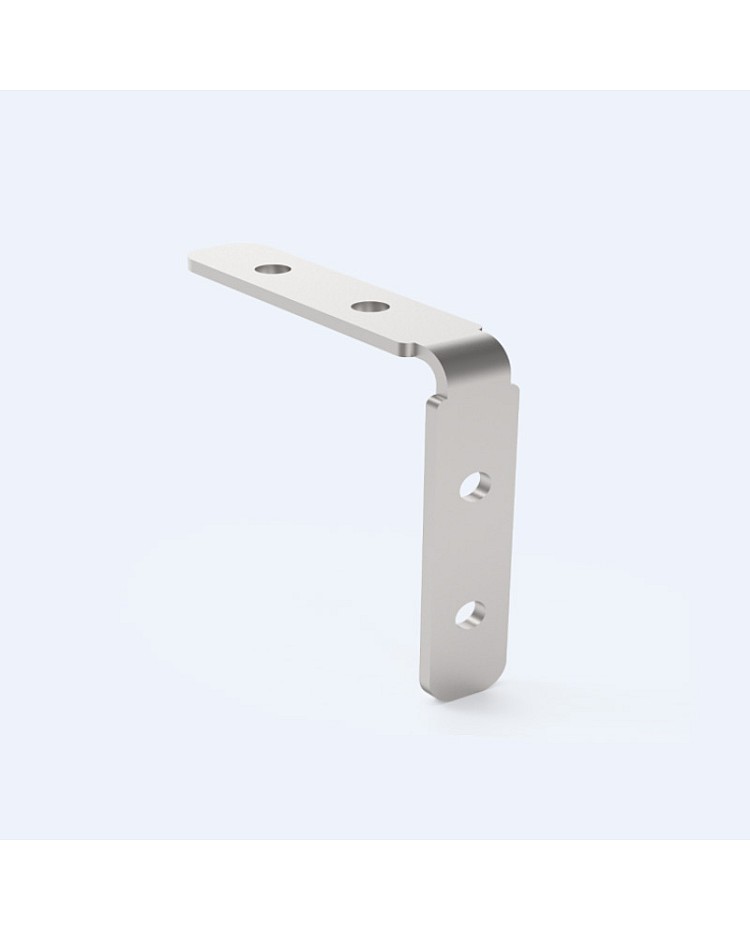

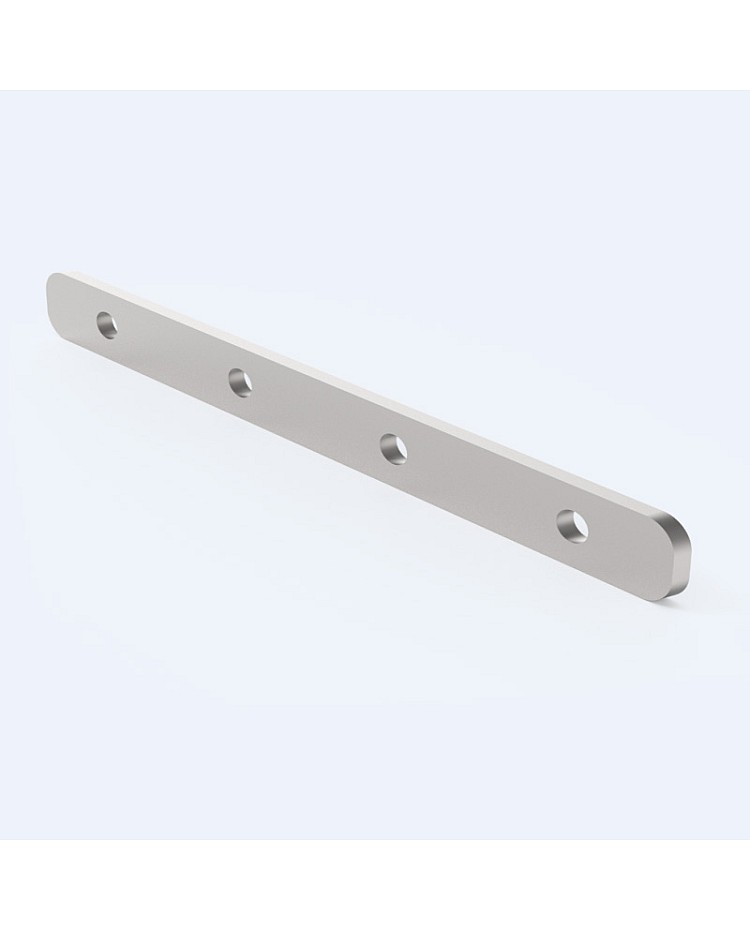

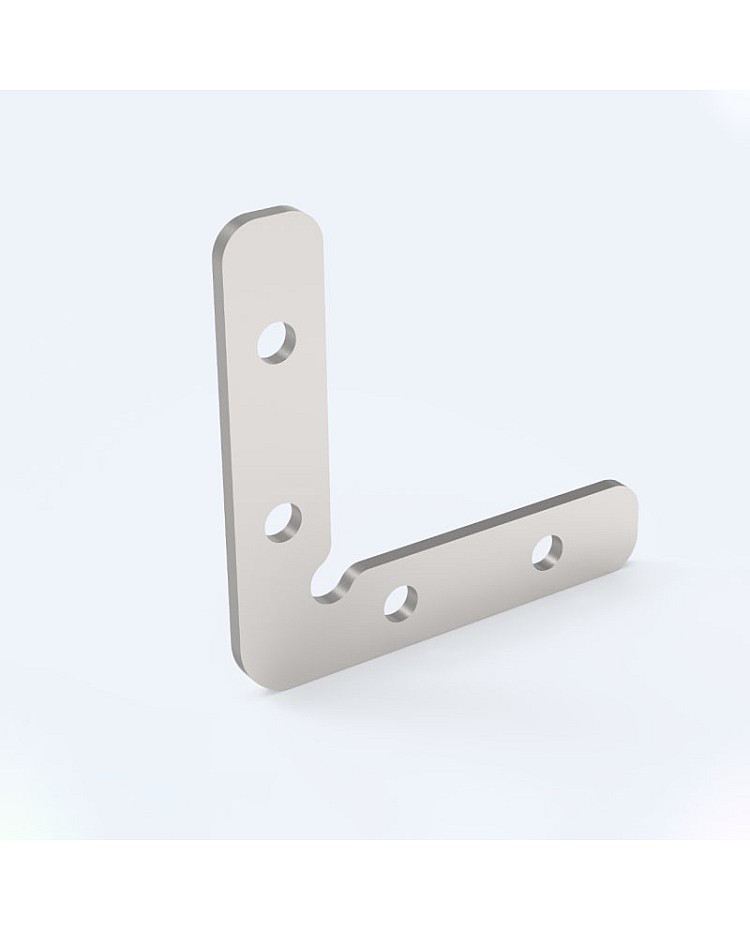

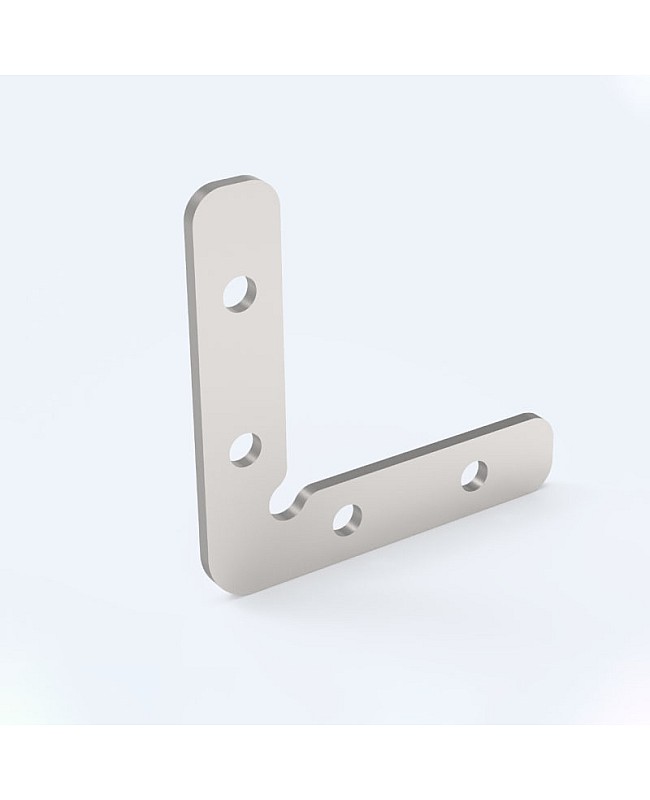

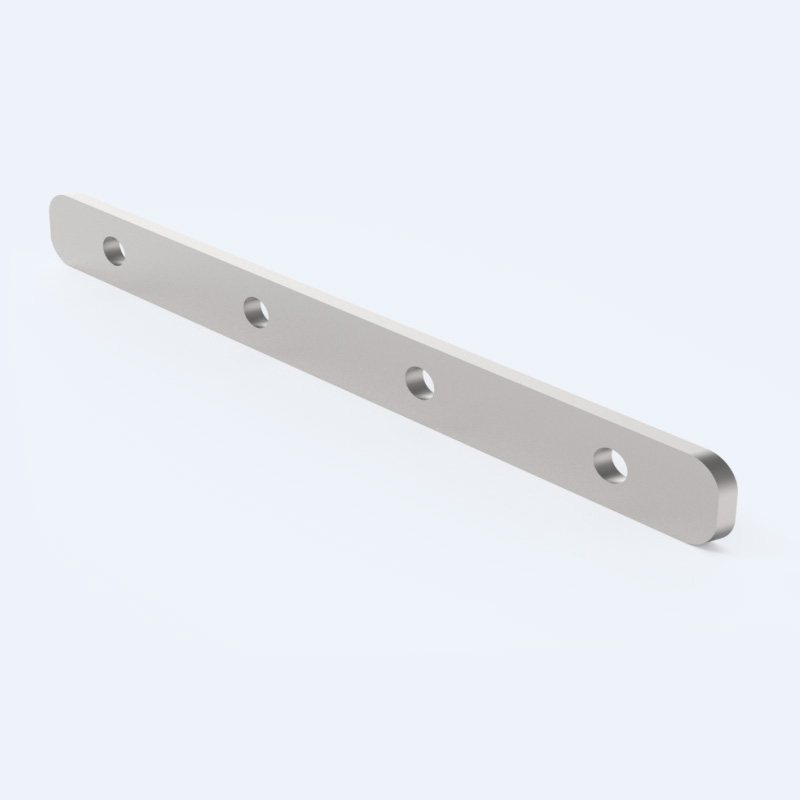

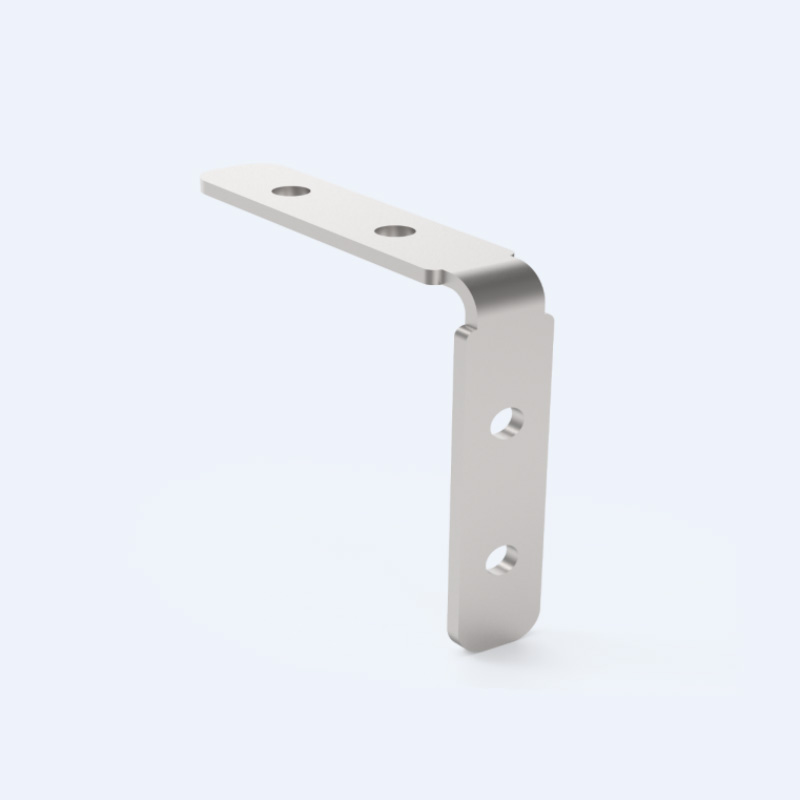

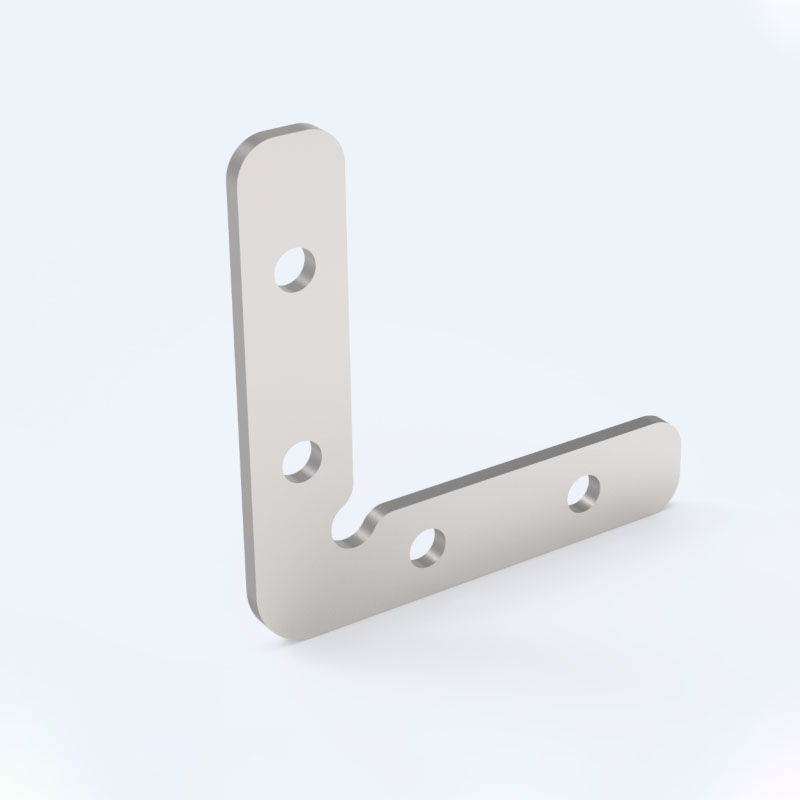

  • 90°, 90° Vertical And 180° Connectors Sold Separately

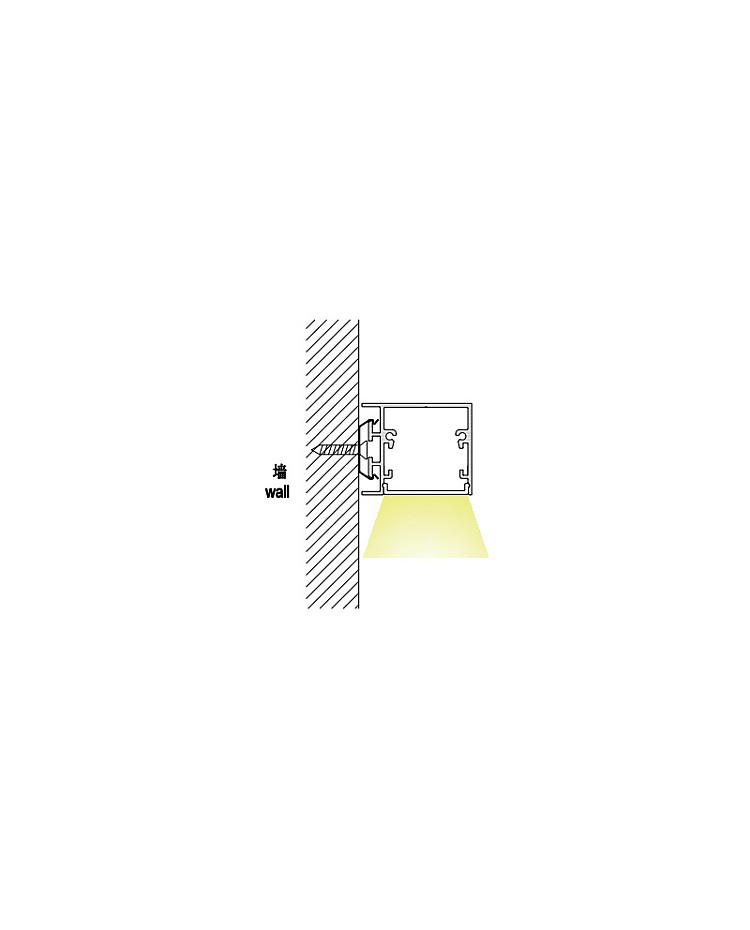

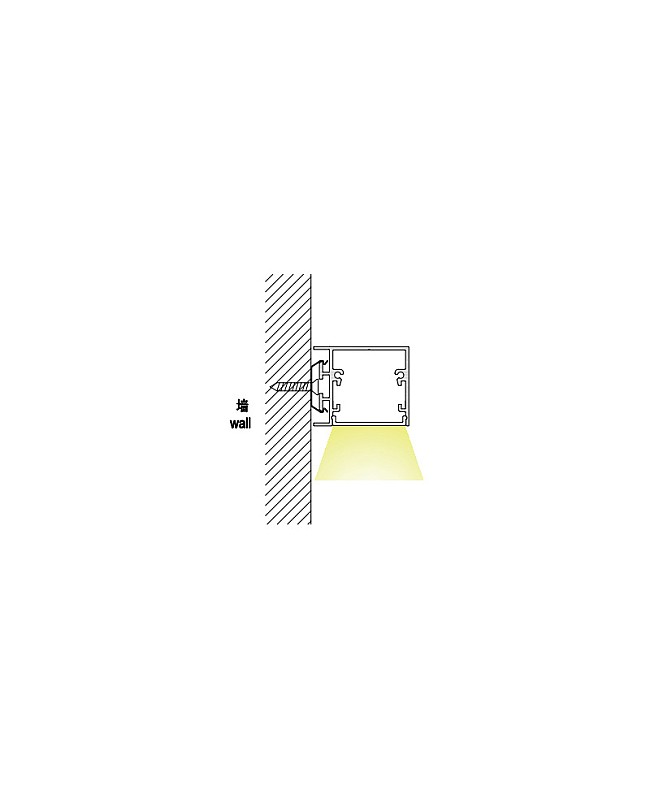

  • Installation: Surface Mounting
  • 5 Years Warranty


1*LED Wall Washer Light Channel

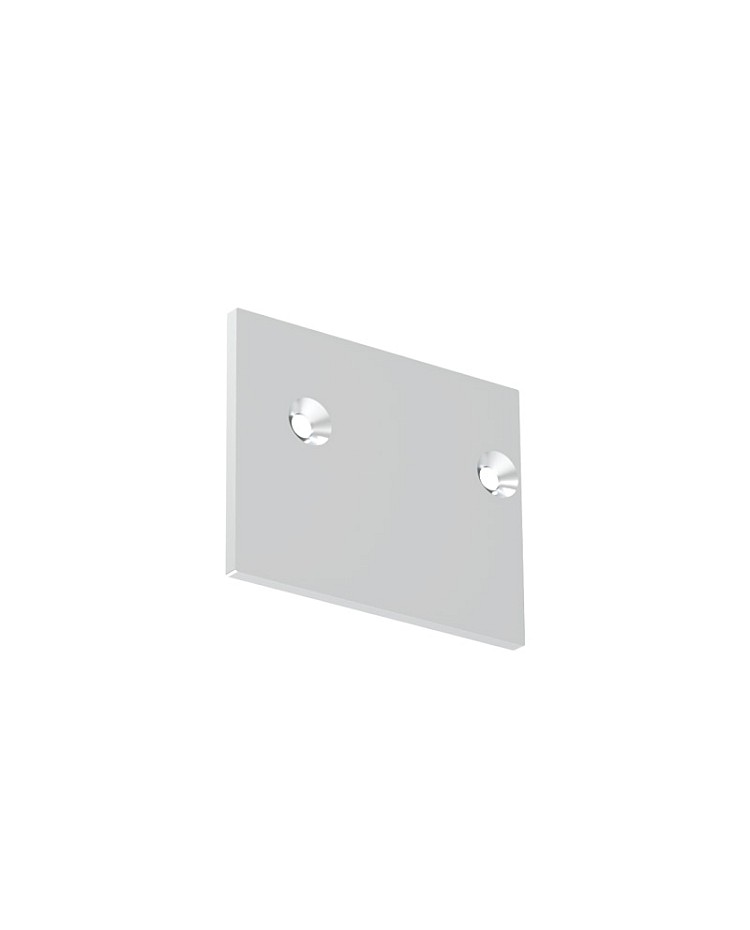

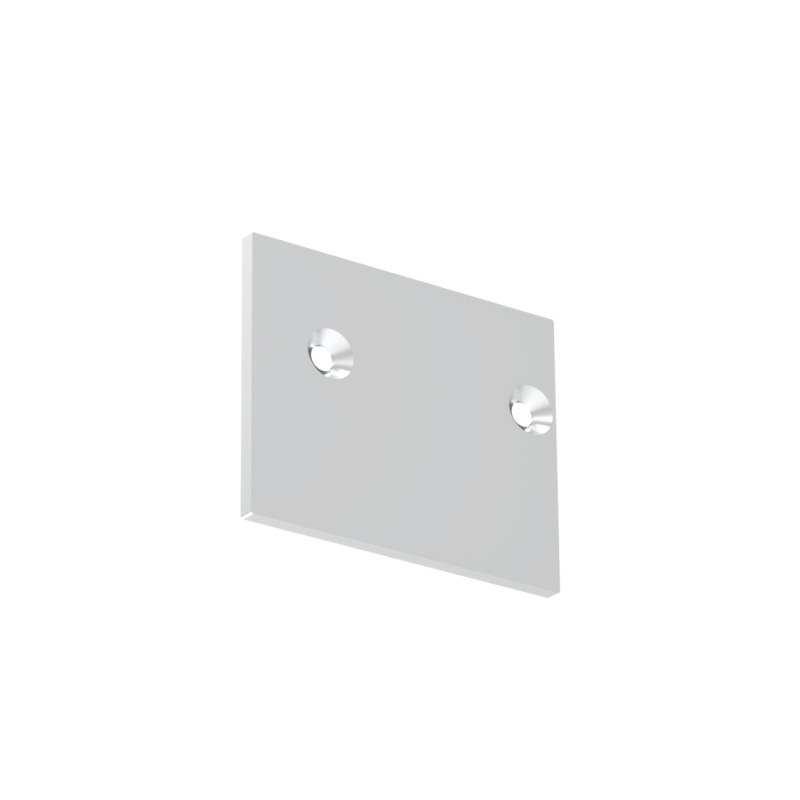

End Caps

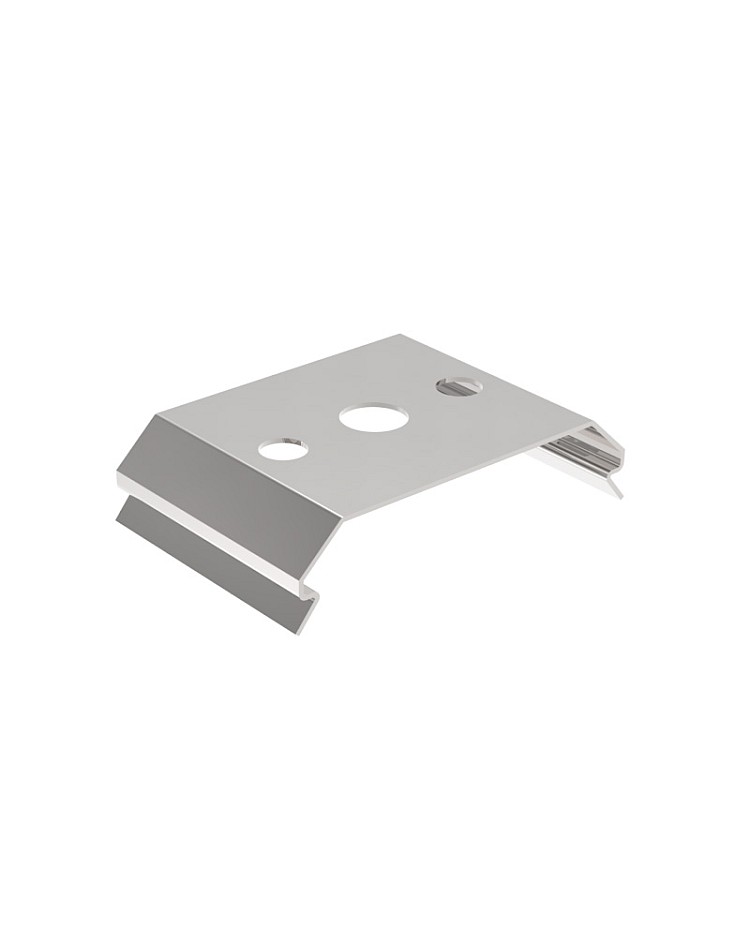

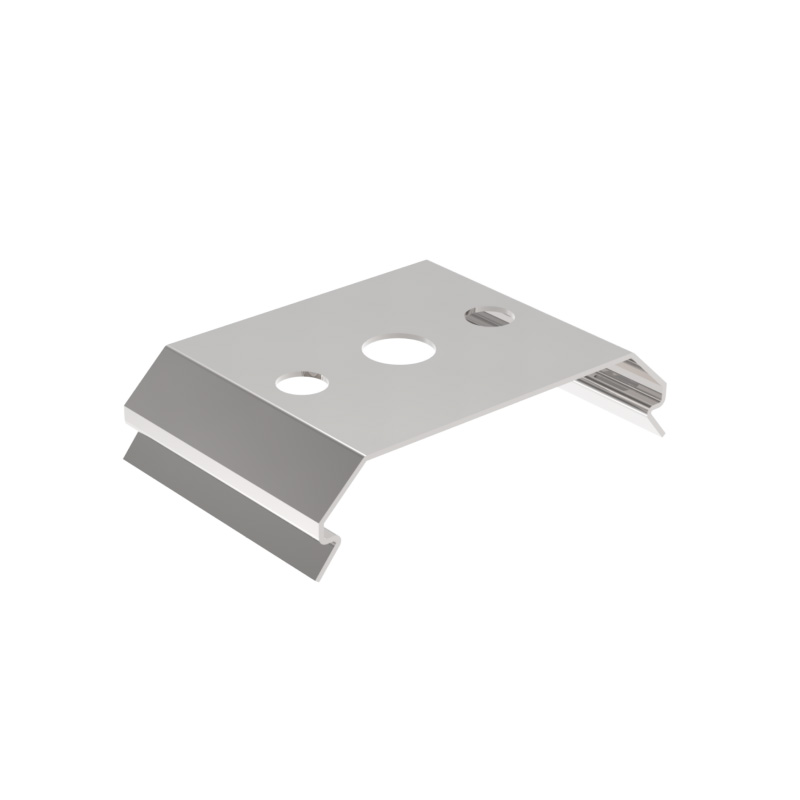

Mounting Clips

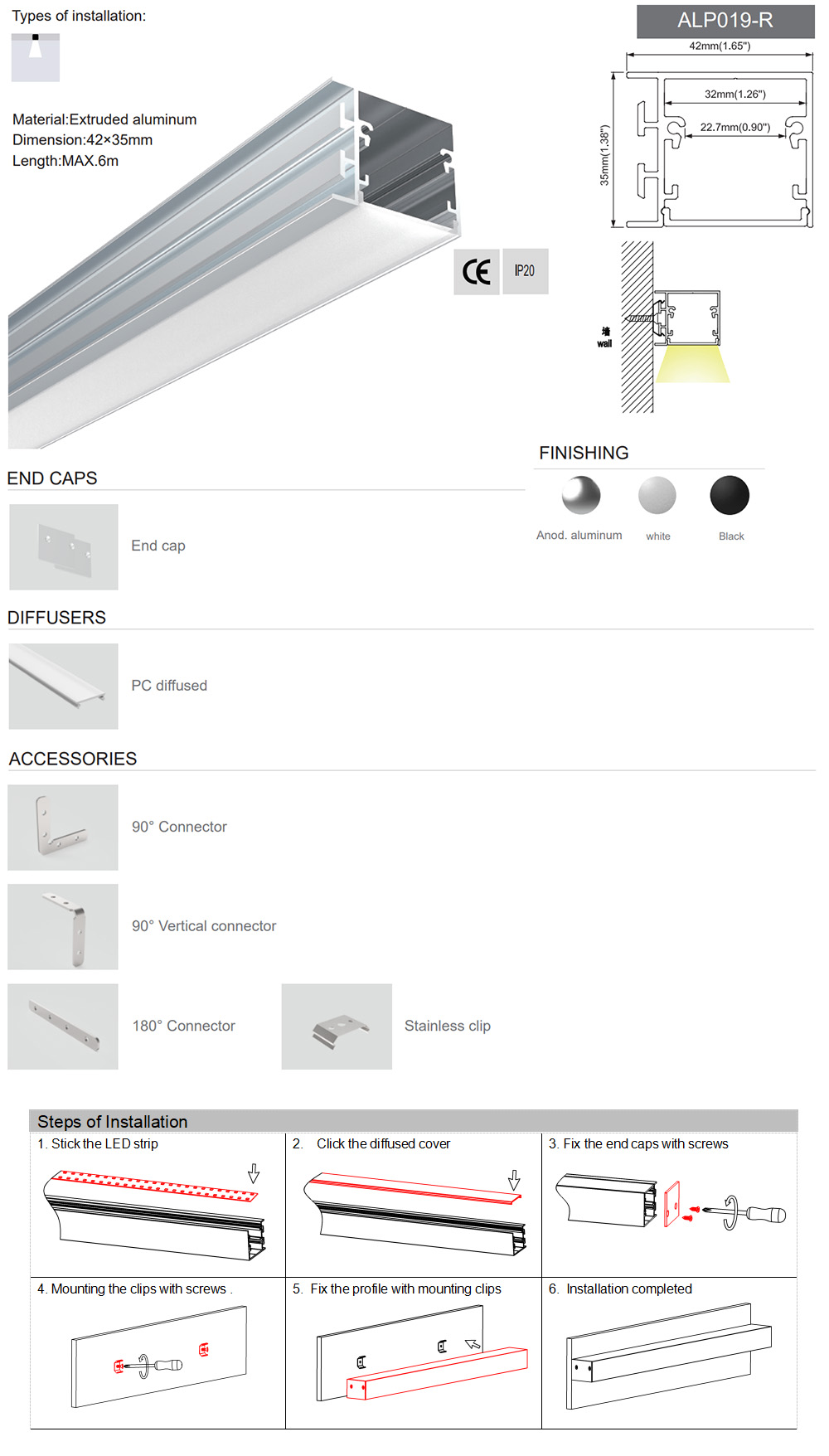

Linear LED Washer Light Profiles
