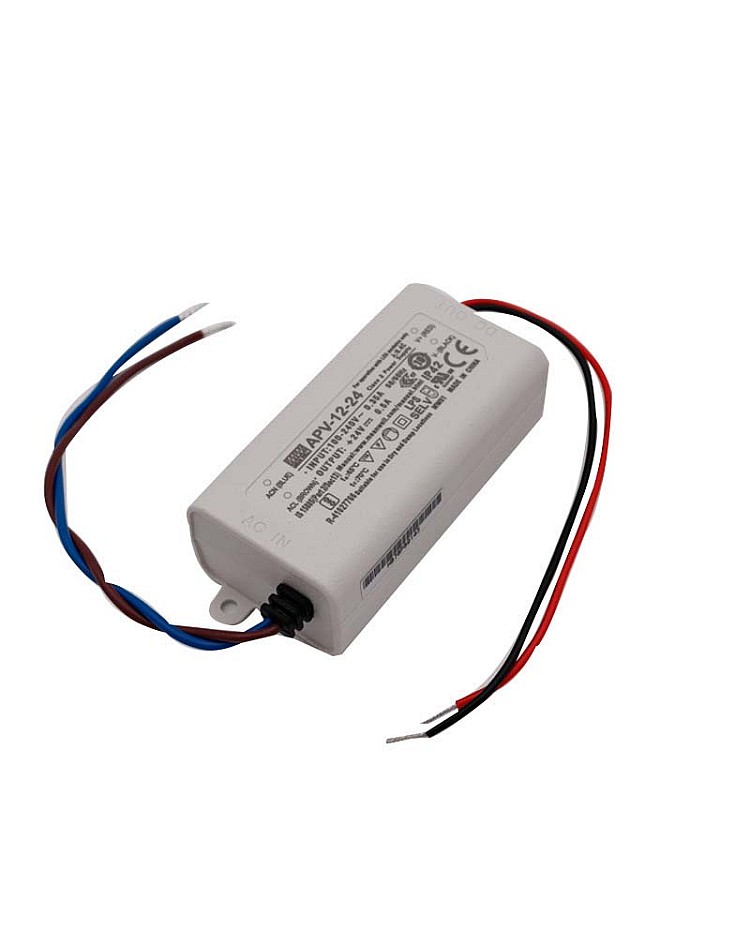

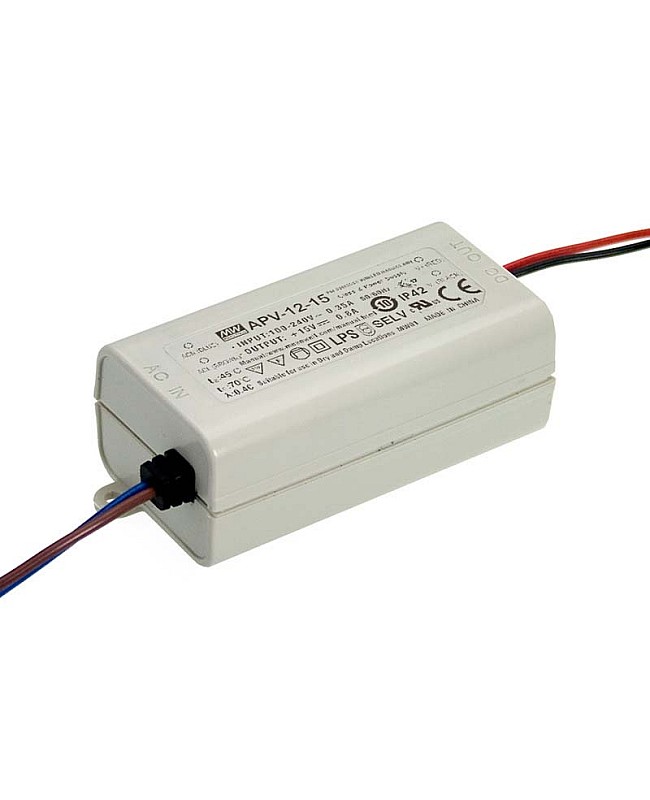

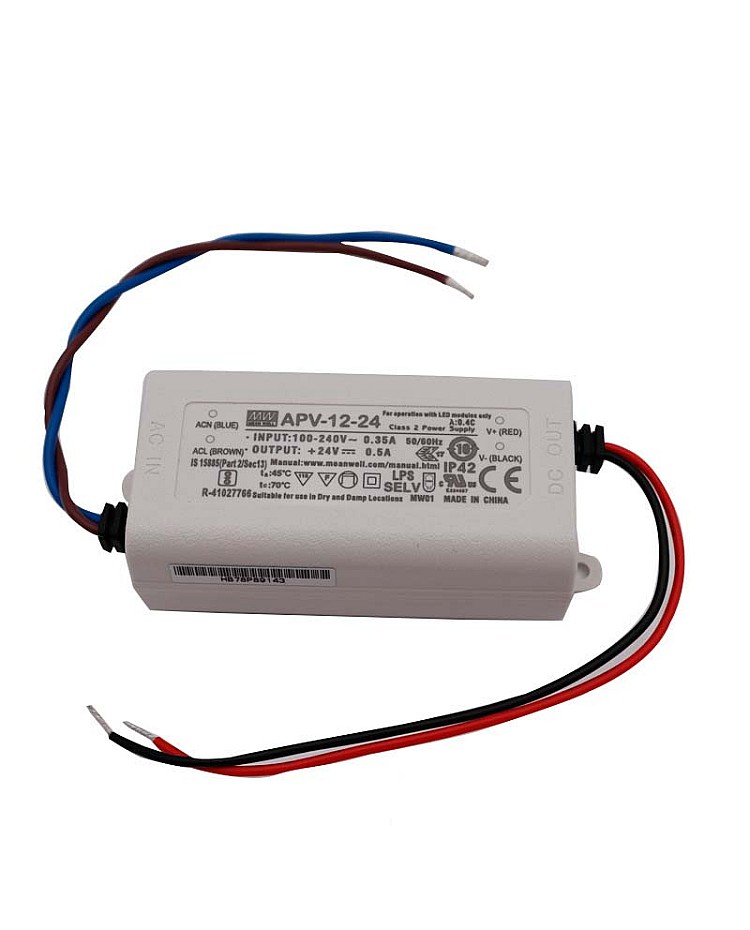

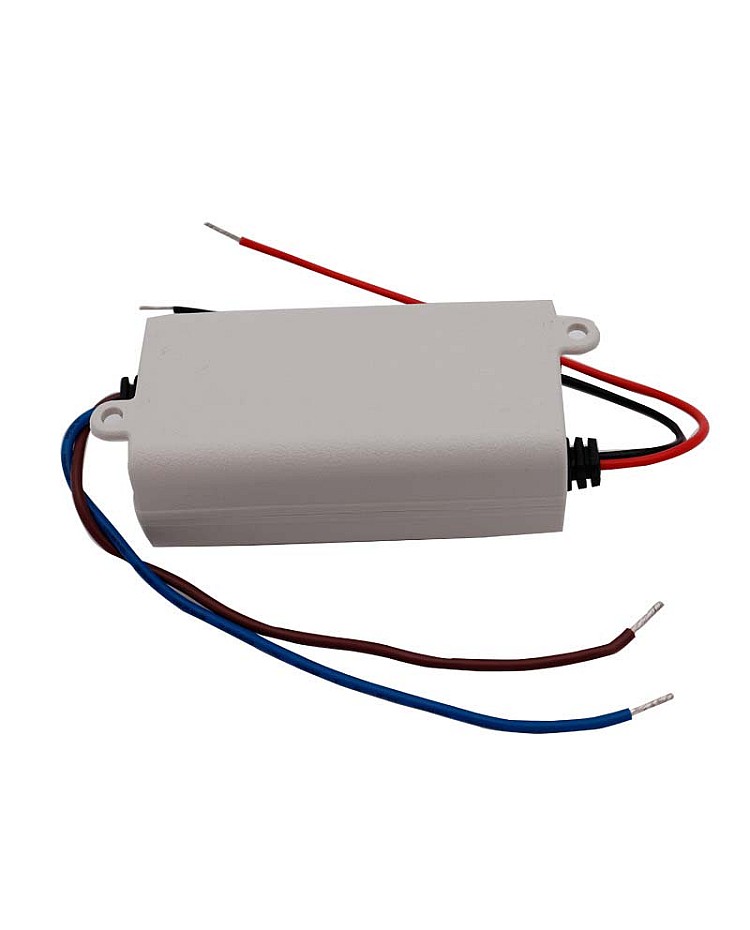

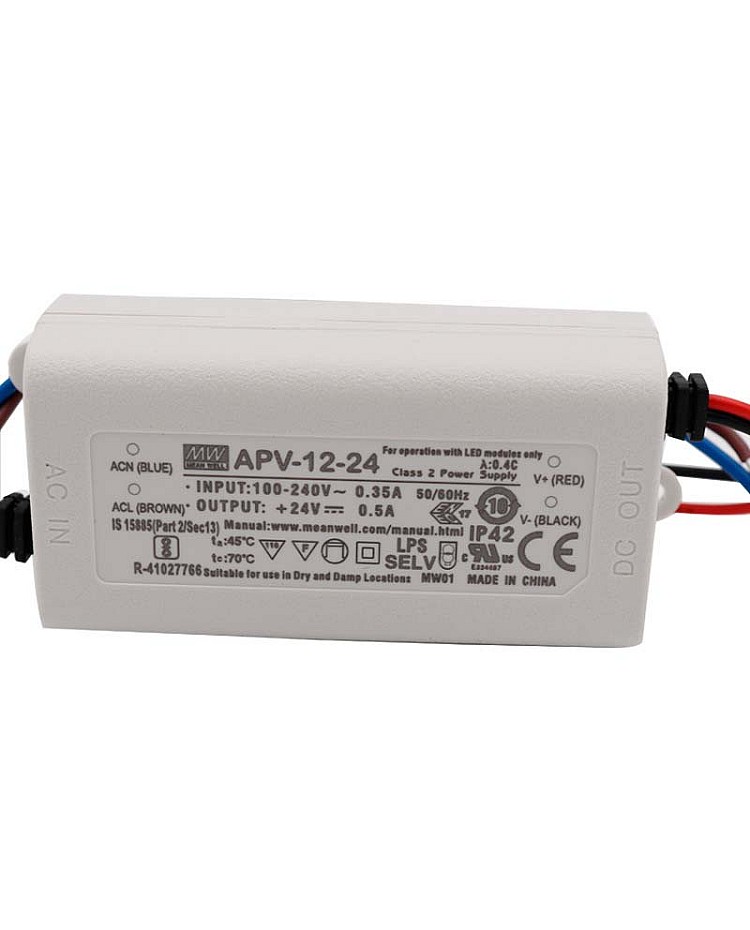

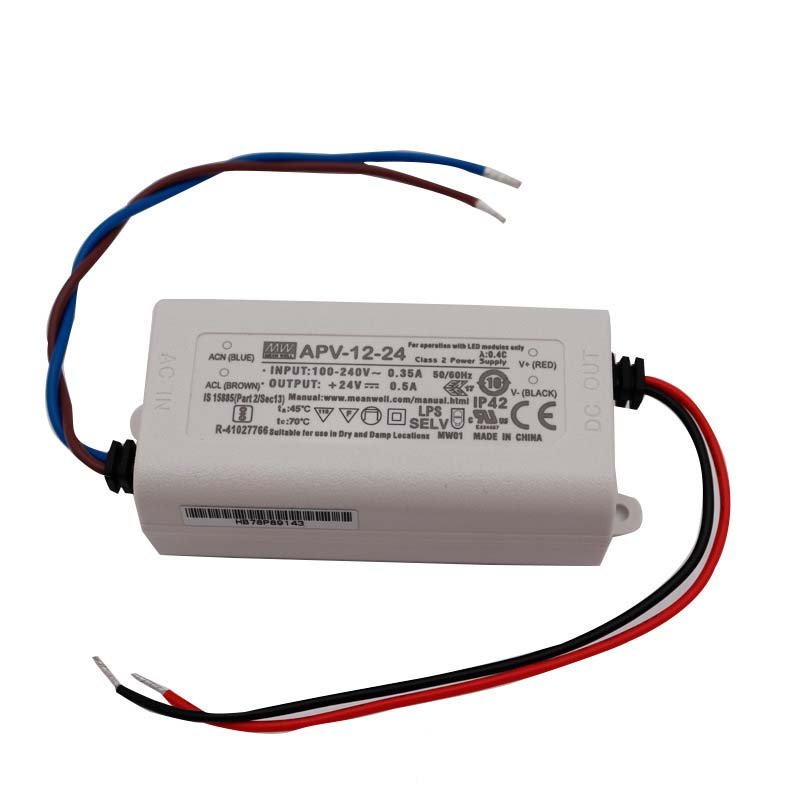

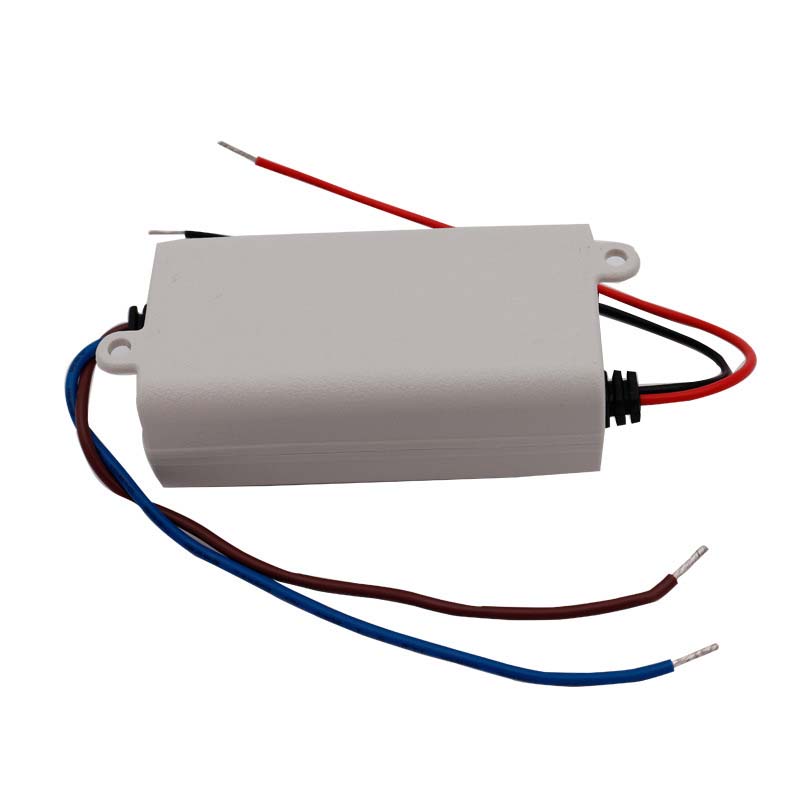

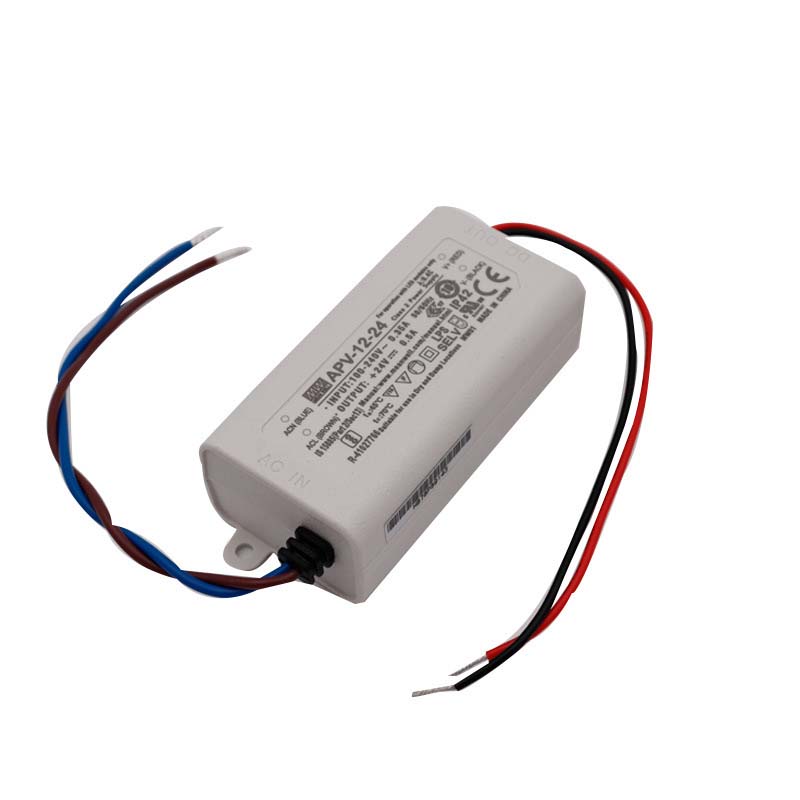

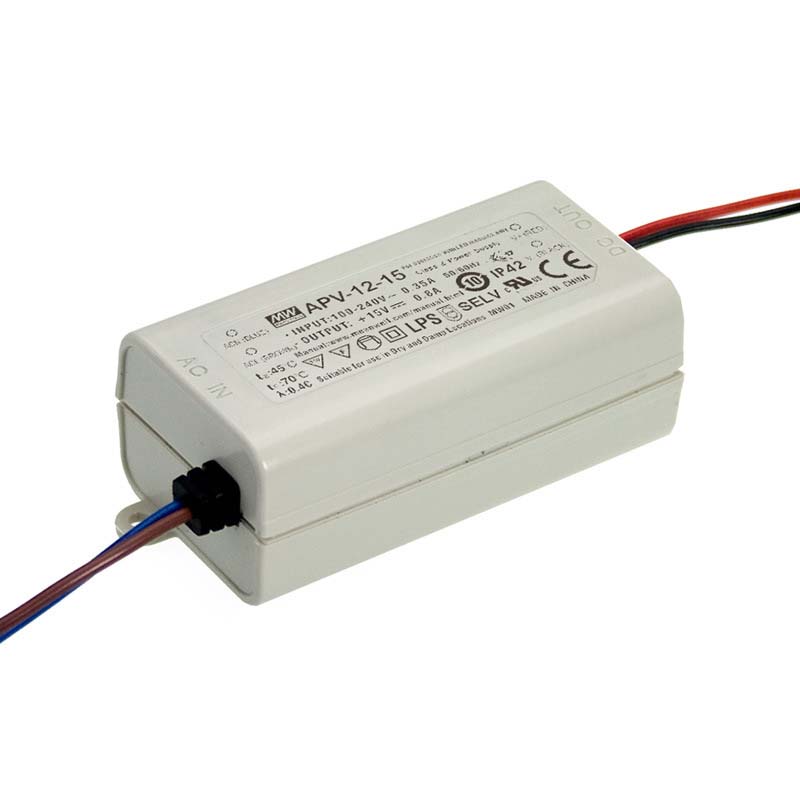

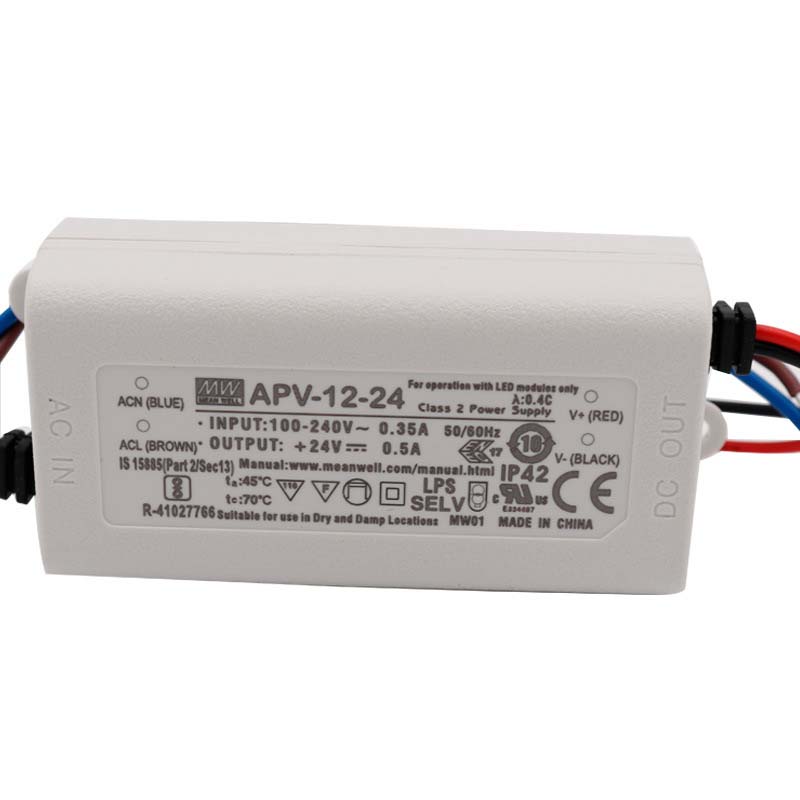

The 12W Single Output Mean Well APV-12 Series LED Drivers are designed to provide reliable and stable power for a wide range of LED applications. With a constant voltage output design, you can choose the various output voltage products from DC5V, DC12V, DC15V, or DC24V. Features a wide input voltage range of AC90V-AC264V, and a max output power of 12W. The driver is a low-cost, easy-to-use solution for powering LEDs. The Meanwell LED Drivers with a fully isolated plastic case design, has overload protection, short circuit protection, and an open circuit protection to ensure long-term performance. Can be used in dry or damp locations, and are suitable for LED Lights, LED fixtures, LED decorations,s or Advertisement Devices.

  • Constant Voltage Design
  • Universal AC Input / Full Range
  • Protections: Short Circuit / Over Load / Over Voltage
  • Fully Isolated Plastic Case
  • Cooling By Free Air Convection
  • Small And Compact Size
  • Class II Power Unit, no FG
  • Class 2 Power Unit
  • Pass LPS
  • IP42 Design
  • 100% Full Load Burn-In Test
  • Low Cost, High Reliability

Quick Links:

Meanwell APV-12 Specification Document


  • Model: APV-12
  • Size: 77*40*29mm(L*W*H)
  • Input Voltage Range: AC90V-AC264V
  • Frequency Range: 47-63Hz
  • Efficiency: 76%(DC5V), 82%(DC12V), 82%(DC15V), 84%(DC24V)
  • AC Current: 0.2A/230VAC, 0.35A/115VAC
  • Output Voltage Range: DC5V, DC12V, DC15V, DC24V
  • Rated Current: 2A(DC5V), 1A(DC12V), 0.8A(DC15V), 0.5A(DC24V)
  • Rated Power: 10W(DC5V), 12W(DC12V), 12W(DC15V), 12W(DC24V)
  • Working Temperature: -30℃-+70℃
  • Vibration: 10-500Hz, 2G 10min./1cycle, the period for 60min. each along X, Y, and Z axes
  • Safety Standards: UL8750.CSA C22.2 No.250.0-08, enec en61347-1, EN61347-2-13, EN62384 Independent, BIS IS 15885(Except For 15V), EAC TP TC 004, IP42 Approved
  • Over Loading Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • 2 Years Warranty


1*Meanwell APV-12 LED Driver

Mean Well APV Series LED Drivers
