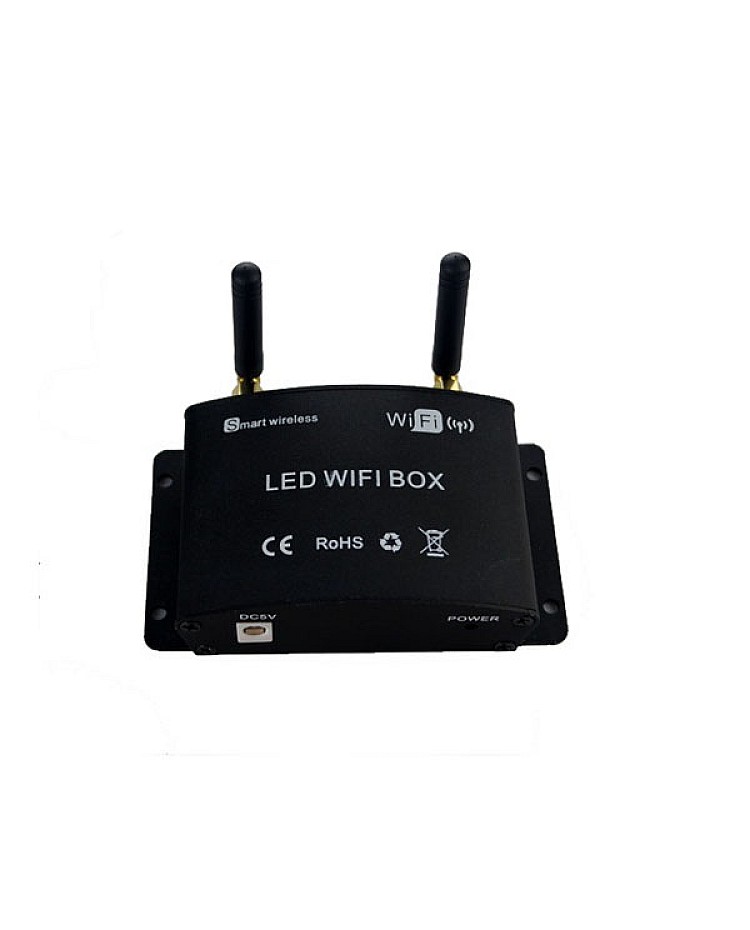

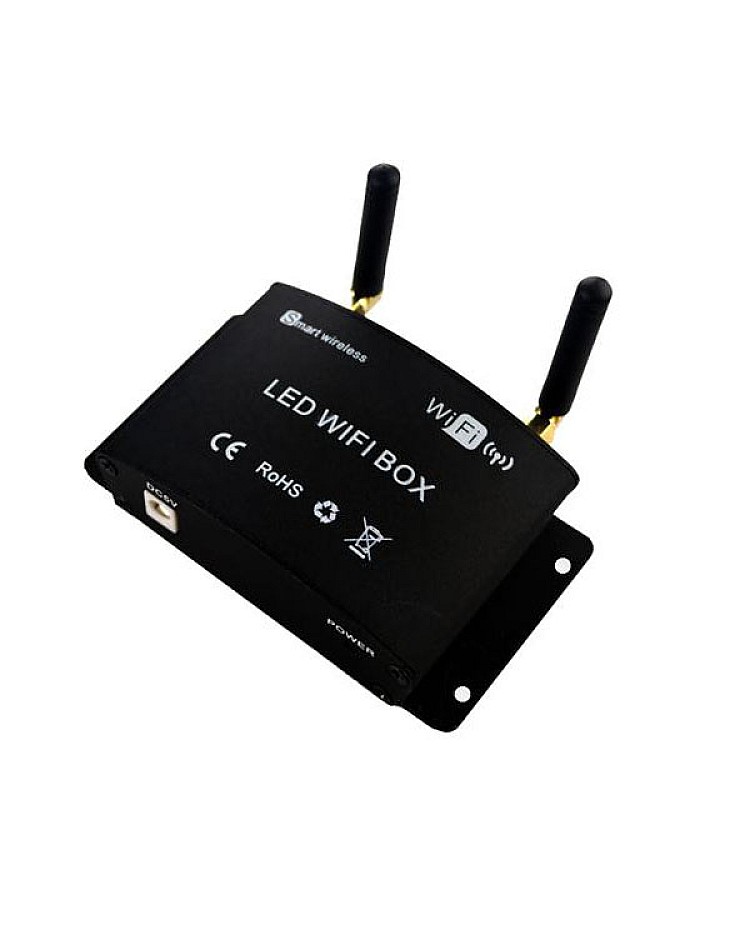

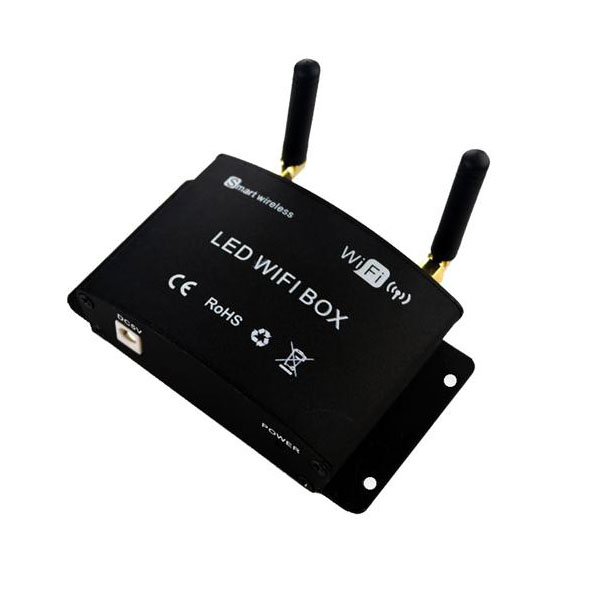

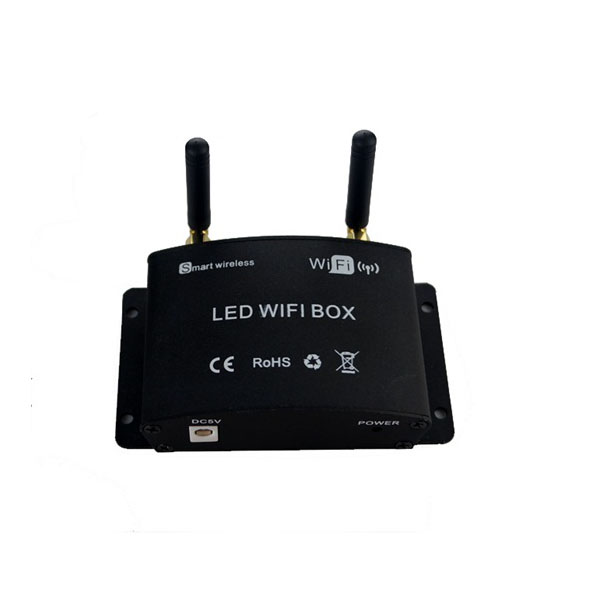

2.4G DC5V RGB/CCT/Dim 3 In 1 WIFI LED Controller

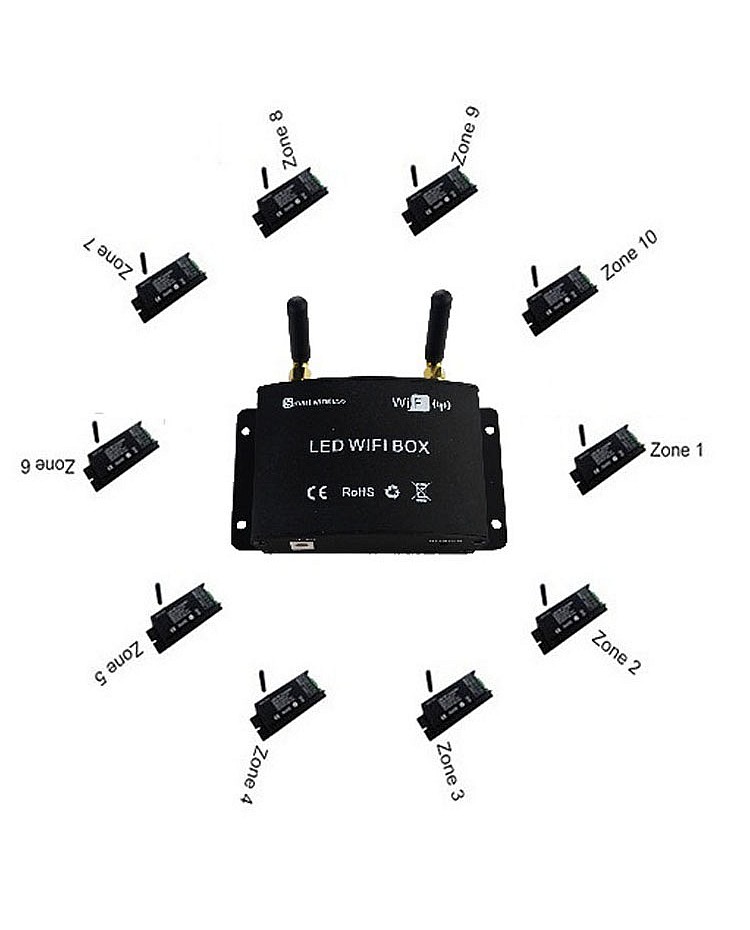

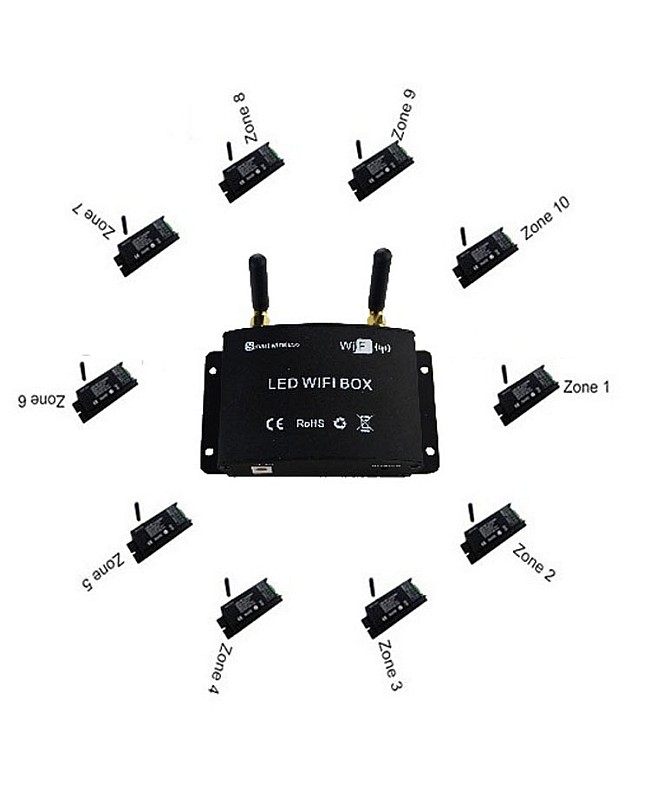

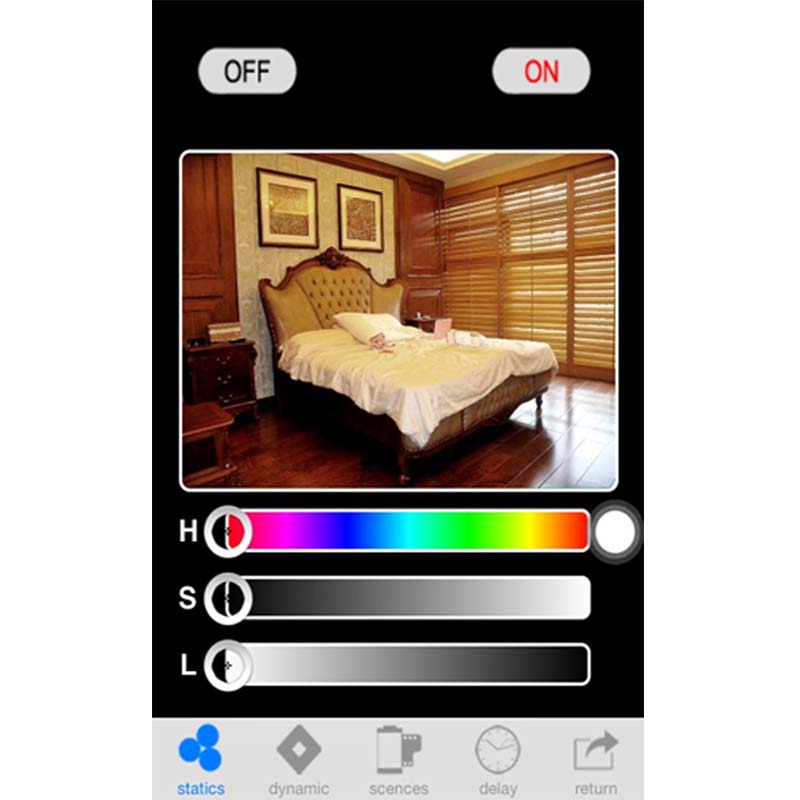

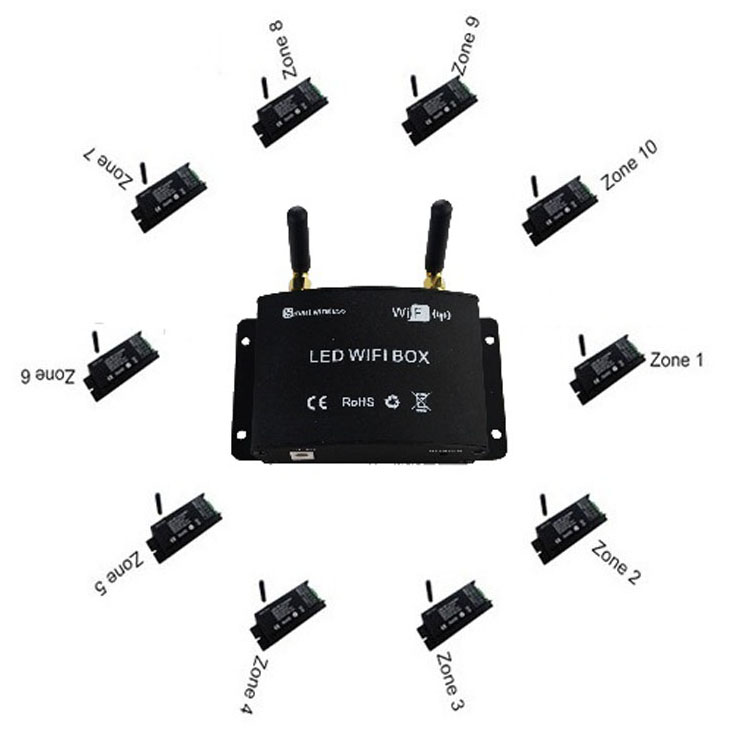

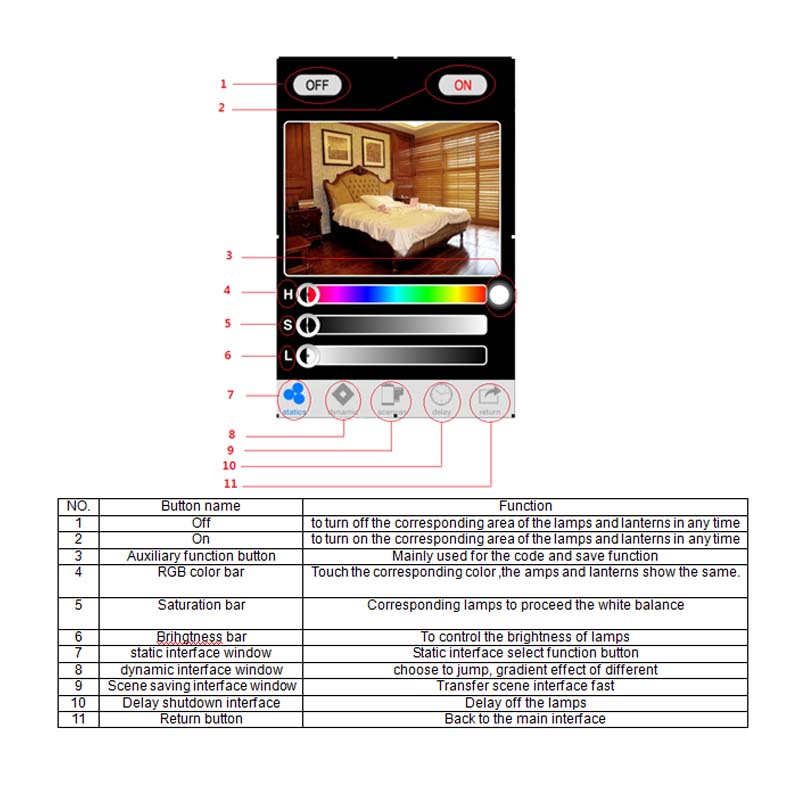

The RGB/CCT/DIM 3 In 1 WIFI LED controller with the multi-zones control function can control each zone lighting effect independently, supporting up to 10 separate zones. Combined with WIFI technology, the control is more advanced, intelligent, and convenient. You can customize the area photos yourself or connect the LED WiFi controller to your family router through your smartphone with an Android or iOS system. Install the corresponding control software to control the change of the LED lights. The 2.4G WiFi LED controller with a 3-in-1 design can be used as a dimmer, CCT, or RGB Controller. You only need to select the right control interface in the software, and you can use it to control various LED lights, RGB LED strips, color-changing LED modules, etc. The WiFi LED controller can also be controlled by a 2.4G RF multi-zone remote control, which you can purchase separately from us.

Specifications:

•  Working Temperature: -20-60℃
• Size: 108*63*28mm(L*W*H)
• Working Voltage: DC5V
• Static Current:<1W
• Output: 2.4GHz
• WIFI Brightness Level: 1-100%
• WIFI Speed Level: 100 Grade
• Remote Control Brightness Level: 1-100%
• Remote Control Speed Level: 100 Grade
• Wifi Frequency: 2.4G
• Receiver Remote Frequency: 2.4G
• Receiving Sensitivity: 802.11b:DSSS（-5dBm）802.11b:CCK(-10dBm)802.11g:OFDM(-15dBm)
• Weight: 250g

RF Remote Control Specifications:

• Working Temperature: -20℃-60℃
• Power Supply: AAA*2 Batteries
• Standby Current: 16uA
• Working Current: 19mA
• Remote Control Distance: ≤30m
• RF Frequency: 2.4G
• Power Consumption: 0.192mW

Package:

1 * WIFI LED Controller
