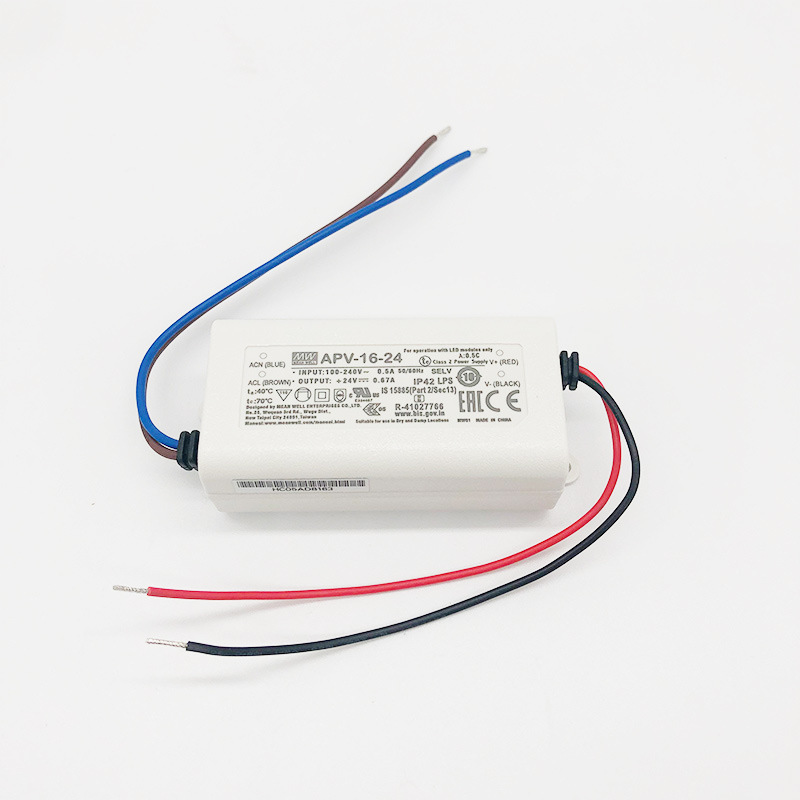

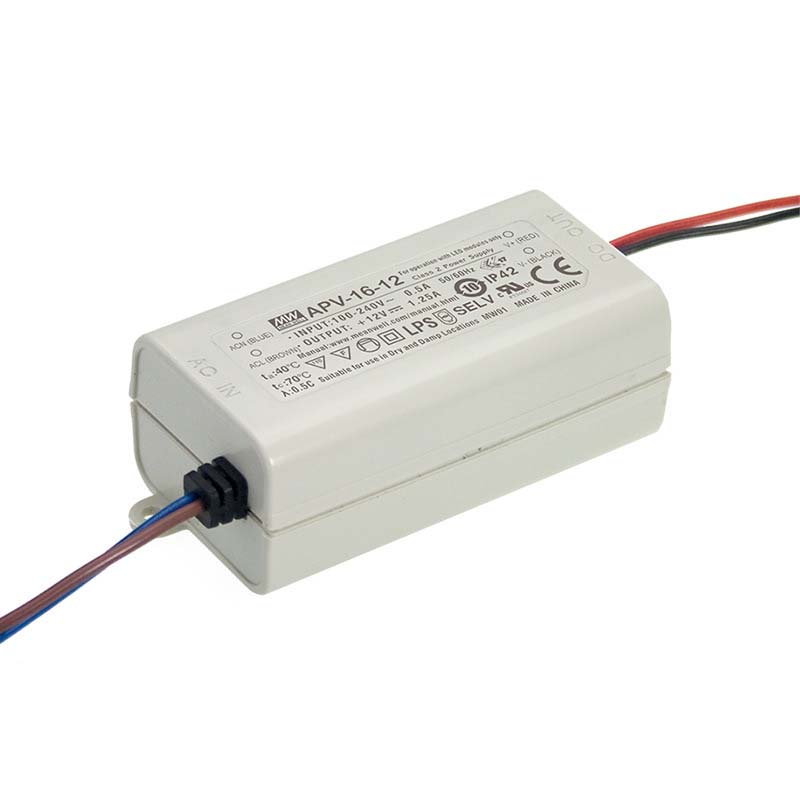

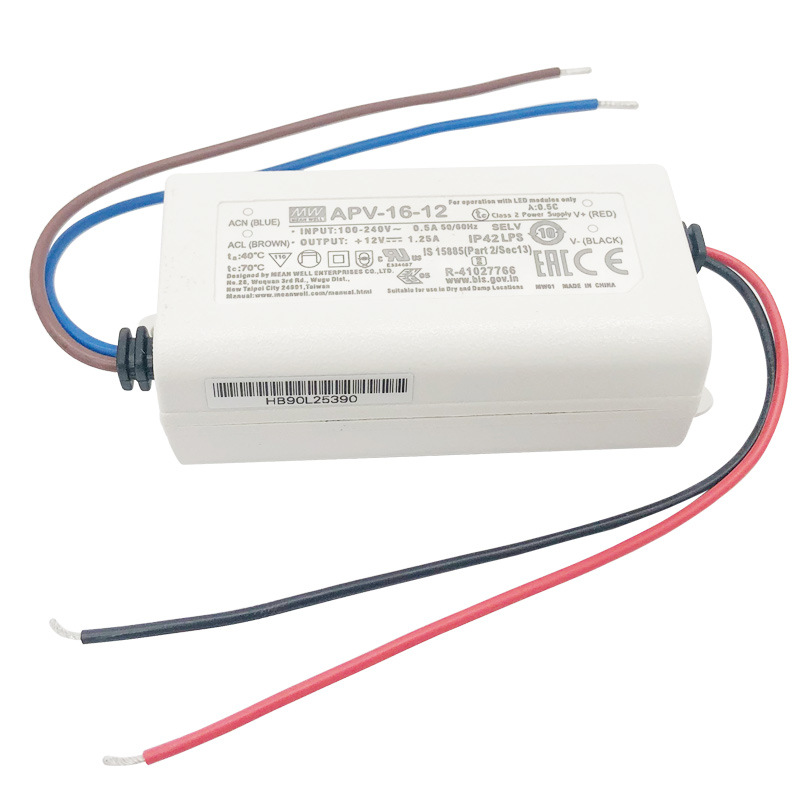

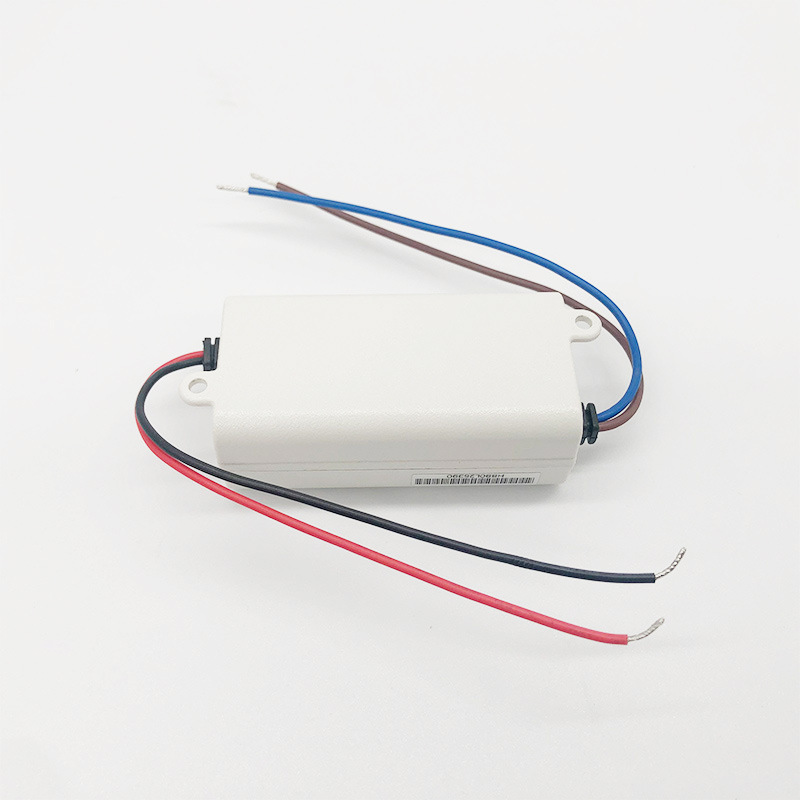

The Mean Well APV-16 switching power supplies, with a small and compact size and constant voltage design, offer DC5V, DC12V, DC15V, and DC24V products. The universal AC input range is from AC90V to AC264V, and you can connect to the public power system without an adapter. The Meanwell APV 16 has an IP42 isolated plastic case design, with multiple protection functions to ensure safety and reliability. They operate from -30℃ through 70℃ under air convection without a fan. suitable for LED fixtures, LED decorations, or Advertisement Devices.

  • Constant Voltage Design
  • Universal AC Input / Full Range
  • Protections: Short Circuit / Overload / Over Voltage
  • Fully Isolated Plastic Case
  • Cooling By Free Air Convection
  • Small And Compact Size
  • Class II Power Unit, no FG
  • Class 2 Power Unit
  • Pass LPS
  • IP42 Design
  • 100% Full Load Burn-In Test
  • Low Cost, High Reliability

Quick Links:

Meanwell APV-16 Specification Document


Specifications:

  • Model: APV-16
  • Size: 77*40*29mm(L*W*H)
  • Input Voltage Range: AC90V-264VAC
  • Frequency Range: 47- 63Hz
  • Efficiency: 76%(DC5V), 80%(DC12V), 81%(DC15V), 83%(DC24V)
  • AC Current: 0.3A/230VAC, 0.5A/115VAC
  • Output Voltage: DC5V, DC12V, DC15V, DC24V
  • Rated Current: 2.6A(DC5V), 1.25A(DC12V), 1A(DC15V), 0.67A(DC24V)
  • Rated Power: 13W(DC5V), 15W(DC12V), 15W(DC15V), 16.08W(DC24V)
  • Working Temperature: -30℃-+70℃
  • Vibration: 10-500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
  • Overload Protection
  • Over-Voltage Protection
  • Over Temperature Protection
  • 2 Years Warranty


Includes:

1 * Meanwell APV-16 Switching Power Supply

Mean Well APV-16 Series Switching Power Supply
