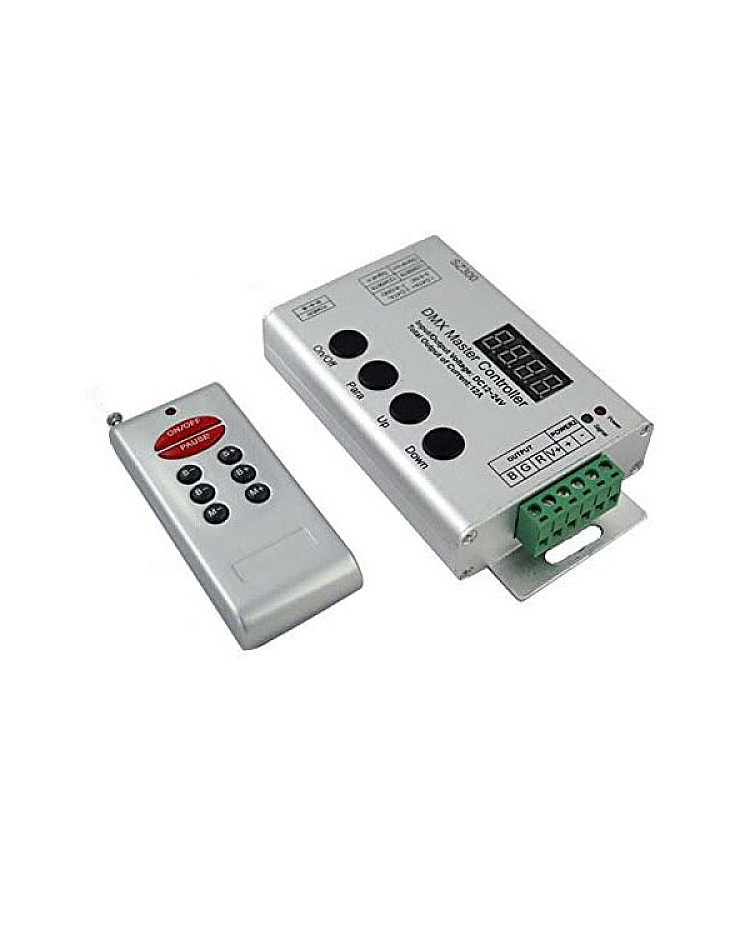

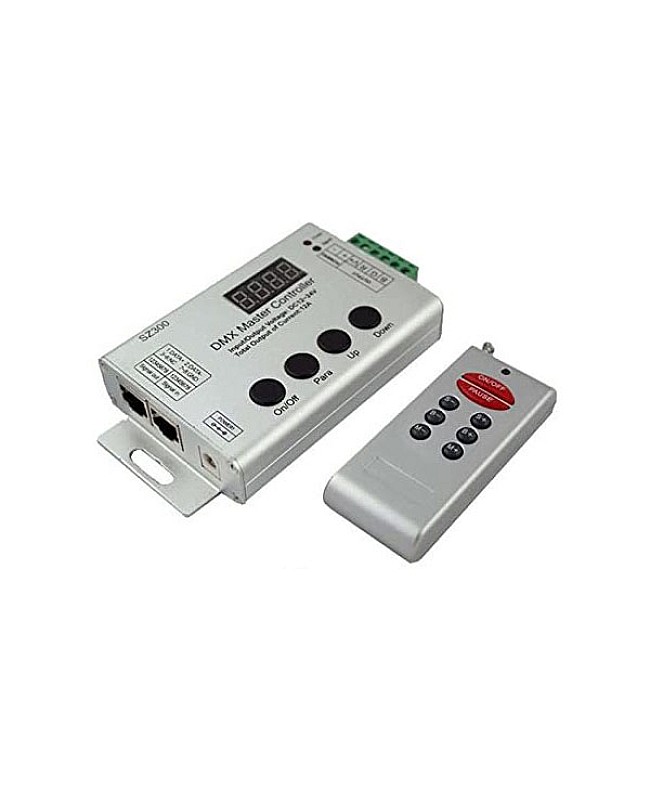

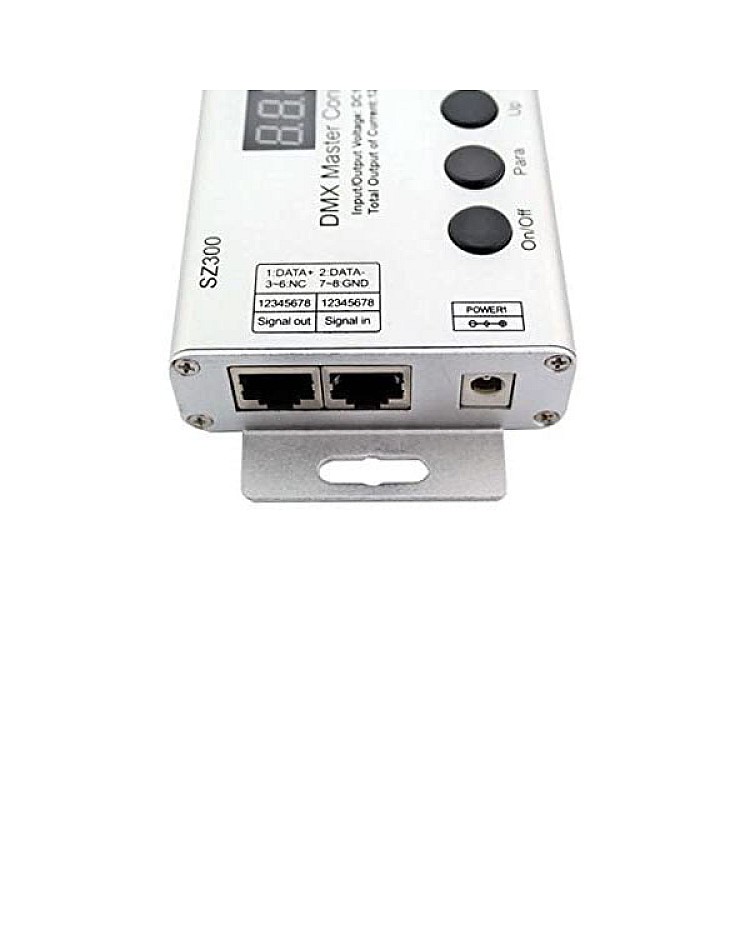

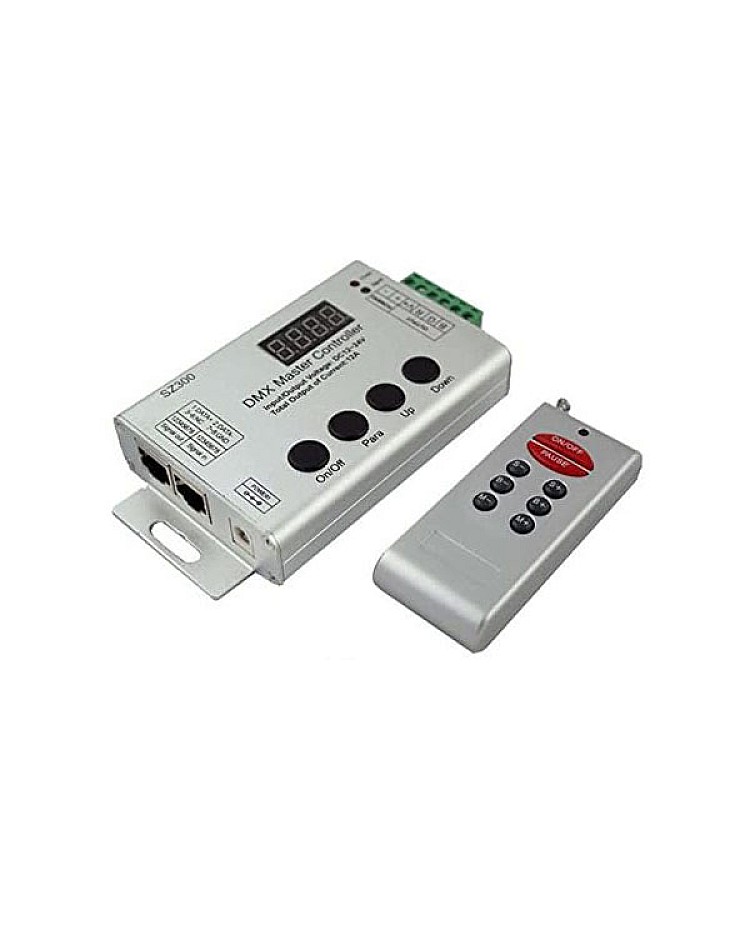

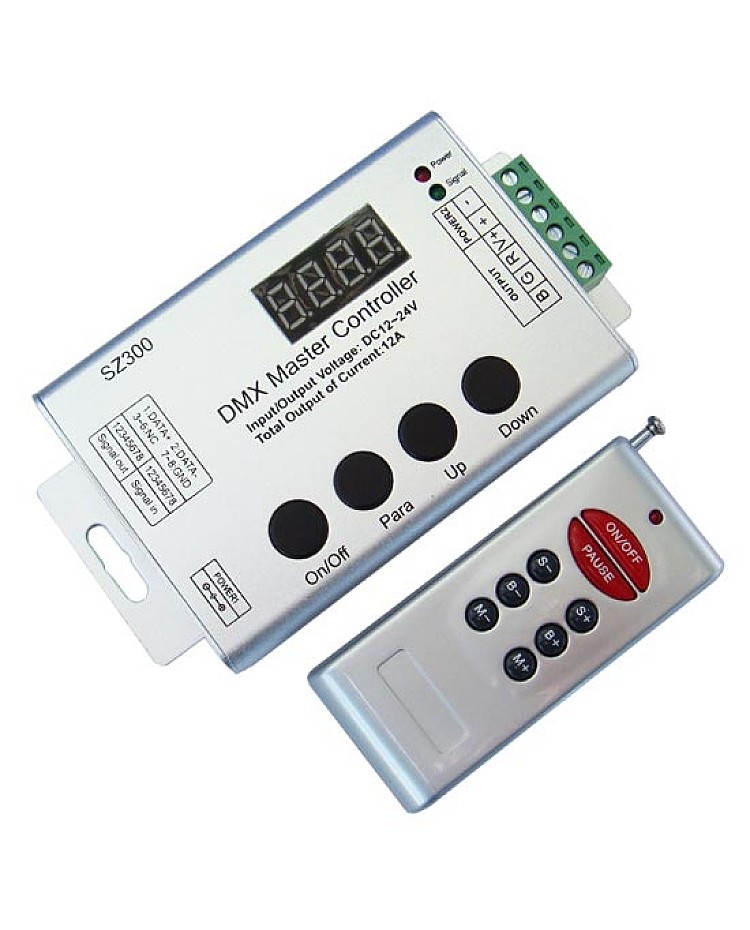

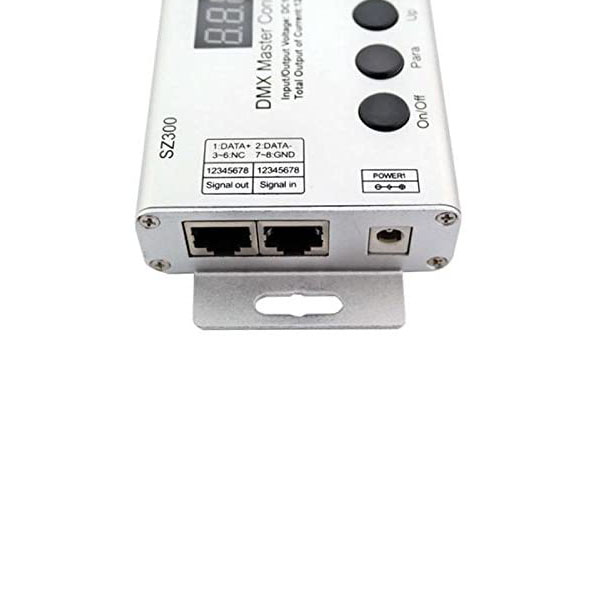

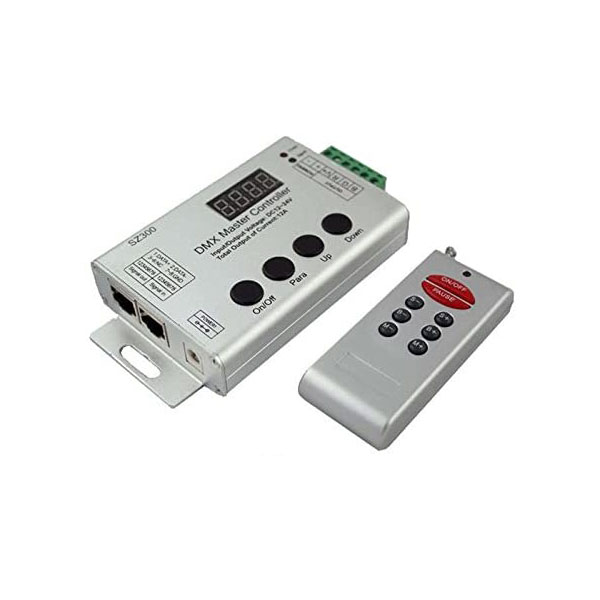

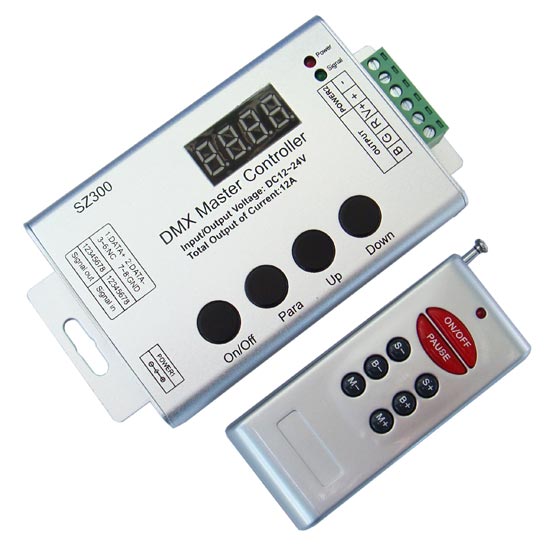

The DMX512 mini master controller can transmit the signal to other DMX512 controllers. It can control as many as 255 pieces of DMX512 controllers. With a 3-output-channel design, the max output current of each channel is 4A, and the max loading power is up to 288W when working in DC24V. The eight keys that the RF remote control includes allow you to turn on/off the LED lights, adjust the brightness, change the speed of the color-changing mode, or change the working modes. The DMX512 mini controllers provide 40 various working modes, seven static colors, and 33 dynamic modes; You can adjust the brightness of static colors, adjust the brightness and speed of dynamic modes.
Specifications:
- Working Temperature: -20-55℃
- Size: 130mm*70mm*24mm(L*W*H)
- Working Voltage: DC12V-DC24V
- Static Power Consumption: <1W
- Brightness Levels: 256
- Speed Levels: 99
- Output Channel: 1 (DMX512 Signal)
- Modes: 40
- Support Branch Controllers: 255
- PWM Output: 1 Channel
- Output Channels: 3
- Max Output Current: ≤4A(Each Channel)
- Output Power: 144W(DC12V), 288W(DC24V)
- Memory Function: YES
- RF Frequency: 433.9 GHz
- PWM Frequency: 120MHz
- RF Control Distance: ≤50m
- Weight: 300g
- 2 Years Warranty
Package:

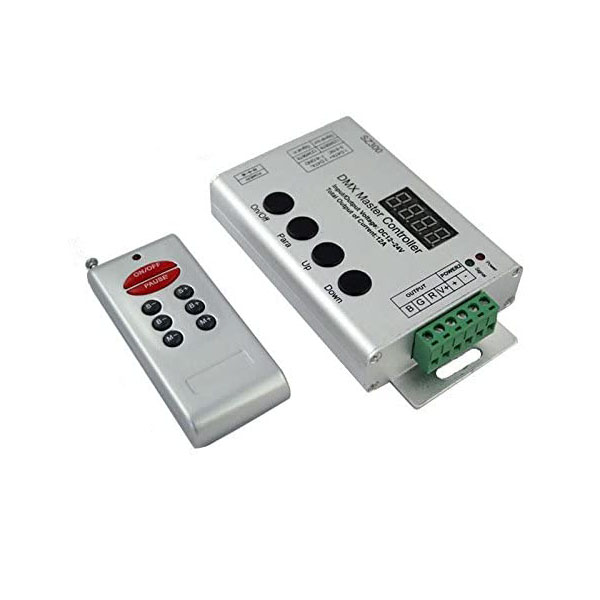

1 * DMX512 Mini-Master Controller
1 * Remote
