In Stock
$68.30 $47.50 Sale -30% OFF
Reward Points: 48
-
+

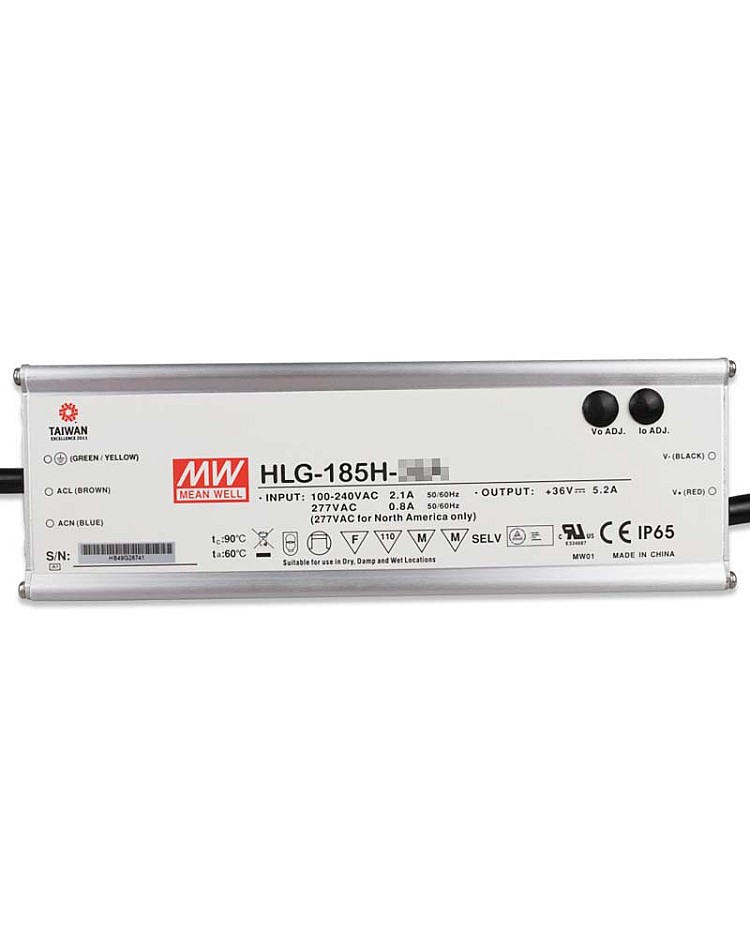

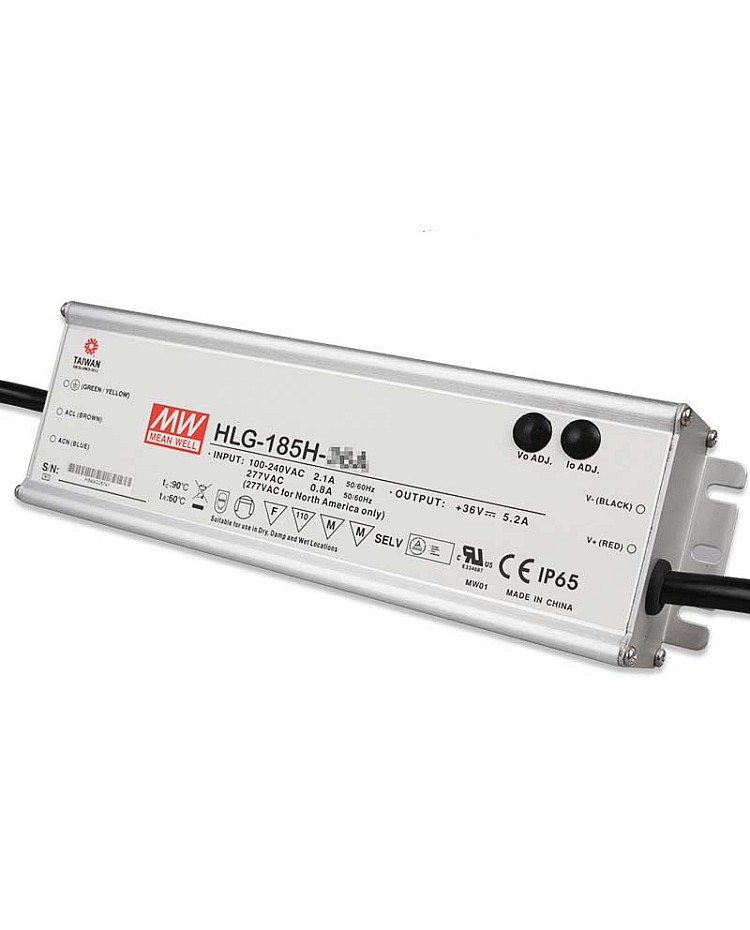

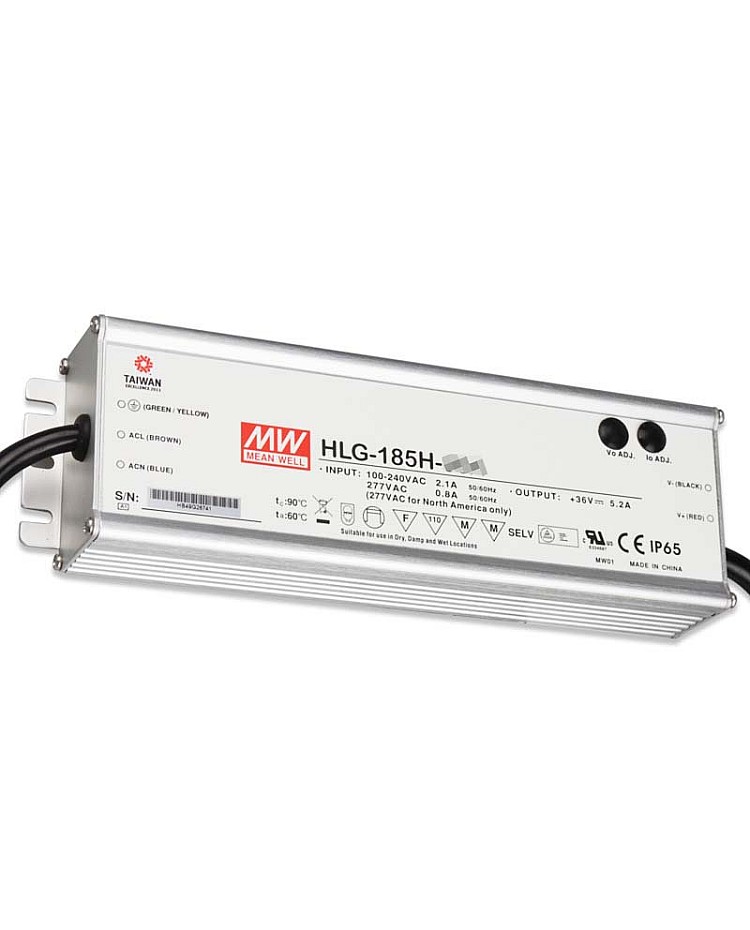

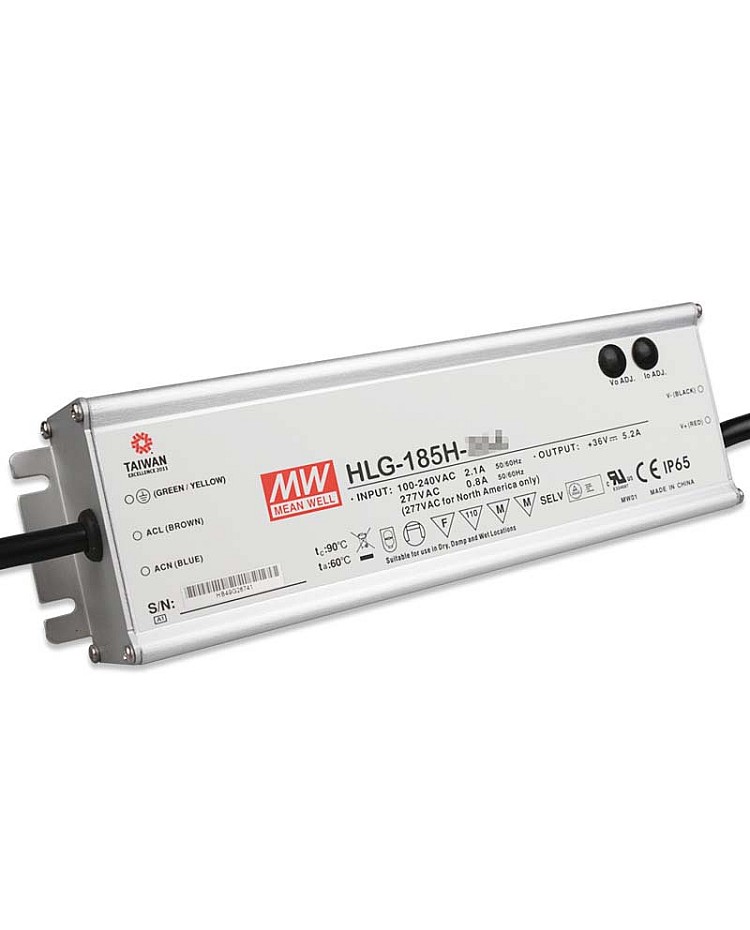

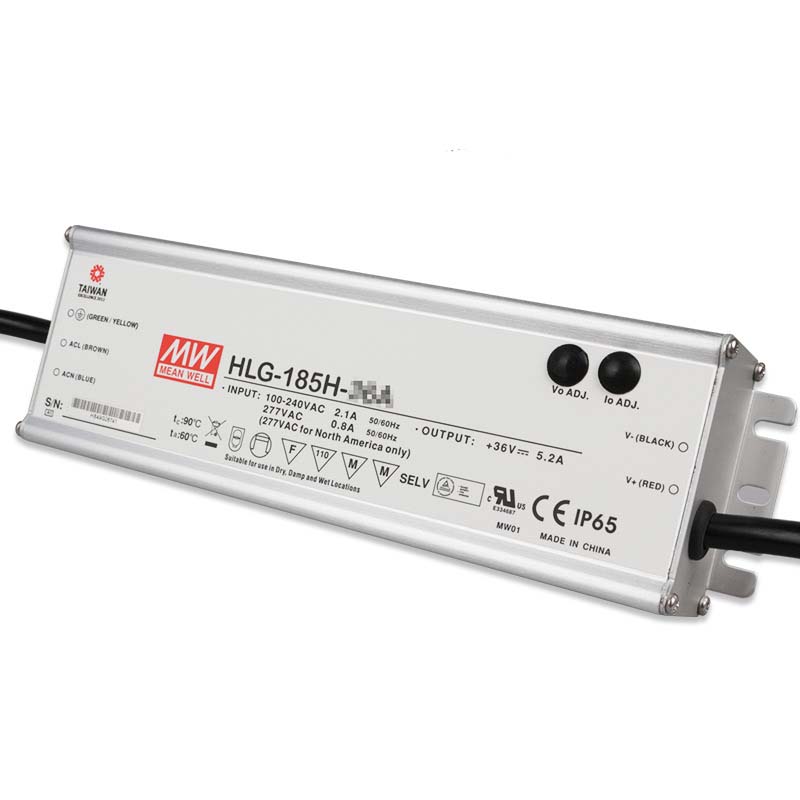

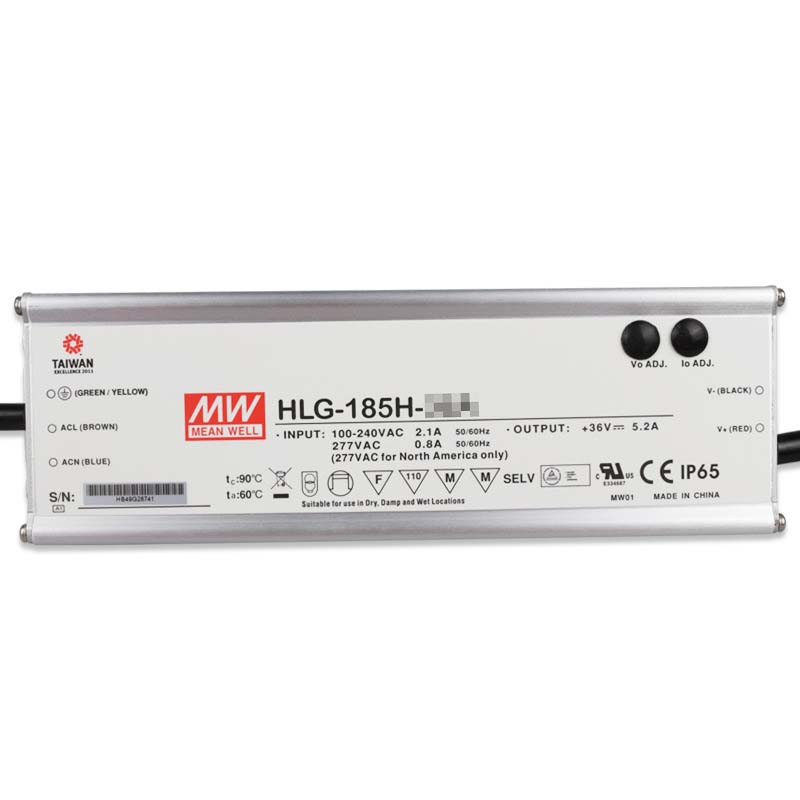

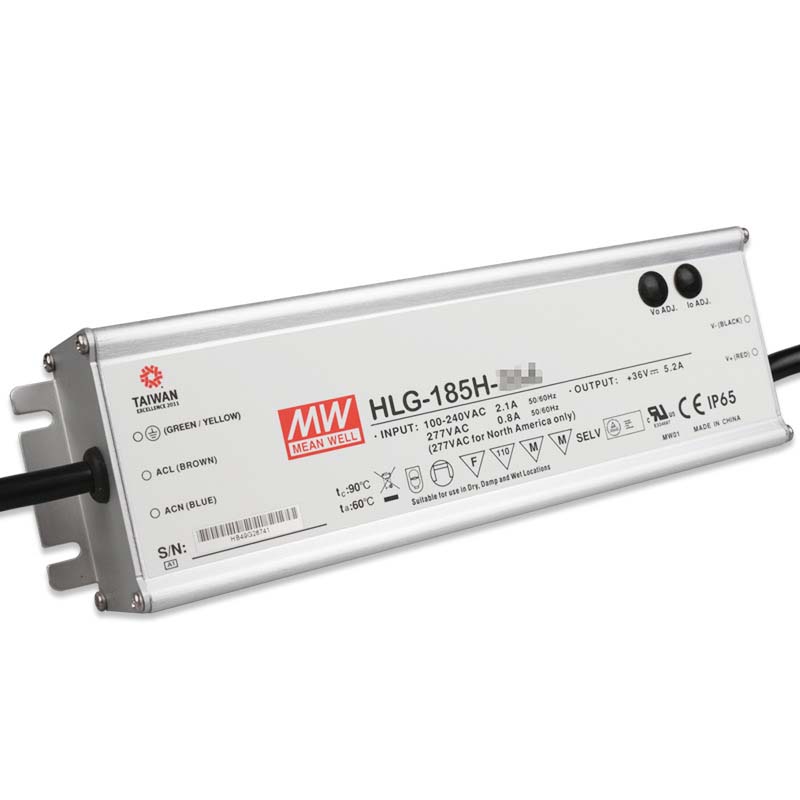

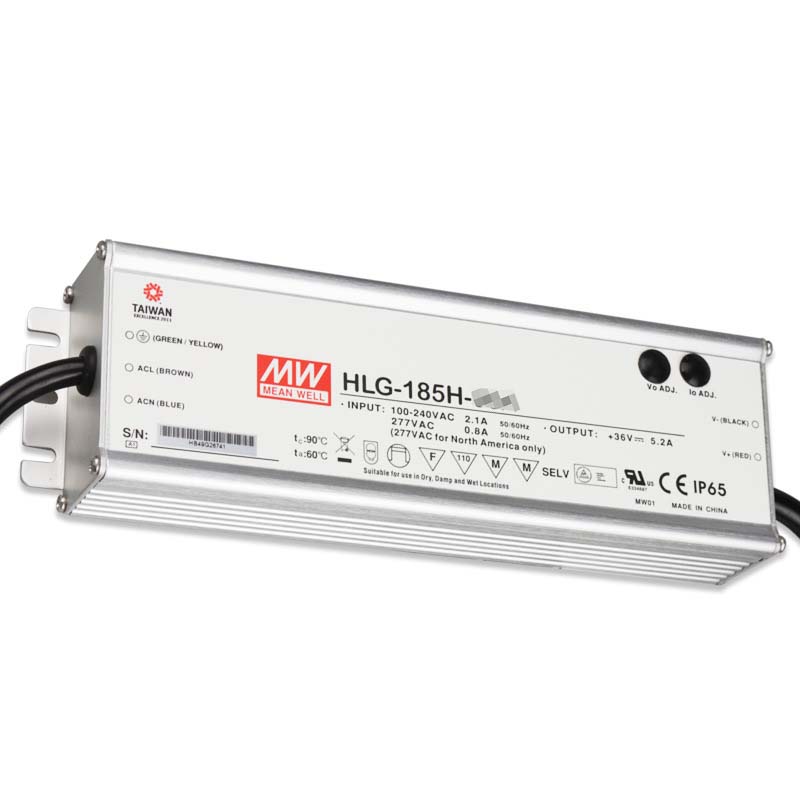

Check the Mean Well HLG-185H series AC To DC Power, the max output power up to 185W, various output voltage products available from DC12V to DC54V, the DC Powers were enclosed in a metal housing with class I design, the waterproof level can reach to IP65 or IP67, you can use them in the dry, damp or wet locations. 4 types of AC DC Powers available, the A and AB with output voltage and output current adjustable design through the built-in potentiometer, the B, AB and D types with dimming function. the HLG-185H operates from AC90V to AC305V, you can connect to the public power system without an extra adapter, the high efficiency up to 94%, with the fanless design, the working temperature for -40℃ to 90℃ case temperature under free air convection. you can use them for LED Outdoor Lights, a lifespan over 62,000 hours and 7 yeas warranty.

  • Constant Voltage And Constant Current Mode Output
  • Various Output Voltage Products Available
  • High Efficiency Up To 94%
  • Metal Housing With Class I Design
  • IP67 / IP65 Rating For Indoor Or Outdoor Installations
  • Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
  • Lifespan: >62,000 Hours
  • 7 Years Warranty
  • Applications: Dry, Damp Or Wet Locations

Quick Links:

Mean Well HLG-185H Series Specification Document


Features:

  • Model: HLG-185H

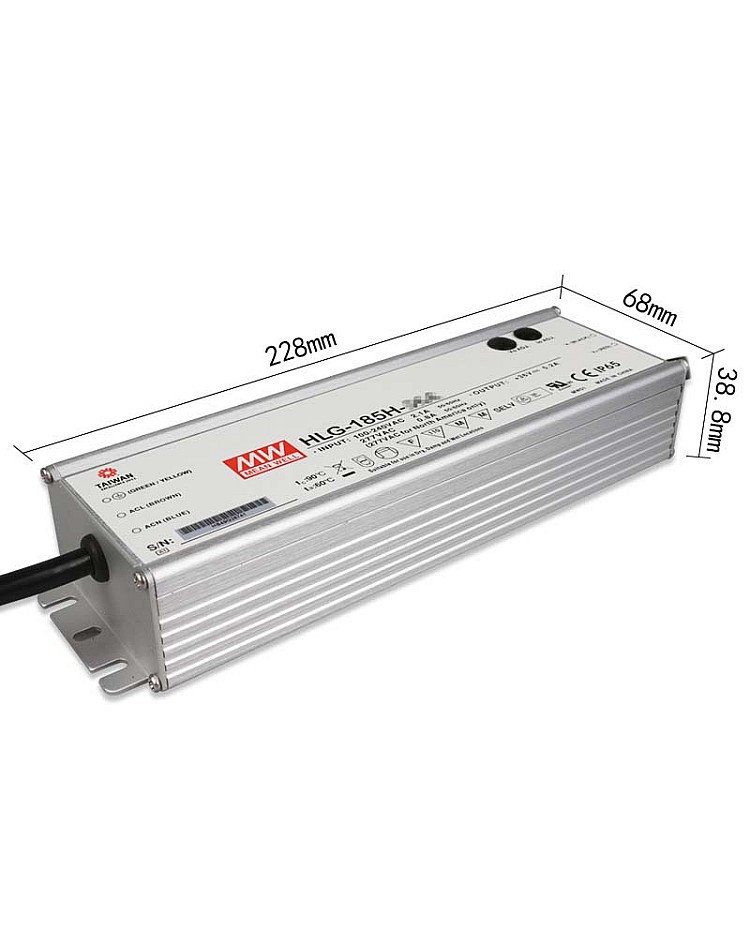

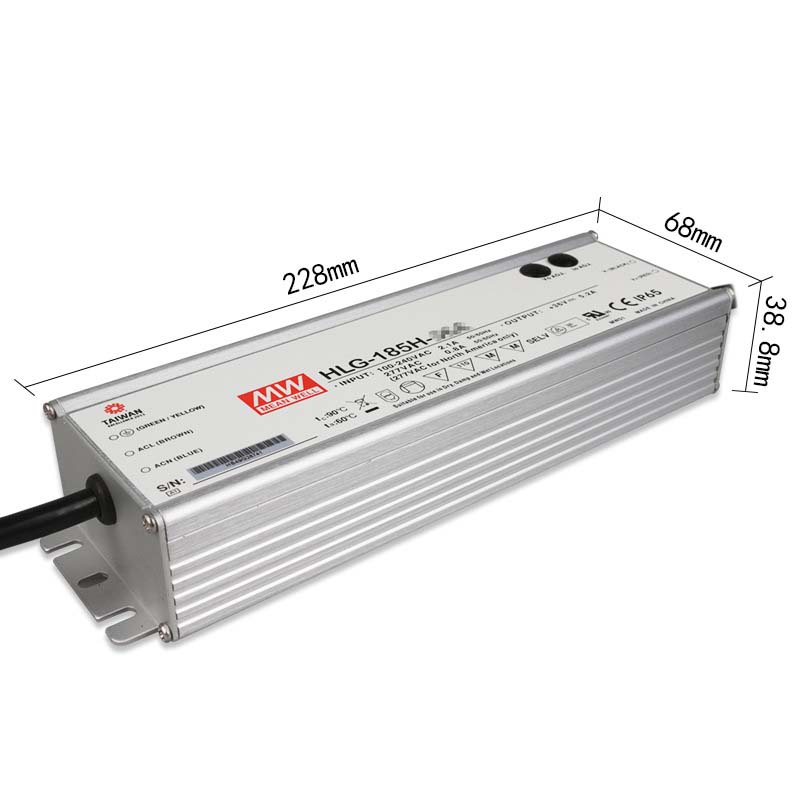

  • Size: 228*68*38.8mm(L*W*H)
  • Types:
  • Blank: IP67 Waterproof Level, Voltage And Current Fixed
  • A: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer
  • B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
  • D: IP67 Waterproof Level, Timer Dimming Function
  • Input Voltage Range: 90-305VAC
  • Frequency Range: 47-63Hz
  • Power Factor: PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC
  • Efficiency: 91.5%(DC12V), 92%(DC15V), 93%(DC20V), 93.5%(DC24V), 93.5%(DC30V), 93.5%(DC36V), 94%(DC42V), 94%(DC48V), 94%(DC54V)
  • AC Current: 12V: 1.8A/115VAC, 0.8A/230VAC, 0.7A/277VAC; 15-54V: 2.1A/115VAC, 0.9A/230VAC, 0.8A.277VAC
  • Output Voltage: DC12V, DC15V, DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
  • Rated Current: 12.5A(DC12V), 10A(DC15V), 7.5A(DC20V), 6.3A(DC24V), 5A(DC30V), 4.2A(DC36V), 3.6A(DC42V), 3.2A(DC48V), 2.8A(DC54V)
  • Rated Power: 150W(DC12V), 150W(DC15V), 150W(DC20V), 151.2W(DC24V), 150W(DC30V), 151.2W(DC36V), 151.2W(DC42V), 153.6W(DC48V), 151.2W(DC54V)
  • Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 6.5-13A(DC12V), 5.75-11.5A(DC15V), 4.65-9.3A(DC20V), 3.9-7.8A(DC24V), 3.1-6.2A(DC30V), 2.6-5.2A(DC36V), 2.2-4.4A(DC42V), 1.95-3.9A(DC48V), 1.72-3.45A(DC54V)
  • Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 10.8-13.5V(DC12V), 13.5-17V(DC15V), 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 38-46V(DC42V), 43-53V(DC48V), 49-58V(DC54V)
  • Working Temperature: -40℃-+80℃
  • Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
  • Safety Standards: UL8750(Type "HL"), CSA C22.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent, GB19510.1, GB19510.14, EAC TP TC 004, KC61347-2-13(Except For AB-Type), IP67 Or IP65 Approved
  • Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • 7 Years Warranty


Includes:

1*Mean Well HLG-185H AC To DC Power

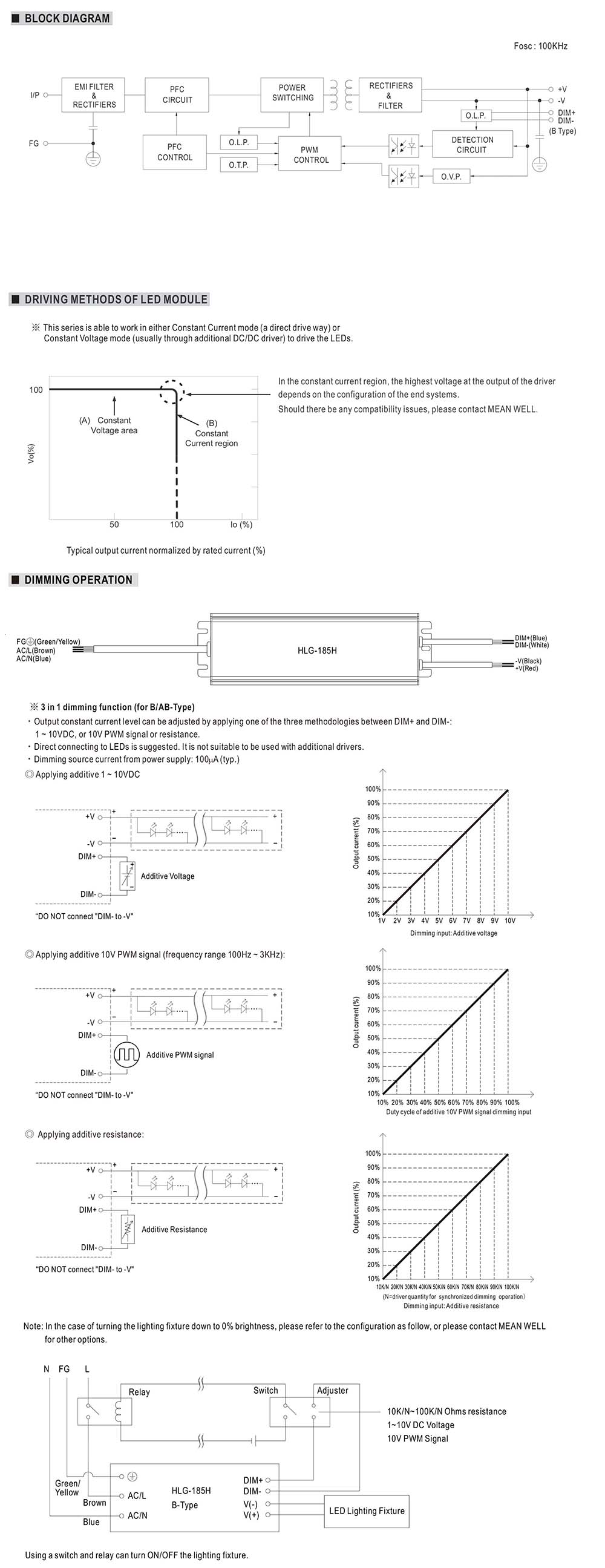

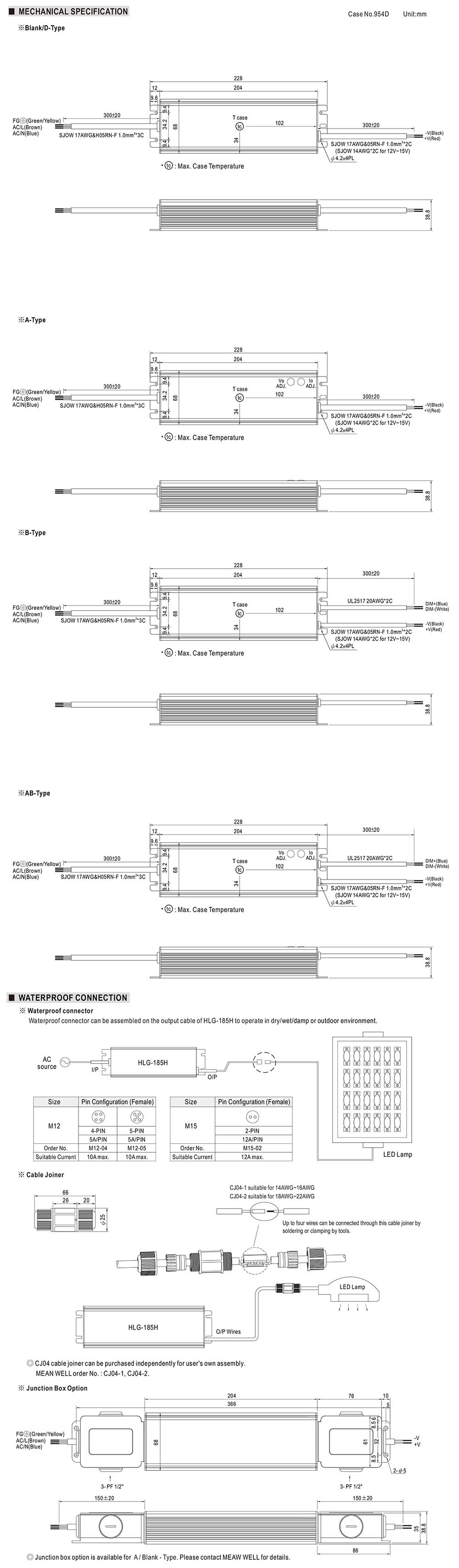

Mean Well HLG-185H-24A Mean Well HLG-185H-36A
