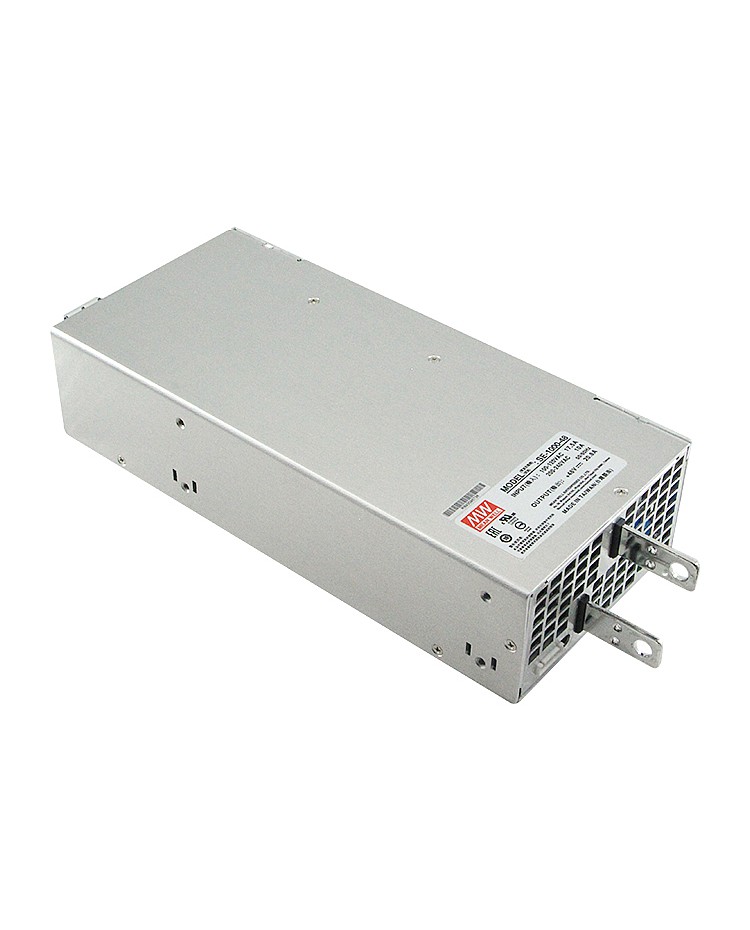

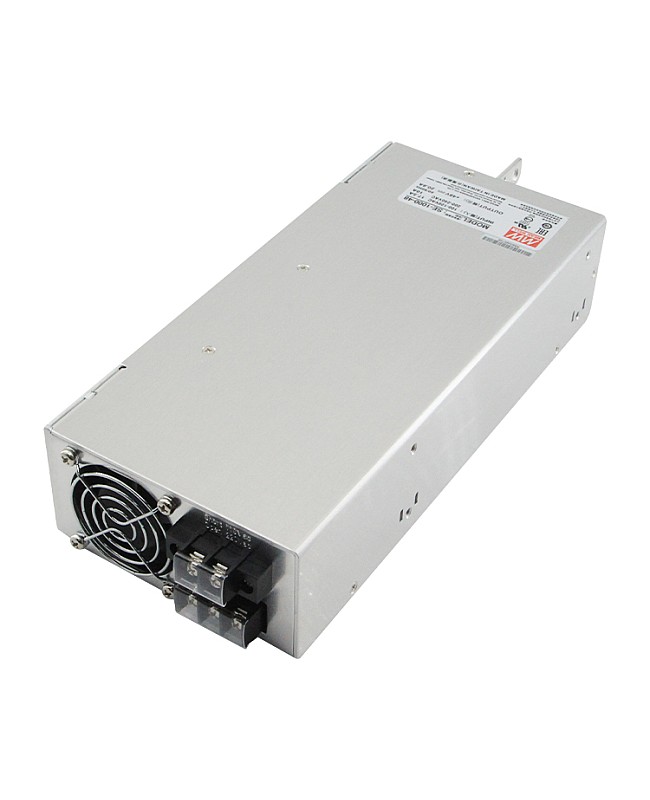

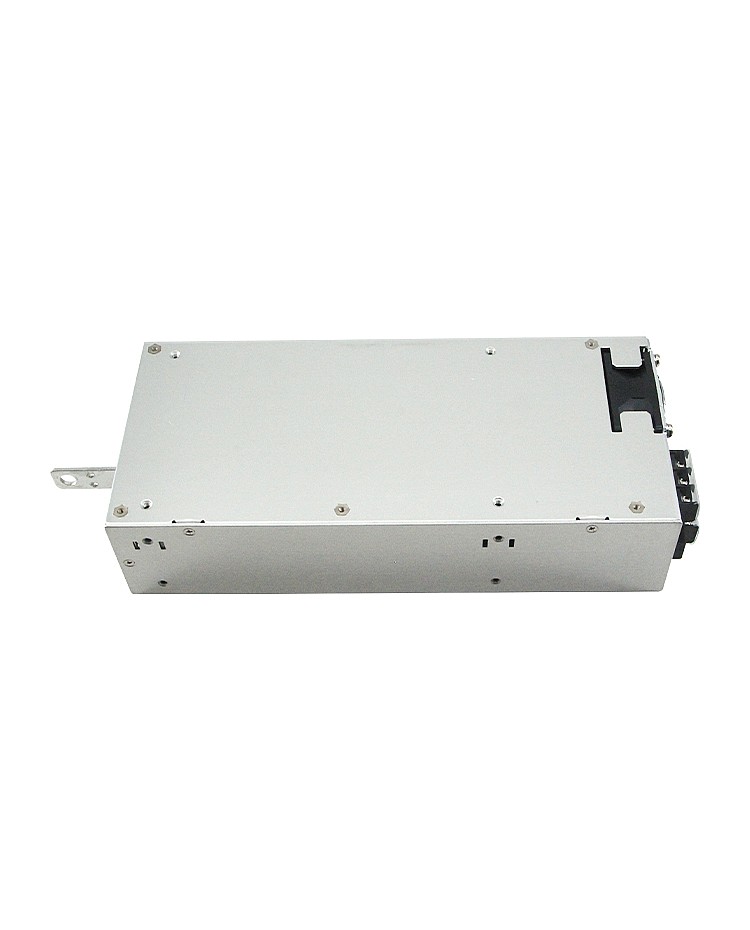

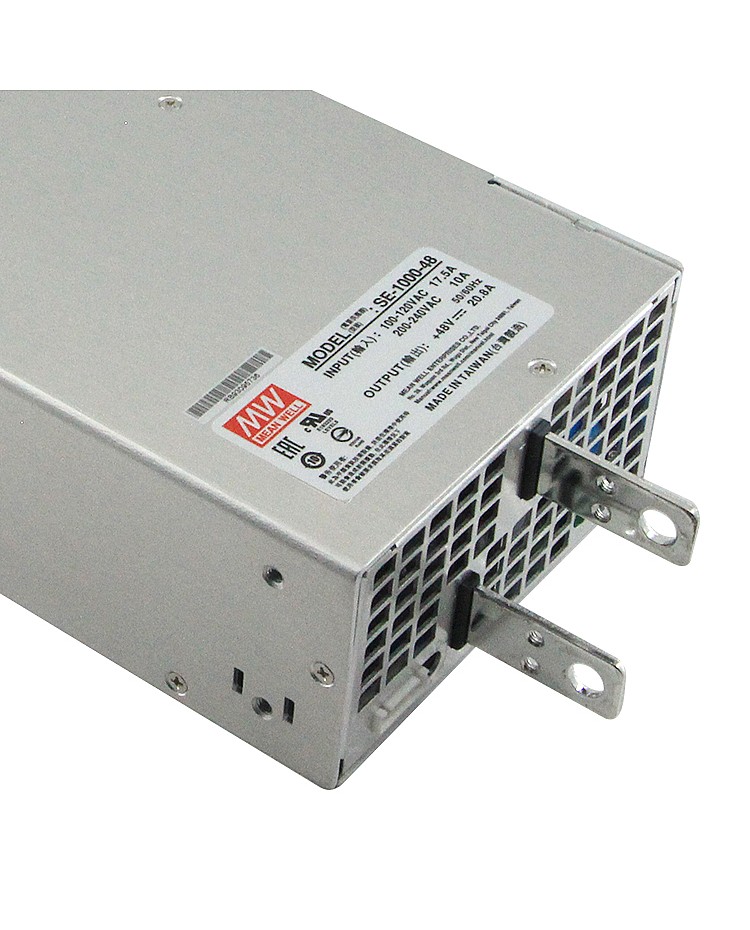

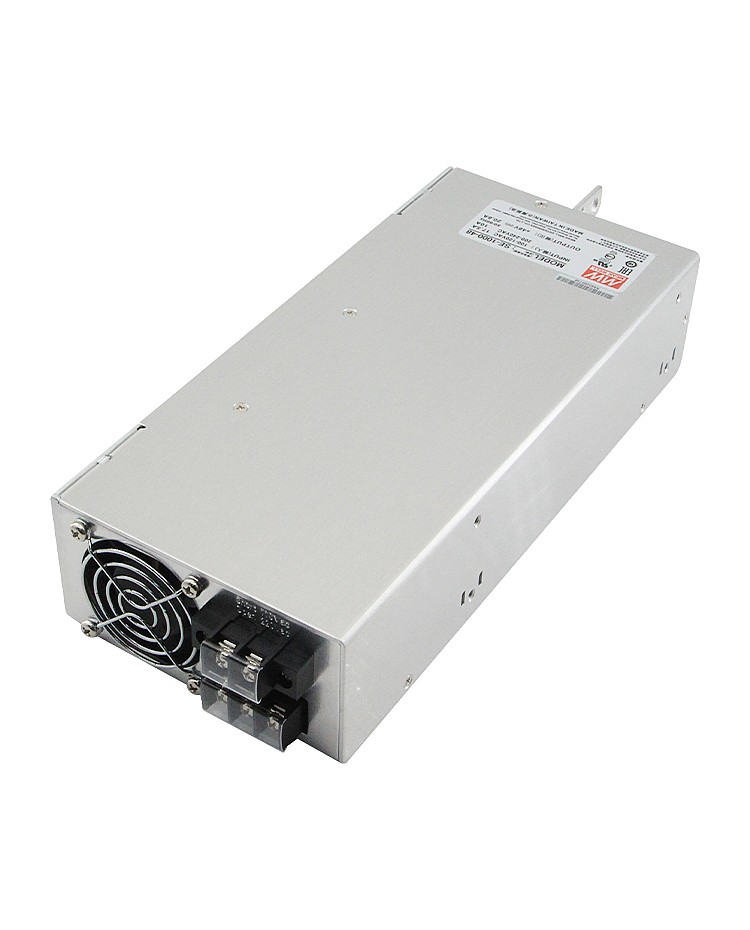

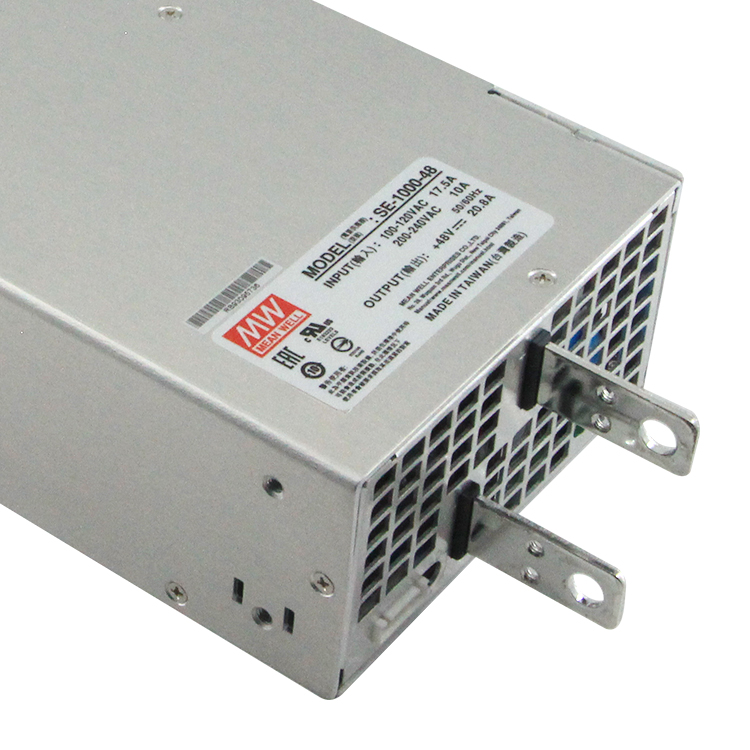

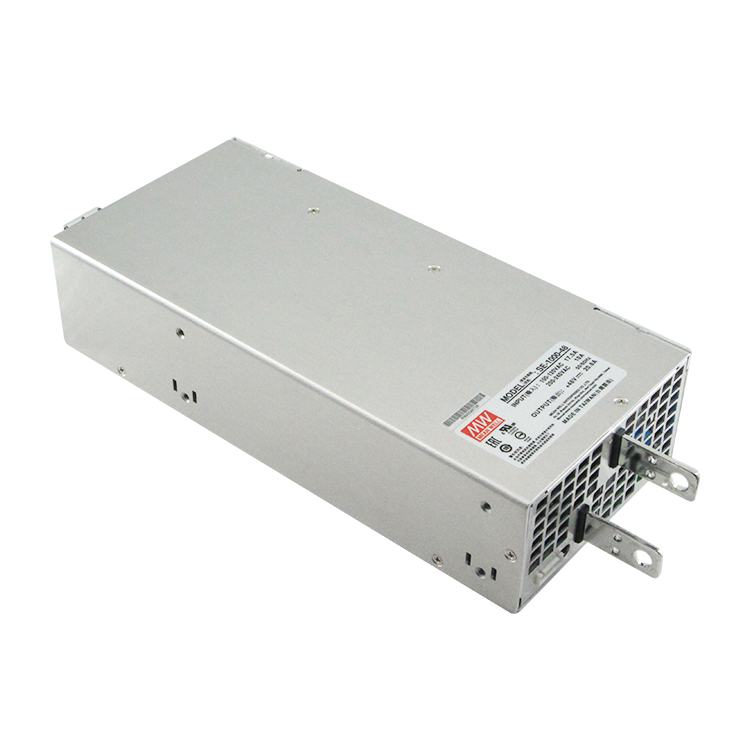

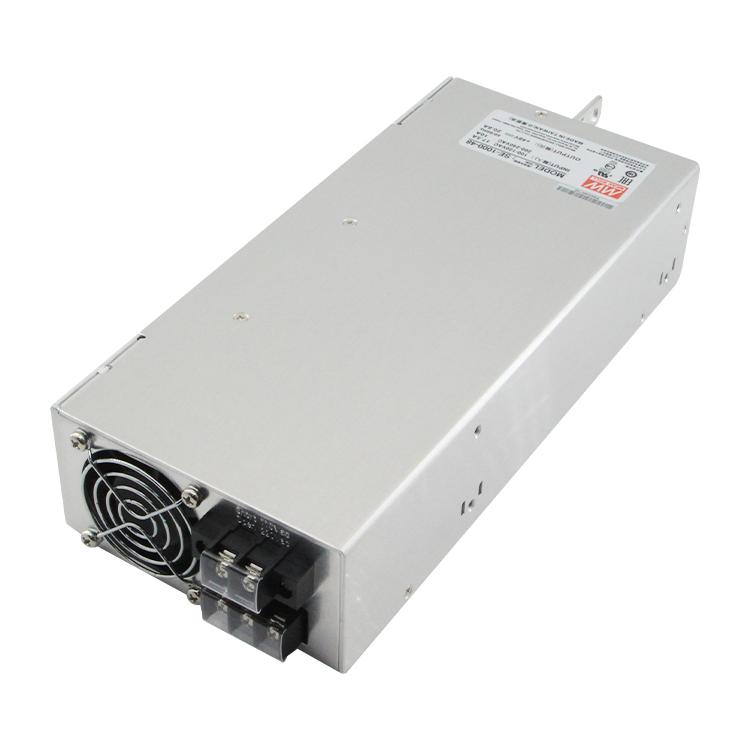

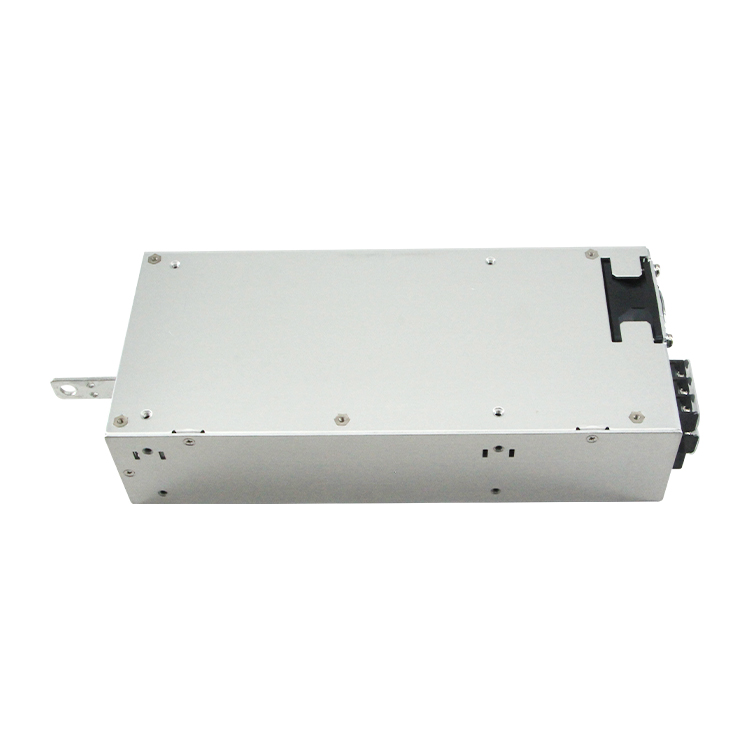

The Mean Well SE1000 series power adaptors are the 1000W single output LED Adaptors, with the universal input range from AC90V to AC264V and selected by a switch. various DC output products available, you can choose DC5V, DC9V, DC12V, DC15V, DC24V or DC48V. It has multiple protection functions to ensure safety and reliability, and a built-in DC ball bearing fan for forced air cooling. It keeps the LED power adaptors working within the normal temperature range. Built-in remote ON-OFF control unit, can connect to one remote control to control ON or OFF. The SE-1000 Series LED power supplies passed UL and CUL, with a 2-year warranty.
- AC Input Active Surge Current Limiting
- AC Input Range Selected By Switch
- Protections: Short Circuit / Overload / Over Voltage / Over Temperature

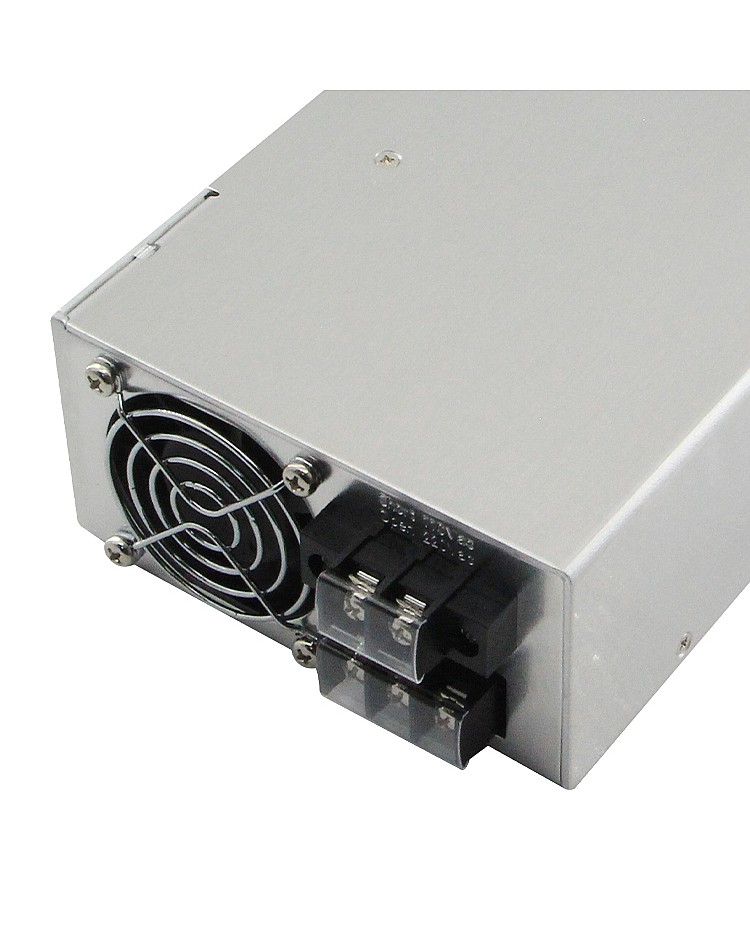

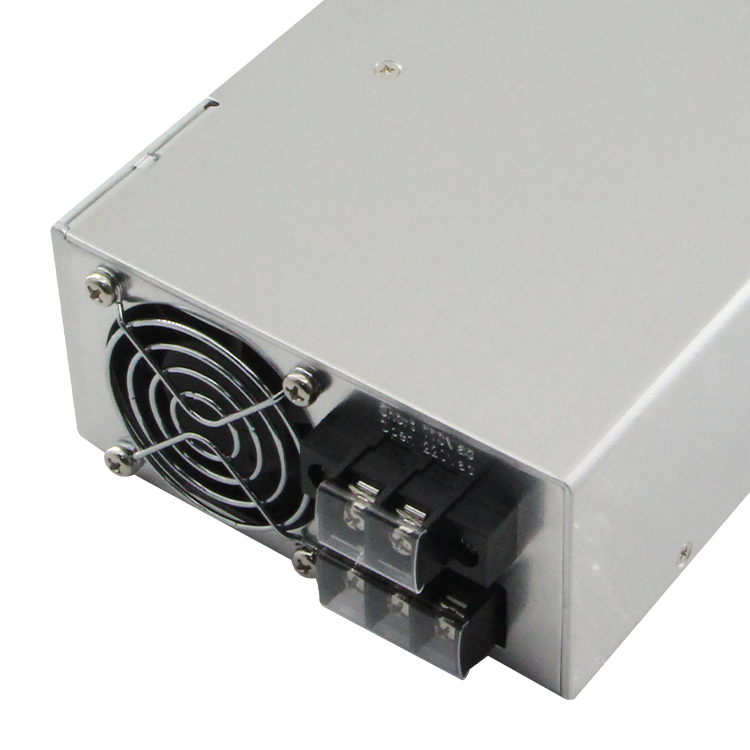

- Forced Air Cooling By Built-in Ball Bearing Fan
- High Power Density 7.3W/in³

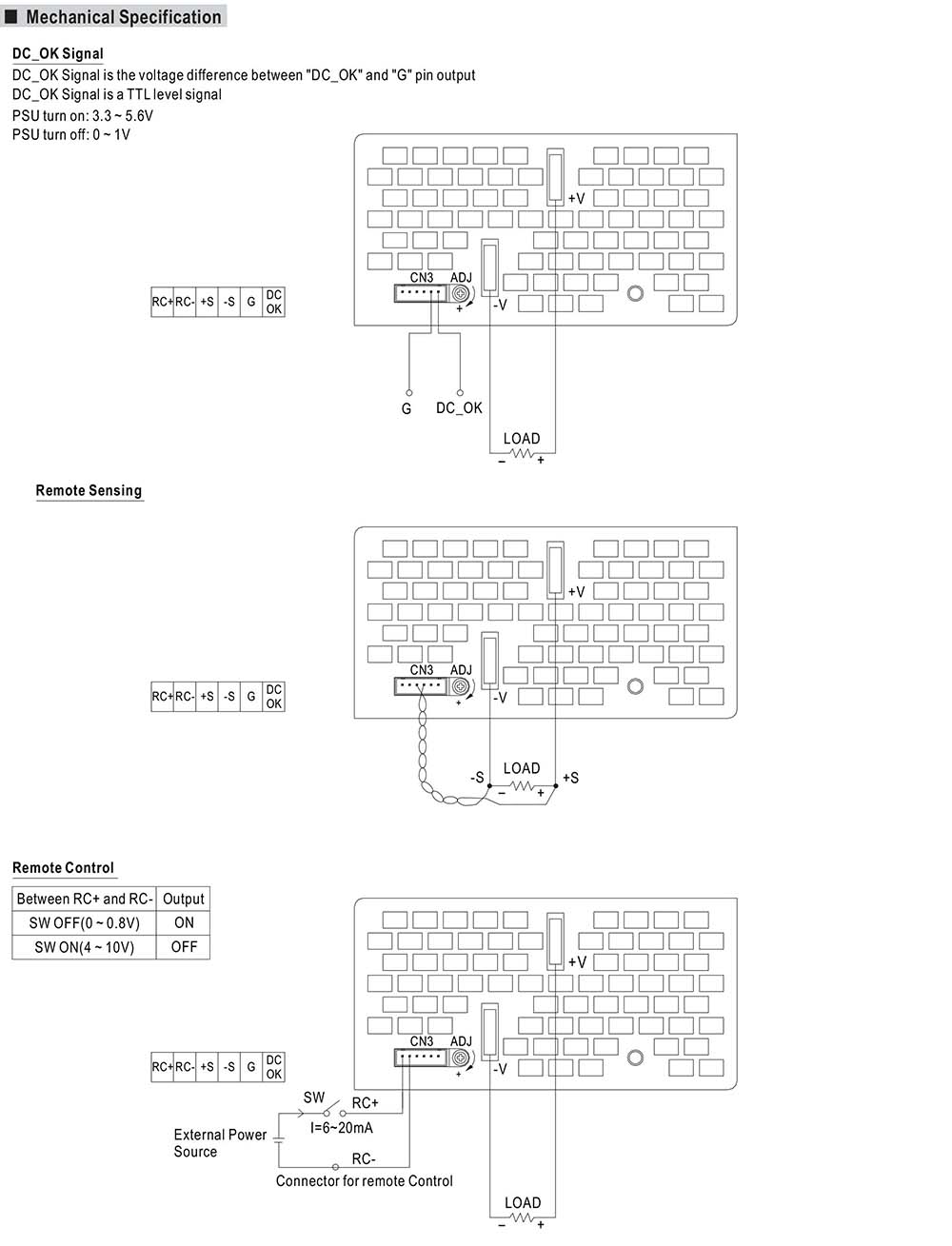

- With DC_OK Signal Output
- Built-in Remote ON-OFF Control
- Built-in Remote Sense Function
- UL/CUL Approved
- Low Cost
- 2 Years Warranty
Quick Links:
Mean Well SE-1000 Series Specification Document
Specifications:
- Model: SE-1000

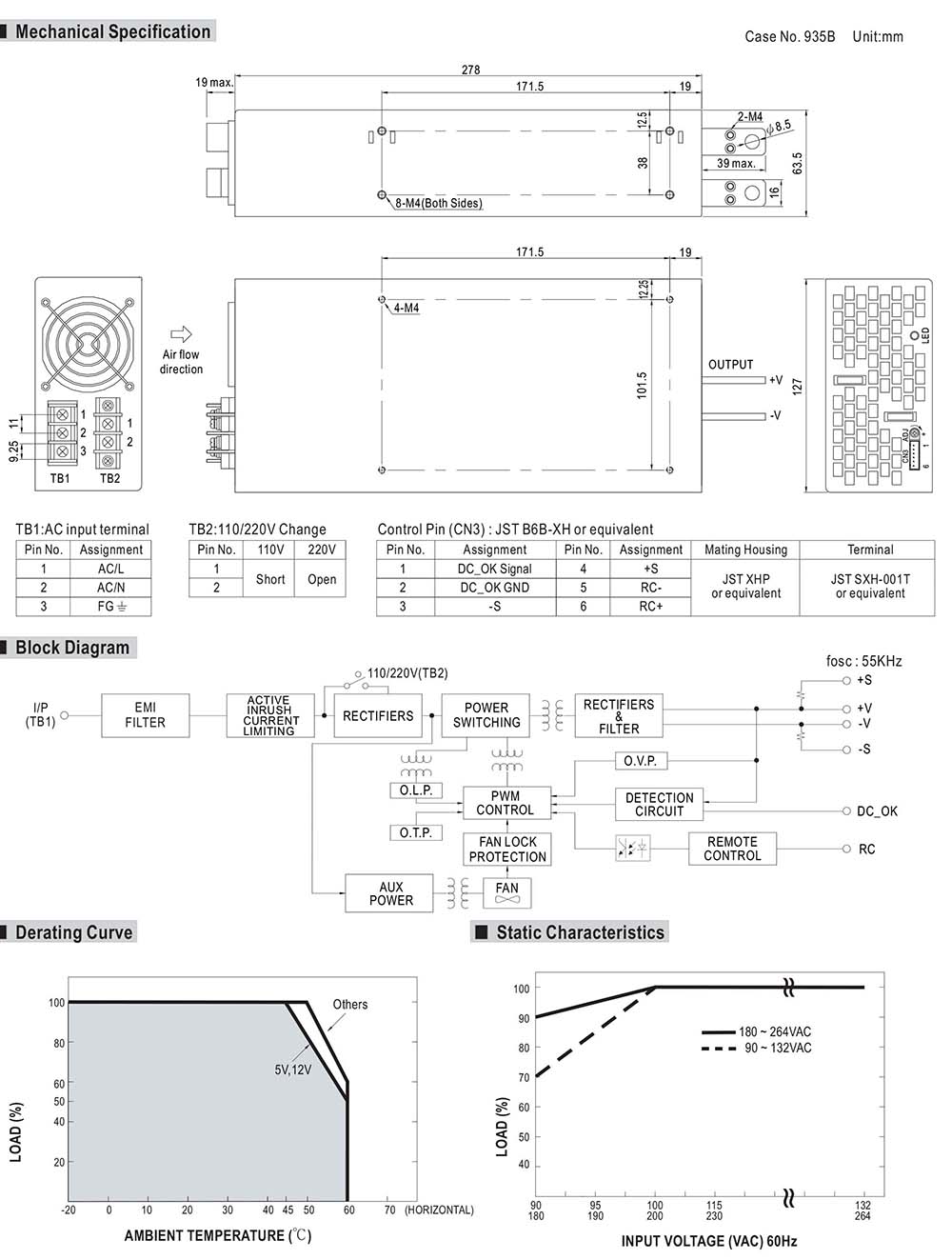

- Size: 278*127*63.5mm(L*W*H)
- Input Voltage Range: 90-132VAC/180-264VAC By TB2
- Frequency Range: 47- 63Hz
- Efficiency: 81%(DC5V), 84%(DC9V), 85%(DC12V), 86%(DC15V), 88%(DC24V), 89%(DC48V)
- AC Current: 17.5A/115VAC, 10A/230VAC
- Output Voltage Range: DC5V, DC9V, DC12V, DC15V, DC24V, DC48V
- Rated Current: 150A(DC5V), 100A(DC9V), 83.3A(DC12V), 66.7A(DC15V), 41.7A(DC24V), 20.8A(DC48V)
- Rated Power: 750W(DC5V), 900W(DC9V), 999.6W(DC12V), 1000.5W(DC15V), 1000.8W(DC24V), 998.4W(DC48V)
- Working Temperature: -20℃-+60℃
- Vibration: 10-500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
- Safety Standards: UL62368-1, BSMI CNS14336-1, EAC TP TC 004 Approved
- Overload Protection
- Over-Voltage Protection
- Over Temperature Protection
Includes:
1 * Mean Well SE-100 Power Adaptor
