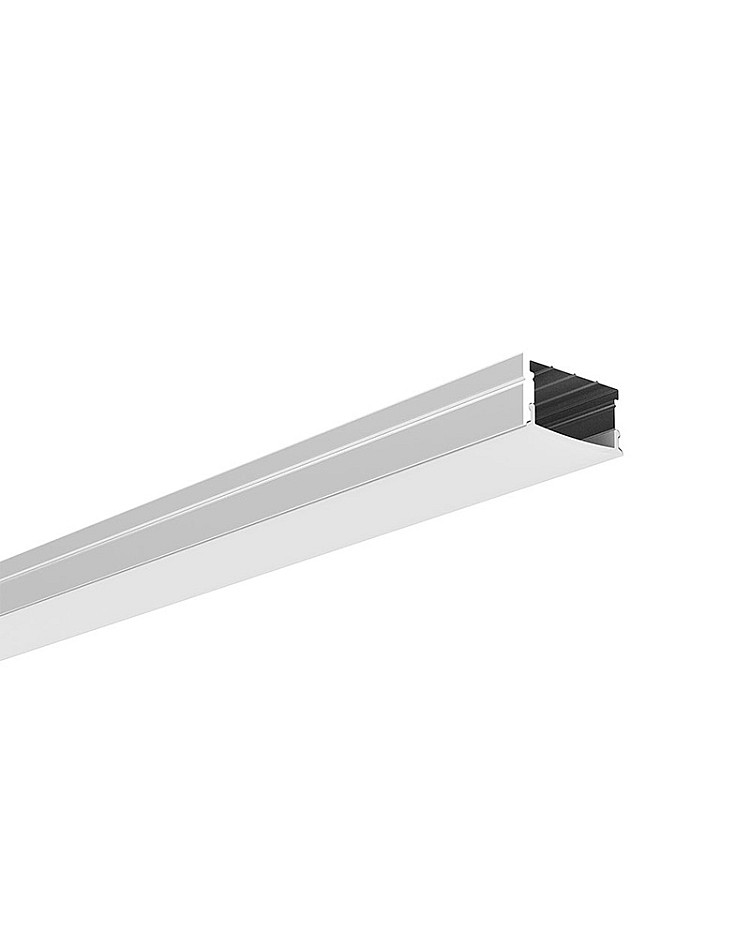

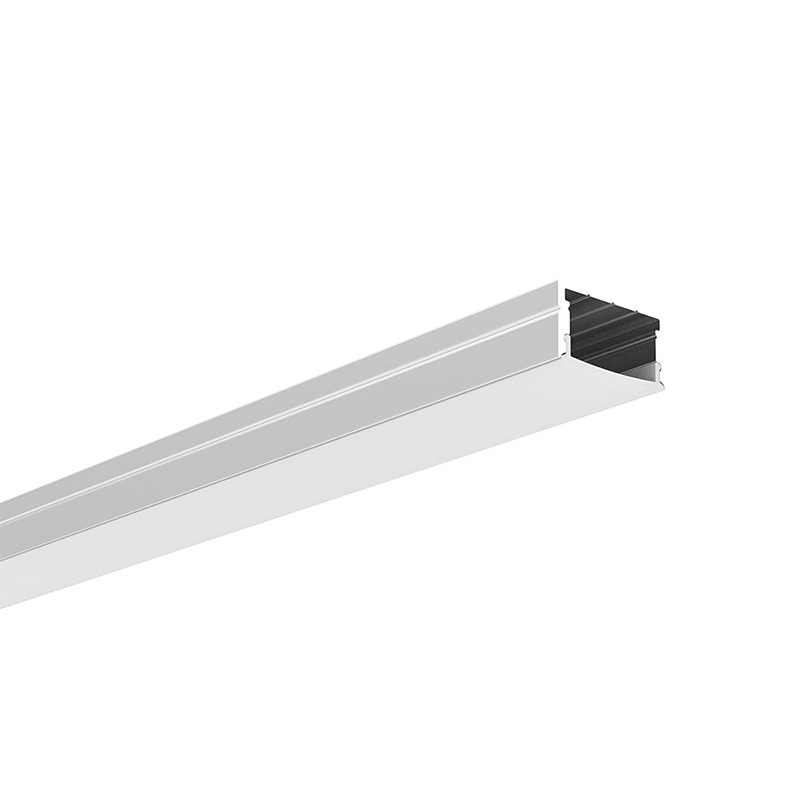

The ALP014-R LED channels are designed to provide sleek, professional LED strip installation while delivering improved light diffusion and a polished appearance. With a depth of 12.8mm, they offer additional space between the LED lights and diffusers, which helps to reduce visible LED dots and create a smooth, uniform line of light. The clean appearance and versatile installation options make them an ideal choice for modern lighting projects.

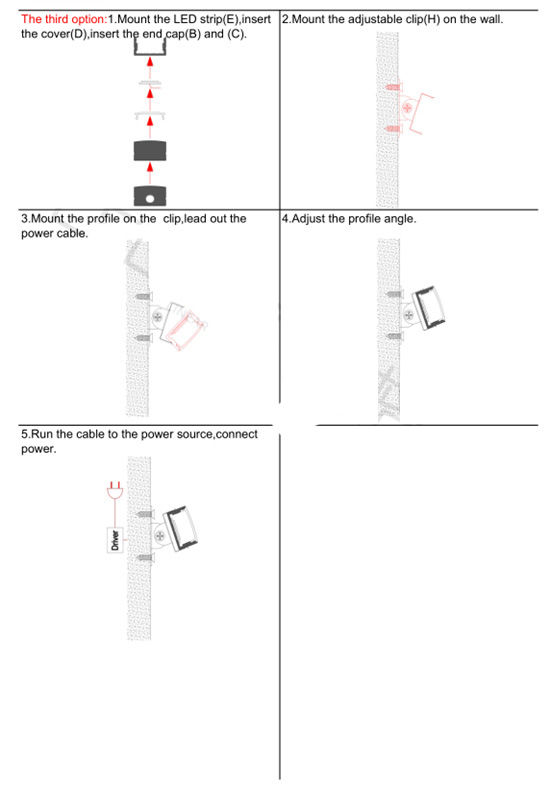

The light extrusions are made of durable aluminum alloy material with an anodized or powder-coated finish for oxidation resistance and a longer lifespan. The standard lengths are 2 m, 2.5 m, and 3 m, and you can cut to any length. The inner width is 18.7 mm, allowing a maximum strip light width of 18 mm. Recommend adding high-density 10mm 2700K or 3000K warm white COB LED strips without visible light dots for interior lighting. The flangeless design enables the LED strips to be mounted flush against the wall or installed recessed, providing a more seamless appearance and creating a warm, inviting atmosphere. Adjustable brackets are sold separately, allowing for adjustable lighting direction.
Compatible with a variety of diffuser options, including opal semi-clear and clear covers, to achieve various lighting effects. The deeper design is particularly beneficial for high-density LED strips, where superior light blending is required to achieve a dotless appearance. Ideal for a wide range of applications, including under-cabinet, furniture, retail displays, shelving, architectural accents, and many more.
Specifications:
- Model: ALP014-R
- Material: 6063-T5 aluminum alloy
- Surface treatment: Anodized / powder-coated
- Colors: Silver, black, white

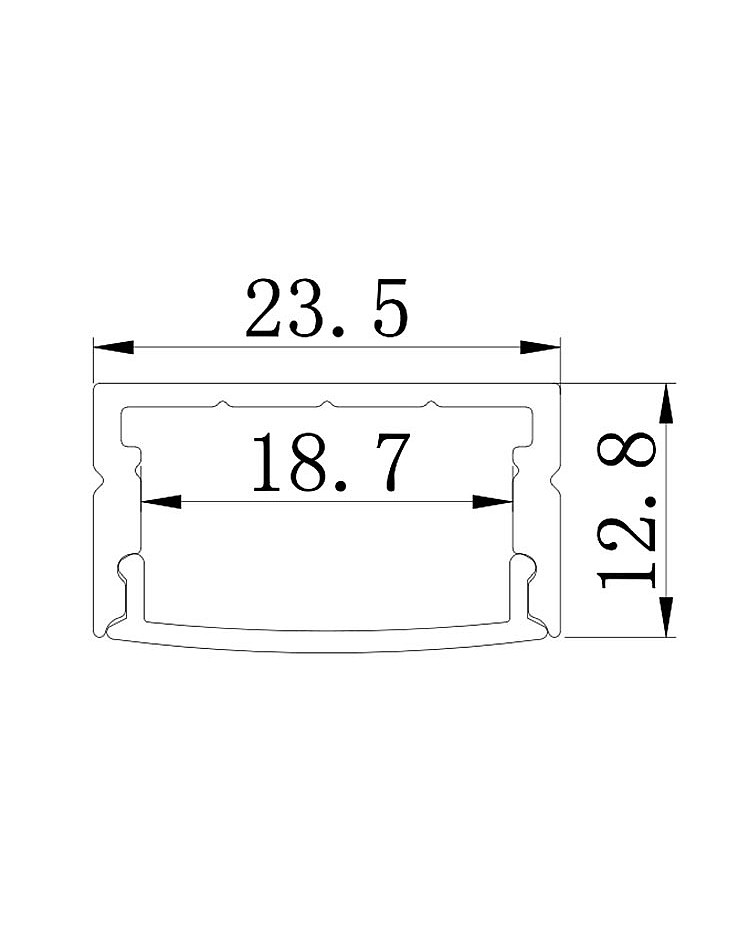

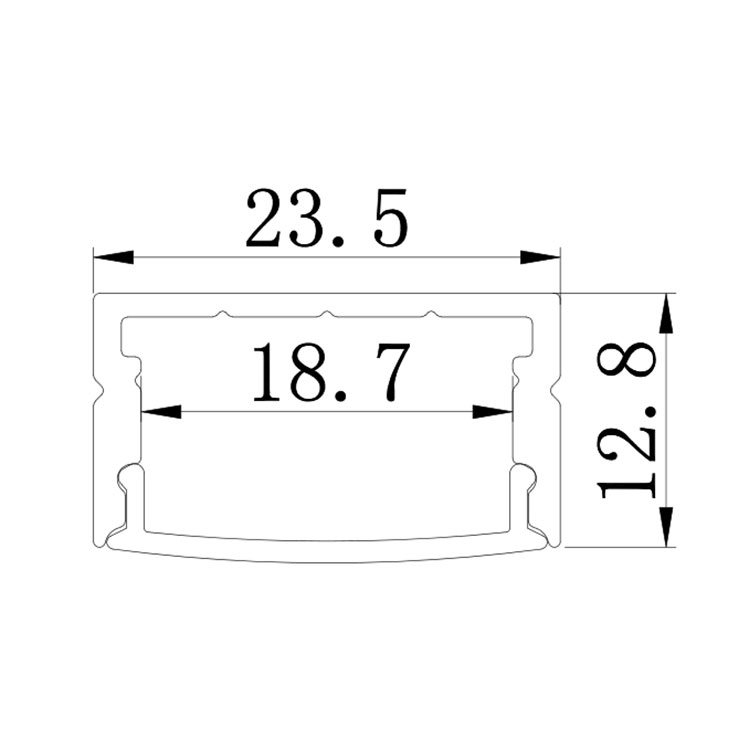

- Size( Width x Height ): 23.5 mm x 12.8 mm ( 0.93" x 0.5" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" ), 2.5 m ( 98" ), 3 m ( 118" )
- Custom length available: YES
- Inner width: 18.7 mm (0.74")
- Maximum strip light width: 15 mm (0.59")
- Maximum power: <25W/m

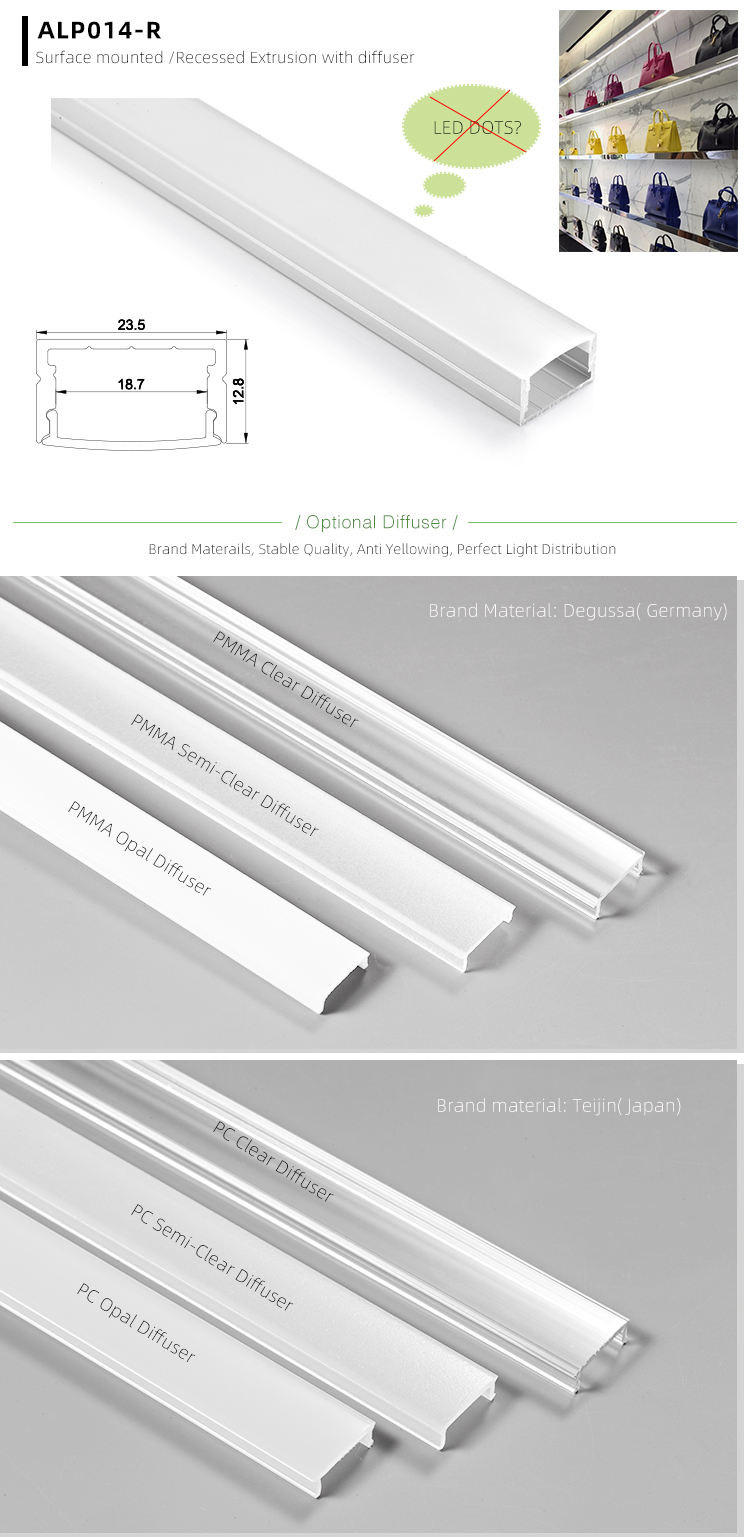

- Covers: PMMA opal matte cover / PMMA semi-clear cover / PMMA clear diffuser/ PC opal matte diffuser / PC semi-clear diffuser / PC clear diffuser
- Beam angle: 100°

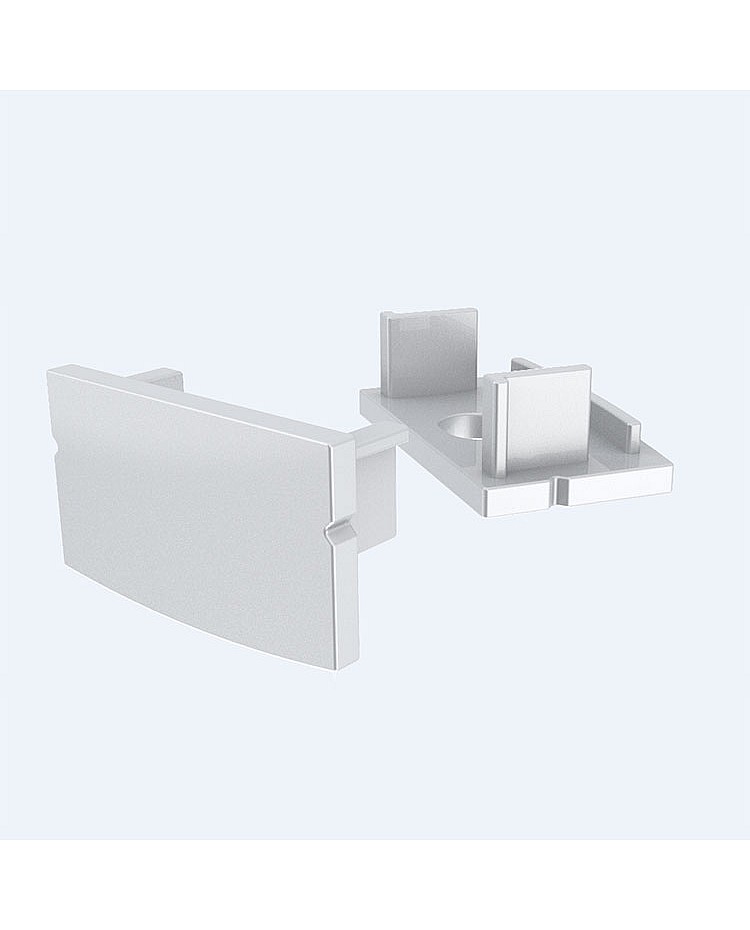

- Included accessories: End caps(with and without wire holes)
- LED strips, metal mounting clips, and adjustable brackets are sold separately

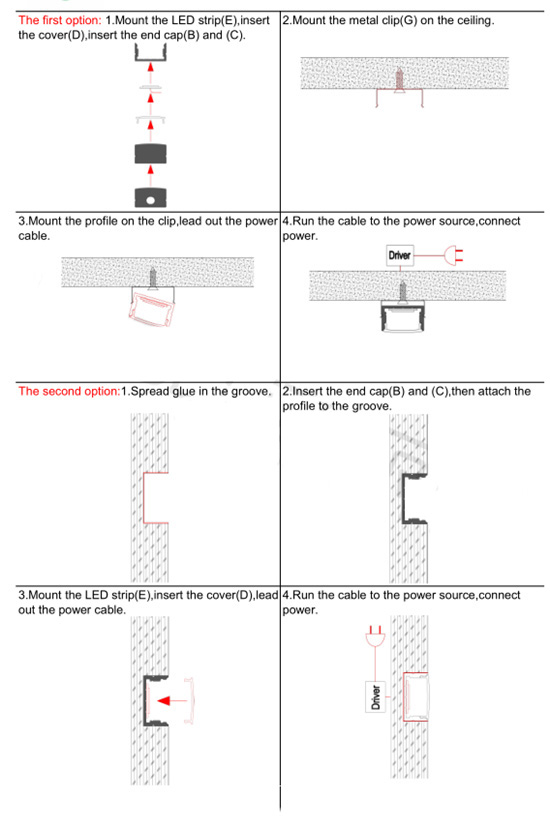

- Installation: Surface-mounted / recessed

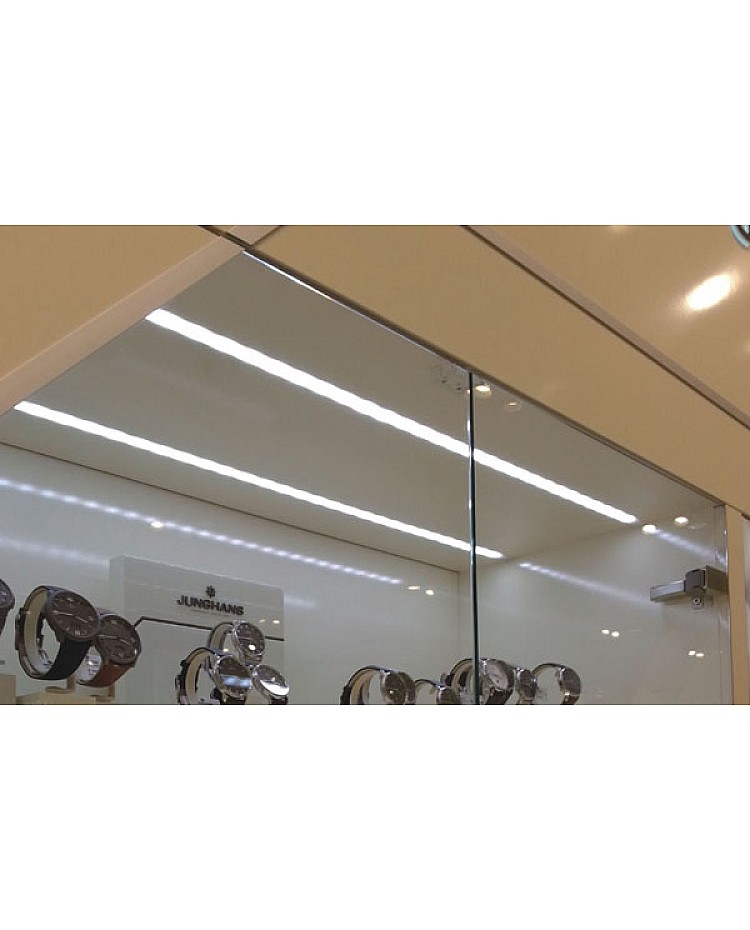

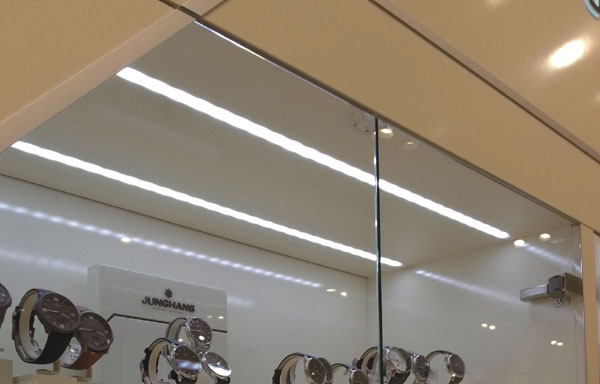

- Applications: Under cabinets, showcases, shelves, kitchens, closets, walls, ceilings, bedrooms, living rooms, etc
- Warranty: 5 years
Package:

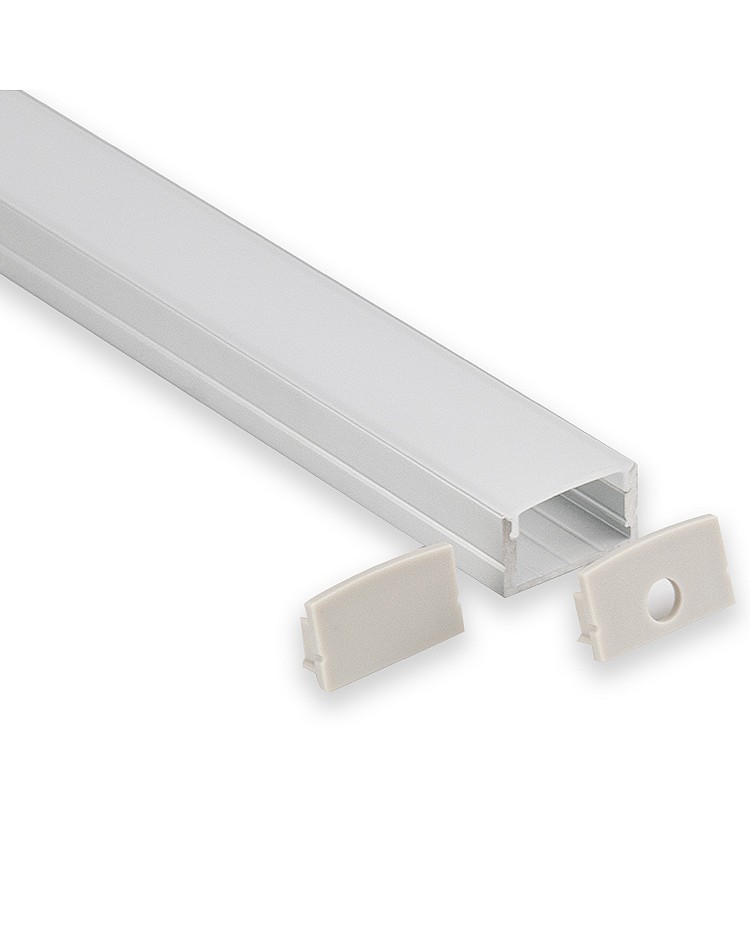

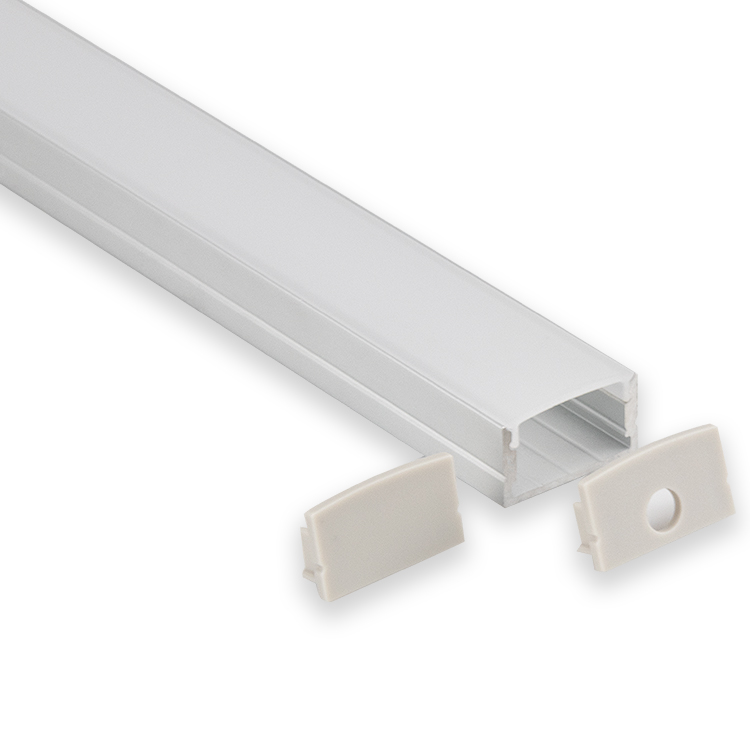

1 * LED aluminum extrusion with diffuser

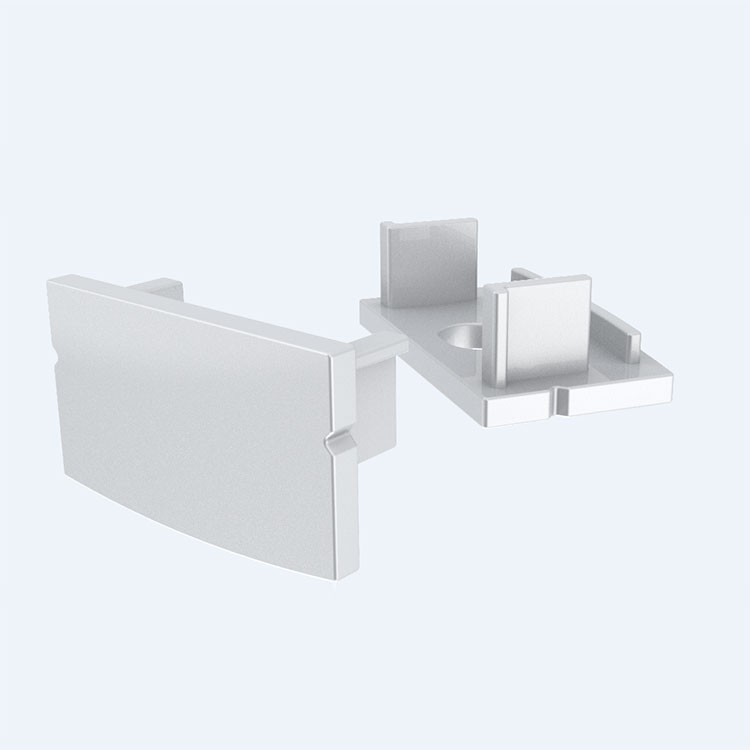

End caps(with/without wire holes)

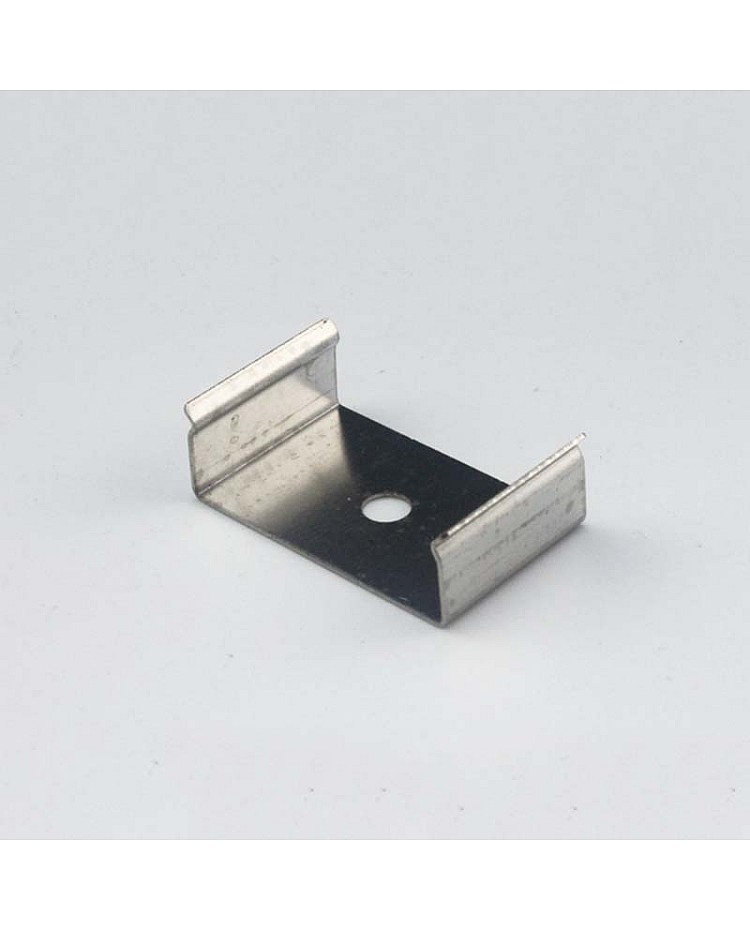

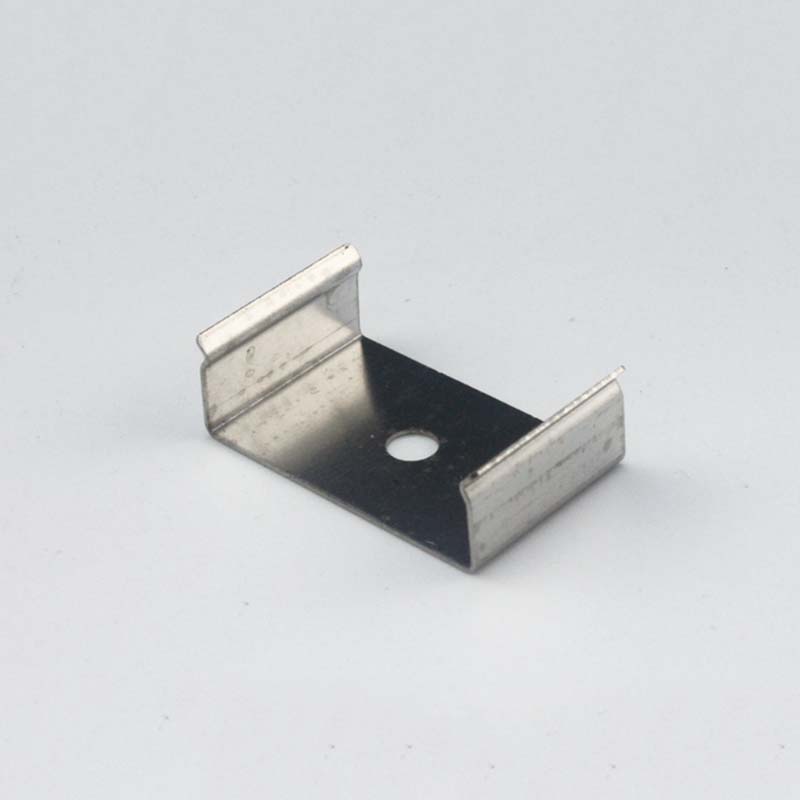

Mounting clips
