In Stock
$94.70 $70.60 Sale -25% OFF
Reward Points: 71
-
+

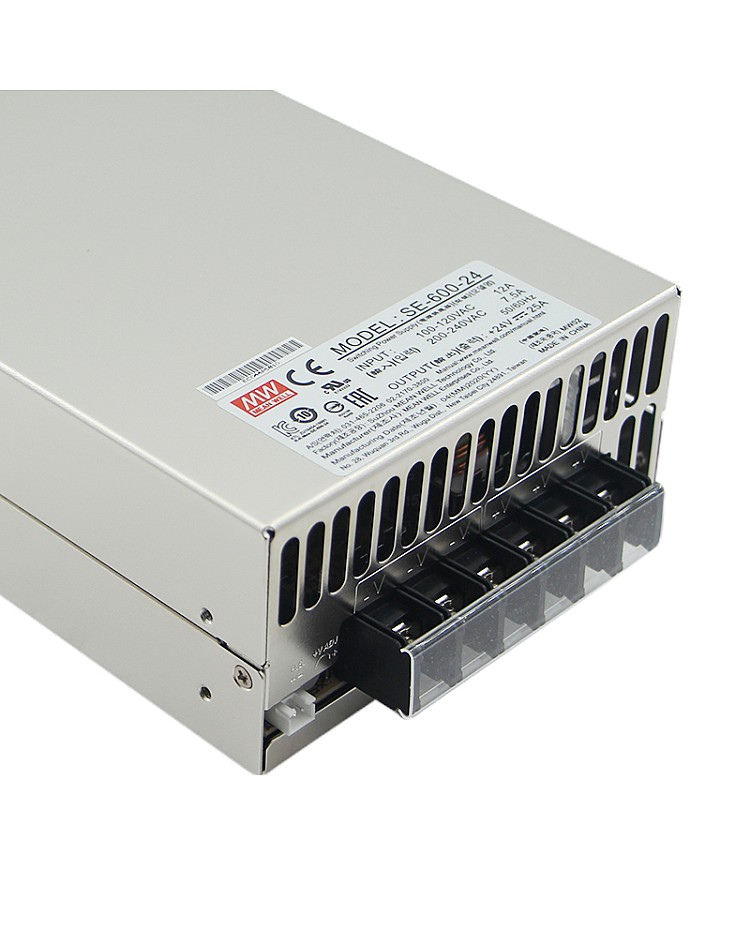

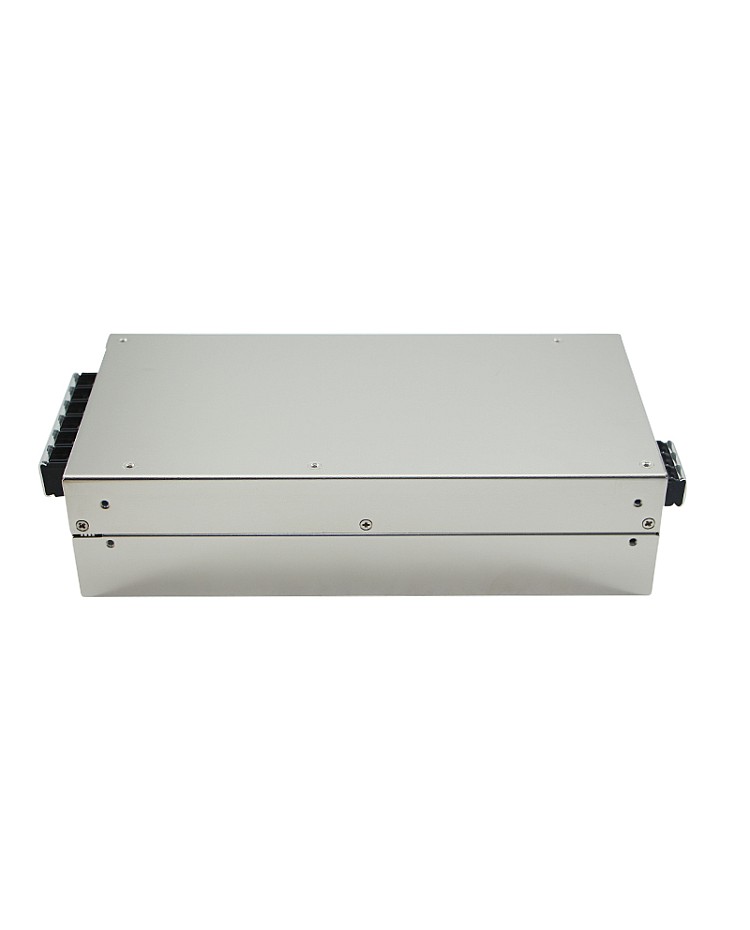

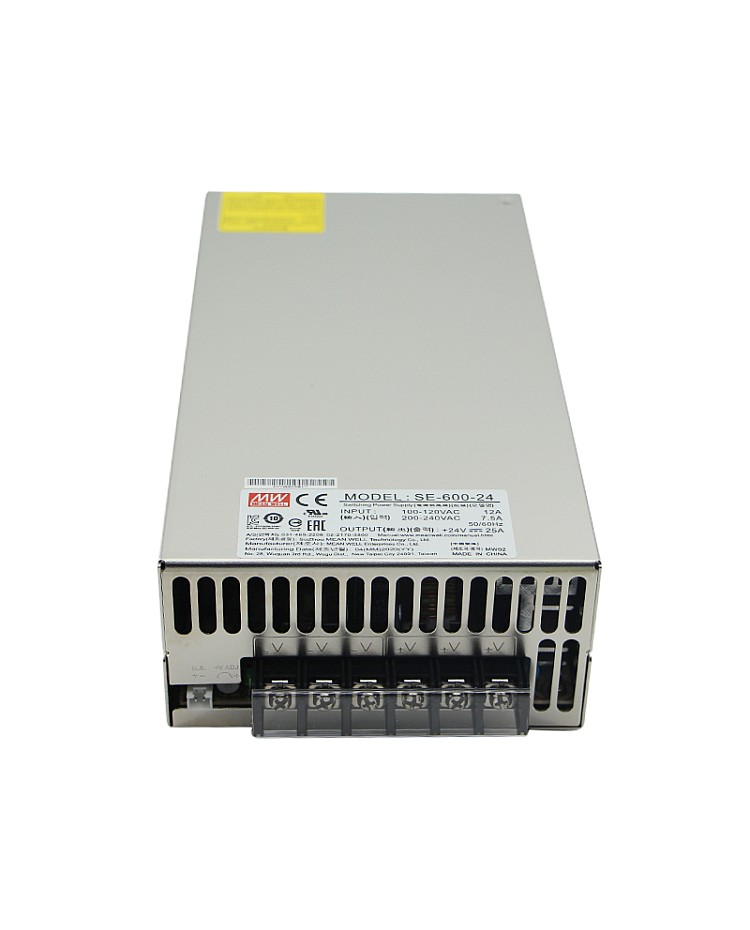

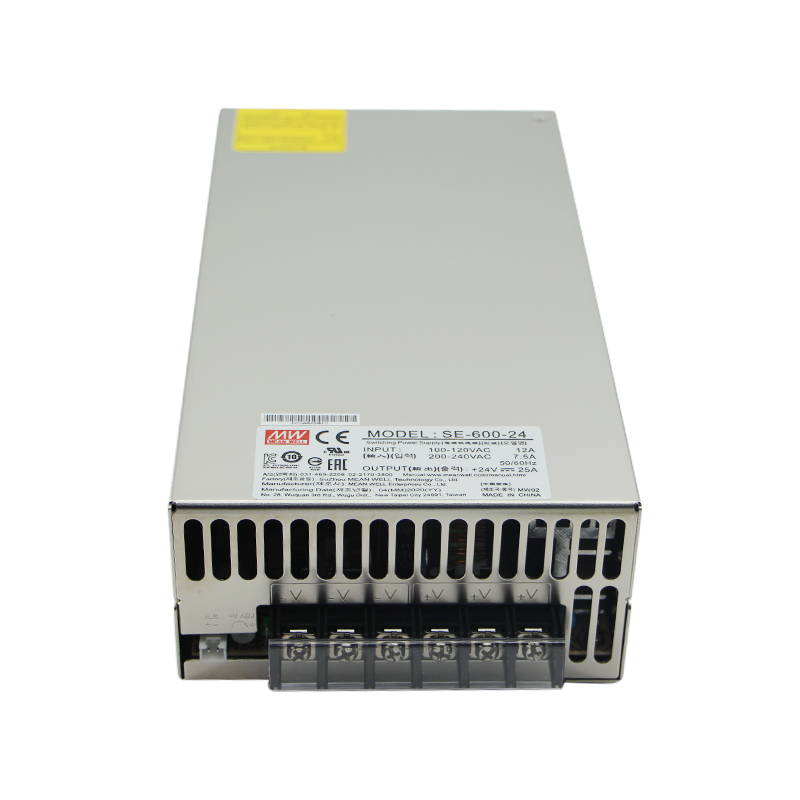

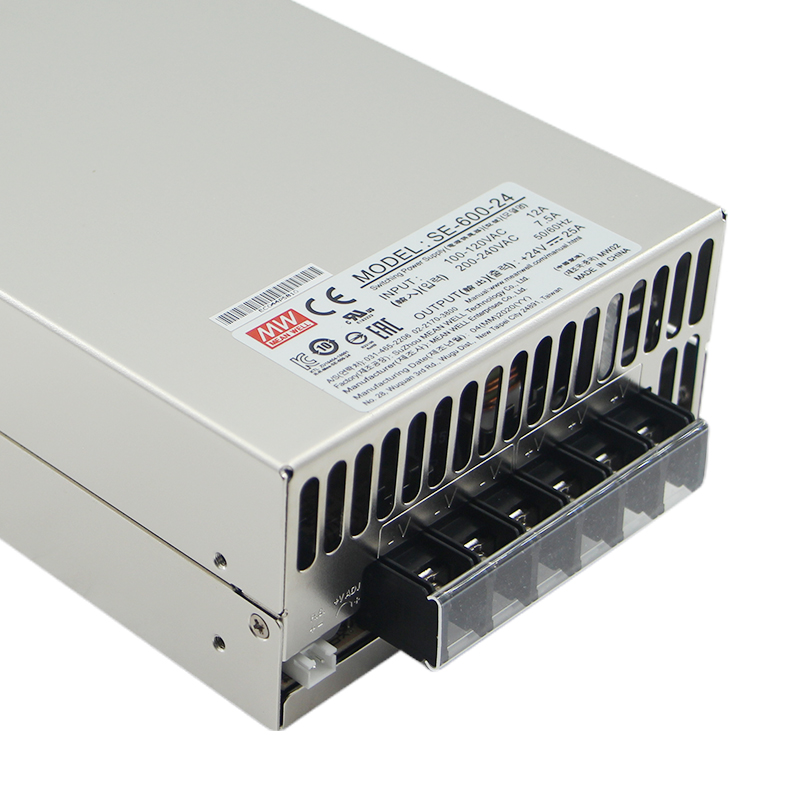

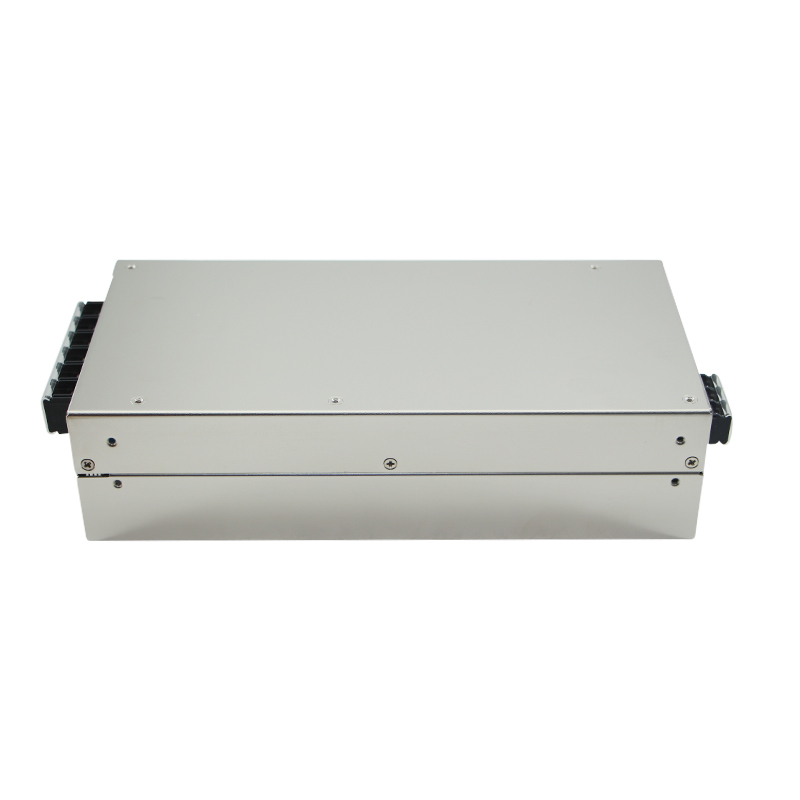

Check the Mean Well SE-600 AC To DC Power Adapter, which is the 600W single output Power Supply, with the wide input range from AC90V to AC264V and selected by a switch. the AC To DC Power Adapters have various output products available, you can choose from DC5V to DC48V, the max loading power up to 600W, you can use them for the LED Lights indoor use. with multiple protections to keep them work safety and reliability, UL approved and 2 years warranty. the Meanwell SE-600-48 built-in DC fan to forced air cooling and for better heat dissipation.

  • AC Input Active Surge Current Limiting
  • AC Input Range Selected By Switch
  • Protections: Short Circuit / Over Load / Over Voltage / Over Temperature

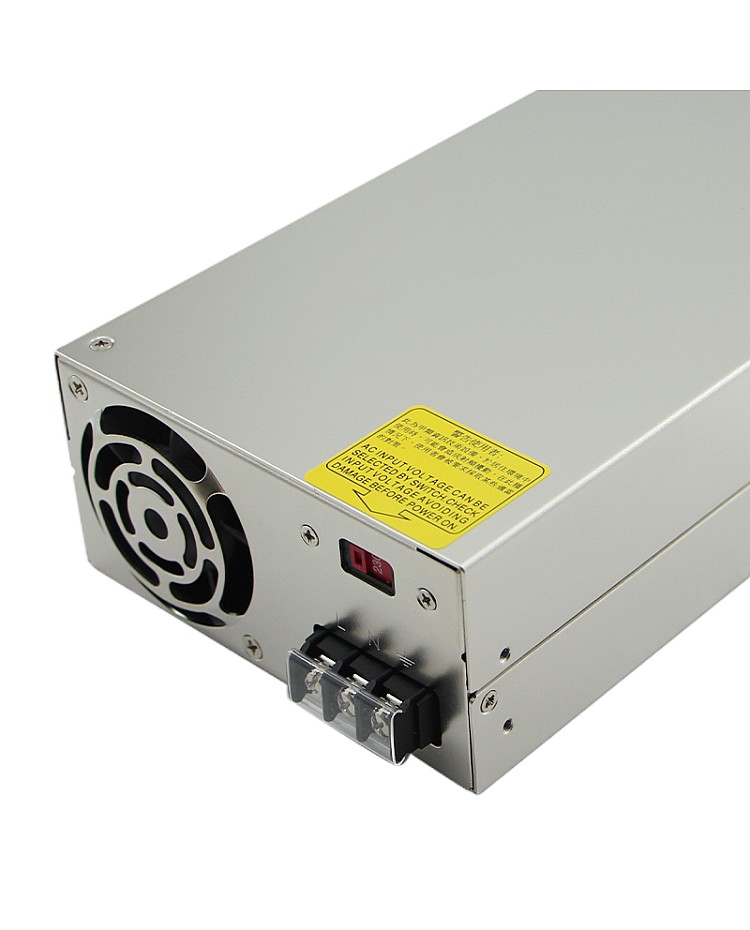

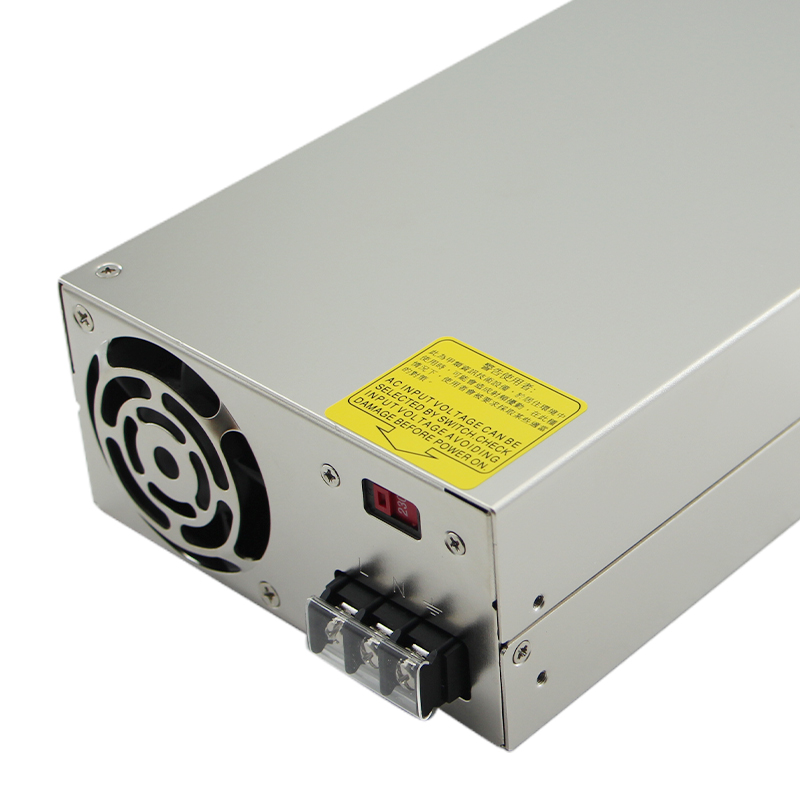

  • Forced Air Cooling By Built-in DC Fan
  • High Power Density 4.9W/in³
  • Built-in Remote Sense Function
  • UL Approved
  • Low Cost
  • 2 Years Warranty

Quick Links:

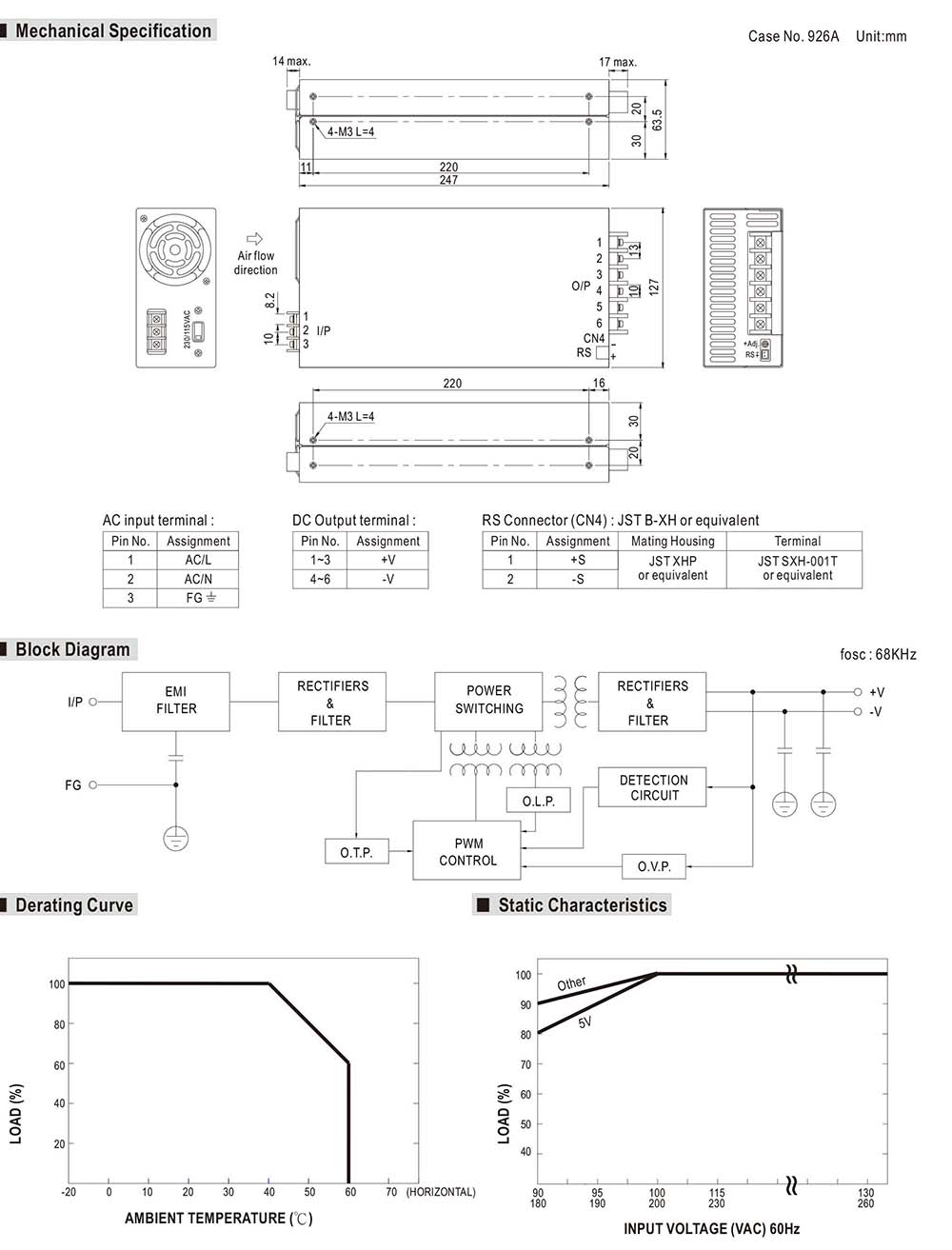

Mean Well SE-600 Series Specification Document


Features:

  • Model: SE-600
  • Size: 247*127*63.5mm(L*W*H)
  • Input Voltage Range: 90-132VAC/180-264VAC Selected By SW
  • Frequency Range: 47-63Hz
  • Efficiency: 78%(DC5V), 83%(DC12V), 84%(DC15V), 87%(DC24V), 87%(DC27V), 87%(DC36V), 88%(DC48V)
  • AC Current: 12A/115VAC, 7.5A/230VAC
  • Output Voltage: DC5V, DC12V, DC15V, DC24V, DC27V, DC36V, DC48V
  • Rated Current: 100A(DC5V), 50A(DC12V), 40A(DC15V), 25A(DC24V), 22.2A(DC27V), 16.6A(DC36V), 12.5A(DC48V)
  • Rated Power: 500W(DC5V), 600W(DC12V), 600W(DC15V), 600W(DC24V), 599.4W(DC27V), 597.6W(DC36V), 600W(DC48V)
  • Working Temperature: -20℃-60℃
  • Vibration: 10-500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
  • Safety Standards: UL 62368-1, EAC TP TC 004, BSMI CNS 14336-1 Approved
  • Over Load Protection
  • Over Voltage Protection
  • Over Temperature Protection


Includes:

1*SE-600 AC To DC Power Adapter

Mean Well AC To DC Adapter
