- Product Code: LB264

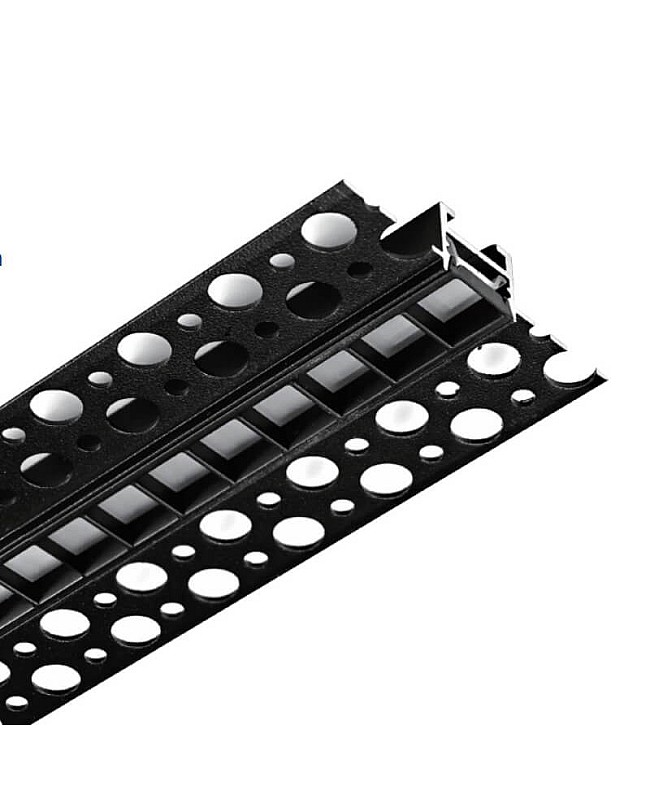

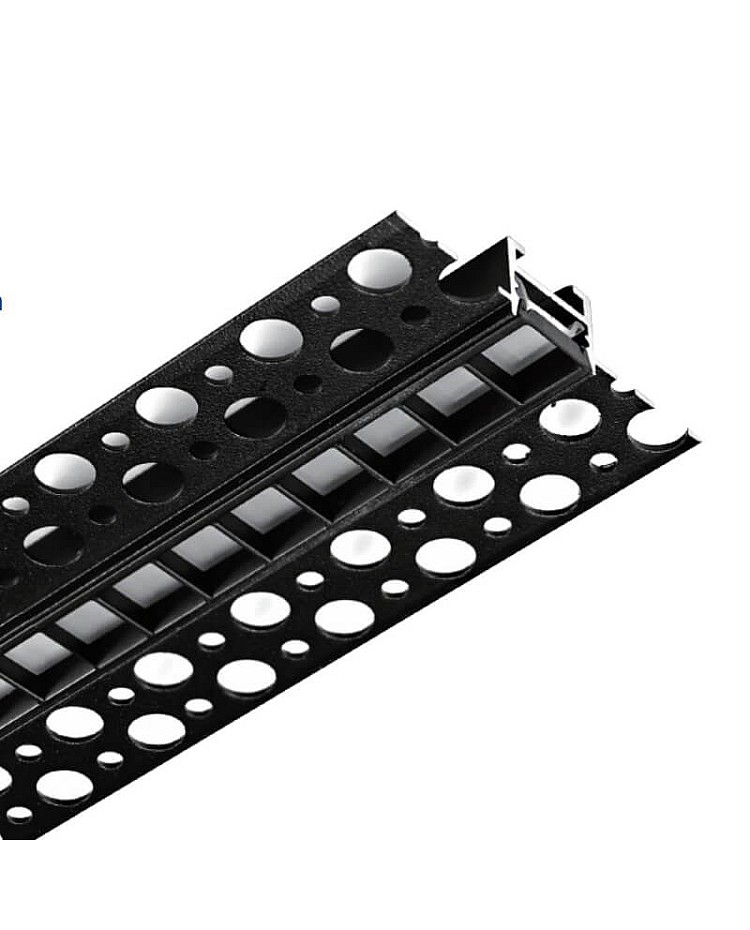

The drywall recessed LED profile features a plaster-in flange that disappears beneath your putty and paint layer. It creates a clean, borderless finish where light appears to float directly from the surface. The recessed design shields the light source and softens output, delivering glare-free, flicker-free illumination that's easy on the eyes. Ideal for living spaces, hallways, offices, hotels, and retail environments.

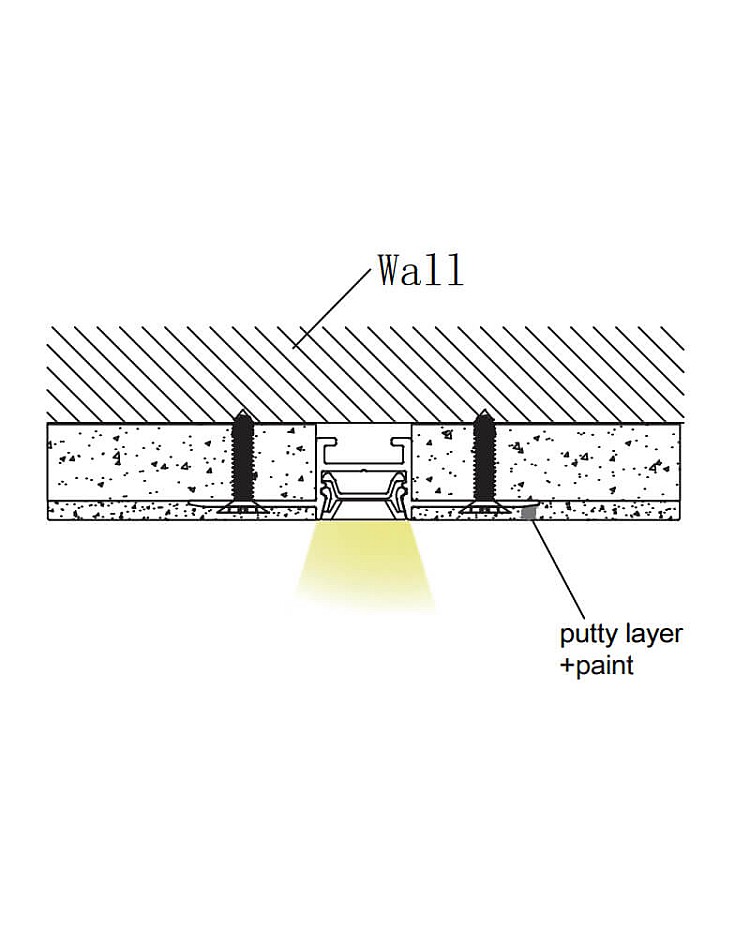

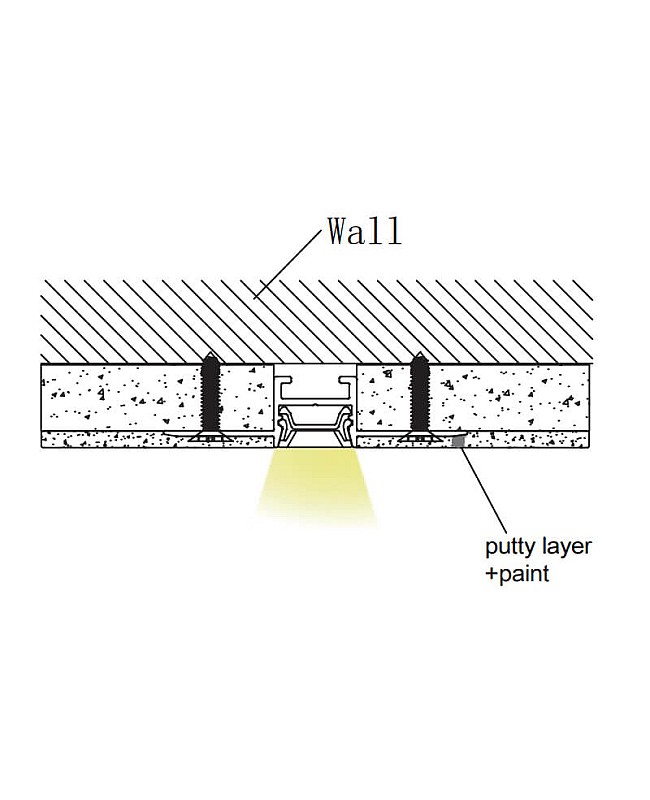

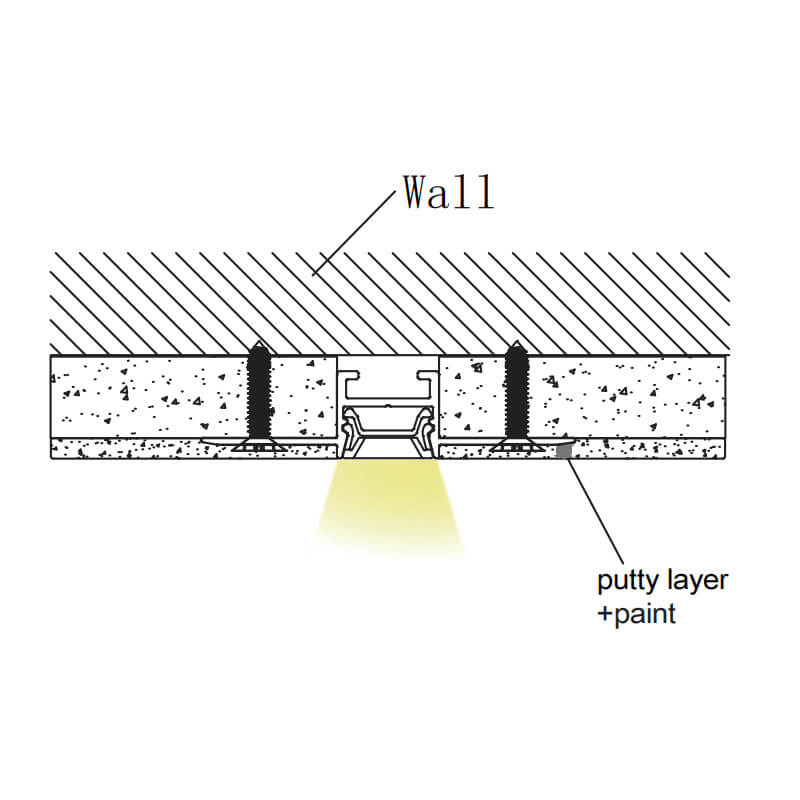

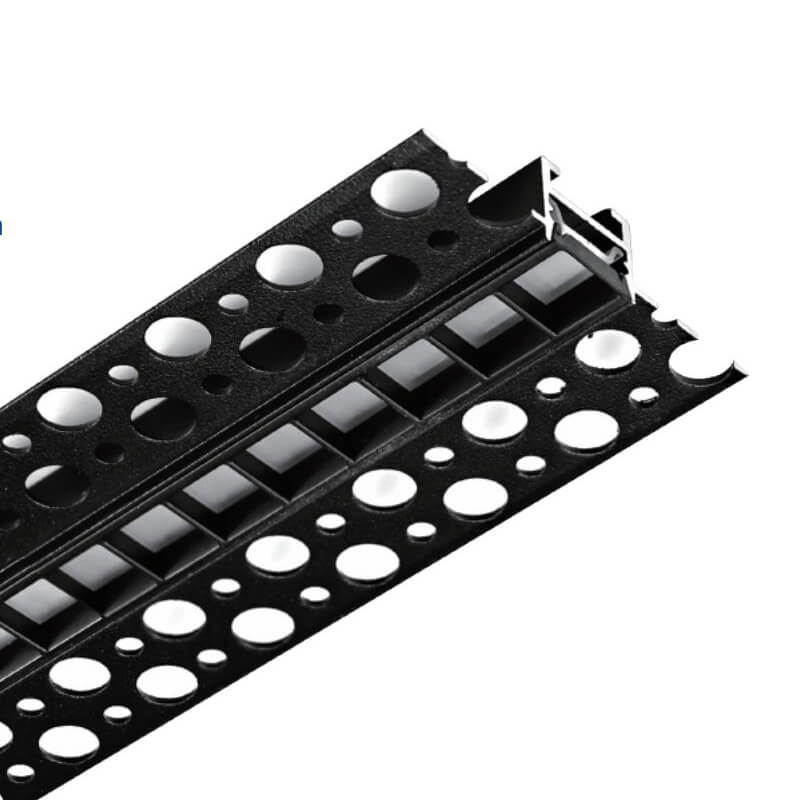

The perforated mounting wings key directly into your drywall, allowing the channel to be finished flush with the wall or ceiling. Once the putty layer and paint are applied, only the light remains visible for a flawless, architectural result. Crafted from 6063-T5 extruded aluminum and has a black powder-coated finish for corrosion-resistant and a longer lifespan. The 1 m and 2 m lengths are available; custom lengths are also available and easy to cut to the desired length.

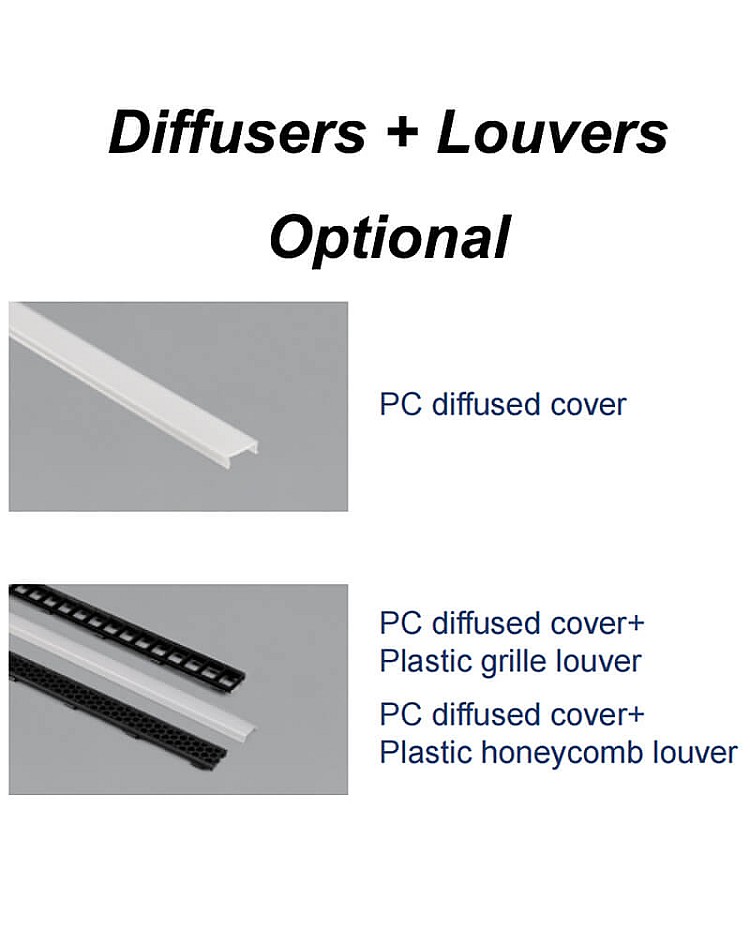

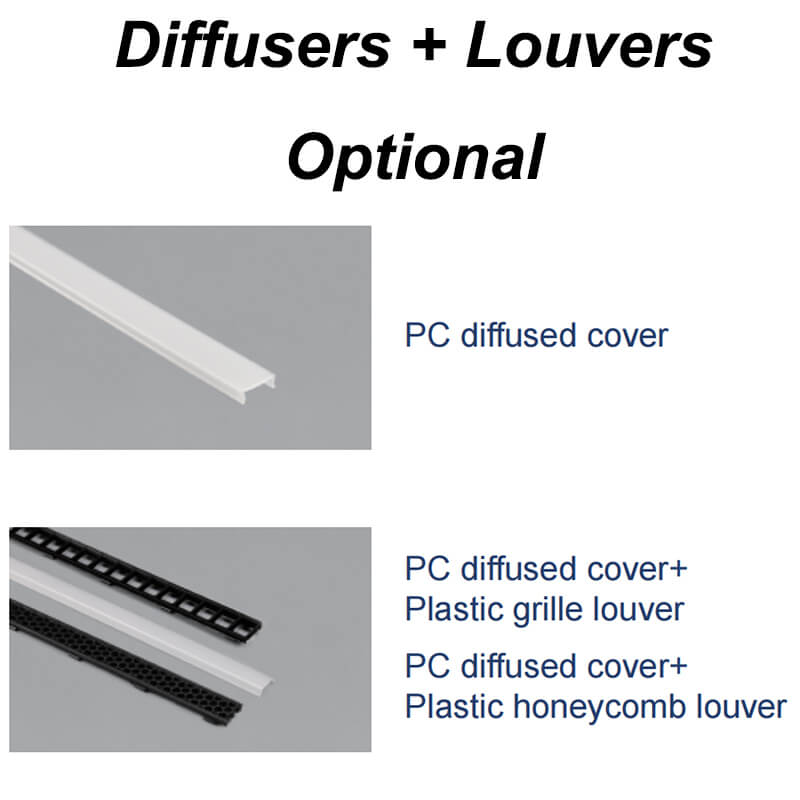

The inner width is 13.2mm and allows a maximum tape stripe width of 13mm. Three optical options are available; one profile can customize the light to suit your space.
- PC diffused cover: smooth, even, glare-free light
- PC diffused cover + plastic honeycomb louver: maximum glare control with a refined visual finish
- PC diffused cover + plastic grille louver: crisp, directional beam separation

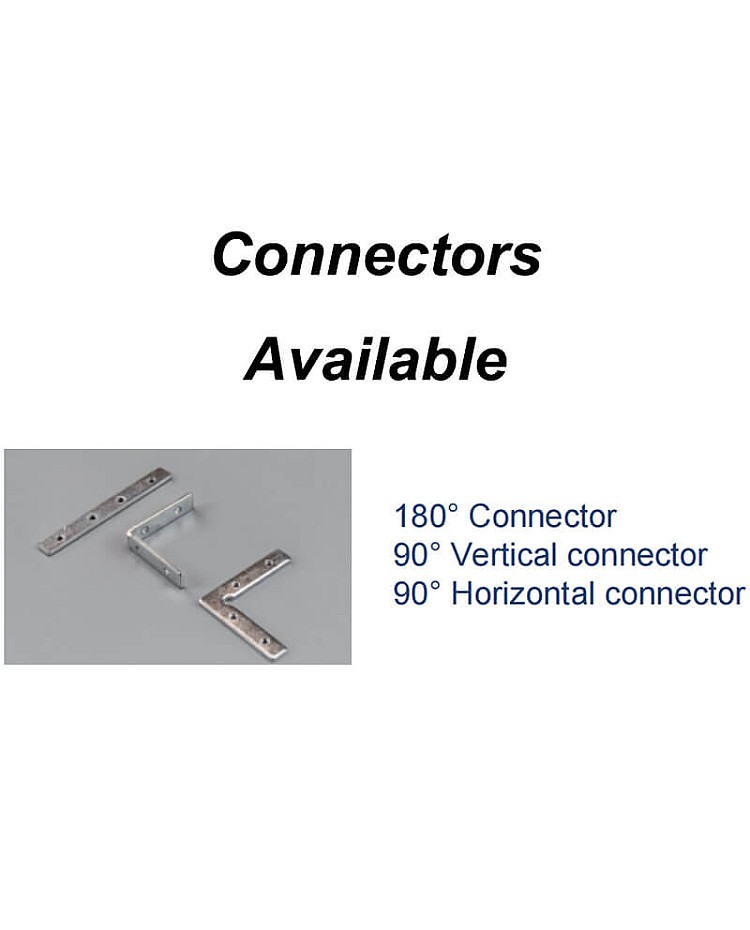

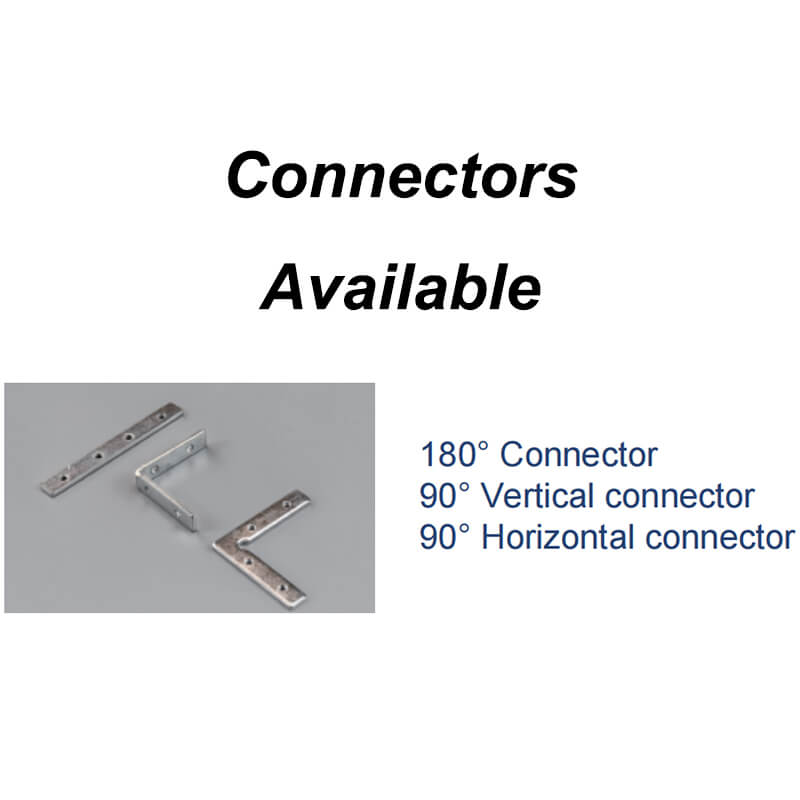

Three LED profile connectors are available: 180°, 90° vertical, and 90° horizontal. You can use them to build continuous runs and turn corners effortlessly. Giving your complete design freedom for linear and cornered layouts.

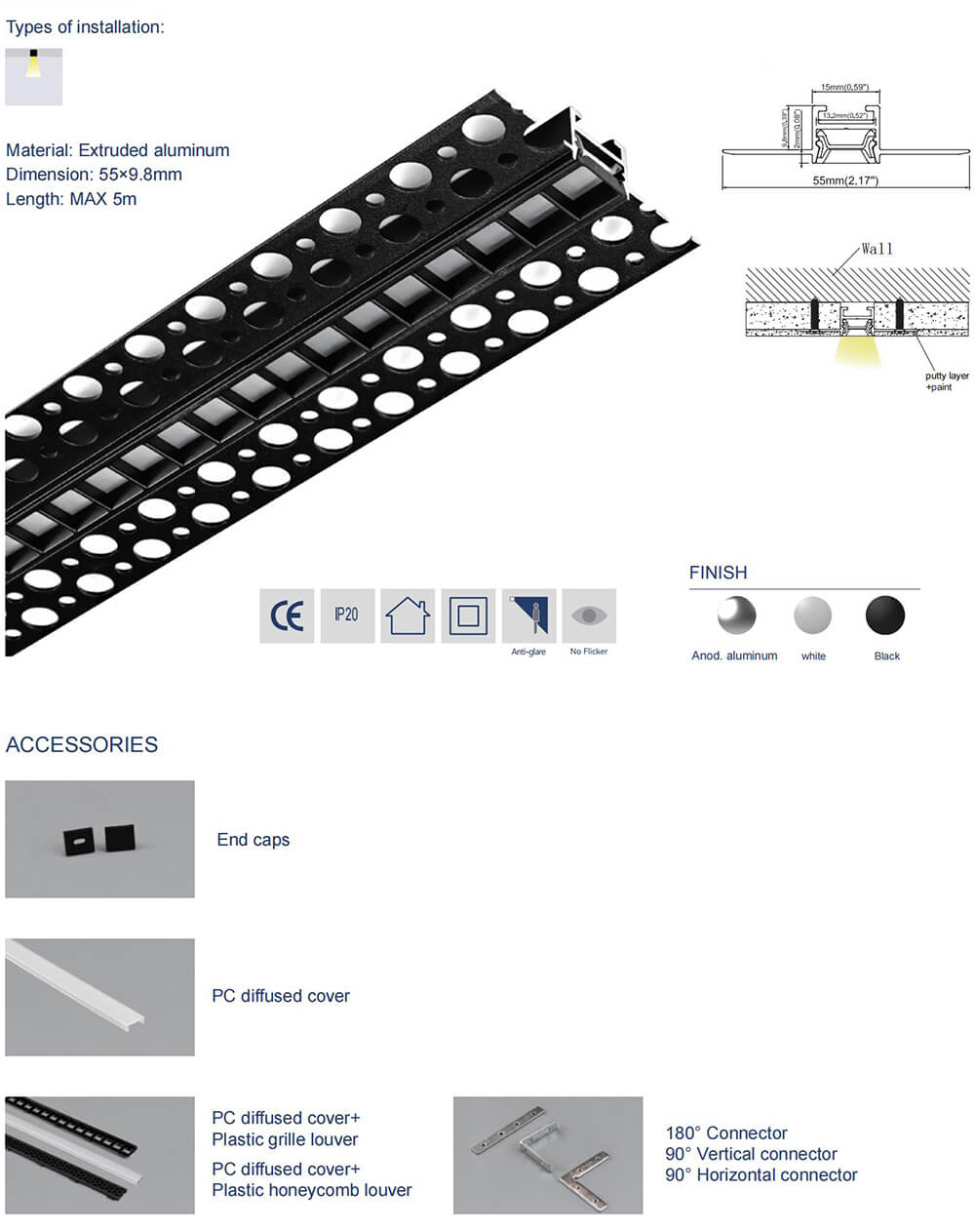

Specifications:
- Material: Extruded aluminum 6063-T5
- Surface treatment: Powder-coated
- Color: Black

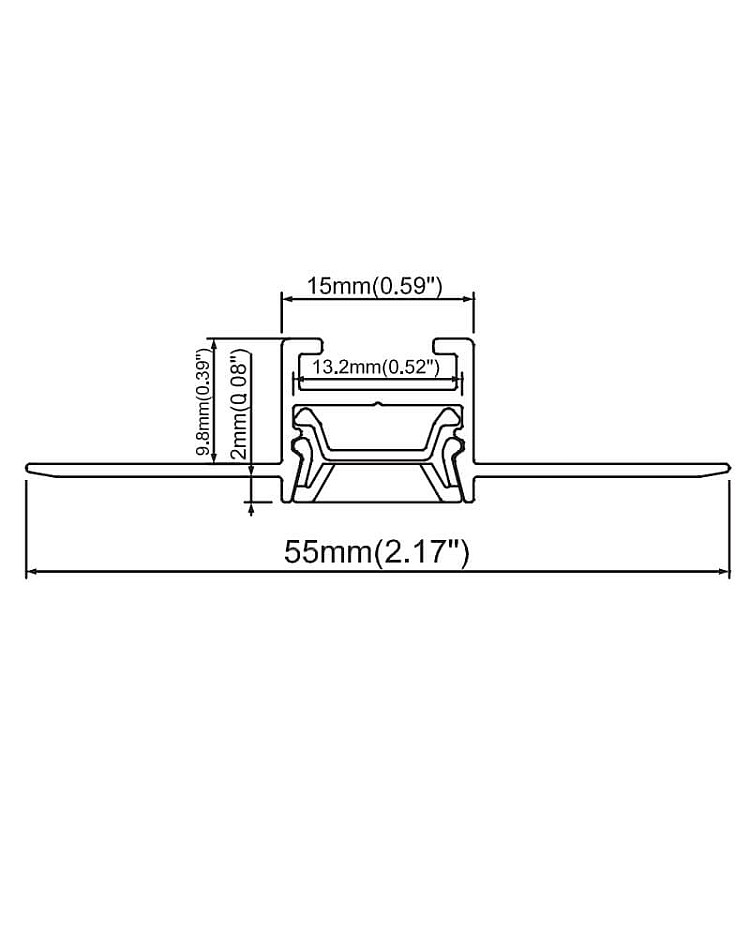

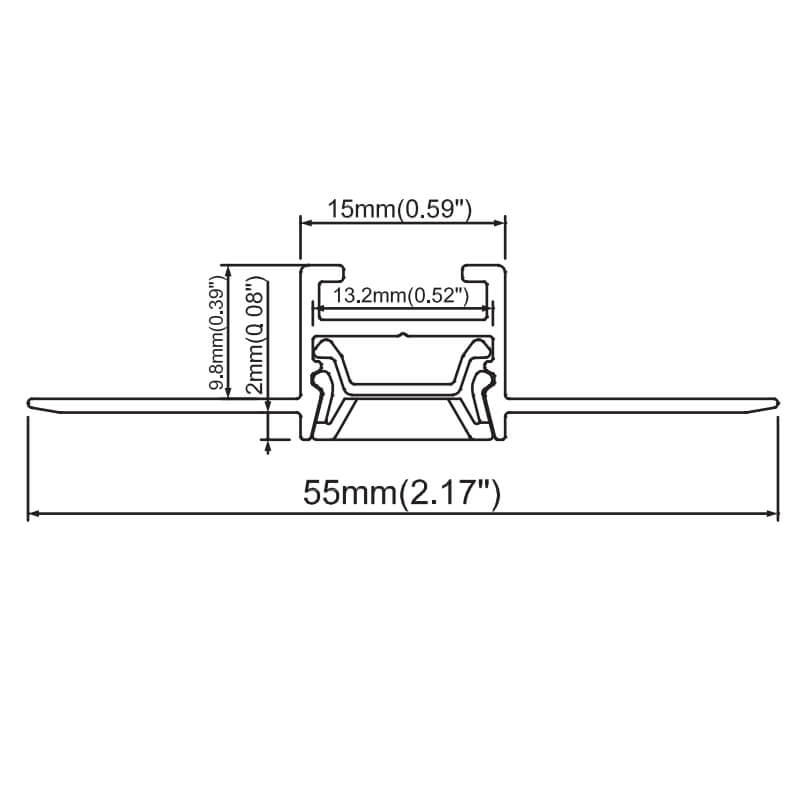

- Size ( Width x Height ): 55 mm x 9.8 mm ( 2.17" x 0.39" )
- Lengths available: 1 m ( 39.37" ), 2 m ( 78.74" )
- Custom length available: YES
- Inner width: 13.2 mm ( 0.52" )
- Maximum width of tape stripe lights: 13 mm ( 0.51" )
- Maximum power: 15W/m
- Diffusers: PC diffused cover only
- Louvers available: Plastic grille louvers / plastic honeycomb louvers ( Length: 305 mm / 12.01" )
- Connectors available: 180° connectors, 90° vertical connectors, 90° horizontal connectors
- Installation: Plaster-in / drywall recessed (trimless ）
- Warranty: 5 years
Includes:
1 x Plaster-in anti-glare LED channel
1 x PC diffused cover
End caps ( With and without wire holes )
Plastic honeycomb or grille louver
