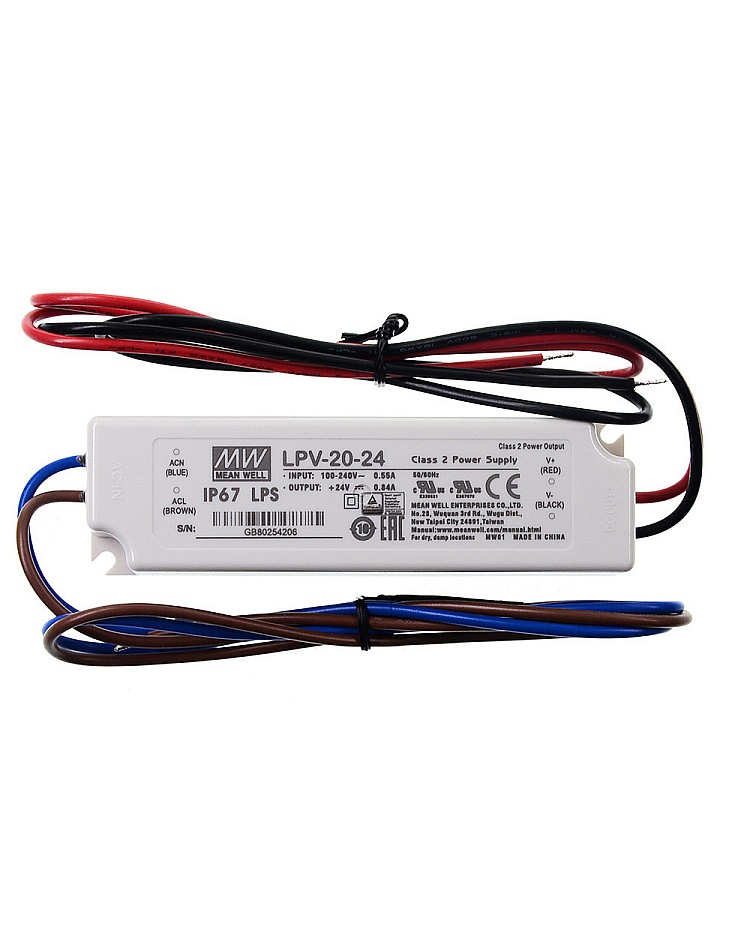

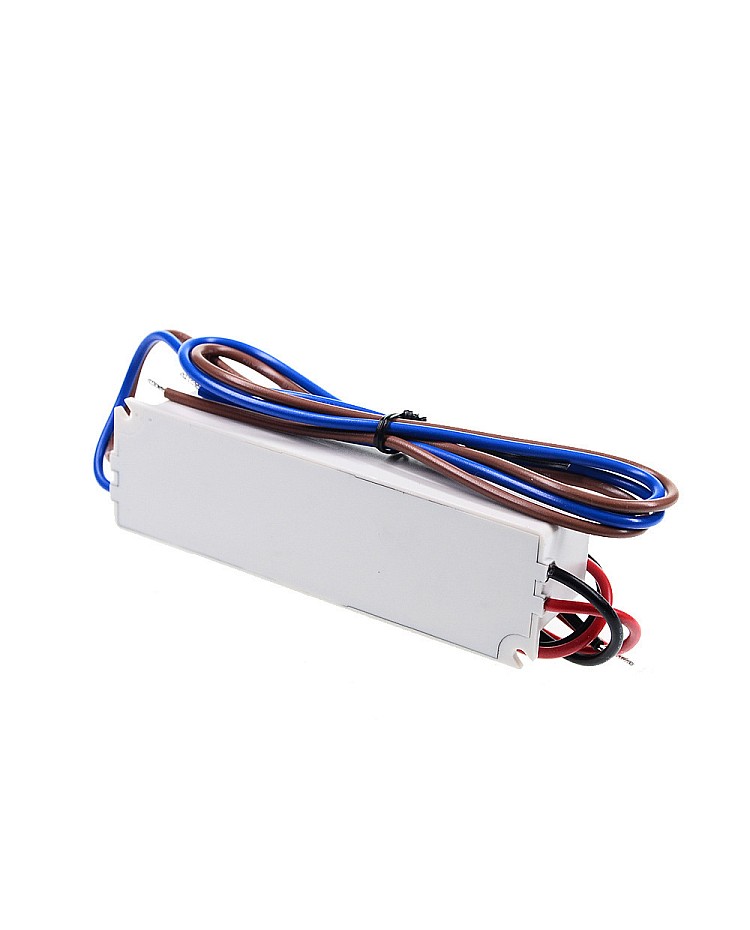

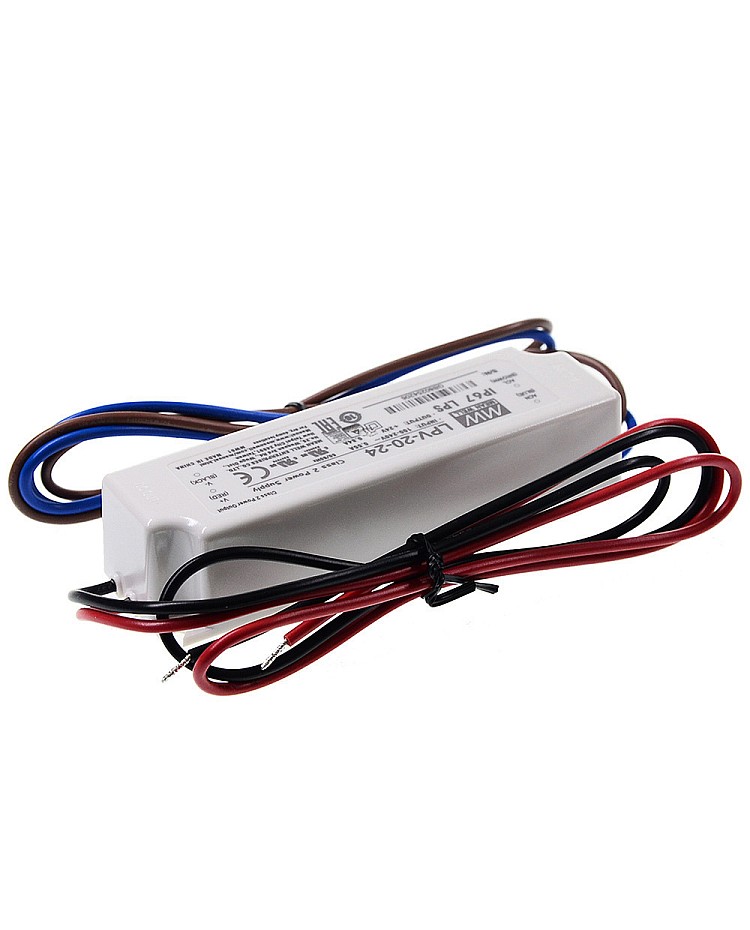

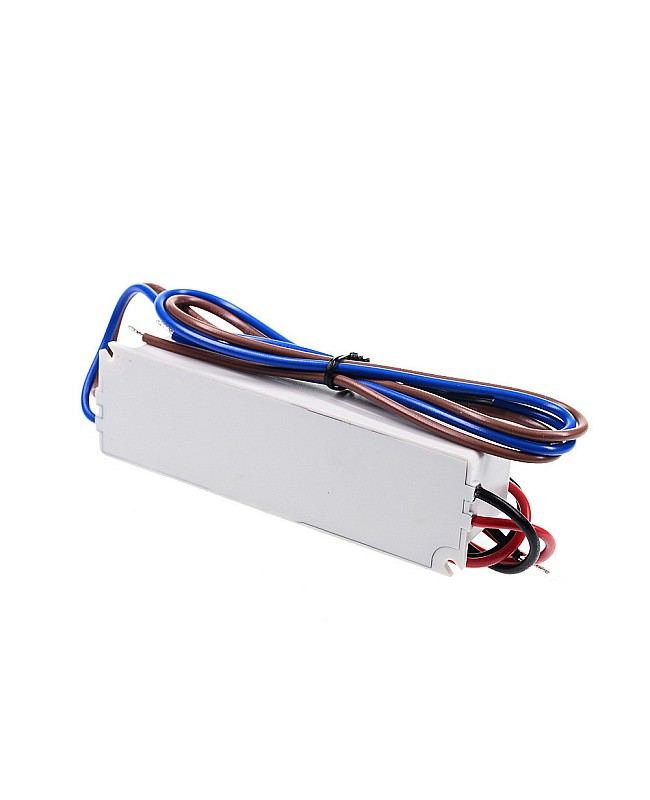

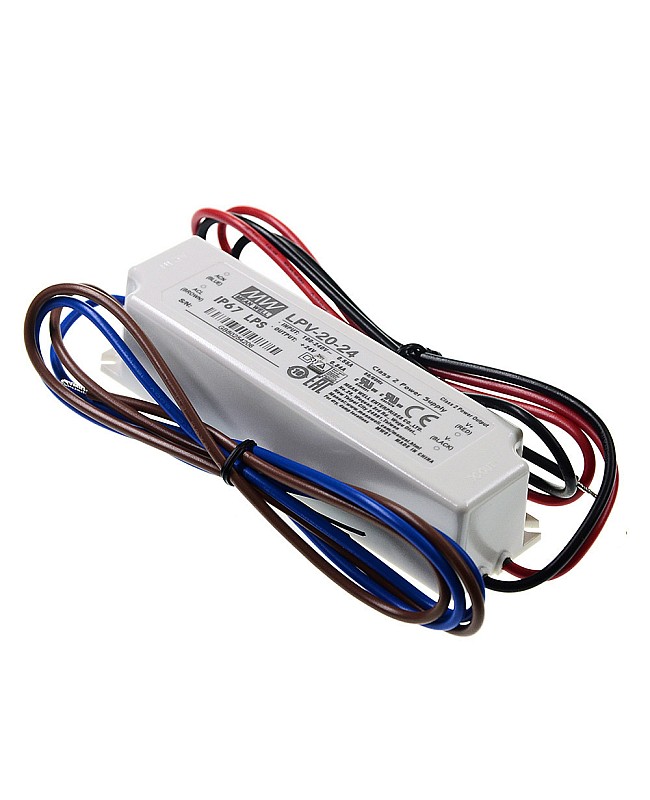

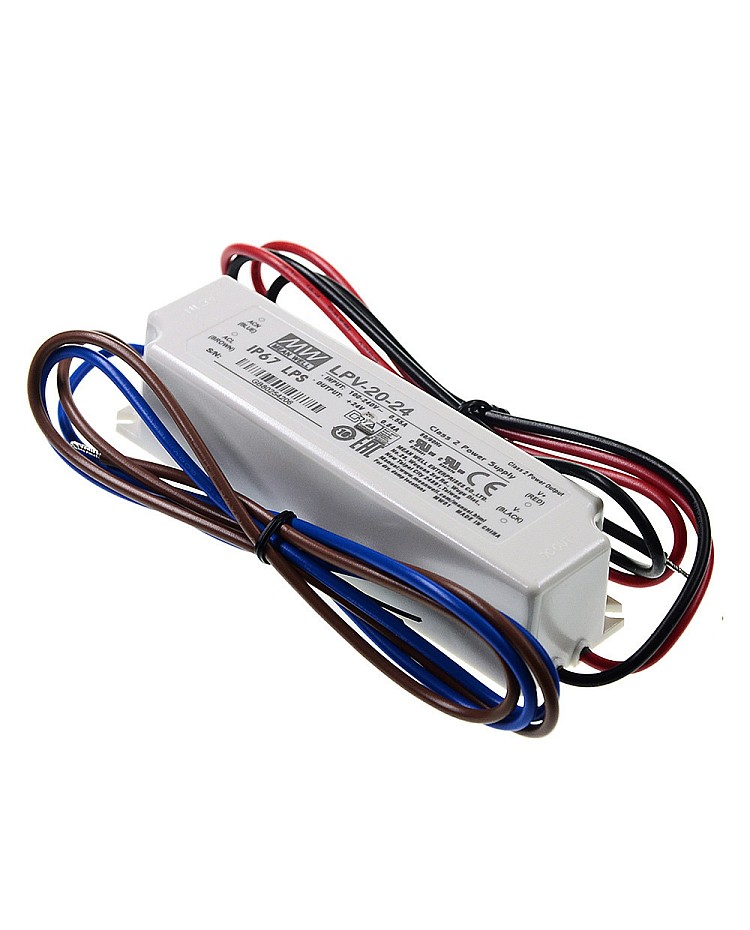

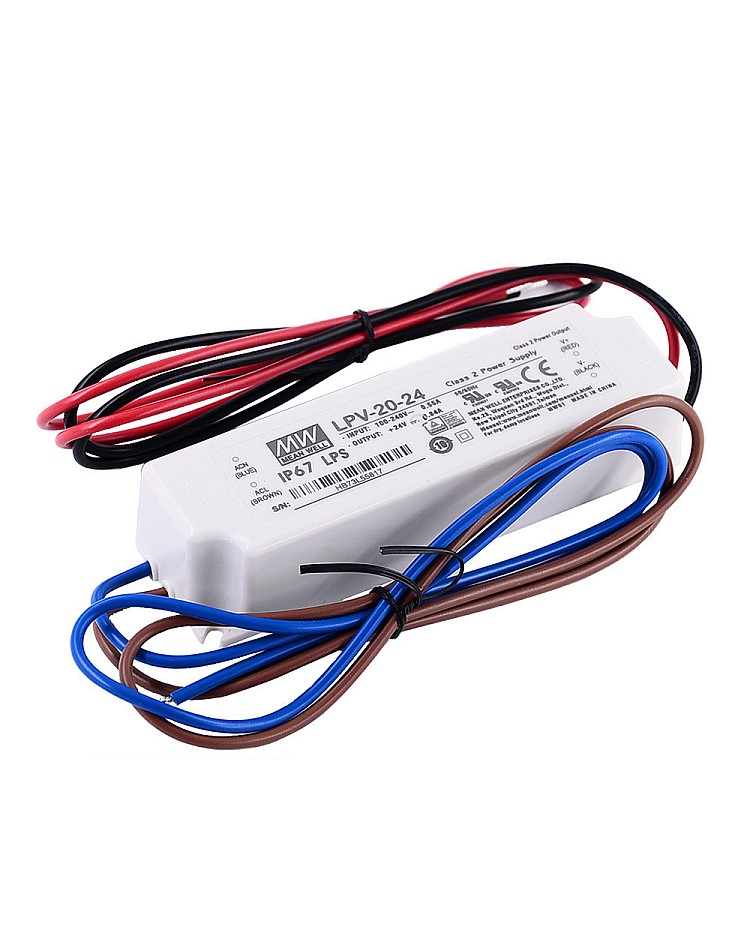

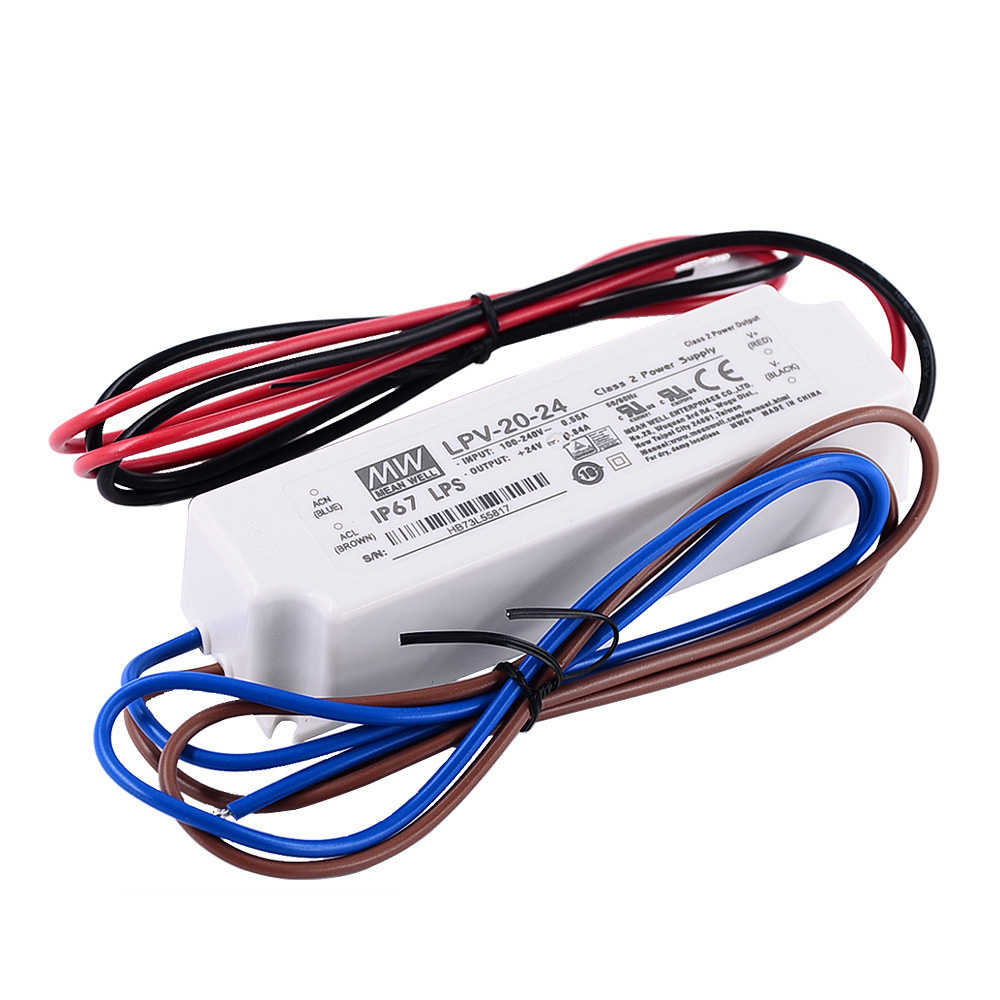

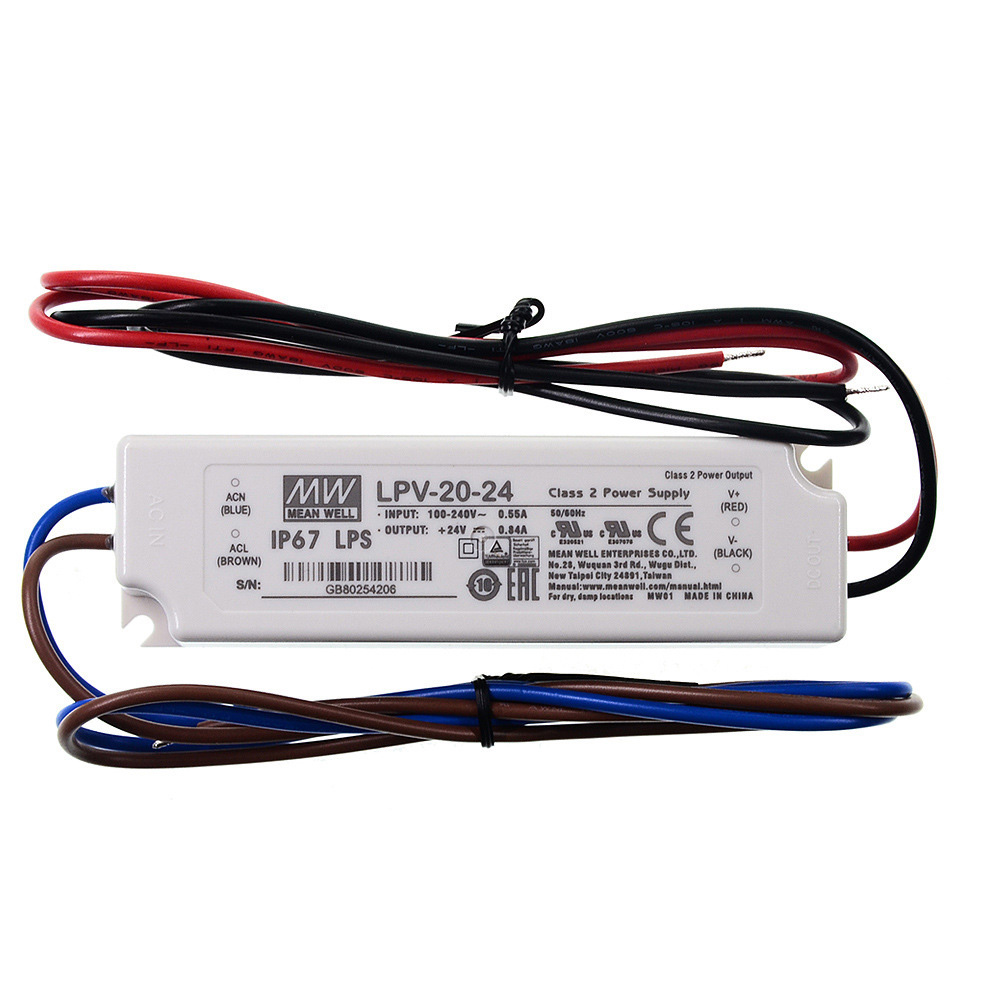

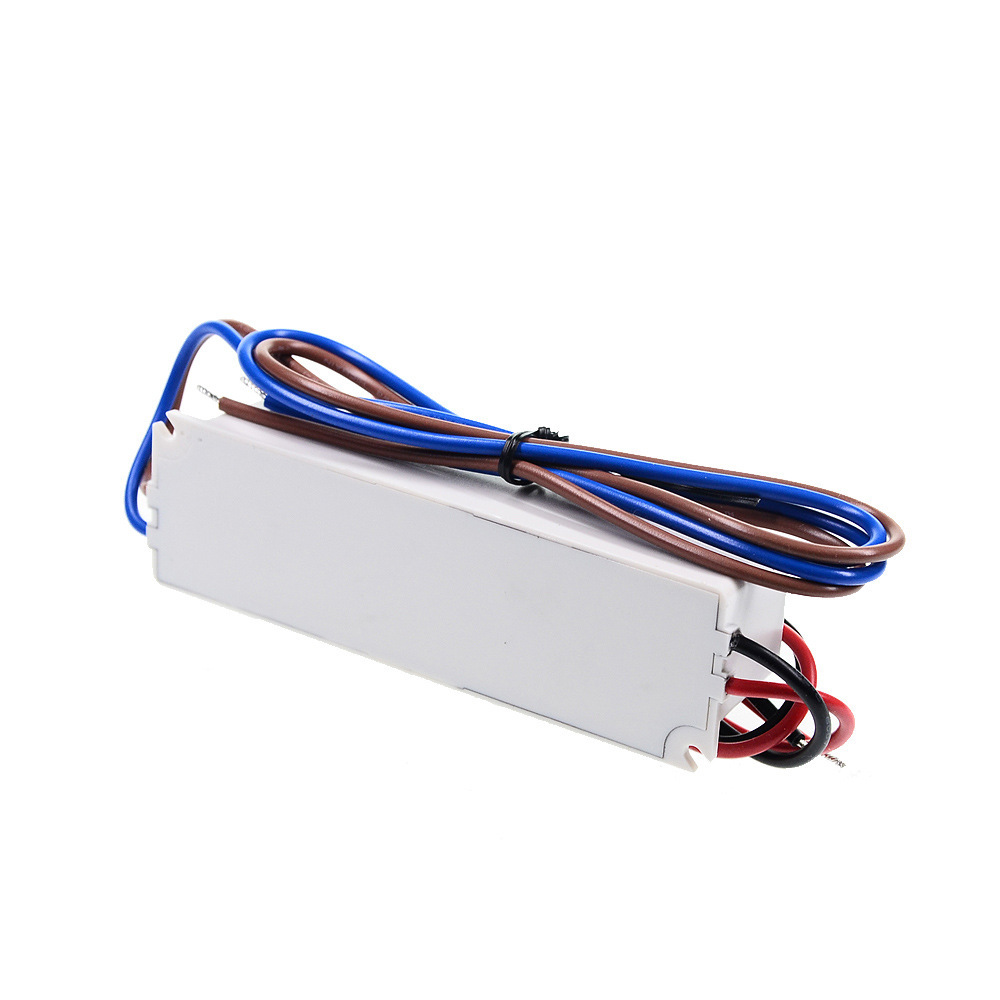

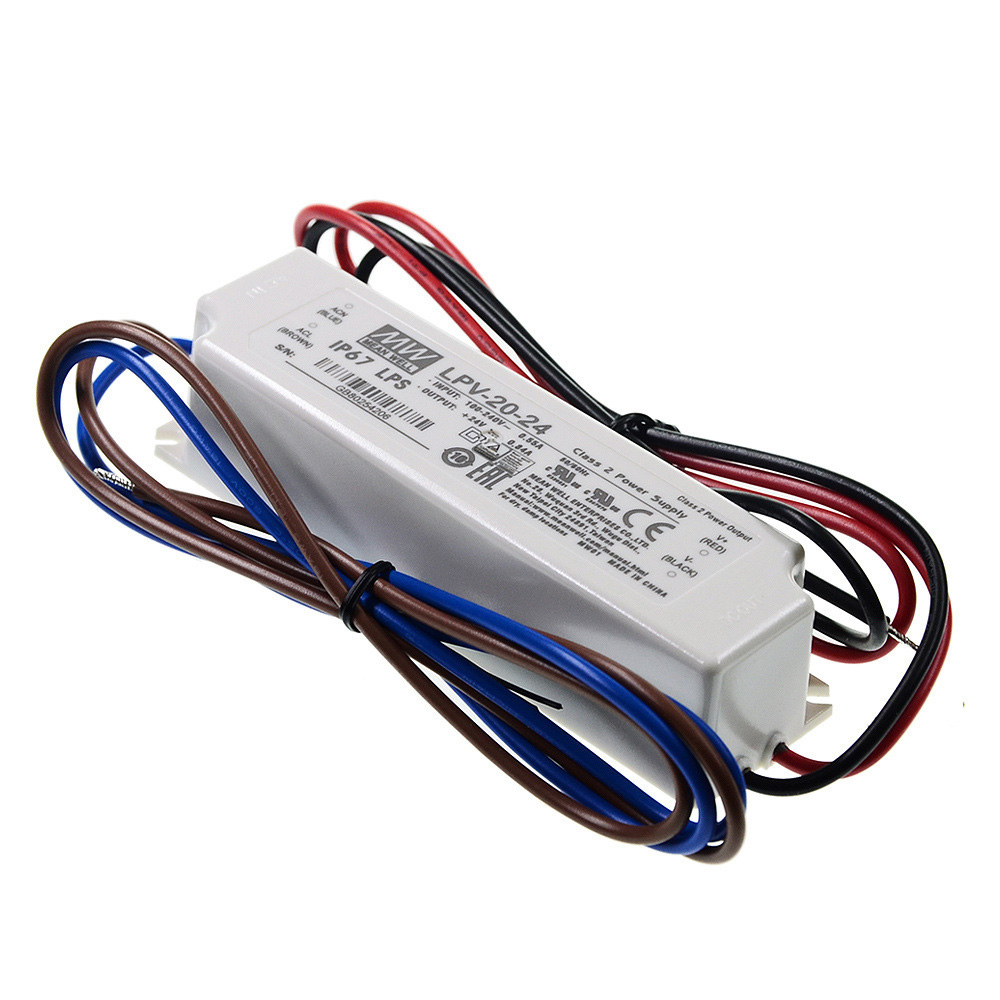

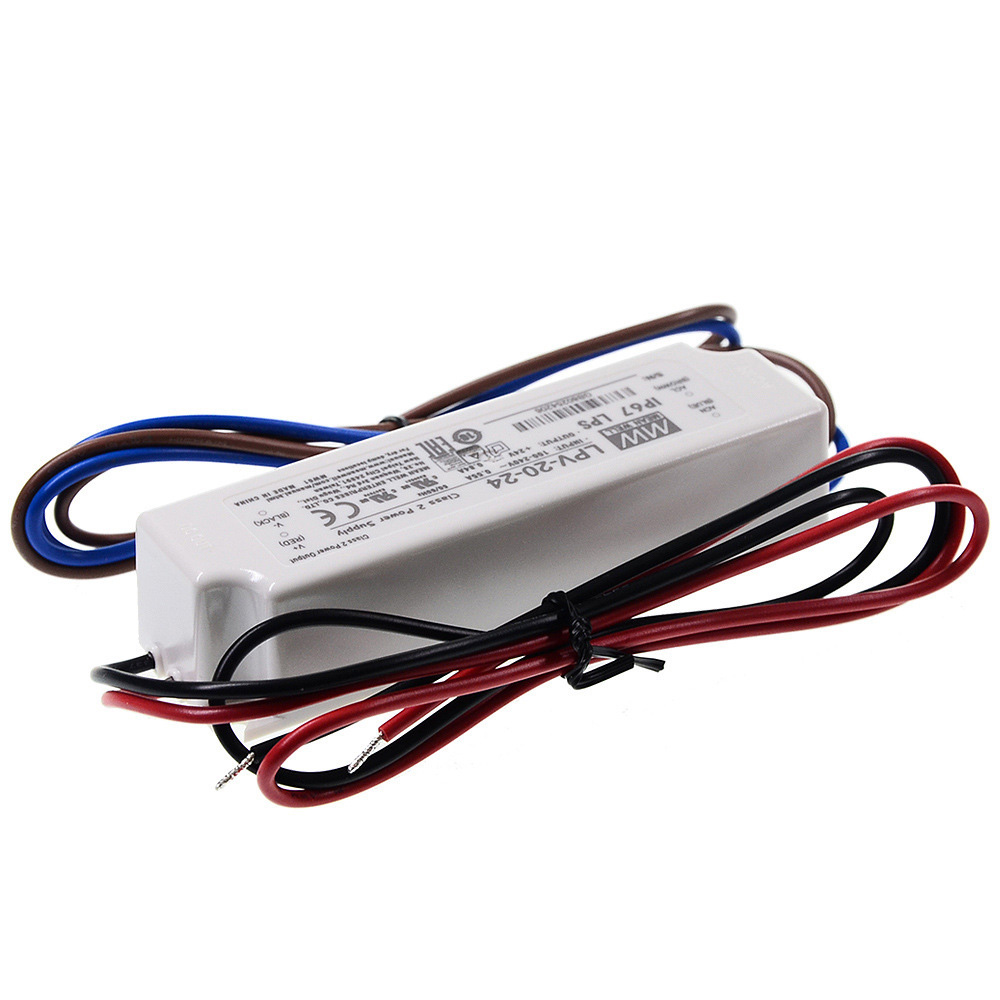

The Meanwell 12V DC power supply has a single output design offering various output voltage products from DC5V to DC24V. The Meanwell LED power supply has a universal AC input, with a full range from AC90V to AC370V, and is easy to connect to the power system directly. With a fully isolated plastic case and fully encapsulated with an IP67 waterproof level design, you can use them in rainy, wet or other harsh situations. You can use them for waterproof LED tape lights, decoration, advertisement devices, etc.

  • Constant Voltage Design
  • Universal AC Input / Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • Protections: Short Circuit / Overload / Over Voltage
  • Cooling By Free Air Convection
  • Small And Compact Size
  • Fully Encapsulated With IP67 Waterproof
  • Fully Isolated Plastic Case
  • Class II Power Unit, NO FG
  • Class 2 Power Unit
  • Pass LPS
  • Suitable For LED Related Fixture Or Appliance
  • 100% Full Load Burn-in Test
  • Low Cost, High Reliability

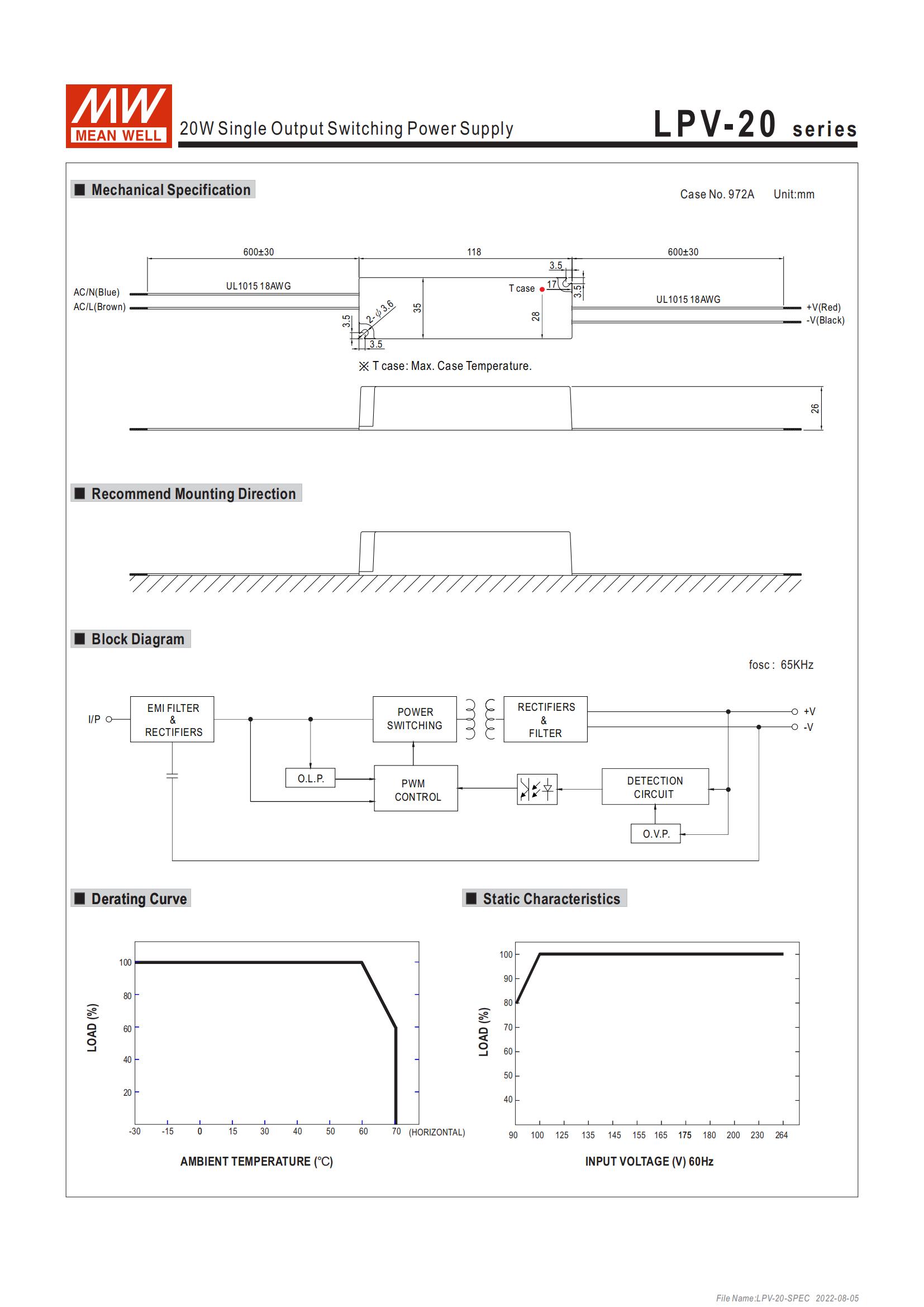

Link: Mean Well LPV-20 User Manual


Specifications:

  • Model: LPV-20-5, LPV-20-12, LPV-20-15, LPV-20-24
  • Size: 118*35*26mm(L*W*H)
  • Input Voltage: 90- 264VAC/127- 370VAC
  • Input Voltage: DC5V, DC12V, DC15V, DC24V
  • Rated Current: 3A(5V), 1.67A(12V), 1.33A(15V), 0.84A(24V)
  • Rated Power: 15W(5V), 20W(12V), 20W(15V), 20.2W(24V)
  • Hold UP Time: 50ms/230VAC, 16ms/115VAC At Full Load
  • Frequency Range: 47- 63Hz
  • Efficiency: 77%(5V), 81%(12V), 83%(15V), 83%(24V)
  • AC Current: 0.55A/115VAC, 0.35A/230VAC
  • Leakage Current: 0.25mA/240VAC
  • Overload: 110-150% Rated Output Power
  • Working Temperature: -30℃-70℃
  • Working Humidity: 20-90% RH Non-condensing
  • Vibration: 10-500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
  • Safety Standards: UL879, UL1310, CSA C22.2 No.207-M89, CAN/CSA C22.2 No.223-M91, IEC/BS EN/EN 62368-1, EAC TP TC 004.IP67 Approved
  • Withstand Voltage: I/P-O/P:3KVAC
  • Isolation Resistance: I/P-O/P:>100M Ohms / 500VDC / 25℃ / 70%RH
  • 2 Years Warranty


Includes:

1 * 12V Meanwell Power Supply
