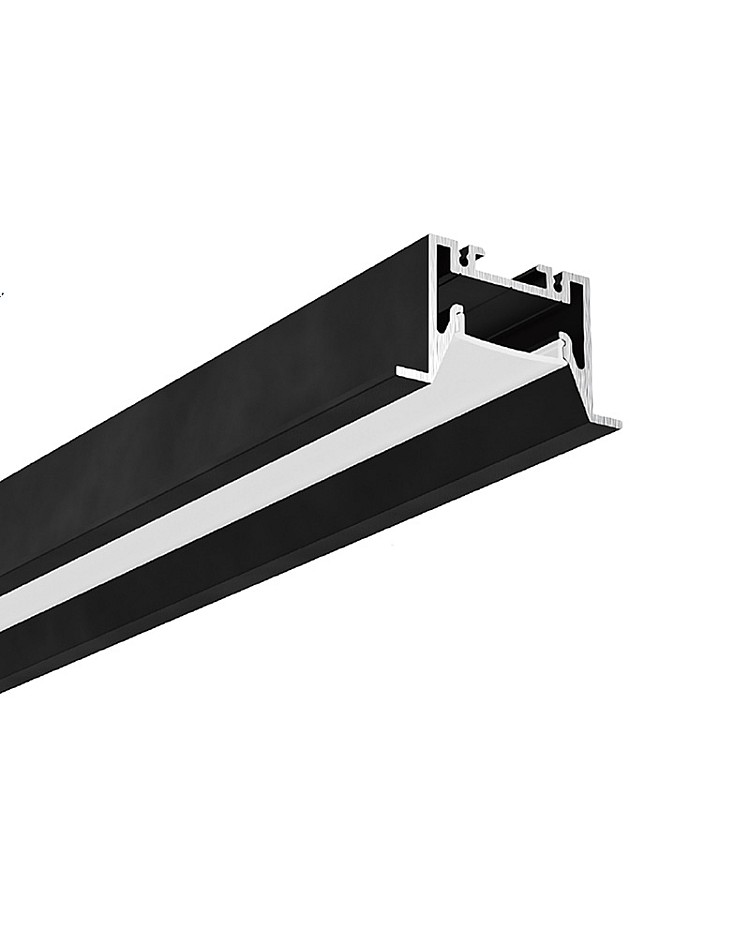

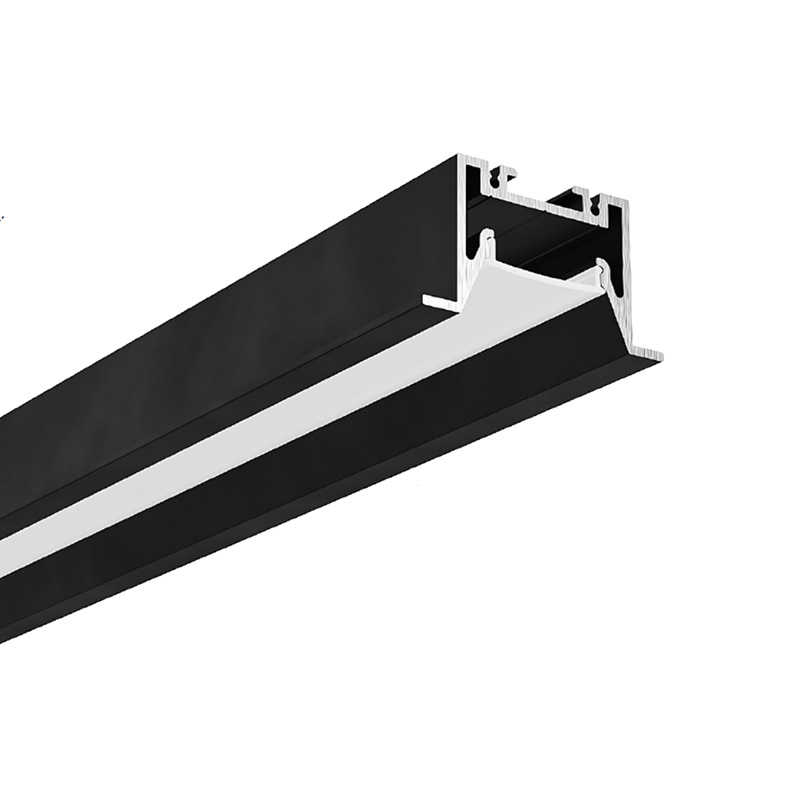

The recessed LED light channels feature an innovative regressed cover design that allows the light covers to be installed slightly back from the edge of the aluminum channels. Features spring clips to allow for flush mounting on the ceiling, providing a minimalist and clear finish. Perfect for modern residential and commercial spaces, these channel diffusers provide glare-free, uniform illumination while maintaining a clean architectural aesthetic with subtle shadow detailing. The ceiling LED channels are made of extruded aluminum material and feature anodized surface treatment, providing anti-oxidation resistance for a longer lifespan. The stock length is 2 m per piece and can be cut to any desired size. Five types of LED light covers are available as options for evenly, uniformly, and various levels of brightness lighting. They are made of high-quality, imported material and have different light transmittance capabilities, allowing you to use them for multiple scenes. It accommodates LED strips with a maximum width of 18mm. Recommend adding high-density SMD or COB strip lights without hotspots and dark areas. Four types of joiners are sold separately, allowing you to use them for angled, straight, and custom lighting designs. The spring clips and end caps are included.
Specifications:
- Model: ALP225
- Material: 6063-T5 extruded aluminum
- Surface treatment: Anodized
- Colors: Silver

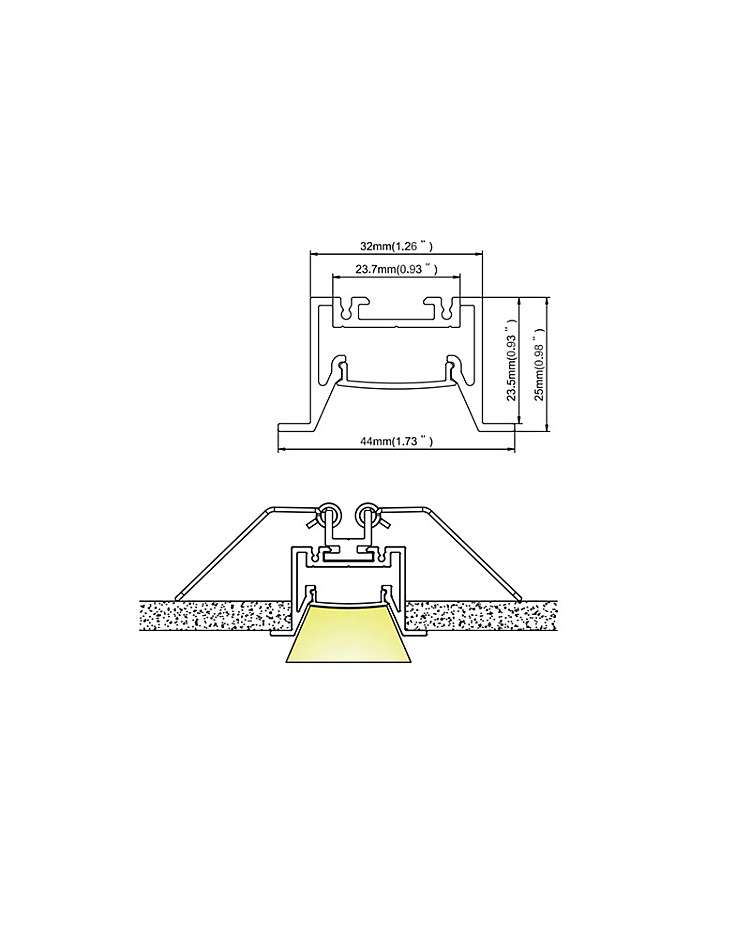

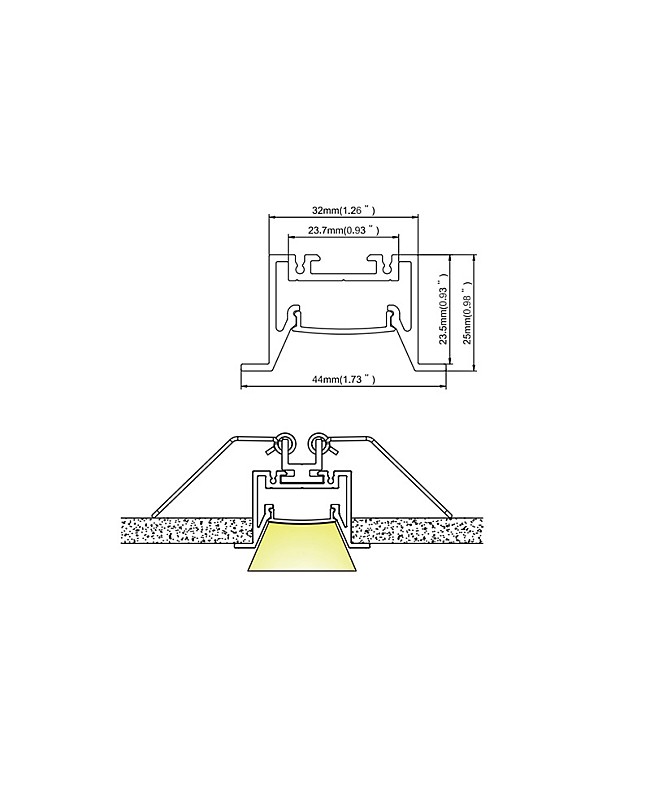

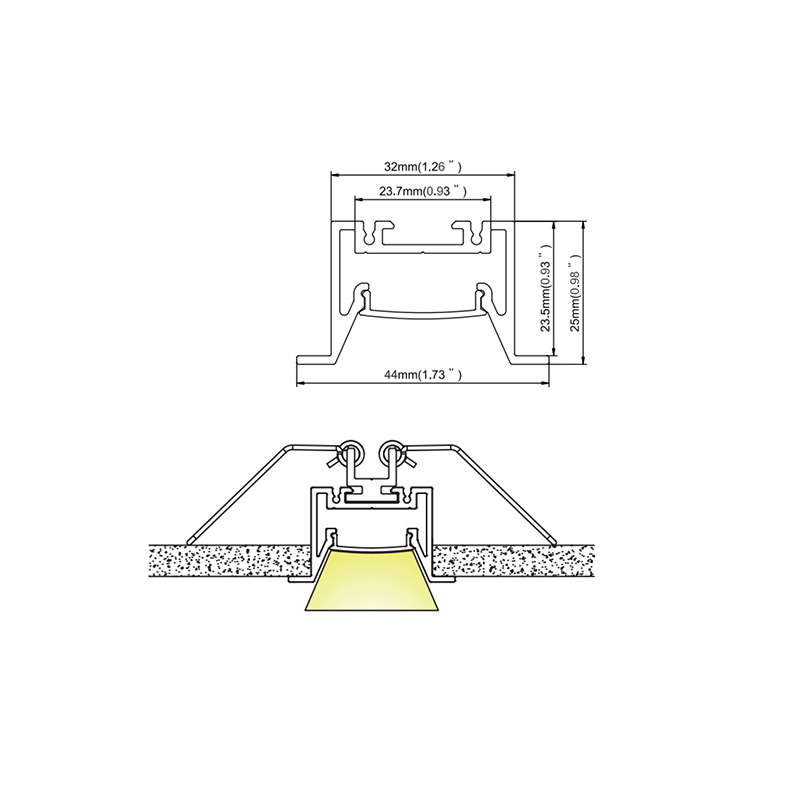

- Size ( W x H ): 44 mm x 25 mm ( 1.73" x 0.98" )
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom lengths: YES
- Inner width: 23.7 mm ( 0.93" )
- Max LED strip width: 18 mm ( 0.71" )
- Max power: 15W/m

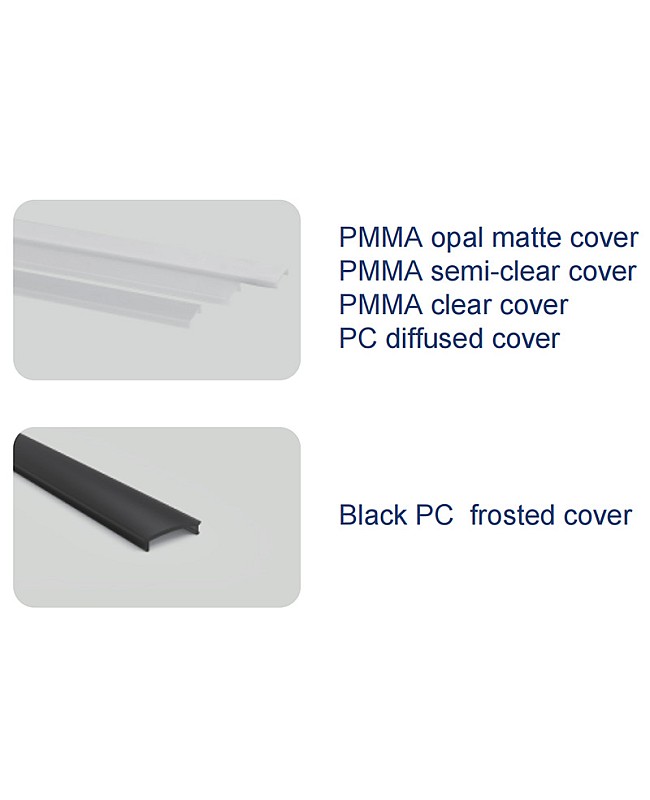

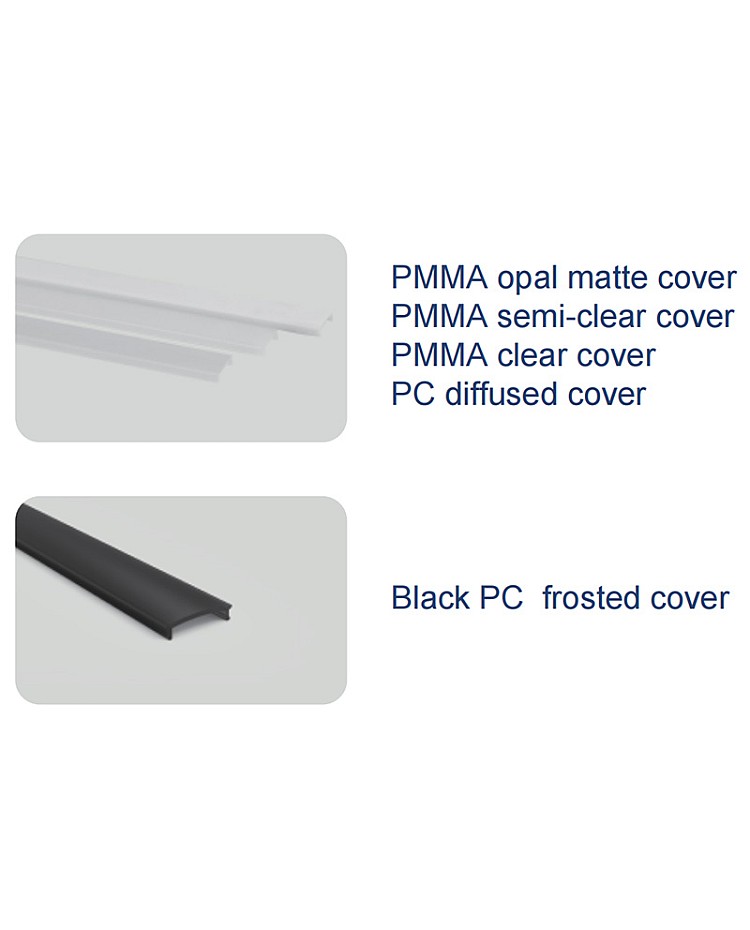

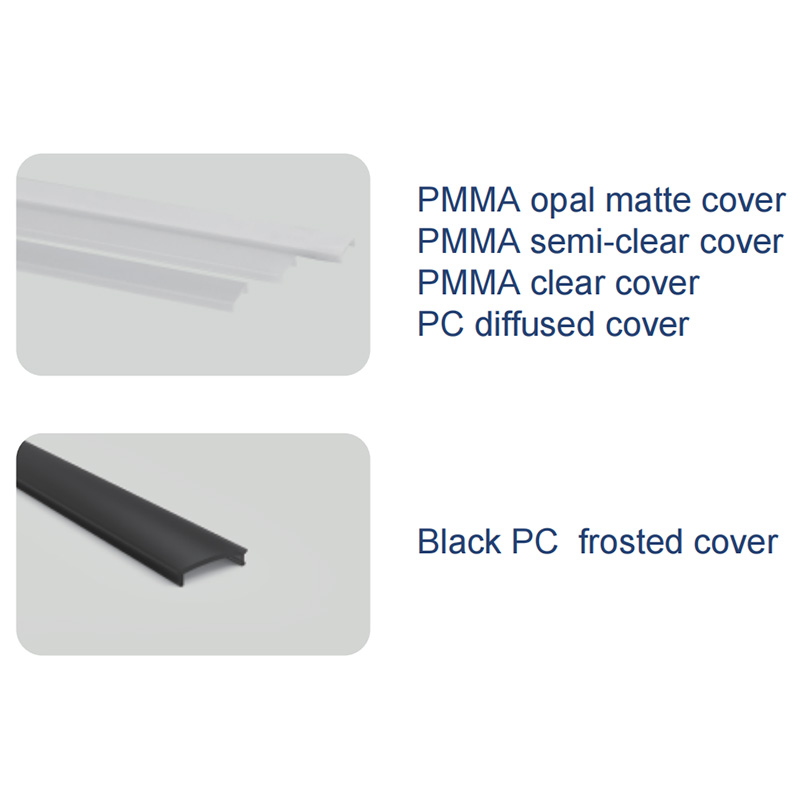

- Diffusers: PC diffused covers, PMMA clear covers, PMMA semi-clear covers, PMMA opal matte covers, black PC frosted covers
- Beam angle: 100°

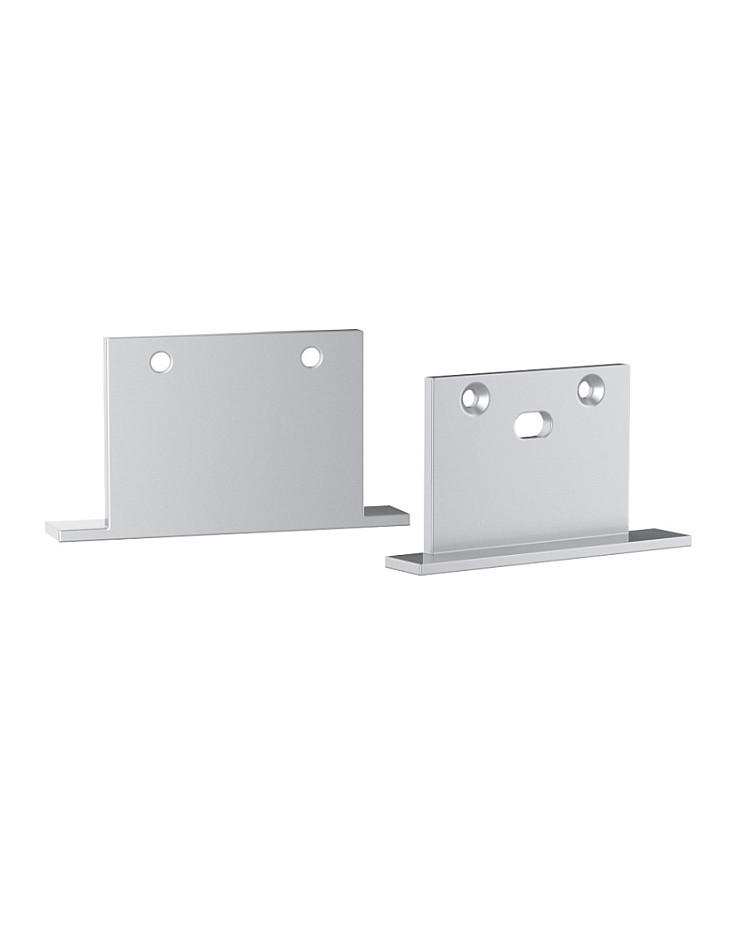

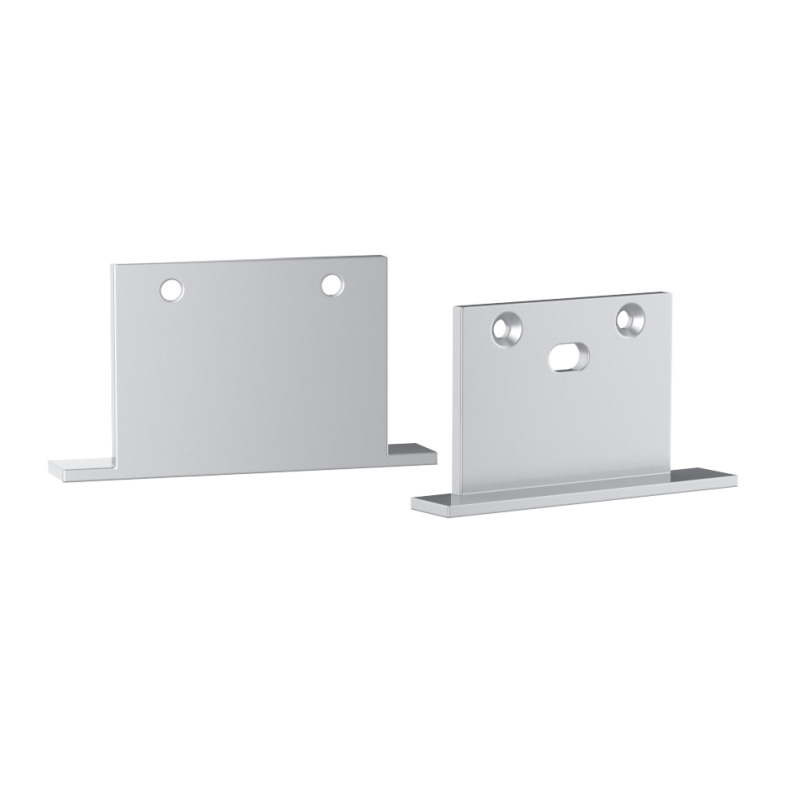

- End caps with and without wire holes are included
- 180°, 90°, 90° vertical, and 135° couplers sold separately

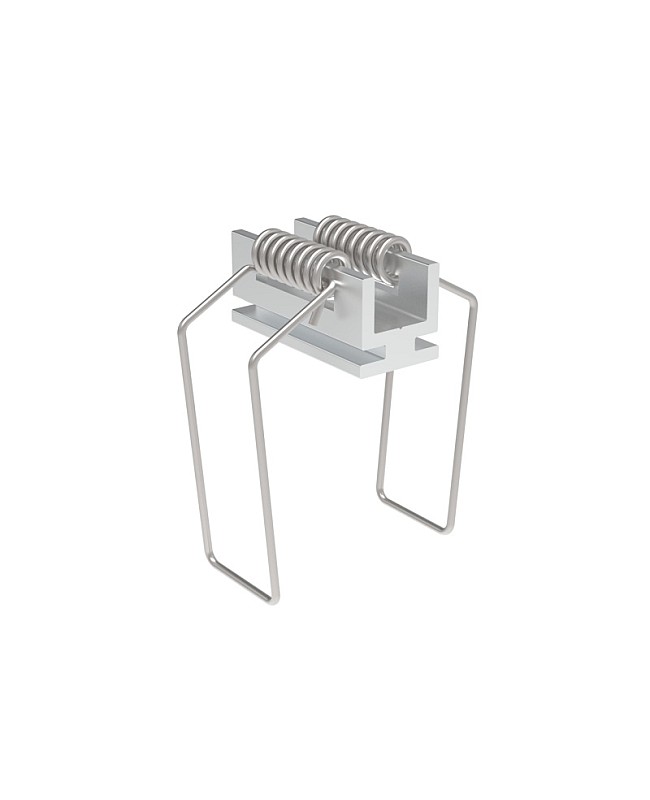

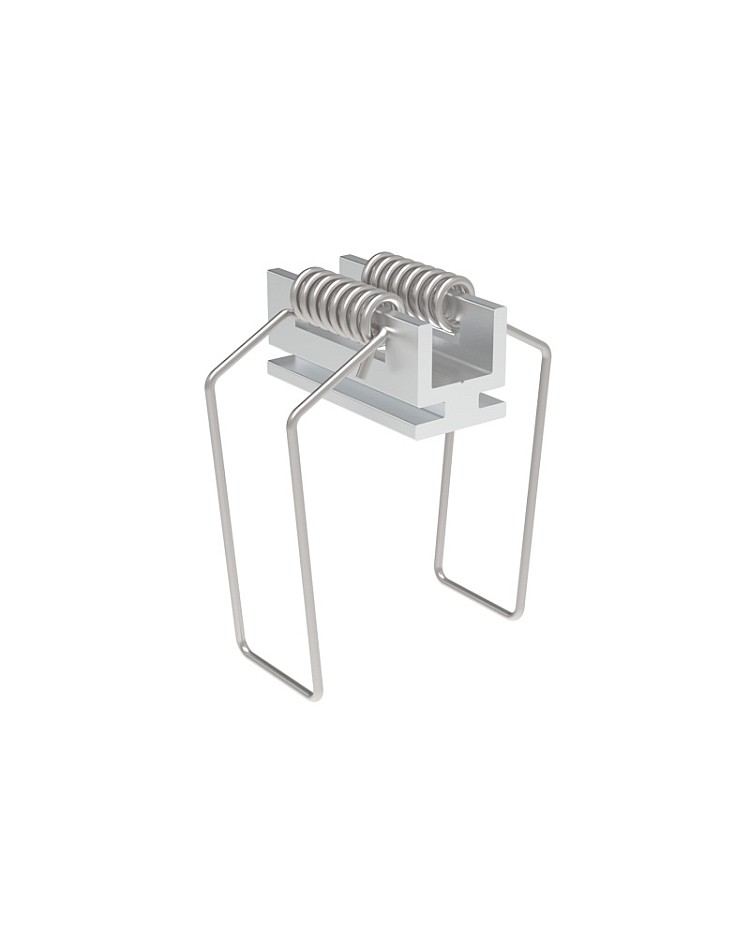

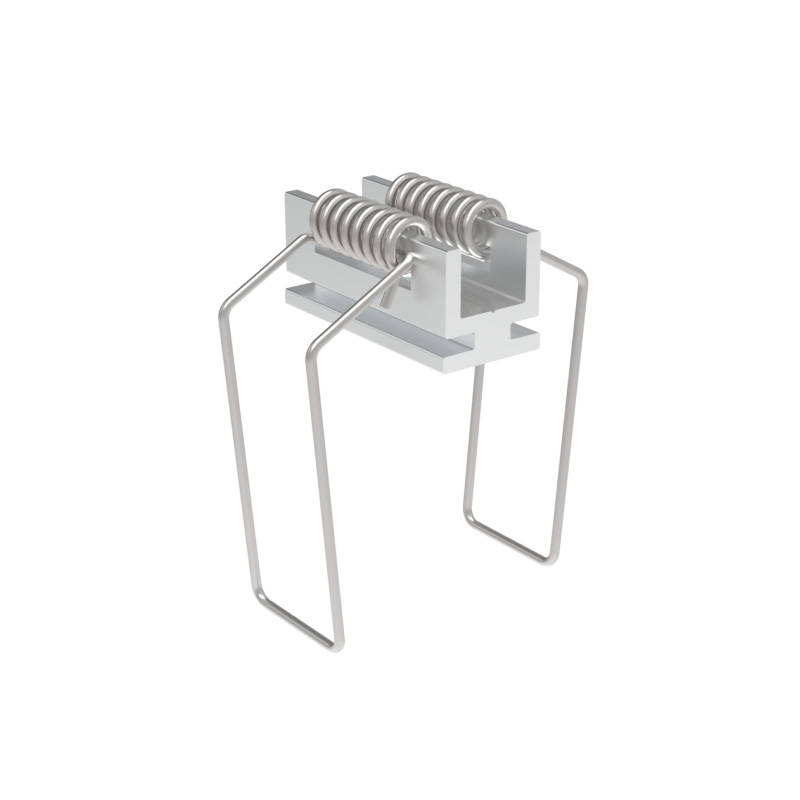

- Spring clips are included

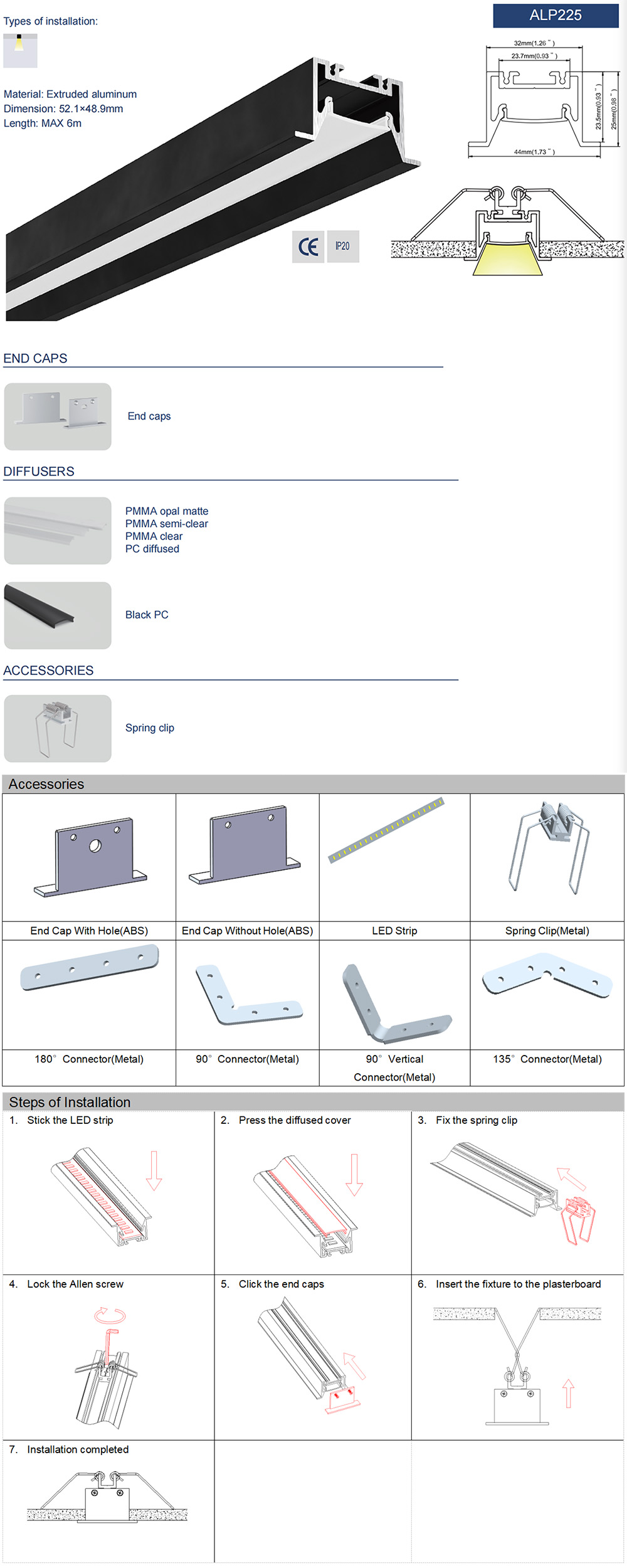

- Installation: Recessed
- Warranty: 5 years
Applications:
- Ceilings, kitchen task lighting
- Office coves, retail accent lighting
- Lobby ambient lighting, corridor illumination
- Shadow gap detailing
Includes:
1 * Anti-glare ceiling LED light channel with cover
End caps
Spring clips
