In Stock
$22.70 $10.70 Sale -53% OFF
Reward Points: 11
-
+

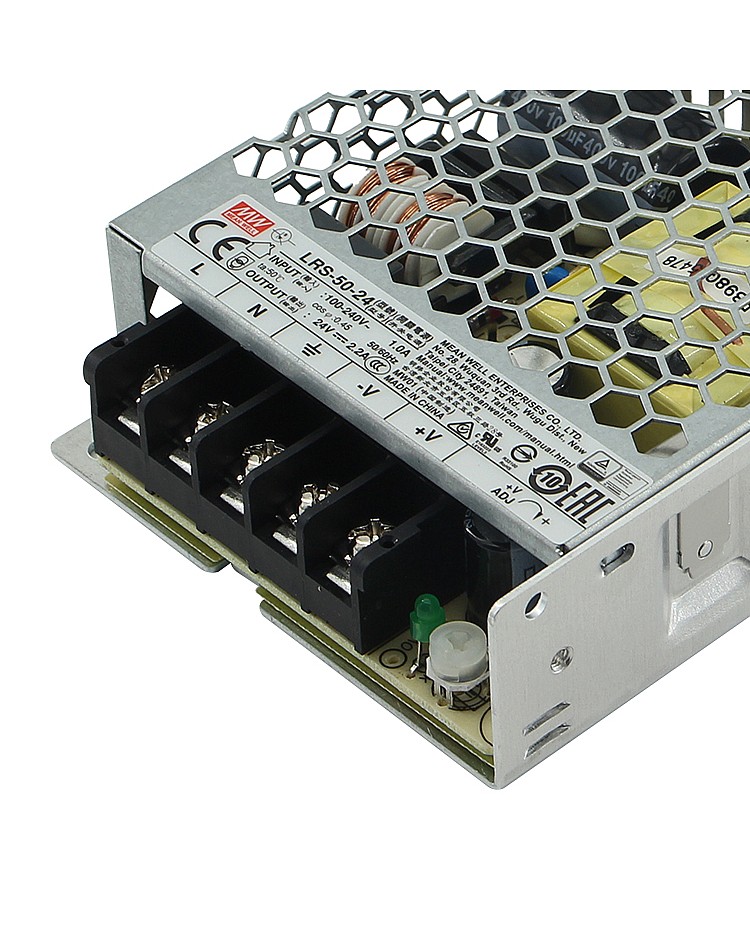

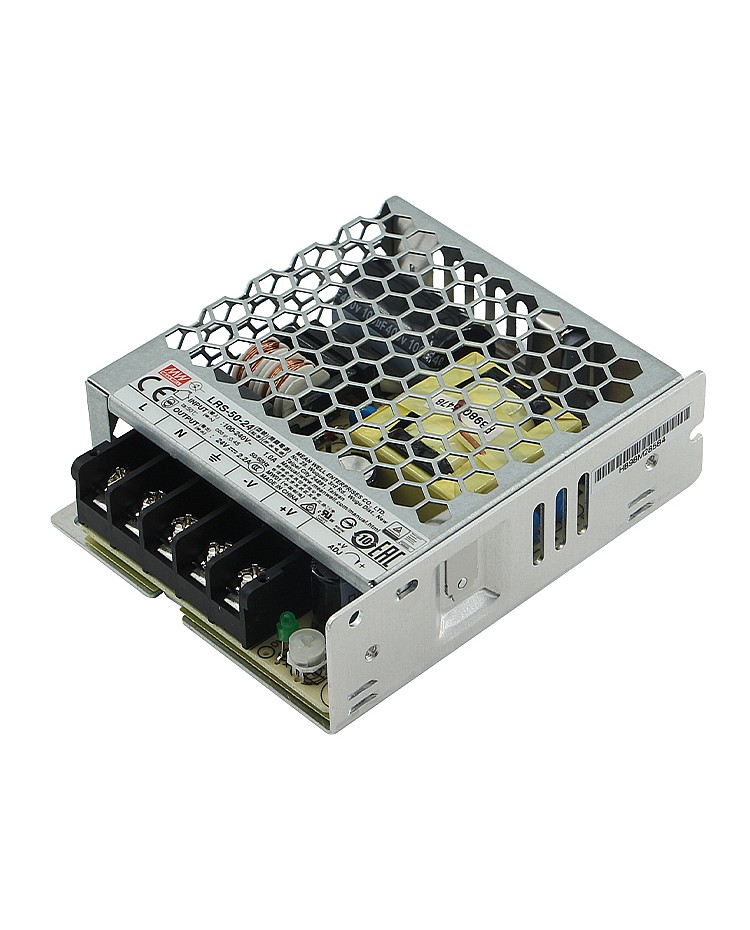

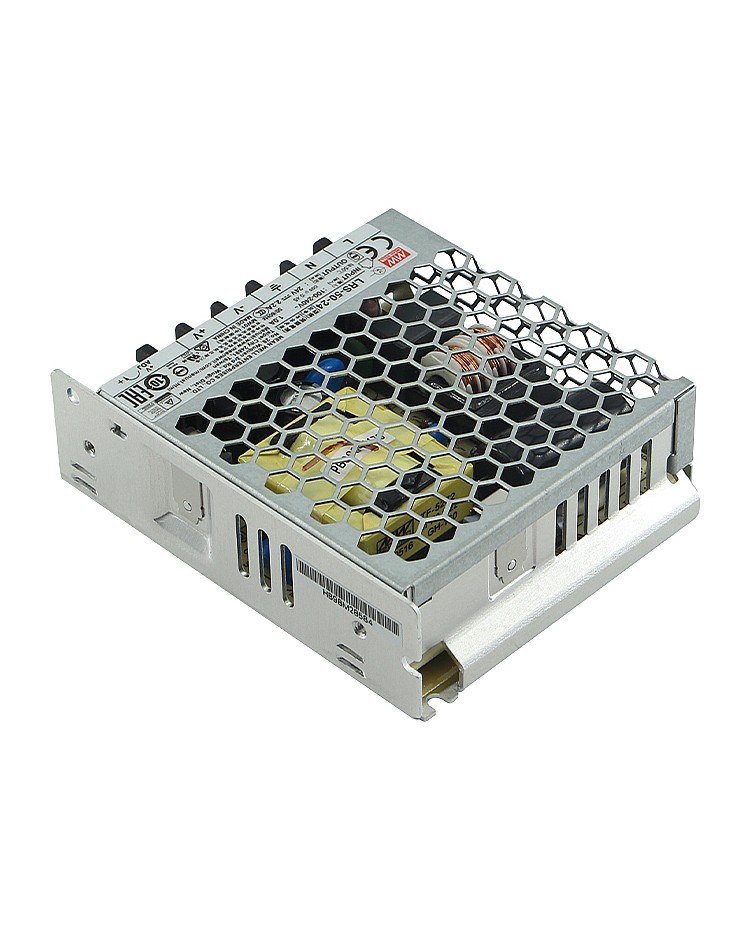

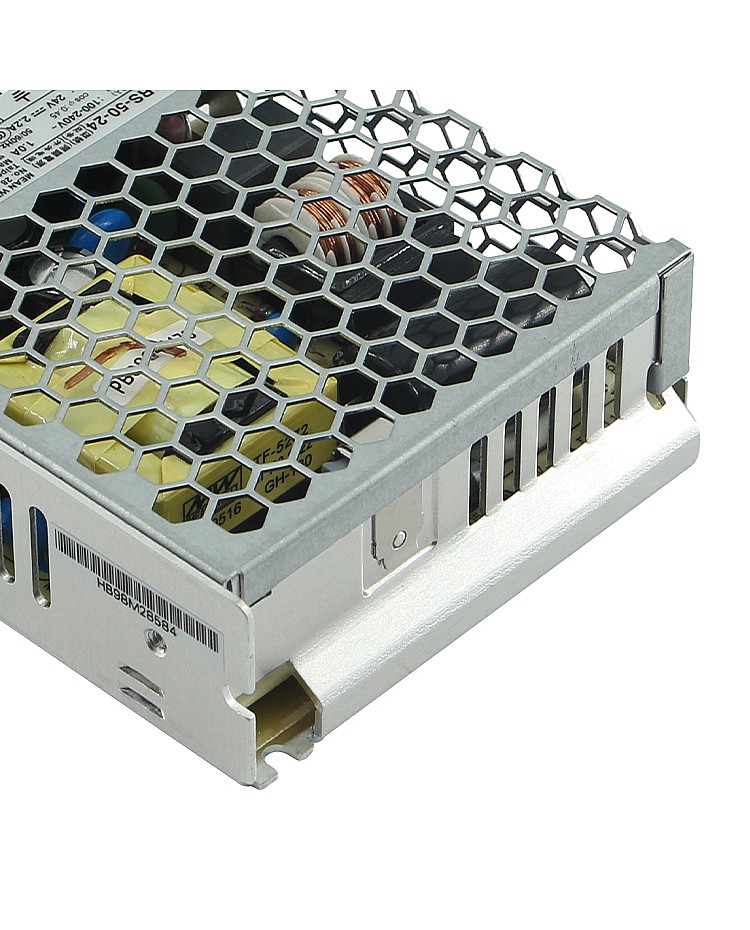

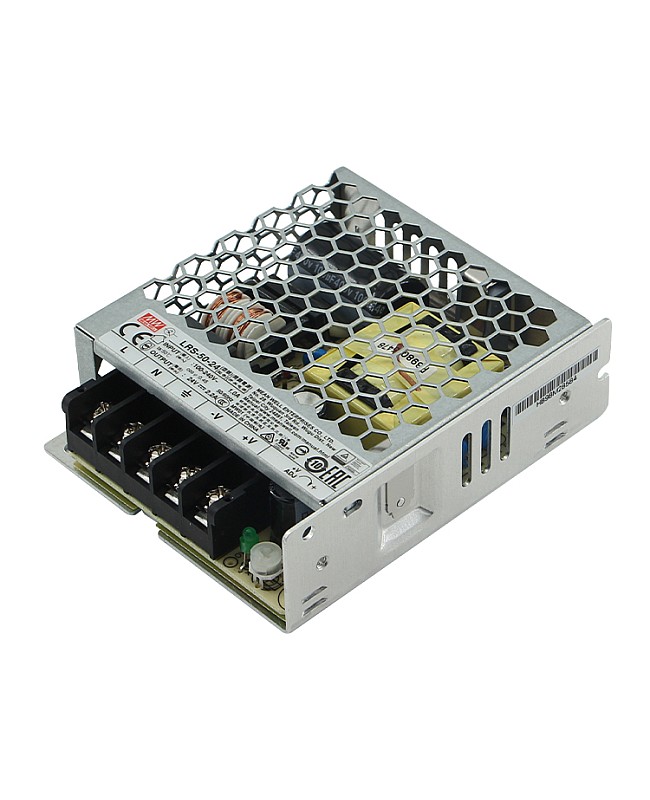

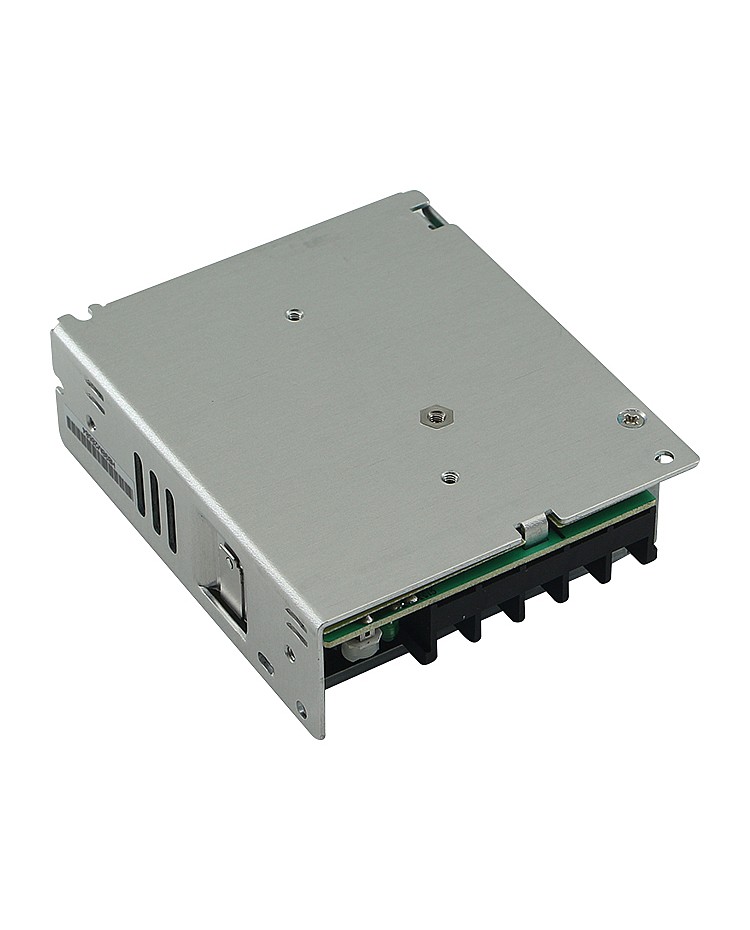

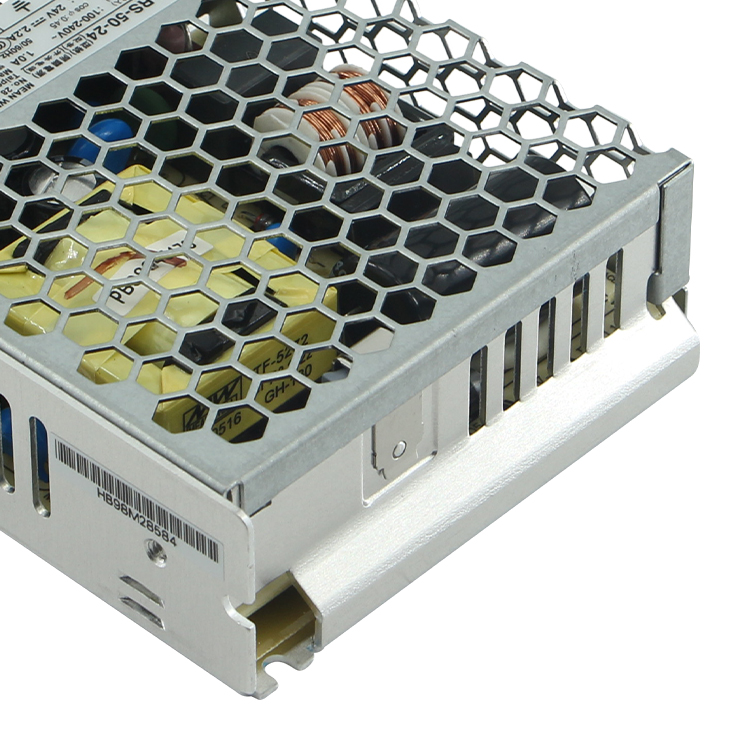

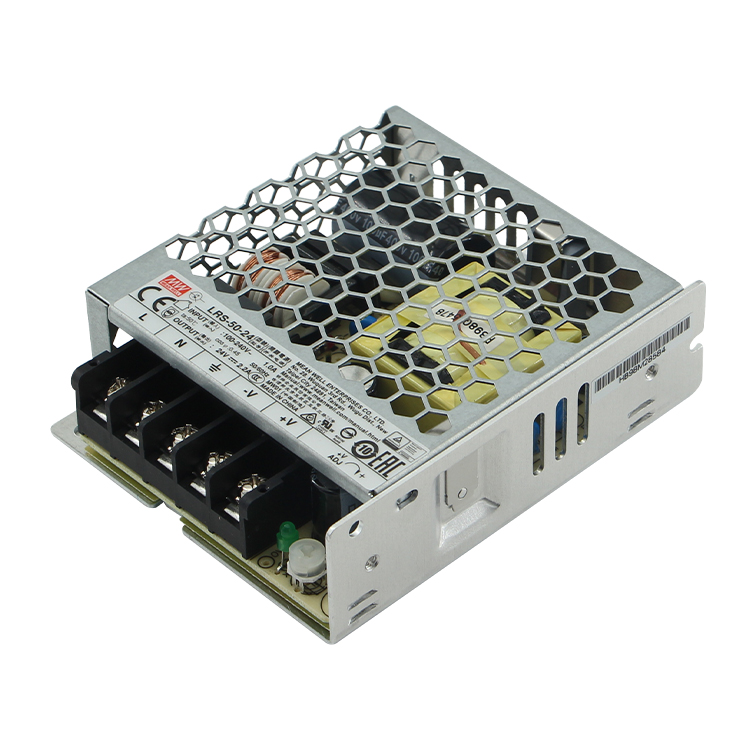

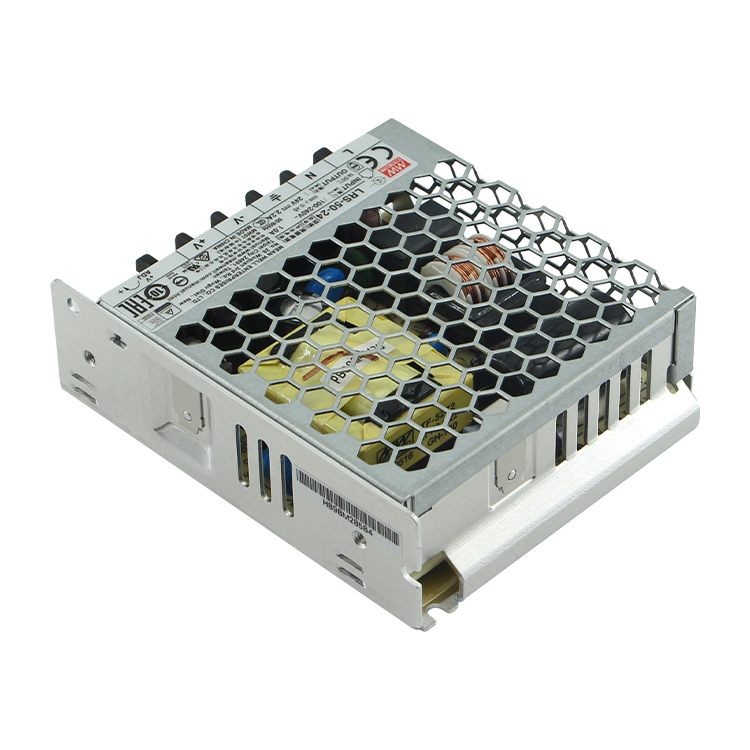

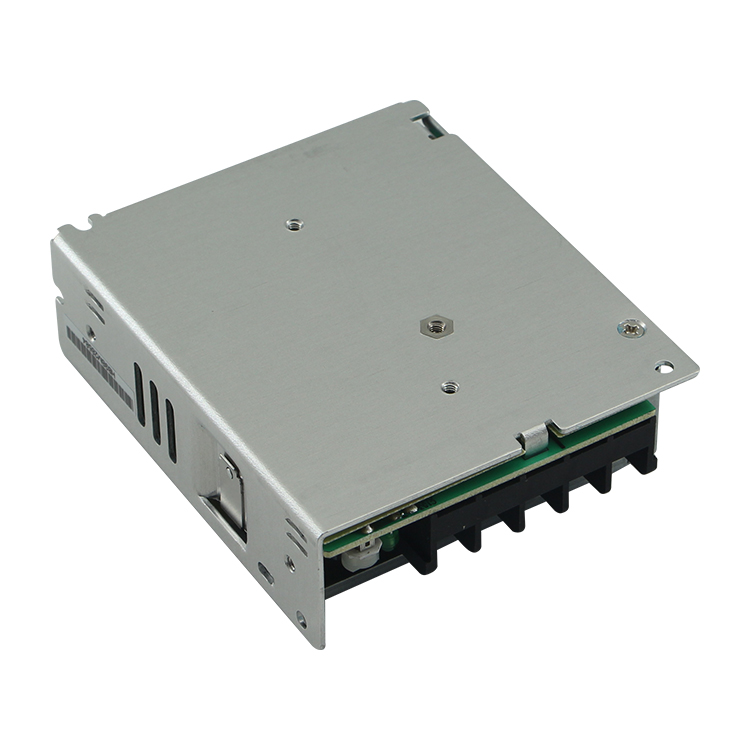

Check the Meanwell LRS-50 5V Power Supplies, with the small size and 1U low profile design, the universal AC input range from AC85V to AC264V, can connect to the public power system directly without an adapter, with single-output design and max loading power up to 50W, can choose the various DC output products from DC3.3V to DC48V. the metallic mesh case enhances the heat dissipation allows the whole Mean Well Power Supplies to operate from -30℃ through 70℃ under air convection without a fan. delivering an extremely low no-load power consumption less than 0.2W, allows the end system to easily meet the worldwide energy requirement. the LRS-50 has complete protection functions and 5G anti-vibration capacity, you can use them for the LED Lights indoors.

  • Universal AC Input / Full Range
  • Withstand 300VAC Surge Input For 5 Seconds
  • No Load Power Consumption<0.2W
  • Miniature Size And 1U Low Profile
  • High Operating Temperature Up To 70℃
  • Protections: Short Circuit / Over Load / Over Voltage
  • Cooling By Free Air Convection
  • Compliance To IEC/EN 60335-1(PD3) And IEC/EN61558-1, -2-16 For Household Appliances
  • Operating Altitude Up To 5000 Meters
  • Withstand 5G Vibration Test
  • High Efficiency, Long Life And High Reliability

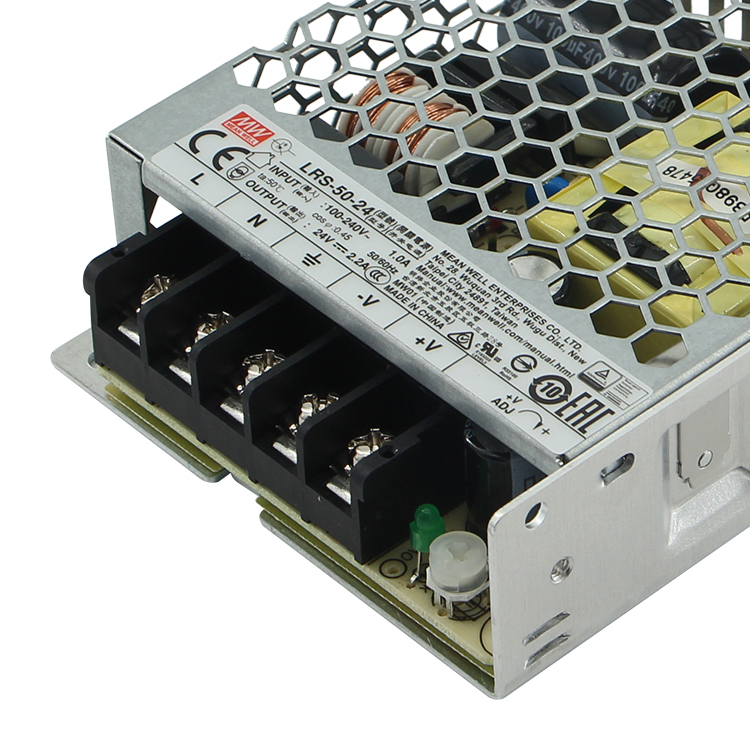

  • Intuitive LED Indicator Light For Power On
  • Over Voltage Category III
  • 100% Full Load Burn-in Test
  • 3 Years Warranty

Quick Links:

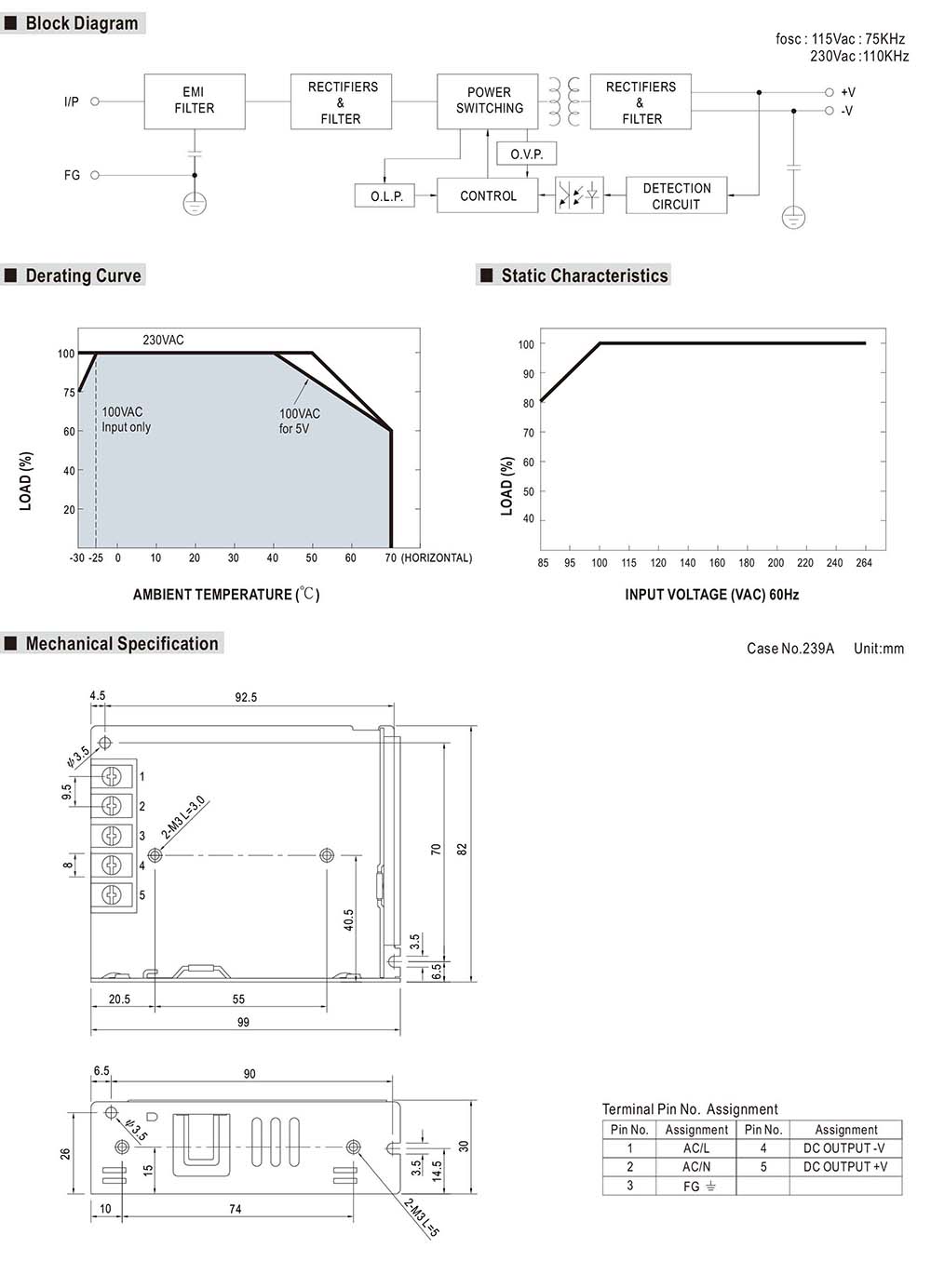

Mean Well LRS-50 Series Specification Document


Features:

  • Model: LRS-50
  • Size: 99*82*30mm(L*W*H)
  • Input Voltage: 85-264VAC
  • Frequency Range: 47-63Hz
  • Efficiency: 80%(DC3.3V), 83%(DC5V), 86%(DC12V), 88%(DC15V), 88%(C24V), 89%(DC36V), 90%(DC48V)
  • AC Current: 0.95A/115VAC  0.56A/230VAC
  • Output Voltage: DC3.3V, DC5V, DC12V, DC15V, DC24V, DC36V, DC48V
  • Rated Current: 10A(DC3.3V), 10A(DC5V), 4.2A(DC12V), 3.4A(DC15V), 2.2A(DC24V), 1.45A(DC36V), 1.1A(DC48V)
  • Rated Power: 33W(DC3.3V), 50W(DC5V), 50.4W(DC12V), 51W(DC15V), 52.8W(DC24V), 52.2W(DC36V), 52.8W(DC48V)
  • Working Temperature: -30℃-+70℃
  • Vibration: 10-500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
  • Safety Standards: UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16, CCC GB4943.1, etc
  • Over Load Protection
  • Over Voltage Protection
  • Over Temperature Protection


Includes:

1*Meanwell LRS-50 5V Power Supply
