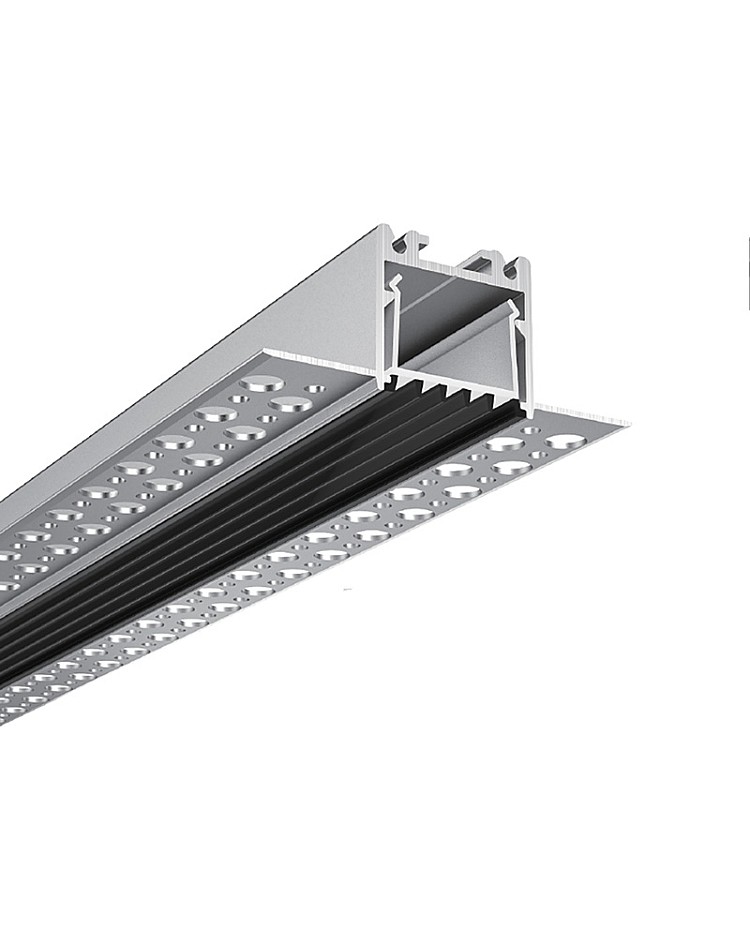

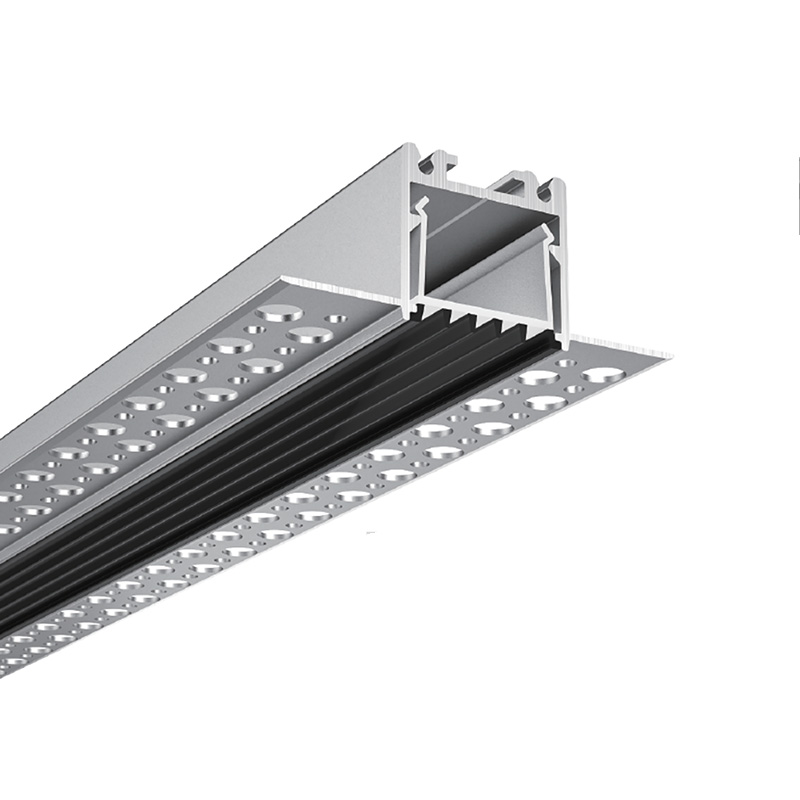

The recessed lighting channels are designed to be flush-mounted with drywall for a clean, invisible edge and seamless integration. There are two types of glare-free diffusers to deliver soft, uniform light. They are perfect for accent walls, ceilings, and modern interiors. They are made of 6063-T5 extruded aluminum alloy, have a silver anodized finish, are oxidation-resistant, and are long-lasting. The stock length is 2 meters per piece and can be cut to any size for your needs. The inner width is 27mm, allowing a maximum width of 26 mm for the strip lights. Recommend installing high-density bendable COB LED strips as the light source to create consistent, uniform lighting emission without dark areas or hot spots. The flexible LED strips are easy to attach to the aluminum channels, and the mud in the LED channels can serve as heat sinks for improved heat dissipation. Four types of diffusers are available: PC frosted covers, prismatic covers, white anti-glare covers, and black anti-glare covers. They are made of high-quality material, are anti-yellowing, and have perfect light distribution. The glare-free diffusers eliminate harsh reflections and hotspots, ensuring comfortable, eye-friendly lighting.
Specifications:
- Material: 6063-T5 extruded aluminum alloy
- Surface Treatment: Anodized
- Colors: Silver

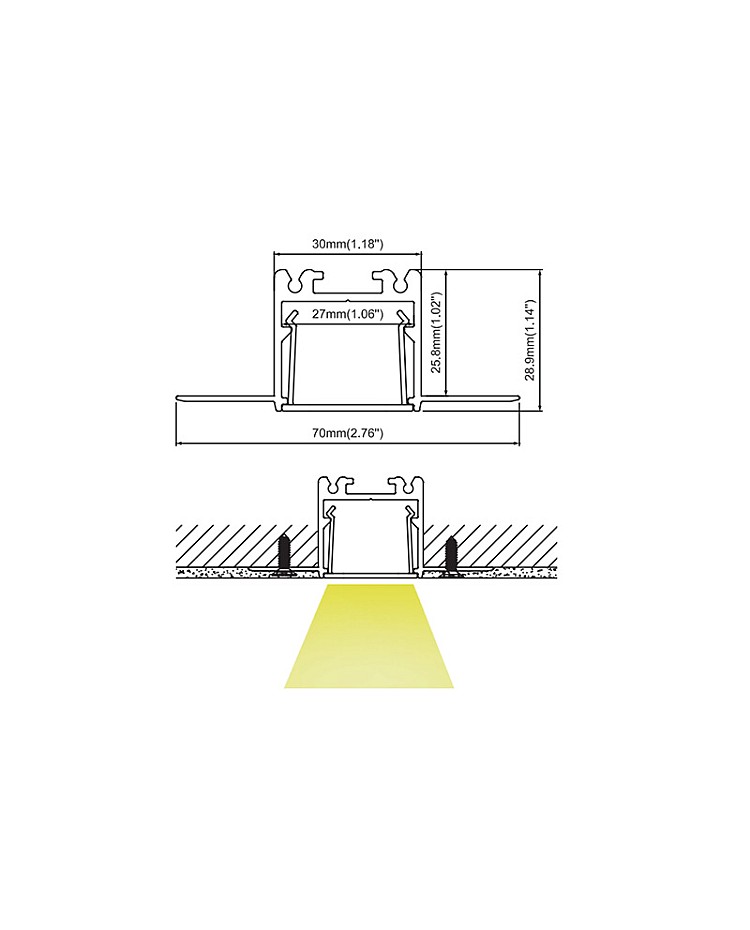

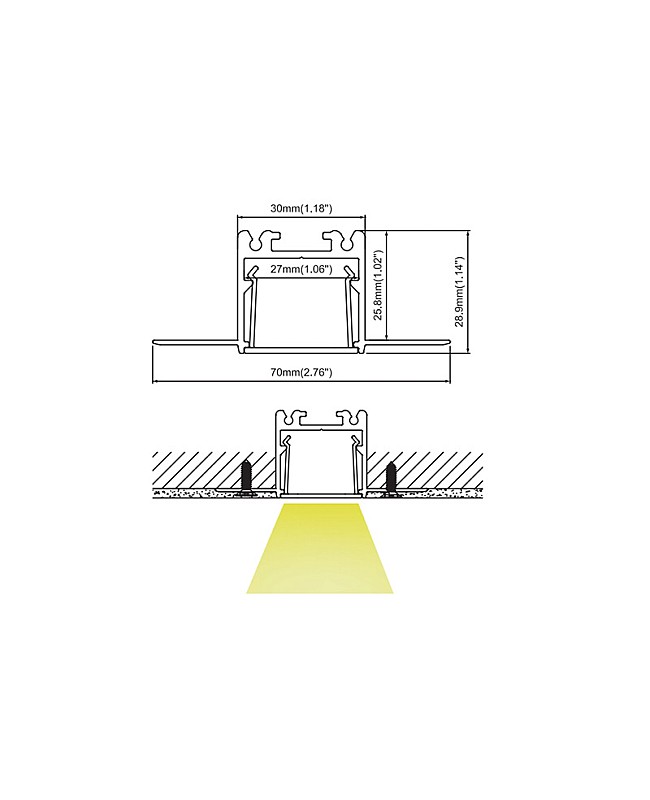

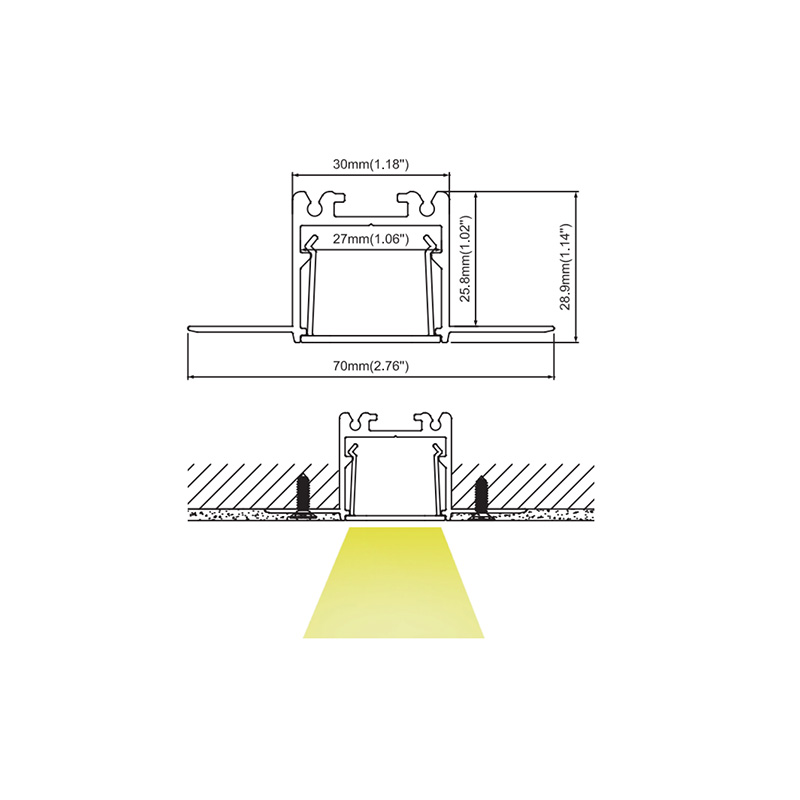

- Size(W*H): 70*28.9mm/2.76"*1.14"
- Length: 1M(39")/2M(78")
- Custom Length: YES
- Inner Width: 27mm/1.06"
- Max LED Strip Width: 26mm/1.02"
- Max Power: 20W/M

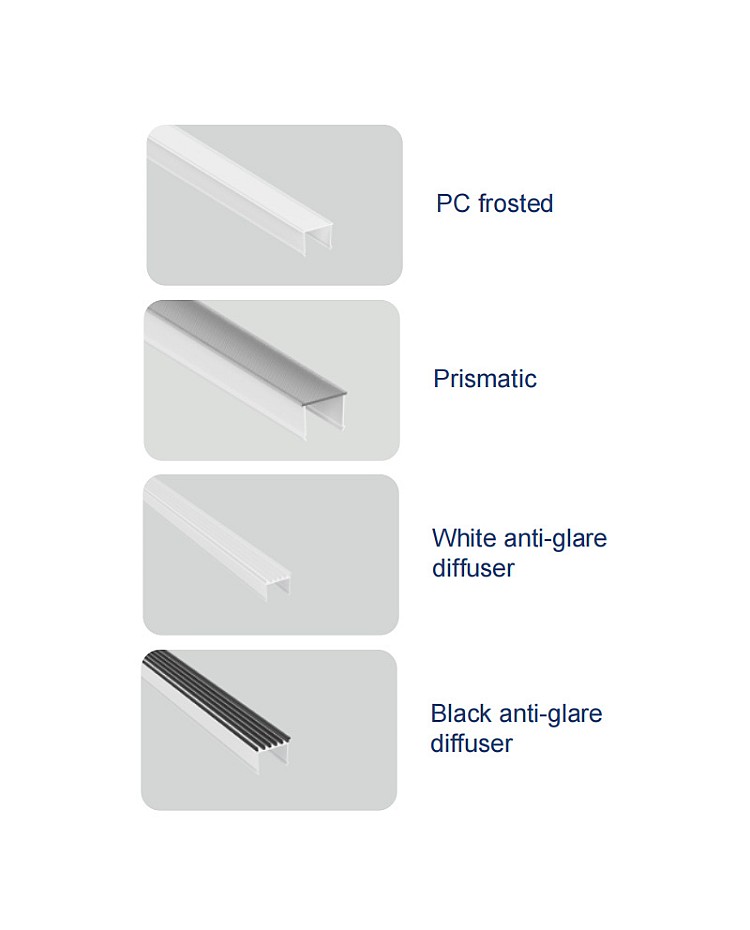

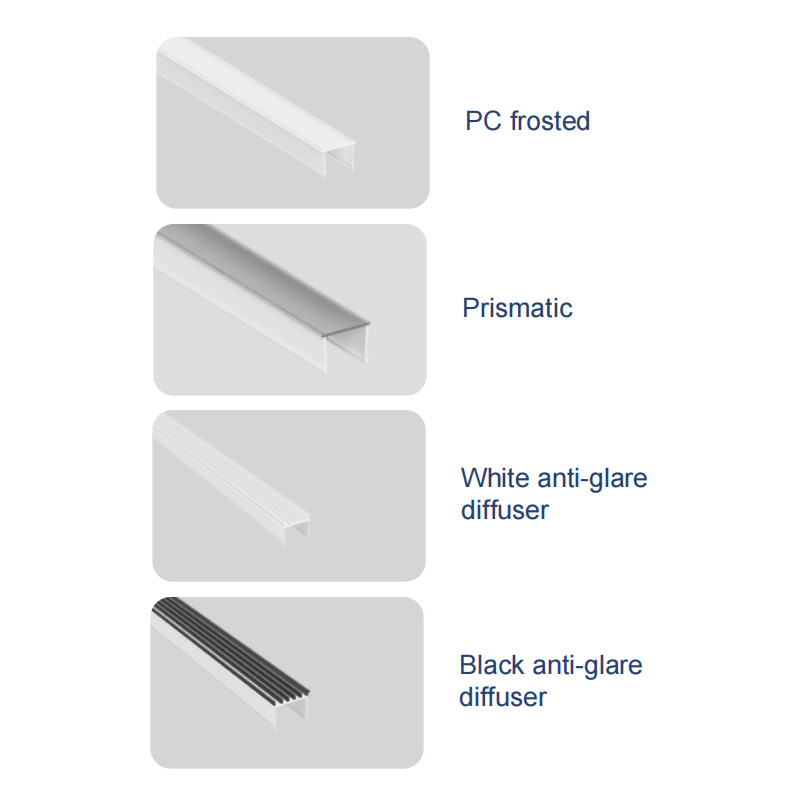

- Diffusers Available: PC frosted covers, prismatic lens, white anti-glare covers(ribs), black anti-glare covers(Ribs)
- Tolerance: ±1%
- IP Rate: IP20 non-waterproof
- Installation: Mud-in
- Applications: Ceiling/wall lights
- 5-year warranty
Applications:
- Wall & ceiling accent lighting
- Staircase & hallway safety lighting
- Retail & hospitality ambient lighting
- Modern residential & commercial interiors
Includes:
1 * Drywall recessed lighting channel with diffuser

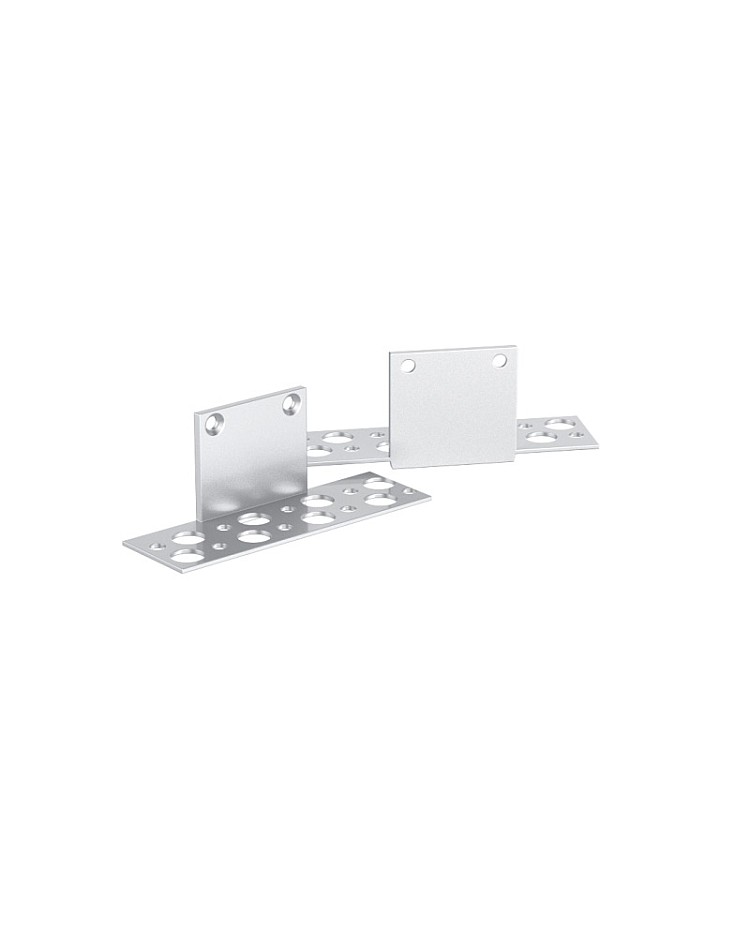

End caps
